WFG 45 - Wine cellar VESTFROST - Free user manual and instructions

Product type	Wine cellar
Brand	Vestfrost
Model	WFG 45
Estimated capacity	Approximately 45 bottles
Temperature zones	2 independent zones
Upper zone temperature range	5°C to 10°C
Lower zone temperature range	10°C to 18°C
Display	Electronic with integrated temperature filter
Lighting	LED with adjustable auto-off
Power supply	220-240 V ~ 50 Hz
Refrigerant	Flammable (hydrocarbons)
Defrost	Automatic
Door opening direction	Reversible (right or left)
Installation	Built-in or freestanding
Adjustable feet	Yes (front)
Temperature alarm	Yes (deviation of 3°C for more than 1 hour)
Shelf material	Wood (natural untreated)
Maintenance	Automatic defrost, clean with soft cloth and warm soapy water

Frequently Asked Questions - WFG 45 VESTFROST

How to adjust the temperature in both compartments?

Use the two buttons on the control panel. Press the button corresponding to the desired zone (upper or lower). The display switches to the programmed temperature. Press repeatedly to scroll through available temperatures. The upper zone can be set between 5°C and 10°C, the lower zone between 10°C and 18°C.

What to do if the screen flashes and shows 'Lo' or 'Hi'?

This indicates a temperature alarm: the temperature has deviated more than 3°C from the programmed value for more than one hour. Check that the door is properly closed and that ventilation is unobstructed. If the problem persists, contact after-sales service.

How to reverse the door opening direction?

Unplug the appliance and lay it on its back. Open the door to 90°, remove the door pivot screws, then the door. Unscrew the opening limiter screw and reinstall it on the left side. Remove the upper right hinge and install the provided left hinge. Reverse the lower hinge. Turn the door pivot 180° and reinstall it. Replace the door and screw it in. Insert the plugs.

How to clean my Vestfrost wine cellar?

Unplug the appliance. Use a soft cloth soaked in a mixture of warm water (max 65°C) and mild detergent. Rinse with clean water and dry thoroughly. Do not use abrasive products or sharp instruments. Regularly clean the door seal with clean water. Vacuum dust from the condenser under the appliance.

Water is flowing at the bottom of the wine cellar. What to do?

This is usually due to a clogged defrost water drain tube. Clean the defrost water gutter and the drain hole located in the back wall of the cabinet.

How to replace the LED lighting?

The lighting consists of LEDs designed to last as long as the appliance. If replacement is necessary, contact authorized after-sales service. Do not attempt to replace it yourself.

Can I built-in my WFG 45 wine cellar?

Yes, the WFG 45 model can be built into a kitchen unit or installed as a freestanding unit. Ensure that air circulates freely at the base and that the lateral space on the hinge side is at least 5 mm.

What is the bottle capacity of the wine cellar?

The estimated capacity is approximately 45 bottles, corresponding to the WFG 45 model. However, the exact number depends on bottle size. Refer to the manual for more details on shelves.

How to make the LED light stay on permanently?

Press and hold the 'LIGHT' button for 5 seconds until the display shows 'LP'. The light will remain on until you turn it off manually. To return to automatic mode (off after 10 minutes), press and hold the 'LIGHT' button again until 'LF' is displayed.

What to do if the appliance does not start?

Check that the appliance is plugged in and the fuse has not blown. Press the on/off switch (hold for 3 seconds). Ensure the outlet is powered. If the problem persists, contact after-sales service.

USER MANUAL WFG 45 VESTFROST

Compact Wine Cabinet WFG32 / WFG45

Instructions for Use (GB)

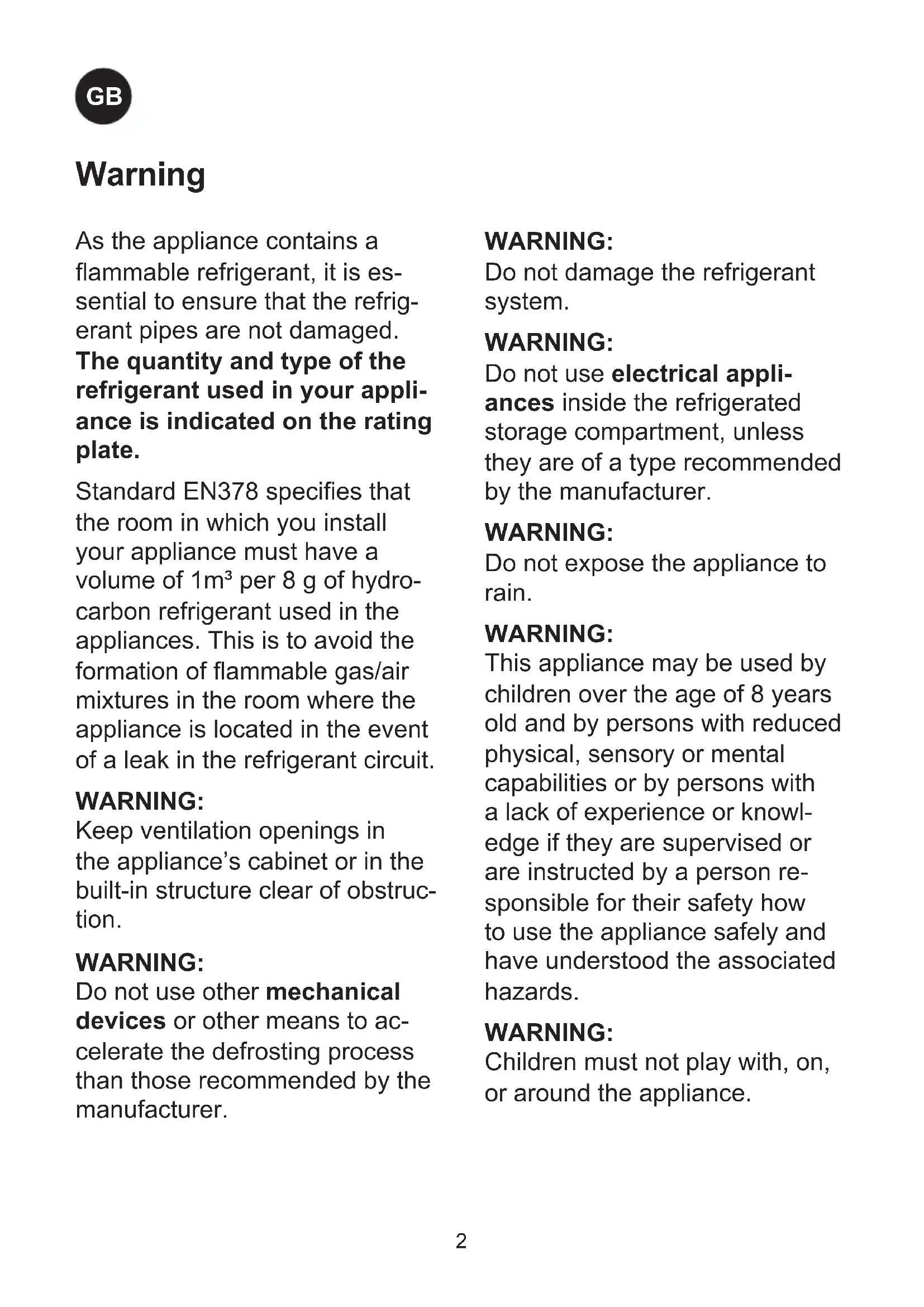

As the appliance contains a flammable refrigerant, it is essential to ensure that the refrigerant pipes are not damaged. The quantity and type of refrigerant used in your appliance are indicated on the rating plate.

Standard EN378 specifies that the room in which you install your appliance must have a volume of 1 m³ per 8 g of hydrocarbon refrigerant used in the appliance. This is to avoid the formation of flammable gas/air mixtures in the room where the appliance is located in the event of a leak in the refrigerant circuit.

WARNING:

Keep ventilation openings in the appliance's cabinet or in the built-in structure clear of obstruction.

WARNING:

Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING:

Do not damage the refrigerant system.

WARNING:

Do not use electrical appliances inside the refrigerated storage compartment, unless they are of a type recommended by the manufacturer.

WARNING:

Do not expose the appliance to rain.

WARNING:

This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsible for their safety how to use the appliance safely and have understood the associated hazards.

WARNING:

Children must not play with, on, or around the appliance.

WARNING:

Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.

WARNING:

Do not store explosives, such as aerosol cans with flammable propellants in the unit.

WARNING:

Danger risk of fire or explosion if flammable refrigerant are used. To be repaired only by trained personnel.

WARNING:

When positioning the appliance, ensure the power cord is not trapped or damaged.

WARNING:

Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

• Always keep the keys in a separate place and out of reach of children.
• Before servicing or cleaning the appliance, unplug the appliance from the mains or disconnect the electrical power supply.
• Frost formation on the interior evaporator wall and upper parts is a natural phenomenon. Therefore, the appliance should be defrosted during normal cleaning or maintenance.
• Please note that changes to the appliance construction will cancel all warranty and product liability.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
• This appliance is intended to be used exclusively for the storage of wine.

CLASS 1 LED PRODUCT

Contents

Warning 2 Savings in energy consumption in the use .4 Before use 5 Technical data 5 Get to know your wine cooler 6 Installation and start-up 7 Operation and function 9 LED light 10 Change of hinge side - WFG32 11 Change of hinge side - WFG45 12 Defrosting, cleaning, and maintenance ....13 Fault finding 14 Warranty, spare parts and service 15 Disposal 16

Savings in energy consumption in the use

The energy consumption reduces ...

1) The lower the ambient temperature is. 2) The warmer the thermostat set point is. 3) The lower the number and the shorter the length of the door openings.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

This appliance is intended to be used in households and similar applications.

• Staff kitchen areas in shops, offices and other working environments.
• Used by clients in hotels, motels, bed and breakfasts and other residential type environments.
• Catering and similar non-retail applications.

Before use: Technical data

Before operating your new appliance, please read the following instructions carefully as they contain important information on safety, installation, operation and maintenance. Keep the instructions for future reference. On receipt, check to ensure that the appliance has not been damaged during transport. Transport damage should be reported to the local distributor before the wine cooler is put into use.

Remove the packaging. Clean the inside of the cabinet using warm water with a mild detergent. Rinse with clean water and dry thoroughly (see cleaning instructions). Use a soft cloth. If the appliance has been laid down during transport, or if it has been stored in cold surroundings (colder than +5°C), it must stabilize in an upright position for at least one hour before being switched on.

Wiring and connections in power supply systems must comply with all applicable (local and national) electrical codes. Consult these codes for lengths and sizes prior to cabinet installation.

This device complies with relevant EU directives including Low Voltage Directive 2014/35/EU and Electromagnetic Compatibility Directive 2014/30/EU.

The socket should be freely accessible.

Connect the appliance only to 220/240 V / 50Hz alternating current via a correctly installed earthed socket.

The socket must be fused with a 10-13 A fuse.

If the appliance is to be operated in a non-European country, check on the rating plate whether the indicated voltage and current type correspond to the values of your mains supply.

Information regarding voltage, current or power are given on the rating plate.

The power cord may be replaced by a technician only.

The rating plate provides various technical information as well as type and serial number.

Get to know your wine cooler

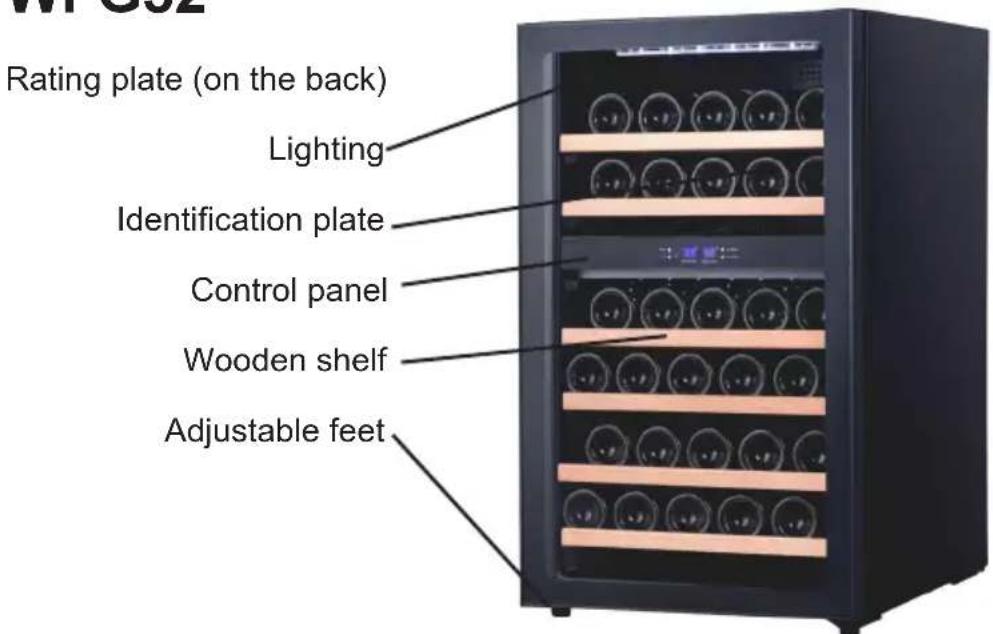

WFG32

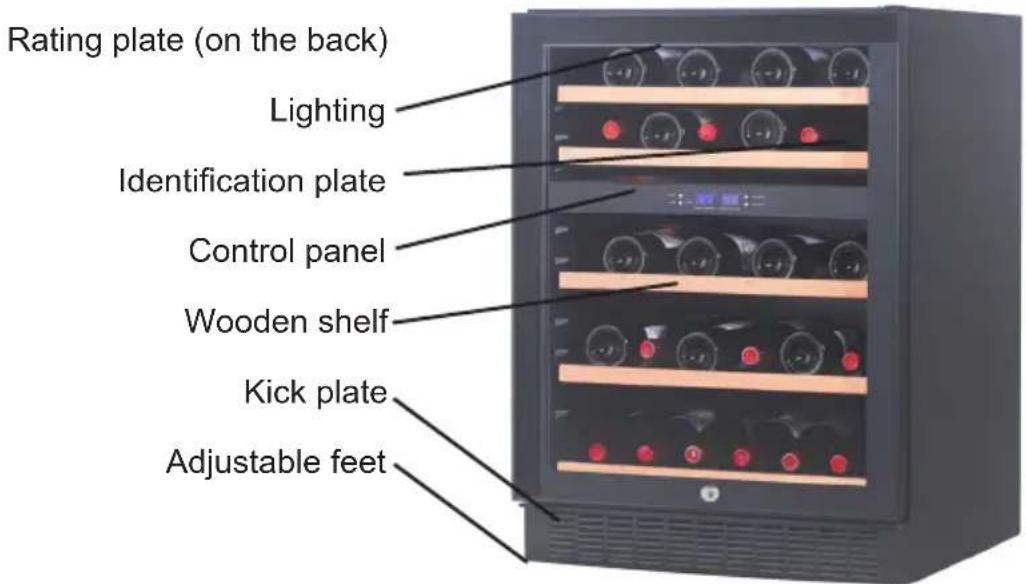

WFG45 fig.1

Installation and start-up

Room temperature

The climate class is stated on the rating plate (see page 15).

Note: The appliance operates best at room temperatures between 10°C and 32°C.

Placement

For safety and operational reasons, the appliance must not be installed outdoors.

The appliance should be placed on a level surface in a dry, well-ventilated room (max. 75% relative air humidity). Never place the appliance close to sources of heat such as cookers or radiators, and avoid placing it in direct sunlight.

Installation

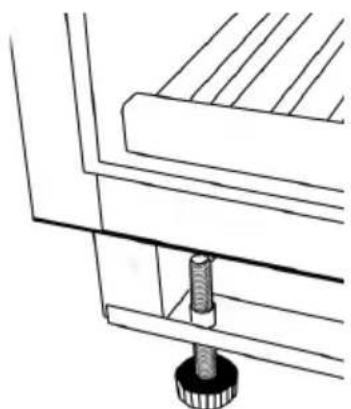

The surface on which the appliance is to be placed must be level. Do not use a frame or similar. It is important that the appliance be absolutely level. It can be levelled by screwing the adjustable feet at the front of the appliance up or down (fig. 2). Use a spirit level to check that the appliance is absolutely level sideways.

fig. 2

WFG32 is only for free-standing, and sufficient free air around the appliance must be ensured. (fig. 4)

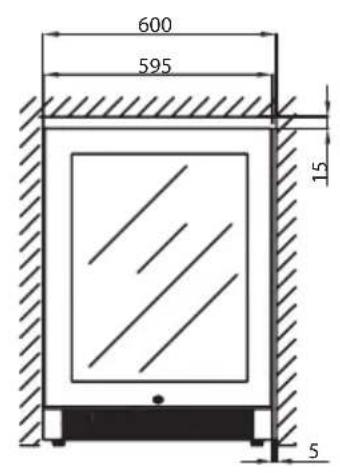

The appliances WFG45 can be installed as built-in units in kitchen elements or be placed free-standing (fig. 5).

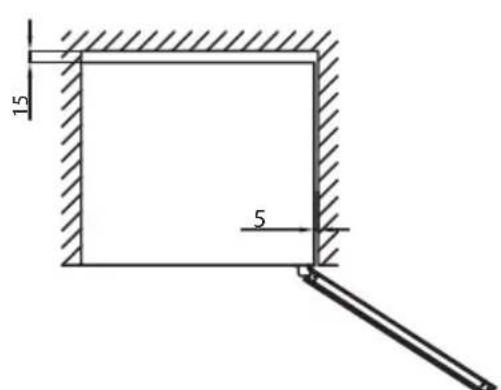

At built-in condition ensure sufficient airflow through the kitchen base in front of the appliance.

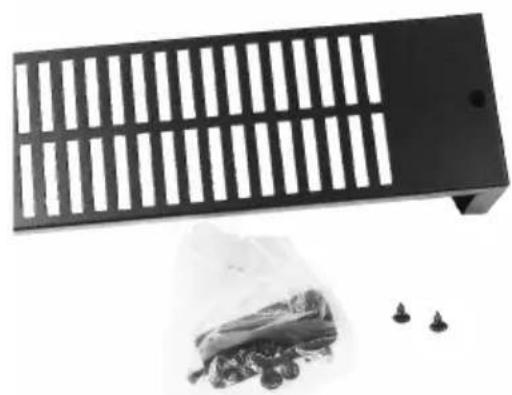

WFG45: Along with your new cabinet is a replaceable kick plate which can be fixed with the two screws. These two screws are located in the accessories. Hingeside requires a 5 mm space.

NOTE: The kick plate should not be installed if the unit installed behind a kitchen shelf.

fig. 3

If needed there is a kit in the accessories bag, for fixing the cabinet up against a table top.

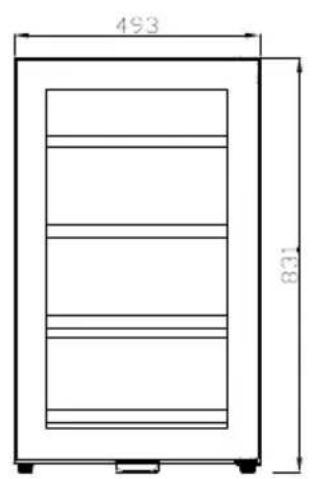

WFG32

fig. 4

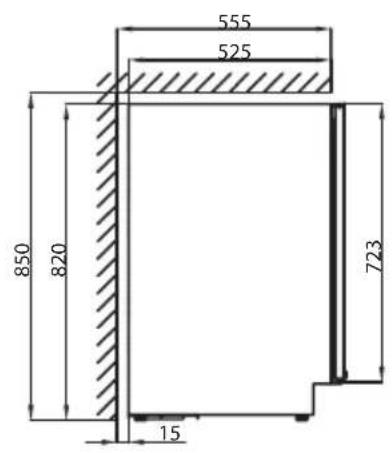

WFG45

fig. 5

Operation and function

Electronic control

The electronic control ensures that the set temperatures are maintained in the cabinet compartments. This is accomplished by complex control of the refrigerating system, and the fan. Following any power failure, the temperature setting is reverted to factory defaults:

Upper compartment: 6°C

Lower compartment: 12°C

The electronic controls have the following functions:

• Temperature setting
• Temperature display, automatic defrosting, high and low temperature alarm, light on/off
• Cabinet on/off (push and hold for 3 seconds)

Temperature display

The display shows the actual temperature in the compartments. The temperature display has a built-in filter that simulates the actual temperature in the bottles. The displayed temperature is therefore not affected by transient fluctuations in air temperature.

Temperature setting

The temperature is set by using the two buttons on the control panel. By pushing a temperature button, the display changes from actual temperature to set value. By pushing the button repeatedly, the set value scrolls through the available temperature span.

The temperature in the upper compartment is adjustable from 5 - 10°C . The temperature in the lower compartment is adjustable from 10 - 18°C .

Temperature alarm

If the temperature has deviated 3°C from the chosen set value for at least 1 hour, the display flashes and Lo / actual respectively Hi / actual temperature are alternately shown.

It is recommended that wine be served at a temperature which is a couple of degrees lower than the desired drinking temperature as the wine will be warmed slightly when it is poured into the glass.

LED light

In order to reduce energy consumption, this wine cabinet will automatically switch on the LED lights after 10 minutes.

If you want the LED light to remain on continuously, this is possible. Please press and hold the "LIGHT" button for 5 seconds, the display will show "LP". After 4 seconds, the display will revert to normal and the light will remain on until manually switched on.

If you want to revert and conserve energy (recommended), please press and hold the "LIGHT" button for 5 seconds, the display will show "LF". After 4 seconds, the display will revert to normal, and the light will automatically switch on after 10 minutes.

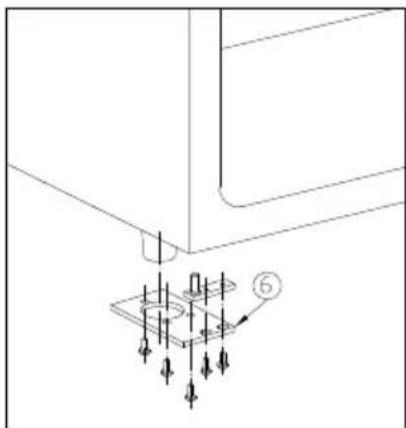

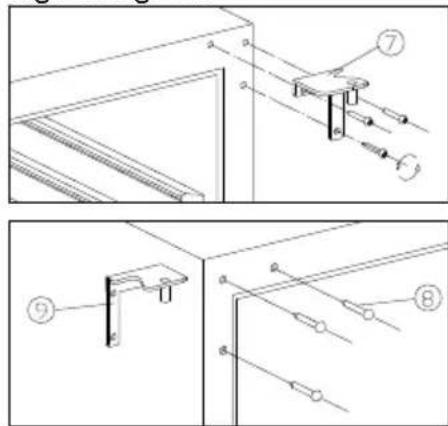

Change of hinge side - WFG32

The door can be changed from right-hinged to left-hinged and vice versa as follows:

fig. 7.1 fig. 7.2

fig. 7.3 fig. 7.4

1. Screws
2. Door axis
3. Door limit device
4. Door 5. Hinge Screws
5. Lower hinge
6. Top hinge - right
7. Hole cover
8. Top hinge - left

Ensure that the cabinet is not connected to the mains and place the cabinet on its back. SUPPORT THE DOOR!

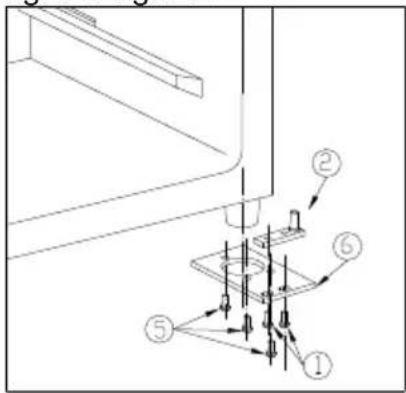

• Open the door to a 90-degree angle, take out the 2 screws (1) from the door axis (2), remove the door (4), and remove the door axis (2) (Fig. 7.1-2).

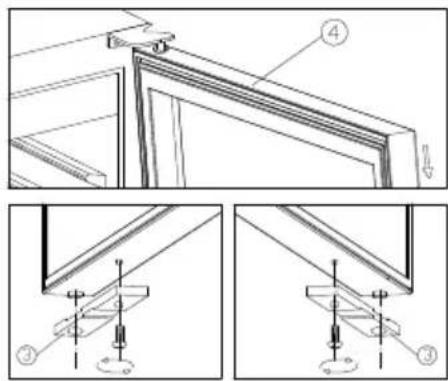

• Unscrew the screw located underneath the door frame and the limit device (3), and relocate it to the left end side of the door frame. (Fig. 7.2)
• Take out the 3 hinge screws from the top hinge (right) (7) and remove it. (Fig. 7.3)
• Remove decorative nail (8) from left top of cabinet and install spare top hinge (Left) (9) at left top of cabinet with 3 screws. (Fig. 7.3)
• Overturned the lower hinge(6). Install the lower hinge at left lower of the cabinet with 3 screws(5).(Fig. 7.4)
• The door axis(2) revolves 180 degree, Put it into the door axis hole of the door. (Fig. 7.4)
• Install and aligned the door. Screw down the 2 screws(1). (Fig. 7.4)
• Insert the plastic caps to cover the holes(8).

Change of hinge side - WFG45

The door can be changed from right-hinged to left-hinged and vice versa as follows:

Fig. 8.1

Fig. 8.2

Ensure that the cabinet is not connected to the mains and place the cabinet on the back. SUPPORT THE DOOR!

1. Lower hinge (Right)
2. Hinge Screws
3. Door limit device
4. Screws 3. Door axis
5. Top hinge (Left)
6. Screw
7. Door 5. Top hinge (Right)
8. Hole cover
9. Lower hinge (Left)
10. Open the door to a 90-degree angle, take out the 2 screws (2) from the lower door axis (3), remove the door (4), remove the axis plate (3) from the door (Fig. 8.1).
11. Unscrew the screw (11) located underneath the doorframe and the limit device (10), and relocate it to the left end side of the door frame (Fig. 8.1-2).
12. Take out the 3 hinge screws (6) from the top hinge (right) (5) and remove it (Fig. 8.3).
13. Remove the decorative nail (8) from the left top of the cabinet and install the spare top hinge (left) (7) at the left top of the cabinet with 3 screws (Fig. 8.4).
14. Following the above procedure, install the spare lower hinge to the left (9) (Fig. 8.5).
15. Install and align the door.
16. Insert the plastic caps to cover the holes (8).

Defrosting, cleaning, and maintenance

Automatic defrosting

The wine cooler is defrosted automatically. Defrost water runs through a pipe and is collected in a tray above the compressor where the heat generated by the compressor causes it to evaporate.

Cleaning

Before cleaning the appliance, unplug it from the main supply. The cabinet is best cleaned using warm water (max. 65°C) with a little mild detergent. Never use cleaning agents that scour. Use a soft cloth. Rinse with clean water and dry thoroughly. Never use sharp or pointed implements. Avoid unnecessary cleaning of the wooden shelves, as these are made of untreated natural material. Cleaning agents may discolor the shelves.

The sealing strip around the door must be cleaned regularly to prevent discoloration and prolong service life. Use clean water. After cleaning the sealing strip, check that it continues to provide a tight seal.

Dust collecting on the condenser underneath the cabinet, on the compressor and in the compressor compartment is best removed using a vacuum cleaner.

Replacing the lighting

Light-emitting diodes designed to last the entire service life of the appliance are used. If it, however, becomes necessary to replace the light source, please call for service.

Removing the shelves

Push the shelf all the way back and tip it. It is now possible to remove the shelf.

Fault finding

Fault Possible cause	Remedy
The appliance is not running	The appliance is switched off.	Press the on/off switch.
	Power failure; the fuse is blown; the appliance is not plugged in correctly.	Check that power is connected. Reset the fuse.
Water collects in the bottom of the cabinet.	The defrost water pipe is blocked.	Clean the defrost water channel and the drain hole on the rear wall of the cabinet.
Vibration or bothersome noise.	The appliance is not level.	Level the appliance using a spirit level.
	The appliance is resting against other kitchen elements.	Move the appliance away from the kitchen elements or appliances it is in contact with.
	Containers or bottles inside the cabinet are rattling against one another.	Move containers and/or bottles apart.
Compressor runs continuously.	High room temperature. Ensure adequate ventilation.

Warranty, spare parts and service

Warranty disclaimer

Faults and damage caused directly or indirectly by incorrect operation, misuse, insufficient maintenance, incorrect building, installation or mains connection. Fire, accident, lightning, voltage variation or other electrical interference, including defective fuses or faults in mains installations are not covered by the warranty.

Repairs performed by others than approved service centres and any other faults and damage that the manufacturer can substantiate are caused by reasons other than manufacturing or material faults are not covered by the warranty.

Please note that changes to the construction of the appliance or changes to the component equipment of the appliance will invalidate warranty and product liability, and the appliance cannot be used lawfully. The approval stated on rating plate will also be invalidated.

Transport damage discovered by the buyer is primarily a matter to be settled between the buyer and the distributor, i.e. the distributor must ensure that such complaints are resolved to the buyer's satisfaction.

Before calling for technical assistance, please check whether you are able to rectify the fault yourself. (see the fault-finding list) If your request for assistance is unwarranted, e.g. if the appliance has failed as a result of a blown fuse or incorrect operation, you will be charged the costs incurred by your call for technical assistance.

Spare parts

When ordering spare parts, please state the model and production numbers of your appliance. This information is given on the rating plate. The rating plate contains various technical information, including type and serial numbers.

g.9

Note: Always use approved service centres when your appliance is to be repaired or replaced!

Disposal

Information for Users on Collection and Disposal of Old Equipment and used Batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2012/19/EU and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union.

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

These symbols are only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol:

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

Warning

GB Reserving the right to alter specifications without prior notice.
