USER MANUAL Retro Style CM3100 RUSSELL HOBBS

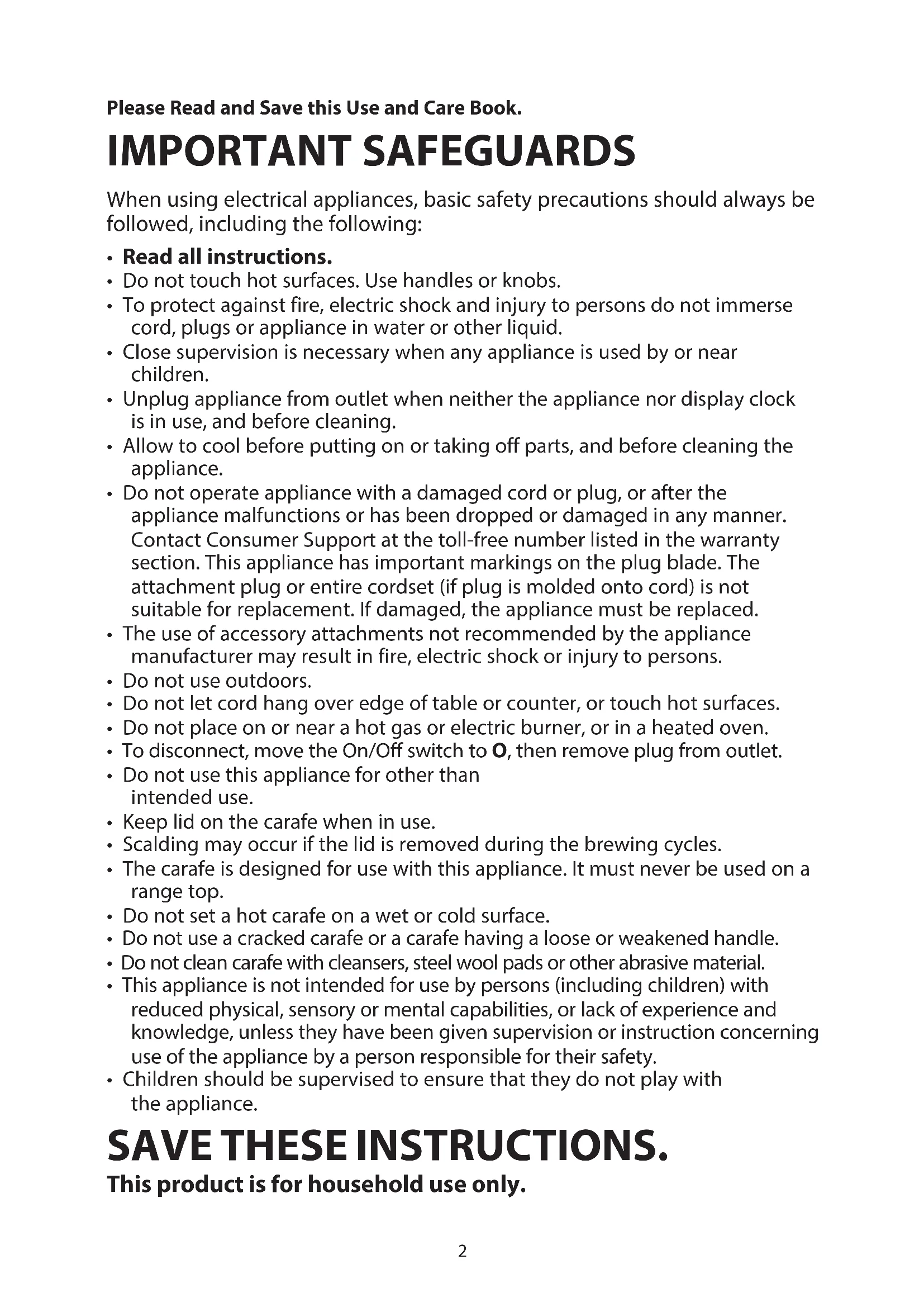

instructions 2 mode d’emploi 8 instrucciones 142 Please Read and Save this Use and Care Book. IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed, including the following:

• Read all instructions.

• Do not touch hot surfaces. Use handles or knobs.

• To protect against fire, electric shock and injury to persons do not immerse cord, plugs or appliance in water or other liquid.

• Close supervision is necessary when any appliance is used by or near children.

• Unplug appliance from outlet when neither the appliance nor display clock is in use, and before cleaning.

• Allow to cool before putting on or taking off parts, and before cleaning the appliance.

• Do not operate appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Contact Consumer Support at the toll-free number listed in the warranty section. This appliance has important markings on the plug blade. The attachment plug or entire cordset (if plug is molded onto cord) is not suitable for replacement. If damaged, the appliance must be replaced.

• The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock or injury to persons.

• Do not use outdoors.

• Do not let cord hang over edge of table or counter, or touch hot surfaces.

• Do not place on or near a hot gas or electric burner, or in a heated oven.

• To disconnect, move the On/Off switch to O, then remove plug from outlet.

• Do not use this appliance for other than intended use.

• Keep lid on the carafe when in use.

• Scalding may occur if the lid is removed during the brewing cycles.

• The carafe is designed for use with this appliance. It must never be used on a range top.

• Do not set a hot carafe on a wet or cold surface.

• Do not use a cracked carafe or a carafe having a loose or weakened handle.

• Do not clean carafe with cleansers, steel wool pads or other abrasive material.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance. SAVE THESE INSTRUCTIONS. This product is for household use only.3 POLARIZED PLUG This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way. TAMPER-RESISTANT SCREW

Warning: This appliance is equipped with a tamper-resistant screw to

prevent removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel. ELECTRICAL CORD a) A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord. b) Extension cords are available and may be used if care is exercised in their use. c) If an extension cord is used:

1) The marked electrical rating of the extension cord should be at least as

great as the electrical rating of the appliance;

2) If the appliance is of the grounded type, the extension cord should be

a grounding-type 3-wire cord; and

3) The cord should be arranged so that it will not drape over the counter

top or tabletop where it can be pulled on by children or tripped over. Note: If the power cord is damaged, please contact the warranty department listed in these instructions. WARNING RISK OF FIRE OR ELECTRIC SHOCK. DO NOT OPEN. The lightning symbol refers to “dangerous voltage”; the exclamation symbol refers to maintenance instructions. See below.

Warning: To reduce the risk of fire or electric shock, do not remove the cover of the

coffeemaker. There are no user-serviceable parts inside. Repair should be done by authorized service personnel only.4 Product may vary slightly from what is illustrated.

How to Use This appliance is for household use only. GETTING STARTED

• Remove all packing materials, any stickers and the plastic band around the power plug.

• To register your product, go to www.prodprotect.com/russellhobbs.

• Wash all parts as instructed in CARE and MAINTENANCE section.

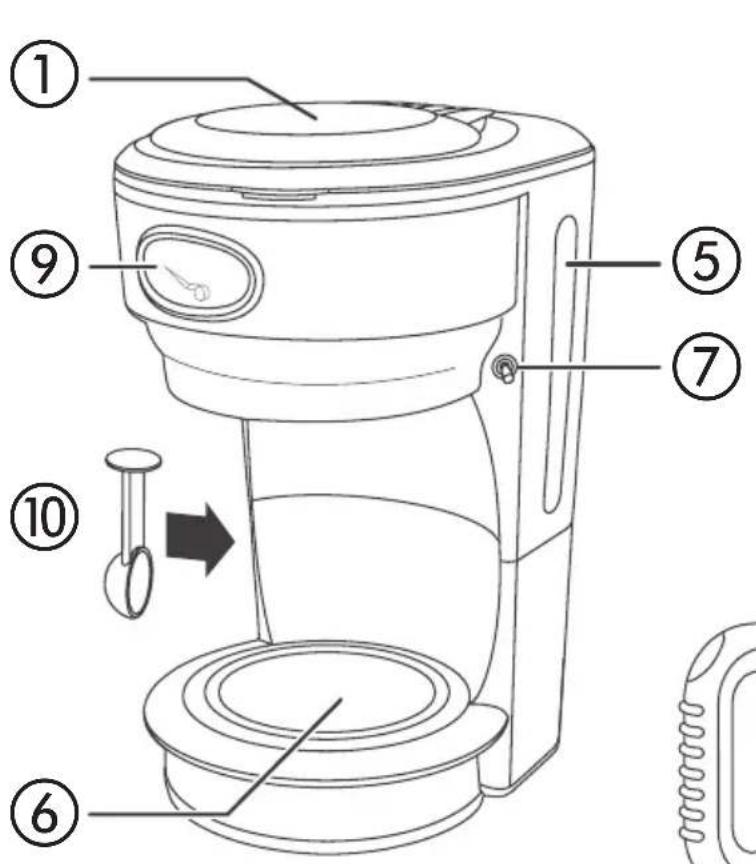

• Select a level surface where this unit is to be used allowing enough space for steam to escape without damage to counters, cabinets and walls. PARTS

9. Coee brewing progress gauge

• Fill the reservoir to the max mark, and run the appliance without coee.

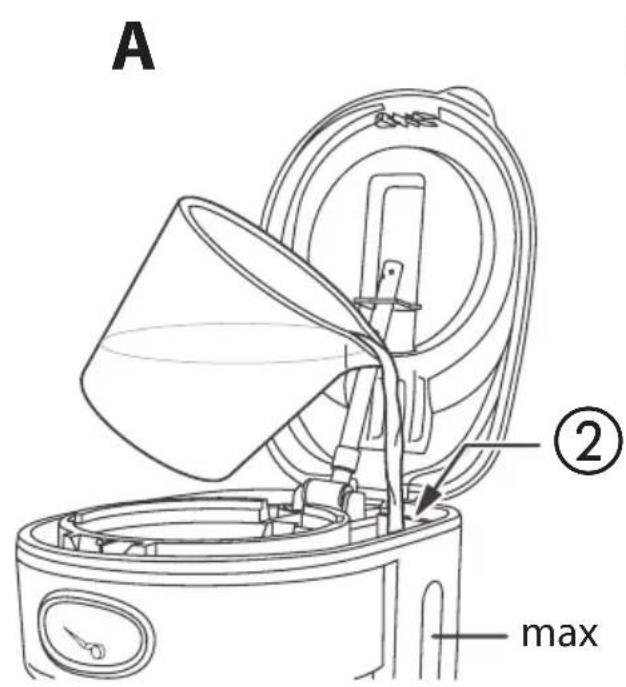

• Let it cool, discard the water, then use it normally. FILLING

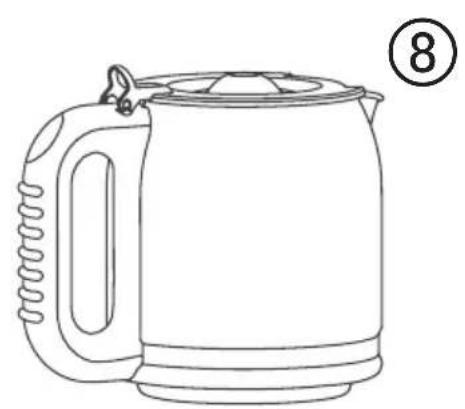

1. Remove the carafe from the hotplate.

3. Fill with at least 2 cups of water, but not above the max mark.

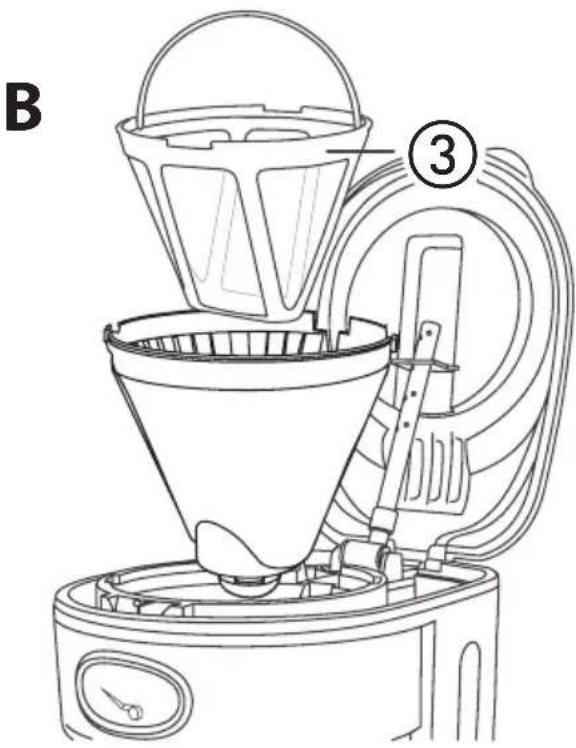

4. Place the removable lter or a paper lter (not included) into the lter holder.

5. Put 1 scoop of lter-ground coee into the lter for each cup.

MAKING COFFEE CAUTION: DO NOT open the lid during brewing as there is the potential risk of scalding.

1. Put the plug into the power socket.

2. Move the switch to I. The light will come on.

3. Shortly afterwards, coee will start to drip into the carafe.

4. When it’s done, the hotplate will keep the carafe warm. After 40 minutes, the

hotplate and appliance will shut down.

5. Move the switch to O to turn o.

6. Unplug, and let the appliance and carafe cool down fully before cleaning, or for

about 10 minutes before relling.

7. For the best avour, drink the coee within 40 minutes of brewing.6

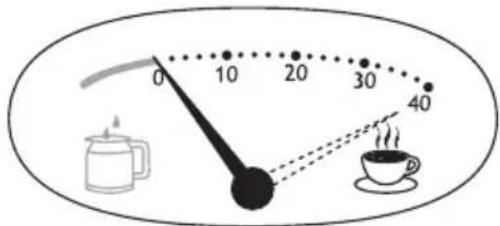

COFFEE BREWING PROGRESS GAUGE

The gauge shows the status of your coee machine.

• The pointer will rst show the brewing stage as your coee is being made. The pointer will move slowly clockwise within the rst (long) segment during brewing.

• Once brewing has nished, the pointer will move to the 0 marking. It will then show, in minutes, how long the coee has been kept warm by the hot plate (0 to 40 mins). For best taste, we recommend drinking your coee within 40 minutes after brewing.

• When the appliance shuts down, the pointer will move to the rest position.

PAUSE AND POUR FEATURE

You can remove the carafe at any time. To prevent the lter holder overowing, replace the carafe on the hotplate within about 20 seconds.

CARE AND MAINTENANCE

This product contains no user serviceable parts. Refer service to qualied service personnel.

1. Unplug the appliance and let it cool.

2. Tip the contents of the lter holder into the bin.

3. Clean the outside surfaces of the appliance with a damp cloth.

4. Hand wash the carafe, removable lter, and lter holder.

DESCALE REGULARLY You can use a vinegar solution or a commercial descaling product designed for coee machines. Follow the directions on the descaling product. If you use a vinegar solution, ensure the kitchen is well ventilated, as heating vinegar causes an unpleasant smell.

1. Fill carafe to the 6–9 line with white vinegar with then ll the rest of the way with

water to the max line.

2. Pour the mixture into the reservoir.

5. Move the On/o switch to I.

6. When the mixture has gone through the coeemaker, let it soak for 15 minutes.

7. Empty carafe and replace it on the hotplate.

8. Fill reservoir with cold water to max line. Turn on coeemaker for a complete brew

cycle to ush out remaining cleaning solution. You may wish to repeat this step.

9. Hand wash the carafe, removable lter, and lter holder.7

NEED HELP? Warranty Information (Applies only in the United States and Canada) For service, repair or any questions regarding your appliance, please call our Customer Service Line at 1-800-947-3744. Please DO NOT return the product to the place of purchase. Also, please DO NOT mail product back to manufacturer, nor bring it to a service center. You may also want to consult www.prodprotect.com/russellhobbs. What does it cover?

• Any defect in material or workmanship provided; however, the liability of Spectrum Brands, Inc. will not exceed the purchase price of product. How long is the warranty valid?

• In the United States: Two years from the date of original purchase with proof of such purchase.

• In Canada: Two years from the date of original purchase with proof of such purchase. Canadian residents can register online for an extra year of warranty at: www.prodprotect.com/russellhobbs. What will we do to help you?

• Provide you with a reasonably similar replacement product that is either new or factory refurbished. How do you get service?

• Save your receipt as proof of date of sale.

• Visit the online service website at www.prodprotect.com/russellhobbs, or call toll- free 1-800-947-3744, for general warranty service.

• If you need parts or accessories, please call 1-800-738-0245. What does your warranty not cover?

• Damage from commercial use

• Damage from misuse, abuse or neglect

• Products that have been modied in any way

• Products used or serviced outside the country of purchase

• Glass parts and other accessory items that are packed with the unit

• Shipping and handling costs associated with the replacement of the unit

• Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.) How does state law relate to this warranty?

• This warranty gives you specic legal rights. You may also have other rights that vary from state to state or province to province.8 Veuillez lire et conserver ce guide d’entretien et d’utilisation.
