Product type	Filter coffee machine
Brand	Russell Hobbs
Model	Victory 24030-56
Capacity	1.25 L (10 large cups of 125 ml or 15 small cups of 83 ml)
Power	900 W (estimated)
Power supply	220-240 V, 50/60 Hz
Material	Plastic, glass (carafe)
Dimensions (approx)	30 x 20 x 35 cm
Weight (approx)	2.0 kg
Filter type	Paper filter size #4 (not included)
Functions	Delayed programming (timer), automatic keep warm (40 min), anti-drip valve, automatic shut-off
Display	LCD screen with clock
Included accessories	Glass carafe, coffee measure, filter holder
Care and cleaning	Wipe with a damp cloth; carafe and filter holder are dishwasher safe (top rack)
Safety	Automatic shut-off after 40 min, overheat protection

Frequently Asked Questions - Victory 24030-56 RUSSELL HOBBS

How to set the clock on the Victory 24030-56 machine?

Plug in the machine. Use the hr (hour) and min (minutes) buttons to set the correct time in 24-hour format. The clock retains its settings as long as the machine is plugged in.

How to use the timer function to program coffee brewing?

First set the clock. Press and hold the ⏻ button until the icon flashes. Use hr and min to set the desired time. Then press ⚙ to activate the timer. The ⏻ icon displays.

What to do if the coffee does not flow?

Check that the water tank is filled, the filter holder is properly locked (click), and the carafe is correctly placed on the warming plate. Make sure the filter is not clogged.

How to clean the carafe and filter holder?

Unplug the appliance and let it cool. Wash the carafe and filter holder by hand or in the dishwasher (top rack). Wipe other surfaces with a damp cloth.

How many cups can be brewed with the water tank?

The tank allows brewing up to 10 large cups (125 ml each) or 15 small cups (83 ml each). Use the water level gauge to measure.

How to stop the machine during coffee brewing?

Press the button to stop the cycle. To restart, press again.

What does the flashing icon on the screen mean?

The ⏻ icon flashes during timer setting. If the time flashes, you can change the clock by pressing hr or min.

How to quickly remove a cup before the cycle ends?

You can remove the carafe at any time. The anti-drip valve prevents coffee from spilling onto the warming plate. Replace the carafe within 20 seconds to avoid overflow.

Does the machine turn off automatically after coffee?

Yes, the machine keeps the coffee warm for about 40 minutes, then turns off automatically. The clock remains displayed.

What to do if the power cord is damaged?

Do not use the appliance. Have the cord replaced by the manufacturer, an authorized technician, or a qualified person to avoid any hazard.

USER MANUAL Victory 24030-56 RUSSELL HOBBS

Black and silver model of a Russell Hobbs coffee maker with clear glass volume and digital display (no visible text or symbols on the device itself)

IMPORTANT SAFEGUARDS

Follow basic safety precautions, including:

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised.

Keep the appliance and cable out of reach of children under 8 years.

Misuse of the appliance may cause injury.

The surfaces of the appliance will get hot. Residual heat will keep the surfaces hot after use.

Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

If the cable is damaged, it must be replaced by the manufacturer, its service agent, or someone similarly qualified, to avoid hazard.

• Sit the appliance on a stable, level, heat-resistant surface.
• Keep the appliance and cable away from the edges of worktops.
• Don't use accessories or attachments other than those we supply.
• Don't use the appliance for any purpose other than those described in these instructions.
• Don't use the appliance if it's damaged or malfunctions.

HOUSEHOLD USE ONLY

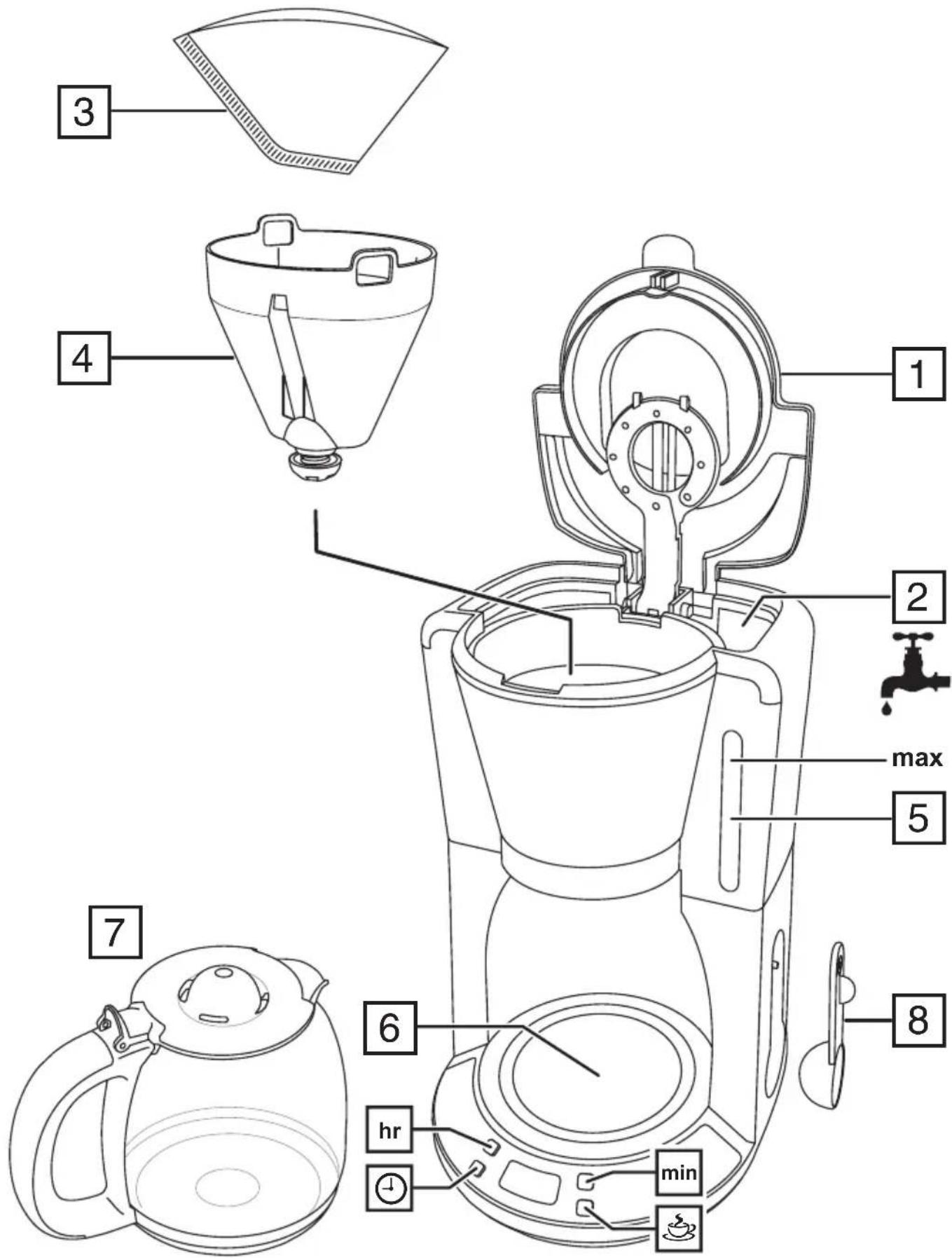

PARTS

1. Lid
2. Water reservoir
3. Paper filter #4 (not supplied)
4. Filter holder

5. Water gauge

6. Hot plate

7. Carafe
8. Scoop
   Dishwasher - top rack

BEFORE USING FOR THE FIRST TIME

Fill the reservoir to the max mark, and run the appliance without coffee.

FILLING

1. Remove the carafe from the hotplate.

2. Open the lid.

3. Fill the reservoir with the exact amount of water required. Note that the brewing process will use all of the water that you put in the reservoir.

4. Make sure that the filter holder is pressed down all the way into position. It will click when correctly installed.
5. Put a #4 paper filter into the filter holder.
6. The reservoir is calibrated to give 10 large cups (at 125ml per cup) and 15 small cups (at 83ml per cup). For each large cup, add 6g of ground filter coffee and for each small cup add 4g.
7. Close the lid.
8. Replace the carafe on the hotplate.

SET THE CLOCK

It isn't necessary to set the clock to use your coffee maker but you will need to set it if you want to use the timer functions.

1. Put the plug into the power socket.
2. Use the hr and min buttons to set the correct time in 24 hour format.
3. The clock will retain its settings until the coffee maker is unplugged.
4. To change the time, press the ⏻ button. The time will flash. Use the hr and min buttons to set the new time. If you don't press either the hr or min buttons within 3 seconds, the coffee maker will revert to normal, and the current time will show.

MAKING COFFEE

1. Press the 🎨 button – the 🔊 icon will appear on the display.
2. Shortly afterwards, coffee will start to drip into the carafe.
3. If you want to stop the coffee maker while it's brewing, press the 🤔 button.
4. Once brewed, the hotplate will keep the carafe warm for up to 40 minutes.

USING THE TIMER

Note: Make sure the clock is set to the correct time. Use the h and min buttons.

1. Set the timer to the time you want to start brewing.

a) Press and hold the ⏻ button until the ⏻ icon flashes on the display.
b) Use the h and min buttons to set the time you want brewing to start.
If you don't press either the hr or min buttons within 3 seconds, the coffee maker will revert to normal, and the current time will show. Press the ⏻ button to start again.

1. When the time is programmed, press the ⏻ button. The ⏻ icon will appear on the display.

Your coffee maker is now set to make coffee at the selected time.

- If you want to check the program time press the ⏻ button. The programmed time will show for 3 seconds and then return to the time of day.

• If you want to cancel the timer before brewing has started, press the 🤔 button.

- If you want to stop the coffee maker while it's brewing, press the 🎨 button.

KEEP WARM/AUTO SHUT-OFF

1. Your coffee maker will keep the coffee warm for about 40 minutes.
2. 40 minutes after brewing your coffee maker will shut down and the time of day will be displayed.
3. To wake the appliance, press the min button.

A QUICK CUP

If you want a quick cup of coffee before the brewing cycle has finished:

1. You can remove the carafe at any time. The non-drip valve will prevent coffee dripping on to the hotplate.
2. To prevent the filter holder overflowing, replace the carafe on the hotplate within about 20 seconds.
3. When you replace the carafe on the hotplate the non-drip valve opens to let any remaining coffee through.

CARE AND MAINTENANCE

1. Unplug the appliance and let it cool.
2. Tip the contents of the filter holder into the bin.
3. Wipe all surfaces with a clean damp cloth.
4. Press the lever at the rear of the carafe lid, above the handle, to open the carafe lid.
5. Hand wash the carafe and filter holder.
6. Replace the filter holder. Make sure that the filter holder is pressed down all the way into position. It will click when correctly installed.
7. Close the lid, and press down to lock it.

You may wash these parts in the top rack of a dishwasher.

RECYCLING

To avoid environmental and health problems due to hazardous substances, appliances and rechargeable and non-rechargeable batteries marked with one of these symbols must not be disposed of with unsorted municipal waste. Always dispose of electrical and electronic products and, where applicable, rechargeable and non-rechargeable batteries, at an appropriate official recycling/collection point.
