USER MANUAL BN495 NINJA

Line drawing of a portable kitchen appliance with control panel (no text or symbols)

Simple line drawing of a cylindrical object with a base and top, no text or symbols present

Diagram illustrating a chemical process with a dropping funnel and two stages of mixing granular material

Line drawing of a hand pressing a button on a blender with food items (no text or symbols)

Line drawing of a blender with three views showing top, front, and side views (no text or symbols)

Diagram showing three steps of a food preparation or cooking process: dropping from a funnel to a container, then adding granular material to a lid, and finally adding liquid.

Line drawing of a portable kitchen appliance with control panel (no text or symbols)

Simple line drawing of a cylindrical object with a base, labeled 'A' at the top (no text or symbols on the object itself)

Diagram illustrating a chemical process with a dropping funnel and two steps showing particle transfer or reaction.

Line drawing of a hand holding a blender with food being processed (no text or symbols)

Line drawing of a blender with three different shapes and one top, showing a step-down assembly (no text or symbols)

Diagram showing a food preparation step: dropping funnel into a container with granular material, then adding a lid to a clear glass.

THANK YOU FOR PURCHASING your Ninja® Blender

REGISTER YOUR PURCHASE

ninjakitchen.eu

QR code using mobile device

RECORD THIS INFORMATION

Model Number:

Serial Number:

Date of Purchase:

(Keep receipt)

Store of Purchase:

TECHNICAL SPECIFICATIONS

Voltage: 220-240V-, 50-60Hz

Power: 1000 Watts

CUP CAPACITY:

700ml

PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

TIP: You can find the model and serial numbers on the QR code label located on the back of the unit by the power cord.

29

CONTENTS

Important Safeguards....31

Getting to Know Your Ninja Blender 35

Before First Use 36

Features....36

Single-Serve Cup. 36

Blending Instructions 37

Care & Maintenance....39

Cleaning 39

Storing 39

Resetting the Motor Thermostat....39

Troubleshooting Guide....40

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material sources. To return your used device, please use the return and collection systems or contact the retailer where this product was purchased. They can take this product for environmental safe recycling.

ninjakitchen.eu 30

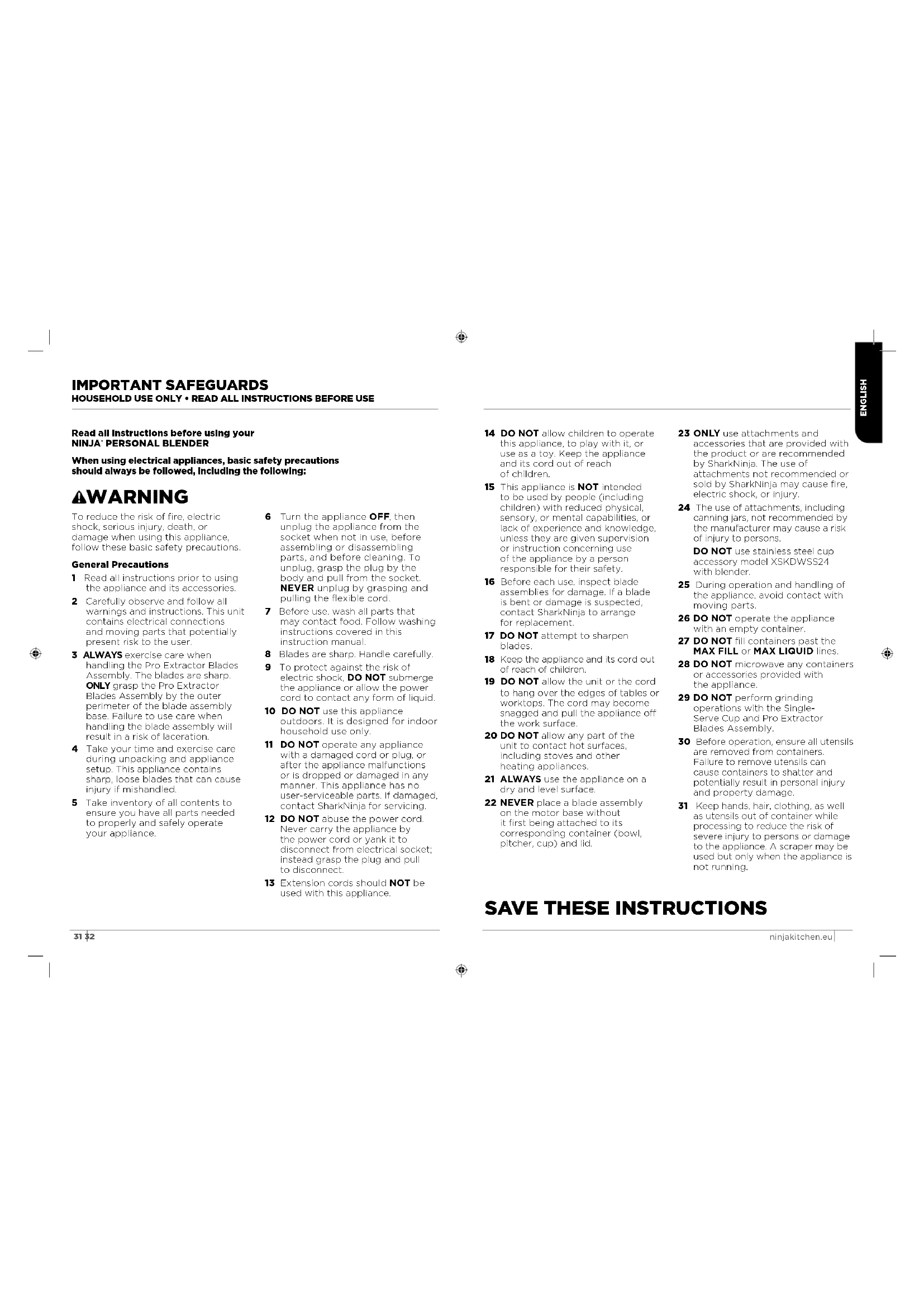

IMPORTANT SAFEGUARDS

HOUSEHOLD USE ONLY • READ ALL INSTRUCTIONS BEFORE USE

Read all instructions before using your NINJA' PERSONAL BLENDER

When using electrical appliances, basic safety precautions should always be followed, including the following:

⚠ WARNING

To reduce the risk of fire, electric shock, serious injury, death, or damage when using this appliance, follow these basic safety precautions.

General Precautions

1 Read all instructions prior to using the appliance and its accessories.
2 Carefully observe and follow all warnings and instructions. This unit contains electrical connections and moving parts that potentially present risk to the user.
3 ALWAYS exercise care when handling the Pro Extractor Blades Assembly. The blades are sharp. ONLY grasp the Pro Extractor Blades Assembly by the outer perimeter of the blade assembly base. Failure to use care when handling the blade assembly will result in a risk of laceration.
4 Take your time and exercise care during unpacking and appliance setup. This appliance contains sharp, loose blades that can cause injury if mishandled.
5 Take inventory of all contents to ensure you have all parts needed to properly and safely operate your appliance.

6 Turn the appliance OFF, then unplug the appliance from the socket when not in use, before assembling or disassembling parts, and before cleaning. To unplug, grasp the plug by the body and pull from the socket. NEVER unplug by grasping and pulling the flexible cord.
7 Before use, wash all parts that may contact food. Follow washing instructions covered in this instruction manual.
8 Blades are sharp. Handle carefully.
9 To protect against the risk of electric shock, DO NOT submerge the appliance or allow the power cord to contact any form of liquid.
10 DO NOT use this appliance outdoors. It is designed for indoor household use only.
11 DO NOT operate any appliance with a damaged cord or plug, or after the appliance malfunctions or is dropped or damaged in any manner. This appliance has no user-serviceable parts. If damaged, contact SharkNinja for servicing.
12 DO NOT abuse the power cord. Never carry the appliance by the power cord or yank it to disconnect from electrical socket; instead grasp the plug and pull to disconnect.
13 Extension cords should NOT be used with this appliance.

14 DO NOT allow children to operate this appliance, to play with it, or use as a toy. Keep the appliance and its cord out of reach of children.
15 This appliance is NOT intended to be used by people (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are given supervision or instruction concerning use of the appliance by a person responsible for their safety.
16 Before each use, inspect blade assemblies for damage. If a blade is bent or damage is suspected, contact SharkNinja to arrange for replacement.
17 DO NOT attempt to sharpen blades.
18 Keep the appliance and its cord out of reach of children.
19 DO NOT allow the unit or the cord to hang over the edges of tables or worktops. The cord may become snagged and pull the appliance off the work surface.
20 DO NOT allow any part of the unit to contact hot surfaces, including stoves and other heating appliances.
21 ALWAYS use the appliance on a dry and level surface.
22 NEVER place a blade assembly on the motor base without it first being attached to its corresponding container (bowl, pitcher, cup) and lid.

23 ONLY use attachments and accessories that are provided with the product or are recommended by SharkNinja. The use of attachments not recommended or sold by SharkNinja may cause fire, electric shock, or injury.
24 The use of attachments, including canning jars, not recommended by the manufacturer may cause a risk of injury to persons.

DO NOT use stainless steel cup accessory model XSKDWSS24 with blender.

25 During operation and handling of the appliance, avoid contact with moving parts.
26 DO NOT operate the appliance with an empty container.
27 DO NOT fill containers past the MAX FILL or MAX LIQUID lines
28 DO NOT microwave any containers or accessories provided with the appliance.
29 DO NOT perform grinding operations with the Single-Serve Cup and Pro Extractor Blades Assembly.
30 Before operation, ensure all utensils are removed from containers. Failure to remove utensils can cause containers to shatter and potentially result in personal injury and property damage.
31 Keep hands, hair, clothing, as well as utensils out of container while processing to reduce the risk of severe injury to persons or damage to the appliance. A scraper may be used but only when the appliance is not running.

SAVE THESE INSTRUCTIONS

IMPORTANT SAFEGUARDS

HOUSEHOLD USE ONLY • READ ALL INSTRUCTIONS BEFORE USE

Read all instructions before using your NINJA' PERSONAL BLENDER

When using electrical appliances, basic safety precautions should always be followed, including the following:

⚠ WARNING

To reduce the risk of fire, electric shock, serious injury, death, or damage when using this appliance, follow these basic safety precautions.

General Precautions

32 NEVER operate the appliance without lids and caps in place. DO NOT attempt to defeat the interlock mechanism. Ensure the container and lid are properly installed before operation.
33 DO NOT expose the containers and accessories to extreme temperature changes. They may experience damage.
34 NEVER leave the appliance unattended while in use.
35 DO NOT blend hot liquids. Doing so may result in pressure buildup and steam exposure that can pose a risk of the user being burned.
36 DO NOT remove the cup from the motor base while the appliance is running.

37 Remove the Pro Extractor Blades Assembly from the Single-Serve Cup upon completion of blending. DO NOT store ingredients before or after blending them in the cup with the blade assembly attached. Some foods may contain active ingredients or release gases that will expand if left in a sealed container, resulting in excessive pressure buildup that can pose a risk of injury. For ingredient storage in the cup, use only Spout Lid to cover.
38 The maximum wattage rating for this appliance is based on the configuration of the Pro Extractor Blades Assembly and Single-Serve Cup. Other configurations may draw less power or current.
39 Max ON time is 1 minute under 900W load. If the appliance overheats, a thermal switch will become activated and shut off the motor. To reset, unplug the appliance and let it cool down for approximately 30 minutes before using again.
40 DO NOT process dry ingredients without adding liquid to the Single-Serve Cup. The Single-Serve Cup is not intended for dry blending.

41 To protect against risk of electrical shock, DO NOT immerse the motor base in water or other liquid.
42 DO NOT spray the motor base with any liquids. Turn off and unplug the motor base before cleaning.

SAVE THESE INSTRUCTIONS

GETTING TO KNOW YOUR NINJA® PERSONAL BLENDER

MAIN UNIT

A 700ml Single Serve Cups (x 2)*
B Pro Extractor Blades Assembly
C Motor Base with Power Cord
D Spout Lid (x2)

Line drawing of a portable air conditioner unit with control panel (no text or symbols)

Simple line drawing of a cylindrical object with a base, labeled 'A' at the top (no text or symbols on the object itself)

To order additional parts and accessories, visit ninjakitchen.eu

\~600ml, max liquid capacity.

35

BEFORE FIRST USE FEATURES

DID YOU KNOW?

• You can take your drinks on the go using the Spout Lids.
  • The containers, blade assemblies, and lids are BPA free and dishwasher safe.

NOTE: Handle the Pro Extractor Blades Assembly by grasping around the perimeter of the blade assembly base.

NOTE: All attachments are dishwasher safe. It is recommended that the lids, containers and blade assemblies be placed on the top rack of the dishwasher. Ensure blade assemblies and lids are removed from their containers before placing in the dishwasher. Exercise care when handling blade assemblies. Overflow reservoir is hand wash only.

1 Remove all packaging materials from the appliance. Exercise care when unpacking blade assemblies. All blade assemblies are sharp.
2 Wash containers, lids, and blade assemblies in warm, soapy, water using a dishwashing utensil with a handle to avoid direct contact with the blades. Exercise care when handling blade assemblies, as the blades are sharp.
3 Thoroughly rinse and air-dry all parts.
4 Wipe screen with a soft, damp cloth. Allow it to dry completely before using.

AUTO-IQ® PROGRAMS

Intelligent pre-set programs combine unique blending and pausing patterns that do the work for you. Once a pre-set program is selected, it will start immediately. Press the selected program again to pause it.

START STOP 30 BLEND PULSE Auto iQ MAX BLEND

MANUAL SETTINGS:

START | STOP

Press once to start continuous running; press again to stop. Timer counts up by seconds, up to 60 seconds.

PULSE

Runs only while pressed down. Short presses create short pulses. Timer counts up by seconds as long as button is pressed down.

AUTO-IQ® PROGRAMS:

BLEND

Make drinks containing fresh or frozen fruit, liquids and ice, or blend together purees and more. Program lasts for 45 seconds.

MAX BLEND

Ideal for tougher ingredients including skins, seeds and stems. Program lasts for 60 seconds.

BLENDING INSTRUCTIONS

1 Add ingredients to the Single-Serve Cup. DO NOT add ingredients past the MAX LIQUID line on the cup.

Diagram illustrating a chemical process with a dropping funnel and rotating container, showing step-by-step transformation.

2 Place the Pro Extractor Blades Assembly on the top of the cup and turn clockwise to seal.
3 Turn cup upside down so the bottom of the blade assembly is flat on the worktop.

4 Install the cup onto the motor base and turn clockwise to lock into place. Once correctly locked in, the programs will illuminate.

Line drawing of a hand pressing a button on a blender with food items (no text or symbols)

5 Choose your program (see page 9 for reference). The pre-set programs will automatically stop the unit at the end of the program. To pause the unit at any time, press the active program a second time.

Line drawing of a blender with three views showing different shapes (no text or symbols)

6 When blending is complete, twist the cup anti-clockwise and lift up. DO NOT store contents in the cup with the Pro Extractor Blades Assembly attached.

Diagram showing a food preparation step: dropping from a lid to a glass with granular substance, then adding liquid.

7 Turn cup over so blade assembly is on top. Twist blade assembly anti-clockwise to remove. To take your blended contents on the go, place the spout lid on cup and turn clockwise to seal.

8 Unplug the unit when finished. To lift the motor base, place your hands underneath both sides of it and gently pull the unit up and toward you. Refer to the Care & Maintenance section for storing instructions.

CLEANING

1 Separate all parts.
2 Wash all containers in warm, soapy water with a soft cloth.

3 Hand-Washing

Wash cups, lids and blade assembly in warm, soapy water. Use a dishwashing utensil with a handle to avoid direct contact with the blades. Exercise care when handling the blade assembly as the blades are sharp. Thoroughly rinse and air-dry all parts.

Dishwasher

Cups, lids, and blade assembly are dishwasher safe. Place the cups, lids, and blade assembly on the top rack of the dishwasher ONLY. Ensure the blade assembly and lid are removed from the cup before placing in the dishwasher.

Motor Base

Turn off the unit and unplug the motor base before cleaning. Wipe motor base with a clean, damp cloth.

NEVER directly spray the base with water or other liquids.

DO NOT use abrasive cloths/pads/brushes to clean the base, as this can dull or scratch the surface.

RESETTING THE MOTOR THERMOSTAT

This unit features a unique safety system that prevents damage to the motor and drive system should you inadvertently overload it. If the unit is overloaded, the motor will be temporarily disabled. Should this occur, follow the reset procedure below.

1 Unplug the unit from the socket.
2 Allow the unit to cool for approximately 30 minutes.
3 Remove the container's lid and blade assembly. Empty the container and ensure no ingredients are jamming the blade assemblies.

IMPORTANT: Ensure that maximum capacities are not exceeded. This is the most typical cause of appliance overload.

TROUBLESHOOTING GUIDECARE & MAINTENANCE

WARNING: To reduce the risk of shock and unintended operation, turn power off and unplug unit before troubleshooting.

Unit doesn't turn on

Make sure unit is plugged in.
- Place cup on base and rotate it clockwise until it clicks into place.

Unit doesn't turn off

- Remove cup from base by rotating it anti-clockwise and lifting it. Unplug the power cord from the socket.

Lid/blade assembly hard to assemble

- Place the cup on a level surface with the lid or blade assembly on the top of the cup and align the threads so that the lid/blades sit flat on the cup. Twist clockwise so that the lid/blades evenly align to the cup until you have a tight seal.

Doesn't mix well; ingredients get stuck

• Using the pre-set programs is the easiest way to achieve great results. The pulses and pauses allow the ingredients to settle toward the blade assembly. If ingredients are routinely getting stuck, adding some liquid will usually help.
• When filling the cup, start with fresh fruit or veggies, then leafy greens or herbs. Next add liquids or yogurt, then seeds, powders, or nut butters. Finally, add ice or frozen ingredients

Motor base won't stick to worktop or tabletop

• Make sure surface and suction feet are wiped clean. Suction feet will only stick to smooth surfaces.
• Suction feet will not stick on some surfaces such as wood, tile, and non-polished finishes.
• DO NOT attempt to use unit when the motor base is stuck to a surface that is not secure (cutting board, platter, plates, etc.).

- Unit is difficult to remove from worktop for storage

- Place your hands underneath both sides of the motor base and gently pull the unit up and toward you.

PRODUCT REGISTRATION

TWO (2) YEAR LIMITED GUARANTEE

When you buy a product in Germany as a consumer, you get the benefit of legal rights relating to the quality of the product (your "statutory rights"). You can enforce these statutory rights against your retailer. However, at Ninja we are so confident about the quality of our products (the "Products") that we give you an additional manufacturer's guarantee of up to two years. This guarantee only applies to the Product if it is bought in new and unused condition. These terms and conditions relate to our guarantees only - your statutory rights as a buyer are unaffected. Please note that the 2 year guarantee is available in all EU countries and in the UK if it stops being an EU country during the guarantee term.

The conditions below describe the prerequisites and scope of our guarantees which are issued by SharkNinja Germany GmbH, Kurt-Blaum-Platz 8, 63450 Hanau (Germany) ("us", "our" or "we"). They do not affect your statutory rights or the obligations of your retailer and your contract with them. The same applies if you have purchased the product directly from Ninja.

Ninja\* Guarantees

A household kitchen appliance constitutes a sizeable investment. Your new machine needs to work properly for as long as possible. The guarantee it comes with is an important consideration - and reflects how much confidence the manufacturer has in its product and manufacturing quality.

Our customer service helpline (0800 000 9063) is open from 9.00am to 6.00pm Monday - Friday. It's free to call, and you'll be put straight through to a Ninja representative. You'll also find online support at www.ninjakitchen.eu.

How do I register my guarantee?

You can register your guarantee online within 28 days of purchase. To save time, you'll need the following information about your machine:

- Model no.

- Serial Number (only if available)

• Date of purchase of the Product (receipt or delivery note)

To register online, please visit www.ninjakitchen.eu

IMPORTANT

- The guarantee covers your Product for 2 years starting on the date of purchase.

- Please keep the receipt at all times. Should you need to use your guarantee we will need the receipt to verify the information supplied to us is correct. The inability to produce a valid receipt will invalidate your guarantee.

What are the benefits of registering my guarantee?

When you register your guarantee, you can choose to receive our newsletter containing tips, advice and competitions. Hear the latest news about new Ninja technology and launches. If you register your guarantee online, you'll get instant confirmation that we've received your details.

For details of our privacy policy please visit www.ninjakitchen.eu

How long are our Products guaranteed for?

Our confidence in our design and quality control means that your Product is guaranteed for a total of two years.

What is covered by the guarantee?

Repair or replacement (at Ninja's discretion) of your Product, including all parts and labour in case of any defect in design, materials and workmanship (including transport and shipping costs). Our guarantee is in addition to your legal rights as a consumer.

What is not covered by the guarantee?

• Normal wear and tear.

• Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the kitchen appliance which is not in accordance with the Ninja ^1 Instruction Manual supplied with your machine.
• Use of the kitchen appliance for anything other than normal domestic household purposes.
• Use of parts not assembled or installed in accordance with the operating instructions.
• Use of parts and accessories which are not Ninja® Genuine Components.
• Faulty installation (except where installed by Ninja*).
• Repairs or alterations carried out by parties other than Ninja or its agents, Repairs or alterations carried out by parties other than Ninja or its agents, unless you can show that the repairs or alterations carried out by others are not related to the defect for which you exercise the guarantee.

What happens when my guarantee runs out?

Ninja does not design products to last for a limited time. We do appreciate that there may be a desire for our customers to want to repair their kitchen appliance after the guarantee has elapsed. In this case please contact our free phone customer service help line and ask about our guarantee program, on 0800 000 9063.

Where can I buy genuine Ninja spares and accessories?

Ninja spares and accessories are developed by the same engineers who developed your Ninja kitchen appliance. You'll find a full range of Ninja spares, replacement parts and accessories for all Ninja machines at www.ninjakitchen.eu

Please remember that using non-Ninja spares may invalidate your manufacturer's guarantee. However, your statutory rights are unaffected.

GRACIAS POR ADQUIRIR su batldora NInja®

REGISTRE SU PRODUCTO

ninjakitchen.eu

Line drawing of a portable kitchen appliance with control panel (no text or symbols)

Simple line drawing of a cylindrical object with a base, labeled 'A' at the top (no text or symbols on the object itself)

Diagram illustrating a chemical process with a dropping funnel and rotating container containing granular material

Line drawing of a hand holding a blender with food items (no text or symbols)

Line drawing of a blender with three different shapes and one top, showing a step from top to bottom (no text or symbols)

Diagram showing a funnel pouring liquid into a glass jar, then adding granular material to a lid and finally into a clear container.

Puissance: 1000 watts

CAPACITÉ DU GOBELET : 700 ml

Line drawing of a portable kitchen appliance with control panel (no text or symbols)

Simple line drawing of a cylindrical object with a flanged base and top, labeled 'A' (no text or symbols on the object itself)

START | STOP (MARCHE/ARRÊT)

Diagram illustrating a chemical process involving a lid, container with granular material, and a reaction arrow showing the step.

Line drawing of a hand using a blender to press or sample it, no text or symbols present

Line drawing of a blender with three views showing top, front, and side views (no text or symbols)

Diagram showing a step-by-step cooking process: dropping funnel, adding granular material, and pouring liquid into a clear glass.

Line drawing of a portable kitchen appliance with control panel and buttons (no text or symbols)

Simple line drawing of a cylindrical object with a base, labeled 'A' at the top (no text or symbols on the object itself)

Diagram illustrating a chemical process with a lid, container, and reaction arrows showing transformation steps.

Line drawing of a hand using a blender to press or install a button (no text or symbols present)

Line drawing of a blender with three different shapes and one top, showing a step-down from the top to the bottom (no text or symbols)

Diagram showing three steps of a food preparation or storage procedure: dropping funnel, adding granular material, and pouring liquid.

Line drawing of a portable air conditioner unit with control panel (no text or symbols)

Simple line drawing of a cylindrical object with a base and top, no text or symbols present

Diagram illustrating a chemical process with a dropping funnel and two stages of mixing granular material, showing rotational arrows.

Line drawing of a hand using a blender to press or install a button (no text or symbols present)

Line drawing of a blender with three different shapes and one top, showing a step-down assembly (no text or symbols)

Diagram showing a food preparation step: dropping from a funnel to a lid, then adding granular material to a side of liquid.

Line drawing of a portable kitchen appliance with control panel (no text or symbols)

Simple line drawing of a cylindrical object with a base and side port, labeled 'A' (no text or symbols on the object itself)

Diagram illustrating a chemical process involving a reaction step and a container with granular material, showing curved arrows indicating rotation.

Line drawing of a hand using a blender with a lid and plastic cup (no text or symbols)

Line drawing of a blender with three different shapes and one top, showing a step from top to bottom (no text or symbols)

Diagram showing a food preparation step: dropping from a container with granular substance to adding liquid, then adding a lid.

Line drawing of a portable kitchen appliance with control panel (no text or symbols)

Simple line drawing of a cylindrical object with a flanged base and top, labeled 'A' (no text or symbols on the object itself)

Diagram illustrating a chemical process with a dropping funnel and two stages of mixing granular material

Line drawing of a hand placing food into a blender with a tray (no text or symbols)

Line drawing of a blender with three views showing top, front, and side views (no text or symbols)

Diagram showing a step-by-step cooking process: dropping from a funnel to a container with granular material, then adding a lid to a clear glass.

Line drawing of a portable kitchen appliance with control panel (no text or symbols)

Simple line drawing of a cylindrical object with a base and top, no text or symbols present

Diagram illustrating a step-by-step transformation of a container with granular material, showing liquid level changes.

Line drawing of a hand using a blender to press or adjust a piece of food (no text or symbols visible)

Line drawing of a blender with three views showing top, front, and side views (no text or symbols)

Diagram showing a food preparation step: adding granular material into a container, then adding a lid to a clear glass.

Illustrations may differ from actual product. We are constantly striving to improve our products; therefore the specifications contained herein are subject to change without notice.

AUTO-IQ and NINJA are registered trademarks of SharkNinja Operating LLC.

© 2020 SharkNinja Operating LLC.

BN495EU 30 IB MP 200701 Mv1

PRINTED IN CHINA
