USER MANUAL 272720 MILWAUKEE

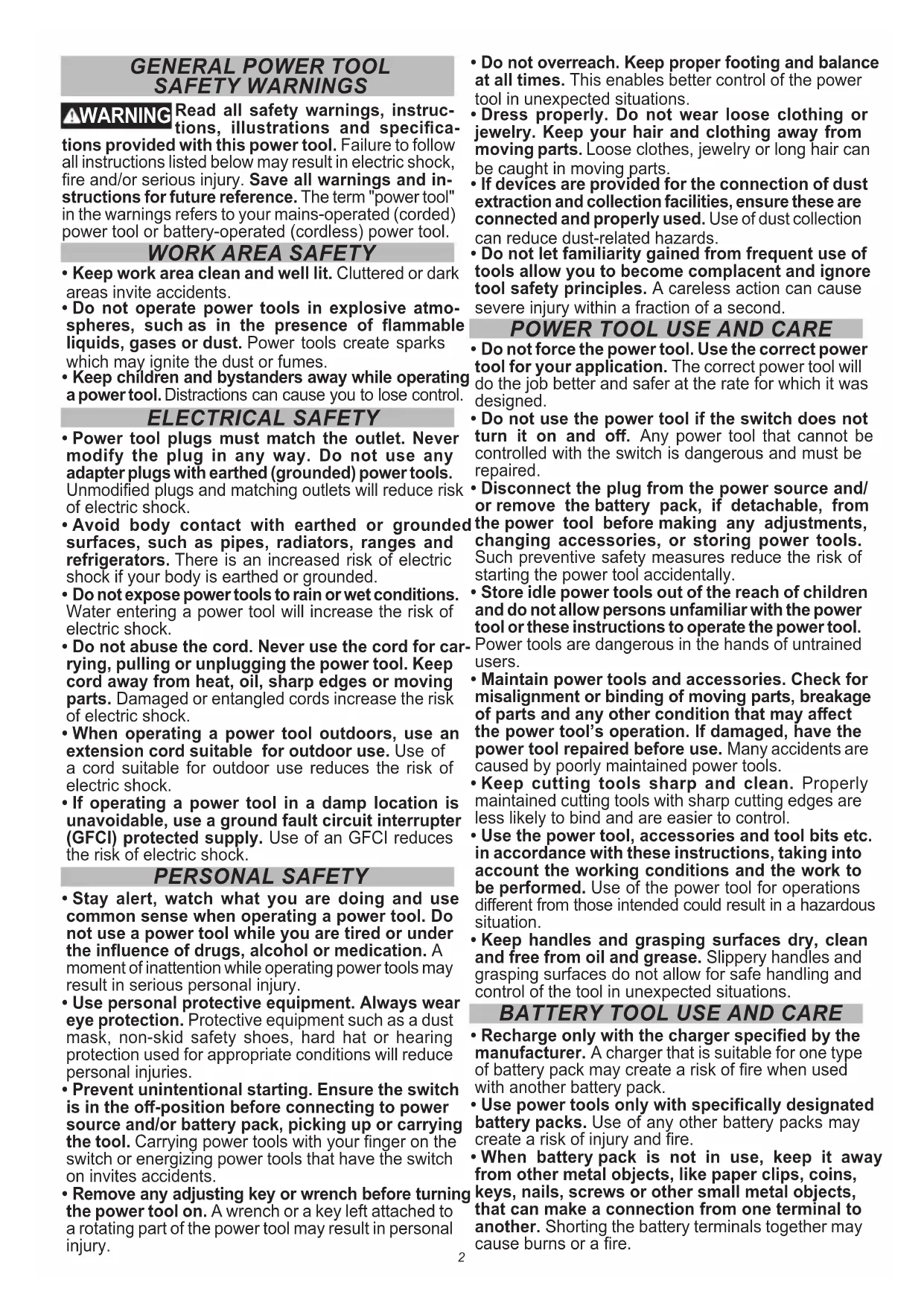

SAFETY WARNINGS WARNING Read all safety warnings, instruc- tions, illustrations and specica- tions provided with this power tool. Failure to follow all instructions listed below may result in electric shock, re and/or serious injury. Save all warnings and in- structions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.

• Do not operate power tools in explosive atmo- spheres, such as in the presence of ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. ELECTRICAL SAFETY

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will reduce risk of electric shock.

• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

• Do not abuse the cord. Never use the cord for car- rying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

• When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

• If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of an GFCI reduces the risk of electric shock. PERSONAL SAFETY

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

• Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.

• Prevent unintentional starting. Ensure the switch is in the o󰀨-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your nger on the switch or energizing power tools that have the switch on invites accidents.

• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

• Dress properly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.

• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

• Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

POWER TOOL USE AND CARE

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

• Do not use the power tool if the switch does not turn it on and o󰀨. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

• Disconnect the plug from the power source and/ or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

• Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may a󰀨ect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

• Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations di󰀨erent from those intended could result in a hazardous situation.

• Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

BATTERY TOOL USE AND CARE

• Recharge only with the charger specied by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of re when used with another battery pack.

• Use power tools only with specically designated battery packs. Use of any other battery packs may create a risk of injury and re.

• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a re.3

• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact acci- dentally occurs, ush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

• Do not use a battery pack or tool that is damaged or modied. Damaged or modied batteries may exhibit unpredictable behavior resulting in re, explosion or risk of injury.

• Do not expose a battery pack or tool to re or ex- cessive temperature. Exposure to re or temperature above 265°F (130°C) may cause explosion.

• Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specied range may damage the battery and increase the risk of re. SERVICE

• Have your power tool serviced by a qualied repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

• Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

SPECIFIC SAFETY RULES

FOR CHAINSAW General chain saw safety warnings:

• Keep all parts of the body away from the saw chain when the chain saw is operating. Before you start the chain saw, make sure the saw chain is not contacting anything. A moment of inattention while operating chain saws may cause entanglement of your clothing or body with the saw chain.

• Always hold the chain saw with your right hand on the rear handle and your left hand on the front handle. Holding the chain saw with a reversed hand conguration increases the risk of personal injury and should never be done.

• Hold the chain saw by insulated gripping surfaces only, because the saw chain may contact hidden wiring or its own cord. Saw chains contacting a "live" wire may make exposed metal parts of the chain saw "live" and could give the operator an electric shock.

• Wear eye protection. Further protective equipment for hearing, head, hands, legs and feet is recom- mended. Adequate protective equipment will reduce personal injury from ying debris or accidental contact with the saw chain.

• Do not operate a chain saw in a tree, on a ladder, from a rooftop, or any unstable support. Operation of a chain saw in this manner could result in serious personal injury.

• Always keep proper footing and operate the chain saw only when standing on xed, secure and level surface. Slippery or unstable surfaces may cause a loss of balance or control of the chain saw.

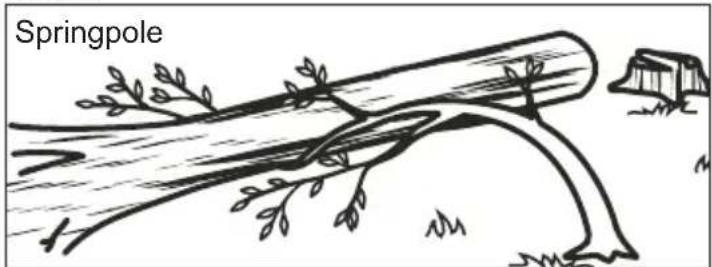

• When cutting a limb that is under tension be alert for spring back. When the tension in the wood bres is released the spring loaded limb may strike the operator and/or throw the chain saw out of control.

• Use extreme caution when cutting brush and sap- lings. The slender material may catch the saw chain and be whipped toward you or pull you o󰀨 balance.

• Carry the chain saw by the front handle with the chain saw switched o󰀨 and away from your body. When transporting or storing the chain saw always t the guide bar cover. Proper handling of the chain saw will reduce the likelihood of accidental contact with the moving saw chain.

• Follow instructions for lubricating, chain tension- ing and changing the bar and chain. Improperly ten- sioned or lubricated chain may either break or increase the chance for kickback.

• Cut wood only. Do not use chain saw for purposes not intended. For example: do not use chain saw for cutting metal, plastic, masonry or non-wood building materials. Use of the chain saw for opera- tions di󰀨erent than intended could result in a hazard- ous situation.

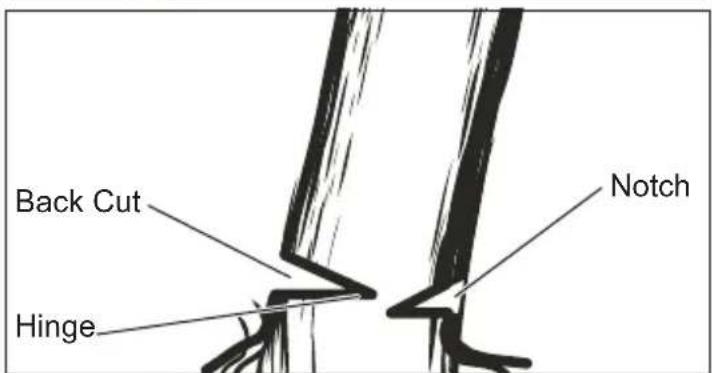

• Do not attempt to fell a tree until you have an un- derstanding of all the risks and how to avoid them. Serious injury could occur to the operator or bystanders from a falling tree. Causes and operator prevention of kickback: Kickback may occur when the nose or tip of the guide bar touches an object, or when the wood closes in and pinches the saw chain in the cut. Tip contact in some cases may cause a sudden reverse reaction, kicking the guide bar up and back towards the operator. Pinching the saw chain along the top of the guide bar may push the guide bar rapidly back towards the operator. Either of these reactions may cause you to lose con- trol of the saw which could result in serious personal injury. Do not rely exclusively upon the safety devices built into your saw. As a chain saw user, you should take several steps to keep your cutting jobs free from accident or injury. Kickback is the result of chain saw misuse and/or in- correct operating procedures or conditions and can be avoided by taking proper precautions as given below:

• Maintain a rm grip, with thumbs and ngers en- circling the chain saw handles, with both hands on the saw and position your body and arm to allow you to resist kickback forces. Kickback forces can be controlled by the operator, if proper precautions are taken. Do not let go of the chain saw.

• Do not overreach and do not cut above shoulder height. This helps prevent unintended tip contact and enables better control of the chain saw in unexpected situations.

• Only use replacement guide bars and saw chains specied by the manufacturer. Incorrect replacement guide bars and saw chains may cause chain breakage and/or kickback.

• Follow the manufacturer’s sharpening and main- tenance instructions for the saw chain. Decreas- ing the depth gauge height can lead to increased kickback.

• Follow all instructions when clearing jammed mate- rial, storing or servicing the chain saw. Make sure the switch is o󰀨 and the battery pack is removed. Unexpected actuation of the chain saw while clearing jammed material or servicing may result in serious personal injury. Other Chain Saw Safety Rules

• Do not start cutting until you have a clear work area, secure footing, and a planned retreat path from the falling tree. Cluttered areas invite accidents.

• Keep ALL children, bystanders, visitors, and ani- mals out of the work area while starting or cutting with the chain saw.

• Dress Properly - Wear snug tting clothing. Always wear heavy, long pants, long sleeves, overalls, jeans or chaps made of cut resistant material or ones that con- tain cut resistant inserts. Wear non-slip safety footwear.4 SPECIFICATIONS Cat. No. ..................................................... 2727-20 Volts.............................................................. 18 DC Battery Type .................................................M18™ Charger Type................................................M18™ RPM .................................................................6600 Chain Speed .........................2440 ft/min (12.4 m/s) Recommended Ambient Operating Temperature ......................0°F to 125°F Bar Length .......... 16" (406.4 mm) / 14" (355.6 mm) Cutting Capacity .... 15" (381 mm) / 13" (330.2 mm) Chain Oil Tank Capacity ................ 6.7 oz (200 mL) 16" Replacement Bar ...........................48-09-3001 14" Replacement Bar ...........................49-16-2756 Bar Groove Width ..........................0.043" (1.1 mm) 16" Replacement Chain ........................49-16-2715 14" Replacement Chain ........................49-16-2749 Chain Type ........................................Low Kickback Chain Pitch ........................................3/8" (9.5 mm) 16" Chain Teeth ...................................................56 14" Chain Teeth ...................................................52 Wear non-slip heavy duty gloves to improve your grip and to protect your hands. Do not wear jewelry, short pants, sandals, or go barefoot. Do not wear loose tting clothing, which could be drawn into the motor or catch the chain or underbrush. Secure hair so it is above shoulder level. Wear hearing and head protection.

• Heavy protective clothing may increase operator fatigue, which could lead to heat stroke. During weather that is hot and humid, heavy work should be scheduled for early morning or late afternoon hours when temperatures are cooler.

• Always wear eye protection with side shields, as well as head and hearing protection when operat- ing this equipment.

• Always be aware of what you are doing when using the chain saw. Use common sense. Do not operate the chain saw when you are tired, ill, or under the inu- ence of alcohol, drugs, or medication.

• Keep all parts of your body away from the saw chain when the unit is running.

• Never let anyone use your chain saw who has not received adequate instructions in its proper use. This applies to rentals as well as privately owned saws.

• Before you start the unit, make sure the saw chain is not contacting any object.

• Stop the chain saw before setting it down.

• Maintain the unit with care. Keep the cutting edge sharp and clean for best performance and to reduce the risk of injury. Follow instructions for lubricating and changing accessories.

• Keep handles dry, clean, and free from oil and grease. Greasy, oily handles are slippery causing loss of control.

• Do not operate a chain saw with one hand! Use a rm grip with thumbs and ngers encircling the chain saw handles. Serious injury to the operator, helpers, bystanders, or any combination of these persons may result from one-handed operation. A chain saw is intended for two-handed use.

• Do not operate a chain saw that is damaged, im- properly adjusted, or not completely and securely assembled. Chain should slow to a stop when the switch trigger is released. If the chain continues to turn after the switch trigger has been released, have the unit serviced by an authorized service center.

• Always maintain a proper stance.

• Do not adapt your powerhead to a bow guide or use it to power any attachments or devices not listed for the saw.

• Do not cut vines and/or small underbrush.

• Do not operate a chain saw in a tree, on a ladder, rooftop, sca󰀨old, or other unstable support; this is extremely dangerous. NOTE: The size of the work area depends on the job being performed as well as the size tree or work piece involved. For example, felling a tree requires a larger work area than making bucking cuts.

• Do not force the chain saw. The job can be performed better and safer at the rate for which it was intended.

• Always use the right product for your application. The chain saw should be used for cutting wood only. Never use the chain saw to cut plastic, masonry or non-wood building materials.

• Store chain saw when not in use. Chain saw should be stored in a dry and high or locked area out of the reach of children. When storing chain saw place the cover on the bar and chain and store the chain saw in carrying case.

• Battery operated units do not have to be plugged into an electrical outlet; therefore, they are always in operating condition. Be aware of possible hazards even when unit is not operating.

• Save these instructions. Refer to them frequently and use them to instruct others who may use this product. If you loan someone this product, loan them these instructions also.

• After each use, clean the machine with a soft dry cloth. Remove any chips, dirt and debris in the battery bay.

• Always use common sense and be cautious when using tools. It is not possible to anticipate every situa- tion that could result in a dangerous outcome. Do not use this tool if you do not understand these operating instructions or you feel the work is beyond your capa- bility; contact Milwaukee Tool or a trained professional for additional information or training.

WARNING To reduce the risk of injury, when working in dusty situations, wear appropriate respiratory protection or use an OSHA compliant dust extraction solution.

• Maintain labels and nameplates. These carry important information. If unreadable or missing, contact a MILWAUKEE service facility for a free replacement.

WARNING Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• lead from lead-based paint

• crystalline silica from bricks and cement and other masonry products, and

• arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to lter out microscopic particles.5 FUNCTIONAL DESCRIPTION

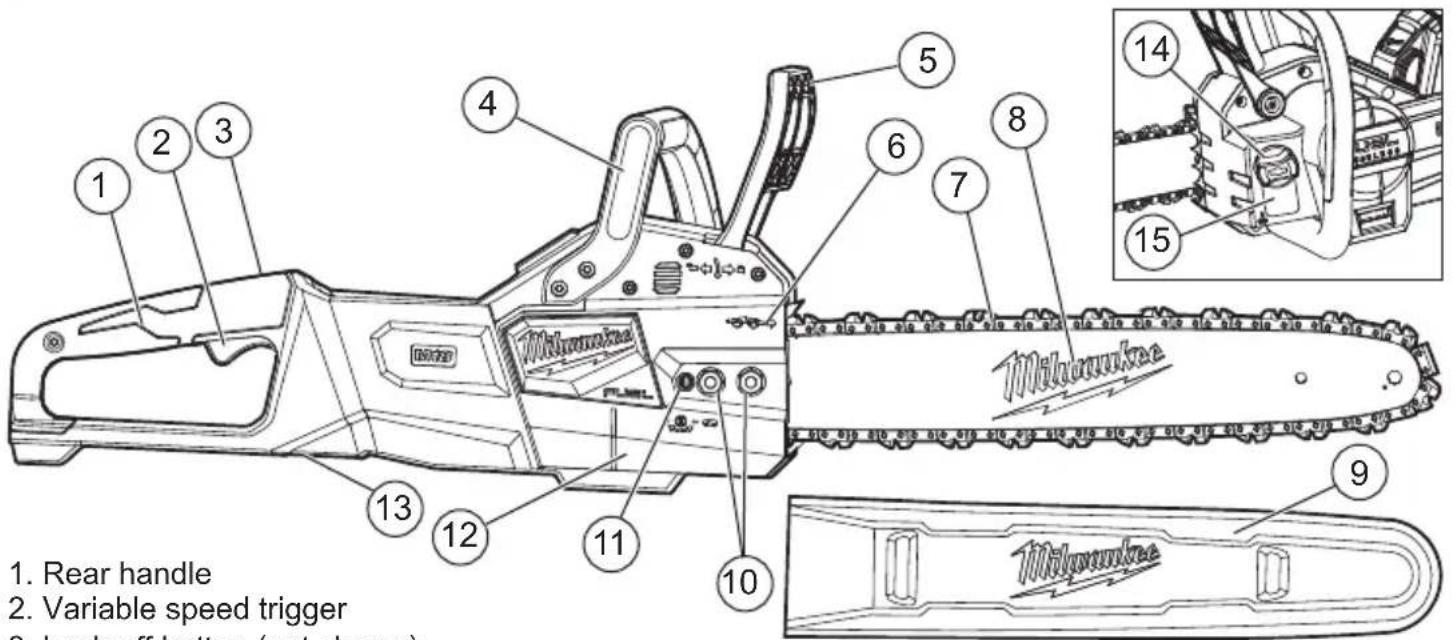

11. Chain tensioning screw

13. Adjustment tool (bottom of saw)

Volts Direct Current No Load Revolutions per Minute (RPM) Read operator’s manual Wear eye, hearing, and head protection DANGER Beware of kickback. Avoid contact with bar tip Always use chainsaw two-handed Do not use chainsaw one-handed SYMBOLOGY Do not expose to rain or use in damp locations. Keep bystanders at least 50' away during use. Wear protective gloves Wear non-slip safety footwear Chain Brake LOCKED/UNLOCKED Chain Oil Reservoir Chain Direction Chain Tension Adjustment

UL Listing for Canada and U.S.6

8. Ensure the chain is properly set in the slot around

the entire guide bar.

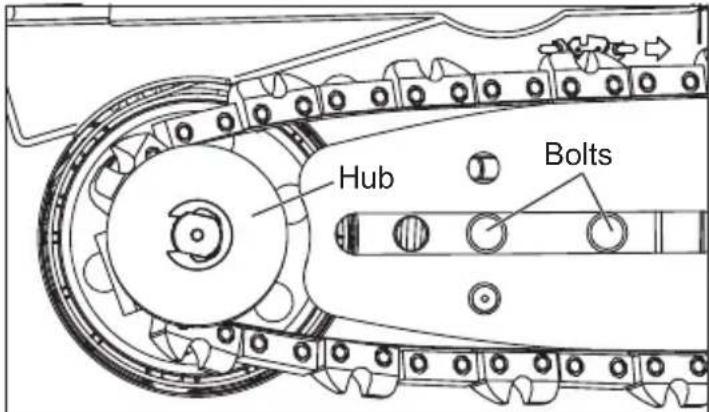

9. Loop the chain around the hub and t the bar around

the bolts. Bolts Hub

10. Replace the drive cover.

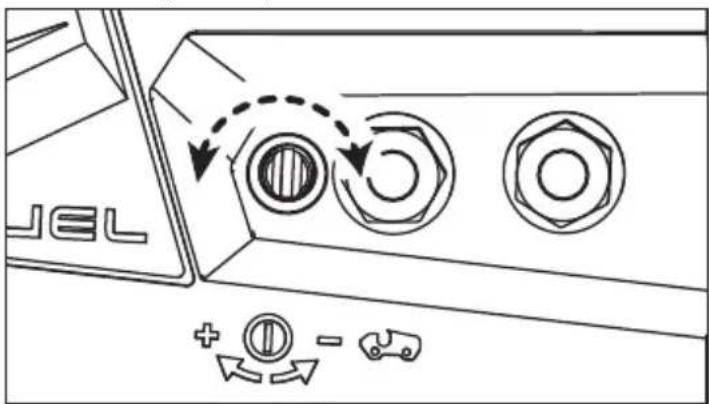

11. Use the adjustment tool to rotate the chain tension-

ing screw to increase tension (clockwise) until the chain is snug around the guide bar.

• The tension is correct when the chain snaps back after being pulled 1/8" (3 mm) away from the guide bar. No sag should be visible in the chain.

• Do not over-tension the chain - excess tension will cause excessive wear and will reduce the life of the chain and could damage the bar.

• New chains could stretch and loosen during initial use. Remove battery pack and check chain ten- sion frequently during the rst two hours of use.

12. Tighten the guide bar nuts securely.

Chain Oil WARNING Always remove battery pack before changing or removing accessories. NOTICE Fill oil reservoir with chain oil (not pro- vided) before starting the chainsaw and when tank is less than 1/4 full. Failure to oil the chain will cause damage to the bar and chain. Check oil level frequently and ll the oil reservoir after each full battery discharge. Use a high quality chain oil. The oil will keep the saw chain and guide bar properly ASSEMBLY WARNING Recharge only with the charger specied for the battery. For spe- cic charging instructions, read the operator’s manual supplied with your charger and battery. Before removing or inserting a battery, push the hand guard/chain brake forward to ensure the brake is locked. Removing/Inserting the Battery To remove the battery, push in the release buttons and pull the battery pack away from the tool. WARNING Always lock the trigger or remove the battery pack any time the tool is not in use. To insert the battery, slide the pack into the body of the tool. Make sure it latches securely into place. WARNING Only use accessories specically recommended for this tool. Others may be hazardous. Replacing/Adjusting the Saw Chain and Bar WARNING Always remove battery pack before changing or removing accessories. CAUTION Chain is sharp. Always wear protec- tive gloves when handling the chain. Use Low Kickback Saw Chains - The rakers (depth gauges) ahead of each cutter can minimize the force of a kickback reaction by preventing the cutters from digging in too deeply at the kickback zone. Only use replace- ment chain that is equivalent to original chain or has been certied as low kickback chain per ANSI B175.1. As saw chains are sharpened during their useful life, they lose some of the low kickback qualities and extra caution should be used.

1. Remove the battery pack.

2. Place the saw on a at, rm surface.

3. Remove the drive cover by removing the guide bar

nuts using the adjustment tool.

4. Loosen the chain by turning the chain tensioning

screw counterclockwise with the adjustment tool.

5. Pull the guide bar o󰀨 of the guide bar bolts and un-

loop the chain from the drive hub. CAUTION! Saw Chain is sharp.

6. Remove the chain from the guide bar groove. CAU-

TION! Saw Chain is sharp. Inspect guide bar for cracks or wear; replace if damaged.

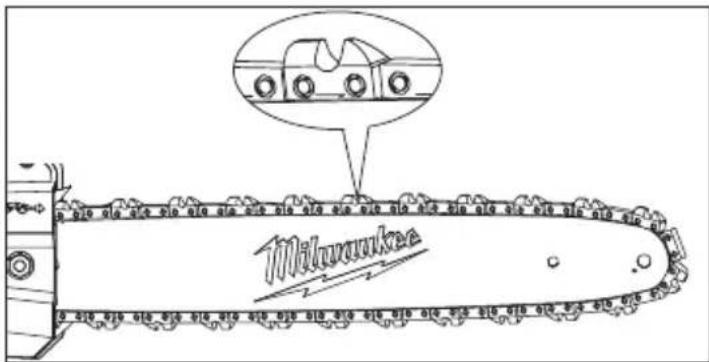

7. Wrap the new or sharpened chain around the guide

bar in the direction indicated on the saw .7 lubricated. Never run the saw without chain oil. Keep the reservoir more than 1/4 full to ensure su󰀩cient oil is available for the job. Always lightly oil the chain when storing to prevent rust. Always empty the oil tank when storing to prevent leakage. NOTICE: It is recommended to use a vegetable based chain oil when pruning trees. Mineral oil may harm trees. Never use waste oil automotive oil, or very thick oils. These could damage the chainsaw. Filling the Oil Reservoir

1. Remove the battery pack.

2. Place the saw on a at, rm surface, blade side down.

3. Unscrew the oil cap.

4. Carefully ll reservoir with chain oil.

5. Tighten oil cap securely.

6. Repeat as needed during use.

7. Periodically check that the saw chain is lubricating

• With a full reservoir, hold the tool with the tip of the guide bar pointing a a light-colored surface.

• Run the tool for approximately 30 seconds.

• An oil line should become visible on the light surface.

• If not, remove and clean the guide bar thoroughly. Ensure the guide bar sprocket (at the tip) rotates freely.

• If the lubrication system still does not work prop- erly, contact a MILWAUKEE service facility. Transporting Saw Before transporting, always:

1. Remove the battery pack

2. Place the cover over the guide bar.

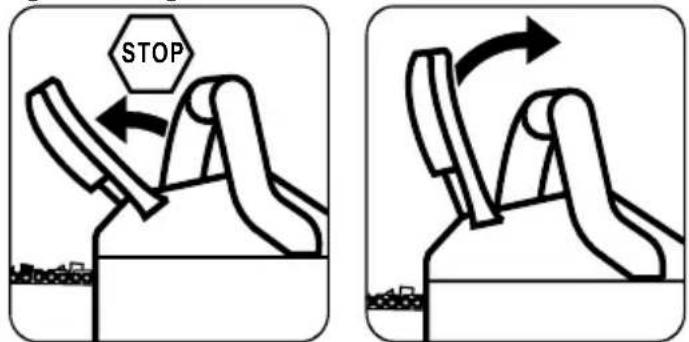

3. Lock the chain brake by pushing hand guard/chain

brake forward. OPERATION WARNING To reduce the risk of injury, always wear proper eye protection marked to comply with ANSI Z87.1. When working in dusty situations, wear appro- priate respiratory protection or use an OSHA compliant dust extraction solution. DANGER Never cut near power lines, electric cords, or other electric sources. If bar and chain jams on any electrical cord or line, DO NOT TOUCH THE BAR OR CHAIN! THEY CAN

BECOME ELECTRICALLY LIVE AND VERY DAN-

GEROUS. Continue to hold the chainsaw by the insulated rear handle or lay it down and away from you in a safe manner. Disconnect the elec- trical service to the damaged line or cord before attempting to free the bar and chain from the line or cord. Contact with the bar, chain, other con- ductive parts of the chainsaw, or live electric cords or lines will result in death by electrocution, electric shock, or serious personal injury. WARNING Read and understand all instruc- tions. Failure to follow all instruc- tions listed below may result in electric shock, re and/or serious personal injury.

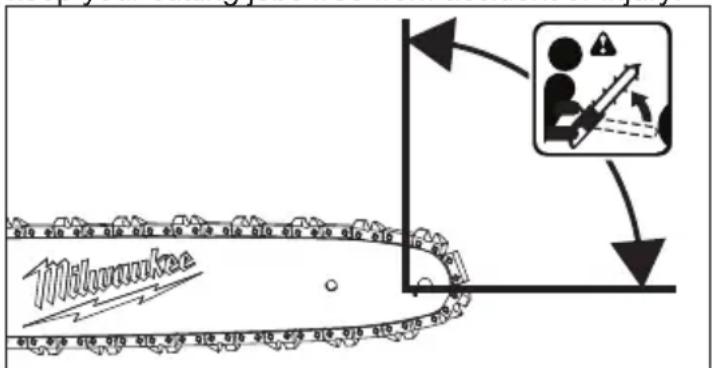

• Guard Against Kickback which can result in severe injury or death. See Important Safety Instructions "Guard Against Kickback", to avoid the risk of kickback.

• Always wear eye protection with side shield, as well as head and hearing protection. Failure to do so could result in objects being thrown into your eyes and other possible serious injuries.

• Do not overreach. Do not cut above shoulder height. Make sure your footing is rm. Keep feet apart. Divide your weight evenly on both feet.

• Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is su󰀩cient to inict serious injury.

• Use a rm grip with your left hand on the front handle and your right hand on the rear handle so that your body is to the left of the guide bar.

• Do not hold chain saw by front hand/chain brake. Keep elbow of left arm locked so that left arm is straight to withstand kickback.

• Never use a cross-handed grip (left hand on the rear handles and right hand on the front handle).

• Never allow any part of your body to be in line with the guide bar when operating the chain saw.

• Never operate while in a tree, in any awkward position or on a ladder or other unstable surface. You may lose control of saw causing severe injury.

• Felling a tree or cutting a log or limb that has a diameter greater than the saw's cutting capacity requires advanced techniques and should only be performed by properly trained professionals. Performing these types of cuts can cause an accident and result in death or serious personal injury.

• Keep the chain saw running at full speed the entire time you are cutting.

• Allow the chain to cut for you. Exert only light pressure. Do not put pressure on chain saw at end of cut.

• When not in use always have the chain brake engaged and battery removed.

• Do not use any attachments or accessories not recommended by the manufacturer. The use of attachments or accessories not recommended can result in serious personal injury. Kickback WARNING Kickback may occur when the moving chain con- tacts an object at the upper portion of the tip of the guide bar or when the wood closes in and pinches the saw chain in the cut. Contact at the upper portion of the tip of the guide bar can cause the chain to dig into the object and stop the chain for an instant. The result is a lightning fast, reverse reaction which kicks the guide bar up and back toward the operator. If the saw chain is pinched along the top of the guide bar, the guide bar can be driven rapidly back toward the op- erator. Either of these reactions can cause loss of saw control which can result in serious injury. Do not rely exclusively upon the safety devices built into the saw. As a chainsaw user, you should take several steps to keep your cutting jobs free from accident or injury.8 The following precautions should be followed to minimize kickback:

• Always grip the saw rmly with both hands. Hold the saw rmly with both hands when the unit is running. Place your right hand on the rear handle and your left hand on the front handle with your thumbs and ngers encircling the chainsaw handles. A rm grip together with a sti󰀨 left arm will help you maintain control of the saw if kickback occurs.

• Make sure that the area in which you are cutting is free from obstructions. Do not let the nose of the guide bar contact a log, branch, fence, or any other obstruction that could be hit while you are operat- ing the saw.

• Always cut with the unit running at full speed. Fully squeeze the throttle trigger and maintain a steady cutting speed.

• Use replacement parts such as low kickback chain, chain brakes and special guide bars that reduce the risks associated with rotational kickback. Use only the replacement guide bars and low kickback chains specied by the manufacturer for the saw. With a basic understanding of kickback, you can reduce or eliminate the element of surprise. Sud- den surprise contributes to accidents. Keep proper footing and balance at all times.

• Do not cut above shoulder height or overreach when cutting.

• Follow the sharpening and maintenance instructions for the saw chain.

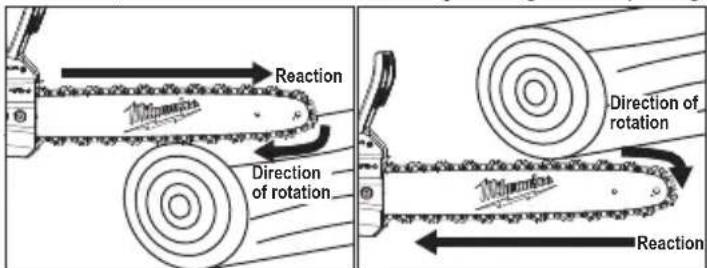

• Push and Pull - This reaction force is always oppo- site to the direction the chain is moving where wood contact is made. Thus, the operator must be ready to control the PULL when cutting on the bottom edge of the bar, and PUSH when cutting along the top edge. Direction of rotationReactionReactionDirection of rotation Chain Brake To reduce the risk of accidents, the chain brake will stop the chain if kickback occurs. When the brake is pushed forward, toward the tip of the guide bar, the saw will not run. Use the chain brake when transport- ing or storing the saw. STOP Turning the Tool On / O󰀨 WARNING Always be sure of your footing and grip the chainsaw rmly with both hands. The ngers should encircle the handle and the thumb should be wrapped under the handlebar to resist kick- back. Keep body to the left of the chain line. Always keep your left hand on the front handle and your right hand on the rear handle so that your body is to the left of the chain line. Never straddle the saw or chain, or lean over past the chain line. Wear non-slip gloves for maximum grip and protection.

1. Pull the chain brake lever to UNLOCKED

(toward the tool handle) .

2. Insert the battery pack.

3. Grip both handles securely, keeping body out of

line with the chain.

4. Press in the lock-o󰀨 button and pull the trigger.

5. Allow tool to come to full speed before contacting

6. To stop, release the trigger. Hold saw still until

chain comes to a complete stop.

7. Push the chain brake lever to LOCKED (toward

the chain bar) . WARNING Never attempt to lock the trigger in the ON position. Proper Cutting Stance WARNING Always use the proper cutting stance described in this section. Never kneel when using the chainsaw, except when felling a tree. Kneeling could result in loss of stability and control of the chainsaw, resulting in serious personal injury.

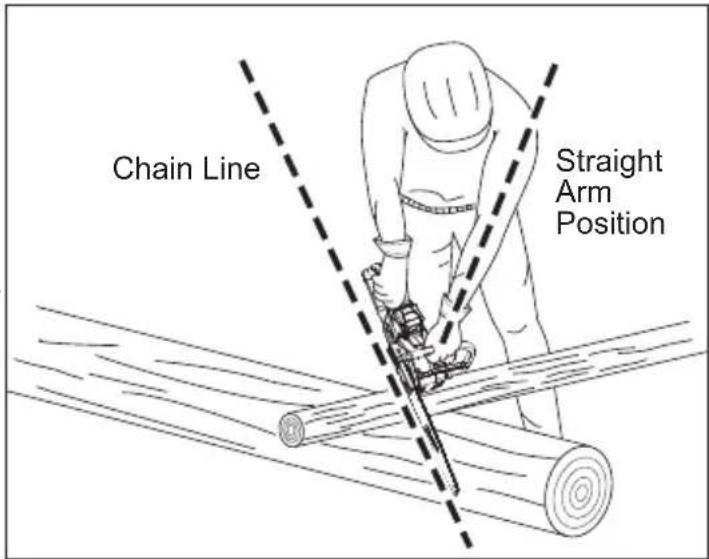

• Weight should be balanced with both feet on solid ground.

• Keep left arm with elbow locked in a “straight arm” position to withstand any kickback force.

• Your body should always be to the left of the chain line.

• Thumb should be on underside of handlebar. Straight Arm Position Chain Line9 Basic Cutting Procedure Practice cutting a few small logs using the following technique to get the “feel” of using the saw before you begin a major sawing operation.

• Take the proper stance in front of the wood with the saw o󰀨.

• Squeeze the switch trigger and let the chain accelerate to full speed before entering the cut.

• Begin cutting with the saw against the log.

• Keep the unit running the entire time you are cutting, maintain a steady speed.

• Allow the chain to cut for you; exert only light downward pressure. If you force the cut, damage to the bar, chain, or unit can result.

• Release the switch trigger as soon as the cut is com- pleted, allowing the chain to stop. If you run the saw without a cutting load, unnecessary wear can occur to the chain, bar, and unit.

• Do not put pressure on the saw at the end of cut. Work Area Precautions

• Cut only wood or materials made from wood, no sheet metal, no plastics, no masonry, no non-wood building materials.

• Never allow children to operate the saw. Allow no person to use this chainsaw who has not read this Operator’s Manual or received adequate instructions for the safe and proper use of this chainsaw.

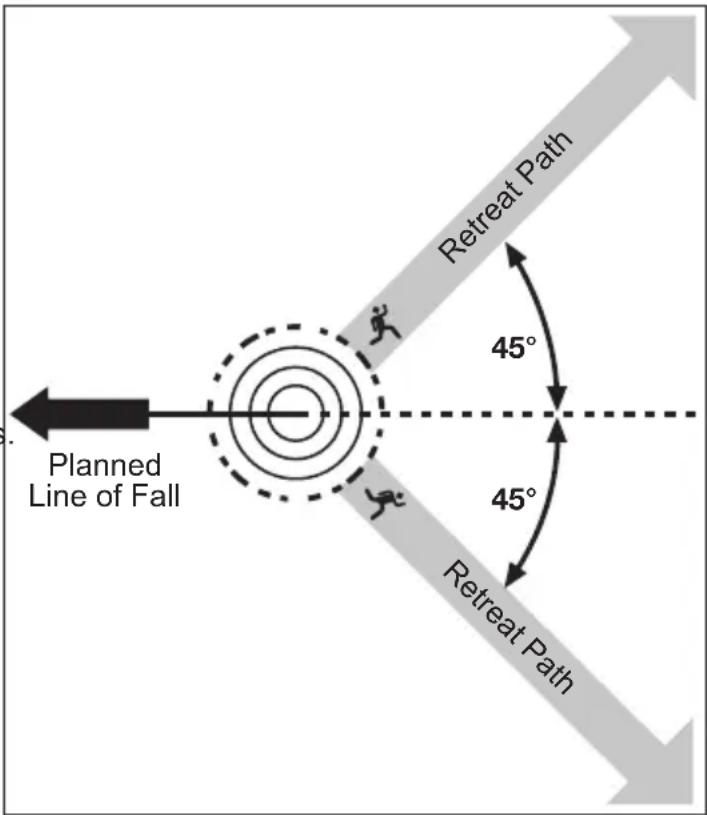

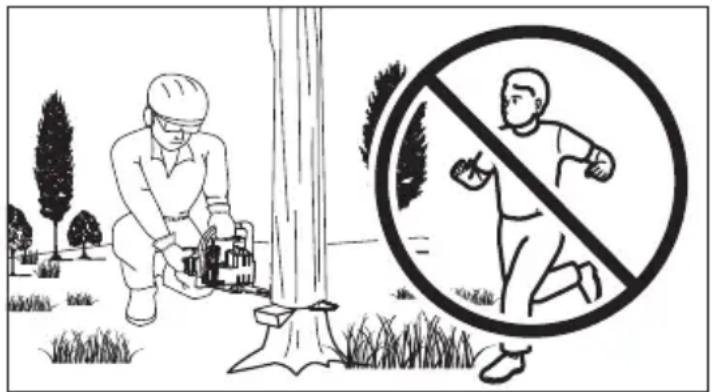

• When felling a tree, keep everyone - helpers, bystand- ers, children, and animals - a safe distance from the cutting area. During felling operations, the safe dis- tance should be a least twice the height of the largest trees in the felling area. During bucking operations, keep a minimum distance of 15 feet between work- ers. Trees should not be felled in a manner that would endanger any person, strike any utility line or cause any property damage. If the tree does make contact with any utility line, the utility company should be noti- ed immediately.

• Always cut with both feet on solid ground to prevent being pulled o󰀨 balance.

• Do not cut above shoulder height, as a saw held higher is di󰀩cult to control against kickback forces.

• Do not fell trees near electrical wires or buildings. Leave this operation for professionals.

• Cut only when visibility and light are adequate for you to see clearly.

• Check work area for hazards such as bees, rodents, snakes, etc., that may live in trees or brush. Felling Trees Hazardous Conditions WARNING Do not fell trees during periods of high wind or heavy precipitation. Wait until the hazardous weather has ended. Closely check for broken or dead branches, which could fall while cutting and do not cut near buildings or electrical wires if you do not know the direc- tion of tree fall. Do not cut at night or during bad weather conditions, such as rain, snow, or strong winds, which can reduce visibility and control of the chainsaw. If the tree you are felling makes contact with any utility line, you should discontinue use of the chainsaw and immediately notify the utility company. Failure to follow these instructions could result in death or serious personal injury. When felling (cutting down) a tree, it is important that you follow these warnings and instructions to prevent possible serious injury.

• Do not cut down trees having an extreme lean or large trees with rotten limbs, loose bark, or hollow trunks. Have these trees pushed or dragged down with heavy equipment, then cut them up.

• Do not cut trees near electrical wires or buildings.

• Check the tree for damaged or dead branches that could fall and hit you during felling.

• Periodically glance at the top of the tree during the backcut to assure the tree is going to fall in the desired direction.

• If the tree starts to fall in the wrong direction, or if the saw gets caught or hung up during the fall, leave the saw and save yourself!

• Felling a tree - When bucking and felling operations are being performed by two or more persons, at the same time, the felling operation should be separated from the bucking operation by a distance of at least twice the height of the tree being felled. Trees should not be felled in a manner that would endanger any person, strike any utility line or cause any property damage. If the tree does make contact with any utility line, the utility company should be notied immediately. 45° 45° Planned Line of Fall Retreat Path Retreat Path10

• Before any cuts are started, pick your escape route (or routes in case the intended route is blocked); clear the immediate area around the tree and make sure there are no obstructions in your planned path of retreat. Clear paths of safe retreat should extend back and diagonally (45°) to the rear of the planned line of fall. When the tree begins to fall, you should retreat away from the direction of fall along a retreat path and at least 20 feet away from the trunk in case it kicks back over the stump.

• Before felling is started, consider the force and direction of the wind, the lean and balance of the tree, and the location of large limbs. These things inuence the direction in which the tree will fall. Do not try to fell a tree along a line di󰀨erent from its natural line of fall.

• The chainsaw operator should keep on the uphill side of the terrain as the tree is likely to roll or slide downhill after it is felled.

• Remove dirt, stones, loose bark, nails, staples, and wire from the tree where felling cuts are to be made.

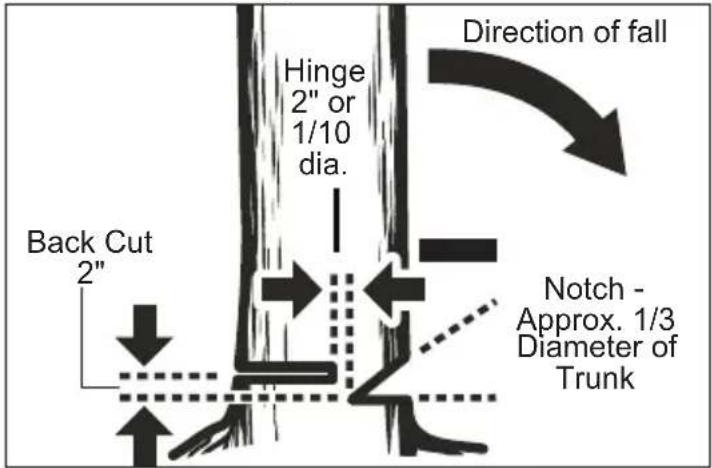

• Notched Undercut (a notch cut in a tree that directs the tree’s fall). Cut a notch about 1/3 the diameter of the tree, perpendicular to the direction of fall. Make the cuts of the notch so they intersect at a right angle to the line of fall. This notch should be cleaned out to leave a straight line. To keep the weight of the wood o󰀨 the saw, always make the lower cut of the notch before the upper cut. Direction of fall Hinge 2" or 1/10 dia. Back Cut

• Felling Backcut (the nal cut in a tree felling opera- tion made on the opposite side of the tree from the notching undercut). The backcut is always made level and horizontal, and at a minimum of 2" above the horizontal cut of the notch.

• Never cut through to the notch. Always leave a band of wood between the notch and backcut (approxi- mately 2" or 1/10 the diameter of the tree). This is called “hinge” or “hingewood.” It controls the fall of the tree and prevents slipping or twisting or shoot- back of the tree o󰀨 the stump.

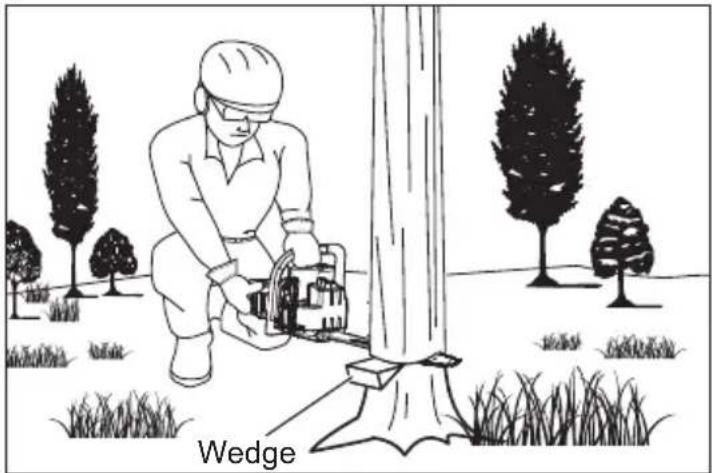

• On large diameter trees, stop the back cut before it is deep enough for the tree to either fall or settle back on the stump. Then insert soft wooden or plastic wedges into the cut so they do not touch the chain. The wedges can be driven in, little by little, to help jack the tree over. Wedge

• As tree starts to fall, stop the chainsaw and put it down immediately. Retreat along the cleared path, but watch the action in case something falls your way. Be alert for overhead limbs or branches that may fall and watch your footing. WARNING Never cut through to the notch when making a backcut. The hinge controls the fall of the tree, this is the section of wood between the notch and backcut. Bucking Bucking is the term used for cutting a fallen tree to the desired log length.

• Always make sure your footing is secure and your weight is distributed evenly on both feet.

• Cut only one log at a time.

• Support small logs on a saw horse or another log while bucking.

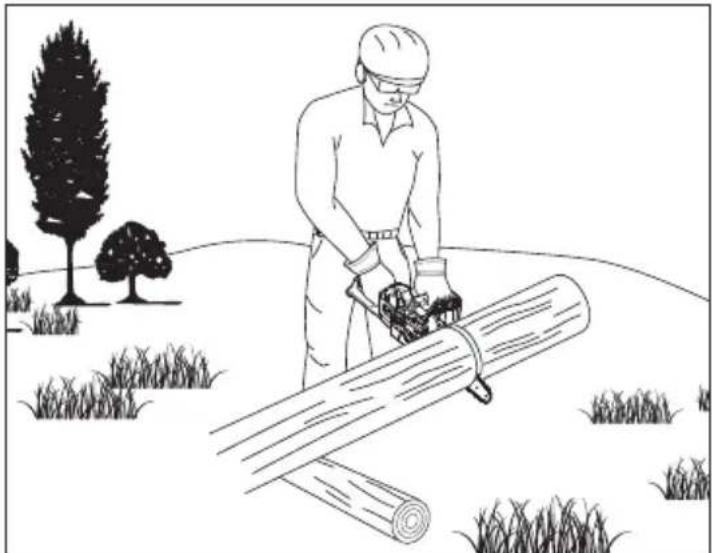

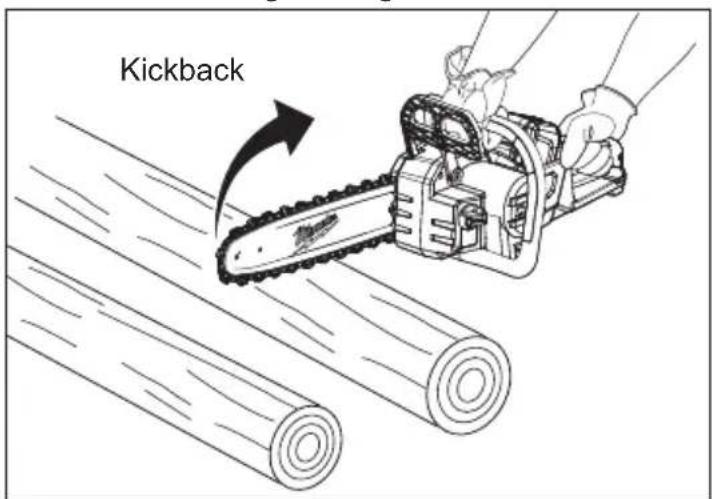

• Keep a clear cutting area. Make sure that no objects can contact the guide bar nose and chain during cutting, this can cause kickback.

• Never allow someone to hold the log during cutting.

• Never stabilize log with leg or feet. Kickback

• When bucking on a slope, always stand on the uphill side of the log. To maintain complete control of the chainsaw when cutting through the log, release the cutting pressure near the end of the cut without relaxing your grip on the chainsaw handles. Do not let the chain contact the ground. After completing the cut, wait for the saw chain to stop before you move the chainsaw. Always stop the motor before moving from tree to tree.11

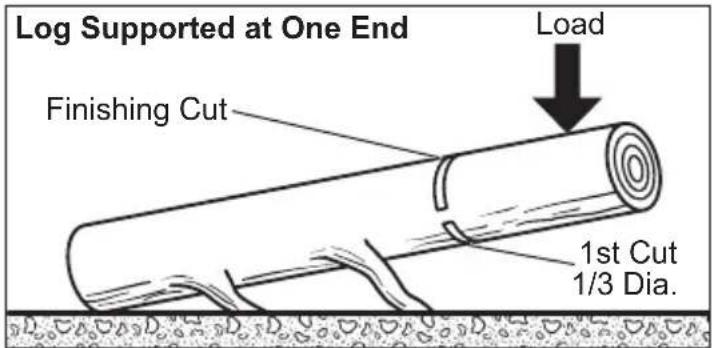

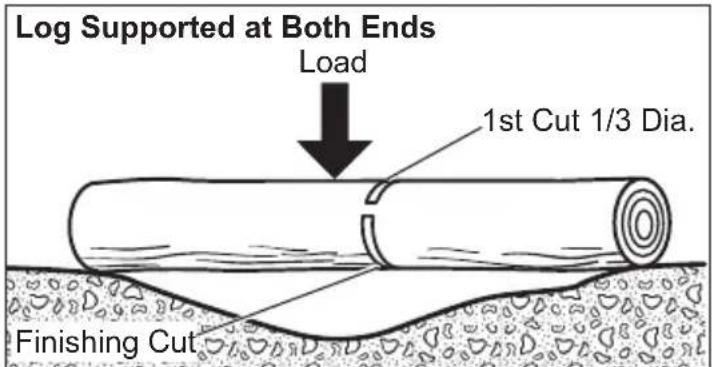

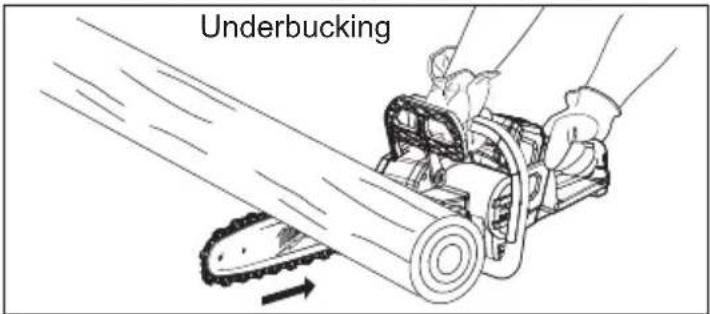

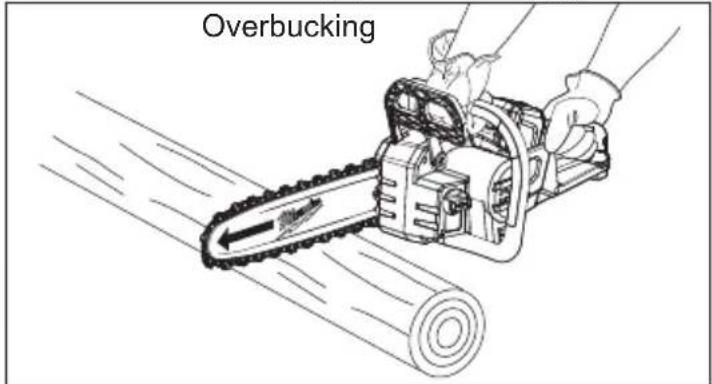

• Sometimes it is impossible to avoid pinching (with just standard cutting techniques) or di󰀩cult to predict which way a log will settle when cut. To avoid pinch- ing while cutting, rotate or move the log so that the pinch is eliminated. Bucking Logs Under Stress When the log is supported along its entire length, it should be cut from the top or overbucking. Log Supported at Both Ends Finishing Cut Load 1st Cut 1/3 Dia. When the log is supported on one end, cut 1/3 the diameter from the underside or underbucking. Then make the nishing cut by overbucking to meet the rst cut. Finishing Cut Log Supported at One End Load 1st Cut 1/3 Dia. As the log is being cut, it will tend to bend. The saw can become pinched or hung in the log if you make the rst cut deeper than 1/3 of the diameter of the log. Give special attention to logs under stress to prevent the bar and chain from pinching. When bucking on a slope, always stand on the uphill side of the log. When “cutting through,” to maintain complete control of the chainsaw, release the cutting pressure near the end of the cut without relaxing your grip on the chainsaw handles. Do not let the chain contact the ground. After completing the cut, wait for the saw chain to stop before you move the chainsaw. Always stop the motor before moving from tree to tree. Types of Cutting Used Overbucking (crosscutting) Overbucking Begin on the top side of the log with the bottom of the saw against the log; exert light pressure downward. Note that the saw will tend to pull away from you. Underbucking (crosscutting) Underbucking Begin on the under side of the log with the top of the saw against the log; exert light pressure upward. Dur- ing underbucking, the saw will tend to push back at you. Be prepared for this reaction and hold the saw rmly to maintain control. Limbing WARNING Never climb into a tree to limb or prune. Do not stand on ladders, platforms, a log, or in any position which can cause you to lose your balance or control of the saw. Cut limbs one at a time and leave support limbs under tree until log is cut

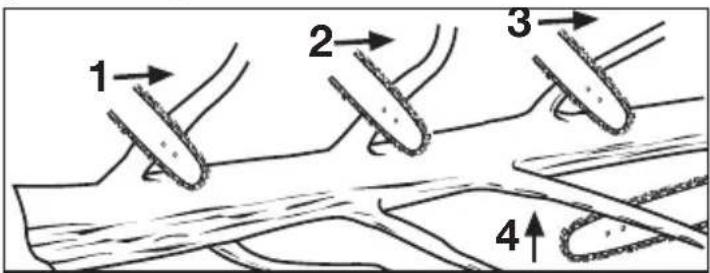

Limbing is removing branches from a fallen tree.

• Work slowly, keeping both hands on the chainsaw with a rm grip. Always make sure your footing is secure and your weight is distributed evenly on both feet.

• Leave the larger support limbs under the tree to keep the tree o󰀨 the ground while cutting.

• Limbs should be cut one at a time. Remove the cut limbs from the work area often to help keep the work area clean and safe.

• Branches under tension should be cut from the bot- tom up to avoid binding the chainsaw.

• Keep the tree between you and the chainsaw while limbing. Cut from the side of the tree opposite the branch you are cutting.12 Pruning WARNING If the limbs to be pruned are above shoulder height, hire a profes- sional to perform the pruning. Failure to do so could result in serious personal injury. Load Second Cut First Cut 1/3 Diameter Finishing Cut Pruning is trimming limbs from a live tree.

• Work slowly, keeping both hands on the chainsaw with a rm grip. Always make sure your footing is secure and your weight is distributed evenly on both feet.

• Do not cut from a ladder, this is extremely danger- ous. Leave this operation for professionals.

• Do not cut above shoulder height as a saw held higher is di󰀩cult to control against kickback.

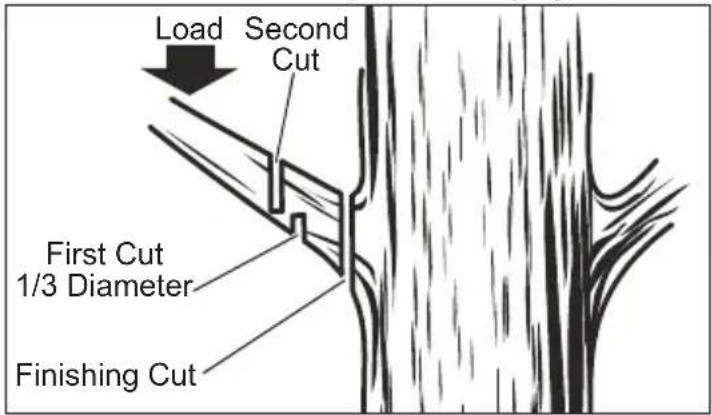

• When pruning trees it is important not to make the nishing cut next to the main limb or trunk until you have cut o󰀨 the limb further out to reduce the weight. This prevents stripping the bark from the main member.

• Underbuck the branch 1/3 through for your rst cut.

• Your second cut should overbuck to drop the branch o󰀨.

• Now make your nishing cut smoothly and neatly against the main member so the bark will grow back to seal the wound. Springpoles WARNING Springpoles are dangerous and could strike the operator, causing the operator to lose control of the chainsaw. This could result in severe or fatal injury to the op- erator. Springpole A springpole is any log, branch, rooted stump, or sapling which is bent under tension by other wood so that it springs back if the wood holding it is cut or removed. On a fallen tree, a rooted stump has a high potential of springing back to the upright position during the bucking cut to separate the log from the stump. Watch out for springpoles, they are dangerous. TROUBLESHOOTING Problem Cause Solution Bar and chain running hot and smoking. Check chain tension for over tight condition. Chain oil reservoir is empty. Correct chain tension. Fill oil reservoir. Motor runs, but chain is not rotating. Chain tension too tight. Guide bar and chain improperly assembled. Guide bar or chain is damaged. Correct chain tension. Correct assembly. Replaced damaged parts before use. MAINTENANCE WARNING To reduce the risk of injury, always unplug the charger and remove the battery pack from the charger or tool before performing any maintenance. Never disassemble the tool, battery pack or charger. Contact a MILWAUKEE service facility for ALL repairs. Maintaining Tool Keep your tool, battery pack and charger in good repair by adopting a regular maintenance program. Inspect your tool for issues such as undue noise, misalignment or binding of moving parts, breakage of parts, or any other condition that may a󰀨ect the tool operation. Return the tool, battery pack, and charger to a MILWAUKEE service facility for repair. After six months to one year, depending on use, return the tool, battery pack and charger to a MILWAUKEE service facility for inspection. If the tool does not start or operate at full power with a fully charged battery pack, clean the contacts on the battery pack. If the tool still does not work prop- erly, return the tool, charger and battery pack, to a MILWAUKEE service facility for repairs. Chain and Bar After every few hours of use, remove the drive cover, guide bar and chain and clean thoroughly using a soft bristle brush. Ensure oiling hole on bar is clear of debris. When replacing dull chains with sharp chains it is good practice to ip the guide bar from bottom to top. Sharpening the Saw Chain WARNING Improper chain sharpening in- creases the potential of kickback. Failure to replace or repair damaged chain can cause serious injury. The saw chain is very sharp, always wear pro- tective gloves when performing maintenance to the chain.13 Cutting Corner Side Plate Depth Gauge Toe Gullet Heel Rivet Hole Top Plate Be careful to le all cutters to the specied angles and to the same length, as fast cutting can be obtained only when all cutters are uniform.

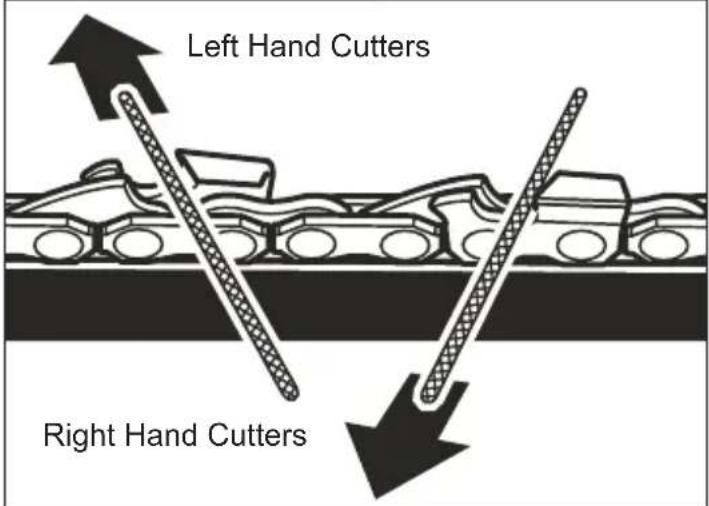

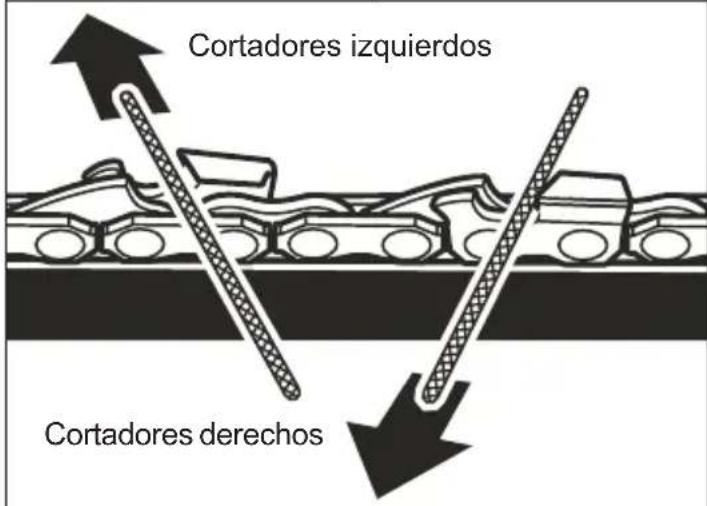

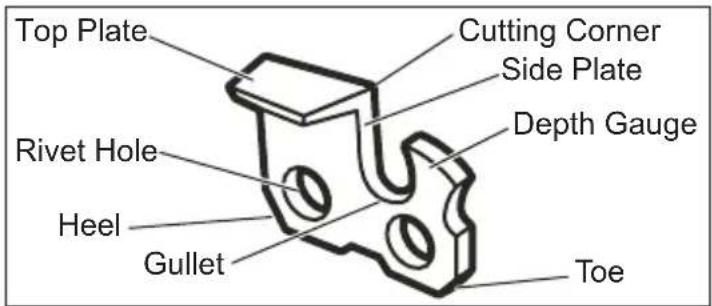

• Wear gloves for protection. Properly tension the chain prior to sharpening. Refer to Chain Tension section earlier in this manual. Do all of your ling at the mid- point of the bar. Left Hand Cutters Right Hand Cutters

• Use a 11/64" (4.4 mm) diameter round le and holder.

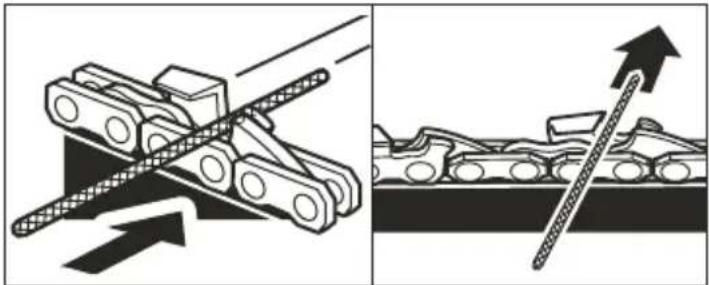

• Keep the le level with the top plate of the tooth. Do not let the le dip or rock.

• Using light but rm pressure, stroke towards the front corner of the tooth.

• Lift le away from the steel on each return stroke.

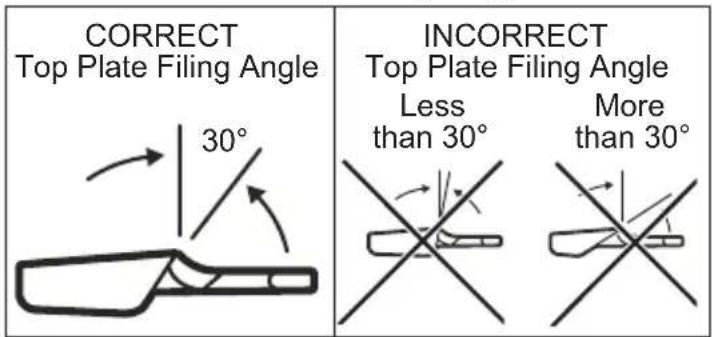

• Put a few rm strokes on every tooth. File all left hand cutters in one direction. Then move to the other side and le the right hand cutters in the opposite direc- tion. Occasionally remove lings from the le with a wire brush. Top Plate Filing Angle CORRECT Top Plate Filing Angle More than 30° Less than 30° 30° INCORRECT Top Plate Filing Angle

• CORRECT 30° - File holders are marked with guide marks to align le properly to produce correct top plate angle.

• LESS THAN 30° - For Cross Cutting.

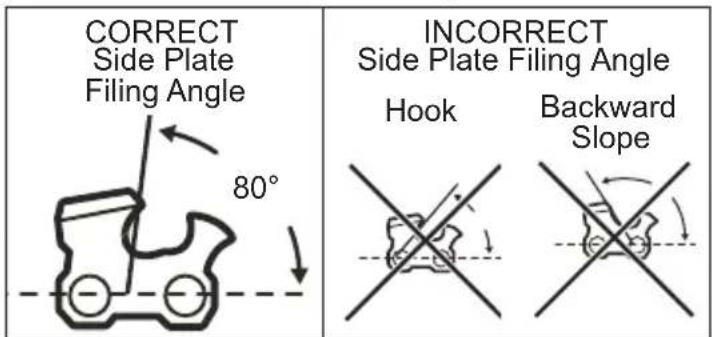

• HOOK - “Grabs” and dulls quickly. Increases po- tential of KICKBACK. Results from using a le with diameter too small, or le held too low.

• BACKWARD SLOPE - Needs too much feed pres- sure, causes excessive wear to bar and chain. Results from using a le with diameter too large, or le held too high. Depth Gauge Clearance

• The depth gauge should be maintained at a clear- ance of .025". Use a depth gauge tool for checking the depth gauge clearances.

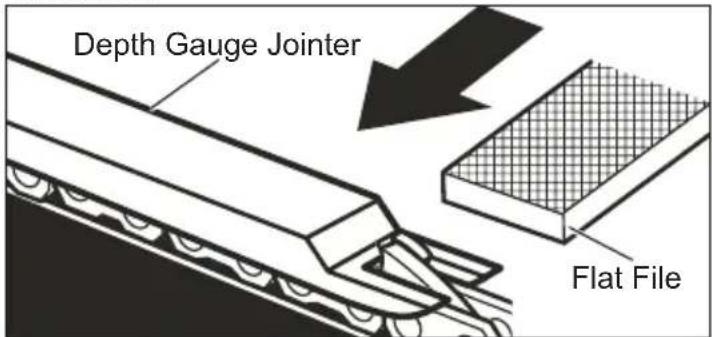

• Every time the chain is led, check the depth gauge clearance. Flat File Depth Gauge Jointer Use a at le and a depth gauge jointer to lower all gauges uniformly. Depth gauge jointers are available in 0.02" to .035" Use a .025" depth gauge jointer. After lowering each depth gauge, restore original shape by rounding the front. Be careful not to damage adjoining drive links with the edge of the le. Depth gauges must be ad- justed with the at le in the same direction the adjoin- ing cutter was led with the round le. Use care not to contact cutter face with at file when adjusting depth gauges. Guide Bar Maintenance When the guide bar shows signs of wear, ip the guide bar from bottom to top on the saw to distribute the wear for maximum bar life. The bar should be cleaned every day of use and checked for wear and damage. Feathering or burring of the bar rails is a normal process of bar wear. Such faults should be smoothed with a le as soon as they occur. Restore original shape by rounding the front14 A bar with any of the following faults should be replaced.

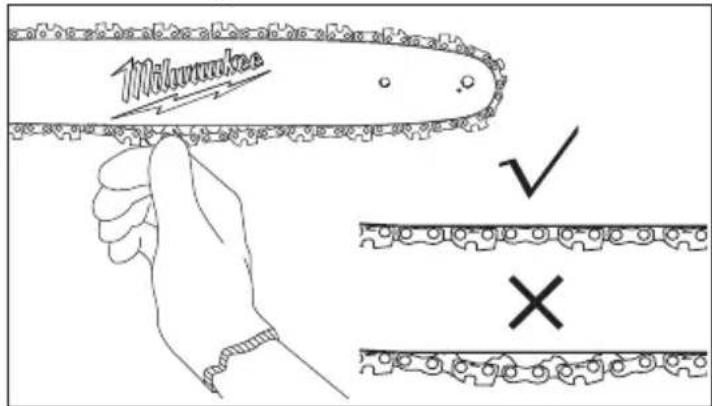

• Wear inside the bar rails which permits the chain to lay over sideways.

• Cracked or broken rails.

• Spread rails. Lubricate guide bars with a sprocket at their tip weekly. Using a grease syringe, lubricate weekly in the lubri- cating hole. Turn the guide bar and check that the lubrication holes and bar rails are free from impurities. NOTICE: Do not replace the screw with an ordinary screw. Use only identical replacement parts from the manufacturer when replacing parts. WARNING To reduce the risk of personal injury and damage, never immerse your tool, battery pack or charger in liquid or allow a liquid to ow inside them. Cleaning Clean dust and debris from vents. Keep handles clean, dry and free of oil or grease. Use only mild soap and a damp cloth to clean, since certain cleaning agents and solvents are harmful to plastics and other insulated parts. Some of these include gasoline, turpentine, lacquer thinner, paint thinner, chlorinated cleaning sol- vents, ammonia and household detergents containing ammonia. Never use ammable or combustible solvents around tools. Repairs For repairs, return the tool, battery pack and charger to the nearest authorized service center. ACCESSORIES WARNING Use only recommended accesso- ries. Others may be hazardous. For a complete listing of accessories, go online to www.milwaukeetool.com or contact a distributor.

SERVICE - UNITED STATES

1-800-SAWDUST (1.800.729.3878) Monday-Friday, 7:00 AM - 6:30 PM CST or visit www.milwaukeetool.com Contact Corporate After Sales Service Technical Support with technical, service/repair, or warranty questions. Email: metproductsupport@milwaukeetool.com Become a Heavy Duty Club Member at www.milwaukeetool.com to receive important notications regarding your tool purchases.

Monday-Friday, 7:00 AM - 4:30 PM CST or visit www.milwaukeetool.ca LIMITED WARRANTY USA & CANADA Every MILWAUKEE Outdoor Power Equipment Product* (see excep- tions below) is warranted to the original purchaser only to be free from defects in material and workmanship. Subject to certain exceptions, MILWAUKEE will repair or replace any part on an outdoor power equip- ment product which, after examination, is determined by MILWAUKEE to be defective in material or workmanship for a period of three (3) years** after the date of purchase unless otherwise noted. Return of the outdoor power equipment to a MILWAUKEE factory Service Center location or participating MILWAUKEE Authorized Service Station, freight prepaid and insured, is required. A copy of the proof Bar Rails of purchase should be included with the return product. This war- ranty does not apply to damage that MILWAUKEE determines to be from repairs made or attempted by anyone other than MILWAUKEE authorized personnel, misuse, alterations, abuse, normal wear and tear, lack of maintenance, or accidents. Normal Wear: Many outdoor power equipment products need periodic parts replacement and service to achieve best performance. This war- ranty does not cover repair when normal use has exhausted the life of a part including, but not limited to trimmer head, trimmer head spool, cutting lines, blades, chains, blower tubes, brushes, o-rings, and seals. *This warranty does not cover Cordless Battery Packs or Recondi- tioned Product. There are separate and distinct warranties available for these products. **The warranty period for SWITCH TANK™ tank assemblies, hoses, handles, and wands are one (1) year from the date of purchase. MILWAUKEE does not cover freight or labor charges associated with the inspection and testing of outdoor power equipment products which are found by MILWAUKEE not to be a valid warranty claim. A valid warranty claim must be substantiated by the discovery of defective material or workmanship by MILWAUKEE. ACCEPTANCE OF THE EXCLUSIVE REPAIR AND REPLACEMENT REMEDIES DESCRIBED HEREIN IS A CONDITION OF THE CON- TRACT FOR THE PURCHASE OF EVERY MILWAUKEE PRODUCT. IF YOU DO NOT AGREE TO THIS CONDITION, YOU SHOULD NOT PURCHASE THE PRODUCT. IN NO EVENT SHALL MILWAUKEE BE LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL OR PUNITIVE DAMAGES, OR FOR ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A CONSE- QUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS. SOME STATES DO NOT ALLOW THE EX- CLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES, WRITTEN OR ORAL. TO THE EXTENT PERMITTED BY LAW, MILWAUKEE DISCLAIMS

ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION

ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR PURPOSE; TO THE EXTENT SUCH DISCLAIMER IS NOT PERMITTED BY LAW, SUCH IMPLIED WAR- RANTIES ARE LIMITED TO THE DURATION OF THE APPLICABLE EXPRESS WARRANTY AS DESCRIBED ABOVE. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WAR- RANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU, THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE. This warranty applies to product sold in the U.S.A. and Canada only. Please consult the ‘Service Center Search’ in the Parts & Service sec- tion of MILWAUKEE’s website www.milwaukeetool.com or call 1.800. SAWDUST (1.800.729.3878) to locate your nearest service facility for warranty and non-warranty service on a Milwaukee electric power tool.

Monday-Friday, 7:00 AM - 4:30 PM CST www.milwaukeetool.ca
