USER MANUAL M18 Force Logic 2672-21S MILWAUKEE

SAFETY WARNINGS WARNING Read all safety warnings, instruc- tions, illustrations and specica- tions provided with this power tool. Failure to follow all instructions listed below may result in electric shock, re and/or serious injury. Save all warnings and in- structions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.

• Do not operate power tools in explosive atmo- spheres, such as in the presence of ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. ELECTRICAL SAFETY

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Un- modied plugs and matching outlets will reduce risk of electric shock.

• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

• Do not abuse the cord. Never use the cord for car- rying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

• When operating a power tool outdoors, use an exten- sion cord suitable for outdoor use. Use of a cord suit- able for outdoor use reduces the risk of electric shock.

• If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of an GFCI reduces the risk of electric shock. PERSONAL SAFETY

• Stay alert, watch what you are doing and use com- mon sense when operating a power tool. Do not use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

• Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.

• Prevent unintentional starting. Ensure the switch is in the o󰀨-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your nger on the switch or energizing power tools that have the switch on invites accidents.

• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a ro- tating part of the power tool may result in personal injury.

• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

• Dress properly. Do not wear loose clothing or jew- elry. Keep your hair and clothing away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.

• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

• Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

POWER TOOL USE AND CARE

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

• Do not use the power tool if the switch does not turn it on and o󰀨. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

• Disconnect the plug from the power source and/ or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Pow- er tools are dangerous in the hands of untrained users.

• Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may a󰀨ect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

• Keep cutting tools sharp and clean. Properly main- tained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

• Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations di󰀨erent from those intended could result in a hazardous situation.

• Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

BATTERY TOOL USE AND CARE

• Recharge only with the charger specied by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of re when used with another battery pack.

• Use power tools only with specically designated battery packs. Use of any other battery packs may create a risk of injury and re.

• When battery pack is not in use, keep it away from oth- er metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a re.

• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact ac- cidentally occurs, ush with water. If liquid con- tacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

• Do not use a battery pack or tool that is damaged or modied. Damaged or modied batteries may exhibit unpredictable behavior resulting in re, explosion or risk of injury.3

• Do not expose a battery pack or tool to re or ex- cessive temperature. Exposure to re or temperature above 265°F (130°C) may cause explosion.

• Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specied in the instructions. Charging im- properly or at temperatures outside the specied range may damage the battery and increase the risk of re. SERVICE

• Have your power tool serviced by a qualied repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

• Never service damaged battery packs. Service of battery packs should only be performed by the manu- facturer or authorized service providers.

• Do not use tool without cutting jaws installed. Fingers could be crushed.

• Blade is sharp. Keep hands away from all cutting edges and moving parts. Laceration and amputation can occur.

• To reduce the risk of injury, wear safety goggles or glasses with side shields when operating or servic- ing the tool. Material may crack or shatter.

WARNING To reduce the risk of arc ash, electric shock and property damage, work on deenergized lines when pos- sible. Tool is not insulated. Should work on energized lines be required, ensure all proper precautions, including those contained in NFPA 70E, have been taken rst.

• Chemical Burn Hazard. Keep coin cell battery away from children.

• For best results, use only with energy absorbing lanyards. Ropes, straps or chains may break and cause failure. Do not use with lanyards at full ten- sion.

• Always use common sense and be cautious when using tools. It is not possible to anticipate every situation that could result in a dangerous outcome. Do not use this tool if you do not understand these operating instructions or you feel the work is beyond your capability; contact Milwaukee Tool or a trained professional for additional information or training.

• Maintain labels and nameplates. These carry im- portant information. If unreadable or missing, contact a MILWAUKEE service facility for a free replacement.

WARNING Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• lead from lead-based paint

• crystalline silica from bricks and cement and other masonry products, and

• arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to lter out microscopic particles. SYMBOLOGY Volts Direct Current WARNING To reduce the risk of arc ash, electric shock and property damage, work on deenergized lines when possible. Tool is not insulated. Should work on energized lines be required, ensure all proper precautions, including those contained in NFPA 70E, have been taken rst. WARNING Keep hands away from all cutting edges and moving parts. Blade is sharp. Laceration and amputation can occur. To reduce the risk of injury, wear safety goggles or glasses with side shields when operating or servicing the tool. Read operator's manual.

• 750 MCM Cu Jaws will cut any aluminum cable with a diameter less than 1.225" Jaw Type ............................1/2" EHS Guy Wire Jaws (Cat. No. 49-16-2777) Maximum Capacity EHS Guy Wire: 1/2" (19 strand)** Non-EHS Guy Wire: 1/2" (7 & 19 strand)** ACSR: 4/0 AWG Rebar: 3/8" Ground Rod: 3/8" Replacement Blades .................Cat. No. 48-44-2777 ** May require two cutting cycles to complete cut on 1/2" wire Jaw Type ........................... Fine Stranded Wire Jaws (Cat. No. 49-16-2778) Maximum Capacity ..................... Fine Stranded Wire:

1/0 AWG - 777.7 AWG***

Replacement Blades .................Cat. No. 48-44-2778 *** Jaws should only be used on the following wire classes: M, K, I/DLO4 Changing the Blades Replace the blades when they become dull, rounded, chipped, or damaged. Always replace blades as a set. Use only MILWAUKEE blades and cutting jaws. Refer to Specications for replacement blade numbers.

1. Remove the battery pack.

2. Remove cutting jaws from tool.

WARNING Blades are sharp. Keep hands away from cutting edge. Laceration can occur.

4. Carefully slide the blade out of the jaws, keeping

ngers away from the cutting edge.

5. Insert the new blade, keeping ngers away from

6. Securely tighten socket screws to 115 in-lbs.

NOTE: The tightening of the socket screws may cause the jaws to close. Keep hands and ngers out of jaws, and away from cutting edges!

7. Repeat for other blade. Always change blades as

a set. ONE-KEY™ To learn more about the ONE-KEY™ functionality for this tool, go to milwaukeetool.com/One-Key. To download the ONE-KEY™ app, visit the App Store or Google Play from your smart device. ONE-KEY™ Indicator Solid Blue Wireless mode is active and ready to be congured via the ONE-KEY™ app. Blinking Blue Tool is actively communicating with the ONE-KEY™ app. Blinking Red Tool is in security lockout and can be unlocked by the owner via the ONE-KEY™ app. OPERATION WARNING To reduce the risk of arc ash, electric shock and property damage, work on deenergized lines when possible. Tool is not insulated. Should work on energized lines be required, ensure all proper precautions, including those contained in NFPA 70E, have been taken rst. Blade is sharp. Keep hands away from cutting edges and moving parts. Avoid cutting short pieces of material that put hands near blades. Laceration and amputation can occur. Always remove battery pack before changing or removing accessories. Only use accessories specically recommended for this tool. Others may be hazardous. Always wear proper eye protection marked to comply with ANSI Z87.1. Cutting Before cutting, ensure retaining pin is properly seated, and blade socket screws are tight.

1. Insert the workpiece squarely between the blades.

Do not attempt to make angled cuts as it will dam- age the workpiece and blades.

2. Hold the tool rmly and support the workpiece.

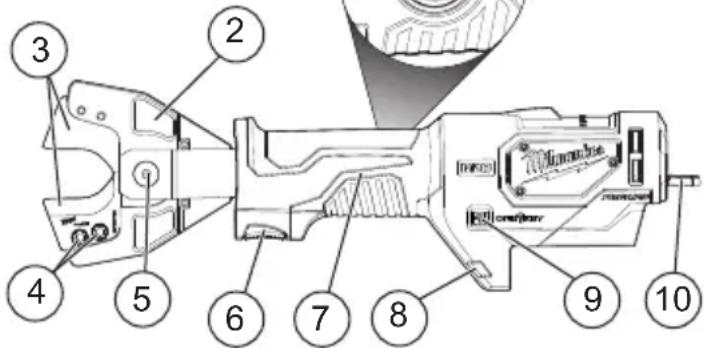

Ensure the workpiece is straight and centered in the jaws. Keep hands away from blades. FUNCTIONAL DESCRIPTION

1. Backup release valve

14.Fine stranded wire jaws ASSEMBLY WARNING Recharge only with the charger specied for the battery. For spe- cic charging instructions, read the operator’s manual supplied with your charger and battery. Removing/Inserting the Battery To remove the battery, push in the release buttons and pull the battery pack away from the tool. WARNING Always remove battery pack before changing or removing accessories. To insert the battery, slide the pack into the body of the tool. Make sure it latches securely into place. WARNING Only use accessories specically recommended for this tool. Others may be hazardous. Blades are sharp. Keep hands away from cutting edge. Laceration can occur. Inserting/Removing the Cutting Jaws Use only MILWAUKEE cutting jaws. Do not use with other jaw types. Other jaw types can cause damage to the tool.

1. Remove the battery pack.

2. Remove the locking thumb screw (when used)

from the back of the retaining pin.

3. Push in, then rotate the retaining pin counterclock-

wise 90° . The pin will pop out.

4. Insert the cutting jaws. Line up the center hole with

5. Push in the retaining pin, then rotate clockwise 90° .

6. Insert and hand tighten the locking thumb screw.

NOTE: Use the locking thumb screw to prevent the retaining pin from being unintentionally loosened. A loose retaining pin may damage the tool.

7. Rotate the jaws to the desired angle.

CAUTION To avoid damage to the tool, do not operate the tool without the retain- ing pin fully inserted and locked into position. Damage to the cylinder may occur.5

3. Pull and hold the trigger through the operation.

When the cut is complete, the blades will separate and the tool will shut o󰀨. Release the trigger. NOTE: Workpiece may move slightly during the cut.

4. Two LEDs will light when the trigger is pulled.

WARNING To reduce the risk of injury, only cut recommended materials for the jaws (see "Specications"). Do not attempt to cut other materials. Cutting Tips

Cut farther in from the end of the material to avoid crooked cuts.

Do not attempt angled cuts. It will damage the blades. Hold the material squarely between the blades.

Cut clean material to extend the blade life. Wipe dirt and debris from material and blades before begin- ning the cut.

Do not cut 477 ACSR materials with 750 MCM Cu jaws. Do not cut 750 MCM Cu materials with 477 ACSR jaws. It could damage the blades, jaws, and tool.

When using the 477 ACSR jaws, ensure the blade retainer is installed.

• Only use the jaws on the material for which it was designed. Other materials could damage t he blades, jaws, and tool. Backup Release Valve If the jaws need to be opened without completing the cycle, press and hold the backup release valve. Hold tool securely until the cylinder retracts fully. Jammed Blades Dirt and debris can cause the blades to become jammed together after a cut. If the tool shuts o󰀨 and the blades are still closed:

1. Press and hold the backup release valve to ensure

2. Remove the battery pack.

3. Remove the jaws from the tool.

4. Use a soft mallet to tap the rear of the jaws to release.

5. Clean any dirt and debris from the blades before

starting another cut. MAINTENANCE WARNING To reduce the risk of injury, always unplug the charger and remove the battery pack from the charger or tool before performing any maintenance. Never disassemble the tool, battery pack or charger. Contact a MILWAUKEE service facility for ALL repairs. Maintaining Tool Keep your tool, battery pack and charger in good repair by adopting a regular maintenance program. Inspect your tool for issues such as undue noise, misalignment or binding of moving parts, breakage of parts, or any other condition that may a󰀨ect the tool operation. Return the tool, battery pack, and charger to a MILWAUKEE service facility for repair. After six months to one year, depending on use, return the tool, battery pack and charger to a MILWAUKEE service facility for inspection. If the tool does not start or operate at full power with a fully charged battery pack, clean the contacts on the battery pack. If the tool still does not work prop- erly, return the tool, charger and battery pack, to a MILWAUKEE service facility for repairs. ONE-KEY™ Refer to the ONE-KEY™ App for information regard- ing necessary servicing, such as internal battery life and crimp count. WARNING Chemical Burn Hazard. This device contains a lithium button/coin cell battery. A new or used battery can cause severe in- ternal burns and lead to death in as little as 2 hours if swallowed or enters the body. Always secure the battery cover. If it does not close securely, stop using the device, remove the batteries, and keep it away from children. If you think batteries may have been swallowed or en- tered the body, seek immediate medical attention. Internal Coin Cell Battery An internal coin cell battery is used to facilitate full ONE-KEY™ functionality. To replace the coin cell battery:

1. Remove the battery pack.

2. Remove the screw(s) and open the coin cell bat-

3. Remove the old coin cell battery, keep it away from

children, and dispose of it properly.

4. Insert the new coin cell battery (3V CR2032), with

the positive side facing up.

5. Close the battery door and tighten the screw(s)

securely. Jaws and Blades Inspect jaws for cracks or damage. Do not use dam- aged jaws. Replace the blades when they become dull, rounded, chipped, or damaged. Hydraulic Fluid To extend the life of the tool, return the tool to a MILWAUKEE service facility for hydraulic uid re- placement after 20,000 cuts or 2 years of use. WARNING To reduce the risk of personal in- jury and damage, never immerse your tool, battery pack or charger in liquid or allow a liquid to ow inside them. Cleaning Clean dust and debris from any vents. Keep tool clean, dry and free of oil or grease. Use only mild soap and a damp cloth to clean, since certain clean- ing agents and solvents are harmful to plastics and other insulated parts. Some of these harmful agents include gasoline, turpentine, lacquer thinner, paint thinner, chlorinated cleaning solvents, ammonia and household detergents containing ammonia. Never use ammable or combustible solvents around tools. Repairs For repairs, return the tool, battery pack and charger to the nearest authorized service center. ACCESSORIES WARNING Use only recommended accesso- ries. Others may be hazardous. For a complete listing of accessories, go online to www.milwaukeetool.com or contact a distributor. WIRELESS COMMUNICATION For products provided with wireless communication features, including ONE-KEY™: Pursuant to part 15.21 of the FCC Rules, do not modify this product. Modication could void your authority to operate the product. This device complies with part 15 of the FCC Rules and ISED-Canada's license exempt RSS standards. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation.6

SERVICE - UNITED STATES

1-800-SAWDUST (1.800.729.3878) Monday-Friday, 7:00 AM - 6:30 PM CST or visit www.milwaukeetool.com Contact Corporate After Sales Service Technical Support with technical, service/repair, or warranty questions. Email: [e-mail] Become a Heavy Duty Club Member at www.milwaukeetool.com to receive important notications regarding your tool purchases.

Monday-Friday, 7:00 AM - 4:30 PM CST or visit www.milwaukeetool.ca LIMITED WARRANTY USA & CANADA This MILWAUKEE power tool* is warranted to the original purchaser from an authorized MILWAUKEE distributor only to be free from defects in material and workmanship. Subject to certain exceptions, MILWAUKEE will repair or replace any part on this power tool which, after examination, is determined by MILWAUKEE to be defective in material or workmanship for a period of ve (5) years after the date of purchase unless otherwise noted. Return of the power tool to a MILWAUKEE factory Service Center location or MILWAUKEE Authorized Service Station, freight prepaid and insured, is required. A copy of the proof of purchase should be included with the return product. This warranty does not apply to damage that MILWAUKEE determines to be from repairs made or attempted by anyone other than MILWAUKEE authorized personnel, misuse, altera-tions, abuse, normal wear and tear, lack of maintenance, or accidents.Normal Wear: Many power tools need periodic parts replacement and service to achieve best performance. This warranty does not cover repair when normal use has exhausted the life of a part including, but not limited to, chucks, brushes, cords, saw shoes, blade clamps, o-rings, seals, bum-pers, driver blades, pistons, strikers, lifters, and bumper cover washers.*This warranty does not cover battery packs or all power tools. Refer to the separate and distinct warranties available for those products.The warranty period for the LED in the LED Work Light (49-24-0171) and the LED Upgrade Bulb (49-81-0090) is the lifetime of the product subject to the limitations above. If during normal use the LED or LED Upgrade Bulb fails, the part will be replaced free of charge. Warranty Registration is not necessary to obtain the applicable warranty on a MILWAUKEE power tool product. The manufacturing date of the product will be used to determine the warranty period if no proof of pur-chase is provided at the time warranty service is requested.ACCEPTANCE OF THE EXCLUSIVE REPAIR AND REPLACEMENT REMEDIES DESCRIBED HEREIN IS A CONDITION OF THE CON-TRACT FOR THE PURCHASE OF EVERY MILWAUKEE PRODUCT. IF YOU DO NOT AGREE TO THIS CONDITION, YOU SHOULD NOT PURCHASE THE PRODUCT. IN NO EVENT SHALL MILWAUKEE BE LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL, OR PUNITIVE DAMAGES, OR FOR ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A CONSE-QUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES, WRITTEN OR ORAL. TO THE EXTENT PERMITTED BY LAW, MILWAUKEE DISCLAIMS ANY IMPLIED WAR-RANTIES, INCLUDING WITHOUT LIMITATION ANY IMPLIED WAR-RANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR PURPOSE; TO THE EXTENT SUCH DISCLAIMER IS NOT PERMITTED BY LAW, SUCH IMPLIED WARRANTIES ARE LIMITED TO THE DURATION OF THE APPLICABLE EXPRESS WARRANTY AS DESCRIBED ABOVE. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU, THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.This warranty applies to product sold in the U.S.A. and Canada only.Please consult the ‘Service Center Search’ in the Parts & Service sec-tion of MILWAUKEE’s website www.milwaukeetool.com or call 1.800.SAWDUST (1.800.729.3878) to locate your nearest service facility for warranty and non-warranty service on a MILWAUKEE power tool. RÈGLES DE SÉCURITÉ GÉNÉRALES

Monday-Friday, 7:00 AM - 4:30 PM CST www.milwaukeetool.ca
