76370PY - Can opener PROCTOR SILEX - Free user manual and instructions

Product type	Automatic electric can opener
Brand	Proctor Silex
Model	76370PY
Line	SureCut™
Power supply	Line cord, polarized plug
Auto shut-off	Yes
Lid-holding magnet	Yes
Built-in can guide	Yes
Piercing lever	Yes
Release and insert button	Yes, to remove cutting assembly
Removable cutting assembly	Yes, washable
Built-in knife sharpener	Yes, on back (for smooth blades only)
Cord storage	Rear compartment with locking feature
Cleaning the housing	Wipe with damp cloth, do not immerse
Cleaning the cutting assembly	Wash in hot soapy water, rinse and dry
Use	Household only
Warranty	1-year limited (US and Canada)
Safety	Polarized plug, do not immerse, do not use outdoors
Housing material	Plastic
Replacement parts available	Removable cutting assembly

Frequently Asked Questions - 76370PY PROCTOR SILEX

How to open a can with this can opener?

Place the can opener on a flat surface and plug it in. Lift the piercing lever, position the can rim under the can guide against the drive wheel, then tilt the can inward. Press down firmly on the lever to lock it; the motor runs automatically and stops as soon as the can is opened.

How to clean the can opener?

Unplug the appliance. For the cutting assembly, push the release button to the right and remove it. Wash it in hot soapy water, rinse and dry. Wipe the housing with a damp cloth. Never immerse the can opener in water.

What if the can opener does not work or does not turn?

Check that the plug is properly inserted and the outlet works. Ensure the piercing lever is properly engaged. If the cutting assembly does not turn freely, remove and clean it. If the problem persists, contact customer service.

The magnet does not hold the lid, is this normal?

The holding magnet is designed for steel lids. It cannot hold aluminum lids. In that case, remove the lid manually after opening.

Can I sharpen serrated knives with the built-in sharpener?

No, the sharpener is intended only for smooth blades. Sharpening serrated knives could damage the can opener and the blades.

How to store the cord after use?

Unplug the appliance, then push the cord into the storage compartment at the rear. To lock it, twist the cord and slide it into the locking notch.

Is the warranty valid outside the US and Canada?

The one-year limited warranty applies only to purchases made in the United States or Canada. For other countries, contact local customer service.

Can I use an extension cord with this can opener?

Yes, if necessary. Use an approved extension cord with a power rating equal to or greater than the appliance. Place it so that a child cannot pull on it or someone trip over it.

What if the blade does not cut properly?

Check that the cutting assembly is clean and properly inserted. If it is dull or damaged, replace it. Make sure the can is not dented; if it is, open from the other side or pierce beyond the dent.

How to remove and reinstall the cutting assembly?

To remove, push the release and insert button to the right, grasp the holding magnet and pull the lever. To reinsert, push the same button to the right and insert the lever until it is fully seated, with no gap between the lever and the housing.

USER MANUAL 76370PY PROCTOR SILEX

Line drawing of a rectangular device with a handle and curved base (no text or symbols)

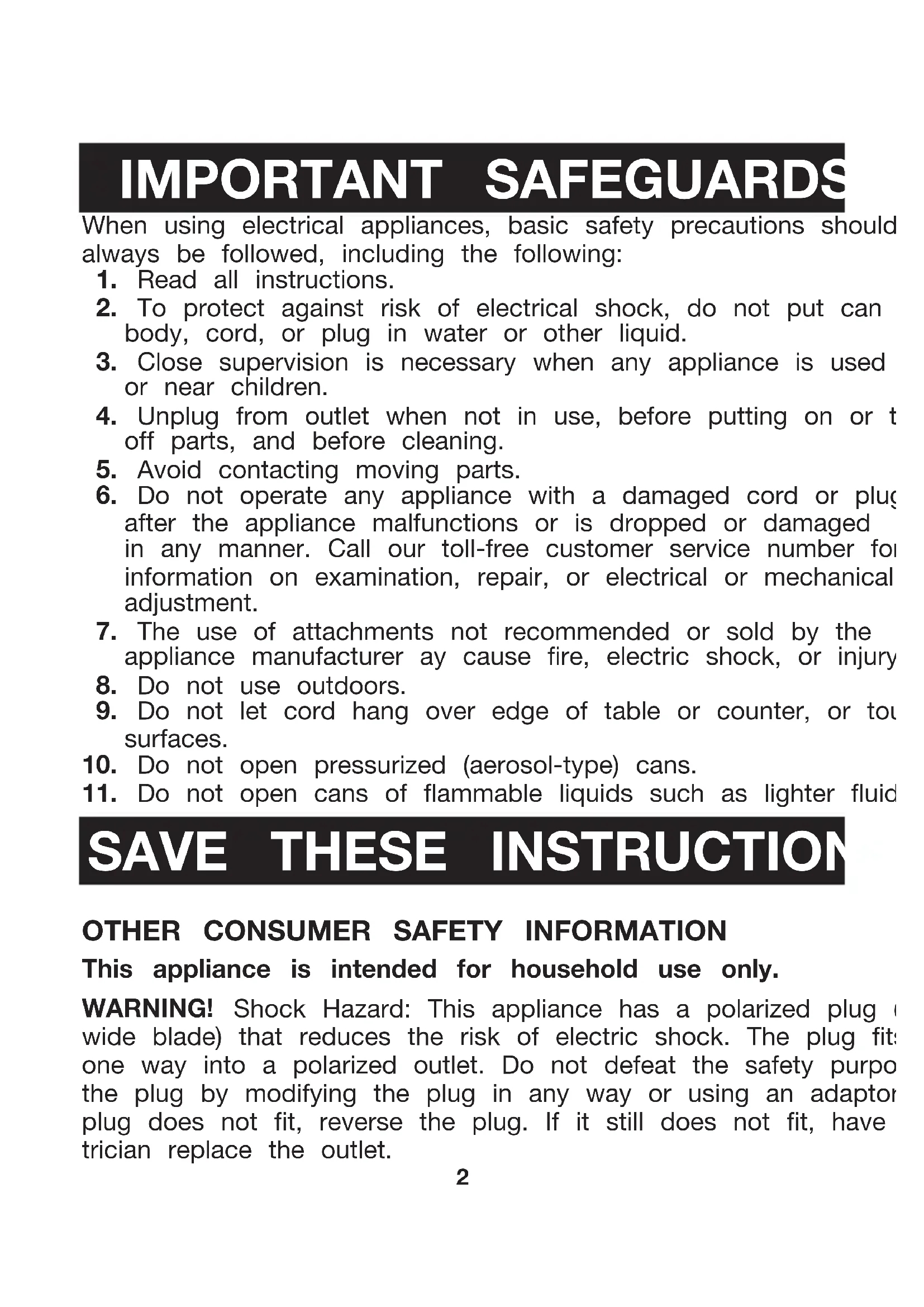

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions.
2. To protect against risk of electrical shock, do not put can body, cord, or plug in water or other liquid.
3. Close supervision is necessary when any appliance is used or near children.
4. Unplug from outlet when not in use, before putting on or t off parts, and before cleaning.
5. Avoid contacting moving parts.
6. Do not operate any appliance with a damaged cord or plug after the appliance malfunctions or is dropped or damaged in any manner. Call our toll-free customer service number for information on examination, repair, or electrical or mechanical adjustment.
7. The use of attachments not recommended or sold by the appliance manufacturer ay cause fire, electric shock, or injury
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or to surface.
10. Do not open pressurized (aerosol-type) cans.
11. Do not open cans of flammable liquids such as lighter fluid

SAVE THESE INSTRUCTION

OTHER CONSUMER SAFETY INFORMATION

This appliance is intended for household use only.

WARNING! Shock Hazard: This appliance has a polarized plug (wide blade) that reduces the risk of electric shock. The plug fits one way into a polarized outlet. Do not defeat the safety purpose the plug by modifying the plug in any way or using an adaptor plug does not fit, reverse the plug. If it still does not fit, have trician replace the outlet.

OTHER CONSUMER SAFETY INFORMATION (cont.)

The length of the cord used on this appliance was selected to the hazards of becoming tangled in, or tripping over a longer c longer cord is necessary an approved extension cord may be u electrical rating of the extension cord must be equal to or grea the rating of the appliance. Care must be taken to arrange the cord so that it will not drape over the countertop or tabletop v be pulled on by children or accidentally tripped over.

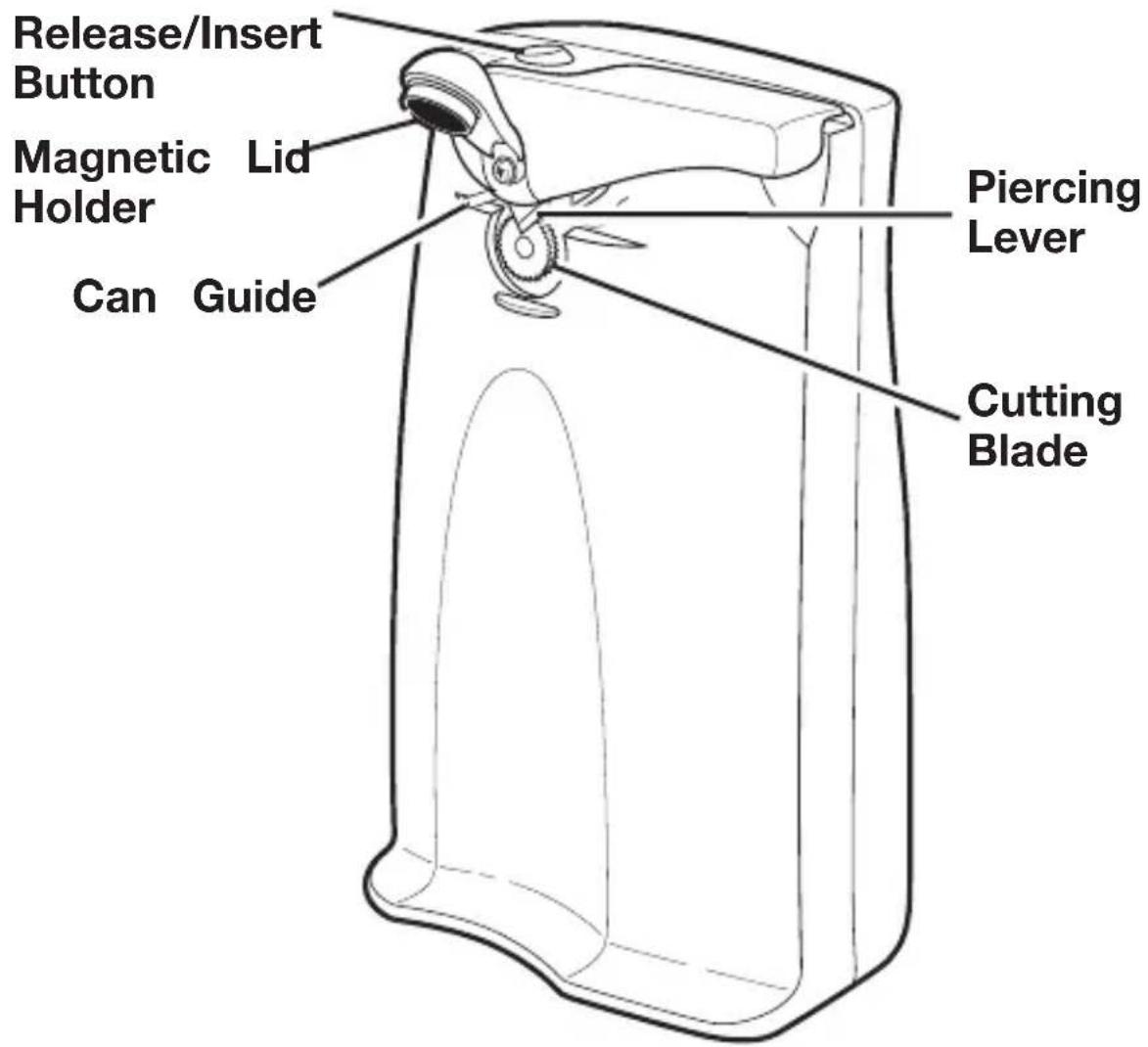

PartsandFeatures

UsingYourCanOpener

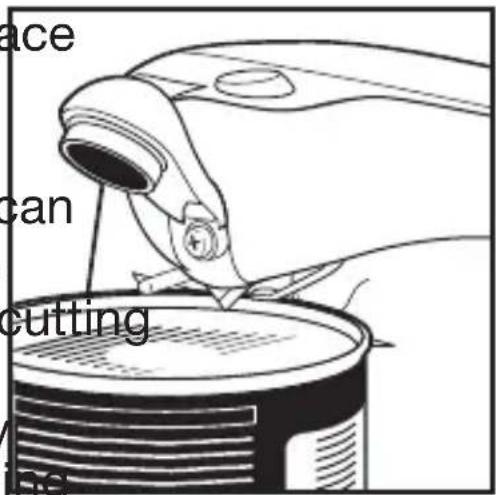

1. Place can opener on level surface and plug cord into outlet.
2. Raise piercing lever up.
3. Place rim of can firmly under can guide and against geared wheel.
4. Tilt top of can in, to position blade inside rim of can.
5. Press piercing lever all the way down. The motor will begin turning can and cutting lid. (It is not necessary to hold piercing lever down or to hold can during cutting action.)
6. The motor will automatically stop when the can is open
   (Use flip-up magnet to easily see can position.)

To store and lock cord: When finished, unplug and excess cord into the back of unit for storage. To lock, to cord sideways and slide up into cord lock slot.

SharpeningKnives

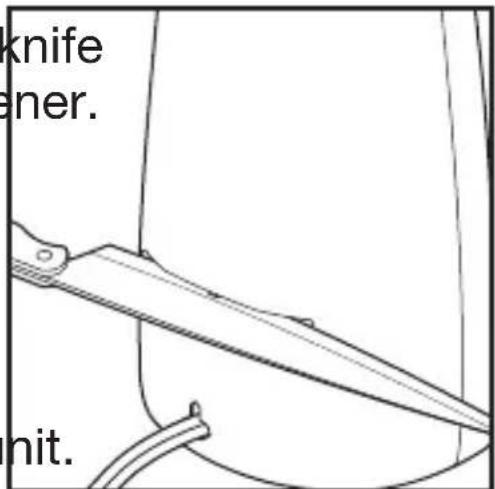

1. Place cutting edge of knife in knife slot located on back of can opener.
2. Draw knife blade through slot several times. Clean knife after sharpening.

NOTICE: To prevent damage to can opener and knives, do not insert serrated blades into this unit.

CleaningYourCanOpener

WARNING

Electric Shock Hazard.

Do not immerse the can opener in water or other liquid.

1. Unplug cord from outlet.

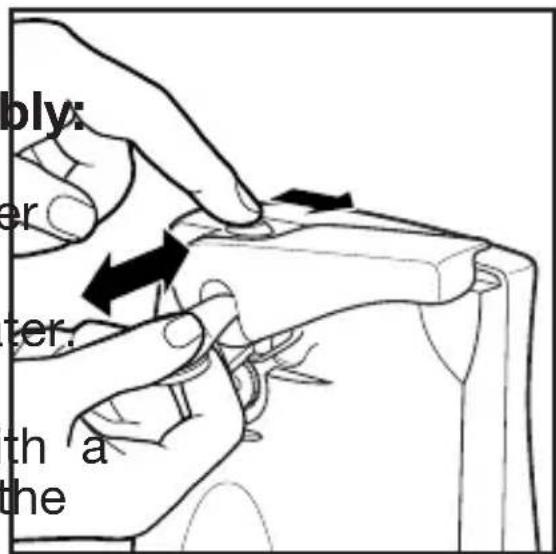

2. To remove cutting assembly:

Push Release/Insert Button to right. Grasp magnetic lid holder and pull lever out.

1. Wash lever in hot, soapy water. Rinse and dry thoroughly.
2. Wipe body of can opener with a damp cloth. NEVER immerse the can opener in water.
3. To insert cutting assembly: Push Release/Insert Butt to right and insert lever.

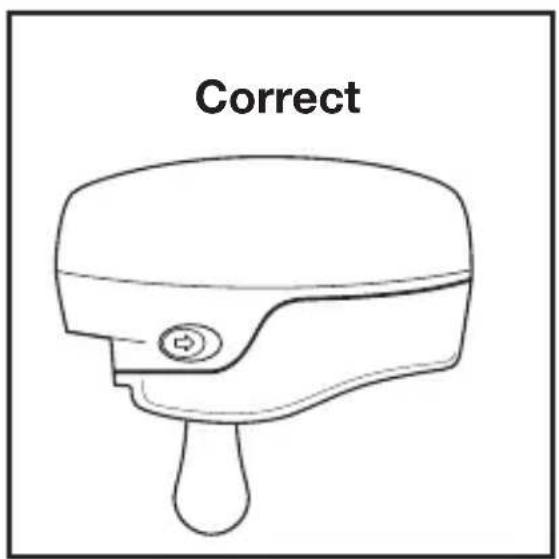

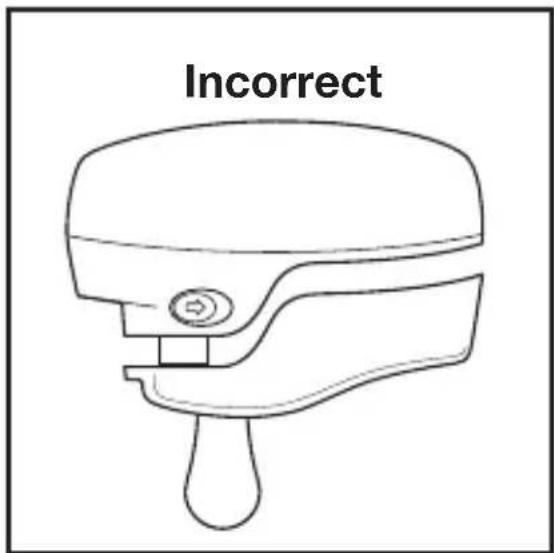

4. Ensure lever is fully inserted into the can opener. See top view of can opener below. The gap between piercing lever and body of can opener indicates that cutting assembly IS NOT fully inserted.

HintsforBestUse

• The can opener will easily open all standard size cans.
• If there is a bump, dent, or heavy seam in rim of can other end of can or start cutter just beyond it.
• Cans made with aluminum lids will not adhere to magr
• The motor of your can opener is permanently lubricated and will require no oiling.
• To use cord storage on back of opener, push in or put cord as needed.
• Cans made with aluminum lids will not adhere to the r
• If cutting assembly lever does not rotate freely, remove clean.

Proctor Silex

LimitedWarranty

This warranty applies to product purchased in the U.S. and Canada. It is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty class. This warranty is void if the product is used for other than single-famil household use.

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific I rights. You may have other legal rights that vary depending on where live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit proctorsilex.com in the U.S. or proctorsilex.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance
