75226 - Can opener PROCTOR SILEX - Free user manual and instructions

USER MANUAL 75226 PROCTOR SILEX

Line drawing of a mechanical device with a handle and gear mechanism (no text or symbols)

ENTER TO WIN \$100 TO SPEND ON WEBSITE.

Visit register.proctorsilex.com.

Open to US customers only.

PARTICIPEZ POUR COURIR LA CHANCE DE GAGNER UN MONTANT DE 100 \$ À DÉPENSER SUR NOTRE SITE WEB.

Visitez register.proctorsilex.com.

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
4. Close supervision is necessary when any appliance is used near children. Children should be supervised to ensure that they do not play with the appliance.
5. To protect against risk of electrical shock, do not put cord, plug, base, or motor in water or other liquid.
6. Release the activation lever; then unplug from the outlet when not in use, before assembling or disassembling parts, and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
7. Avoid contact with moving parts.
8. Do not operate any appliance with a damaged supply cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Call the provided customer service number for information on examination, repair, or adjustment.
9. The use of attachments not recommended or sold by the appliance manufacturer may cause fire, electric shock, or injury.
10. Do not use outdoors.
11. Do not let cord hang over edge of table or counter or touch hot surfaces, including stove
12. Do not place on or near a hot gas or electric burner, or in a heated oven.
13. Release the activation lever before plugging cord into wall outlet. To disconnect, release the activation lever; then remove plug from wall outlet. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
14. Do not open pressurized (aerosol-type) cans
15. Do not open cans of flammable liquids such as lighter fluids.
16. Do not use appliance for other than intended purpose.
17. Carefully route the power supply cord to avoid damage from the knife blades while sharpening.

SAVE THESE INSTRUCTIONS

OTHER CONSUMER SAFETY INFORMATION

This appliance is intended for household use only.

WARNING Shock Hazard: This appliance has a polarized plug (one wide blade) that reduces the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

Parts and Features

Illustration of a hand pouring liquid into a cylindrical container (no text or symbols)

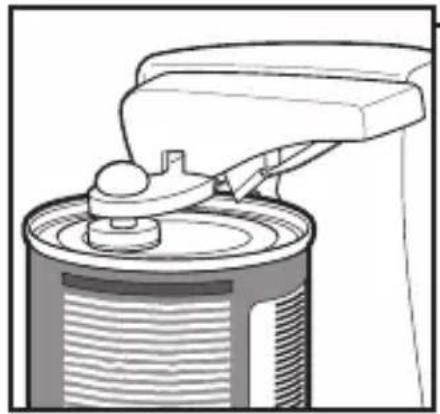

Use the flip-up magnet for ease in checking correct can position.

Labeled diagram of a mechanical device with numbered parts for identification

Simple line drawing of a hat with a numbered label (3) on the top, no text or symbols present.

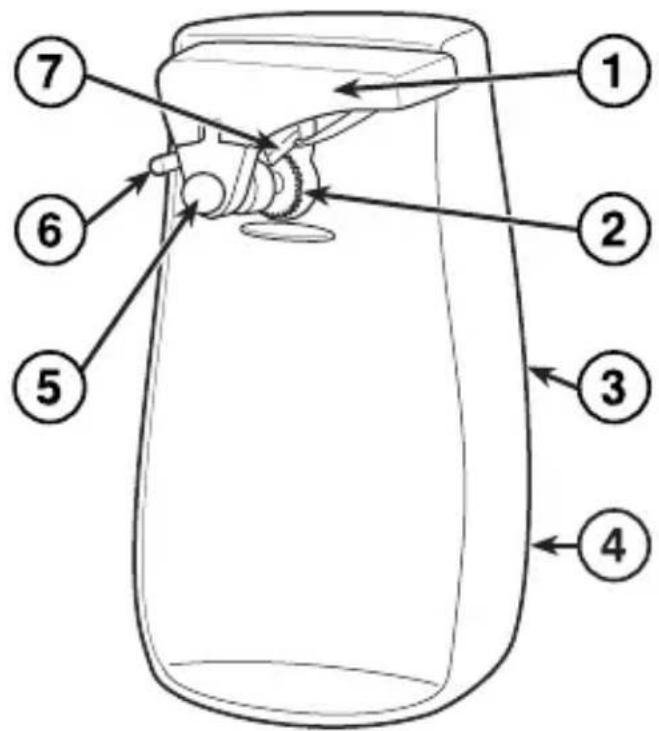

1. Piercing Lever
2. Geared Wheel

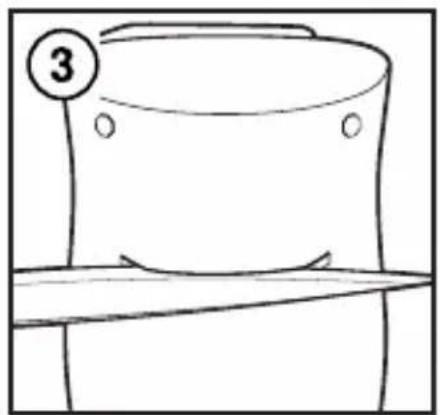

3. KnifeSharpener

4. Cord Storage

5. Magnetic Lid Holder

6. Can Guide Pin

7. Cutting Blade

8. Place can opener on level surface.

9. Plug cord into electrical outlet.
10. Lift up piercing lever.
11. Place rim of can firmly under magnetic lid holder and against geared wheel.
12. Tilt top of can in, to position cutting blade inside rim of can.
13. Press piercing lever all the way down.
14. The motor will begin turning can and cutting lid. (It is not necessary to hold the piercing lever down or to hold the can during the cutting action.)
15. The motor will stop automatically when the can is open.

Hints for Best Use

• The can opener will easily open all standard-size cans.
• On some models, it will be necessary to position can opener at edge of counter, allowing for clearance to open cans taller than the can opener. To ensure taller cans do not fall from can opener, place hand under can.
• If there is a bump, dent, or heavy seam in rim of can, open other end of can or start cutter just beyond it.
  • Cans made with aluminum lids will not adhere to magnet.
• The motor of your can opener is permanently lubricated and will require no oiling.
• To use cord storage on back of opener, push in or pull out cord as needed.

Cleaning Your Can Opener

1. Unplug cord from electrical outlet.

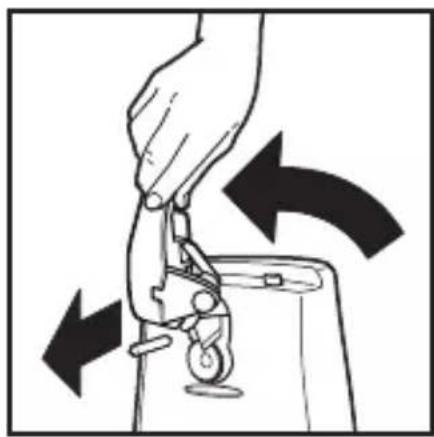

2. Remove complete cutting assembly as shown. Push piercing lever up and to the left. It will pop out of a locked position.
3. Wash cutting assembly in hot, soapy water. Rinse and dry thoroughly.
4. Wipe body of can opener with damp cloth. NEVER immerse the can opener in water.

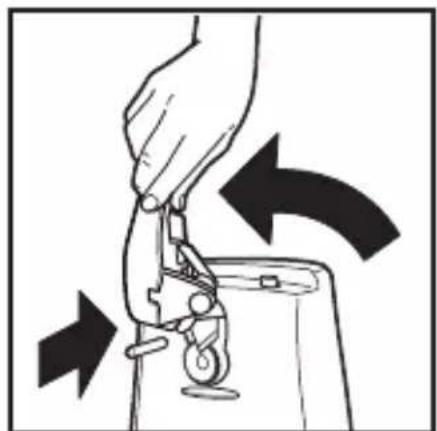

5. To reassemble, place knob on back of cutting assembly into large end of key-hole as shown. Push to the right until it snaps into place.

Illustration of a hand using a tool to adjust a small mechanical component, with arrows indicating motion direction (no text or symbols)

Illustration of a hand using a tool to adjust a mechanical component, with arrows indicating motion direction (no text or symbols)

Sharpening Knives

1. This feature is on selected models.

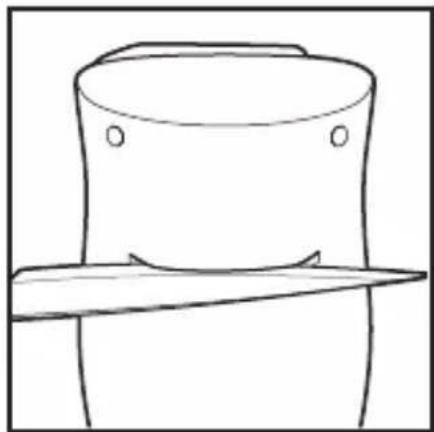

2. Place cutting edge of knife in knife slot located on back of can opener.
3. Draw knife blade through slot several times.
   NOTICE: To prevent damage to the can opener and knives, do not insert serrated blades into this unit.

Simple line drawing of a hat with a blade and circular eyes (no text or symbols)

LIMITED WARRANTY

This warranty applies to products purchased in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of three (3) years from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V \~ 60 Hz).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit proctorsilex.com in the U.S. or proctorsilex.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.

PRÉCAUTIONS IMPORTANTES

Illustration of a can being lifted by a spray gun (no text or symbols)

Simple line drawing of a hat with a numbered label (3) and a handle, no text or symbols present.

Diagram of a jar with numbered parts labeled 1 through 7, showing internal components and directional arrows.

Illustration of a hand using a tool to lift a small object, with arrows indicating motion direction (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, with arrows indicating motion direction (no text or symbols)

Simple line drawing of a hat with a blade, no text or symbols present

GARANTIE LIMITÉE

Illustration of a can being inserted into a container using a tool (no text or symbols visible)

Simple line drawing of a hat with a numbered label (3) on the top, no text or symbols present.

Labeled diagram of a jar with numbered parts for identification

Illustration of a hand using a tool to lift a small object, with arrows indicating motion direction (no text or symbols)

Illustration of a hand using a tool to adjust a mechanical component, with arrows indicating motion direction (no text or symbols)

Simple line drawing of a hat with a handle and circular eyes (no text or symbols)
