USER MANUAL Secure 5 Neo P25344 TEFAL

Close-up of a cooking pot with a black handle and lid, showing white powder and a small cylindrical object (no text or symbols visible)

A B C D E F G (a) H I J* K* G (b) L M N O

*Panier non inclus dans certains modèles - *Basket not included with certain models - *Mandje endriewoet niet inbegrepen bij bepaalde modellen - **Bei einigen Modellen ist der Einsatz nicht enthalten - *Cestello non incluso in certi modelli - *Korgen ingårinte i vissa modeller - *Höyrytyskori ei kuulu kaikkiin malleihin - *Dampindsatsen medfolger ikke til visse modeller - *Visse modeller har ikke dampkurv - *Cestillo no incluido en algunos modelos - *Cesto não incluido em alguns modelos - *Bazı modellerde sepet yokturΣε ορισμένα μοντέλα δεν περιλαμβάνεται το καλάθι * سبд با مدل های خاص منظور نشده است - * سلète البخار غير مرفقة مع بعض الموديلات المحمدة

Illustration of a hand using a tool to adjust or install a mechanical component, with an arrow indicating direction (no text or symbols present)

fig. 1 fig. 2 fig. 3

Illustration of a hand using a pliers to cut a piece of material, with an arrow indicating the process (no text or symbols present)

Illustration of a hand holding a medical device with an arrow indicating rotation (no text or symbols)

CLICK

fig. 4 fig. 5*

Simple line drawing of a cooking pot with food inside, enclosed in a circle (no text or symbols)

max 2/3

fig. 6

Top-down schematic of a circular mechanical or electrical component with concentric rings and internal components (no text or symbols)

fig. 7 fig. 8 fig. 9

Diagram of a circular mechanical or biological structure with concentric rings and internal components (no text or symbols)

Circular diagram with concentric rings and a directional arrow, no text or symbols present

Close-up of a hand using a screwdriver to adjust a small component (no text or symbols visible)

fig. 10 fig. 11 fig. 12

Diagram of a mechanical device with hands holding a component, showing no text or symbols

Diagram of hands holding a curved object with a shaded band, no text or symbols present

Illustration of hands using a faucet to clean or repair a mechanical component (no text or symbols)

fig. 13

Diagram of a mechanical component with smoke and housing, enclosed in a circular frame (no text or symbols)

Simple line drawing of a spoon lifting a cup of bread, enclosed in a circle (no text or symbols)

fig. 14 fig. 15
*Panier non inclus dans certains modèles - *Basket not included with certain models - *Mandje en drievoet niet inbegrepen bij bepaalde modellen - **Bei einigen Modellen ist der Einsatz nicht enthalten - *Cestello non incluso in certi modelli - *Korgen ingårinte i vissa modeller - *Höyrytyskori ei kuulu kaikkiin malleihin - *Dampindsatsen medfølger ikke til visse modeller - *Visse modeller har ikke dampkurv - *Cestillo no incluido en algunos modelos - *Cesto não incluido em alguns modelos - *Bazi modellerde sepet yoktur*Σε οριομένα μοντελα δεν περιλαμβάνεται το καλάθι * سبید با مدل های خاص منظور نشده است * - *有些產品規格不含蒸篮

PRÉCAUTIONS IMPORTANTES

Diagram showing hands performing a circular motion with arrows indicating rotational direction (no text or symbols)

Illustration of hands holding a mechanical component with an upward arrow and a minus sign (no text or symbols)

Diagram of a human head and eye with a circular anatomical structure, showing internal components and directional arrows (no text or labels)

Illustration of a hand using a tool to press or install a component on a device (no text or symbols visible)

Pendant la cuisson

Diagram of a human eye with a circular cross-section showing the lens and surrounding structures (no text or labels)

Close-up of hands using a tool to adjust or install a component (no visible text or symbols)

Close-up of hands using a tool to press or install a component on a circular surface (no text or symbols visible)

For your safety, this appliance complies with the applicable standards and regulations:

- Pressure Equipment Directive

- Materials in contact with food

- Environment

- This appliance is designed for domestic use. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

• Take the time to read all the instructions and always refer to the 'User Guide'.

- As with any cooking appliance, be vigilant, especially if you use your pressure cooker in proximity to children.

- Do not place your pressure cooker in a hot oven.

- Always be very careful when moving your pressure cooker under pressure. Do not touch the hot surfaces. Use the handles and knobs. Use oven gloves when necessary.

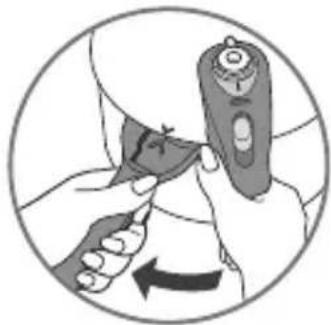

- Check regularly that the pot handles are properly attached. Re-tighten them if necessary.

- Do not use your pressure cooker for any use other than that for which it was intended.

- Your pressure cooker cooks under pressure. Scalding injuries may result if it is used incorrectly. Ensure that the pressure cooker is properly closed before use. See section 'Closing'.

- Never open the pressure cooker by force. Make sure the internal pressure has been released. See section 'Safety'.

- Never use your pressure cooker without liquid as this will seriously damage it. Ensure that there is always enough liquid during cooking.

- Use a compatible heat source, in accordance with the instructions for use.

- Never use your pressure cooker for milk-based pudding recipes (such as rice pudding, semolina pudding, ...).

- Do not use coarse salt in your pressure cooker; add fine salt at the end of the cooking time.

- Do not fill your pressure cooker more than 2/3 full (maximum fill level).

- For foods that swell during cooking, such as rice, dried vegetables, stewed fruit, etc., do not fill your pressure cooker to more than half full. For certain soups made with pumpkins, courgettes, etc., leave your pressure cooker to cool for a few minutes, and then cool it under cold water. In the case of the 3L and 4L models, for soft or thick texture foods or those which expand during cooking, do not fill your product more than 1/3 full. At the end of the cooking time, wait 5 minutes before decompressing under running water.

- After cooking meats with a superficial skin (eg. beef tongue, etc.), which may swell under the effect of the pressure, do not pierce the meat while the skin has a swollen appearance; there is a risk that you may be scalded. Be sure to pierce the skin prior to cooking.

- In the case of soft or thick texture foods (split peas, rhubarb, etc.), the pressure cooker should be gently shaken before opening so that these foods do not spurt out.

- Check that the valves are not obstructed prior to each use. See section 'Before cooking'.

- Do not use your pressure cooker to fry with oil under pressure.

- Do not undertake any operation on the safety systems other than those featuring in the instructions for cleaning and maintenance.

- Only use original TEFAL parts corresponding to your model. In particular, use a TEFAL pot and lid.

- Alcohol vapours are inflammable. Bring to the boil for around 2 minutes before fitting the lid. Watch your device closely when cooking alcohol-based recipes.

- Do not use your pressure cooker for storing acid or salty foods before and after cooking as there is a risk that this may damage your pot.

RETAIN THESE INSTRUCTIONS

Descriptive diagram

A. Operating valve

B. Steam release outlet

C. Safety valve

D. Pressure indicator

E. Lid release button

F. Lid handle

G(a). Lid positioning mark

G(b). Lid-pot positioning mark

H. Operating valve positioning mark

I. Lid gasket

J. Steam basket*

K. Trivet*

L. Long pot handle

M. Pot

N. Short pot handle

1. Maximum fill level mark

Characteristics

Pressure cooker bottom diameter – model references

Capacity	Total Capacity**	Cooker diameter	Base diameter	STAINLESS STEEL model
4 L 4.8 L	22 cm	19 cm	P25342
6 L 6.8 L	22 cm	19 cm	P25307
Set 4L + 6L	4.8 L / 6.8 L	22 cm	19 cm	P25443
7 L 7.8 L	22 cm	19 cm	P25308
8 L 9.4 L	22 cm	19 cm	P25344

**: Product capacity with the lid in position.

Technical information:

Maximum operating pressure: 80 kPa (12 psi)

Maximum safe pressure: 170 kPa (25 psi)

Compatible heat sources

GAS

SEALED PLATE ELECTRI

CERAMIC HALOGEN

INDUCTION

ELECTRIC COIL

• This pressure cooker is suitable for all heat sources, except Aga hobs but including induction.
• On an electric or induction hob, ensure that the diameter of the hot plate does not exceed that of the pressure cooker base.

• On a ceramic or halogen hob, ensure that the pressure cooker base is always clean and dry.

• On a gas hob, the flame must never exceed the diameter of the pressure cooker base.

• On all hobs, check that your pressure cooker is well centred.

TEFAL Accessories

- The following accessory is available for the pressure cooker:

Accessory Reference number
Lid gasket X90101	01
Steam basket* 7921	85
Trivet* 792691

- To change other parts, or for repairs, contact an Approved TEFAL Service Centre.

- Only use original TEFAL parts corresponding to your model.

Use Opening

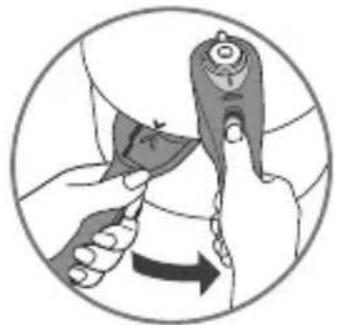

• Using your thumb, pull back on the lid release button (E) and hold it in the retracted position - Fig. 1.
• Holding the long handle of the pot (L) with one hand, turn the long handle of the lid (F) with the other hand in an anticlockwise direction until open - Fig. 2.
• Then lift the lid.
• Do not open the pressure cooker until the unit has cooled and all internal pressure has been released. If the handles are difficult to push apart, this indicates that the cooker is still pressurised – do not force it open. Any pressure in the cooker can be hazardous.

Closing

When the appliance is closed but not in operation, it is normal for the lid to move slightly relative to the pot. This effect disappears when the product is pressurised.

• Place the lid horizontally onto the pot, aligning the lid positioning marks G(a) and G(b).
• Turn the lid in a clockwise direction until it stops - Fig. 3 until you hear the button click as it engages - Fig. 4.
  If you are unable to turn the lid, ensure that the opening button (E) is properly retracted

Minimum fill level

• Always put at least 25 cl/ 250 ml (2 cups) of liquid in the pressure cooker when in use

For steam cooking\*:

- The pot must contain at least 75 cl/ 750 ml (6 cups) of water.

- Place the basket* (J) on the trivet* (K) provided for this purpose - Fig. 5.

The food in the steam basket* must not touch the lid of the pressure cooker.

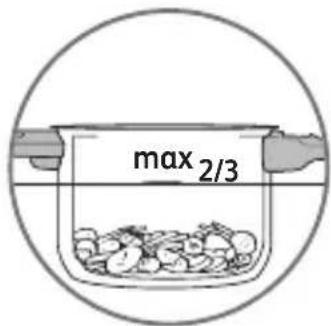

Maximum fill level

- Never fill your pressure cooker to more than two-thirds full (maximum fill mark) (O) - Fig. 6.

For certain foods:

- For foods that swell during cooking, such as rice, dried vegetables, stewed fruit, etc., do not fill your pressure cooker to more than half full.

- When cooking soups, we would advise you to carry out a rapid pressure release (see section 'Rapid pressure release').

Using the operating valve (A)

To fit the operating valve (A):

Caution, these operations must only be carried out when the product is cold and not in use.

- Place the operating valve (A) in position, aligning the symbol ● on the valve with the positioning mark (H) as shown in the diagram opposite.

- Press down on the valve then turn it to the symbol or shown in the diagram opposite.

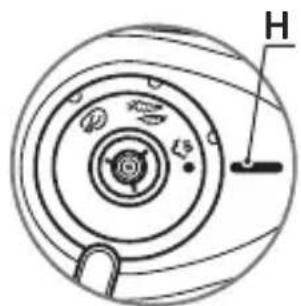

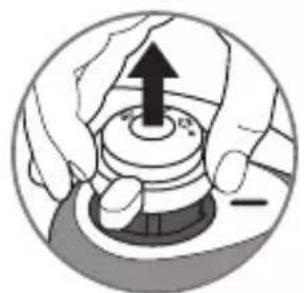

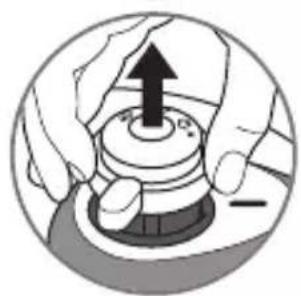

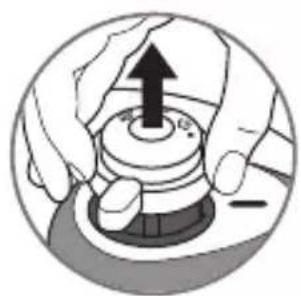

To remove the operating valve:

Caution, these operations must only be carried out when the product is cold and not in use.

- Press down on the valve then turn it to align the symbol ● with the positioning mark (H) as shown in the drawing opposite.

- Remove the valve as shown in the drawing opposite.

H L3

Diagram showing hands performing a circular motion with arrows indicating rotational direction (no text or symbols)

Illustration of hands operating a mechanical device with an upward arrow (no text or symbols)

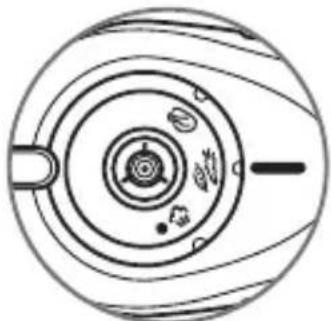

To cook vegetables or delicate foods:

• Position the pictogram on the valve opposite the positioning mark (H) - Fig. 7.
• Pressure operates at 50kPa (7 psi / 7lbs pressure).

To cook meat or frozen foods:

• Position the pictogram on the valve opposite the positioning mark (H) - Fig. 8.
• Pressure operates at 80kPa (12 psi / 12lbs pressure).

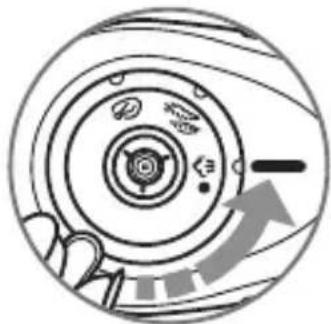

To release the steam:

- Gradually turn the valve (A), adjusting the speed that the pressure is released by how far you open the valve, until it aligns opposite the mark with the symbol

fig. 9, or place your pressure cooker under running water from the cold tap (section 'Rapid pressure release').

First use

It is normal for steam to be present near the pressure indicator (D) when the product begins operating.

• Place the basket trivet (K) in the bottom of the pot and place the basket (J) on top of it*.
• Fill the pot to two-thirds full with water (maximum fill mark (O)).
• Close the pressure cooker.

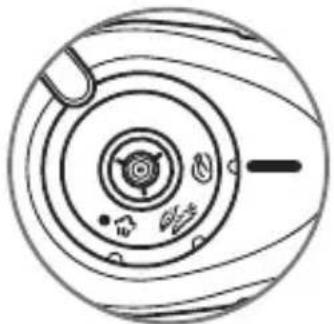

• Position the symbol opposite the positioning mark (H) - Fig. 8.
• Place the pressure cooker on a heat source, then set to maximum power.
• When steam begins to escape from the valve, turn down the heat source and leave for 20 min.
  • After the 20 min is up, turn off your heat source.
• Gradually turn the valve (A), adjusting the speed that the pressure is released by how far you open the valve, until it aligns opposite the symbol - fig. 9.
• When the pressure indicator (D) drops down, your pressure cooker is no longer under pressure.
• Open the pressure cooker - Fig. 1 - 2.
• Rinse the pressure cooker with water and dry it.

Before cooking

• Before each use, remove the valve (A) (see section 'Using the operating valve') and check visually and against the light that the steam release outlet (B) is not obstructed. If necessary, clean it with a toothpick - Fig. 10.

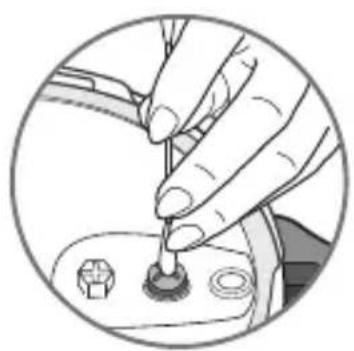

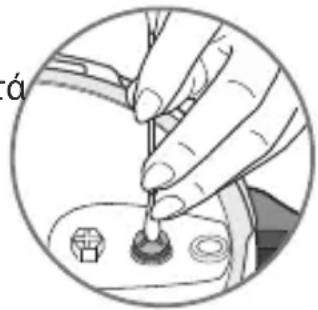

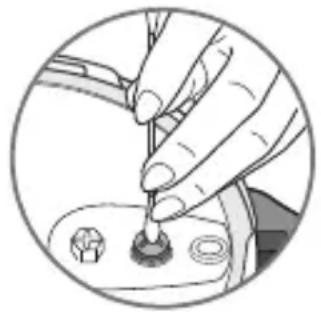

• Check that the safety valve ball (C) is mobile (see drawing opposite) and see section 'Cleaning and maintenance'.
• Add your ingredients and the liquid.
• Close the pressure cooker - Fig. 3 and ensure that it is properly closed - Fig. 4.
• Position or on the valve to the positioning mark H - Fig. 7 or 8.
• Place the pressure cooker on a heat source, then set it to maximum power.

Diagram of a human head and eye with a circular cross-section showing internal anatomical structures (no text or labels)

EN

Close-up of hands using a tool to press or install a component on a small electronic device (no text or symbols visible)

During cooking

The pressure indicator (D) prevents the pressure from rising in the pressure cooker if it is not properly closed.

• It is normal for steam to be present at the pressure indicator (D) when the product begins operating.
• When steam escapes continuously from the operating valve (A), with a steady "pschhht" sound, reduce the heat source until the valve (A) continues to whisper steadily.
• Leave for the cooking time indicated in the recipe.
• As soon as the cooking time is over, turn off the heat source.

End of cooking

To release the steam:

- Slow pressure release:

• This is used for stews, vegetables, meat joints and fish dishes.
• Gradually turn the valve (A), adjusting the speed that the pressure is released by how far you open the valve, until it aligns opposite the mark with the symbol 🌐 - fig. 9. When the pressure indicator (D) drops down again, your pressure cooker is no longer under pressure.

The pressure indicator (D) prevents the pressure cooker from being opened if it is still under pressure.

If while releasing the steam, you notice any food or liquid start to spray out from the valve, return the operating valve (A) to ou mark- Fig. 7 or 8-, wait a minute and then slowly turn the operating valve again to the steam release position, ensuring nothing else spurts out.

- Rapid pressure release:

- This is used for soups, rice, pasta, egg custards, cake and pudding mixes, recipes containing rice or pasta and recipe with a high liquid content.

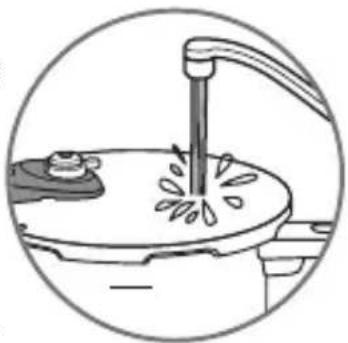

- You may place your pressure cooker under a cold running tap to speed up decompression, see diagram opposite. When the pressure indicator (D) drops down, your pressure cooker is no longer under pressure.

- You may open your pressure cooker - Fig. 1 and 2,

- Special case foods:

- When cooking special case foods (see cooking table or dried vegetables, do not release the pressure; instead leave the cooker to stand at room temperature and wait for the pressure indicator (D) to drop before opening. Reduce the recommended cooking time slightly.

Illustration of a kitchen sink with a fork and water droplets (no text or symbols)

When moving your pressure cooker under pressure always take great care to move it without shaking it.

Cleaning and maintenance

Cleaning the pressure cooker

To ensure the correct operation of your pressure cooker, follow these cleaning and maintenance recommendations after each use:

• Wash the pressure cooker (pot and lid) after each use with warm water and washing-up liquid. Follow the same procedure for the basket*.
• Do not use bleach or chlorinated products.
• Do not overheat your pan when it is empty.

To clean the inside of the pot:

• Wash using a sponge and washing-up liquid.
• The appearance of stains in the bottom of the pot does not affect the quality of the metal at all. These are limescale deposits. To remove them, use a sponge with a little white vinegar.

To clean the outside of the pot:

- Wash using a sponge and washing-up liquid.

To clean the lid:

- Wash the lid under a stream of warm water with a sponge and washing-up liquid and rinse well.

Wash your pressure cooker after each use.

The browning and marks which may appear following extended use do not affect the operation of the pressure cooker.

Only the pot is dishwasher-safe.

To extend the lifespan of your pressure cooker, do not overheat the pot when it is empty.

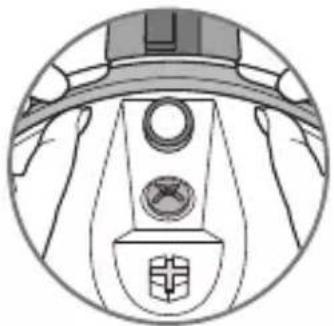

To clean the lid gasket:

• After each use, clean the gasket (I) and its groove.
- To replace the gasket, please refer to - Fig. 11 - 12.

To clean the operating valve (A):

• Remove the operating valve (A), see section 'Using the operating valve'.

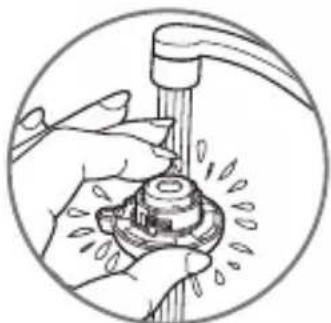

• Clean the operating valve (A) under the tap - Fig. 13.

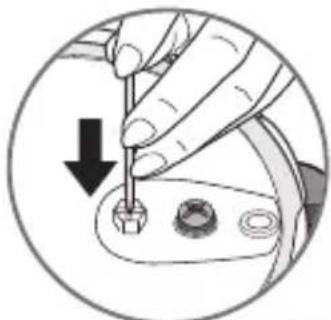

To clean the steam release outlet (B):

• Remove the valve (A).

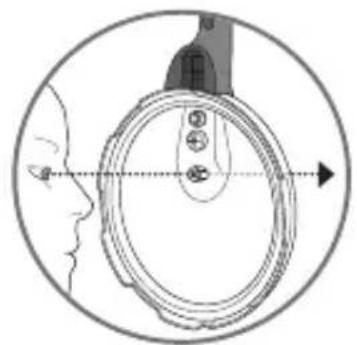

• Visually inspect against the light that the steam release outlet is round and clear of debris. See drawing opposite. If necessary, clean it with a toothpick - Fig. 10.

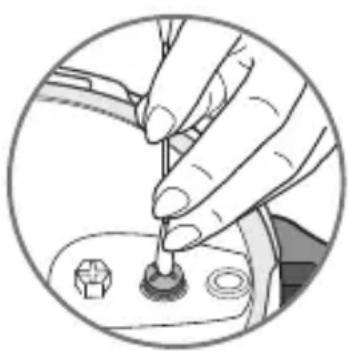

To clean the safety valve (C):

• Clean the part of the safety valve on the inside of the lid by placing it under running water.
• Check its correct operation by lightly pressing down on the ball using a cotton bud, which must move freely. See drawing opposite.

To change the gasket of your pressure cooker:

• Change the gasket of your pressure cooker every year or if split or damaged.
  • Always use an original TEFAL gasket corresponding to your model.

To store your pressure cooker:

- Place the lid upside-down on the pot.

It is essential to have your pressure cooker checked at a TEFAL Approved Service Centre after 10 years of use.

Diagram of a human eye with a circular cross-section showing the lens and surrounding structures (no text or labels)

Never use a sharp or pointed object to carry out this operation.

Illustration of a hand using a tool to press or install a component, with no visible text or symbols.

Safety

Your pressure cooker is fitted with several safety devices:

- Closing safety:

- If the appliance is not properly closed, the pressure indicator (D) cannot rise and the pressure cooker cannot build pressure.

- Opening safety:

- If the pressure cooker is under pressure, the release button (E) cannot be operated. Never open the pressure cooker by force. Above all, do not interfere with the pressure indicator (D).

- Two safety devices against overpressure:

- First device: the safety valve (C) releases the pressure and steam escapes horizontally from the top of the lid - Fig.14 - Second device: the gasket (I) permits steam to escape vertically from the small hole located on the edge of the lid or along the side of the pot - Fig.15. Caution, this may extinguish the flame on a gas hob.

If one of the overpressure safety systems is triggered:

• Turn off the heat source.
• Leave the pressure cooker to cool completely.
• Open the pressure cooker.
• Check and clean the operating valve (A)- Fig.13, the steam release outlet (B) - Fig.10, the safety valve (C) and the gasket (I). See drawing opposite.

Close-up of hands using a tool to press or install a component on a circular surface (no text or symbols visible)

Recommendations for use

1 - The steam is very hot when it leaves the pressure cooker, take care not to scald yourself. Use oven gloves if necessary.
2 - Once the pressure indicator has risen, you can no longer open your pressure cooker.
3 - As with any cooking appliance, ensure close supervision when using the pressure cooker near children.
4 - To move the pressure cooker, use the two pot handles.
5 - Never leave food standing in your pressure cooker.
6 - Never use bleach or products containing chlorine, as these may alter the quality of the material.
7 - Do not put the following in a dishwasher or leave them to soak in water: the gasket, lid, and operating valve.

8 - Change the gasket every year or if it is split or damaged.
9 - Only clean your pressure cooker when it is cold and empty.
10 - It is essential to have your pressure cooker checked in a TEFAL Approved Service Centre after 10 years of use.

Guarantee

• When used as recommended in these instructions, the pot of your new TEFAL pressure cooker is guaranteed for 10 years against:
• Any defect associated with the metal structure of your pot,
• Any premature deterioration of the base metal.
• For the other parts, the parts and labour guarantee is for 1 year (except in the case of country-specific legislation), against any manufacturing defect.
• This contractual guarantee shall be honoured upon presentation of the receipt or invoice showing the date of purchase.

These guarantees exclude:

- Damage resulting from failure to comply with important precautions, or negligent use, particularly:

• Knocks, dropping, use in the oven, etc.

• Putting the lid and the operating valve through a dishwasher.

• Only TEFAL Approved Service Centres are authorised to provide this guarantee service.

• Please call our Helpline for details of our Tefal approved service centres. (see enclosed guarantee document).

Regulatory markings

Marking Location
Identification of manufacturer and commercial brand	Pot handle and lid handle
Year and batch of manufacture On the pot
Model referenceMaximum safe pressure (PS)Maximum operating pressure (PF)	On the lid
Capacity Bottom of pot

• Let's protect the environment!

①Your appliance contains many materials which can be recovered or recycled.
Leave it at a local civic waste collection point for processing.

TEFAL answers your questions

Problems Recommendations
If the pressure cooker has been heated under pressure without liquid inside:	Have your pressure cooker checked by a TEFAL Approved Service Centre.
If the pressure indicator has not risen and nothing escapes through the valve during cooking:	This is normal during the first few minutes.If the problem persists, check that:- The heat source is sufficiently high; if not, increase it.- The quantity of liquid in the pot is sufficient.- The operating valve is positioned to one of the symbols 🎨 or 🎨 - fig. 7 or 8.- The lid is properly closed.- The gasket or the rim of the pot is not damaged.
If the pressure indicator has risen and nothing is escaping through the valve during cooking:	This is normal during the first few minutes.If the problem persists, put the pressure cooker under cold running water until the pressure indicator drops down, see sections 'Rapid pressure release' and 'Special case', then open it.Clean the operating valve and the steam release outlet and check that the safety valve ball moves freely.
If steam leaks from around the lid, check:	That the lid is properly closed.The position of the gasket in the lid.The condition of the gasket; replace it if necessary.The cleanliness of the lid, the gasket and its groove in the lid, the safety valve and the operating valve.The condition of the rim of the pot.
If you are unable to open the lid:	Check that the pressure indicator is in the down position.If not, depressurise; if necessary, cool the pressure cooker under running water, see sections 'Rapid pressure release' and 'Special case'.

Problems	Recommendations
If the food is not cooked or is burned, check:	The cooking time.The power of the heat source.The correct position of the operating valve.The quantity of liquid.
If food is burned onto the pressure cooker:	Leave the interior of the pot to soak for some time before washing it.Never use bleach or products containing chlorine.

Meat and Fish

	FRESHValve position
Beef (1 kg topside) 32 min (medium)**
Chicken (1.2 kg whole) 22 min
Lamb (1.3 kg leg) 40 min (medium)**
Monkfish (0.6 kg fillets) (special case food) 4 min
Pork (1 kg roast) 28 min
Salmon (4 steaks 0.6 kg) (special case food) 6 min
Tuna (4 x 0.6 kg steaks) (special case food) 7 min

**Cook for an additional 5 minutes for well done meat.

		Cooking	FRESH Valve position	FROZEN Valve position
Artichokes whole		- steam** 18 min -
		- immersion***	15 min -
Asparagus whole - immersion	5 min -
Beetroot	peel after cooking	- steam 20 - 30 min -
Broccoli florets - steam 3 min	3 min
Brussels sprouts whole - steam	7 min 5 min - immersion
Carrots (special case food)	round slices - steam 7 min 5 min
Cauliflower	florets - immersion 3 min 4 min
Celery	5-cm pieces	- steam 6 min -
		- immersion	10 min -
Courgettes	2.5 cm slices	- steam	6 min 30	9 min
		- immersion 2 min -
Endives	2.5 cm slices	- steam	12 min -
Green beans	whole or sliced	- steam 8 min	9 min
Green cabbage	thinly sliced	- steam 6 min -
	leaves	- steam 7 min -
Green lentil(dried vegetables)		- immersion	10 min -
Leeks	5.cm slices	- steam	2 min 30	-
Mushrooms	thinly sliced	- steam 1 min	5 min
	whole - immersion	1 min	30 -
Peas		- steam	1 min 30	4 min
Potatoes(such as King Edward)	quartered	- steam	12 min -
	quartered	- immersion 6 min -
Pumpkin (mashed) (special case food)	pieces	- immersion 8 min -
Rice (long grain white)	see note below	- immersion 7 min -
Semi-dried beans ****		- immersion	20 min -
Spinach		- steam 5 min	8 min
		- immersion 3 min -
Split peas (dried vegetables)		- immersion	14 min -
Turnips	2.5 cm cubes	- steam 7 min -
		- immersion 6 min -
Wheat (dried vegetables)****		- immersion	15 min -

** Food in the steam basket*
*** Food in the water
**** Not available in some countries
RICE: never fill pan more than half full including liquid as rice froths and boils up during cooking. Use 225 g rice and 1.75 litre water from a boiling kettle.

Golden rules when pressure cooking (for UK Consumers)

For 6 Litre models only.

• The minimum quantity of liquid required for normal cooking is 250 ml ( 12 pint) for the first 14 hour cooking. For each additional 14 hour, or part of 14 hour, add a further 150 ml ( 14 pint) of liquid. For example, 45 minutes cooking requires 600 ml (1 pint) of liquid. Note: This is only a general guide. Certain foods, such as rice, pulses, steamed puddings and Christmas puddings may require extra water (see text below).
• When steaming foods in the basket use a minimum of 750 ml (1¼ pint) water in the cooker.
• Always use a liquid that gives off steam when boiled e.g. water stock, wine, beer, cider. Never use oil or fat. All pressure cooking requires some liquid.
• Whatever the size of pressure cooker, the maximum filling level when all the ingredients and liquid have been added are:

Solid foods e.g. vegetables, meat joints: no more than two-thirds full Liquids and cereals e.g. soups, stews, rice, cereal and pasta: no more than half full

Pulses e.g. dried beans and dried peas: no more than one-third full

- When cooking pulses they swell up and tend to froth up. Use 1.2 litres (2 pints) water for every 450g (1 lb) pre-soaked weight of pulses. Remember all dried peas and dried beans, must be soaked in boiling water for 1 hour before cooking. Drain, rinse thoroughly and cook in fresh water. Never eat uncooked beans or peas. Soaking is not necessary for red lentils. The high temperatures achieved in the pressure cooker ensure that any natural toxins in the pulses are destroyed. Canned beans and pulses can simply be drained and rinsed before adding to the pressure cooker.

- For steamed suet puddings, sponge puddings or Christmas puddings, a short pre-steaming time is best to enable the raising agent to activate and prevent a heavy, close texture. Extra liquid is required so use a minimum of 1 12 pint/900 ml of boiling water for a combined steaming and cooking time of up to 1 hour. For each additional 1 14 hour of cooking, or part of 1 14 hour, add a further 1 14 pint/150 ml of boiling water. Pre-steaming is done with the operating valve in the steam release position on a low heat for the required time. Then turn the operating valve

to either 📄 or 🌐 and increase the heat to bring to full pressure. Lower the heat and pressure cook for the required time.

- Pressure operates at 50kPa (7 psi / 7lbs pressure) and pressure at 80kPa (12 psi / 12lbs pressure).

• Never cook dumplings with the lid tightly closed, as they could rise up and block the safety devices. Cook the stew and at the end of cooking, release the steam and cook gently for about 10 - 15 minutes without the lid on.
• Pressure cooking times vary according to the size of individual pieces or thickness of the food, not the weight.
• To prevent discolouration of the interior, caused by mineral deposits in hard water areas, add a tablespoon of lemon juice or vinegar.
• Cooking containers must withstand temperatures of 130°C (250°F). Any covering on containers, e.g. foil, greaseproof paper or cling film, must be securely tied otherwise they could block the safety devices. Do not use plastic lids as they prevent steam from being in contact with the food. Also, they could distort and come off during cooking which could block the safety outlets.
• Accurate timing is essential when pressure cooking to prevent overcooking, especially with vegetables, fruit and fish.

BELANGRIJKE

VOORZORGSMAATREGELEN

Diagram showing hands performing a circular mechanical operation with directional arrows (no text or symbols)

Illustration of hands holding a mechanical component with an upward arrow and a minus sign (no text or symbols)

Diagram of a human head and ear with concentric rings and a pointer, no text or symbols present

Illustration of a hand using a tool to press or install a component on a circular base (no text or symbols visible)

Tijdens het koken

Illustration of a mechanical device with a lever and spool, enclosed in a circular frame (no text or symbols)

Diagram of a human head and eye with a circular target and alignment lines, no text or symbols present.

Close-up of a hand using a tool to press or install a component, no visible text or symbols

- Openingsveiligheid:

Close-up of a hand using a tool to press or install a component on a surface (no text or symbols visible)

Gebruiksadvies

Diagram showing hands performing a circular motion with arrows indicating rotational direction (no text or symbols)

Illustration of hands operating a mechanical device with an upward arrow and a minus sign (no text or symbols)

Illustration of a hand using a tool to press or install a component on a surface (no text or symbols visible)

DE

Während des Garens

Illustration of a mechanical device with a central rod and spools, enclosed in a circular frame (no text or symbols)

Diagram of a human eye with a circular target and arrow indicating direction (no text or symbols)

Close-up of a hand using a tool to press or install a component on a button (no visible text or symbols)

Close-up of a hand using a tool to press or install a component on a surface (no text or symbols visible)

Tipps zum Gebrauch

Diagram showing hands performing a circular mechanical operation with arrows indicating motion (no text or symbols)

Close-up of hands holding a mechanical component with an upward arrow and a minus sign, no readable text or symbols present.

Diagram of a human eye with a circular target and arrow, showing anatomical alignment (no text or symbols)

Illustration of a hand inserting a small component into a terminal block (no text or symbols visible)

Durante la cottura

Illustration of a mechanical device with a lever and spool, enclosed in a circular frame (no text or symbols)

Diagram of a human eye with a circular dial and measurement lines, no text or symbols present

Close-up of hands using a tool to adjust or install a component (no visible text or symbols)

Illustration of a hand using a tool to press or install a component on a base (no text or symbols visible)

Consigli d'uso

Illustration of hands performing a circular mechanical operation with arrows indicating motion (no text or symbols)

Illustration of hands using a mechanical tool to press or adjust a component, with an upward arrow and a minus sign (no text or symbols present)

Diagram of a human head and ear with concentric rings and alignment markers (no text or symbols)

Illustration of a hand using a tool to press or install a component on a device (no text or symbols visible)

SV

Under tillagningen

Illustration of a mechanical device with a lever and spool, enclosed in a circular frame (no text or symbols)

Diagram of a human eye with a circular cross-section showing the lens and surrounding structures (no text or labels)

Illustration of a hand using a tool to adjust or install a component (no text or symbols visible)

Close-up of a hand using a tool to press or install a component on a circular surface (no text or symbols visible)

Diagram showing hands performing a circular motion with arrows indicating direction (no text or symbols)

Illustration of hands operating a mechanical device with an upward arrow and a minus sign (no text or symbols)

Illustration of a hand washing a cup with a fork inserted (no text or symbols)

Diagram of a human eye with a circular target and arrow, showing anatomical alignment (no text or symbols)

Illustration of a hand turning a button into a battery (no text or symbols visible)

Close-up of hands using a tool to press or install a component on a circular surface (no text or symbols visible)

Diagram showing hands performing a circular mechanical operation with directional arrows (no text or symbols)

Illustration of hands holding a mechanical component with an upward arrow and a minus sign (no text or symbols)

Udledning af damp:

Illustration of a mechanical device with a central tool and spools, enclosed in a circular frame (no text or symbols)

Rengøring af sikkerhedsventil (C):

Diagram of a human eye with a circular target and arrow, showing anatomical alignment (no text or symbols)

Brug aldrig skarpe eller spidse gens- tande til at rense med.

Illustration of a hand inserting a plug into a battery (no text or symbols visible)

Close-up of a hand using a tool to press or install a component, with no visible text or symbols.

Anbefalinger for brug

Illustration of a mechanical device with a lever and spool, enclosed in a circular frame (no text or symbols)

Diagram of a human eye with a circular cross-section showing the lens and surrounding structures (no text or labels)

Close-up of hands using a tool to press or install a component on a battery (no text or symbols visible)

Illustration of a hand using a tool to press or install a component on a circular base (no text or symbols visible)

Råd for bruk

Diagram showing hands performing a circular motion with arrows indicating direction (no text or symbols)

Illustration of hands holding a mechanical component with an upward arrow and a minus sign (no text or symbols)

Diagram of a human eye with a circular target and arrow, showing anatomical alignment (no text or symbols)

Illustration of a hand inserting a small component into a device (no text or symbols visible)

Durante la cocción

Illustration of a mechanical device with a central rod and spout, enclosed in a circular frame (no text or symbols)

Diagram of a human eye with a circular target and arrow, showing anatomical alignment (no text or symbols)

Close-up of hands using a tool to adjust or install a component (no visible text or symbols)

Close-up of a hand using a tool to press or install a component on a circular surface (no text or symbols visible)

Diagram showing hands performing a mechanical operation with arrows indicating motion (no text or symbols)

Illustration of hands operating a mechanical device with an upward arrow and a minus sign (no text or symbols)

Cozer carne ou alimentos congelados:

Diagram of a laboratory apparatus with a funnel and droplet on a circular base (no text or symbols)

Diagram of a human head and ear with a circular target and arrow, no text or symbols present

Illustration of a hand turning a button into a socket (no text or symbols)

Segurança

Close-up of hands using a tool to apply a small component (no text or symbols visible)

Diagram showing hands performing a circular mechanical operation with arrows indicating motion (no text or symbols)

Close-up of hands holding a mechanical component with an upward arrow and a minus sign (no text or symbols)

Diagram of a human head and face with a circular target and arrow, no text or symbols present

Close-up of a hand using a tool to press or adjust a small component (no text or symbols visible)

Pişirme sırasında

Illustration of a hand operating a lathe machine with a handle and spout (no text or symbols)

Diagram of a human eye with a circular target and arrow, showing anatomical alignment (no text or symbols)

Close-up of a hand using a tool to press or install a component, no visible text or symbols

- Açma güvenliği:

Illustration of a hand using a tool to press or install a component on a battery (no text or symbols visible)

Kullanım önerileri

Technical diagram of a mechanical component with concentric circles and labeled part H (no text or symbols beyond label)

Diagram showing hands performing a mechanical operation with arrows indicating motion (no text or symbols)

Illustration of hands operating a mechanical device with an upward arrow and a minus sign (no text or symbols)

Diagram of a human head and eye with concentric rings and alignment markers (no text or symbols)

Close-up of hands using a tool to press or install a small component on a surface (no text or symbols visible)

Κατά το μαγείρεμα

Diagram of a mechanical device with a rotating shaft and flange, showing internal components (no text or symbols)

Diagram of a human eye with a circular target and arrow, showing anatomical alignment (no text or symbols)

Close-up of a hand using a screwdriver to adjust a component (no text or symbols visible)

Ασφάλεια

Close-up of a hand using a tool to press or install a component on a surface (no text or symbols visible)

Συμβουλές χρήσης

Close-up of a hand using a tool to press or install a small component on a car (no text or symbols visible)

Diagram of a human head and ear with a circular anatomical view showing internal structures (no text or labels)

Illustration of a hand using a tool to press or install a component, with no visible text or symbols.

Diagram of a mechanical device with a lever and spool, enclosed in a circular frame (no text or symbols)

Diagram showing hands performing a circular mechanical operation with directional arrows (no text or symbols)

Close-up of hands holding a mechanical component with an upward arrow and a minus sign (no text or symbols)

Illustration of a hand turning a component with a screw and nut (no text or symbols)

• باز شدن امن:

Diagram of a mechanical device with a central shaft and internal components, enclosed in a circular frame (no text or symbols)

Diagram of a human head and ear with a circular target and arrow, showing alignment or measurement lines (no text or symbols)

Close-up of hands using a tool to press or install a component on a switch (no text or symbols visible)

Diagram showing hands performing a mechanical operation with arrows indicating motion (no text or symbols)

Close-up of hands holding a mechanical component with an upward arrow and a minus sign (no text or symbols)

Diagram of a human head and eye with a circular target and arrow, no text or symbols present

Illustration of a hand inserting a small component into a terminal block (no text or symbols visible)

烹調中

Illustration of a hand washing a cup with a fork inserted (no text or symbols)

Diagram of a human eye with a circular target and internal components, showing no text or symbols.

請勿使用尖銳的物品操作此步驟

Illustration of a hand inserting a plug into a battery (no text or symbols visible)

- 兩項防止壓力過高的安全機制:

Illustration of a hand using a tool to press or install a component on a surface (no text or symbols visible)

使用建議 安全性
