USER MANUAL HP718HC 011 HOOVER

Freezer Max MAX HOOVER 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 1975.0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 POTATO BURGER MINI 25/25/25/25/25/25/25/25/25/25/25/25/25/25/25/25/25/25/25/25/25/25/25/25/25/25/25/25/25/25/25/25/25/25/

Technical diagram of a vacuum cleaner with labeled parts and corresponding component images

[Unreadable]
Scrink March Day. "We are coming for a bit

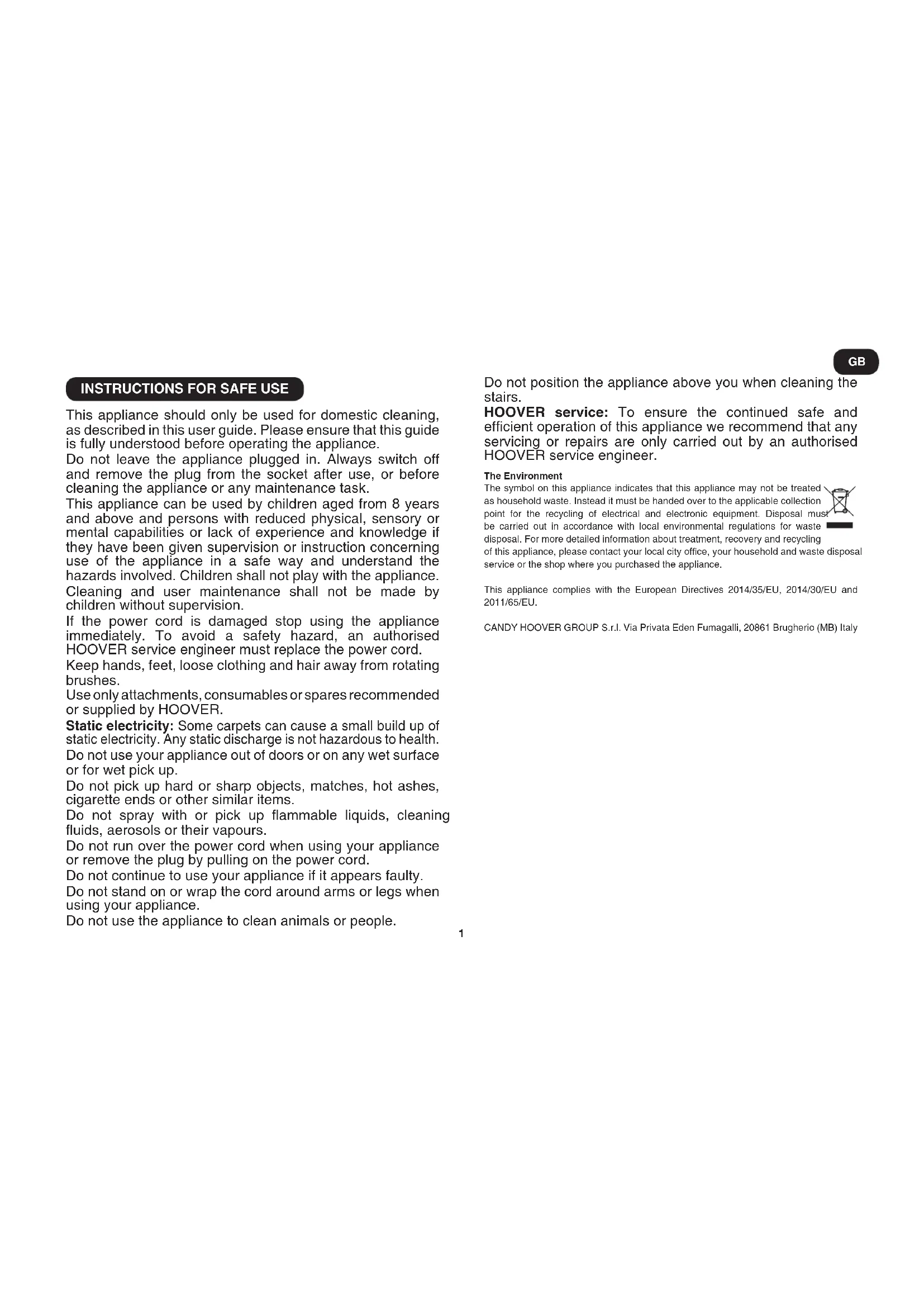

INSTRUCTIONS FOR SAFE USE

This appliance should only be used for domestic cleaning, as described in this user guide. Please ensure that this guide is fully understood before operating the appliance.

Do not leave the appliance plugged in. Always switch off and remove the plug from the socket after use, or before cleaning the appliance or any maintenance task.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

If the power cord is damaged stop using the appliance immediately. To avoid a safety hazard, an authorised HOOVER service engineer must replace the power cord.

Keep hands, feet, loose clothing and hair away from rotating brushes.

Use only attachments, consumables or spares recommended or supplied by HOOVER.

Static electricity: Some carpets can cause a small build up of static electricity. Any static discharge is not hazardous to health.

Do not use your appliance out of doors or on any wet surface or for wet pick up.

Do not pick up hard or sharp objects, matches, hot ashes, cigarette ends or other similar items.

Do not spray with or pick up flammable liquids, cleaning fluids, aerosols or their vapours.

Do not run over the power cord when using your appliance or remove the plug by pulling on the power cord.

Do not continue to use your appliance if it appears faulty.

Do not stand on or wrap the cord around arms or legs when using your appliance.

Do not use the appliance to clean animals or people.

Do not position the appliance above you when cleaning the stairs.

HOOVER service: To ensure the continued safe and efficient operation of this appliance we recommend that any servicing or repairs are only carried out by an authorised HOOVER service engineer.

The Environment

The symbol on this appliance indicates that this appliance may not be treated

as household waste. Instead it must be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Diagonal my

point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste

be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling

of this appliance, please contact your local city office, your household and waste disposal service or the shop where you purchased the appliance.

This appliance complies with the European Directives 2014/35/EU, 2014/30/EU and 2011/65/EU.

CANDY HOOVER GROUP S.r.l. Via Privata Eden Fumagalli, 20861 Brugherio (MB) Italy

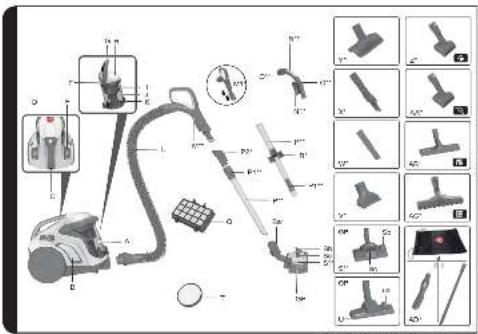

GETTING TO KNOW YOUR CLEANER

A. Dust Bin Assembly

B. Cleaner Main Body

C. Parking Slot

D. On / Off Power Control Button

E. Cord Reel Button

F. Dust Bin Lid Opening Latch

G. Dust Bin Release Handle

H. Dust Bin Lid

I. Separation System with integrated Shroud Cleaning System

J. Dust Bin

K. Dust Bin flap Release Button

L. Hose

M. Advanced Comfort Handle with Soft Grip, Suction Regulator and Integrated Accessories (See M1**) M1. Integrated Accessories: Built-in Crevice Tool, Dusting Brush and Furniture Tool

N. Intelligent Handle with integrated Dusting Brush** N1. Integrated Dusting Brush*

O. Handle Suction Regulator ^4

P. Telescopic Tube**

P1. Telescopic Tube Adjuster ^4

P2. Telescopic Tube Secure Connection*

Q. Exhaust Filter

R. Accessory Holder*

S. Carpet and Floor Nozzle (GP) ^ Sa. Carpet and Floor Nozzle Secure Connection ^ Sb. Floor Type Selector Pedal Sc. Nozzle Suction Regulator ^

T. Pre-motor Filter

U. Carpet and Floor Nozzle (GP) ^** Ua. Floor Type Selector Pedal

V. Furniture Tool*

W. Crevice Tool*

X. Long 2in1 Tool*

Y. Advanced Furniture Nozzle*

Z. Mini Turbo Dual Action Pet Hair Remover Nozzle*

AA. Mini Turbo Dual Action Allergen Remover Nozzle*

AB. Parquet Extra Nozzle*

AC. Parquet Extra Care Nozzle*

AD. Accessories Car Kit*:

a. Accessories Bag

b. Big Dusting Brush

c. XL Flexible Crevice Tool

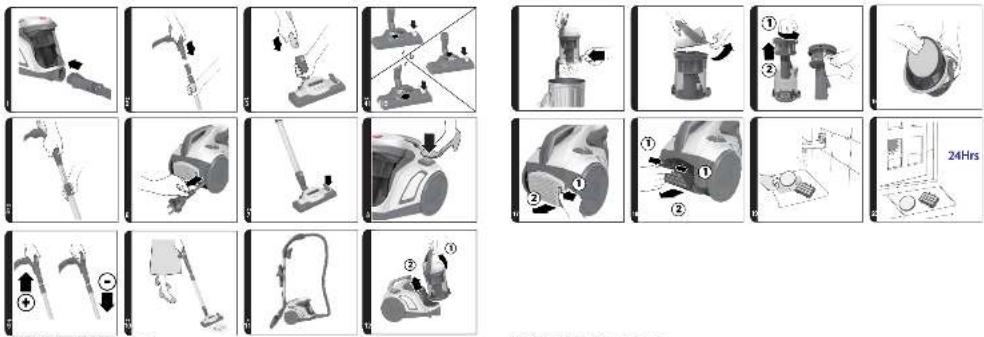

ASSEMBLING YOUR CLEANER

Remove all components from the packaging.

1. Connect the hose to the cleaner main body, ensuring it clips and locks into position. To release: simply press the buttons on the hose end and pull. [1]

2. Connect the hose handle** to the end of the extension tube upper, or accessories* if required. [2]

3. Connect the extension tube lower to the carpet and floor nozzle ^* , [3] or accessories ^ if required.

4. The cleaning accessory tools can be stored* after use on the underside of the extension tube, using the accessory holder provided*.

* Certain Models Only ** May vary according to model

USING YOUR CLEANER

1. Extract power cord and plug it into the power supply. Do not pull the cord beyond the red marker. [6]

2. Adjust the length of the telescopic tube by moving the telescopic tube adjuster ^4 up and raise or lower the hose handle to the most comfortable cleaning position. [5]

3. Carpet & Floor Nozzle**. Press the pedal on the nozzle [4] to select the ideal cleaning mode for the floor type.

Hard Floor: The brushes are lowered to protect the floor.

Carpet: With lifted brushes for the deepest clean.

Carpet & Floor Nozzle\*\*: [4]

• Hard floor Cleaning: Press the floor type selector pedal on the nozzle on Hard Floor mode and adjust the nozzle suction regulator to open [4a] or close [4b] position for the most comfortable cleaning position. In this position brushes are lowered to protect hard floors.
• Carpet Cleaning: Press the floor type selector pedal on the nozzle on Carpet mode and adjust the nozzle suction regulator to open position. In this position brushes are raised for a deeper cleaning of your carpet. [4c] It's suggested to open the nozzle suction regulator on carpet to allow a better sliding.
• Switch the cleaner on by pressing the On/Off button on the cleaner main body. [8]
• Fixed Power Control* - The cleaner will operate at a fixed power setting.

Advanced Comfort Handle with Integrated Accessories:\*\* [M, M1]

• Built-In Crevice Tool: The hose handle end can be used as a crevice tool to reach narrow spaces.
• Furniture Tool : Press the latches on both sides of the handle and slide downwards to release the furniture tool to clean soft surfaces and textiles (curtains, upholstery).
• Dusting Brush: Press the latches on both sides of the handle and slide downwards, then push the slider to the end to release the built-in dusting brush. Ideal for hardsurfaces (bookshelves, keyboards, skirting boards).
• Suction Regulator**: Adjust the suction by opening or closing the air valve on the handle. [9, O**]

Intelligent Handle\*\*: [N,N1]

• Suction Regulator** [O]: Adjust the suction power by opening or closing the air valve on the handle.
• Dusting Brush: It is integrated directly underneath the hose handle.
• Switch off at the end of use by pressing the On/Off Button on the cleaner main body. Unplug and rewind the power cord by pressing the cord reel button.
• Parking and storage - The tube can be parked for temporary storage while in use, or in the storage position when not in use. [11]

ACCESSORIES

To obtain the best performance and efficiency it is recommended that the correct nozzles are used for the main cleaning operations. These nozzles are indicated in the diagrams by the letters GP, HF or CA.

A nozzle type GP can be used to clean both carpet and hard floor.

A nozzle type HF is suitable for use only on hard floor.

A nozzle of type CA is suitable for use only on carpet.

The other nozzles are accessories for specialist cleaning tasks and are recommended for occasional use only.

All accessories can be fitted to the end of the handle* or the end of the telescopic tube.

Accessory Set**:

Crevice Tool – For corners and hard to reach areas.

Furniture Nozzle – For soft furniture and fabrics.

Dusting Brush – For bookshelves, frames, keyboards and other delicate areas.

Dual Action Pet Hair Remover Nozzle* [Z] – Use the mini turbo nozzle on stairs or for deep cleaning on textile surfaces and other hard to clean areas. Particularly suitable for pet hairs removal.

Dual Action Allergen Remover Nozzle* [AA] – Use the mini turbo nozzle on stairs or for deep cleaning on textile surfaces and other hard to clean areas, particularly suitable for allergen removal.

Parquet Extra Care and Parquet Extra nozzles* [AC,AB] – For parquet floors and other delicate floors.

Long 2In1 Tool* [X] – Crevice tool and dusting brush - It allows to clean hard-to-reach areas such as bookshelves and high corners.

IMPORTANT: Do not use mini turbo nozzles on rugs with long fringes, animal hides and carpet pile deeper than 15mm. Do not keep the nozzle stationary while brush is rotating.

Car Kit Accessories* [AD]:

XL Flexible Crevice Tool* – Ideal for car cleaning. Its length enables cleaning of difficult areas to reach, narrow crevices.

Large Dusting Brush with Integrated Furniture nozzle ^* – Suitable to clean the soft & delicate surfaces for both car and home.

Accessories' bag* – For tidy storage of all the accessories.

CLEANER MAINTENANCE

Emptying the Dust BIn

When the dust reaches the max level indicator on the container, empty the dust bin.

IMPORTANT: To maintain optimum performance do not allow the dust exceed the max level indicator.

1. Switch the cleaner off by pressing the On/Off button on the cleaner main body [8], and unplug the power cable.

* Certain Models Only ** May vary according to model

1. Lift the dust bin release handle and remove the dust bin assembly from the cleaner. [12]
2. Hold the dust bin with one hand and with the other hand press the dust bin flap release button. [13]
3. Close the dust bin flap and refit the dust bin assembly to the cleaner main body.

Cleaning the washable filters

The cleaner is fitted with a blue filter pack. To maintain optimum cleaning performance regularly remove the filters and tap against the side of the bin to release dust. The filters should be washed every 5 bin empties or when the filter has excessive dust level.

IMPORTANT: All bagless cleaners require regular filter cleaning. Failure to clean your filters may result in air blockage, overheating and product failure. This may invalidate your guarantee.

IMPORTANT: Regularly check and maintain the filters.

IMPORTANT: Always ensure the filter pack is fully dry before use.

To access the pre-motor filter:

1. Lift the dust bin release handle and remove the dust bin assembly from the cleaner. [12]
2. Hold the dust bin with one hand and with the other hand lift the dust bin lid opening latch to open the bin lid. [14]
3. Remove the pre-motor filter located in the bin lid. [16]
4. Gently tap and wash the pre-motor filter. Do not use hot water or detergents. Remove excess water from the filter and leave to dry fully before re-using. [19, 20]
5. Reassemble the pre-motor filter to the dust bin lid once fully dry and refit to the cleaner.

To access the exhaust filter:

1. Unclip the exhaust filter cover from the rear of the cleaner main body. [17]
2. Remove the exhaust filter from the rear of the cleaner. [18]
3. Gently tap and wash the filter using warm water. Do not use hot water or detergents.
   Remove excess water from the filter and leave to dry fully before re-using. [19, 20]
4. Refit the exhaust filter to the rear of the cleaner once fully dry and refit the exhaust filter cover.

IMPORTANT: Do not use the product without the filter pack fitted.

Cleaning the dust bin / separation unit

This cleaner uses a separation system and shroud cleaning system unique to Hoover. If necessary the separation unit can be disassembled from the dust bin and cleaned.

1. Lift the dust bin release handle and remove the dust bin assembly from the cleaner. [12]
2. Hold the dust bin with one hand and with the other hand lift the dust bin lid opening latch to open the dust bin lid. [14]
3. Remove the separation system (including the integrated shroud cleaning system) from the dust bin. [15]

4. If necessary, use a cloth to remove excessive dust from the separation system (including the integrated shroud cleaning system).

5. Place the dust bin under tap water. Rinse with lukewarm water. Wash internal surfaces of the dust bin with water only. DO NOT use soap detergents to wash the internals of the dust bin.

6. Reassemble the internal component to the dust bin, ensuring all components are dry.
7. Close over the dust bin lid and refit dust bin assembly to cleaner.

Removing a blockage

1. Check if the dust bin is full. If so refer to 'Emptying the dust bin'.
2. If the dust bin is empty but suction is still low:

A. Do the filters need cleaning? If so refer to 'Cleaning the washable filters'.
B. Check if there is any other blockage in the system - Use a rod or pole to remove any blockage from the extension tube or flexible hose.
C. Check if pre-motor filter is fitted.
D. Check if the separation unit needs to be cleaned. Refer to 'Cleaning the separation unit'.

USER CHECKLIST

Should you have a problem with the product, complete this simple user checklist before calling your local Hoover service.

• Is there a working electricity supply to the cleaner? Please check with another electrical appliance.
• Is the dust container over-filled? Please refer to 'Cleaner Maintenance'.
• Is the Filter blocked? Please refer to 'Cleaning the filter'.
• Is the hose or nozzle blocked? Please refer to 'Removing a blockage from the system'.
• Has the cleaner overheated? If so, it will take approximately 30 minutes to automatically reset.

IMPORTANT INFORMATION

Hoover spares and Consumables

Always replace parts with genuine Hoover spares. These are available from your local Hoover dealer or direct from Hoover. When ordering parts always quote your model number.

Hoover Service

Should you require service at any time, please contact your local Hoover Service Office.

Quality

BSI ISO 9001

Hoover's factories have been independently assessed for quality. Our products are made using a quality system which meets the requirements of ISO 9001.

Your Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Subject to change without notice.
