USER MANUAL SmartRack SRFAN1UTEMP Tripp Lite

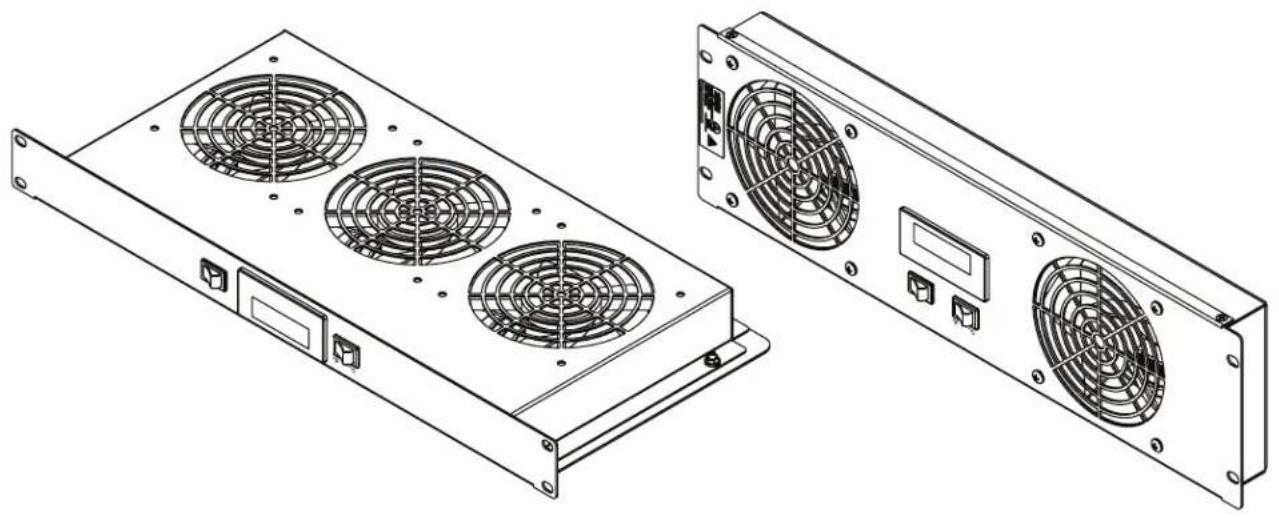

Panel-Mounted Triple-Fan Tray Accessory with Ambient Air Temperature Monitoring

Models: SRFAN1UTEMP, SRFAN3UTEMP, SRFAN3UDCTEMP

Espanol 5 · Francais 9

WARRANTY REGISTRATION

Register your product today and be automatically entered to win an ISOBAR surge protector in our monthly drawing!

triplite.com/warranty

Manufacturing Excellence

1111 W. 35th Street, Chicago, IL 60609 USA · triplite.com/support

Copyright © 2020 Tripp Lite. All rights reserved.

Important Safety Instructions

SAVE THESE INSTRUCTIONS

This manual contains instructions and warnings that must be followed during the installation and operation of the product described in this manual. Read all instructions and warnings thoroughly before attempting installation. Failure to comply may affect the warranty and cause property damage and personal injury.

Connection, Installation and LocationWarnings

• This manual includes instructional safeguards for the skilled person installing the fans.
• Inspect the shipping container and the unit for shipping damage. Do not use the unit if it is damaged.
  The fans are designed to be installed in commercial locations, such as IT data racks where only adults are normally present.
• Install in a controlled indoor environment, away from moisture, temperature extremes, flammable liquids and gasses, conductive contaminants, dust and direct sunlight.
• For best performance, keep the indoor temperature between 32^ F and 104^ F ( 0^ C and 40^ C).
• Do not attempt to modify or drill holes into the enclosure for mounting. Use the mounting holes provided.
• Install in accordance with National Electrical Codes (220-240V models).
• Install in accordance with National Electrical Code standards ANSI/NFPA 70 and Canadian Electrical Code, Part I, C22.1 (120V models).
  To reduce the risk of fire, connect only to a circuit provided with branch circuit overcurrent protection in accordance with the National Electrical Code, ANSI/NFPA 70 and the Canadian Electrical Code, Part I, C22.1 (120V models).
• Be sure to use maximum 16A overcurrent protection, in accordance with the plug/equipment rating, for the installation (220-240V models).
• Be sure to use maximum 20A overcurrent protection, in accordance with the plug/equipment rating, for the installation (120V models).
• The equipment must be connected to an earthed ground mains outlet.
• Securely fasten the fans in place with screws.
• When using tools, use eye protection and follow all other safety precautions recommended by the tool manufacturer and required by applicable regulations.
  The fan does not require routine maintenance. Do not open the fan for any reason. There are no user-serviceable parts inside.
• Keep hair, clothing and loose objects away from the fan intakes. There is a risk of property damage and personal injury.
• Do not obstruct the fan openings. Do not block, cover or insert objects into the openings of the fan.
• Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

Explanation of Symbols

!	Caution, Risk of Danger
	Caution, Moving Fan Blades

Installation

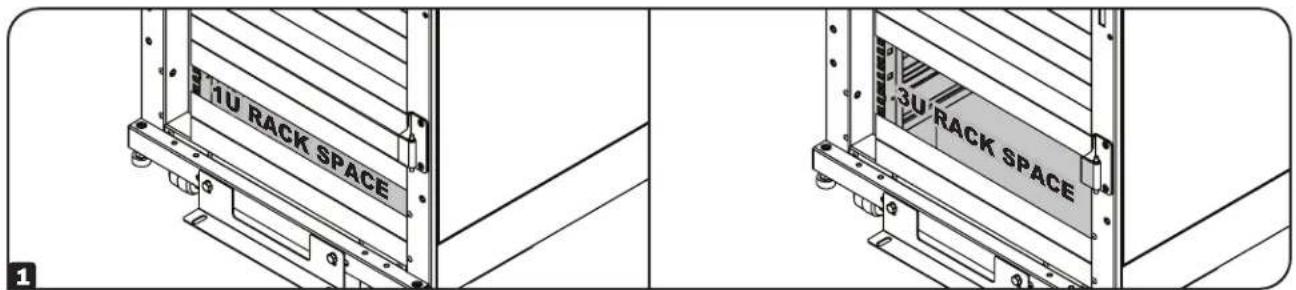

1 Identify the desired 1U (SRFAN1U) or 3U (SRFAN3U/SRXFAN3U) space within a rack enclosure to mount the fan unit.

Align the mounting ears located on the front panel of the fan unit with the rack enclosure's front vertical mounting holes.

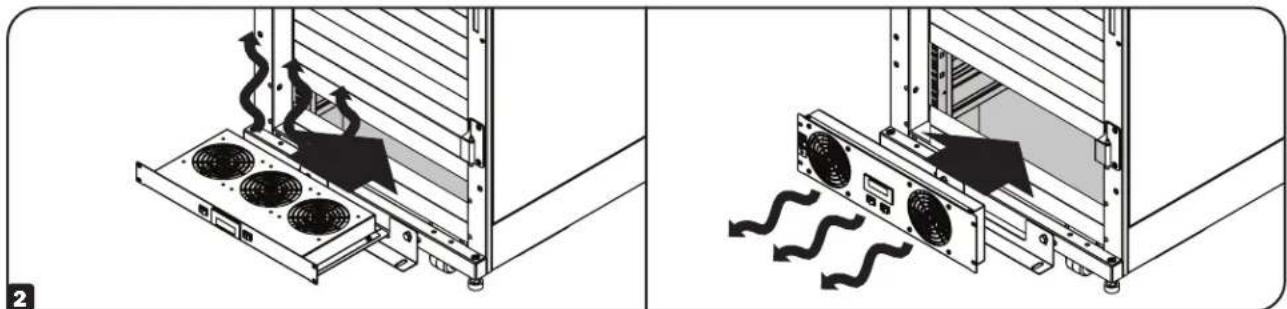

Note: The fan unit's fans will push air toward the top or through the front of the enclosure.

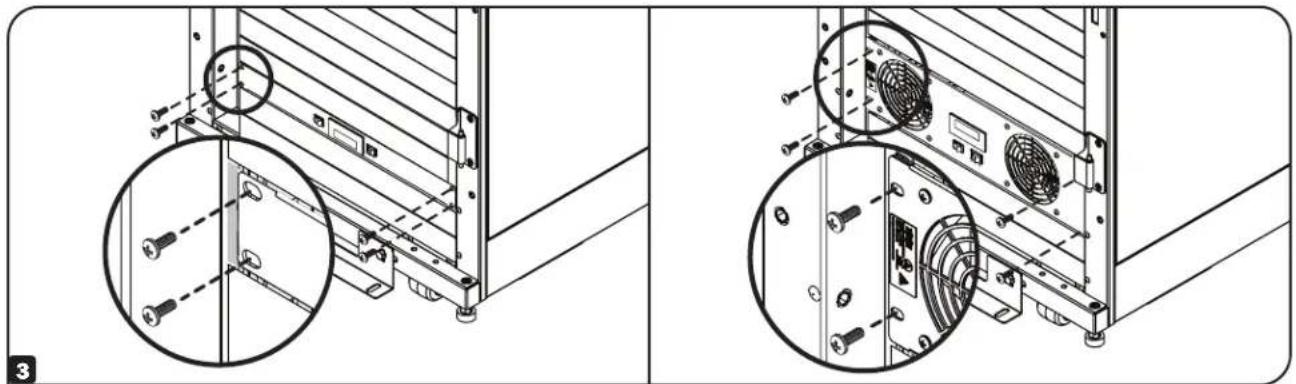

3 Attach and secure the fan unit to the rack enclosure with user-supplied hardware.

Note: The user must determine the fitness of hardware before mounting. If hardware and procedures are not suitable for your application, contact the manufacturer of your rack or rack enclosure for a solution.

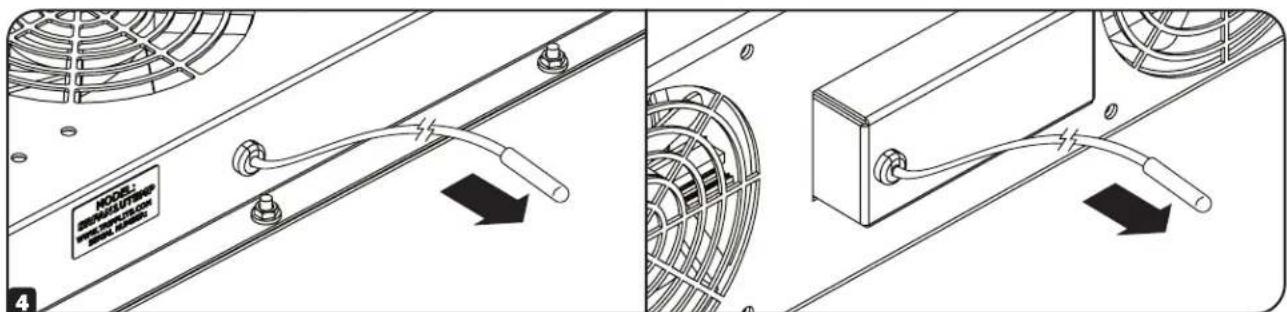

4 Install the ambient air sensor where it will sample an average air temperature.

Installation

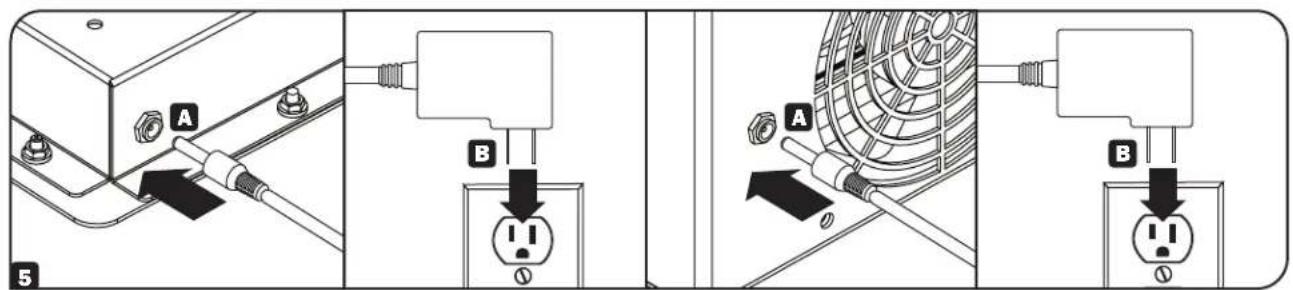

5 Connect the power adapter plug to the fan unit A, then plug the power supply into a power source that supports a NEMA 5-15P plug, such as a wall outlet, power distribution unit (PDU) or uninterruptible power supply (UPS) B.

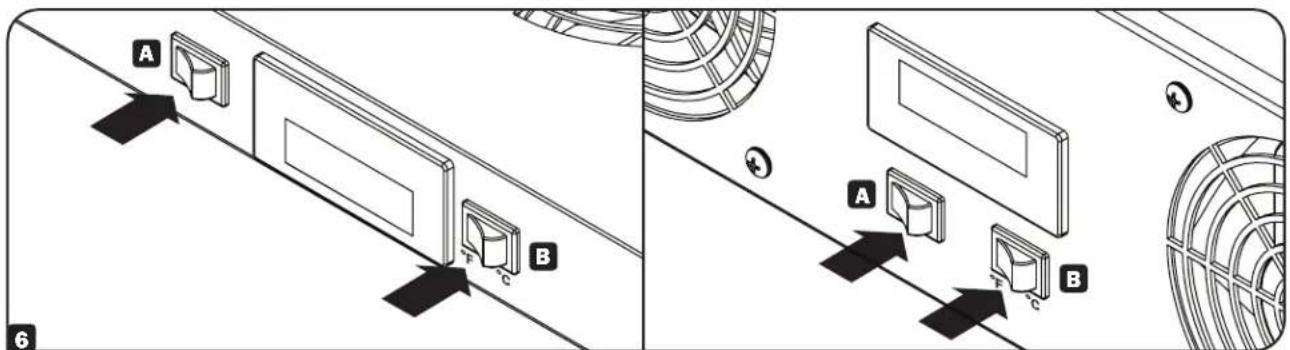

To turn on the fan unit, push the rocker switch A located on the front of the fan. The air temperature will display on the LCD. To switch from Fahrenheit and Celsius units, press the rocker switch B on the front of the fan unit.
