USER MANUAL RR16 BIGBEN

TING THIS UNIT AND RETAIN FOR

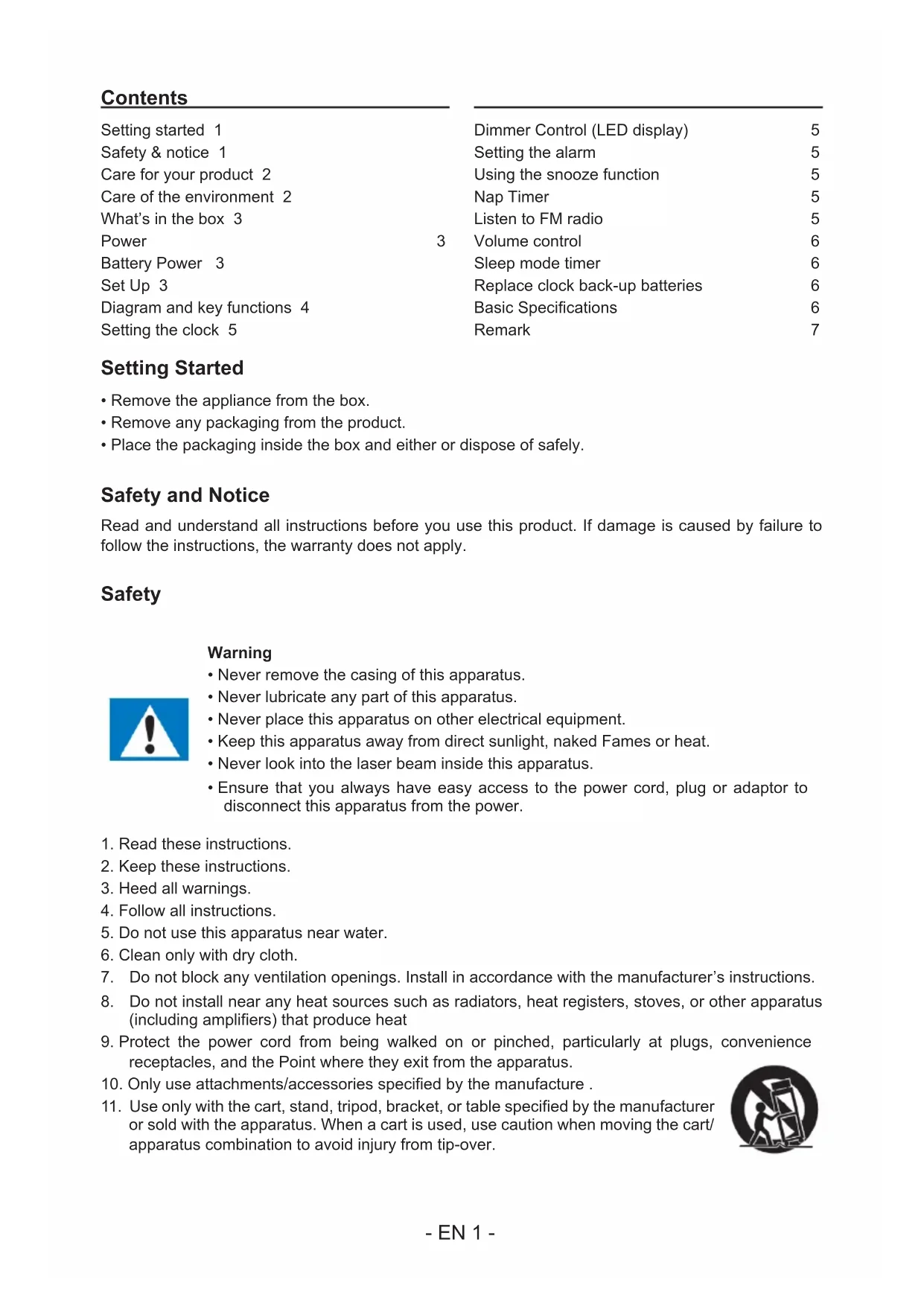

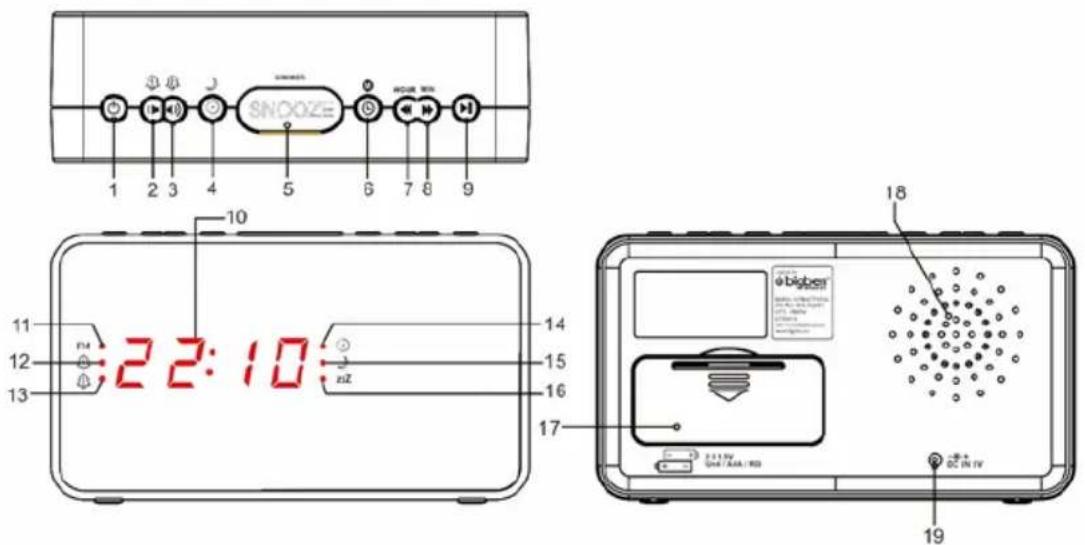

BBI_RR15_1606_Ver3- EN 1 - Contents Setting started 1 Safety & notice 1 Care for your product 2 Care of the environment 2 What’s in the box 3 Power 3 Battery Power 3 Set Up 3 Diagram and key functions 4 Setting the clock 5

• Remove the appliance from the box.

• Remove any packaging from the product.

• Place the packaging inside the box and either or dispose of safely. Safety and Notice Read and understand all instructions before you use this product. If damage is caused by failure to follow the instructions, the warranty does not apply. Safety Warning

• Never place this apparatus on other electrical equipment.

• Keep this apparatus away from direct sunlight, naked Fames or heat.

• Never look into the laser beam inside this apparatus.

• Ensure that you always have easy access to the power cord, plug or adaptor to disconnect this apparatus from the power.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus

(including amplifiers) that produce heat

9. Protect the power cord from being walked on or pinched, particularly at plugs, convenience

receptacles, and the Point where they exit from the apparatus.

10. Only use attachments/accessories specified by the manufacture .

11. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer

or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.- EN 2 -

12. Unplug this apparatus during lightning storms or when unused for long periods of time.

13. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has

been damaged in anyway, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

14. Apparatus shall not be exposed to dripping or splashing.

15. Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candles)

16. Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect

device shall remain readily operable.

17. Make sure there is enough free space around the product for ventilation.

18. Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as

sunshine, fire or the like. Care for your product

1. Always unplug the appliance when not in use and before cleaning.

2. Do not play music at excessive volume levels as damage to hearing and or the equipment may

3. Do not use this unit in wet or damp conditions.

4. Always disconnect the unit from the mains power supply before cleaning. Clean the appliance with

a soft, damp, lint free cloth. Do not use abrasives or harsh cleaners. Care of the environment Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.- EN 3 - What’s in the box Check and identify the contents of your package:

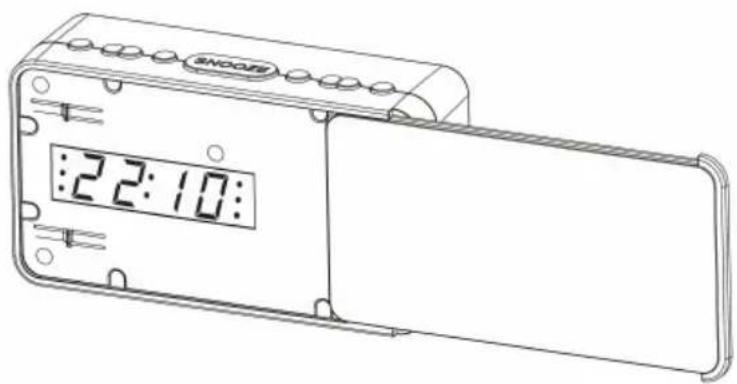

• Sliding front panels (for RR16 only) Power CAUTION Risk of product damager! Make sure that the power voltage corresponds to the voltage printed on the back label. Risk of electric shock! When you unplug the AC power cord always pull the plug from the socket. Never pull the cord. Before connecting the AC power cord, ensure you have completed all other connections. Place the unit in the desired position and unravel the mains cable. Insert the cable into the supply socket and switch on if applicable. . Battery power: Be sure that the batteries are inserted correctly to avoid damage to the appliance. Always remove the batteries when appliance will not be used for a long period of time, as this will cause leakage to the batteries and subsequently damage to your set. Use batteries of the same type. Never use different types of batteries together. Do not throw the battery into the fire, or exposed to sunshine or the like If the liquid contained in the batteries comes in contact with eyes or skin, wash the area immediately and carefully with clear water and consult a doctor Set-up

• SWITCH ON Radio mode and the radio will automatically search for radio stations within three minutes. The screen shows the digits and station numbers.

• Once complete, the unit will store its maximum 20 FM radio stations as preset stations General Functions

1. FM radio by Digital Tuning System (DTS)

2. 24-hour clock display

3. Alarm signal can be set to radio or beeping sound

4. Beep sounds can be set to ascend (increase in volume from quiet to loud)

5. 20 preset FM radio stations

6. Automatic/manual search up/down

7. Automatic memory store function when the unit is plugged in- EN 4 -

• In standby mode, press & hold Clock Set [6] for 2 seconds. The display will flash and show 0:00.

• Press Tune - [7] & Tune + [8] to set the hour and minute.

• Press Clock Set [6] again to confirm the time

• The clock will display in 24-hour format.

2. Dimmer control (LED Display)

• Press Dimmer [5] to control the brightness of the digits on the display.

• There are 3 levels: High level (brightness) Mid level (Dim light) Low level (dark OFF)

• Press Hour [7] & Min [8] to set the alarm hour & minute.

• Press Alarm 1 [2] again to confirm Alarm 1.

• Press [7 or 8] to switch between the alarm output bell “bb” (beep sound) and radio “F”.

• Press Alarm 1 [2] to confirm the alarm output.

• There is dual alarm. Repeat the steps above to set Alarm 2 [3] & select the alarm output. Turning off the alarm

• To turn off the beep sound, press Alarm 1 [2] or Alarm 2 [3].

• To turn off the radio output, press [1] to go back to standby mode.

• The Alarm clock will resume the function at the same time the next day. Cancelling / Disabling the alarm function:

• In standby mode, Press Alarm [2] or [3] for 2 times. The alarm function has been cancelled. If no key is pressed for 10 seconds, the system will go back to normal mode.

4. Using the snooze function

When the alarm is ringing or radio output is on, press [5] “SNOOZE”. The Snooze display light will flash. The alarm will stop, but ring again or the radio will come on every 9 minutes. Press [2 or 3] to turn off the alarm and the Snooze indicator light will be also off.

• In standby mode, press [4] to activate the NAP timer. The bell will ring after the selected time.

• It will start to count down from the default 120 minutes. There are different options for the user: 120, 90, 60, 30, 15, 10, 05 & OFF. To turn off the NAP timer, select OFF.

6. Listen to FM radio

• Press [1] to turn on the radio mode. The FM light is on & the display shows the current frequency e.g. FM92.6 MHz.

• In radio mode, press Tune - / + [7, 8] to adjust the signal and hold for 3 seconds to search for the next station. 6.1. Storing a station to memory – as a preset station

• In radio mode, Press & hold Tune -/ + [7, 8] to search for the channel.

Press [6] to start the memory . The display will flash the station number. (e.g. P01, P02, etc. to P20).

Press Tune -/+ [7, 8] to select the desired station number, e.g. P01, P02, etc. to P20

Finally, press Memory [6] to confirm and save the station numbe .- EN 6 -

Returning to a preset station

• When radio mode is on, press Programme [9] to select the desired preset station number, e.g. P01, P02, etc. to P20. The display will then show the station number (P01, P02, etc. to P20) and the FM frequency 3 seconds after the station is selected. 6.3. Scanning

• In radio mode, press Scan [9] for 2 seconds to activate SCAN mode.

• The radio will automatically scan the frequency and save the preset station to memory, with a total of up to 20 different radio stations. Once SCAN finishes scanning and stops automatically, it will return to preset station no. P01. The display will show the current time and FM frequency. When the SCAN function is activated, the newly found stations will replace the preset stations that have been previously stored in the memory.

• When the radio is on, press Volume - /+ [2] [3] to increase or decrease the sound volume level.

• The display will show the volume level, 00 ~ 15, from minimum to maximum sound level.

• Radio will turn off after the selected time. In Radio mode, press [4] to activate sleep mode.

• It will start to count down from the default 120 minutes. There are options for the user: 120, 90, 60, 30, 15, 10, 05 & OFF. To turn off the sleep mode timer, select OFF.

9. Replace clock back-up batteries

• Insert 2 AAA batteries. Check the polarity (+ and – at ends of the battery) and follow the instructions on the diagram near the battery compartment. Close the compartment door. NOTE: Please make sure you properly dispose of batteries (see your local regulations).

• Take them to a collection point.

• Some components in these appliances may be hazardous to health and the environment. The undersigned, Bigben Interactive declares that the radio equipment of the RR15,RR16 type complies with the 2014/53/EU directive. The complete text is available at https://www.bigben-interactive.co.uk/support/
