USER MANUAL U44406NH4GUBC Tripp Lite

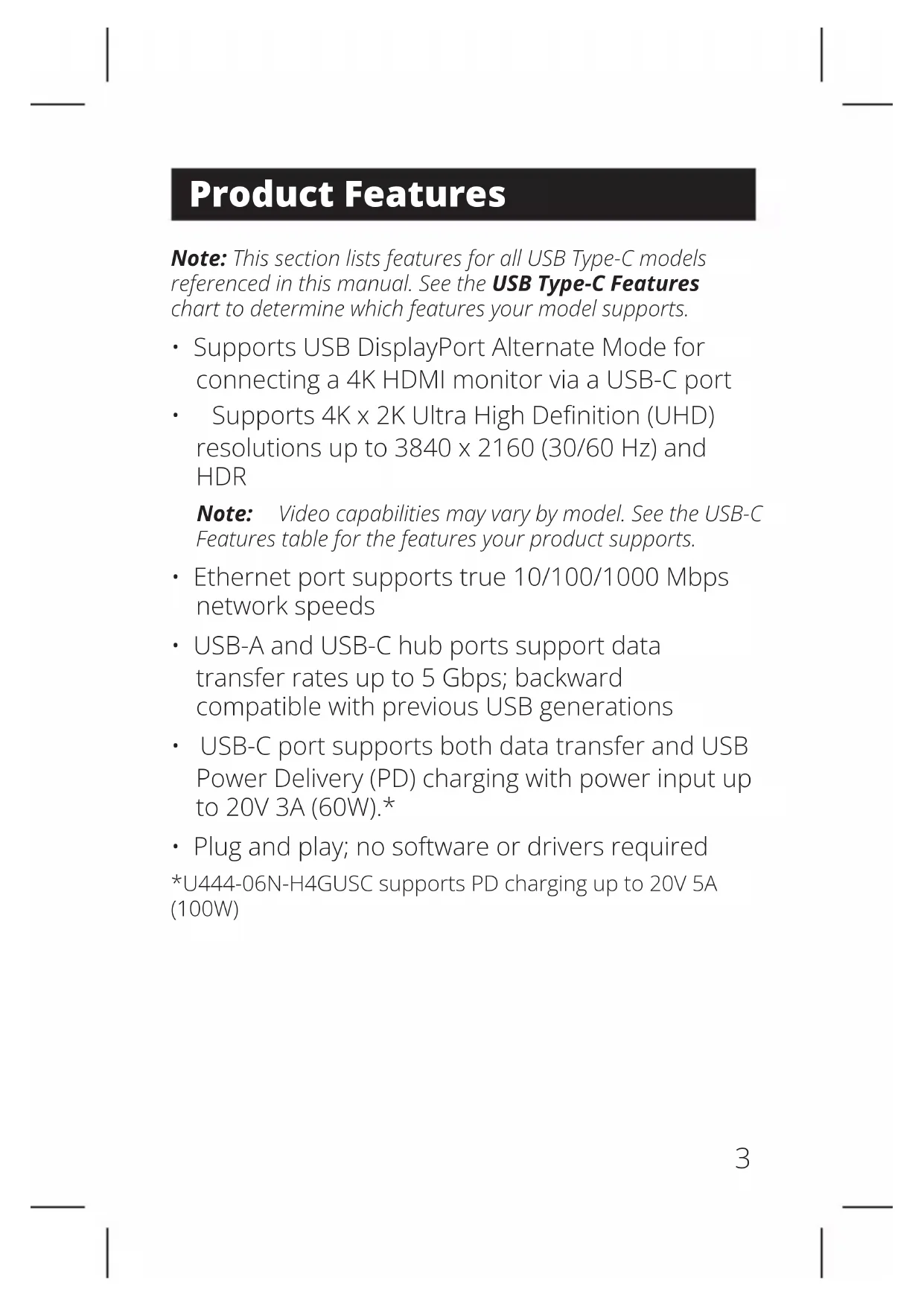

• U420-003 USB 3.2 Gen 1 USB-C Male/Male Cable – 3 ft.3 Product Features Note: This section lists features for all USB Type-C models referenced in this manual. See the USB Type-C Features chart to determine which features your model supports.

• Supports USB DisplayPort Alternate Mode for connecting a 4K HDMI monitor via a USB-C port

• Supports4Kx2KUltraHighDenition(UHD) resolutions up to 3840 x 2160 (30/60 Hz) and HDR Note: Video capabilities may vary by model. See the USB-C Features table for the features your product supports.

• Ethernet port supports true 10/100/1000 Mbps network speeds

• USB-A and USB-C hub ports support data transfer rates up to 5 Gbps; backward compatible with previous USB generations

• USB-C port supports both data transfer and USB Power Delivery (PD) charging with power input up to 20V 3A (60W).*

• Plug and play; no software or drivers required *U444-06N-H4GUSC supports PD charging up to 20V 5A (100W)4 Product Features USB Type-C Features HDR Video Support

USB-C Port Data Support

USB-C Port Charging Support

Gigabit Ethernet Port

Installation Note: When the unit is connected to the USB-C port on your computer and to a network via Cat5e/6 cabling, a network connection will be automatically established. If no connection is made, you can manually establish one by going to your computer’s network settings page. For example, on a Mac you would navigate to the Network section found in System Preferences, click the ‘Assist Me’ button to get to the Network Setup Assistant, then follow the prompts to establish a connection.

1. Connect the adapter’s USB Type-C connector to

the USB-C port on your laptop, tablet or other compatible device.

3. Charge your device by connecting its USB-C

charger to the adapter’s USB-C port.*

4. Connect a USB device to the adapter’s USB-A

5. Connect the adapter’s RJ45 port to a network

using a UTP cable (such as N201-Series Cat6 cables).** *USB-C port for models U444-06N-H4U-C, U444-06N-H4GUBC or U444-06N-H4GUSC supports both data transfer and charging. **See the USB Type-C Features table for the features your product supports.6 Models U444-06N-H4-C U444-06N-H4B-C U444-06N-H4U-C U444-06N-H4UB-C Input Connectors USB USB-C (Male) USB-C Port Charging Support

USB-C Port Data Support N Y Output Connectors 4K HDMI HDMI (Female) USB N/A USB-A (Female) Ethernet N/A N/A Environmental Operating Temperature 32°F to 113°F (0°C to 45°C) Operating Humidity 10% to 85% RH, Non-Condensing Storage Temperature 14°F to 158°F (-10°C to 70°C) Storage Humidity 5% to 90% RH, Non-Condensing Power Requirements USB-C Charging Port Supports up to 20V 3A (60W) Input USB-A Port N/A Provides up to 5V 1A (5W) Output Specications7 Models U444-06N-H4GU-C

Input Connectors USB USB-C (Male) USB-C Port Charging Support Y N USB-C Port Data Support N Y N Output Connectors 4K HDMI HDMI (Female) USB USB-A (Female) N/A Ethernet RJ45 (Female) N/A Environmental Operating Temperature 32°F to 113°F (0°C to 45°C) Operating Humidity 10% to 85% RH, Non-Condensing Storage Temperature 14°F to 158°F (-10°C to 70°C) Storage Humidity 5% to 90% RH, Non-Condensing Power Requirements USB-C Charging Port Supports up to 20V 3A (60W) Input Supports up to 20V 5A (100W) N/A USB-A Port Provides up to 5V 1A (5W) Output Provides up to 5V 1.5A (7.5W) N/A Specications8 Warranty

3-YEAR LIMITED WARRANTY

We warrant our products to be free from defects in materials and workmanship for a period of three (3) years from the date of initial purchase. Our obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. Visit Tripplite.Eaton.com/support/product-returns before sending any equipment back for repair. This warranty does not apply to equipment which has been damaged by accident, negligence or misapplication or has been altered or modiedinanyway. EXCEPT AS PROVIDED HEREIN, WE MAKE NO WARRANTIES,

EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser. EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL WE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.Specically,wearenotliableforanycosts,suchaslost protsorrevenue,lossofequipment,lossofuseofequipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.9 Regulatory Compliance FCC Notice, Class B This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,whichcanbedeterminedbyturningtheequipmento and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connecttheequipmentintoanoutletonacircuitdierentfrom that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help. Anychangesormodicationstothisequipmentnotexpressly approved by Eaton could void the user’s authority to operate this equipment.10 Eaton 1000 Eaton Boulevard Cleveland, OH 44122 United States Eaton.com © 2023 Eaton All Rights Reserved Publication No. 23-07-562 / 93-36FB_RevG July 2023 Eaton is a registered trademark. All trademarks are property of their respective owners. WEEE Compliance Information for Customers and Recyclers (European Union) Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Eaton they are entitled to:
