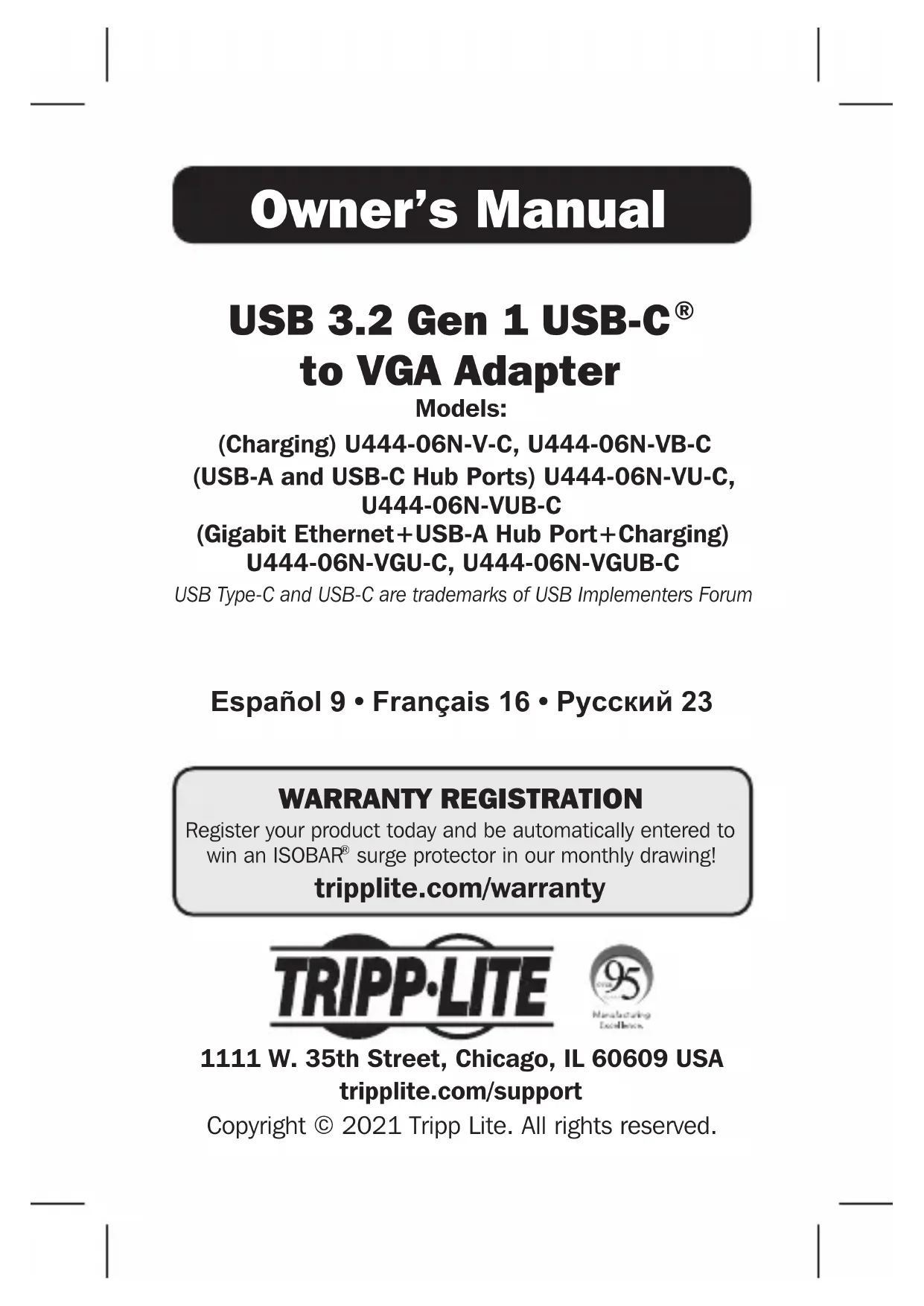

USER MANUAL U44406NVGUBC Tripp Lite

to VGA Adapter Models: (Charging) U444-06N-V-C, U444-06N-VB-C (USB-A and USB-C Hub Ports) U444-06N-VU-C,

(Gigabit Ethernet+USB-A Hub Port+Charging)

U444-06N-VGU-C, U444-06N-VGUB-C

USB Type-C and USB-C are trademarks of USB Implementers Forum 1111 W. 35th Street, Chicago, IL 60609 USA tripplite.com/support Copyright © 2021 Tripp Lite. All rights reserved. Owner’s Manual WARRANTY REGISTRATION Register your product today and be automatically entered to win an ISOBAR surge protector in our monthly drawing! tripplite.com/warranty Español 9 • Français 16 • Русский 232 Package Includes Product Features

• Owner’s Manual Note: This section lists features for all USB Type-C models referenced in this manual. See the USB Type-C Features chart to determine which features your model supports.

• Supports USB DisplayPort Alternate Mode for connecting a VGA monitor via a USB-C port

• Supports VGA video resolutions up to 1920 x 1080, including 1080p (60 Hz)

• Ethernet port supports true 10/100/1000 Mbps network speeds

• USB-A and USB-C hub ports support data transfer rates up to 5 Gbps; backward compatible with previous USB generations Optional Accessories

VGA Port Y Y Y USB-A Hub Port N Y Y Gigabit Ethernet Port N N Y USB-C Port Charging Support Y Y Y USB-C Port Data Support N Y N

• USB-C port supports both data transfer and USB Power Delivery (PD) charging with power input up to 20V 3A (60W)

• Plug and play; no software or drivers required4 Installation Note: When the unit is connected to the USB-C port on your computer and to a network via Cat5e/6 cabling, a network connection will be automatically established. If no connection is made, you can manually establish one by going to your computer’s network settings page. For example, on a Mac you would navigate to the Network section found in System Preferences, click the ‘Assist Me’ button to get to the Network Setup Assistant, then follow the prompts to establish a connection.

1. Connect the adapter’s USB Type-C connector to

the USB-C port on your laptop, tablet or other compatible device.

3. Charge your device by connecting its USB-C charger

to the adapter’s USB-C port.*

4. Connect a USB device to the adapter’s USB-A hub

5. Connect the adapter’s RJ45 port to a network using

a UTP cable (such as Tripp Lite’s N201-Series Cat6 cables).** *USB-C port for U444-06N-VU-C and U444-06N-VUB-C models support both data transfer and charging. **See the USB Type-C Features chart for the features your product supports.5 Models U444-06N-V-C / U444-06N-VB-C U444-06N-VU-C /

Input Connectors USB USB-C (Male) USB-C (Male) USB-C (Male) USB-C Port Charging Support Y Y Y USB-C Port Data Support N Y N Output Connectors VGA VGA (Female) VGA (Female) VGA (Female)

USB-A (Female) USB-A (Female) Ethernet N/A N/A RJ45 (Female) Environmental Operating Temperature 32°F to 113°F (0°C to 45°C) Operating Humidity 10% to 85% RH, Non-Condensing Storage Temperature 14°F to 158°F (-10°C to 70°C) Storage Humidity 5% to 90% RH, Non-Condensing Power Requirements USB-C Charging Port Supports up to 20V 3A (60W) Input USB-A Port N/A Provides up to 5V 1A (5W) Output Specifications6 Warranty and Product Registration

3-YEAR LIMITED WARRANTY

TRIPP LITE warrants its products to be free from defects in materials and workmanship for a period of three (3) years from the date of initial purchase. TRIPP LITE’s obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. To obtain service under this warranty, you must obtain a Returned Material Authorization (RMA) number from TRIPP LITE or an authorized TRIPP LITE service center. Products must be returned to TRIPP LITE or an authorized TRIPP LITE service center with transportation charges prepaid and must be accompanied by a brief description of the problem encountered and proof of date and place of purchase. This warranty does not apply to equipment, which has been damaged by accident, negligence or misapplication or has been altered or modified in any way. EXCEPT AS PROVIDED HEREIN, TRIPP LITE MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser. EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL TRIPP LITE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, TRIPP LITE is not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise. PRODUCT REGISTRATION Visit tripplite.com/warranty today to register your new Tripp Lite product. You’ll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

• No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.7 Warranty and Product Registration FCC Notice, Class B This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications to this equipment not expressly approved by Tripp Lite could void the user’s authority to operate this equipment.8 WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union) Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Tripp Lite they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)

• Send the new equipment back for recycling when this ultimately becomes waste Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended. Do not use this equipment in the presence of a flammable anesthetic mixture with air, oxygen or nitrous oxide. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Warranty and Product Registration 1111 W. 35th Street, Chicago, IL 60609 USA tripplite.com/support 21-08-147 93-36FA_RevD9 Manual del Propietario Adaptador de USB 3.2 Gen 1 USB-C
