Product Type	USB-C to DisplayPort Adapter with Charging
Brand	Tripp Lite
Model	U444-06N-DP-C
Input Connector	USB-C Male
Output Connector	DisplayPort Female
PD Charging Port	USB-C Female (Power Delivery up to 20 V, 3 A, 60 W)
Maximum Supported Resolution	4K x 2K (3840 x 2160) at 60 Hz
Supported Alternate Mode	USB DisplayPort Alt Mode
Compatibility	Devices with Alt Mode-compatible USB-C port
Installation	No driver required, plug and play
Operating Temperature	0 to 45 °C
Operating Humidity	10 to 85 % RH non-condensing
Storage Temperature	-10 to 70 °C
Storage Humidity	5 to 90 % RH non-condensing
Warranty	3-year limited warranty
Weight	Approximately 50 g
Dimensions (L x W x H)	Approximately 10 x 5 x 2 cm

Frequently Asked Questions - U44406NDPC Tripp Lite

What type of DisplayPort cable is needed?

Use a standard DisplayPort cable (male-to-male) to connect the adapter to your monitor. Tripp Lite P580 series cables are recommended.

Can I charge my device through the adapter?

Yes, the adapter has a USB-C Power Delivery port (female) that can charge your host device up to 60 W (20 V / 3 A). Plug your device's USB-C charger into this port.

What screen resolutions are supported?

The adapter supports up to 4K Ultra HD (3840 x 2160) at 60 Hz via DisplayPort Alternate Mode.

Does the adapter work with any USB-C device?

It works with devices supporting DisplayPort Alternate Mode over USB-C like most recent laptops, tablets, and smartphones.

Do I need to install a driver?

No, the adapter is plug and play and requires no additional software or drivers.

Can the adapter be used with a VGA or HDMI monitor?

No, this adapter only converts USB-C to DisplayPort. To use a VGA or HDMI monitor, you need an additional adapter.

What is the maximum recommended DisplayPort cable length?

For optimal performance, use a DisplayPort cable shorter than 3 meters for 4K resolutions.

Does the adapter get hot during use?

Slight heating is normal. The adapter operates in a range of 0 to 45 °C. If it becomes very hot, check ventilation.

Can I use the adapter with a device that does not support Power Delivery?

Yes, the PD charging port is optional. The adapter works without being powered, but you will not be able to charge your device through the adapter.

What to do if the image does not display?

Check that your host device supports DisplayPort Alternate Mode, that the DisplayPort cable is properly connected, and that the monitor is on and set to the correct input. Try restarting the computer.

USER MANUAL U44406NDPC Tripp Lite

USB 3.1 Gen 1 USB-C™ to DisplayPort Adapter with Charging

Model: U444-06N-DP-C

USB Type-C and USB-C are trademarks of USB Implementers Forum

Español 7 • Français 13 • Русский 19

PROTECT YOUR INVESTMENT!

Register your product for quicker service and ultimate peace of mind. You could also win an ISOBAR6ULTRA

surge protector—a \$100 value!

www.tripplite.com/warranty

TRIPP·LITE

1111 W. 35th Street, Chicago, IL 60609 USA www.tripplite.com/support

Copyright © 2017 Tripp Lite. All rights reserved.

Package Contents

• U444-06N-DP-C
- Owner's Manual

Optional Accessories

• P580-Series DisplayPort Cables
- U420-003 USB 3.1 Gen 1 USB-C Male/Male Cable – 3 ft.

Product Features

• Supports USB DisplayPort Alternate Mode for connecting a DisplayPort monitor via a USB-C port
• Supports 4K x 2K Ultra High Definition (UHD) resolutions up to 3840 x 2160 (60 Hz)
- USB-C Power Delivery (PD) charging port charges your device
- USB-C port supports power input up to 20V 3A (60W)
- Plug and play; no software or drivers required

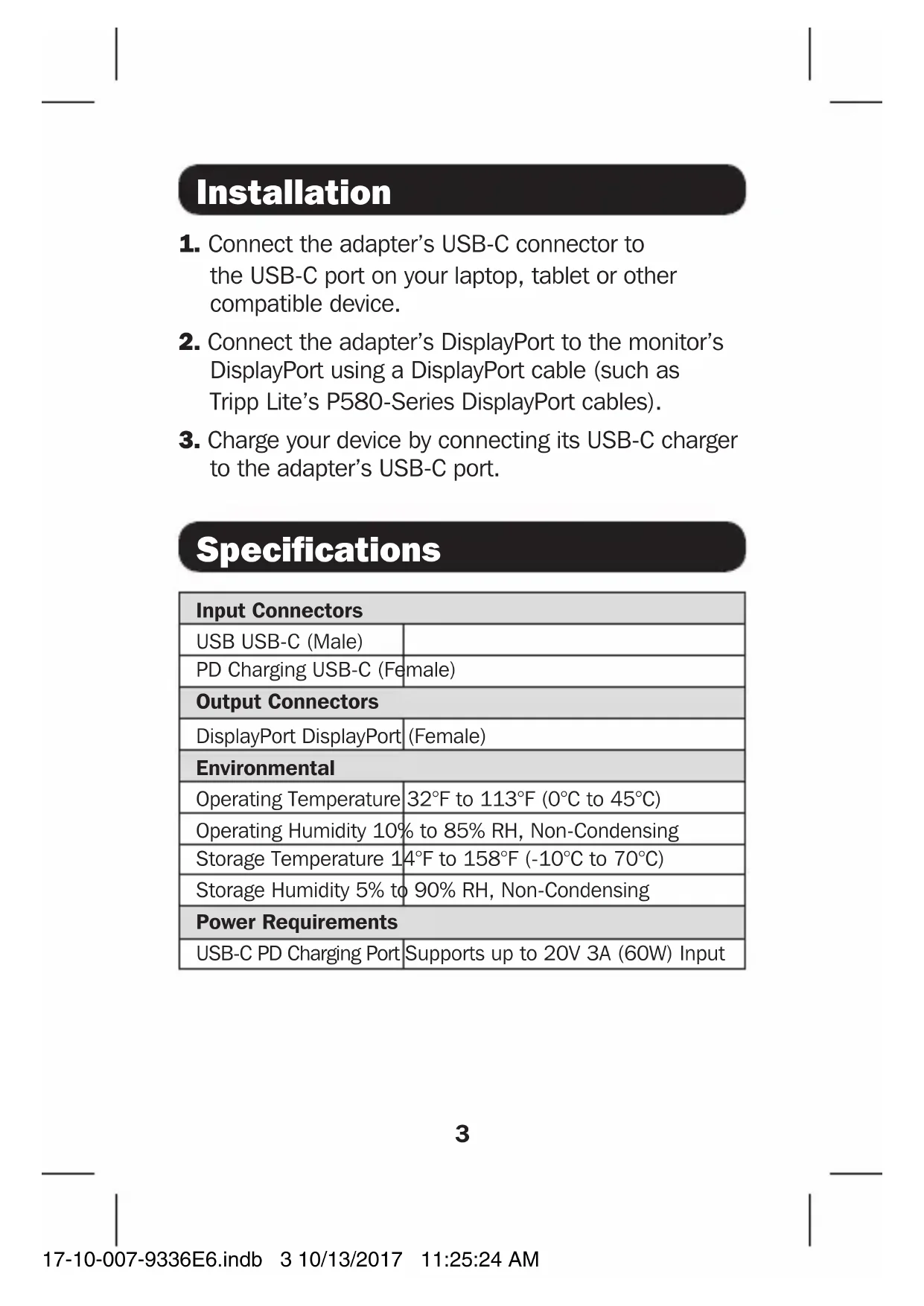

Installation

1. Connect the adapter's USB-C connector to the USB-C port on your laptop, tablet or other compatible device.
2. Connect the adapter's DisplayPort to the monitor's DisplayPort using a DisplayPort cable (such as Tripp Lite's P580-Series DisplayPort cables).
3. Charge your device by connecting its USB-C charger to the adapter's USB-C port.

Specifications

Input Connectors
USB USB-C (Male)
PD Charging USB-C (Female)
Output Connectors
DisplayPort DisplayPort (Female)
Environmental
Operating Temperature	32°F to 113°F (0°C to 45°C)
Operating Humidity 10% to 85% RH, Non-Condensing
Storage Temperature 14°F to 158°F (-10°C to 70°C)
Storage Humidity 5% to 90% RH, Non-Condensing
Power Requirements
USB-C PD Charging Port	Supports up to 20V 3A (60W) Input

Warranty and Product Registration

3-YEAR LIMITED WARRANTY

TRIPP LITE warrants its products to be free from defects in materials and workmanship for a period of three (3) years from the date of initial purchase. TRIPP LITE's obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. To obtain service under this warranty, you must obtain a Returned Material Authorization (RMA) number from TRIPP LITE or an authorized TRIPP LITE service center. Products must be returned to TRIPP LITE or an authorized TRIPP LITE service center with transportation charges prepaid and must be accompanied by a brief description of the problem encountered and proof of date and place of purchase. This warranty does not apply to equipment, which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.

EXCEPT AS PROVIDED HEREIN, TRIPP LITE MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL TRIPP LITE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, TRIPP LITE is not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.

PRODUCT REGISTRATION

Visit www.tripplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Warranty and Product Registration

FCC Notice, Class B

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications to this equipment not expressly approved by Tripp Lite could void the user's authority to operate this equipment.

Warranty and Product Registration

WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Tripp Lite they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately becomes waste

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended. Do not use this equipment in the presence of a flammable anesthetic mixture with air, oxygen or nitrous oxide.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
