USER MANUAL U4442DPMST4K6 Tripp Lite

USB-C Dual Display MST Adapter, Dual DisplayPort 4K @ 60 Hz, HDCP 2.2, DP 1.4

Model: U444-2DP-MST4K6

Español 9 • Français 16 Русский 23 • Deutsch 30

WARRANTY REGISTRATION

Register your product today and be automatically entered to win an ISOBAR® surge protector in our monthly drawing! tripplite.com/warranty

TRIPP·LITE

1111 W. 35th Street, Chicago, IL 60609 USA tripplite.com/support

Copyright © 2021 Tripp Lite. All rights reserved. USB Type-C® and USB-C® are registered trademarks of USB Implementers Forum.

Package Contents

• U444-2DP-MST4K6 USB-C to 2x DisplayPort Adapter
- Owner's Manual

Product Features

• Supports one USB Type-C input and two DisplayPort outputs
• Supports DP 1.4 Alt Mode with maximum 8.1 Gbps per lane; total of 32.4 Gbps per 4 lanes
- Supports DSC 1.2
- One video output capable of resolutions up to 8K @ 30 Hz
- Supports dual 4K @ 60 Hz output with different output on each display in MST mode when used with a Windows operating system

Note: To achieve the above resolution, the host must support DP 1.4 Alt Mode. When used with a host that supports DP 1.2, the corresponding resolution will be decreased because of bandwidth limitations.

- Supports dual 4K @ 60 Hz output with the same picture in SST mode when used with a Mac OS system

• Supports 8/10/12 bit color depth output

• Supports output pixel format: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 and YCbCr 4:2:0

- Compatible with HDCP 2.2, HDCP 1.4 and HDR

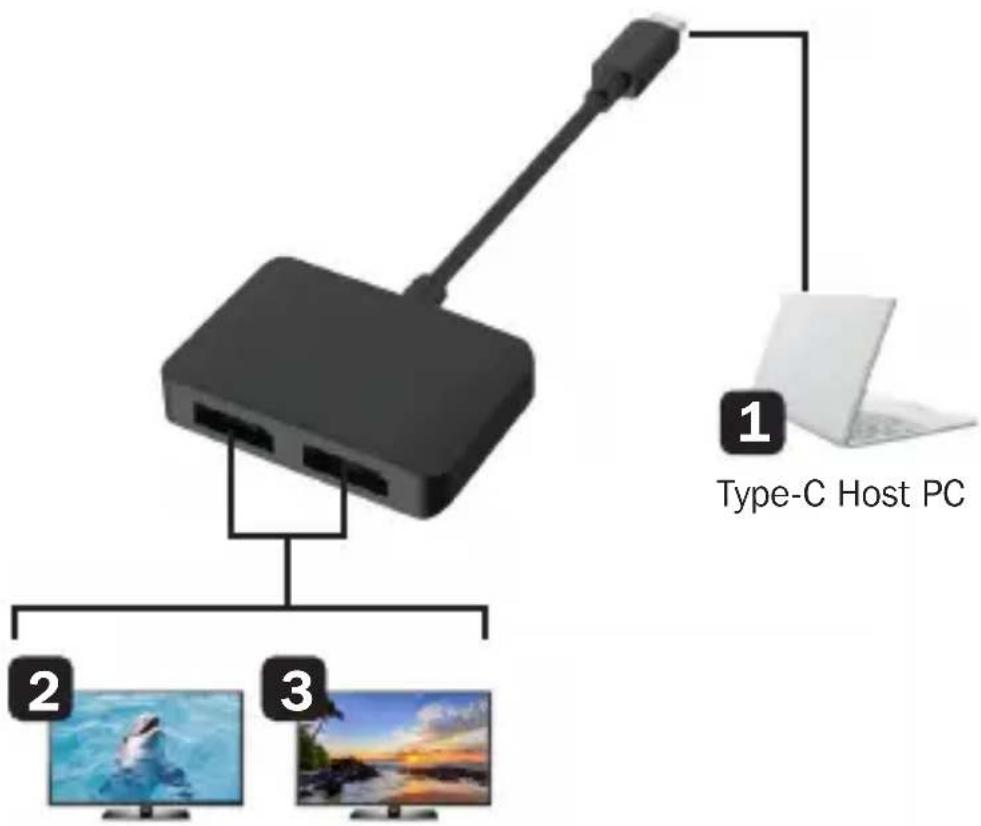

Connection Diagram

1 USB Type-C Host PC
2 Display 1 One Display: Max 8K Resolution
3 Display 2 Dual Displays: 4K @ 60 Hz in MST mode

Display 1 Display 2

Specifications

Input/Output Connector
Input USB Type-C Male (x1)
Output DisplayPort Female (x2)
DisplayPort
Resolution Single Display: 8K @ 30 HzDual Display: 4K @ 60 Hz
HDR Yes
HDCP Version 2.2 & 1.4
Environmental
Operating Temperature 32° to 113°F (0° to 45°C)
Operating Humidity 10% to 85% RH, Non-Condensing
Storage Temperature 14° to 158°F (-10° to 70°C)
Storage Humidity 5% to 90 % RH, Non-Condensing
Power Requirements
Power Source Bus Power
Standby Power Consumption	≤ 0.5W

Specifications

Physical Measurements
Dimensions(H x W x D)	0.5 x 2 x 2.2 in.(1.2 x 5 x 5.5 cm)
Weight 0.1 lb. (41 g)
Warranty
Limited Warranty 3-Year	Limited Warranty
Regulatory Approvals
Certifications RoHS, REACH, CE, FCC

Warranty & Product Registration

3-Year Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of 3 years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, at its sole discretion.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction.)

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

Warranty & Product Registration

PRODUCT REGISTRATION

Visit tripplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.
