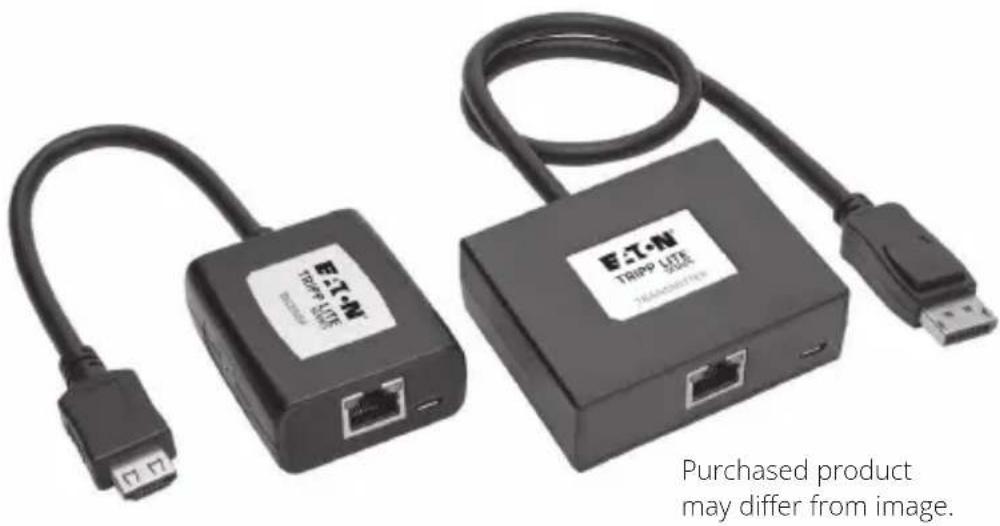

Product Type	DisplayPort to HDMI over Cat5 Extender Kit
Brand	Tripp Lite
Model	B150-1A1-HDMI
Key Features	Converts a DisplayPort signal to HDMI, extends range up to 38.1 m (1080p) or 45.7 m (1080i), supports True Color 24-bit and stereo sound, built-in equalization
Maximum Resolution	1080p (1920×1080) at 60 Hz
Maximum Extension Distance	38.1 m (125 ft) for 1080p, 45.7 m (150 ft) for 1080i
Transmitter Connectivity	1 integrated DisplayPort cable, 1 RJ45 port, 1 USB Micro-B port
Receiver Connectivity	1 integrated HDMI cable with latch, 1 RJ45 port, 1 USB Micro-B port
Power	Via USB Micro-B ports (5 V, powered by computer or USB charger)
Recommended Cable	Cat5e/6 solid wire 24 AWG (N202 series)
Package Contents	Transmitter, receiver, 2 x 0.91 m USB Micro-B cables, screwdriver for equalization adjustment, user manual
System Requirements	Computer with DisplayPort, display with HDMI input
Plug and Play	Yes, no software or driver required
Warranty	1-year limited
Audio Compatibility	Yes, requires audio-capable DisplayPort source

Frequently Asked Questions - B1501A1HDMI Tripp Lite

How to install the B150-1A1-HDMI kit?

Ensure all devices are powered off. Connect the DisplayPort cable of the transmitter to the computer, then power the transmitter via the USB Micro-B cable. Connect the transmitter and receiver with a Cat5e/6 cable. Connect the HDMI cable of the receiver to the display, then power the receiver via the other USB Micro-B cable. Power on the source and display. Adjust equalization if necessary.

What is the maximum transmission distance?

Up to 38.1 m (125 ft) for 1080p resolution at 60 Hz, and up to 45.7 m (150 ft) for 1080i at 60 Hz.

What type of Cat5e/6 cable should I use?

Use a solid wire 24 AWG Cat5e or Cat6 cable, such as Tripp Lite's N202 series cables. Stranded or higher gauge cables reduce range.

Can I use an external power supply?

Yes, you can power the transmitter and receiver via a USB wall charger (e.g., models U280-002-W12 or UAC-1B). The supplied USB Micro-B cables must be connected.

What to do if no image appears?

Check that the USB Micro-B cables are properly connected and power is active. Ensure the computer and display are turned on. Reduce resolution or refresh rate. Adjust the equalization dial on the receiver.

Can I use patch panels between the transmitter and receiver?

It is not recommended to insert patch panels or other devices between the transmitter and receiver, as it degrades the signal. The kit is designed for direct connection.

Does the kit support audio?

Yes, it supports stereo sound. However, the DisplayPort source must be capable of transmitting audio. No additional audio cable is required.

Is there a warranty?

Yes, a one-year limited warranty from the date of purchase, covering defects in materials and workmanship. Visit Tripplite.Eaton.com for returns.

Can I use a standard HDMI cable with the receiver?

The receiver is equipped with an integrated HDMI cable with latch. You cannot replace it. For additional extensions, use a standard HDMI cable from the receiver, but this does not increase the system's range.

How to adjust equalization?

Use the provided screwdriver to turn the equalization dial on the receiver. Turn gently until a clear image is obtained. Improper adjustment may result in no display.

USER MANUAL B1501A1HDMI Tripp Lite

DisplayPort to HDMI over Cat5 Extender Kit

Model:

B150-1A1-HDMI

Espanol 9

Français 17

Deutsch 25

Italiano 33

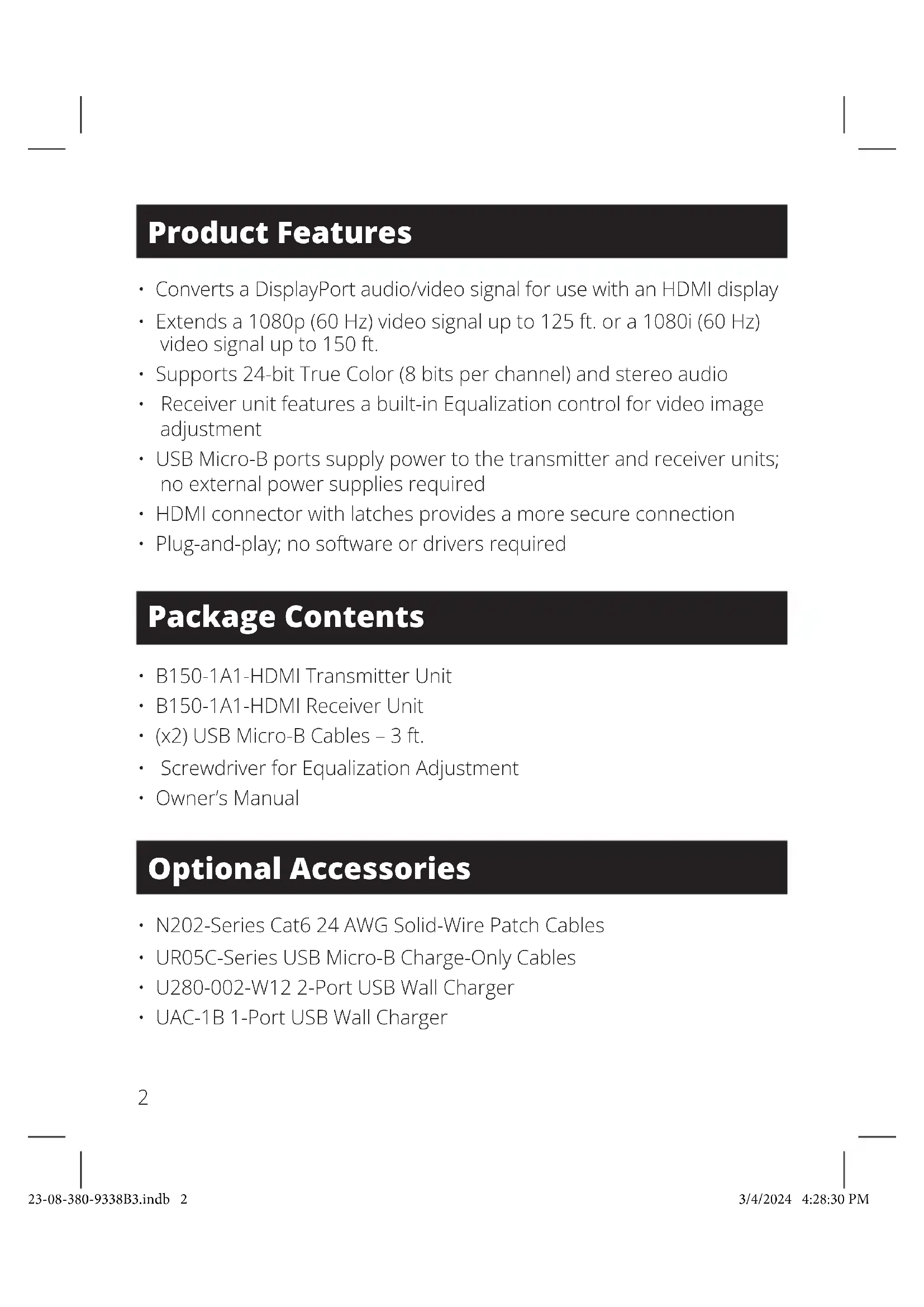

Product Features

• Converts a DisplayPort audio/video signal for use with an HDMI display
• Extends a 1080p (60 Hz) video signal up to 125 ft. or a 1080i (60 Hz) video signal up to 150 ft.
  Supports 24-bit True Color (8 bits per channel) and stereo audio
• Receiver unit features a built-in Equalization control for video image adjustment
• USB Micro-B ports supply power to the transmitter and receiver units; no external power supplies required
• HDMI connector with latches provides a more secure connection
• Plug-and-play; no software or drivers required

Package Contents

B150-1A1-HDMI Transmitter Unit
B150-1A1-HDMI Receiver Unit
- (x2) USB Micro-B Cables - 3 ft.
- Screwdriver for Equalization Adjustment
- Owner's Manual

Optional Accessories

N202-Series Cat6 24 AWG Solid-Wire Patch Cables
- UR05C-Series USB Micro-B Charge-Only Cables
U280-002-W12 2-Port USB Wall Charger
UAC-1B 1-Port USB Wall Charger

2

System Requirements

• Computer with a DisplayPort output port*
• Display with an HDMI input port

*Audio support requires a DisplayPort source that is enabled to support audio.

Installation

Notes:

1. Test to make sure the entire installation works properly before pulling cables through ceilings/walls.
2. To achieve maximum distance and performance, 24 AWG solid-wire Cat5e/6 cable must be used. The use of stranded-wire Cat5e/6 cable or cable with a gauge size higher than 24 AWG will result in a shorter extension distance. N202-Series Cat6 cables are made with 24 AWG solid-wire cabling.
3. Make sure the power to all connected devices is turned off prior to installation.

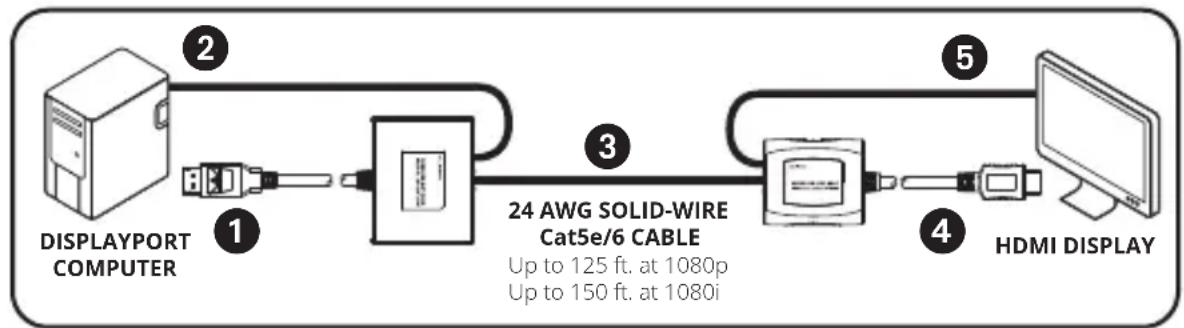

Connect the transmitter unit's built-in DisplayPort cable to the computer's DisplayPort output port.
Connect the included USB Micro-B cable to the transmitter unit and a USB port on the computer or USB wall outlet. The green and orange LEDs on the transmitter unit's RJ45 ports will illuminate to indicate it is receiving power from the USB Micro-B cable.

Installation

3 Connect the RJ45 port on the transmitter to the RJ45 port on the receiver using Cat5e/6 cable.
Note: See the installation diagrams for maximum extension distance at 1080p and 1080i video resolutions.
Connect the receiver unit's built-in HDMI cable to an HDMI monitor input port.
Connect the included USB Micro-B cable to the receiver unit and a USB port on the display or USB wall outlet. The green LED on the receiver's RJ45 port will illuminate to indicate it is receiving power from the USB Micro-B cable.
Power on the DisplayPort source and HDMI display. The orange LED on the receiver unit's RJ45 port will illuminate to indicate it is receiving a signal from the source.
If necessary, use the Equalization control to adjust the video image.

Note: An improper Equalization setting can result in no image being displayed at all. If an image is not displayed on your monitor, try adjusting the Equalization.

Troubleshooting

If you are unable to get an acceptable image after following the installation instructions, try the troubleshooting tips below:

1. Are the USB Micro-B cables that shipped with the product connected and plugged into a working power source? For the product to function properly, it must be connected to and receiving power from the USB Micro-B cables.
2. Was the power to the DisplayPort source turned off prior to installation? If not, restart your computer.
3. What resolution are you trying to reach? See the Product Features and Installation sections in this manual for details on maximum distance and resolution. The shorter the extension distance, the higher the resolution you will be able to obtain. If you are not able to receive an acceptable image, try lowering your computer's video resolution or adjusting the refresh rate.
4. What type of cabling are you using? Inferior cabling can result in poor performance, so it is important you use cables that can support the video resolution you are trying to obtain. To achieve maximum distance and resolution, 24 AWG solid-wire UTP cable (such as N202-Series cables) must be used.
5. Test your cables to ensure they are working properly.

For example, connect your Cat5e/6 cable between a computer and a network to verify that it establishes a network connection.

1. Do you have any patch panels or other devices between the transmitter and receiver units? DisplayPort to HDMI over Cat5 Extender Kit is designed to connect directly from the transmitter to the receiver via UTP cable. The more connection points between the source and the remote monitor, the more likely signal degradation will occur, causing poor performance. If you have a patch panel or other device in between, it should be removed from the installation.

Troubleshooting

1. Do you have a splitter, switch or other device between the computer and transmitter or between the receiver and display? DisplayPort to HDMI over Cat5 Extender Kit is designed for the transmitter to connect directly with the source computer and for the receiver to connect directly to the display. If you have a splitter, switch or other device in between, it should be removed from the installation.
2. Check your cabling for any damage that may have occurred during installation. If a cable connector is loosened from being pulled through ceilings/walls or the cable jacket is damaged, causing the wiring to be exposed, you will not be able to achieve maximum performance.
3. Are the transmitter and/or receiver units located in an area that exposes them to elevated temperatures? If the product is overheating, it will not function properly.

Warranty

1-YEAR LIMITED WARRANTY

We warrant our products to be free from defects in materials and workmanship for a period of one (1) year from the date of initial purchase. Our obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. Visit Tripplite.Eaton.com/support/product-returns before sending any equipment back for repair. This warranty does not apply to equipment which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.

EXCEPT AS PROVIDED HEREIN, WE MAKE NO WARRANTYES, EXPRESS OR IMPLIED

INCLUDING WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE. Some states do not permit limitation or exclusion of implied warranties;

therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL WE BE LIABLE FOR DIRECT, INDIRECT,

SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS

PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, we are

not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of

equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or

otherwise.

FCC Notice, Class B

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications to this equipment not expressly approved by Eaton could void the user's authority to operate this equipment.

Warranty

WEEE Compliance Information for Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Eaton, they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately becomes waste

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

Eaton has a policy of continuous improvement. Specifications are subject to change without notice.

EAT-N

Powering Business Worldwide

Eaton

1000 Eaton Boulevard

Cleveland, OH 44122

United States

Eaton.com

9338B3

© 2024 Eaton

All Rights Reserved

Publication No. 23-08-380 /

93-38B3_RevB
