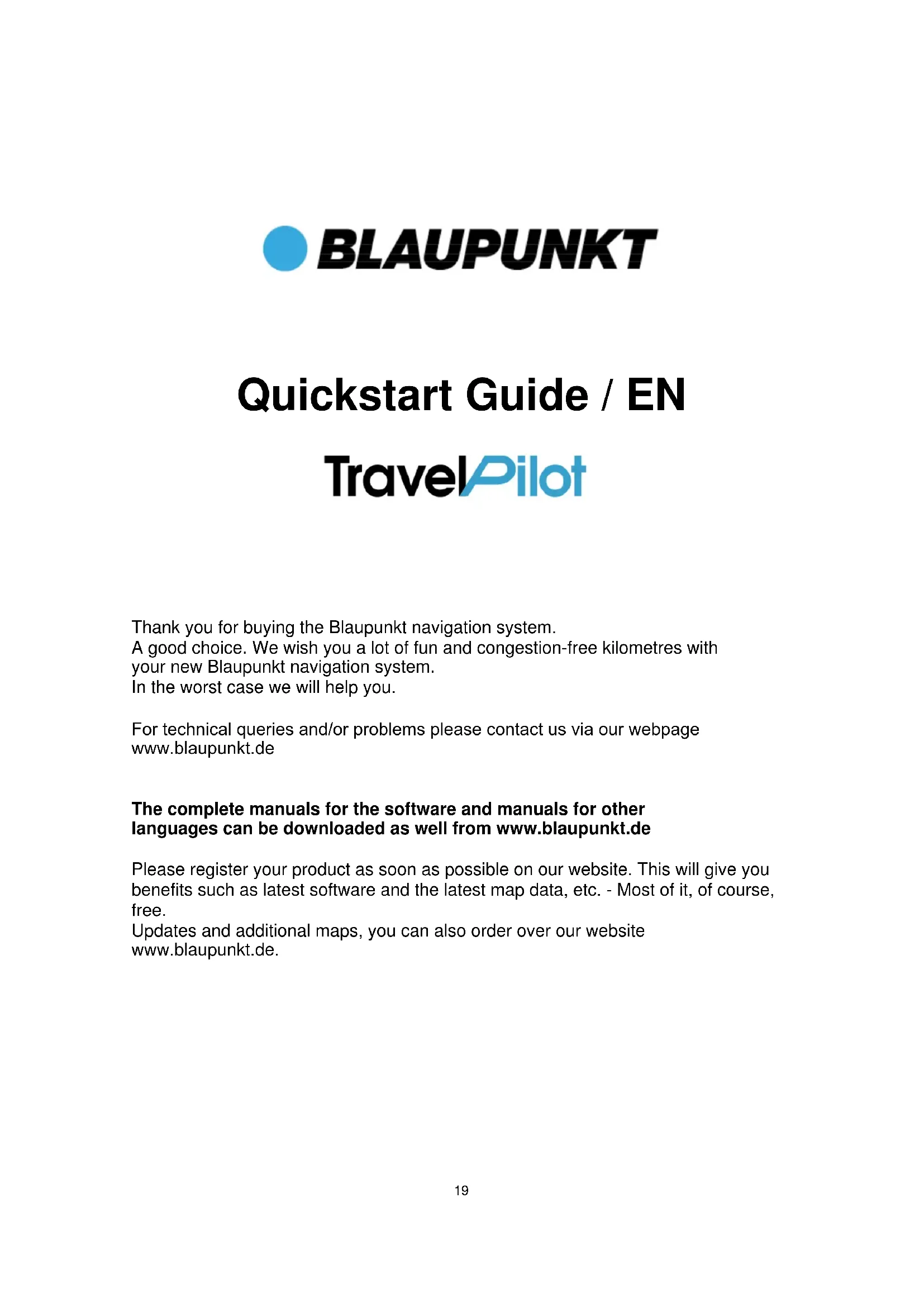

Quickstart Guide / EN

TravelPilot

Thank you for buying the Blaupunkt navigation system.

A good choice. We wish you a lot of fun and congestion-free kilometres with your new Blaupunkt navigation system.

In the worst case we will help you.

For technical queries and/or problems please contact us via our webpage www.blaupunkt.de

The complete manuals for the software and manuals for other languages can be downloaded as well from www.blaupunkt.de

Please register your product as soon as possible on our website. This will give you benefits such as latest software and the latest map data, etc. - Most of it, of course, free.

Updates and additional maps, you can also order over our website www.blaupunkt.de.

Dear Customer,

Thanks for using a navigation system of Blaupunkt.

• Blaupunkt reserves the rights of final interpretation of the manual.
• The product is subject change without notice. Please accept our apology for your inconvenience.
• Please back up your data and information in the GPS navigator. Blaupunkt assumes no responsibility for any loss caused by material loss.
• The manual might contain a few mistakes though it has been checked. If any mistake is found, please contact the Blaupunkt customer service center.
• Please read the instructions in this manual and use only accessories of Blaupunkt to avoid unpredicted damage. Failure to follow the instructions will invalidate warranty and might endanger personnel safety, for which Baros GmbH assumes no responsibility.
• Data of navigation electronic maps might be inconsistent with actual traffic signals due to transportation development. Please follow traffic regulations and signs and drive according to road situation. Operating the GPS navigator device while driving might cause serious accidents. Baros GmbH assumes no responsibility for accidents and loss due to improper use.
• For information of software update and upgrade, please go to our website www.blaupunkt.de

The pictures in the manual are subject to the material object.

In case that your navigation-system contains a built-in TMC-receiver for reception of traffic-information, its antenna is integrated into car-charge-cable. For correct reception of traffic-information, the car-charger needs to be connected to the USB-port of the navigation-system!

Please use only a blunt stylus or fingertips to operate your device. The screen surface is easily scratched. Do not use objects with sharp edges or long fingernails.

For your own safety, do not operate the controls of the product while driving. Use this product prudently. The product is intend to be used only as a navigation aid. It is not for precise measurement of direction, distance, location or topography.

The calculated route is for reference only. It is the user's responsibility to follow the traffic signs and local regulations along the road.

When you get off the car, do not leave your device on the dashboard that is subject to direct sunlight. The overheating of the battery can cause malfunction and/or danger.

GPS is operated by the United States government, which is solely responsible for the performance of GPS. Any change to the GPS system can affect the accuracy of all GPS equipments.

GPS satellite signal can not pass through solid materials (except glass). When you are inside a tunnel or building, GPS positioning is not available.

A minimum of 4 GPS satellite signal is needed to determine current GPS position. Signal reception can be affected by situations such as bad weather or dense overhead obstacles (e.g. trees and tall buildings).

Other wireless devices in the vehicle might interface with the reception of satellite signals and cause the reception to be unstable.

A car holder id needed when using the device in a car. Be sure to place the device in an appropriate place, so as not to obstruct the driver's view or deployment of air bag.

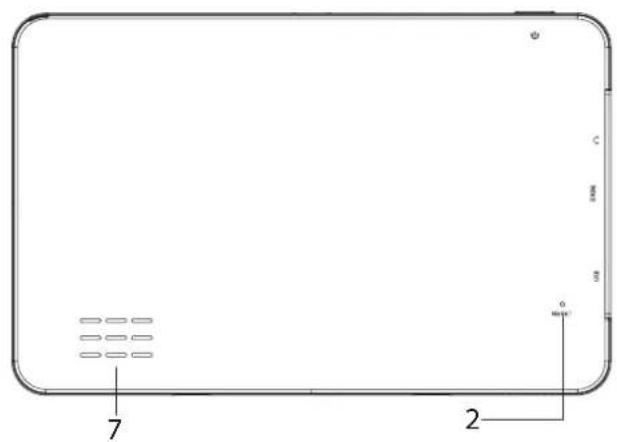

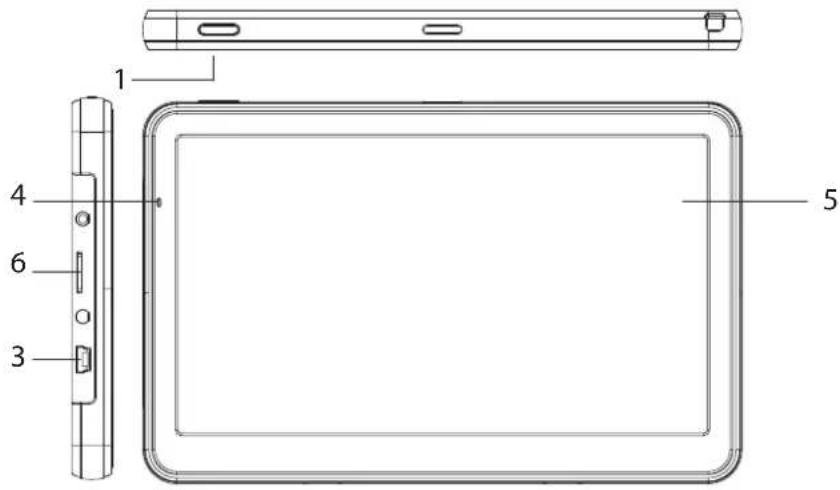

Components

1 4 6 3 5

7 2 H101

SN Component Explanation

1	ñower key	ñowering on/ off the dev mode	ice or enter sleep
2	Reset key	Restart the system
3	ŚSB ńort		Exchanging data over MIżI ŚSB cable. Charge the GnS
4	ñower Indicator	The light is red during charging, it will turn green when the battery is fully charged.
5	Display		Map and control elements
6	Micro-SD slot		For inserting an optionalflash-memory-card
7	Speaker

TravelPilot 74 ^2 additionally with AV-IN for optional reversing camera

Getting started

male 3agupi v429288 Eesti keel Female Lovitoe v429288 English (UK) male 3amers v415075 English (UK) female Kate v415003 Español Back Street names not announced Natural Voice Street names not announced Natural Voice Street names not announced Natural Voice Street names not announced Next

When using the navigation software for the first time, an initial setup process starts automatically. Do as follows:

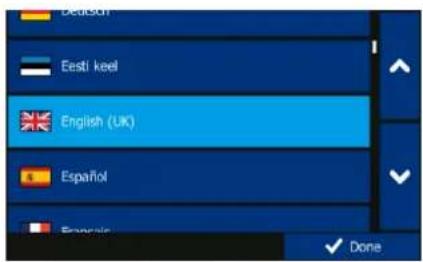

Select the program language. If your preferred language does not appear on the screen, tap,

ag the list up or down with your finger to view all available languages. Tap

to select your preferred language. Tap Done to confirm your selection, and page.

Read the Software and Database End User Licence Agreement, and tap Accept if you agree with the terms of use.

You are now asked whether you allow the software to collect usage information and GPS logs that may be used for improving the application and the quality and coverage of maps. Tap Yes to allow the anonymous statistics or disable this function.

The Configuration wizard starts. Tap Next, to continue.

Select the voice guidance language profile. If your preferred language does not appear on the screen, scroll the list for other available profiles. Tap any item in the list for a short voice sample. Tap to confirm your selection, and proceed to the next page.

Vehicle Car Navigation Mode On-road Route Planning Method Fast Motorways Back Next

You have completed the initial setup. You can also start this configuration wizard or change additional settings under the Settings Menu.

Set your preferred time format and units. Tap Next to confirm your preferences.

Set your preferred route planning options. Tap Next to confirm your preferences.

The initial setup is now complete. Tap Finish.

The application starts.

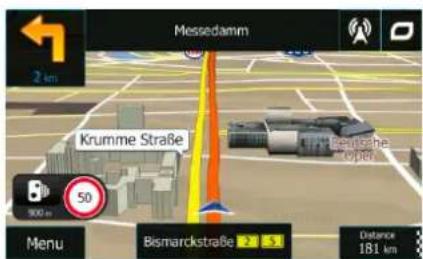

Startup screen: the Navigation menu

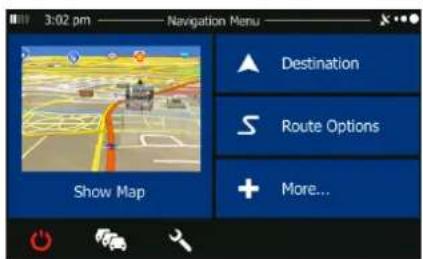

3:02 pm —— Navigation Menu —— Show Map Destination Route Options + More...

Messedamm 2 km Krumme Straße 50 Beutsche Kapier Menu Bismarckstraße 2 5 Distance 181 km

After the initial setup, and whenever the software is started, the Navigation menu appears. You have the following options:

Destination to select your dest

• Tap to select your destination by entering an address or selecting a place of interest, a location on the map or one of your Favourite destinations. You can also look up your recent destinations from the Smart History or by entering its coordinate.
• Tap Route Options to display the route parameters. You can view the route in its full length on the map. You can also perform route-related actions such as editing or cancelling your route, setting a start point for the route, picking route alternatives, avoiding parts of the route, simulating navigation or adding the destination to your Favourites.
• Tap + More... to simulate demo routes or to run some additional applications.
• Tap to customise the way the navigation software works.
  • Tap to start navigating on the map.
• Tap open the Traffic Summary screen.
• Tap 100% up navigation and exit the software.

Destination menu

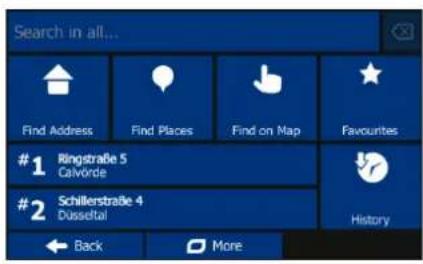

Search in all... Find Address Find Places Find on Map Favourites #1 Ringstraße 5 Calvörde #2 Schillerstraße 4 Dusseltal History Back More

In the Navigation menu, tap Destination. The Destination menu provides you with the following options:

• Tap to specify an address as your destination.
• Tap to select a place of interest as your destination.
• Tap to navigate to a location selected on the map.
• Tap to choose from the list of your favourite destinations.

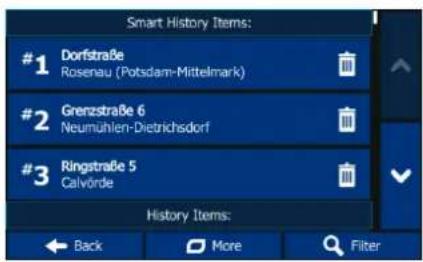

• Tap #1 or #2 o navigate to the recent destination that is shown on the button.
• Tap to choose from the list of all recent destinations.
• Tap More for other search methods.

Navigating to an address

Country Germany Town Berlin Street Back Select Town

Berlin Back More Results (300)

In the Navigation menu, tap Destination, then tap First Address. By default, the screen proposes the city or town where you are located.

If needed, change the country. Tap the button showing the name of the country.

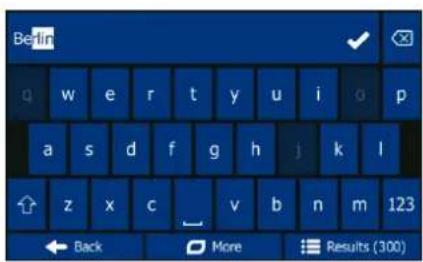

1. Use the keyboard to enter the name of the country.
2. After entering a couple of characters, the list of countries that match the entered string appears. Tap the country of your choice.

If needed, change the city/town. Tap the button showing the name of the city/town, and use the keyboard to enter a part of its name. As you enter letters, the most likely city/town name is always shown in the input field. You have the following options:

- Tap to select the city/town that is offered in the input field.

- Tap to correct your entry.

- Tap Results to browse the list of city/town names matching your input. Select a city/town from the list.

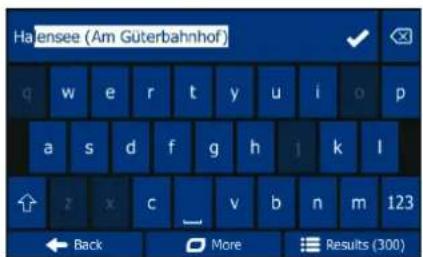

Halensee (Am Güterbahnhof) Back More Results (300)

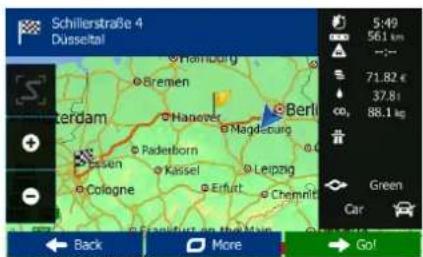

Schillerstraße 4 Düsseldorf 5:49 561 km 71,82 € 37,81 88,1 kg Green Car Back More Go!

Enter the street name:

1. Tap Street Name.

2. Use the keyboard to enter a part of the street name.

3. Tap to select the street that is offered in the input field or tap to browse the list of all streets matching your input. Select a street from the list.

Enter the house number:

1. Tap House Number.
2. Use the keyboard to enter the house number.
3. Tap Done to finish entering the address.

The map appears with the selected destination in the middle. Tap another map location if necessary, then tap Next to confirm the destination.

After a short summary of the route parameters, the map appears showing the entire route. Wait for a few seconds or tap GO! and start navigating.

Quick Find

Q W E R T Y U I O P A S D F G H J K L ↑ Z X C _ V B N M 123 ← Back □ More ≡ Results (59)

Search in all... Find Address Find Places Find on Map Favourites #1 Ringstraße 5 Calvorde #2 Schillerstraße 4 Dusseltal History Back More

With the help of Quick Find, you can search for a location near to a known Place of Interest. Search for the Place by its name first and then find your destination on the map. Do as follows (starting from the Navigation menu):

Tap Destination.

Tap Search in all....

Start entering the name of the Place of Interest on the virtual keyboard.

After entering some letters, tap Results, and select the Place from the list of matching place names.

Scroll down the list if necessary, highlight the desired Place and tap Select.

Check the details of the Place, and then tap Select.

An overview map is displayed with the selected Place in the middle. Browse the map, and tap the map location that you want as your destination. The red Cursor appears where you tap the map.

Tap Select.

After a short summary of the route parameters, the map appears with the selected destination in the middle. The route is automatically calculated. Tap GO! and start navigating.

Navigating to a place of interest

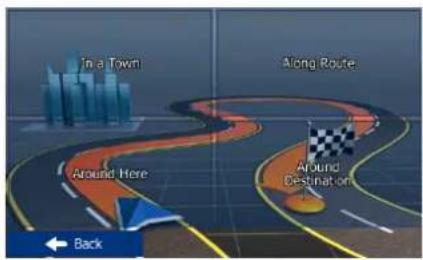

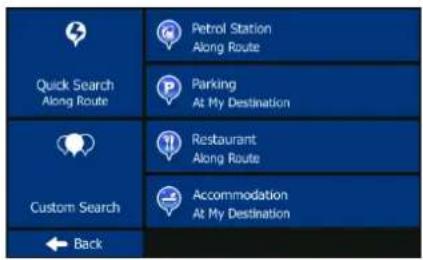

Quick Search Along Route Petrol Station Along Route Parking At My Destination Custom Search Back Restaurant Along Route Accommodation At My Destination

In a Town Along Route Around Here Around Destination Back

On the Map screen, tap Menu to return to the Navigation menu. In the Navigation menu, tap

Destination, then tap [fmb/fta] are offered the following preset search categories:

Petrol Station Along route

- Tap to get a list of petrol stations along the route or if it is not available, around your current position or your last known position.

Parking At My Destination

- Tap to get a list of parking lots near the destination or if it is not available, around your current position or your last known position.

Restaurant Along Route

- Tap Along Route to get a list of restaurants along the route, around your current position or your last known position.

Accommodation At My Destination

- Tap At My Destination to get a list of accommodations near the destination, around your current position or your last known position.

You can also tap Quick Search search for a place by entering its name.

If none of the above is appropriate, tap to find a place of interest at the following locations:

Around Here

- Tap to search around the current position or if it is not available, around the last know position.

In a Town

- Tap to search for a place within a selected city or town.

Around Destination

- Tap to search for a place around the destination of the active route.

Along Route

- Tap to search along the active route, and not around a given point. This is useful when you search for a later stopover that results in a minimal detour only, such as searching for upcoming petrol stations or restaurants.

An example of navigating to a place of interest

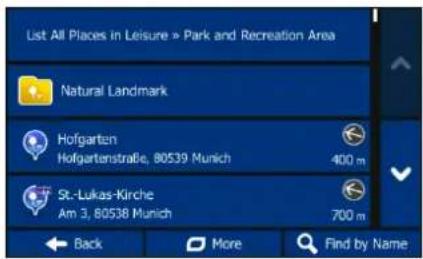

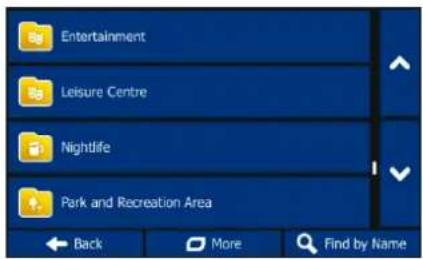

Entertainment Leisure Centre Nightlife Park and Recreation Area Back More Find by Name

List All Places in Leisure » Park and Recreation Area Natural Landmark Hofgarten Hofgartenstraße, 80539 Munich 400 m St.-Lukas-Kirche Am 3, 80538 Munich 700 m Back More Find by Name

Example: To find a park around your destination, do as follows (starting from the Navigation menu):

Tap Destination.

Tap Around Destination.

The list of place categories appears. Tap or slide your finger to browse the list, and tap

List All Places Tap to browse the whole category, or tap to narrow down your search.

Tap any of the list items.
Check the details and the location of the place, and then tap Next.
After a short summary of the route parameters, the map appears showing the entire route. Wait for a few seconds or tap GO! and start navigating.

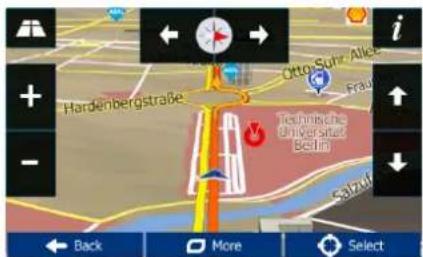

The Map screen

Messedamm 2 km Krumme Straße 50 300 m Menu Bismarckstraße 2.1.5.1 Distance 181 km Bisikohna Open

The Map screen is the most important and frequently used screen of the software. The Vehimarker (a blue arrow by default) represents your current position, and the orange line shows the recommended route. There are screen buttons and data fields on the screen to help you navigate. During navigation, the screen shows route information.

- At the top of the screen, you see your heading and the house numbers on left and right if you have not selected a route destination. When navigating a route, you see the next manoeuvre and the next street/road on your route. Tap either of them to open the route itinerary.

• Tap to open the Quick menu with a selection of functions that are useful during navigation.
• Tap the map anywhere to explore the map around your current position. Additional map control buttons appear.

- Tap 16.9 km to open three data fields on the map. Tap any of them to suppress the others. The default values for navigation (you can change them in Map settings):

• the remaining distance to the destination,
  • the remaining time of the trip, and
• the estimated time of the arrival at the destination.

- Tap Menu to open the Navigation menu.

Please NOTE that the map screen can be different depending on the model (for example, 3D buildings)

'More' menu

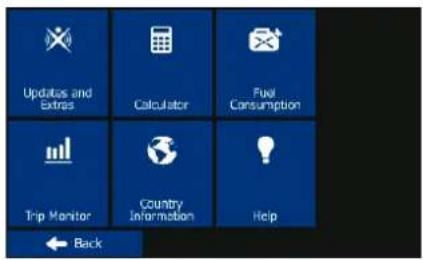

Updates and Extras Calculator Fuel Consumption Trip Monitor Country Information Help Back

The 'More' menu provides you with various additional applications. In the Navigation menu,

• : V1.1134 and www.naviextras.com to get additional content, such as new maps or 3D landmarks and useful applications.
• : Access the scientific calculator application.

- : Access the fuel consumption monitor.

- : Access your saved trip and track logs.

• : A country information, such as speed limit, maximum blood alcohol level or compulsory equipment.

- : Run the Demo and watch sample route simulations to see how navigation works, read the Software and Database End User License Agreement, or check the map and other contents of the application.

Settings menu

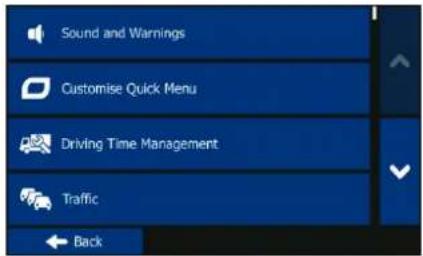

Sound and Warnings Customise Quick Menu Driving Time Management Traffic Back

Program Language English (UK) Units and Formats Time Zone Auto Back

In the Navigation menu, tap (scroll the list to see all):

The Settings menu provides you with the following options

Sound and Warnings

- : Adjust the different sound volumes, change the voice guidance profile, or enable and set up warnings.

Customise Quick Menu

• : Change the function buttons in the Quick menu of the Map screen.

Driving Time Management

- : Before selecting one of the Lorry profiles as the Vehicle type used in route calculation, set up the editable lorry attribute profile with the parameters of your lorry. These parameters will be used in route calculation.

Traffic

- : You can adjust traffic related settings such as using preloaded statistical or online traffic, or select whether to take traffic events into consideration when calculating the route.

Route Settings

- : Select the type of vehicle you are driving, the road types used in route planning, and the route planning method.

User Profiles

- : If more drivers use TravelPilotfor navigating, their settings can be remembered by using one of the user profiles.

Map Settings

- : Adjust map related settings: change the daytime and night colour schemes, change the default zoom level, switch between 2D and 3D map, suppress buildings or change the Vehimarker.

Visual Guidance

- : Adjust how the software helps you navigate with different kinds of route related information on the Map screen.

Display

- : Turn the menu animations on or off, select a different skin for the application, or adjust the display backlight

• : Change the program language, the time e format, units or the time zone.
• : Turn the automatic trip or track log saving on or off, check the current size of the trip database.
  1010 0011 Log Collection 1001 : The application collects usage information and GPS logs that may be used for improving the application and the quality and coverage of maps. Here you can enable or disable collecting these logs.
• : Modify the basic software parameters set during the initial setup process.
• Reset to Defaults • : Delete all saved data and reset all settings to their factory defaults.

Guarantee

Please keep the proof of purchase for this device for the entire duration of the guarantee period, as it must be produced in the event of any claim.

You (as the end user) receive a 24-month guarantee from the date of sale. The article has been manufactured using the most modern production methods and subjected to strict quality controls.

Please contact only the manufacturer (not the dealer where you purchased it) in the event of any defects during the guarantee period.

Service contact: www.blaupunkt.de

The guarantee does not cover damage caused by improper use or external influence (water, falling, sunlight, breakage or impact).

Declaration of Conformity

Hereby Baros GmbH, declares, that the devices Blaupunkt TravelPilot 73 ^2 CE/EU LMU / 74 ^2 T/C EU LMU are in compliance with the essential requirements and other relevant regulations of Directive 1999/5/EC.

The Declarations of Conformity can be found at: www.blaupunkt.de

Userinformation/Contact

If your device has a defect or you have problems with it, please contact our Service & Support Centre

If you need to send your device to us, please attend to the following points:

1. Use only the original packaging
2. Add a detailed error description
3. Add your full name and address and a copy of your purchase receipt
4. Stamp and send the package to us (sufficient postage)

Address of our Service Center:

First Service Center

Kleine Düwelstr. 21

DE-30171 Hannover / Germany

BLAUPUNKT

Assistant configuration

First Service Center

Kleine Düwelstr. 21

First Service Center

Kleine Düwelstr. 21

First Service Center

Kleine Düwelstr. 21

DE-30171 Hannover / Germania

CE

BLAUPUNKT

Snelstartgids / NL

TravelPilot

7 2 C HSS H O H SHT

Klantenservice/Contact

First Service Center

Kleine Düwelstr. 21

DE-30171 Hannover / Germany

CE

BLAUPUNKT

7 2 D RESET

First Service Center

Kleine Düwelstr. 21

DE-30171 Hannover / Germany

CE
