Machine overview

1 On/off button
2 Ristretto button
3 Espresso button
4 Lungo button
5 Water tank lid
6 Water tank
7 Milk frother lid
8 Whisk holder
9 Whisk
10 On/off button of milk frother
11 Base of milk frother
12 Mains cord with plug
13 Used capsule drawer
14 Waste water drawer
15 Lower drip tray
16 Drip tray
17 Cup platform
18 Coffee outlet
19 Coffee dispensing spout cap
20 Capsule compartment
21 Lever

Introduction

Welcome to the L'OR Barista world! The L'OR Barista coffee system is the only capsule coffee system that allows you to brew two cups of coffee at the same time thanks to a coffee dispensing spout with double outlet.

The new and exclusive L'OR Barista double-shot coffee capsules allow you to brew two cups of coffee or a double shot of coffee.

The L'OR Barista coffee machine is also compatible with the L'OR Espresso single-shot coffee capsules. Thanks to the Dual Capsule Recognition technology, the machine automatically recognizes the capsule size and adapts the volume accordingly. All you need to do is press the button for the type of coffee you desire.

This model of the L'OR Barista coffee machine has an integrated milk frother to brew coffee with fresh, frothed milk.

Capsule compatibility

The L'OR Barista coffee machine has been designed to work with L'OR Espresso single-shot capsules and L'OR Barista double-shot capsules, as well as with Nespresso* capsules and aluminum capsules from coffee brands produced by Jacobs Douwe Egberts, such as Douwe Egberts, JACOBS, Jacqmotte, Jacques Vabre, Grand Mère, L'OR, Marcilla, Moccona, Saimaza and Senseo.

*brand of a third party not connected to JACOBS DOUWE EGBERTS and / or PHILIPS

Preparing for use

Before first use, remove all packaging materials from the machine.

When you use the machine for the first time or if you have not used it for 1 day or longer, perform the following steps:

1 Remove the water tank from the machine.

Diagram of a mechanical device with an upward arrow indicating motion or force (no text or symbols present)

Illustration of a glass with blue liquid being poured into it (no text or symbols)

2 Rinse and fill the water tank under the tap. Place the water tank back onto the machine.

Illustration showing a coffee maker with a red X symbol indicating a coffee maker's absence, accompanied by a cooking instruction.

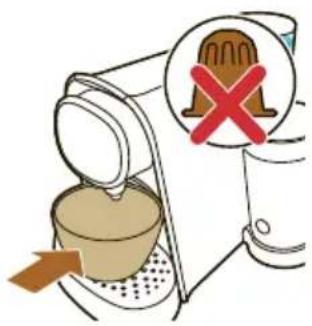

3 Place a bowl under the coffee dispensing spout. Do not insert a capsule and make sure that the lever is closed.

25 sec °C

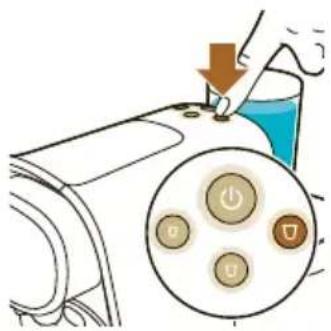

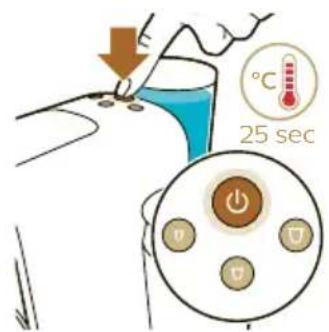

4 Press the on/off button to switch on the machine. The on/off button flashes slowly to indicate that the machine is heating up.

Diagram showing a hand pressing down on a device with a magnified view of control buttons labeled 0, 1, and 2.

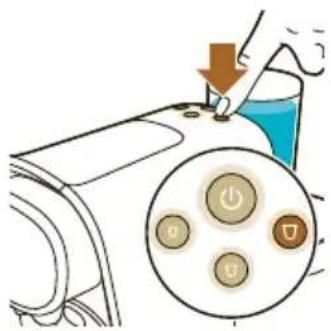

5 When all buttons light up continuously, press the lungo button. Water flows from the coffee dispensing spout.

Note: When the internal water circuit is empty, the machine produces a humming sound. When the machine dispenses water, it produces a less loud humming sound. This is normal.

6 The machine is ready when all buttons light up continuously.

7 Empty the drip tray and waste water drawer (see 'Cleaning the used capsule drawer and waste water drawer').

The machine is now ready for use.

Brewing coffee

Beverages and capsules

Capsules

L'OR aluminum capsules are available online at www.lorespresso.com and in shops. You can choose from a variety of coffee capsules for different types of coffee.

Beverages

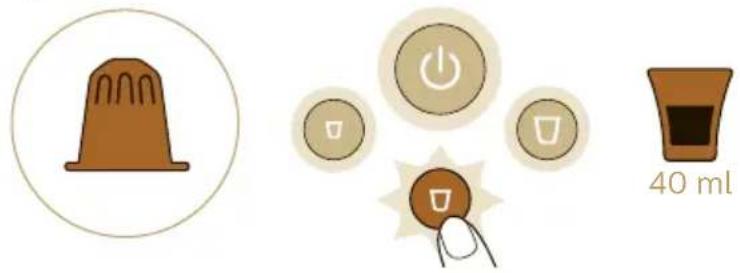

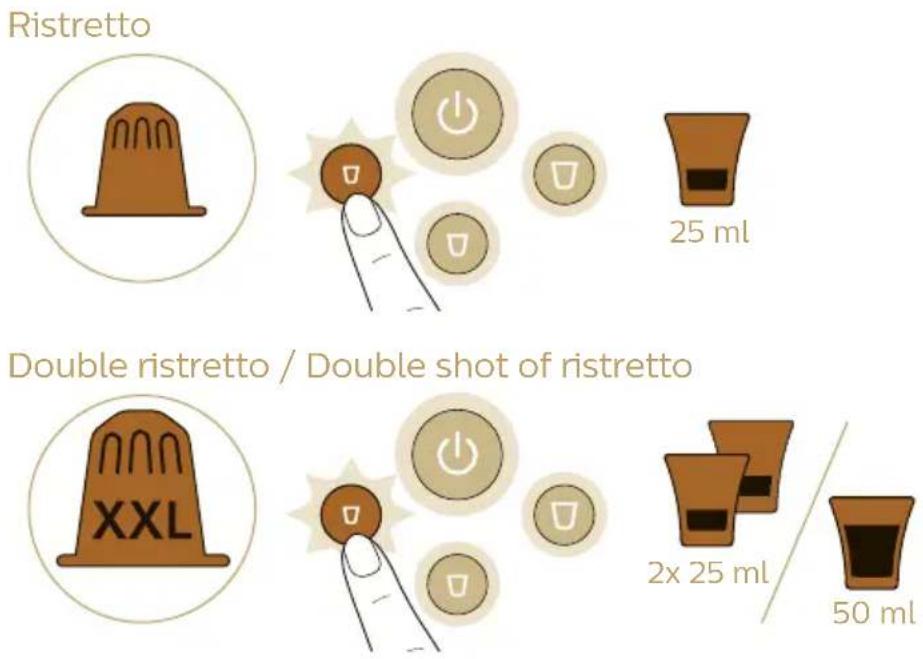

Thanks to the Dual Capsule Recognition technology, the machine automatically recognizes the capsule size and adapts the volume of your drink accordingly. All you need to do is press the button for the type of coffee you desire.

Ristretto 25 ml Double ristretto / Double shot of ristretto XXL 2x 25 ml 50 ml

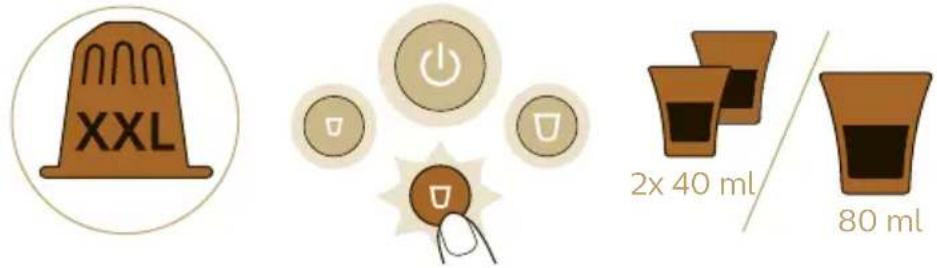

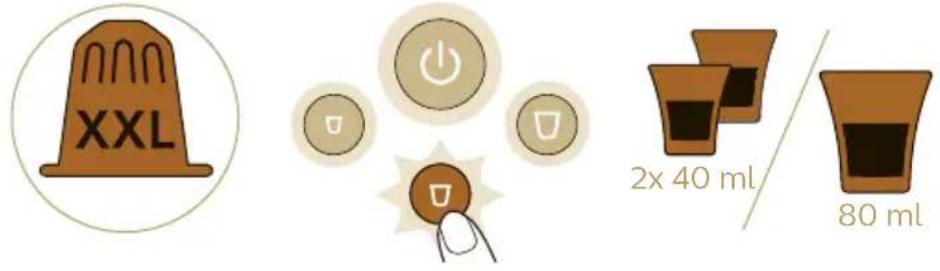

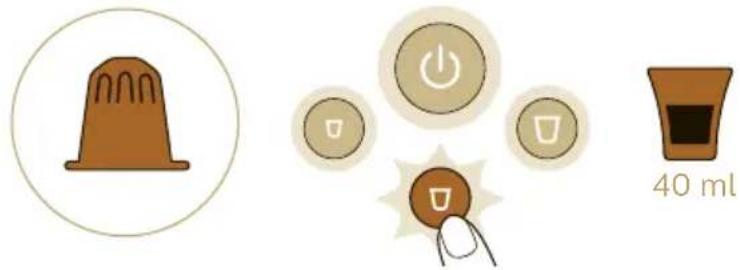

Espresso

40 ml

Double espresso / Double shot of espresso

XXL 2x 40 ml 80 ml

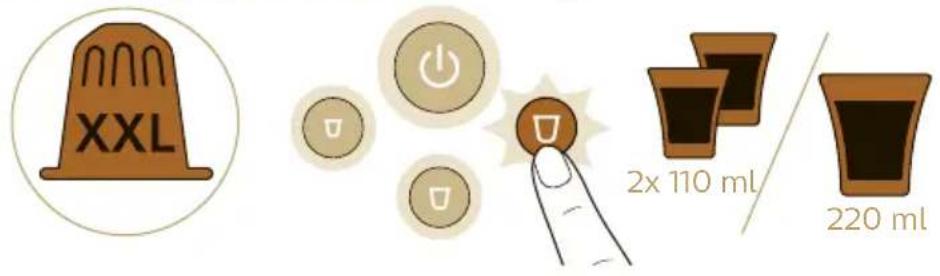

Lungo

110 ml

Double lungo / Double shot of lungo

XXL 2x 110 ml 220 ml

Grand Café Filtre

220 ml

Preparing coffee

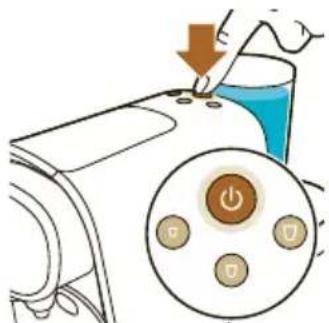

1 Press the on/off button to switch on the machine. The on/off button starts flashing to indicate that the machine is heating up.

Line drawing of a handheld device with a circular top and base (no text or symbols)

2 For one coffee, place one cup under the coffee spout.

Line drawing of a handheld device with a circular top and base (no text or symbols)

3 For two coffees, place two cups under the coffee spout.

Line drawing of a mechanical device with a handle and base (no text or symbols)

4 For a large coffee or Grand Café Filtre, remove the cup platform and the drip tray, place the cup platform on the lower drip tray and place a large cup or mug on the cup platform under the coffee spout.

Illustration of a mechanical device with an arrow indicating motion, next to a glass with blue liquid (no text or symbols)

5 Lift the lever.

Illustration showing a hand pouring liquid into a container with a magnified view of a brown object above it.

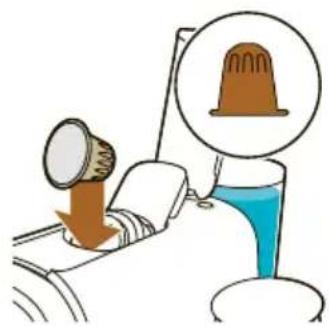

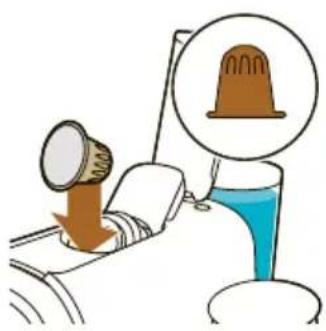

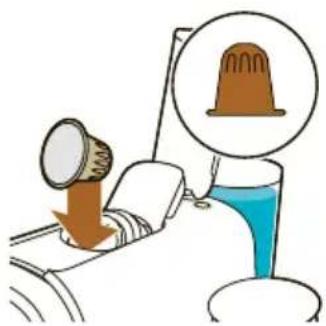

6 Insert a capsule. For a single cup of coffee, insert a L'OR Espresso single-shot capsule.

XXL

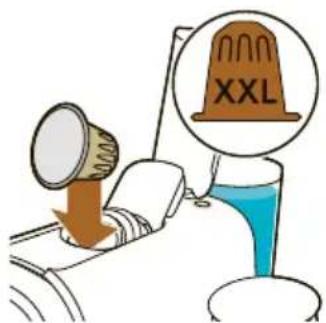

For two cups of coffee or one large coffee, insert a L'OR Barista double-shot capsule.

Illustration of a robotic arm with motion arrows indicating motion (no text or symbols)

7 Close the lever by pushing it down.

Diagram showing a hand pressing down on a blue liquid with a power button, alongside a circular control panel with three buttons.

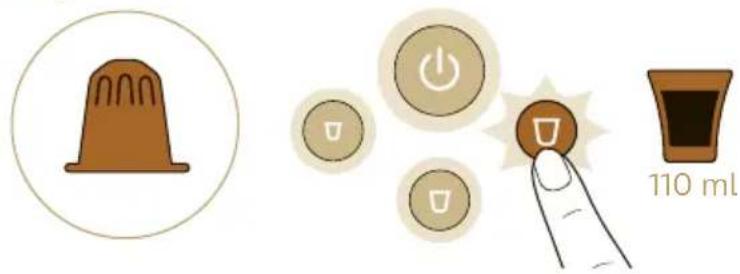

8 When the on/off button stops flashing and all buttons light up continuously, press the button for the type of coffee you desire. 9 Do not lift the lever until the brewing process has finished. Brewing is finished when the lights stop flashing and no more coffee comes out of the coffee outlets.

Brewing Grand Café Filtre

Illustration of two cupcake cups with green arrows indicating a step, one open and one closed (no text or symbols)

1 Remove the seal completely from the capsule.

Illustration of a mechanical device with a downward arrow, next to a glass filled with blue liquid (no text or symbols)

2 Lift the lever and insert the capsule.

Illustration of a robotic arm with motion arrows indicating motion (no text or symbols)

3 Close the lever.

Diagram of two circular objects with dot patterns suspended by strings, connected by a diagonal line (no text or symbols)

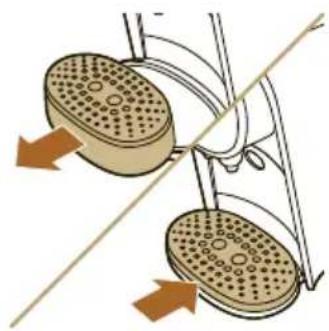

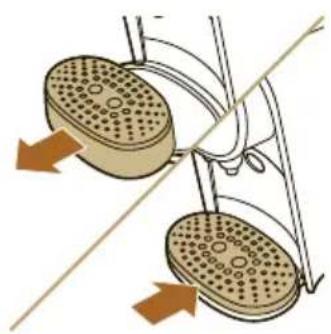

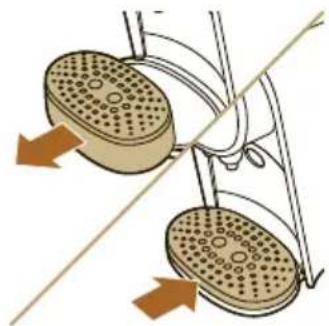

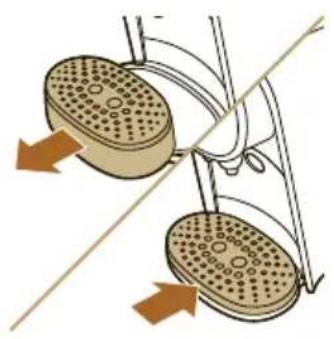

4 Remove the drip tray with the cup platform. Put the drip tray aside and place the cup platform on the lower drip tray.

Simple line drawing of a mechanical device with a handle and base (no text or symbols)

5 Place a large cup or mug on the cup platform under the coffee dispensing spout.

Diagram showing a hand pressing down on a device with a circular button labeled with icons, indicating action or control.

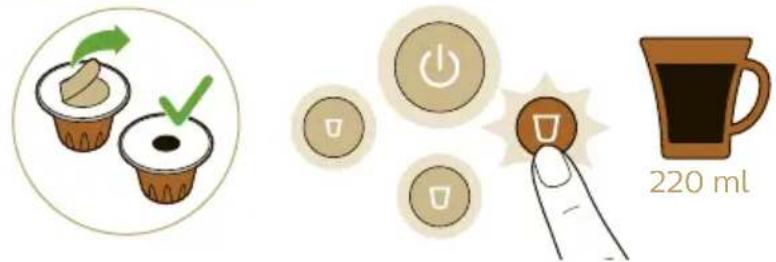

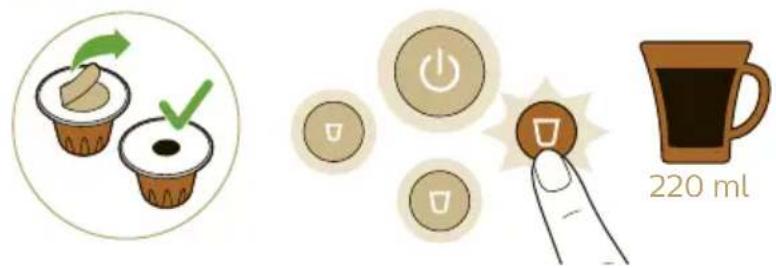

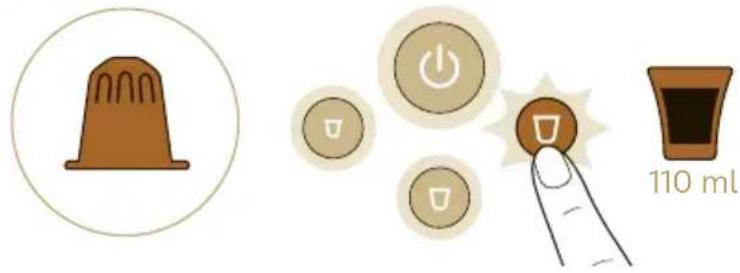

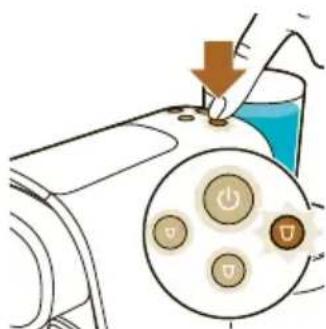

6 Press the lungo button to start the brewing process.

Adjusting the coffee quantity

Each coffee button has been programmed to brew coffee at its ideal setting. Nevertheless, you can adapt the coffee quantity to your wishes, within a range that ensures the best coffee quality.

L'OR Espresso single-shot min standard max capsule

Ristretto 20 ml 25 ml 40 ml

Espresso 30 ml 40 ml 50 ml

Lungo 85 ml 110 ml 135 ml

L'OR Barista double-shot min standard max capsule

Ristretto 40 ml 50 ml 60 ml

Espresso 60 ml 80 ml 100 ml

Lungo/Grand Café Filtre 170 ml 220 ml 270 ml

The coffee quantities for L'OR Espresso single-shot and L'OR Barista double-shot capsules are adjusted separately:

1 Press the on/off button to switch on the machine.
2 Fill the water tank.
3 Insert a capsule and close the lever.

If you want to adjust the quantity for L'OR single-shot espresso capsules, insert a normal L'OR Espresso capsule.

If you want to adjust the quantity for a L'OR Barista double-shot capsule, insert a L'OR Barista capsule.

4 Press and hold the button of the coffee whose quantity you want to adjust for 3 seconds until the button flashes quickly. Then release the button. The machine starts brewing coffee.
5 Press the same button again when the cup contains the desired quantity of coffee.

Note: If you press the coffee button too early, the machine programs the minimum quantity of coffee shown in the table above. If you do not press the coffee button, the machine programs the maximum quantity of coffee.

Resetting the coffee quantities

To reset the coffee quantities to their factory settings:

1 Press the on/off button to switch on the machine.
2 Wait until the machine has heated up and all buttons light up.
3 Press and hold the ristretto, espresso and lungo buttons simultaneously until all buttons flash quickly to show that the machine has been reset to factory settings.

Preparing milk

Illustration of a hand pouring liquid into a container with an upward arrow (no text or symbols)

1 Remove the milk frother lid with the whisk holder attached from the milk frother.

Illustration of a glass pouring liquid into a jar with a lid, showing a close-up of the lid (no text or symbols present)

2 Fill the milk frother with milk to the desired level. Do not fill beyond the MAX level.

Illustration of a hand pouring liquid into a container with a wooden stand (no text or symbols)

3 Place the milk frother lid with whisk holder back onto the milk frother.

1 sec

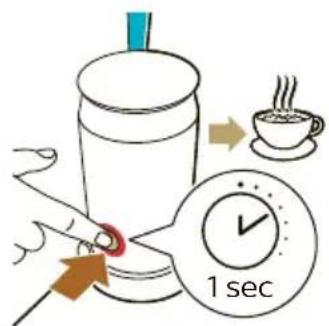

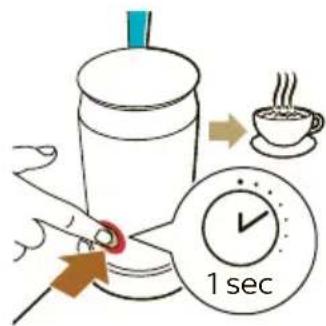

4 Press the button for 1 second to heat and froth the milk. The light in the on/off button comes on.

3 sec

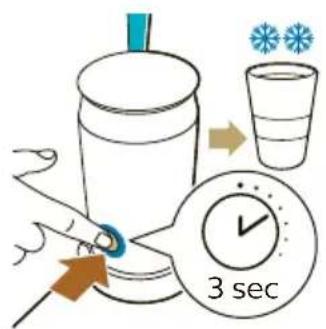

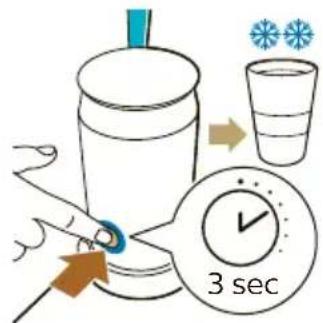

Note: Press the button for 3 seconds for cold frothed milk.

5 The milk froth is ready when the light in the on/off light goes off. You can now remove the milk frother lid with the whisk holder attached from the milk frother. Pour the frothed milk onto the freshly brewed coffee.

Cleaning and maintenance

Cleaning the used capsule drawer and waste water drawer

Check the used capsule drawer and waste water drawer regularly.

Note: For optimal hygiene, pull up the lever after use to ensure the last used capsule falls into used capsule drawer.

Illustration of a mechanical device with a gear and handle, showing internal components without any text or symbols.

1 Pull the used capsule drawer and the waste water drawer out of the machine.

Illustration of a showerhead and drain handle assembly (no text or symbols)

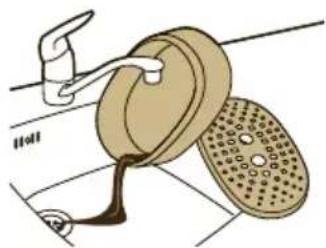

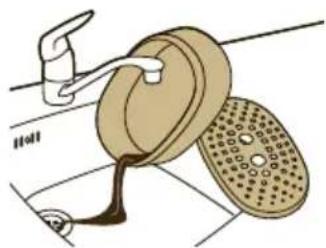

2 Remove the drip tray from the lower drip tray and rinse the drip tray and the cup tray under a warm tap. Do not clean these parts in the dishwasher.

Illustration of a mechanical device with an open lid and internal components (no text or symbols)

3 Remove the used capsule drawer by pulling it up and empty it.

Caution: Be careful when you remove the used capsule drawer. Capsules are still hot immediately after brewing.

Illustration of a mechanical device with a magnified inset showing a screen displaying a checkmark (no text or symbols present)

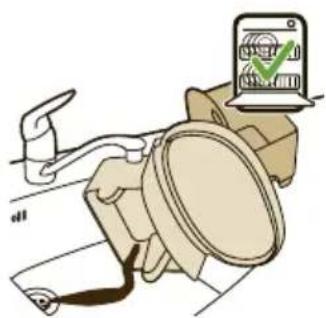

4 Rinse all parts under a warm tap. Dry all parts with a soft cloth. You can also clean all these parts in the dishwasher.

5 Reinsert the used capsule drawer into the waste water drawer.

6 Insert the waste water drawer with the used capsule drawer into the machine.

7 Place the drip tray back onto the lower drip tray. Place the cup platform onto the drip tray.

Cleaning other parts of the machine

Line drawing of a hand cleaning a cylindrical device with a cloth (no text or symbols)

1 Clean the outside of the machine with a soft damp cloth.

Caution: Never use scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the machine.

Warning: Do not insert a finger into the capsule compartment to avoid injury. There is an invisible piercer inside.

Diagram illustrating car seatbelt usage with icons for seatbelt, seatbelt, and vehicle

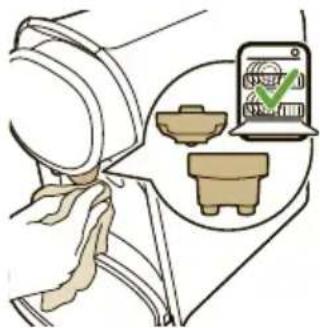

2 Clean the front of the machine with a soft damp cloth and clean the two parts of the coffee dispensing spout (the coffee outlet and the spout cover) under a warm tap or in the dishwasher.

3 Clean the water tank by rinsing it under a warm tap. The water tank is not dishwasher-proof.

Note: Rinse the water tank and fill it with fresh water every 24 hours.

Cleaning the coffee circuit

Illustration of a coffee machine with a cup and two cups (no text or symbols)

Clean the coffee circuit every week to ensure you get coffee with an optimum quality and taste.

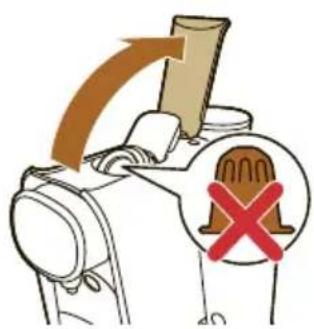

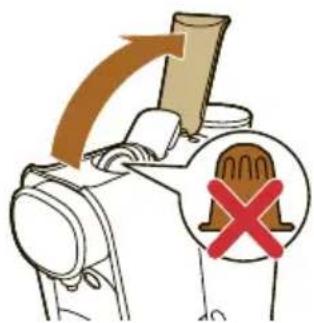

1 Place a cup under the coffee dispensing spout. 2 Lift the lever to ensure the last used capsule falls into the used capsule drawer.

Diagram illustrating a mechanical or electrical hazard with an arrow indicating upward motion and a red 'X' symbol below a device.

3 Do not insert a new capsule and close the lever.

Diagram showing a hand pressing down on a device with a circular button labeled with three buttons and a downward arrow indicating action.

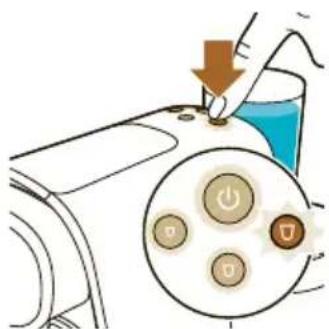

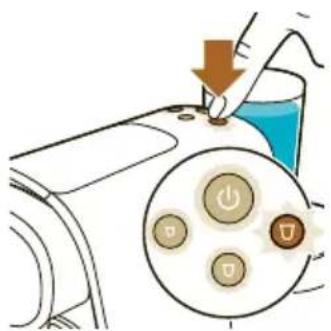

4 Press the lungo button. 5 Empty the cup after the machine has finished dispensing water. 6 Open the lever and repeat steps 3 to 5 to ensure proper cleaning of the coffee circuit.

The machine is now ready for use.

Cleaning the milk frother

1 Remove the milk frother from its base.

Illustration of a hand pouring liquid into a container with an upward arrow (no text or symbols)

2 Remove the milk frother lid with the whisk holder attached from the milk frother.

Diagram illustrating temperature measurement with a thermometer and blue liquid flowing into a container

3 Rinse the inside of the milk frother under hot running water.
4 Clean the outside of the milk frother with a moist cloth.
5 Remove the whisk holder from the milk frother lid.

Illustration of a simple stand with a circular top and a downward arrow indicating rotation (no text or symbols)

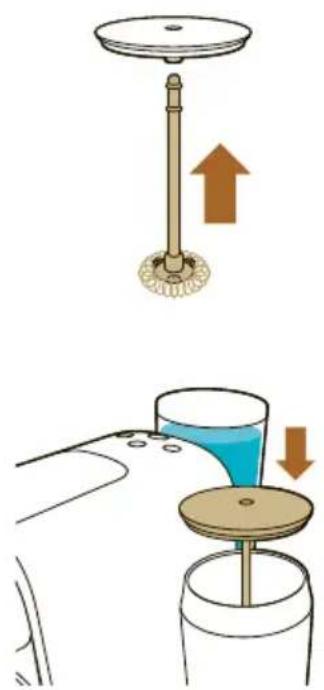

6 Remove the whisk from the whisk holder.

Diagram illustrating temperature measurement with a thermometer, a valve, and a magnified view of a device with a checkmark.

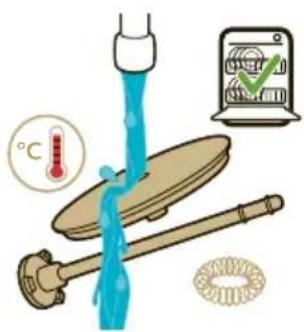

7 Rinse the milk frother lid and the whisk holder parts under hot running water.

Note: The lid and the whisk holder parts can also be cleaned in the dishwasher.

Diagram showing a mechanical component with labeled parts and directional arrows indicating motion or rotation.

8 Reattach the whisk to the whisk holder.

Diagram illustrating a cleaning or cleaning process with labeled components and directional arrows indicating movement.

9 Reattach the shaft of the whisk holder to the milk frother lid.

10 Place the milk frother lid with whisk holder back into the milk frother.

Descaling

When to descale

Simple line drawing of a curved path with scattered circular elements (no text or symbols)

- Descale the machine when the ristretto and lungo button flash quickly a few times after brewing. The descaling procedure takes up to 40 minutes and consists of a descaling cycle and a rinsing cycle. Do not interrupt the descaling procedure.

Why to descale

Descaling is essential for the following reasons:

• It prolongs the life of your L'OR Barista coffee machine
• It ensures maximum cup volume
• It ensures maximum coffee temperature
• The machine produces less sound during brewing
• It prevents malfunctioning

If the descaling procedure is not performed correctly, scale residue remains behind in the machine. This causes scale to build up more quickly and may cause permanent and irreparable damage to the machine.

Use the correct descaler

Only citric acid-based descalers are suitable for descaling the L'OR Barista machine. This type of descaler descales the machine without damaging it.

We advise you to use the dedicated L'OR Barista liquid descaler (CA6530). It is available in bottles that contain liquid descaler for two descaling procedures. You need half a bottle for one descaling procedure and can store the other half for the next descaling procedure.

Descaling procedure

Illustration showing a glass pouring liquid into a bottle, with two bottles labeled 'FISHI' and 'LPG' below.

Note: If something goes wrong during the descaling procedure, e.g. because you accidentally interrupt the descaling cycle, you have to restart the descaling procedure from step 1.

1 Press the on/off button to switch on the machine.

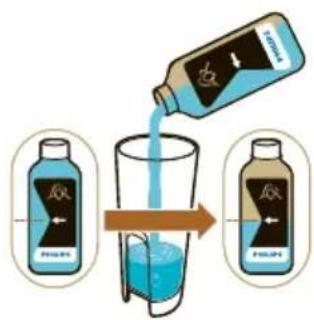

2 Pour half a bottle of L'OR Barista liquid descaler (CA6530) into the water tank.

3 Fill up the water tank with fresh tap water.

Diagram illustrating a hand gesture with an arrow and a cross symbol, likely indicating a correct or incorrect operation.

4 Make sure that there is no capsule in the capsule compartment.

Illustration of a robotic arm with motion arrows indicating motion (no text or symbols)

5 Close the lever.

1.5L

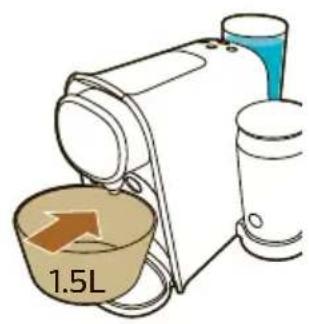

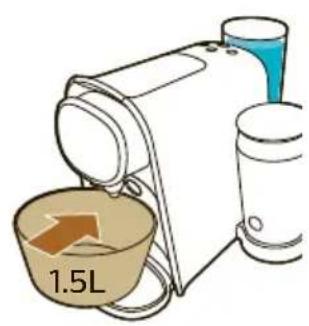

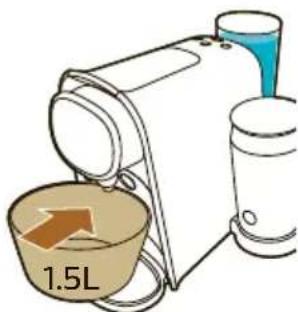

6 Place a bowl with a minimum capacity of 1.5 liters on the lower drip tray under the coffee dispensing spout to collect the descaling solution.

Diagram showing a hand pressing down on a device with a magnified view of control buttons inside a container.

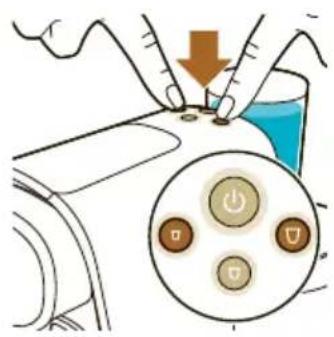

7 Press the ristretto and lungo button briefly at the same time.

Diagram showing a hand pressing down on a device with a magnified view of three buttons labeled 'Power', 'U', and 'O'.

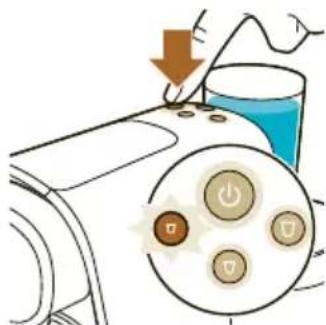

8 The ristretto button starts to flash quickly. Press the ristretto button to activate the descaling cycle. The machine dispenses the entire descaling solution at regular intervals. This takes up to 30 minutes.

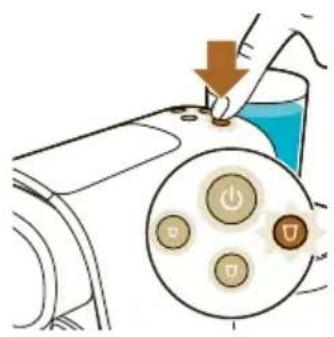

When the lungo button starts to flash quickly again, the first phase of the descaling cycle has finished.

Illustration of a faucet pouring liquid into a bowl (no text or symbols)

9 Remove and empty the bowl. Place the bowl back onto the lower drip tray under the coffee dispensing spout.

10 Remove the water tank and rinse it under the tap. Fill the water tank with cold tap water and place it back onto the machine.

Diagram showing a hand pressing down on a device with a magnified view of three buttons labeled 'Power', 'Battery', and 'U'.

11 Press the lungo button to start the flushing cycle.

Note: The water tank will be emptied without interruption. The flushing cycle lasts about 3 minutes.

Simple line drawing of a curved path with scattered brown dots and a green checkmark above (no text or symbols)

12 When the flushing cycle has finished, the ristretto and lungo button flash a few times.

Note: It is normal that some water remains behind in the water tank after the descaling procedure.

The machine switches off. The descaling procedure is finished.

Meaning of light signals

• The on/off button flashes slowly: the machine is heating up.
• The on/off button flashes quickly: the water tank is empty, fill the water tank with tap water.
• All buttons light up continuously: the machine is ready for use.
• The selected coffee button flashes slowly: the machine is preparing the coffee recipe.
• The selected coffee button flashes quickly:
  Programming is activated.
  The new coffee quantity is saved.
• The ristretto and lungo button flash simultaneously after brewing coffee: you need to descale the machine.

Troubleshooting

This chapter summarizes the most common problems you could encounter with your machine. If you are unable to solve the problem with the information below, visit www.lorbarista.com/support for a list of frequently asked questions or contact the Consumer Care Center in your country.

Troubleshooting coffee machine

Problem Possible cause Solution

The machine does not switch on.	The machine is not connected to the mains.	Put the plug in an earthed wall socket.
The on/off button is flashing slowly.	The machine is heating up. This is normal.
The brewing time is longer than before.	The machine is clogging up with scale.	Descale the machine.
The temperature of freshly brewed coffee gradually decreases.	The machine is clogging up with scale.	Descale the machine.
The pump makes a lot of noise.	There is not enough water in the water tank.	Fill the water tank with fresh tap water.
	The water tank is not placed correctly.	Place the water tank correctly and push it downwards.

Problem Possible cause Solution

The machine suddenly stops brewing coffee.	There is not enough water in the water tank.	Fill the water tank with fresh tap water. Press the button of the selected type of coffee again to continue brewing. When the cup is full, press the same button again to stop the brewing process.
The on/off button flashes quickly.	The water tank is empty. Fill the water tank with fresh tap water. Press the button of the selected type of coffee again to continue brewing. When the cup is full, press the same button again to stop the brewing process.
I cannot close the capsule compartment lever completely.	Check if you use the recommended L'OR capsule. Other capsules may cause problems during use..
	The used capsule drawer is full. Empty the used capsule drawer and insert the capsule again.
	The capsule is not inserted correctly.	Insert the capsule again and check if it is inserted correctly.
	The capsule is stuck. Open and close the lever a few times with moderate force to remove the capsule.
The lever does not open completely.	The used capsule drawer is full. Empty the used capsule drawer.
The machine does not dispense coffee or only dispenses drops of coffee.	You have not flushed the machine before first use.	Flush the machine before first use (see 'Preparing for use').
	There is not enough water in the water tank.	Fill the water tank with fresh tap water.
	Scale has built up inside the machine (see 'Descaling').	Descale the machine (see 'Descaling').
Coffee grounds end up in the cup of coffee.	A small amount of ground coffee will always end up on the bottom of the cup.	This is normal.
The coffee flow splits or is not straight.	The coffee dispensing spout cap is not placed correctly or it is missing.	Snap the coffee dispensing spout onto the coffee outlets.
The ristretto and lungo button lights are flashing after brewing.	This means it is time to descale the machine to prevent it from clogging with scale.	Descale the machine (see 'Descaling').

Problem Possible cause Solution

Why do I find water in the waste water drawer?	The used capsule drawer and waste water drawer catch the residual water released after brewing coffee.	This is normal.
The coffee quantity is not what I expected.	The coffee quantity has been adjusted.	Readjust the coffee quantity (see 'Adjusting the coffee quantity') or reset the coffee quantities (see 'Resetting the coffee quantities').
My coffee is less warm. When you brew the first cup of the day or when it has been a while since your previous cup of coffee, the inside of the machine is still cold when you brew coffee.		You can pre-heat the machine and coffee cup by brewing a cup of coffee first without placing a coffee capsule.
	If you use a cold, thick-walled cup, the coffee will cool down immediately.	Use thin-walled cups, as thin-walled cups will absorb less heat from the coffee than thick-walled cups. Make sure the size of the cup matches the coffee quantity. Do not brew a small quantity of coffee in a large cup.
	The machine is clogged with scale.	Descale the machine when the ristretto and lungo button flash quickly a few times after brewing (see 'Descaling').
	You used cold milk. If you drink coffee with cold, fresh milk, this will cool down your coffee. You can prevent this by preheating the milk.
The machine suddenly switches off after some time.	This is the automatic shut-off function.	The automatic shut-off function is programmed to switch off the machine after 9 minutes of inactivity to save energy.

Troubleshooting milk frother

Problem Possible cause Solution

The light in the on/off button flashes but the appliance does not operate.	You just prepared hot frothed milk or hot milk and pressed the button for milk or hot frothed milk again without letting the appliance cool down.	If you want to prepare hot frothed milk or hot milk again, the milk jug needs to cool down for a few minutes before you can use it again. As long as the milk jug is still hot, the temperature limiter makes sure that the appliance cannot be operated. You can rinse the inside of the milk jug with cold water to let it cool down faster.
	The temperature of the milk is too high.	Replace the warm milk with cold milk or let the appliance cool down.
The appliance does not froth. You have not placed the lid properly on the appliance.		Place the lid properly.
	You did not attach the frothing coil to the coil holder.	Attach the frothing coil to the coil holder.
	You used a type of milk that is not suitable for frothing.	Many factors can influence the quality of the milk froth (like protein content). If the milk does not froth as you would like, try a different type or brand of milk. Use semi-skimmed cow's milk at refrigerator temperature for the best frothing result.
	The inside of the milk jug is polluted with milk residues, which prevents the coil holder from rotating.	Clean the coil holder and the inside of the milk jug.
Milk escapes from under the lid. You put too much milk in the milk jug.		Do not fill the milk jug beyond the MAX indication.
The milk is not very hot. This is normal. The milk is heated up to		approx 74°C to ensure the best froth and taste. Milk proteins start to break down and burn if the milk is overheated.

Problem Possible cause Solution

Not all milk has been frothed. This is normal. The appliance does not

froth all the milk. The appliance created the optimal milk-froth ratio. The milk easily mixes with coffee or other beverages and the milk froth stays on top for a delicious head.

Oversigt over maskinen

Illustration of a hand operating a manual pump with an upward arrow (no text or symbols)

Illustration showing a coffee maker with a red X symbol indicating a coffee maker's absence, accompanied by a magnified view of the printer.

25 sec °C

4 Tænd maskinen ved at trykke på on/off-knappen. On/off-knappen blinker langsomt for at angive, at maskinen varmer op.

Diagram showing a hand pressing down on a device with a magnified view of control buttons labeled 'Power', 'Control', and 'Order'.

XXL 2x 40 ml 80 ml

Lungo

110 ml

Double lungo / Double shot of lungo

XXL 2x 110 ml 220 ml

Grand Café Filtre

220 ml

Line drawing of a handheld device with a circular top and base (no text or symbols)

Line drawing of a handheld device with a circular top and base (no text or symbols)

Line drawing of a mechanical device with a handle and base (no text or symbols)

4 For en stor kaffe eller Grand Café Filtre skal du fjerne kopplatformen og drypbakken, placere kopplatformen på den nederste drypbakke og placere en stor kop eller et krus på kopplatformen under kaffeudløbsrøret.

Illustration of a mechanical device with an arrow indicating motion, next to a glass with blue liquid (no text or symbols)

5 Løft håndtaget.

Illustration showing a hand pouring liquid into a container with a magnified view of a brown object above it.

Illustration of a robotic arm with motion arrows indicating motion (no text or symbols)

Diagram showing a hand pressing down on a blue liquid with a power button, alongside a circular control panel with three buttons.

Illustration of two food cupers with green arrows indicating a step, one open and one closed (no text or symbols)

Illustration of a mechanical device with a downward arrow and blue liquid, no text or symbols present

Illustration of a hand washing machine with a glass pouring liquid, no text or symbols present

3 Luk håndtaget.

Diagram of two circular objects with textured surfaces connected by wires, showing directional arrows (no text or symbols)

4 Fjern drypbakken med kopplatformen. Læg drypbakken til side, og placer kopplatformen på den nederste drypbakke.

Simple line drawing of a device with a handle and base (no text or symbols)

Diagram showing a hand pressing down on a device with a circular button labeled with icons, indicating action or control.

Diagram of a mechanical device with a blue liquid flowing through a container and an upward arrow indicating motion (no text or symbols)

Illustration of a glass pouring liquid into a jar with a lid, showing a bottle and container (no text or symbols)

Illustration of a hand pouring liquid into a container with a wooden stand (no text or symbols)

Diagram illustrating a cooking step with a hand pressing a red object into a glass, followed by a 1-second time scale and a steaming cup.

Diagram illustrating a step-by-step cooking process with a hand holding a blue object, showing steps to break and take 3 seconds.

Illustration of a mechanical device with a gear and lever mechanism (no text or symbols)

Illustration of a hand turning a doorbell with a textured seat, no text or symbols present

Illustration of a mechanical device with an open lid and internal components (no text or symbols)

Illustration of a car with a large vehicle and a smartphone displaying a checkmark (no text or symbols present)

Line drawing of a handheld device with circular ports and a handle (no text or symbols)

Diagram illustrating car seatbelt usage with a device icon and labeled components

Illustration of a coffee machine with a cup and two glasses (no text or symbols)

Diagram illustrating a mechanical or electrical hazard with an arrow indicating upward motion and a red 'X' symbol below a device.

Diagram showing a hand pressing down on a device with a circular button labeled with three buttons and a downward arrow indicating action.

Illustration of a hand pouring liquid into a container with an upward arrow (no text or symbols)

Diagram illustrating temperature measurement with a thermometer and blue liquid flowing into a container

Illustration of a simple stand with a circular top and a downward arrow indicating force or movement (no text or symbols)

Diagram illustrating a medical procedure with blue liquid flowing through a tube, thermometer, and a monitor displaying a checkmark.

Diagram showing a mechanical component with labeled parts and directional arrows indicating motion or rotation.

Diagram illustrating a cleaning or cleaning process with labeled components and directional arrows indicating movement.

Simple line drawing of a curved path with scattered circular elements (no text or symbols)

Diagram showing a glass pouring liquid from a bottle into a glass, with two bottles labeled 'PHILIPS' and an arrow indicating the process.

Diagram illustrating a mechanical or electrical hazard with a hammer, a cross symbol, and a warning label.

Illustration of a robotic arm with motion arrows indicating motion (no text or symbols)

5 Luk håndtaget.

1.5L

Diagram showing a hand pressing down on a device with a magnified view of control buttons inside a container.

7 Tryk kortvarigt på ristretto- og lungo-knappen på samme tid.

Diagram showing a hand pressing down on a device with a magnified view of three buttons labeled 'Power', 'U', and 'O'.

Illustration of a faucet pouring liquid into a bowl (no text or symbols)

Diagram showing a hand pressing down on a blue object with a circular button labeled with icons for power, voltage, and switch symbols.

11 Tryk på lungo-knappen for at starte skyllecyklussen.

Simple line drawing of a curved path with scattered brown dots and a green checkmark above (no text or symbols)

Diagram of a mechanical device with an upward arrow indicating motion or force (no text or symbols present)

Illustration of a glass with blue liquid being poured into it by a funnel (no text or symbols)

Diagram illustrating coffee maker setup with a coffee cup, a tray, and a red X symbol indicating a warning or rejection.

25 sec °C

Diagram showing a hand pressing down on a device with a magnified view of control buttons labeled 0, 1, and 2.

XXL 2x 40 ml / 80 ml

Lungo

110 ml

Double lungo / Double shot of lungo

XXL 2x 110 mL / 220 mL

Grand Café Filtre

220 ml

Kaffee zubereiten

Line drawing of a handheld device with a circular top and base (no text or symbols)

Line drawing of a handheld device with a circular top and base (no text or symbols)

Line drawing of a stylized object resembling a device or container with a handle and base (no text or symbols)

Illustration of a hand pouring liquid into a container with a paper airplane (no text or symbols)

Illustration showing a device being poured into a glass with a magnified view of a brown object, likely indicating a chemical or lab procedure.

Illustration of a hand washing machine with a blue glass and orange spray arc (no text or symbols)

Diagram showing a hand pressing down on a blue liquid with a power button, alongside a circular control panel with three buttons.

Illustration of two cupcake cups with green arrows indicating a step, one open and one closed (no text or symbols)

Illustration of a mechanical device with a downward arrow and blue liquid, no text or symbols present

Illustration of a robotic arm with motion arrows indicating motion (no text or symbols)

Diagram of two circular objects with textured surfaces connected by a diagonal line, no text or symbols present

Simple line drawing of a mechanical device with a handle and base (no text or symbols)

Diagram showing a hand pressing down on a device with a circular button labeled with icons, indicating action or control.

Illustration of a hand pouring liquid into a bottle with an arrow indicating upward motion (no text or symbols)

Illustration of a glass pouring liquid into a jar with a lid, showing a bottle and container (no text or symbols)

Illustration of a hand pouring liquid into a container with a wooden stand (no text or symbols)

Diagram illustrating a cooking step with a hand pressing a red mark on a steaming cup, showing time measurement of 1 second.

Illustration of a mechanical device with gears and a handle, showing internal components (no text or symbols)

Illustration of a hand turning a doorbell with a textured seat, no text or symbols present

Illustration of a mechanical device with an open lid and internal components (no text or symbols)

Illustration of a car with a large vehicle and a smartphone displaying a checkmark (no text or symbols present)

Line drawing of a vintage mechanical device with no visible text or symbols

Illustration of a person's seatbelt with a laptop displaying a checkmark (no text or symbols present)

Illustration of a coffee machine with a cup and two glasses (no text or symbols)

Diagram illustrating a mechanical or electrical hazard with an arrow indicating upward motion and a cross symbol in a circle.

Diagram showing a hand pressing down on a device with a circular button labeled with icons, indicating action or control.

Illustration of a hand pouring liquid into a container with an upward arrow (no text or symbols)

Diagram illustrating temperature measurement with a thermometer and blue liquid flowing into a container

Illustration of a simple stand with a circular top and a downward arrow indicating rotation or change (no text or symbols)

Diagram illustrating temperature measurement with a thermometer, a valve, and a magnified view of a device with a checkmark.

Diagram showing a mechanical component with labeled parts and directional arrows indicating motion or rotation.

Diagram illustrating a mechanical setup with a rotating platform and liquid being poured into a container, showing upward and downward motion.

Simple line drawing of a curved path with scattered circular elements (no text or symbols)

Illustration showing three steps of a beverage preparation: pouring liquid into a glass, adding liquid to a side dish, and using a stand mixer with a warning symbol.

Illustration of a robotic arm with motion arrows indicating motion (no text or symbols)

Illustration of a handwashing machine with a bowl of food being poured into it (no text or symbols)

Diagram showing hands pressing down on a device with a control panel and directional buttons, likely illustrating a process or operation.

Diagram showing a device with a magnified view of three buttons labeled 'Power', 'U', and 'O' pointing to a liquid level.

Illustration of a hand pouring liquid into a bowl on a kitchen sink (no text or symbols)

Diagram showing a hand pressing down on a device with a circular button labeled 'Power' and 'Down', indicating action or control.

Simple line drawing of a path with a green checkmark and scattered brown objects (no text or symbols)

Diagram of a manual pump with an upward arrow indicating motion (no text or symbols)

Illustration of a glass with blue liquid being poured into it by a funnel (no text or symbols)

Diagram showing coffee maker with a red X mark indicating a warning or rejection symbol, and a hand pouring liquid into a cup.

25 sec °C

Diagram showing a hand pressing down on a device with a magnified view of control buttons labeled 'Power', 'Control', and 'Discharge'.

XXL 2x 25 ml 50 ml

Espresso

40 ml

Double espresso / Double shot of espresso

XXL 2x 40 ml 80 ml

Lungo

110 ml

Double lungo / Double shot of lungo

XXXL 2x 110 ml 220 ml

Grand Café Filtre

220 ml

Simple line drawing of a handheld device with a circular top and base (no text or symbols)

Line drawing of a mechanical device with a circular top and rectangular base (no text or symbols)

Line drawing of a mechanical device with a circular top and base (no text or symbols)

Illustration of a mechanical device with an arrow indicating motion, next to a glass with blue liquid (no text or symbols)

5 Levante la palanca.

Illustration showing a mechanical device with a brown component being processed, alongside a magnified view of a brown object above it.

Illustration of a robotic arm with motion arrows indicating motion (no text or symbols)

Diagram showing a hand pressing down on a blue liquid with a power button, alongside a circular control panel with three buttons.

Illustration of two cupcake cups with green arrows indicating a step, one open and one closed (no text or symbols)

Illustration of a mechanical device with a downward arrow and blue liquid, next to a glass (no text or symbols)

Illustration of a hand washing machine with a glass pouring liquid, no text or symbols present

3 Cierre la palanca.

Diagram of two circular objects with textured surfaces connected by wires, showing directional arrows (no text or symbols)

Line drawing of a mechanical device with a handle and base (no text or symbols)

Diagram showing a hand pressing down on a device with a circular button labeled with icons, indicating action or control.

Diagram of a mechanical device with a blue liquid flowing through a container and an upward arrow indicating motion (no text or symbols)

Illustration of a glass pouring liquid into a jar with a lid, showing a bottle and container (no text or symbols)

Illustration of a hand pouring liquid into a container with a wooden stand, showing a downward arrow (no text or symbols)

Diagram illustrating a cooking step with a hand pressing a red mark on a cake, accompanied by a stopwatch showing 1 second time.

Diagram illustrating a step-by-step cooking or cleaning procedure with a hand holding a blue object, a glass of water, and a stopwatch showing 3 seconds.

Illustration of a mechanical device with gears and a handle, showing internal components (no text or symbols)

Illustration of a showerhead and drain handle assembly (no text or symbols)

Illustration of a mechanical device with an open lid and internal components (no text or symbols)

Illustration of a mechanical device with a magnified inset showing a screen displaying a checkmark (no text or symbols present)

Line drawing of a handheld device with circular ports and a handle (no text or symbols)

Diagram showing a person wearing a helmet with a device displaying a green checkmark and a small container, likely illustrating a safety or health monitoring system.

Illustration of a coffee machine with a cup and two glasses (no text or symbols)

Diagram illustrating a device with a warning sign and a red X symbol, indicating absence of a warning or error.

Diagram showing a hand pressing down on a device with a circular button labeled with three buttons and a power switch icon.

Illustration of a hand pouring liquid into a container with an upward arrow (no text or symbols)

Diagram illustrating temperature measurement with a thermometer and blue liquid flowing into a container

Illustration of a simple stand with a circular top and a downward arrow indicating rotation (no text or symbols)

Diagram illustrating temperature measurement with a thermometer, a valve, and a magnified view of a device with a checkmark.

Diagram showing a mechanical component with labeled parts and directional arrows indicating motion or rotation.

Diagram illustrating a mechanical setup with a rotating platform and liquid being poured into a container, showing upward and downward motion.

Simple line drawing of a curved path with scattered circular elements (no text or symbols)

Illustration showing three steps of a cooking process: pouring liquid into a glass, adding liquid to a side dish, and using a tool to remove a baking pan.

Illustration of a robotic arm with motion arrows indicating motion (no text or symbols)

5 Cierre la palanca.

Illustration of a hand mixer with a bowl labeled 1.5L, no text or symbols present

Diagram showing hands pressing down on a device with a circular control panel displaying three buttons and a downward arrow indicating action.

Diagram showing a mechanical device with a magnified view of three buttons labeled 'Power', 'U', and 'O' pointing to a liquid level.

Illustration of a hand pouring liquid into a bowl on a kitchen sink (no text or symbols)

Diagram showing a hand pressing down on a device with a circular button labeled 'Power' and 'Control' buttons, indicating action or operation.

Simple line drawing of a checkmark over a curved surface with scattered dots (no text or symbols)

Illustration of a mechanical device with an upward arrow indicating motion or force (no text or symbols present)

Illustration of a glass with blue liquid being poured into it by a funnel (no text or symbols)

Illustration showing a coffee maker with a red X symbol indicating a coffee maker's absence, accompanied by a hand pointing to the cup.

25 sec °C

Diagram showing a hand pressing down on a device with a magnified view of control buttons labeled 'Power', 'Control', and 'Order'.

XXL 2x 25 ml 50 ml

Espresso

40 ml

Double espresso / Double shot of espresso

XXL 2x 40 ml 80 ml

Lungo

110 ml

Double lungo / Double shot of lungo

XXL 2x 110 ml 220 ml

Grand Café Filtre

220 ml

Préparation du café

Line drawing of a handheld device with a circular top and base (no text or symbols)

Line drawing of a handheld device with a circular top and rectangular base (no text or symbols)

Simple line drawing of a mechanical device with a handle and base (no text or symbols)

Illustration of a hand pouring liquid into a container with a paper airplane (no text or symbols)

Illustration showing a hand pouring liquid into a container with a magnified view of a brown object above it.

Illustration of a robotic arm with motion arrows indicating motion (no text or symbols)

Diagram showing a hand pressing down on a blue liquid with a power button, alongside a circular control panel with three buttons.

Illustration of two cupcake cups with green arrows indicating a step, one open and one closed (no text or symbols)

Illustration of a mechanical device with a downward arrow and blue liquid, no text or symbols present

Illustration of a robotic arm with motion arrows indicating motion (no text or symbols)

3 Fermez le levier.

Diagram of two circular objects with perforated surfaces connected by a rope, showing directional arrows (no text or symbols)

Line drawing of a mechanical device with a handle and base (no text or symbols)

Diagram showing a hand pressing down on a device with a circular button labeled with icons, indicating action or control.

Illustration of a hand pouring liquid into a container with an upward arrow (no text or symbols)

Illustration of a glass pouring liquid into a jar with a wooden box (no text or symbols)

Illustration of a hand pouring liquid into a container with a downward arrow (no text or symbols)

Diagram illustrating a cooking step with a hand holding a red object, a speedometer showing 1 second, and a steaming cup nearby.

Diagram illustrating a step-by-step cooking process with a hand holding a blue object, showing steps to draw a glass and take 3 seconds.

Illustration of a mechanical device with gears and a handle, showing internal components (no text or symbols)

Illustration of a hand turning a doorbell with a textured seat, no text or symbols present

Illustration of a mechanical device with an open lid and internal components (no text or symbols)

Illustration of a device with a magnifying glass and a screen showing a checkmark (no text or symbols present)

Line drawing of a handheld device with circular ports and a handle (no text or symbols)

Illustration of a person's seatbelt with a laptop displaying a checkmark (no text or symbols present)

Illustration of a coffee machine with a cup and two glasses (no text or symbols)

Diagram illustrating a mechanical or electrical hazard with a hammer, arrow, and cross symbol indicating failure or invalid status.

Diagram showing a hand pressing down on a device with a magnified circular button indicating three buttons labeled 'Power', 'Switch', and 'Un'.

Illustration of a hand pouring liquid into a container with an upward arrow (no text or symbols)

Diagram illustrating temperature measurement with a thermometer and blue liquid flowing into a container

Illustration of a simple stand with a circular top and a downward arrow indicating rotation or change (no text or symbols)

Diagram illustrating temperature measurement with a thermometer, a valve, and a magnified view of a device with a checkmark.

Diagram showing a mechanical component with labeled parts and directional arrows indicating motion or rotation.

Diagram illustrating a mechanical setup with an upward arrow and a drop, showing a rotating platform and liquid being poured into a container.

Simple line drawing of a curved path with scattered circular elements (no text or symbols)

Diagram showing a glass pouring liquid from a bottle into a glass, with two bottles labeled 'PHILIPS' and an arrow indicating the process.

Diagram illustrating a mechanical or electrical hazard with a hammer, a cross symbol, and a warning sign.

Illustration of a robotic arm with motion arrows indicating motion (no text or symbols)

5 Fermez le levier.

Illustration of a hand mixer with a bowl labeled 1.5L, no text or symbols present

Diagram showing a hand pressing down on a device with a control panel and power button, indicating action or operation.

Diagram showing a device with a power button and a magnified view of its control panel, indicating action or operation.

Illustration of a faucet pouring liquid into a bowl (no text or symbols)

Diagram showing a hand pressing down on a device with a circular button interface displaying icons for power, switch, and battery.

Simple line drawing of a curved path with scattered brown dots and a green checkmark above (no text or symbols)

Diagram of a mechanical device with an upward arrow indicating motion or force (no text or symbols present)

Illustration of a glass with blue liquid and a funnel inserted into it (no text or symbols)

Diagram showing a coffee maker with a red X symbol indicating a warning or rejection, and a hand pointing to the cup.

25 sec °C

Diagram showing a hand pressing down on a device with a magnified view of control buttons labeled 'Power', 'Control', and 'Display'.

XXL 2x 40 ml / 80 ml

Lungo

110 ml

Double lungo / Double shot of lungo

XXL 2x 110 ml 220 ml

Grand Café Filtre

220 ml

Line drawing of a handheld device with a circular top and base (no text or symbols)

Line drawing of a handheld device with a circular top and rectangular base (no text or symbols)

Line drawing of a mechanical device with a handle and base (no text or symbols)

Illustration of a mechanical device with an arrow indicating motion, next to a glass with blue liquid (no text or symbols)

5 Alzate la leva.

Illustration showing a hand pouring liquid into a container with a magnified view of a brown object above it.

Illustration of a robotic arm with motion arrows indicating motion (no text or symbols)

Diagram showing a hand pressing down on a blue liquid with a power button, alongside a circular control panel with three buttons.

Illustration of two food cupers with green arrows indicating a step, one open and one closed (no text or symbols)

Illustration of a mechanical device with a downward arrow and blue liquid, no text or symbols present

Illustration of a hand washing machine with a blue liquid and a brown arrow indicating motion (no text or symbols)

3 Chiudete la leva.

Diagram of two circular objects with perforated surfaces connected by wires, showing directional arrows (no text or symbols)

Simple line drawing of a mechanical device with a handle and base (no text or symbols)

Diagram showing a hand pressing down on a device with a circular button labeled with icons, indicating action or control.

Illustration of a hand pouring liquid into a container with an arrow indicating upward motion (no text or symbols)

Illustration of a glass pouring liquid into a jar with a wooden box (no text or symbols)

Illustration of a hand pouring liquid into a container with a downward arrow (no text or symbols)

Diagram illustrating a step-by-step cooking process with a hand holding a blue object, showing steps to break water and take 3 seconds.

Illustration of a mechanical device with gears and a handle, showing internal components (no text or symbols)

Illustration of a hand turning a doorbell with a textured seat, no text or symbols present

Illustration of a mechanical device with an open lid and internal components (no text or symbols)

Illustration of a mechanical device with a magnified inset showing a screen displaying a checkmark (no text or symbols present)

Line drawing of a vintage mechanical device with dual circular ports and a handle (no text or symbols)

Illustration of a person's seatbelt with a laptop displaying a checkmark (no text or symbols present)

Illustration of a coffee machine with a cup and two cups (no text or symbols)

Diagram illustrating a mechanical or electrical hazard with a hammer, arrow, and cross symbol indicating failure or invalid status.

Diagram showing a hand pressing down on a device with a magnified circular button indicating three buttons: Power, Control, and Security.

Illustration of a hand pouring liquid into a container with an upward arrow (no text or symbols)

Diagram illustrating temperature measurement with a thermometer and blue liquid flowing into a container

Illustration of a simple stand with a circular top and a downward arrow indicating rotation or change (no text or symbols)

Diagram illustrating temperature measurement with a thermometer, a valve, and a magnified view of a device with a checkmark.

Diagram showing mechanical assembly with labeled parts and directional arrows indicating motion or rotation

Diagram illustrating a mechanical setup with an upward arrow and a drop, showing a rotating platform and liquid being poured into a container.

Simple line drawing of a curved path with scattered circular elements (no text or symbols)

Diagram illustrating the process of pouring liquid into a glass, with two bottles labeled 'FELIPE' and a bottle marked 'BANANA'.

Diagram illustrating a mechanical or electrical hazard with a hammer, arrow, and cross symbol indicating failure or invalid status.

Illustration of a robotic arm with motion arrows indicating motion (no text or symbols)

5 Chiudete la leva.

Illustration of a hand mixer with a bowl labeled 1.5L, no text or symbols present

Diagram showing hands pressing down on a device with a circular control panel displaying four buttons labeled with power, switch, and battery symbols.

Diagram showing a mechanical device with a magnified view of three buttons labeled 'Power', 'U', and 'O' pointing to a liquid level.

Illustration of a hand pouring liquid into a bowl on a kitchen sink (no text or symbols)

Diagram showing a hand pressing down on a device with a circular button labeled with icons, indicating action or control.

Simple line drawing of a path with a green checkmark and scattered brown objects (no text or symbols)

Illustration of a mechanical device with an upward arrow indicating motion or force (no text or symbols present)

Illustration of a glass with blue liquid and a funnel inserted into it (no text or symbols)

Diagram showing a coffee maker with a coffee cup and a red X symbol indicating rejection or rejection.

25 sec °C

Diagram showing a hand pressing down on a device with a magnified view of three buttons labeled 0, 1, and 2.

XXL 2x 40 ml 80 ml

Lungo

110 ml

Double lungo / Double shot of lungo

XXL 2x 110 ml 220 ml

Grand Café Filtre

220 ml

Koffie bereiden

Simple line drawing of a handheld device with a circular top and base (no text or symbols)

Line drawing of a mechanical device with a circular top and two rectangular base (no text or symbols)

Simple line drawing of a mechanical device with a handle and base (no text or symbols)

Illustration of a hand pouring liquid into a container with a bottle (no text or symbols)

5 Trek de hendel omhoog.

Diagram illustrating a chemical process with a bottle being poured into a container, accompanied by a magnified view of the same container.

Illustration of a robotic arm with motion arrows indicating motion (no text or symbols)

7 Duw de hendel omlaag.

Diagram showing a hand pressing down on a blue liquid with a power button, alongside a circular control panel with three buttons.

Illustration of two cupcake cups with green arrows indicating a step, one open and one closed (no text or symbols)

Illustration of a mechanical device with a downward arrow and blue liquid, next to a glass (no text or symbols)

Illustration of a hand washing machine with a blue liquid and a brown arrow indicating motion (no text or symbols)

3 Duw de hendel omlaag.

Diagram of two circular objects with perforated surfaces connected by wires, showing directional arrows (no text or symbols)

Line drawing of a mechanical device with a handle and base (no text or symbols)

Diagram showing a hand pressing down on a device with a magnified circular button displaying power and switch icons.

Diagram of a mechanical device with a blue liquid flowing through a container and an upward arrow indicating motion (no text or symbols)

Illustration of a glass pouring liquid into a jar with a lid, showing a bottle and container (no text or symbols)

Illustration of a hand pouring liquid into a container with a wooden stand (no text or symbols)

Illustration of a mechanical device with a handle and internal components (no text or symbols)

Illustration of a hand turning a doorbell with a textured seat, no text or symbols present

Illustration of a mechanical device with an open lid and internal components (no text or symbols)

Illustration of a mechanical device with a magnified inset showing a screen displaying a checkmark (no text or symbols present)

Line drawing of a handheld device with circular ports and a handle (no text or symbols)

Illustration of a car's seatbelt with a laptop displaying a checkmark (no text or symbols present)

Illustration of a coffee machine with a cup and two cups (no text or symbols)

Diagram illustrating a mechanical or electrical hazard with a hammer, arrow, and cross symbol indicating failure or invalid status.

Diagram showing a hand pressing down on a device with a magnified view of three buttons labeled 'Power', 'Control', and 'Un'.

Diagram of a hand pouring liquid into a container with an upward arrow (no text or symbols)

Diagram illustrating temperature measurement with a thermometer and blue liquid flowing into a container

Diagram illustrating a cooling system with a slide, thermometer, and digital display showing temperature control.

Diagram showing a mechanical component with labeled parts and directional arrows indicating motion or rotation.

Diagram illustrating a mechanical setup with a rotating platform and liquid being poured into a container, showing upward and downward motion.

Simple line drawing of a curved path with scattered circular elements (no text or symbols)

Diagram illustrating a mechanical device with a hammer and a warning symbol, indicating no change or failure.

Illustration of a robotic arm with motion arrows indicating motion (no text or symbols)

5 Duw de hendel omlaag.

Illustration of a hand mixer with a bowl labeled 1.5L, no text or symbols present

Diagram showing hands pressing down on a device with a circular control panel displaying three buttons and a downward arrow indicating action.

Diagram showing a device with a magnified view of three buttons labeled 'Power', 'U', and 'O' pointing to a liquid level.

Illustration of a hand pouring liquid into a bowl on a kitchen sink (no text or symbols)

Diagram showing a hand pressing down on a device with a circular button labeled with icons, indicating action or control.

Simple line drawing of a path with a green checkmark and scattered brown objects (no text or symbols)

Illustration of a hand operating a manual pump with an upward arrow (no text or symbols)

Illustration showing a coffee maker with a red X symbol indicating a warning or rejection, and a hand pouring liquid into the cup.

25 sec °C

Diagram showing a hand pressing down on a device with a magnified view of control buttons labeled 'Power', 'Control', and 'Display'.

XXL 2x 25 ml 50 ml

Espresso

40 ml

Double espresso / Double shot of espresso

XXL 2x 40 ml 80 ml

Lungo

110 ml

Double lungo / Double shot of lungo

XXL 2x 110 ml 220 ml

Grand Café Filtre

220 ml

Trakte kaffe

Simple line drawing of a handheld device with a circular top and base (no text or symbols)

1 Trykk på av/på-knappen for å slå på maskinen. Av/på-knappen blinker for å angi at maskinen varmes opp.
2 Hvis du vil trakte én kopp med kaffe, setter du én kopp under kaffetuten.

Simple line drawing of a handheld device with a circular top and two side compartments (no text or symbols)

Line drawing of a mechanical device with a handle and base (no text or symbols)

Illustration of a hand pouring liquid into a container with a bottle (no text or symbols)

5 Løft hendelen.

Diagram illustrating a chemical process with a bottle dropping into a container and a magnified view of a brown object above it.

6 Sett inn en kapsel.

Illustration of two cupcake cups with green arrows indicating a step, one open and one closed (no text or symbols)

Illustration of a mechanical device being processed with a blue liquid, no text or symbols present

Illustration of a robotic arm with motion arrows indicating motion, next to a glass with liquid (no text or symbols)

3 Lukk hendelen.

Diagram of two circular objects with textured surfaces connected by a diagonal line, showing directional arrows (no text or symbols)

4 Fjern dryppbrettet sammen med koppeplattformen. Sett til side dryppbrettet og plasser koppeplattformen på nedre dryppbrett.

Line drawing of a mechanical device with a handle and base (no text or symbols)

5 Sett en stor kopp eller et krus under kaffetuten på koppeplattformen.

Diagram showing a hand pressing down on a device with a magnified view of control buttons, indicating battery status or power switch.

Illustration of a hand pouring liquid into a container with an upward arrow (no text or symbols)

Illustration of a glass pouring liquid into a jar with a bag of food being poured (no text or symbols)

Illustration of a funnel pouring liquid into a bottle, with a downward arrow indicating flow direction (no text or symbols)

3 Sett lokket og vispholderen tilbake på plass på melkeskummeren.

1 sec

4 Hold inne knappen i ett sekund for å varme opp og skumme melken. Lampen i av/på-knappen tennes.

3 sec

Merk: Hold inne knappen i tre sekunder for å skumme kald melk.

5 Melkeskummet er klart når lampen i av/på-lampen slukner. Du kan nå ta av lokket på melkeskummeren med vispholderen festet til melkeskummeren. Hell melkeskummet over den nytraktede kaffen.

Diagram of a mechanical device with internal components and a directional arrow indicating motion (no text or symbols)

Illustration of a hand holding a circular object with a textured surface, next to a curved pipe (no text or symbols)

Illustration of a box with open lid and open lid, containing small round objects (no text or symbols)

Illustration of a car interior with a laptop displaying a checklist and a green checkmark (no text or symbols)

Line drawing of a handheld device with a cloth, no text or symbols present

Illustration of a car seatbelt with a laptop displaying a green checkmark (no text or symbols)

Illustration of a coffee machine with a cup and two cups (no text or symbols)

Diagram illustrating a mechanical or electrical hazard with an arrow indicating upward motion and a cross symbol in red.

3 Lukk hendelen uten å sette inn en ny kapsel.

Diagram showing a hand pressing down on a device with a circular button labeled with icons, indicating action or control.

Diagram of a mechanical device with a blue liquid being poured into a cylindrical container, showing motion direction (no text or symbols)

Diagram showing a thermometer measuring liquid flow in a container, with a thermometer icon and temperature label.

3 Skyll innsiden av melkeskummeren under varmt, rennende vann.
4 Rengjør utsiden av melkeskummeren med en fuktigklut.
5 Fjern piskholderen fra lokket til melkeskummeren.

Illustration of a round table lamp with a downward arrow indicating compression or reduction (no text or symbols)

Diagram illustrating a medical procedure with temperature measurement, thermometer, and monitoring device interface

7 Skyll lokket på melkeskummeren og vispholderdelene under glovarmt, rennende vann.

Diagram showing a mechanical component with labeled parts and directional arrows indicating motion or rotation.

Simple line drawing of a standing stool with an upward arrow indicating growth (no text or symbols)

Illustration of a hand pouring liquid into a container with a downward arrow indicating flow (no text or symbols)

10 Sett lokket og vispholderen tilbake på plass i melkeskummeren.

Avkalkning

Når du skal avkalke

Simple line drawing of a curved surface with scattered circular elements (no text or symbols)

Diagram illustrating a glass being poured into a bottle, showing liquid transfer from a bottle to another.

1 Trykk på av/på-knappen for å slå på maskinen.
2 Hell en halv flaske flytende L'OR Barista-avkalkingsmiddel (CA6530) i vannbeholderen.

3 Fyll vannbeholderen med friskt vann fra springen.

Diagram illustrating a device with a hammer and a warning symbol, indicating no change or absence of operation.

Illustration of a robotic arm with motion arrows indicating motion (no text or symbols)

5 Lukk hendelen.

Illustration of a hand mixer with a bowl of liquid and a 1.5L label, no text or symbols present.

Diagram showing a hand pressing down on a device with a control panel and power button, indicating action or operation.

7 Trykk raskt på Ristretto- og Lungo-knappen samtidig.

Diagram showing a device with a downward arrow and a circular button interface, likely illustrating a process or control mechanism.

Illustration of a faucet pouring liquid into a bowl (no text or symbols)

9 Fjern og tøm skålen. Sett skålen tilbake på nedre dryppbrett under kaffetuten.

Diagram showing a hand pressing down on a device with a circular button interface displaying icons for power, switch, and battery.

Simple line drawing of a curved path with scattered brown dots and a green checkmark above (no text or symbols)

Illustration of a mechanical device with an upward arrow indicating motion or force (no text or symbols present)

Illustration of a glass with blue liquid being poured into it by a funnel (no text or symbols)

Illustration showing a coffee maker with a red X symbol indicating a coffee maker's absence, accompanied by a hand pointing to the cup.

25 sec °C

Diagram showing a hand pressing down on a device with a magnified view of control buttons labeled 'Power', 'Control', and 'Display'.

XXL 2x 40 ml 80 ml

Lungo

110 ml

Double lungo / Double shot of lungo

XXL 2x 110 ml 220 ml

Grand Café Filtre

220 ml

Preparar café

Line drawing of a handheld device with a circular top and base (no text or symbols)

Line drawing of a handheld device with a circular top and rectangular base (no text or symbols)

Line drawing of a mechanical device with a handle and base (no text or symbols)

Illustration of a hand pouring liquid into a container with a paper airplane (no text or symbols)

Illustration showing a hand pouring liquid into a container with a magnified view of a brown object above it.

Illustration of a robotic arm with motion arrows indicating motion (no text or symbols)

7 Baixe o manípulo para o fechar.

Diagram showing a hand pressing down on a blue liquid with a power button, alongside a circular control panel with three buttons.

Illustration of two cupcake cups with green arrows indicating a step, one open and one closed (no text or symbols)

1 Retire o selo da cápsula por completo.

Illustration of a mechanical device with a downward arrow, next to a glass filled with blue liquid (no text or symbols)

2 Levante o manípulo e insira a cápsula.

Illustration of a hand washing machine with a blue liquid and a brown arrow indicating motion (no text or symbols)

3 Feche o manípulo.

Diagram of two circular objects with perforated surfaces connected by wires, showing directional arrows (no text or symbols)

Simple line drawing of a mechanical device with a handle and base (no text or symbols)

Diagram showing a hand pressing down on a device with a magnified circular button displaying power and switch icons.

Illustration of a hand pouring liquid into a container with an upward arrow (no text or symbols)

Illustration of a glass pouring liquid into a jar with a lid, showing a bottle and container (no text or symbols)

Illustration of a hand pouring liquid into a container with a wooden stand (no text or symbols)

Diagram illustrating a step-by-step cooking or cleaning procedure with a hand holding a blue object, a glass of water, and a stopwatch showing 3 seconds.

Illustration of a mechanical device with gears and a handle, showing internal components (no text or symbols)

Illustration of a hand turning a doorbell with a textured seat, no text or symbols present

Illustration of a mechanical device with an open lid and internal components (no text or symbols)

Illustration of a mechanical device with a screen showing a checkmark (no text or symbols present)

Line drawing of a handheld device with circular ports and a handle (no text or symbols)

Illustration of a car's seatbelt with a laptop displaying a checkmark (no text or symbols present)

Illustration of a coffee machine with a cup and two cups (no text or symbols)

Diagram illustrating a mechanical or electrical hazard with a hammer, arrow, and cross symbol indicating failure or invalid status.

Diagram showing a hand pressing down on a device with a magnified circular button indicating power, switch, and battery symbols.

Illustration of a hand pouring liquid into a container with an upward arrow (no text or symbols)

Diagram illustrating temperature measurement with a thermometer and blue liquid flowing into a container

Illustration of a simple stand with a circular top and base, showing a downward arrow indicating rotation or change (no text or symbols)

Illustration showing a medical procedure with blue liquid flowing, thermometer, and a monitor displaying a health check.

Diagram showing a mechanical component with labeled parts and directional arrows indicating motion or rotation.

8 Volte a encaixar o batedor no respetivo suporte.

Diagram illustrating a mechanical setup with a rotating platform and liquid being poured into a container, showing upward and downward motion.

Simple line drawing of a curved path with scattered circular elements (no text or symbols)

Diagram illustrating a glass being poured into a bottle, showing liquid transfer from a bottle to another.

Diagram illustrating a device with a hammer and a warning symbol, indicating no change or absence of operation.

Illustration of a robotic arm with motion arrows indicating motion (no text or symbols)

5 Feche o manípulo.

Illustration of a hand mixer with a bowl of liquid labeled 1.5L (no text or symbols on the device itself)

Diagram showing hands pressing down on a device with a circular control panel displaying three buttons and a downward arrow indicating action.

Diagram showing a mechanical device with a magnified view of three buttons labeled 'Power', 'Charge', and 'Un', indicating a process or operation.

Illustration of a hand pouring liquid into a bowl on a kitchen sink (no text or symbols)

Diagram showing a hand pressing down on a device with a circular button labeled with icons for power, switch, and battery.

Simple line drawing of a curved path with scattered brown objects and a green checkmark above (no text or symbols)

Diagram of a mechanical device with an upward arrow indicating motion or force (no text or symbols present)

Illustration of a glass with blue liquid and a funnel inserted into it (no text or symbols)

Diagram illustrating coffee maker setup with a coffee cup, a tray, and a warning symbol with a red 'X' indicating no need.

25 sec °C

Diagram showing a hand pressing down on a device with a magnified view of control buttons labeled 'Power', 'Control', and 'Order'.

XXL 2x 40 ml / 80 ml

Lungo

110 ml

Double lungo / Double shot of lungo

XXL 2x 110 ml 220 ml

Grand Café Filtre

220 ml

Förbereda kaffe

Simple line drawing of a handheld device with a circular top and base (no text or symbols)

Line drawing of a mechanical device with a circular top and two rectangular base (no text or symbols)

Simple line drawing of a mechanical device with a handle and base (no text or symbols)

Illustration of a hand pouring liquid into a container with a paper airplane (no text or symbols)

5 Lyft spaken.

Illustration showing a coffee maker pouring liquid into a glass with a magnified view of the coffee maker's tip.

6 Sätt i en kapsel.

Illustration of a robotic arm with motion arrows indicating motion (no text or symbols)

Diagram showing a hand pressing down on a blue liquid with a power button, alongside a circular control panel with three buttons labeled 'Power', 'Down', and 'Up'.

Illustration of two cupcake cups with green arrows indicating a step, one open and one closed (no text or symbols)

Illustration of a mechanical device with a downward arrow and blue liquid in a glass (no text or symbols)

Illustration of a robotic arm with motion arrows indicating motion (no text or symbols)

3 Stäng spaken.

Diagram of two circular objects with perforated surfaces connected by a diagonal line, no text or symbols present

Simple line drawing of a mechanical device with a handle and base (no text or symbols)

Diagram showing a hand pressing down on a blue liquid in a container with a circular control panel displaying icons for power, switch, and drain.

Illustration of a hand pouring liquid into a container with an upward arrow (no text or symbols)

Illustration of a glass pouring liquid into a jar with a wooden box containing an object (no text or symbols)

Illustration of a hand pouring liquid into a container with a downward arrow indicating flow (no text or symbols)

Diagram illustrating a step-by-step cooking process with a hand holding a blue object, showing steps to break and take 3 seconds.

Illustration of a mechanical device with gears and a handle, showing internal components (no text or symbols)

Illustration of a showerhead and drain handle assembly (no text or symbols)

Illustration of a mechanical device with an open lid and internal components (no text or symbols)

Illustration of a mechanical device with a magnified inset showing a screen displaying a checkmark (no text or symbols present)

Line drawing of a hand holding a small device with a cloth (no text or symbols)

Diagram showing a person wearing a helmet with a device displaying a green checkmark and a small container, likely illustrating a safety or health monitoring system.

Illustration of a coffee machine with a cup and two glasses (no text or symbols)

Diagram illustrating a mechanical or electrical hazard with a hammer, arrow, and cross symbol indicating failure or invalid status.

Diagram showing a hand pressing down on a device with a circular button labeled with three buttons and a power symbol, indicating action or control.

Diagram of a mechanical device with a blue funnel and wooden base, showing motion direction (no text or symbols)

Illustration showing a thermometer measuring liquid flow in a container, with a thermometer icon indicating temperature.

Diagram illustrating a cleaning or cleaning process with labeled steps and temperature indicators

Diagram showing a mechanical component with labeled parts and directional arrows indicating motion or rotation.

Diagram illustrating a cleaning or cleaning process with labeled components and directional arrows indicating movement.

Simple line drawing of a curved path with scattered circular elements (no text or symbols)

Diagram showing a glass pouring liquid from a bottle into a glass, with two bottles labeled 'PHILIPS' and an arrow indicating the process.

Diagram illustrating a mechanical or electrical hazard with a hammer, magnified view of a device and a red X symbol indicating failure or invalid status.

Illustration of a robotic arm with motion arrows indicating motion, next to a glass with blue liquid (no text or symbols)

5 Stäng spaken.

1.5L

Diagram showing a hand pressing down on a device with a control panel and directional buttons, likely illustrating a process or operation.

Diagram showing a device with a downward arrow and a magnified circular interface displaying three control buttons.

Illustration of a faucet pouring liquid into a bowl (no text or symbols)

Diagram showing a hand pressing down on a device with a circular button labeled with icons, indicating action or control.

Simple line drawing of a curved path with scattered brown dots and a green checkmark above (no text or symbols)

Abstract digital artwork featuring flowing, dark, and light tones with no visible text or symbols
