USER MANUAL MGK 6841 GRUNDIG

Multi Grooming Kit with Charging Dock User Manual

MGK 6841

DE-EN-TR-ES-HR-FR-PL

DEUTSCH 04-19

ENGLISH 20-33

TÜRKÇE 34-51

ESPNOL 52-66

HRVATSKI 67-80

FRANÇAIS 81-89

POLSKI 97-112

SICHERHEIT

Hersteller: E-TEK Electronics
Manufactory Co., LTD

Modellidentifikator: ZD5C0100EUDU

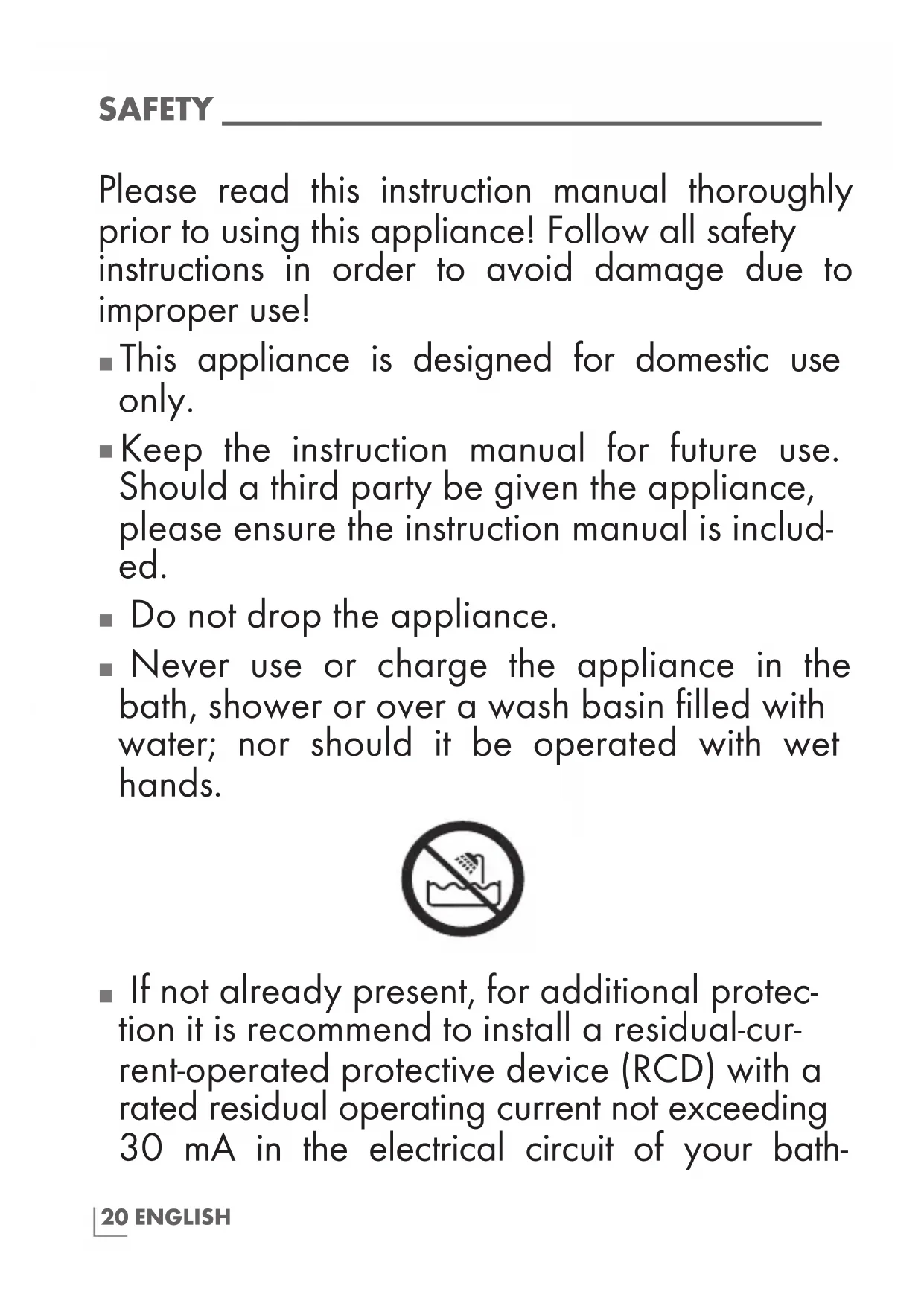

Please read this instruction manual thoroughly prior to using this appliance! Follow all safety instructions in order to avoid damage due to improper use!

This appliance is designed for domestic use only.
- Keep the instruction manual for future use. Should a third party be given the appliance, please ensure the instruction manual is included.
- Do not drop the appliance.
- Never use or charge the appliance in the bath, shower or over a wash basin filled with water; nor should it be operated with wet hands.

If not already present, for additional protection it is recommend to install a residual-current-operated protective device (RCD) with a rated residual operating current not exceeding 30mA in the electrical circuit of your bath

room. Ask your electrician for advice.

• Always disconnect the power supply unit if the appliance is not being charged or used.
• Never use the appliance if it is visibly damaged.
• Always ensure hands are dry and hair is free from excess water before handling the mains AC/DC adapter plug.
• Only use the adapter provided.
• Always keep the appliance out of the reach of children.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Do not dismantle the appliance under any circumstances. No warranty claims are accepted for damage resulting from improper han

dling.

• Do not insert the appliance with nose trimmer attached too far into the nose during use.
  Always remember to turn on the appliance before you insert it into your nose to avoid injury.
• Do not use the appliance if you suffer from ache, eczema or any other skin irritations.
• Do not apply excessive pressure as this damages the attachment and may cause skin injury.
• Detach accessory head from trimmer set body before cleaning it in water.
  The battery must be removed from the appliance before it is scrapped;
  The battery must be disconnected from the supply mains when removing the battery;
  The battery is to be disposed of safely
• Keep the appliance dry.
• This appliance contains batteries that are non-replaceable.
  WARNING: For the purposes of recharging

the battery, only use the detachable supply unit provided with this appliance.

• Ensure that your mains power complies with the information specified in the rating plate of the appliance.
• Do not use the appliance if the power cord, the appliance or the cutting head is damaged. Contact authorized service.
• To prevent damage to the power cord, prevent it from being pinched, crimped or rubbed against sharp edges. Keep power cord away from heated surfaces and open flame.
• Make sure the appliance never comes into contact with water or any other liquid while the appliance is being charged.

• The charging adapter and power cord are items that cannot be repaired if damaged. Please dispose of the charging adapter according to environmental regulations. You can get a new charger from the manufacturer or authorized service.

• Use genuine parts or parts provided by the manufacturer only.
  Always unplug the appliance before cleaning the appliance and do not clean the appliance when it is in use.

• Place the appliance so that the power plug is always at an accessible position.
  Always unplug the appliance before cleaning the appliance and do not clean the appliance when it is in use.
• Choking risk! Keep all packaging materials out of the reach of children.
  After charging, unplug the power adapter.
• Never place the appliance, its accessories or the power adapter on or near hot surfaces.

Dear customer,

Congratulations on the purchase of your GRUNDIG MGK 6841 Professional Multi Hair Trimmer Set

Read the following user notes carefully to ensure you can enjoy your quality product from GRUNDIG for many years to come.

Meanings of the symbols

Following symbols are used in various sections of this manual:

C

Important information and useful hints about usage.

A

WARNING: Warnings against dangerous situations concerning the security of life and property.

Electrical insulation class.

Controls

See the illustration on page 3.

A Main body
B On/Off switch
Charging display (LED).
D Charging stand
E Blade adjustment button

Accessories

Tblade
2 Comb attachment 2 (4,6,9,12,15,18 mm) fitting with U blade
3 Comb attachment 3 (13,15,17,19,21,23 mm) fitting with T blade
4 Multi blade attachment
5 Detail trimmer
6 Nose and ear trimmer

Comb attachment 1 (1.0, 1.5, 2.0 mm), fitting with U blade
8 Ublade

Adapter

Cleaning brush

POWER SUPPLY

Preparation

1 Remove all packaging and keep safe for future storage.
2 Inspect the appliance before use to ensure the blades are free of hair, debris etc.
3 Before use, ensure that the trim mer is sufficiently charged or plugged into the mains.

Rechargeable battery operation

When operating the appliance with the built-in Li-ion rechargeable battery, only use the supplied adapter for charging.

Check that the voltage indicated on the type plate of the adapter unit corresponds to your local power supply.

Plug the power cord into the appliance socket and the adapter unit into the wall socket.

Notes

Charge up the batteries completely before using them for the first time or if you have not used them for a long time (approx. 2 hours timer-controlled charging).
- Plug symbol flashing in red when charging, battery symbol will light in white when full charged, symbol will light in white when using, plug symbol will flashing in red when low power.
The ambient temperature should be between 5^ and 40^ .
- When fully charged, the appliance works for about 50 minutes. This depends on the attachment being used. It is not advisable to charge the batteries after every use, especially if you do not use the appliance for the full battery capacity.
- Charge the batteries at your convenience only when they are completely discharged. This increases their service life. Avoid charging every day.

Using the charging stand

1 Plug the socket of the appliance into the charging stand D.
2 Plug the power cord into the socket on the charging stand.
3 Plug the adapter into the wall socket.

Mains operation (with the adapter)

Check that the voltage indicated on the type plate of the adapter corresponds to your local power supply.

The only way to disconnect the appliance from the power supply is to unplug the adapter.

1 Insert the power cord into the socket on the appliance.

2 Plug the adapter into the wall socket.

Caution

• When in the bathroom or next to a water connection, you must only use the appliance in battery mode; never run it from the mains.

Cutting hair

Please use the T blade and comb 3.

If necessary, remove the attachment by holding the head and pushed away from the appliance.
2 Insert stainless steel cutting head carefully at the top and press down until it clicks into place.
3 Place a towel around the neck and shoulders of the person whose hair you are trimming.
4 Make sure the person is seated so that their head is roughly at your eye level. Before trimming, comb the hair so that it falls naturally and you can see the direction in which it grows.
5 Press the B button to switch on the appliance and start cutting your hair.
6 Press the B button to switch off the appliance after use.

Beard trimming

Please use the beard trimming attachment.

If necessary, remove the attachment by holding the head and pushed away from the appliance.
2 Insert beard trimming attachment carefully at the top and press down until it clicks into place.

3 Loosen the beard hair by combing the beard in the direction the hair grows.
4 Press the button to switch on the appliance and start trimming your beard.
5 Press the button to switch off the appliance after use.

Trimming hair or beard to a certain length

Please use the attachments.

If necessary, remove the attachment by holding the head and pushed away from the appliance.
2 Insert attachment (U trimmer) or (T trimmer) carefully at the top and press down until it clicks into place.

Note

The comb attachments fit both cutting heads.

Comb attachment 1 fitting with U blade	1.0, 1.5, 2.0 mm
Comb attachment 2 fitting with U blade	4, 6, 9, 12, 15, 18 mm
Comb attachment 3 fitting with T blade	13, 15, 17, 19, 21, 23 mm

3 Push the comb attachment carefully and firmly onto the rounded rear half of the cutting head from above and let it click into place.

Note

To adjust the small and large adjustable comb attachments 2 and 3 press the middle of each attachment and push it up or down.
4 Press the button B to switch on the appliance and start trimming.
5 Press the button B to switch off the appliance after use.
6 After use, remove the comb attachment by pressing the locking tab at the back and lifting the comb attachment.

Thinning out hair

If necessary, remove the attachment by holding the head and pushed away from the appliance.
2 Insert attachment 7 and 8 put comb attachment carefully at the top and press down until it clicks into place.
3 Press the B button to switch on the appliance and start thinning out your hair.
4 Press the B button to switch off the appliance after use.

Notes

• Do not apply strong pressure when shaving, as this could damage the single blade foil.
  You can remove the single blade foil of the shaving attachment. To do this, press both side catches on the shaving attachment. Clean the blade head with the cleaning brush supplied.

Skin close cut of body hair

Please use the head 8.

If necessary, remove the attachment by pressing in both side catches and lifting off.
2 Insert attachment carefully at the top and press down until it clicks into place.
3 Press the B button to switch on the appliance and start trimming your body hair.

Notes

• Do not apply strong pressure when cutting, as this may cause skin injury.
  Clean the head 8 with the cleaning brush supplied.
  4 Press the B button to switch off the appliance after use.

Trimming body hair to a certain length

Please use the head 8 and attachment comb 2 or 7.

1 Insert attachment carefully at the top and press down until it clicks into place.
2 Push the attachment comb carefully and firmly onto the rounded rear half of the cutting head from above and let it click into place.

Note

To adjust the attachment comb 2, attach it in one of the three side rails of the head 8. The nearest rail to the trimming blades will adjust the attachment to 9mm the middle rail to 5mm and the outer rail to 2mm .
3 Press the B button to switch on the appliance and start trimming your body hair.
4 Press the B button to switch off the appliance after use.

Multistyling

Multi blade shaving attachment for face and body.

If necessary, remove the attachment by holding the head and pushed away from the appliance.
2 Insert shaving attachment 4 carefully at the top and press down until it clicks into place.
3 Press the B button to switch on the appliance and start shaving.
4 Press the B button to switch off the appliance after use.

Removing hair from nose

1 Attach the trimming attachment 6
2 To turn the appliance on, press the On/Off button B
3 Insert the cutting unit gently into the nostril.

Caution

• Do not insert the appliance too far into the nose during use.
  4 Gently move the cutting edge in and out of the nostril while rotating the appliance.
  5 To turn the appliance off, press the On/Off button B.

Cleaning and care

1 Switch off the appliance and unplug the adapter from the mains.
2 Remove the attachment and clean the blade head with the brush supplied.

Caution

If cleaning with the brush is not sufficient, you can also clean the attachments under the running water after removing the attachment from the body. Trimmer set body is not washable.
The cutting head on the attachment does not normally need to be oiled. If you clean the attachment under running water regularly but you also want to maintain the original condition of the cutting head for as long as possible, it is worth oiling it at regular intervals with the oil provided.
3 Use a soft, dry cloth or the brush supplied to clean the appliance housing and the charging unit.

Caution

• Never put the charging unit or power supply unit in water or any other liquid.
  Before using the appliance again, ensure that all attachments have been carefully dried using a soft towel.
  Do not use cleaning agents.

Note

Remove any clippings after each use.

Storage

If you do not plan to use the appliance for a long period of time, please store it carefully.

1 Make sure it is unplugged, has completely cooled down and all the accessories are completely dry.
2 Store the parts in the original box in a cool, dry place.
3 Make sure the appliance is kept out of the reach of children.

Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device

must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

Information on waste batteries

This symbol on rechargeable batteries/ batteries or on the packaging indicates that the rechargeable bat

tery/battery may not be disposed of with regular house hold rubbish. For certain recharge able batteries/batteries, this symbol may be supplemented by a chemical symbol. Symbols for mercury (Hg) or lead (Pb) are provided if the rechargeable batteries/batteries contain more than 0,0005% mercury or more than 0,004% lead.

Rechargeable batteries/batteries, including those which do not contain heavy metal, may not be disposed of with household waste. Always dispose of used batteries in accordance with local environ mental regulations. Make enquiries about the ap plicable disposal regulations where you live.

Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our

National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Technical data

Manufacturer: E-TEK Electronics

Manufactory Co., LTD

Model Identifier:

ZD5C0100EUDU

Input Voltage: 100-240V~

Input Frequency: 50/60Hz

Input Current: 0.2A

Output Voltage: 5.0V

Output Current: 1.0A

Output Power: 5.0W

Average active efficiency:

77.57%

Efficiency at low load(10%):

68.78%

No-load power consumption:

0.08W

Electrical insulation class: II

Technical and design modifications are

reserved.
