USER MANUAL IAN 90050 MIOMARE

PU Trade AG Herr Peter Ulrich Seestrasse 321 CH-8804 Au Tel.: +41-43–8332910 90050_Spueltisch-Armatur_Content_LB2 (BE).indd 46 14.03.13 08:2847 DE/AT/CH Fax : +41-43–8332915 E-Mail: pulrich@putrade.ch Produktbezeichnung: Spültisch-Armatur 90050_Spueltisch-Armatur_Content_LB2 (BE).indd 47 14.03.13 08:2848 90050_Spueltisch-Armatur_Content_LB2 (BE).indd 48 14.03.13 08:2849 GB Introduction Intended use ............................................................................ Page 50 Parts description ...................................................................... Page 51 Technical Data ........................................................................ Page 51 Scope of delivery .................................................................... Page 51 Safety notes ...................................................................... Page 52 Assembly ............................................................................. Page 53 Start-up ................................................................................. Page 54 Operation ........................................................................... Page 54 Eco Function / conserving water ............................................ Page 55 Setting the scald protection .................................................... Page 56 Maintenance and Cleaning Maintaining and cleaning the tap ......................................... Page 57 Replacing the cartridge .......................................................... Page 58 Disposal ................................................................................ Page 59 Information Potability of tap water ............................................................. Page 59 Warranty and Service .............................................. Page 60 90050_Spueltisch-Armatur_Content_LB2 (BE).indd 49 14.03.13 08:2850 GB Kitchen Mixer Tap Introduction Congratulations on your new product. You have selected a high quality product. The assembly and operating instructions are part of this product. Before you start the installation, please read through all of these instructions and take note of the advice they contain. These instructions contain important information about installation, settings and care. Keep these instructions safe and if you pass on the product to anyone else please pass on the documentation as well. Intended use The product is only designed to regulate the hot and cold water flow. It is only intended to be installed in sink units. This product is suitable for use with all pressure-resistant hot water systems such as central heating, continuous-flow water heater, pressure boiler etc. It is not suitable for low pressure water heaters such as wood-burning or coal-burning domestic hot water geysers, oil or gas-fired hot water geysers, or open electrically heated cylinders. If in doubt, please consult a plumber or heating specialist. Any use not specified or product modification is pro- hibited and will result in damage. There is also the risk of injury and loss of life. The product is for private use only and is not intended for medical or commercial use. The manufacturer does not accept any liability for any damage caused by improper use. 90050_Spueltisch-Armatur_Content_LB2 (BE).indd 50 14.03.13 08:2851 GB Parts description

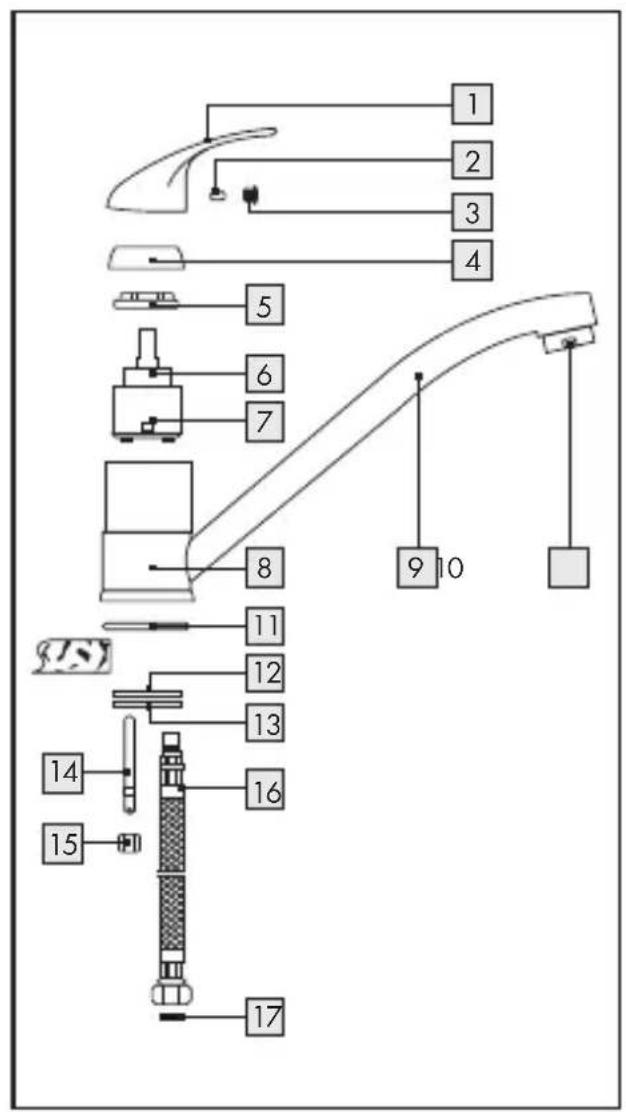

1 Cartridge covering ring*

2 Flexible connecting hoses

• prefitted Technical Data Connections: G ⅜“ Scope of delivery 1 Sink unit single-lever mixer (

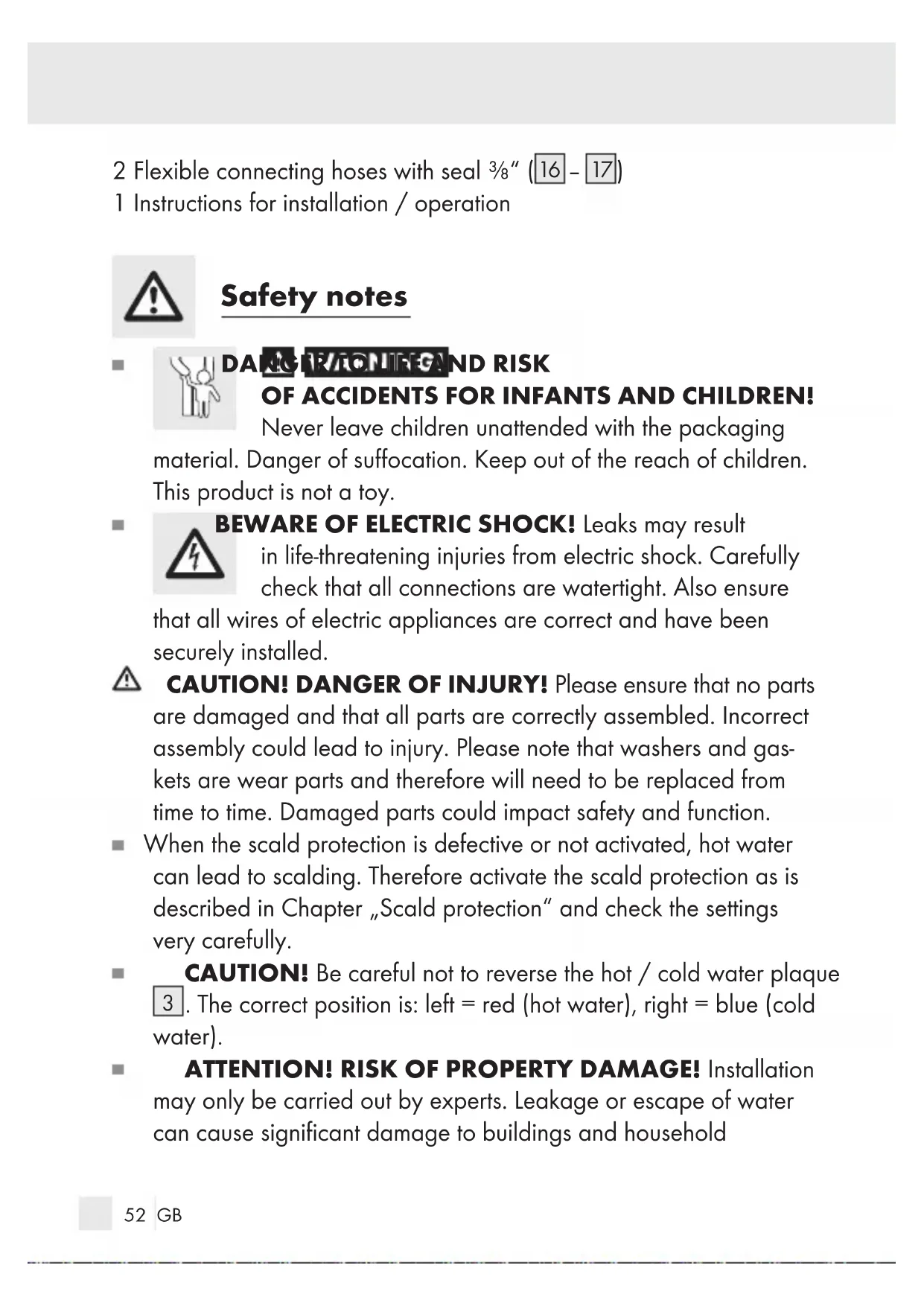

1 Instructions for installation / operation Safety notes

DANGER TO LIFE AND RISK

OF ACCIDENTS FOR INFANTS AND CHILDREN! Never leave children unattended with the packaging material. Danger of suffocation. Keep out of the reach of children. This product is not a toy. BEWARE OF ELECTRIC SHOCK! Leaks may result in life-threatening injuries from electric shock. Carefully check that all connections are watertight. Also ensure that all wires of electric appliances are correct and have been securely installed. CAUTION! DANGER OF INJURY! Please ensure that no parts are damaged and that all parts are correctly assembled. Incorrect assembly could lead to injury. Please note that washers and gas- kets are wear parts and therefore will need to be replaced from time to time. Damaged parts could impact safety and function. When the scald protection is defective or not activated, hot water can lead to scalding. Therefore activate the scald protection as is described in Chapter „Scald protection“ and check the settings very carefully. CAUTION! Be careful not to reverse the hot / cold water plaque

. The correct position is: left = red (hot water), right = blue (cold water). ATTENTION! RISK OF PROPERTY DAMAGE! Installation may only be carried out by experts. Leakage or escape of water can cause significant damage to buildings and household 90050_Spueltisch-Armatur_Content_LB2 (BE).indd 52 14.03.13 08:2853 GB contents. All connections must therefore be checked carefully to ensure that they are tight. Ensure that all seals are correctly seated to avoid escape of water due to leakage. Familiarise yourself with all local conditions, e.g. water connections and shut-off device, prior to installation. This product is only suitable for use in rooms with temperature above 0 °C. In case of potential frost, cut off the water supply and drain the taps. Assembly Note: Familiarise yourself with the product prior to assembly. Carefully read the following assembly instructions and safety advice. In the event of incorrect installation, all warranty claims – particularly in relation to subsequent damage – are excluded. CAUTION! Before you start installation turn off the water supply at the mains. Otherwise there is a danger of injury and / or dam- age to the product. CAUTION! Do not twist or strain the connection hoses

Note: This step requires a slot screwdriver and a 12 mm open-end spanner. Follow these steps: CAUTION! Be sure to only fasten the connecting hoses

hand tight (see Fig. A). Do not use pliers or a wrench. Otherwise the product could be damaged. Screw the two connecting hoses

hand tight into the designated boreholes in the fitting body

(see Fig. A). Using a slot screwdriver tighten the threaded bolt

all the way into the fitting body

and remove the fastening nut

into the groove at the underside of the fitting body

and place it over the opening on your sink unit. Under the sink unit first place the C-sealing washer

onto the threaded bolt

Now attach the fastening nut

to the threaded bolt

and tighten with an open-end spanner SW 12 mm until the fitting is seated firmly on the sink unit. Verify the swivel nuts for the connecting hoses

Screw the connecting hoses

onto your angle valves. Be sure to correctly attach the two connecting hoses

to the cold and hot water connections. Start-up After the initial commissioning, carefully check all connections for leaks. To remove any possible impurities the tap must be flushed before being used for the first time. To do this, proceed as follows: Unscrew the aerator

Open the main water supply and allow the water to flow for two minutes to flush out any residues. Then reattach the aerator

Operation Note: If the tap has not been used for a long period, flush the pipes thoroughly to avoid stagnation and build-up of residue. 90050_Spueltisch-Armatur_Content_LB2 (BE).indd 54 14.03.13 08:2855 GB Open the main water supply. Lift the handle

and swing it to the right or left in order to regu- late the speed or temperature of the water. Hot water: Swing the handle

to the left. Cold water: Swing the handle

to the right. Check operation of the mixer. To do so, swing the lever

into all permissible positions. Please check the connections regularly to ensure that they are tight. Eco Function / conserving water The cartridge

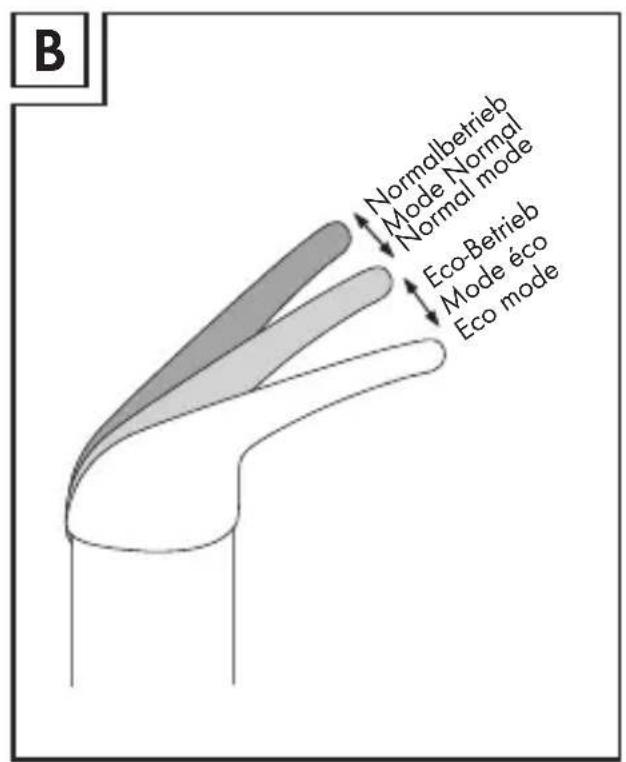

in this tap has an Eco function. This feature limits the water flow through the tap. This means you can save up to 50 % water (see fig. B). Lift the handle

until you notice a slight resistance. This resistance will cause a stop in case of partial opening and will therefore sim- ply limit the flow of water. If you want to increase the flow rate, exert slight pressure on the handle

in this tap has a scald protection function. This function is not activated before leaving the factory (neutral setting) (see fig. C / I). Note: Do not alter the setting of the scald protection until you have installed the tap. Note: This step requires an Allen wrench (2.5 mm) and an open-end spanner SW 30 mm or fitting pliers. Follow these steps: Switch off the general water supply. Remove the hot / cold plaque

by moving the handle

into top-most position and pushing the plaque

out carefully from inside with a long, flat object. Loosen the locking screw

with an Allen key (2.5 mm) by turn- ing counter-clockwise. CAUTION! Do not unscrew the screw completely. Only loosen this as far as is necessary to remove the handle

Unscrew the cartridge covering ring

; this requires an open-end span- ner SW 30 mm or fitting pliers. Now pull the red hot-water limiting ring

upwards using a screwdriver. Note: Press the cartridge pins slightly backwards. This will make it easier to pull up on the hot water limiting ring

Reducing the hot water flow rate: Reinsert the hot water limiting ring

offset as shown in Fig. C / II. Reducing the hot water flow rate completely: Attach the hot water limiting ring

as shown in Fig. C / I (neutral setting). After adjusting the scald protection, attach the cartridge locknut

, the cartridge covering ring

analogue to the disassembly. Maintenance and Cleaning Maintaining and cleaning the tap Please note that sanitary taps require special care and attention. Therefore, please follow the instructions: When cleaning, never use petrol, solvents, aggressive cleansers or hard cleaning brushes etc. These could damage the surface of the product. Dry your taps with a cloth after every use in order to avoid the build-up of any limescale. Clean the product with a damp, soft cloth and a mild cleaning agent if required. Unscrew and remove the aerator

at regular interval and remove any residues of scale or foreign bodies. If heavily contaminated or damaged, replace the aerator

can normally be unscrewed by hand. Oth- erwise use an open-end spanner SW 22 mm and be sure to place a thin, damp cloth around the aerator

to prevent damaging it. A pipe wrench with plastic jaws is also suitable. Non-observance of the above care advice can be expected to result in damage to the surfaces of the product. This will void the warranty. 90050_Spueltisch-Armatur_Content_LB2 (BE).indd 57 14.03.13 08:2858 GB Replacing the cartridge A cartridge

is a wear part that needs replacing according to the hardness and / or degree of contamination of the water. This becomes evident when the handle

becomes difficult to move. A new cartridges

can be obtained from the listed service office. Note: This step requires an Allen wrench (2.5 mm) and an open-end spanner SW 30 mm or fitting pliers. Proceed as follows to replace the cartridge

Shut off the main water supply. Allow any remaining water in the pipework to drain. Remove the hot / cold plaque

by moving the handle

into top-most position and pushing the plaque out carefully from inside with a long, flat object. Loosen the locking screw

with an Allen key, turning it counter- clockwise. CAUTION! Do not unscrew the screw completely. Only loosen this as far as is necessary to remove the handle

Unscrew the cartridge covering ring

below with fitting pliers or an open-end spanner SW 30 mm and remove the entire cartridge

from the fitting body

(Type 40 M ESV) into the body of the tap

in exactly the same way. Note: Make sure that the seal is fitted properly under the car- tridge

. Make sure that the guides are in the corresponding holes. Re-assemble all the afore-mentioned parts again. Tighten the car- tridge locknut

with fitting pliers or an open-end spanner 90050_Spueltisch-Armatur_Content_LB2 (BE).indd 58 14.03.13 08:2859 GB SW 30 mm whilst securing the fitting from twisting. This ensures tightness and prevents the lever motion from becoming sluggish. Disposal The packaging is made of environmentally friendly materials, which may be disposed through your local recycling facilities. Contact your local refuse disposal authority for more details of how to dispose of your worn-out product. Information Potability of tap water Find out about the potability of your tap water supply. Your local water authority or water supply company will be able to inform you. The following general recommendations apply to the potability of tap water: Let the water run freely for a short time if it has been stagnating in the pipes for more than four hours. Do not use any of this stagnant water in the preparation of food or for drinking. This applies par- ticularly as far as babies and infants are concerned. Otherwise health concerns can arise. Fresh water can be readily distinguished from stagnant water as fresh water is noticeably cooler as it leaves the pipe. Do not use stagnant water from chromium-plated pipes for the preparation of food or for drinking or for personal hygiene if you 90050_Spueltisch-Armatur_Content_LB2 (BE).indd 59 14.03.13 08:2860 GB are allergic to nickel. This water may contain high quantities of nickel and trigger an allergic reaction. Do not use water from lead pipes for preparing food or drink for babies or infants. Do not use it for preparing food or drink during pregnancy. Lead dissolves in drinking water and is particularly damaging to the health of babies and young children. Warranty and Service The warranty period is five years and begins on the day of purchase. Please keep your receipt as proof of purchase. During the warranty period defective fittings can be returned to the service address specified, carriage forward, after contacting the service department. You will then receive a new one or a repaired unit free of charge. After the warranty period has expired, you can similarly send the defective product for repair to the address given. Repairs made after the expiration of the warranty period are subject to payment. This warranty does not limit your legal rights. IAN 90050 If you have any queries or faults with the product, please contact the following Service address: 90050_Spueltisch-Armatur_Content_LB2 (BE).indd 60 14.03.13 08:2861 GB
