USER MANUAL Definitive KH744 KRUPS

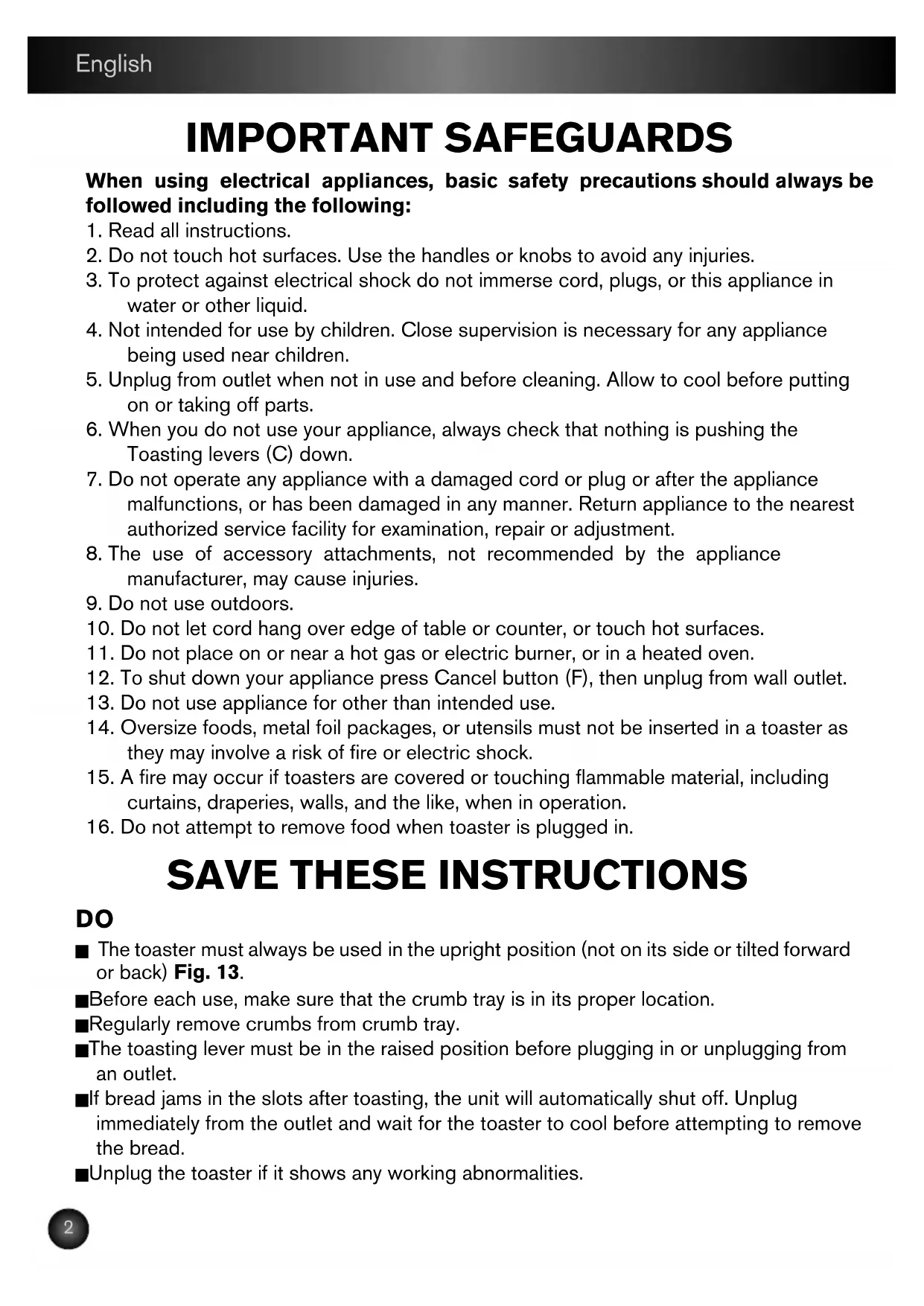

KR_TOASTER_KH742-744_NAFTA_NC000113222_Mise en page 1 13/07/12 13:52 Page1IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed including the following:

1. Read all instructions.

2. Do not touch hot surfaces. Use the handles or knobs to avoid any injuries.

3. To protect against electrical shock do not immerse cord, plugs, or this appliance in

water or other liquid.

4. Not intended for use by children. Close supervision is necessary for any appliance

being used near children.

5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting

on or taking off parts.

6. When you do not use your appliance, always check that nothing is pushing the

Toasting levers (C) down.

7. Do not operate any appliance with a damaged cord or plug or after the appliance

malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment.

8. The use of accessory attachments, not recommended by the appliance

manufacturer, may cause injuries.

9. Do not use outdoors.

10. Do not let cord hang over edge of table or counter, or touch hot surfaces.

11. Do not place on or near a hot gas or electric burner, or in a heated oven.

12. To shut down your appliance press Cancel button (F), then unplug from wall outlet.

13. Do not use appliance for other than intended use.

14. Oversize foods, metal foil packages, or utensils must not be inserted in a toaster as

they may involve a risk of fire or electric shock.

15. A fire may occur if toasters are covered or touching flammable material, including

curtains, draperies, walls, and the like, when in operation.

16. Do not attempt to remove food when toaster is plugged in.

SAVE THESE INSTRUCTIONS

n The toaster must always be used in the upright position (not on its side or tilted forward or back) Fig. 13. n Before each use, make sure that the crumb tray is in its proper location. n Regularly remove crumbs from crumb tray. n The toasting lever must be in the raised position before plugging in or unplugging from an outlet. n If bread jams in the slots after toasting, the unit will automatically shut off. Unplug immediately from the outlet and wait for the toaster to cool before attempting to remove the bread. n Unplug the toaster if it shows any working abnormalities. English

DO NOT n Never leave the toaster unattended during operation, particularly when toasting for the first time or when changing settings. n Do not touch the metal parts or hot surfaces of the appliance when it is working. n Do not try to toast breads with ingredients that melt or drip in the toaster (iced breads or stuffed breads) and do not toast very small pieces of bread or croutons as this may damage the appliance or cause a fire. n Do not toast breads thicker than 1 inch in the toasting slots. n Bread can burn; do not cover this appliance while in use and do not use this appliance near any flammable materials such as curtains, under shelving or wall cupboards, etc. It should be attended when in use. n Do not put paper towels, cardboard or plastic in, on or under the toaster. n If flames were to arise from parts of the toaster, never attempt to extinguish them with water. Unplug the appliance and smother the flames with a damp cloth. n Do not use this appliance as source of heating or drying. n Do not use the toaster for cooking, grilling or defrosting frozen food other than bread products. n Do not unplug appliance by pulling on cord. Instead grasp plug and pull to disconnect. n Never wrap cord around toaster. Use cord storage on the underside of unit Fig. 14. This product has been designed for household use only. Any professional use, inappropriate use or failure to comply with the instructions will void the warranty. CAUTION n Do not immerse toaster in water or run water into the toaster Fig. 15. n Do not operate toaster under or around any flammable materials Fig. 16. n Do not insert objects into the toaster Fig. 17. n Do not place the toaster in the dishwasher Fig. 18. n Do not cover toast chambers when in use Fig. 19. n Do not transport the toaster by grabbing the bread slots Fig. 20. n Do not put your hands in the bread slots Fig. 20. n Do not use the toaster for cooking, grilling or defrosting frozen food other than bread products Fig. 21. SAFETY INSTRUCTIONS n For your safety, this appliance complies with applicable technical rules and norms. n Check that the main voltage corresponds to the voltage indicated on the appliance (alternating voltage only). n Use a stable work surface, away from any contact with water and never in a built-in kitchen alcove. n Do not move the appliance when working. KR_TOASTER_KH742-744_NAFTA_NC000113222_Mise en page 1 13/07/12 13:52 Page3POLARIZED PLUGS This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way. SHORT CORD a A short power-supply cord (or detachable power-supply cord) is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord. b Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use. c If a long detachable power-supply cord or extension cord is used,

1) The marked electrical rating of the cord or extension cord should be at least

as great as the electrical rating of the appliance, and

2) The cord should be arranged so that it will not drape over the countertop or

tabletop where it can be pulled on by children or tripped over unintentionally.

n Remove any stickers and wipe the body of the toaster with a damp cloth. n Before you use the appliance for the first time, we advise you to let the appliance complete a few toasting cycles without slices of bread on the highest browning setting in a properly ventilated room. n This burns off any dust that may have accumulated on the heating elements and prevents unpleasant smells when toasting bread.

n Put the appliance on a stable and flat surface, away from curtains and other combustible materials. Put the plug in the wall socket. n To adjust the length of the cord, wind part of it round the brackets in the base of the appliance (Fig. 1). Never let the toaster operate unattended. n Put one or two slices (2 slices model) or one to four slices (4 slices model) of bread in the toaster (Fig. 2 or Fig. 3.). n Select the desired browning setting (Fig. 4). - Select a low setting (1-2) for lightly toasted bread and a high setting (5-7) for darkly toasted bread. - 4 slices model: If you only toast one or two slices of bread, select the desired browning setting for the side where you put the bread. If you toast three or four slices of bread, select the desired browning settings for both sides of the appliance. n Push down the toasting lever to begin the toasting process (Fig. 5). - 4 slices model: If you only toast one or two slices of bread, push down the toasting lever on the side where you put the bread. If you toast three or four slices of bread, push down both toasting levers. - The toasting lever only stays down when the appliance plugged in and bread is being toasted. n The cancel button lights up (Fig. 6). Caution: The metal parts of the toaster become hot during toasting. Do not touch them. Note: You can stop the toasting process and pop up the bread at any time by pressing the cancel button on the toaster. n To adjust the browning setting during toasting, turn the browning control. n When the toast is ready, it pops up and the toaster switches off. n Remove the toasted bread. To remove smaller items, move the toasting lever upwards a little further. - If bread gets stuck inside the toaster, remove the plug from the wall socket, let the appliance cool down completely and carefully remove the bread from the toaster. English

n Put one or two slices (2 slices model) or one to four slices (4 slices model) of frozen bread in the toaster. n Select the desired browning setting and push down the toasting lever (see section ‘Toasting bread’). n Press the defrost button (Fig. 7). n The defrost button lights up. Note: Toasting frozen bread takes longer than toasting defrosted bread.

The toaster has a preprogrammed reheat function that reheats your toast without making it browner. n Put the toasted bread back into the toaster. n Push down the toasting lever. n Press the reheat button (Fig. 8). n The reheat button lights up.

n Unplug the appliance and let it cool down (Fig. 9). n To remove crumbs from the appliance, softly press the crumbtray so it slides out of the appliance and empty it (Fig. 10 and 11). Caution: Do not hold the appliance upside down and do not shake it to remove the crumbs. n Clean the appliance with a damp cloth (Fig. 12).

Danger: Never immerse the appliance in water.

Caution: Never use scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.

English PROBLEM SOLUTION The toaster does not work. Make sure the plug is properly inserted into the wall socket. If the toaster still does not work, take it to a service center authorized by Krups for examination. Bread gets stuck in the appliance. Unplug the appliance and let it cool down. Carefully remove the bread from the toaster. Take care not to damage the heating elements when you remove the bread. Never use a metal object for this purpose. The toast is too dark/too light. Check the browning setting selected for toasting. Select a lower setting next time if your toast is too dark and a higher setting if your toast is too light. Check also that the Defrost button or Reheat button are selected.

KR_TOASTER_KH742-744_NAFTA_NC000113222_Mise en page 1 13/07/12 13:52 Page68. DISPOSING OF YOUR APPLIANCE Your appliance contains valuable materials which can be recycled. Consult your local waste collection center for correct disposal procedure and recycling options.

9. MANUFACTURER’S WARRANTY

: www.krups.com With a strong commitment to the environment, most of Krups products are repairable during and after the warranty period. Before returning any defective products to the point of purchase, please call Krups consumer service directly at the phone number below for repair options. Your help to sustain the environment is appreciated! The Warranty This product is guaranteed by Krups for a period of 2 years against any manufacturing defect in materials or workmanship, starting from the initial date of purchase. The manufacturer's warranty by Krups is an extra benefit which does not affect consumer's Statutory Rights. The Krups warranty covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any defective part and the necessary labor. At Krups’s choice, a replacement product may be provided instead of repairing a defective product. Krups’s sole obligation and your exclusive resolution under this warranty are limited to such repair or replacement. Conditions & Exclusions The Krups warranty only applies within USA, Canada & Mexico, and is valid only on presentation of a proof of purchase. The product can be taken directly in person to an authorized service centre or must be adequately packaged and returned, by recorded delivery (or equivalent method of postage), to a Krups authorized service centre. Full address details for each country’s authorized service centre are listed on the Krups website (www.krups.com ) or by calling the appropriate telephone number listed below to request the appropriate postal address. Krups shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase. English

PROBLEM SOLUTION The bread pops up almost immediately without having been toasted Make sure you push down the toasting lever all the way. Also check that the Reheat button is selected. If the bread still does not stay down, take the appliance to a service center authorized by Krups for examination. Smoke comes out of the toaster. You have choosen too high of a setting for the type of bread inserted. Push the stop button to stop the toasting process. The mains cord is damaged. If the cord to this appliance is damaged, it must always be replaced by a service center authorized by Krups. KR_TOASTER_KH742-744_NAFTA_NC000113222_Mise en page 1 13/07/12 13:52 Page7This warranty will not cover any damage which could occur as a result of misuse, negligence, failure to follow Krups instructions, use on current or voltage other than as stamped on the product, or a modification or unauthorized repair of the product. It also does not cover normal tear and wear, maintenance or replacement of consumable parts, and the following: -using the wrong type of water -scaling (any de-scaling must be carried out according to the instructions for use); -ingress of water, dust or insects into the product; -mechanical damages, overloading -damages or bad results due to wrong voltage or frequency -accidents including fire, flood, lightning, etc -professional or commercial use -damage to any glass or porcelain ware in the product This warranty does not apply to any product that has been tampered with, or to damages incurred through improper use and care, faulty packaging by the owner or mishandling by any carrier. The Krups manufacturer's warranty applies only for products purchased and used in USA, Canada & Mexico. Where a product purchased in one country and then used in another one: a) The Krups guarantee duration is the one in the country of usage of the product, even if the product was purchased in another listed country with different guarantee duration. b) The Krups guarantee does not apply in case of non conformity of the purchased product with the local standards, such as voltage, frequency, power plugs, or other local technical specifications c) The repair process for products purchased outside the country of use may require a longer time if the product is not locally sold by Krups d) In cases where the product is not repairable in the new country, the Krups guarantee is limited to a replacement by a similar product or an alternative product at similar cost, where possible

Consumer Statutory Rights This Krups manufacturer's warranty does not affect the statutory rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This warranty gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from State to State or Country to Country or Province to Province. The consumer may assert any such rights at his sole discretion. Additional information Accessories, Consumables and end-user replaceable parts can be purchased, if locally available, as described in Krups internet site. : www.krups.com CANADA GROUPE SEB CANADA 345 Passmore Avenue Toronto, ON M1V 3N8 MEXICO Groupe SEB MEXICO S.A. de C.V. Goldsmith 38 Desp. 401 Col. Polanco Delegacion Miguel Hildalgo 11 560 Mexico D.F. MEXICO U.S.A.
