USER MANUAL Crystal Line KZ700 KRUPS

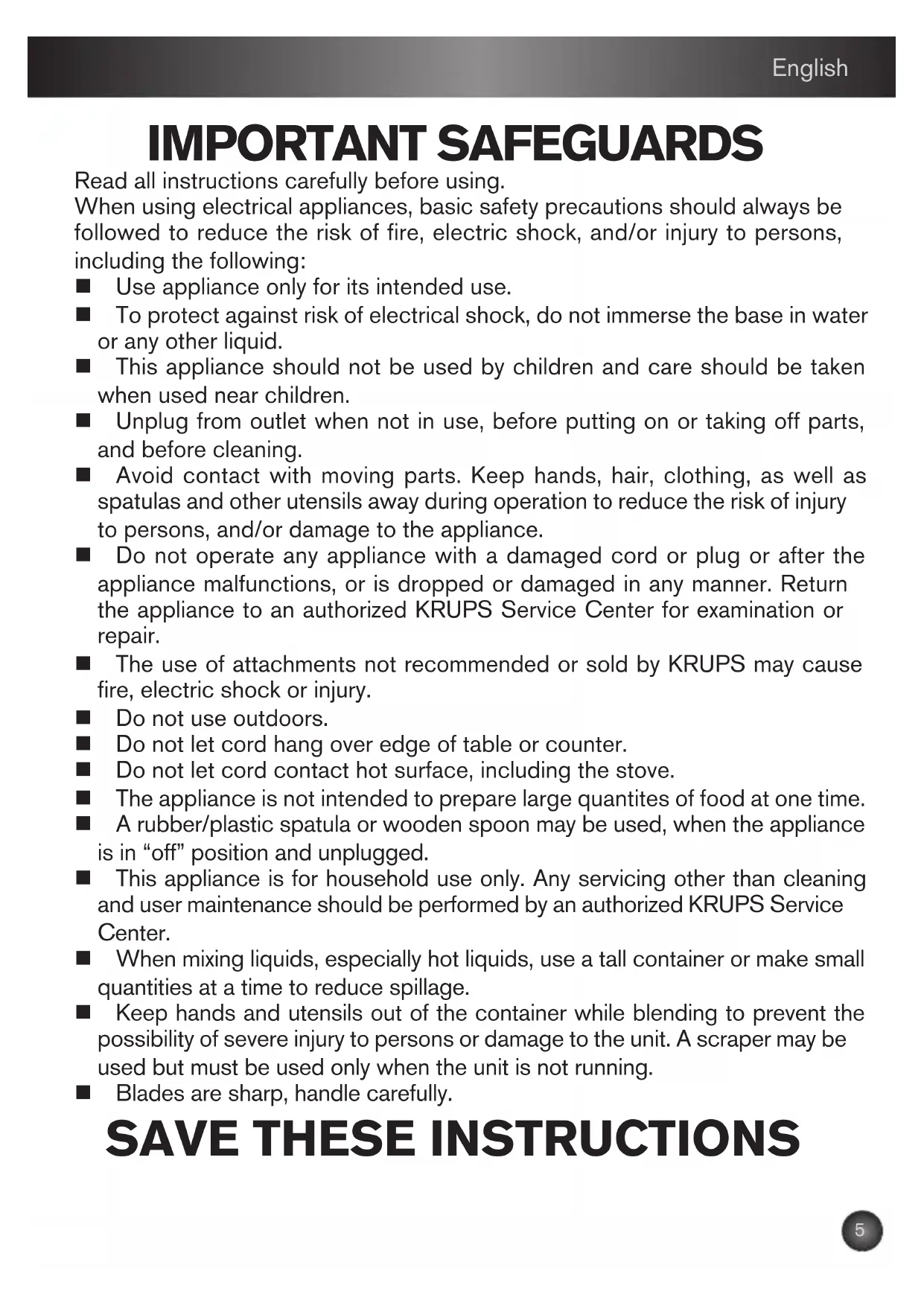

IMPORTANT SAFEGUARDS Read all instructions carefully before using. When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following: Use appliance only for its intended use. To protect against risk of electrical shock, do not immerse the base in water or any other liquid. This appliance should not be used by children and care should be taken when used near children. Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning. Avoid contact with moving parts. Keep hands, hair, clothing, as well as spatulas and other utensils away during operation to reduce the risk of injury to persons, and/or damage to the appliance. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return the appliance to an authorized KRUPS Service Center for examination or repair. The use of attachments not recommended or sold by KRUPS may cause fire, electric shock or injury. Do not use outdoors. Do not let cord hang over edge of table or counter. Do not let cord contact hot surface, including the stove. The appliance is not intended to prepare large quantites of food at one time. A rubber/plastic spatula or wooden spoon may be used, when the appliance is in “off” position and unplugged. This appliance is for household use only. Any servicing other than cleaning and user maintenance should be performed by an authorized KRUPS Service Center. When mixing liquids, especially hot liquids, use a tall container or make small quantities at a time to reduce spillage. Keep hands and utensils out of the container while blending to prevent the possibility of severe injury to persons or damage to the unit. A scraper may be used but must be used only when the unit is not running. Blades are sharp, handle carefully.

SAVE THESE INSTRUCTIONS

KR_MIXER_KZ700_2551037-03_Mise en page 1 13/10/11 13:56 Page5CAUTION This appliance complies with applicable technical rules and standards at the time of manufacture. Do not leave the appliance within reach of children. The blades supplied with this appliance are sharp, young children or severely disabled persons should always be supervised when using this appliance. An electrical appliance is not a toy and should be kept out of reach of children. This appliance is intended for household use only. Do not use it for commercial purposes. Any servicing other than cleaning and user maintenance should be performed by the nearest authorized KRUPS Service Center. Check voltage to be sure that the voltage indicated on the rating label matches your voltage. Do not immerse the appliance in water or any other liquid. To reduce the risk of fire or electric shock, do not remove the base. No user serviceable parts inside. Repairs should be done by an authorised KRUPS Service Center only. Never clean with harsh or abrasive cleaners or sponges. Clean using gentle dishwashing liquid and warm water. Dry all parts carefully before next use. Do not place or use the appliance on hot surfaces such as stoves, hotplates, or near open gas flames. Do not unplug the unit by pulling on the cord. Instead grasp plug and pull to disconnect. Only use the appliance on a stable working surface away from water splashes.

SHORT CORD INSTRUCTIONS

A. We do not recommend using an extension cord with this device. B. If an extension cord is absolutely necessary,

1) the marked electrical rating of the extension cord should be at least as

great as the electrical rating of the machine,

2) the longer cord should be arranged so that it will not drape over the counter

top or table top where it can be pulled on by children or tripped over. C. This machine has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way. In the interest of improving products, Krups reserves the right to change specifications without prior notice. English

Before first use, wipe clean all parts and dry carefully. Refer to the CLEANING section. CAUTION: Blades are extremely sharp. To avoid injury, use extreme care when handling the blender shaft. CAUTION: Before attaching or detaching the blender shaft, always check to ensure the blender is unplugged. When blending, ensure that the Blender Body is not immersed in foods or liquids. Only the Blender Shaft should be immersed in foods or liquids. Do not operate the appliance continuously for more than one minute. After one minute use, unplug and let the unit rest until it cools down before using it again.

USING THE BLENDING SHAFT

Insert the blending shaft into the blender body and turn counter clock-wise to lock in place (fig. 1). Use the line on the blender body and the icons on the blender shaft as a guide. Place ingredients to be blended in a container tall enough to avoid splashing. Plug in the unit. Immerse the blending shaft so the ingredients cover the blades and then select the desired speed on the speed selection dial, as illustrated (fig. 2). Then press the POWER button and hold down to begin blending (fig. 2). Always immerse the blending shaft first, then press POWER to avoid splashing. Also take care when blending large quantities orwhen using deep containers to ensure that the blending body is not immersed in foods or liquids. Onlythe blending shaft should be immersed in foods or liquids. Slowly move the blender shaft up and down or in a circular motion to process foods evenly. To pause blending or when blending is complete, release the POWER button. For maximum speed, set the speeddial to HIGH and press the TURBO button instead of POWER. Unplug the blender and then detach the blender shaft. Refer to the CLEANING section for cleaning instructions. CAUTION: Blades are extremely sharp. To avoid injury, take care when detaching the blender shaft. CLEANING CAUTION: the blades are extremely sharp. Always disconnect the appliance before cleaning it. Do not immerse the blender, power supply cord or plug into water or any other liquid. English

a TURBO Button b POWER Button c Blender Bodyd Detachable Shafte Speed Selection Dialf Blender Blades KR_MIXER_KZ700_2551037-03_Mise en page 1 13/10/11 13:56 Page7 Do not wash any of the parts in automatic dishwasher. Do not use harsh or abrasive cleaning agents or solvents. Before using for the first time, as well as after use each use, clean the appliance as follows: Blender Body: Wipe exterior surface with a clean damp cloth or sponge and dry thoroughly. Never immerse in water or any other liquid. Detachable Shaft: Detach the Blender Shaft from the Blender Body by turning clockwise. Then wash the Blender Shaft under running water. Take care to ensure that water does not enterthe hollow shaft of the blender shaft. Dry throroughly.

DISPOSING OF YOUR MACHINE

Let’s help protect the environment!

Your appliance contains various materials that can be recovered or recycled. Take it to a recycling collection centre or an approved service centre for recycling

MANUFACTURER’S WARRANTY

: www.krups.com With a strong commitment to the environment, most of Krups products are repairable during and after the warranty period. Before returning any defective products to the point of purchase, please call Krups consumer service directly at the phone number below for repair options.Your help to sustain the environment is appreciated!The Warranty This product is guaranteed by Krups for a period of 2 years against any manufacturing defect in materials or workmanship, starting from the initial date of purchase. The manufacturer's warranty by Krups is an extra benefit which does not affect consumer'sStatutory Rights.The Krups warranty covers all costs related to restoring the proven defective product so that itconforms to its original specifications, through the repair or replacement of any defective partand the necessary labor. At Krups’s choice, a replacement product may be provided instead ofrepairing a defective product. Krups’s sole obligation and your exclusive resolution under thiswarranty are limited to such repair or replacement.Conditions & ExclusionsThe Krups warranty only applies within USA, Canada & Mexico, and is valid only on presentationof a proof of purchase. The product can be taken directly in person to an authorized service centre or must be adequately packaged and returned, by recorded delivery (or equivalentmethod of postage), to a Krups authorized service centre. Full address details for each country’sauthorized service centre are listed on the Krups website (www.krups.com) or by calling theappropriate telephone number listed below to request the appropriate postal address.Krups shall not be obliged to repair or replace any product which is not accompanied by a validproof of purchase.This warranty will not cover any damage which could occur as a result of misuse, negligence,failure to follow Krups instructions, use on current or voltage other than as stamped on theproduct, or a modification or unauthorized repair of the product. It also does not cover normaltear and wear, maintenance or replacement of consumable parts, and the following: English

KR_MIXER_KZ700_2551037-03_Mise en page 1 13/10/11 13:56 Page8-using the wrong type of water -scaling (any de-scaling must be carried out according to the instructions for use); -ingress of water, dust or insects into the product; -mechanical damages, overloading -damages or bad results due to wrong voltage or frequency -accidents including fire, flood, lightning, etc -professional or commercial use -damage to any glass or porcelain ware in the product This warranty does not apply to any product that has been tampered with, or to damages incurred through improper use and care, faulty packaging by the owner or mishandling by any carrier. The Krups manufacturer's warranty applies only for products purchased and used in USA, Canada & Mexico. Where a product purchased in one country and then used in another one: a) The Krups guarantee duration is the one in the country of usage of the product, even if the product was purchased in another listed country with different guarantee duration. b) The Krups guarantee does not apply in case of non conformity of the purchased product with the local standards, such as voltage, frequency, power plugs, or other local technical specifications c) The repair process for products purchased outside the country of use may require a longer time if the product is not locally sold by Krups d) In cases where the product is not repairable in the new country, the Krups guarantee is limited to a replacement by a similar product or an alternative product at similar cost, where possible

Consumer Statutory Rights This Krups manufacturer's warranty does not affect the statutory rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This warranty gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from State to State or Country to Country or Province to Province. The consumer may assert any such rights at his sole discretion. Additional information Accessories, Consumables and end-user replaceable parts can be purchased, if locally available, as described in Krups internet site. : www.krups.com CANADA GROUPE SEB CANADA 345 Passmore Avenue Toronto, ON M1V 3N8 MEXICO Groupe SEB MEXICO S.A. de C.V. Goldsmith 38 Desp. 401 Col. Polanco Delegacion Miguel Hildalgo 11 560 Mexico D.F. MEXICO U.S.A.
