USER MANUAL Access Steam Plus DT8100 TEFAL

Control panel : On/o and steam level buttons

Locker switch for continuous steam

Removable water tank

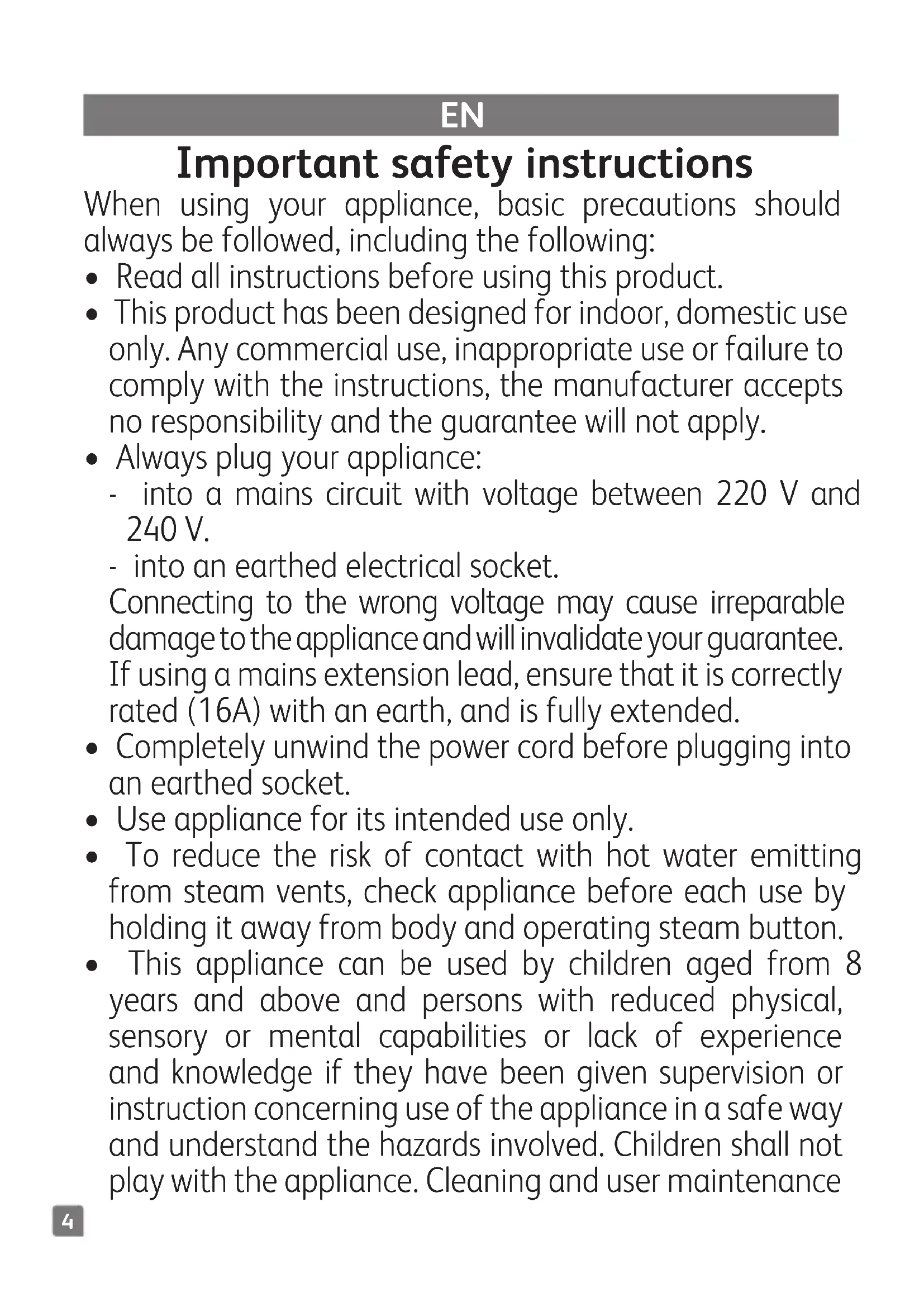

Important safety instructions When using your appliance, basic precautions should always be followed, including the following:

• Read all instructions before using this product.

• This product has been designed for indoor, domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

• Always plug your appliance: - into a mains circuit with voltage between 220 V and 240 V. - into an earthed electrical socket. Connecting to the wrong voltage may cause irreparable damage to the appliance and will invalidate your guarantee. If using a mains extension lead, ensure that it is correctly rated (16A) with an earth, and is fully extended.

• Completely unwind the power cord before plugging into an earthed socket.

• Use appliance for its intended use only.

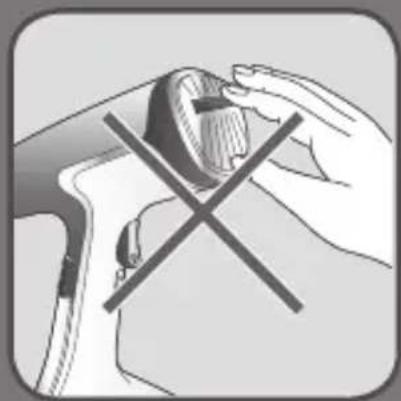

• To reduce the risk of contact with hot water emitting from steam vents, check appliance before each use by holding it away from body and operating steam button.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance5 shall not be made by children without supervision.

• Never pull on the cord to disconnect the appliance from electrical outlet; instead, grasp plug and pull to disconnect on the plug to disconnect the appliance.

• Do not allow cord to touch hot surfaces or come into contact with rough or sharp edges. Let the appliance cool completely down before putting away. Loop cord loosely around appliance when storing.

• Always disconnect appliance from the electrical supply when filling with water or emptying when cleaning, when removing or refitting accessories and when not in use.

• Care should be taken when using the appliance due to the emission of steam.

• Do not operate appliance with a damaged cord or if appliance has been dropped or damaged. To avoid the risk of electric shock, do not disassemble or attempt to repair the appliance.Take it to the nearest approved service centre for examination and repair. Incorrect reassembly or repair could cause a risk of fire, electrical shock or injury to persons when the appliance is used.

• Close supervision is necessary for any appliance being used by or near children.

• Do not leave the appliance unattended while plugged in or while it is still hot.

• Burns could occur from touching hot metal or plastic parts, hot water or steam. Use care when you empty a steam appliance. There may be hot water in the reservoir.

• If an extension cord is absolutely necessary, a cord with a 16A ampere rating shall be used. A cord rated for less6 amperage can result in a risk of fire or electric shock due to overheating. Care shall be taken to arrange the cord so that it cannot be pulled or be tripped over.

• To protect against a risk of electric shock, do not immerse the appliance in water or other liquids.

• Do not direct steam at people, animals or clothes while they are being worn.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• The use of accessory attachments other than those provided by the manufacturer is not recommended and may result in fire, electric shock or personal injury.

• The appliance must be rested on a stable surface. When placing the appliance on its base, ensure that the surface on which the base is placed is stable.

• The appliance must not be used if it has been dropped, if there are visible signs of damage or if it is leaking.

• Check the electrical power cord for sign and wear or damage prior to use. If the electrical power cord is damaged, it must be replaced at an approved service centre to avoid any danger.

• Do not use other descaling products than the one cited in the IFU. Before first use

• When you first use the appliance, some smoke or a harmless odour may be produced or there may be a small discharge of particles. This will not affect the use of the appliance and will disappear quickly.7 What water to use?

• Your appliance has been designed to use tap water. If your water is very hard, mix 50% tap water and 50% bottled demineralised water. Never use water containing additives (starch, perfume, aromatic substances, softeners, etc.), or condensation water (for example water from tumble dryers, water from refrigerators, water from air conditioning units, rainwater). This water contains organic waste materials or minerals that concentrate under the effect of heat and cause spitting, brown colouring or premature ageing of your appliance.

SAVE THESE INSTRUCTIONS

Your appliance contains valuable materials which can be recovered or recycled.

Leave it at a local civic waste collection point. Problems with your iron?

PROBLEM POSSIBLE CAUSES SOLUTIONS

There is no steam. The appliance is not plugged in, or not switched on. Check that your appliance is correctly plugged in and switched on. The water level is too low. Unplug your appliance and refill it. The steam pump has not been primed. Press the steam trigger continuously for a few seconds to begin steaming. You are using the appliance for the first time. Press the steam trigger continuously for a few seconds to begin steaming. The water tank is not fully in place. Ensure that stopper is closed and that the water tank snaps when put into place. The appliance is on standby mode.

PLEASE REFER TO THE ‘STANDBY’

section. The appliance does not heat. It is not plugged in, or not switched on. Plug in your appliance and switch on. The appliance is on standby mode.

PLEASE REFER TO THE ‘STANDBY’

section. Water leaks. The water tank is not fully in place or the stopper is not closed properly. Ensure that stopper is closed and that the water tank snaps when put into place. Steam rate decreases. Calc Sealing Refer to ‘ANTI CALC section in instructions for use. The steam leaves stains on the fabric or the appliance spits You are using water with additives. Never add any additive in the water tank. The appliance has not been cleaned enough after the descaling operation. Read carefully the ‘ANTI CALC’ section in instructions for use. You are using other liquids than white vinegar to descale the product. Use only white vinegar during ‘ANTI CALC’ procedure. Appliance steams continuously. The steam trigger is on the lock position. Unlock the steam trigger.8

PROBLÈMES CAUSES POSSIBLES SOLUTIONS

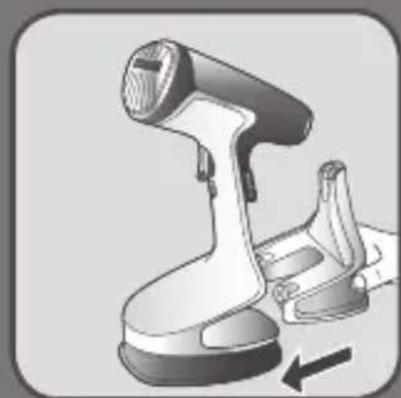

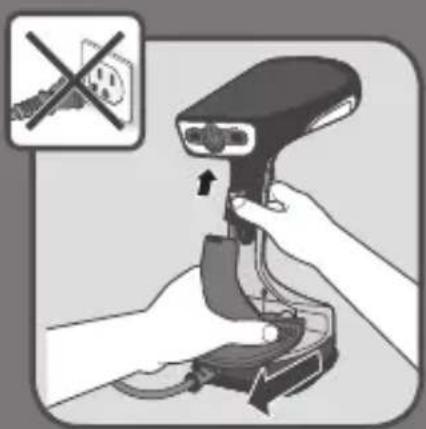

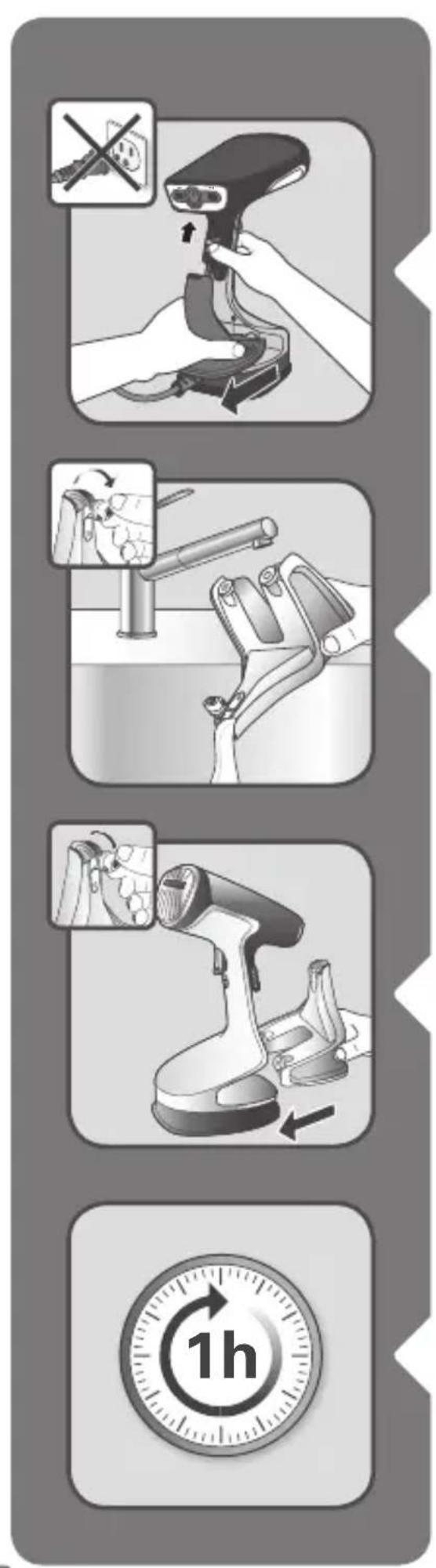

Unlock and remove the water tank.

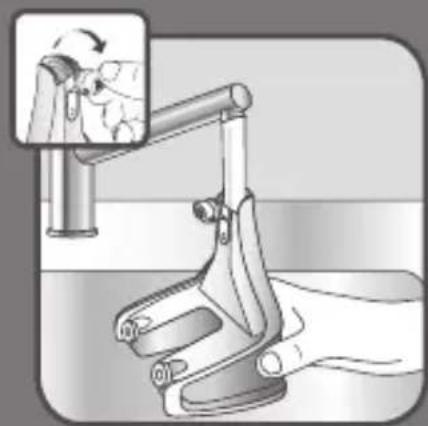

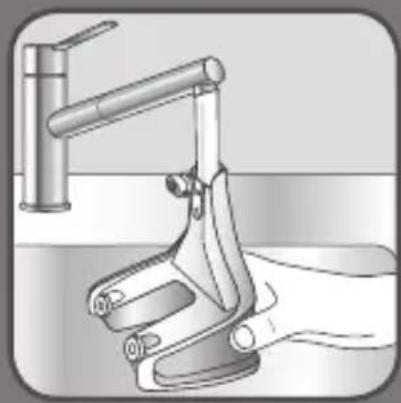

Fill the water tank with untreated tap water.

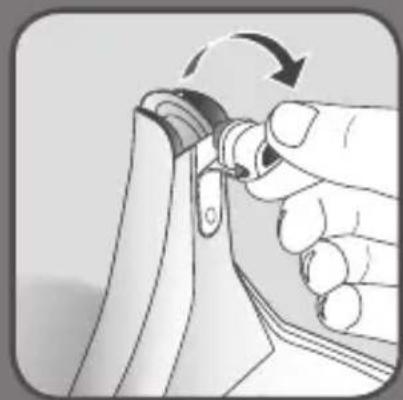

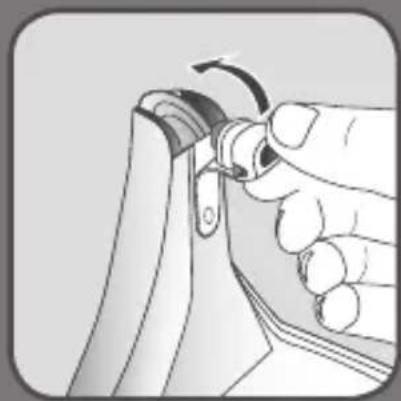

Close the water inlet stopper.

Remove the water inlet stopper. EN14

• EN Depending on model / FR selon le modèle The fabric brush opens the weaves of the fabrics for better steam penetration. Before removing or attaching the steam brush, unplug your appliance and allow it to cool down, for one hour.

The steam cover lters water impurities and protects fabrics from water drips. This accessory must be used for delicate fabrics which do not support ironing. Before removing or attaching the steam cover, unplug your appliance and allow it to cool down for one hour. EN16

• EN Depending on model / FR selon le modèle The crease attachment is used to remove stubborn creases easily. Put your fabric in the space between the two accessory parts. Move the crease attachment in a downwards motion starting from the top. Before removing or attaching the accessory, unplug your appliance and allow it to cool down for one hour.

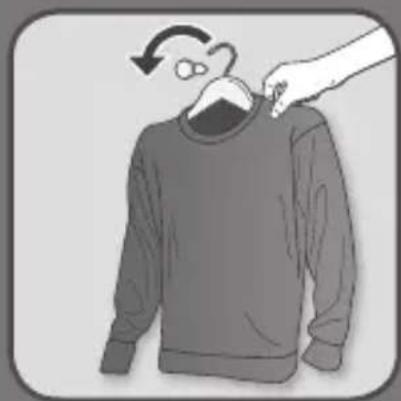

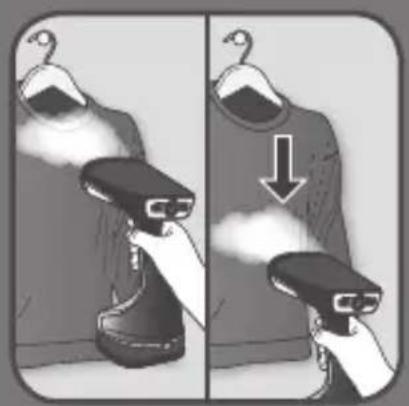

Warning : Never steam a garment while it is being worn.

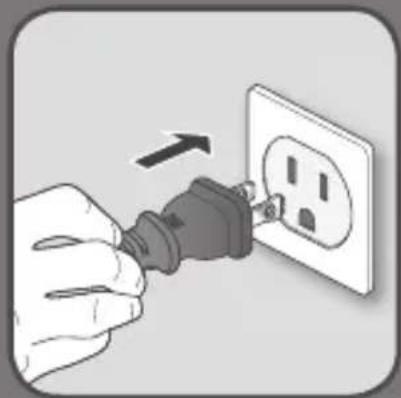

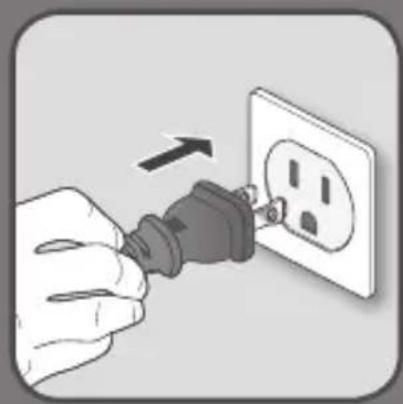

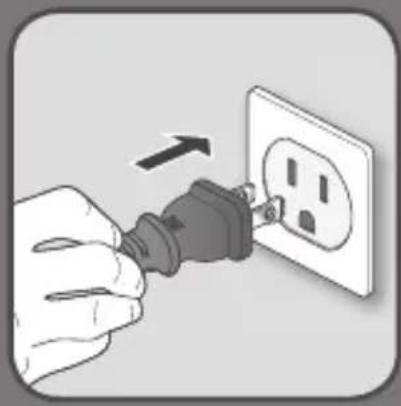

Plug-in the appliance.

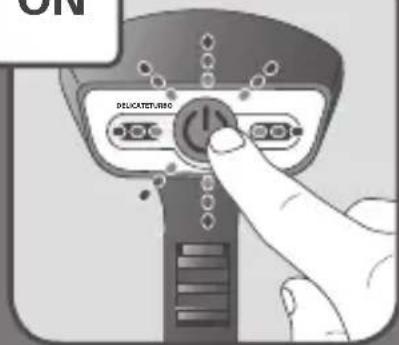

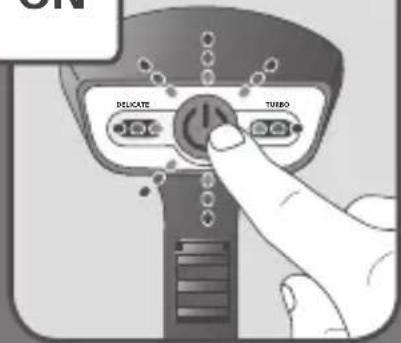

Switch on the appliance.

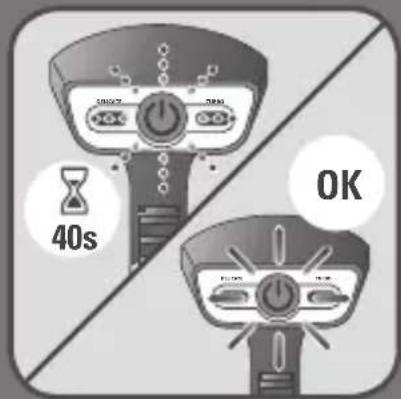

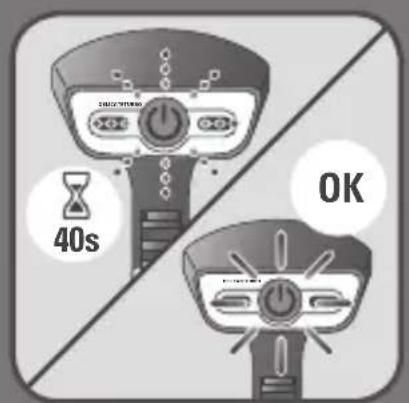

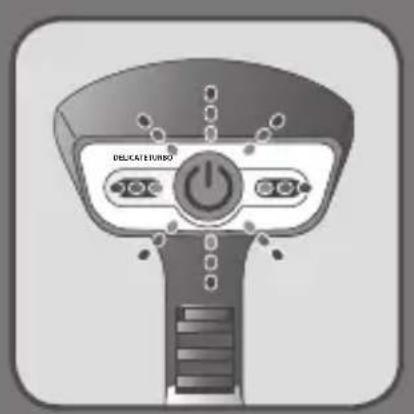

Wait until the light stops ashing (approximately 40 seconds). When the light is steady the appliance is ready to use.

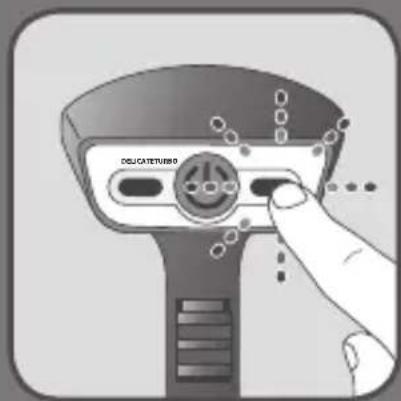

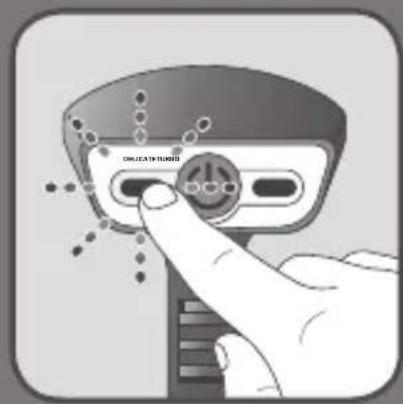

Delicate mode : a lower steam output for your most delicates clothes.

Turbo mode : Perfect for heavy fabrics and to remove the stubborn creases.

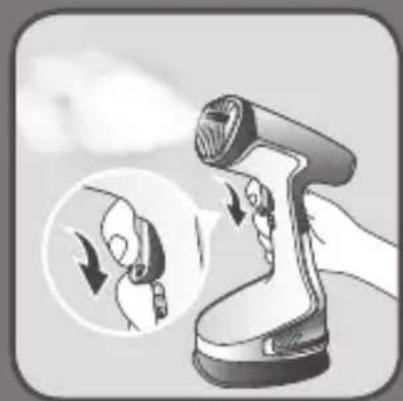

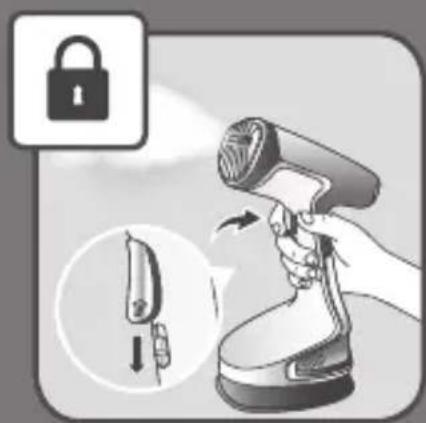

For continous steam, lock the steam trigger by pushing the locker switch down. To release it, push it up.

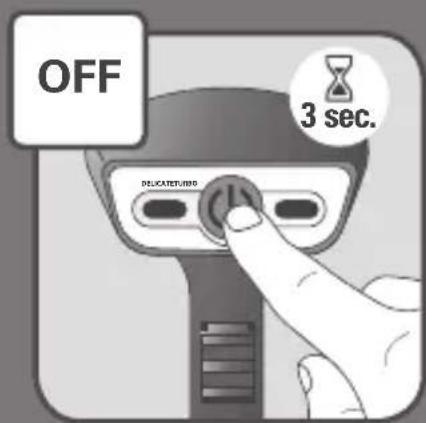

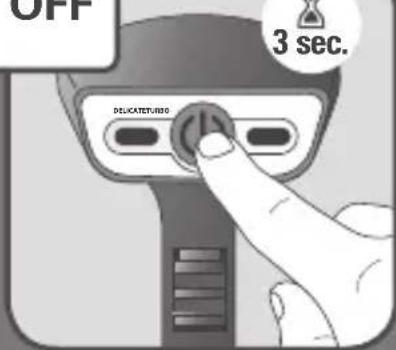

Press and hold the On/O button for 3seconds to switch the appliance o.

1) For your safety, the steambrush is fitted

with a standby monitoring system, which is activated automatically after approxi- mately 8 minutes without use.

2) Only the ‘On-Off ’button flashes slowly to

indicate that the appliance is on standby

3) To reactivate the steambrush :

a. Press the ‘ On-Off ’ button and wait that the button light stops flashing b. You can start steaming again. EN21

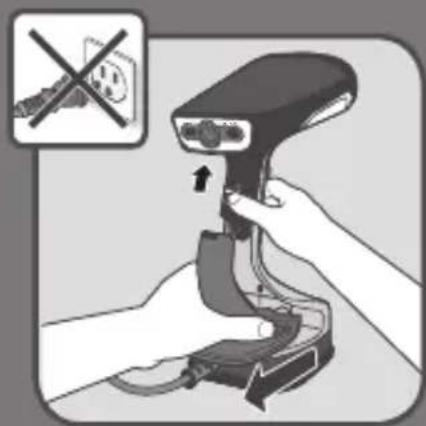

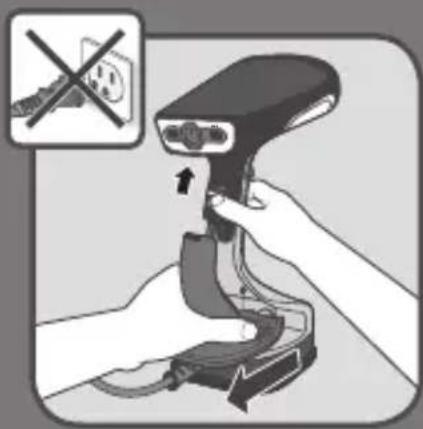

Unlock and remove the water tank.

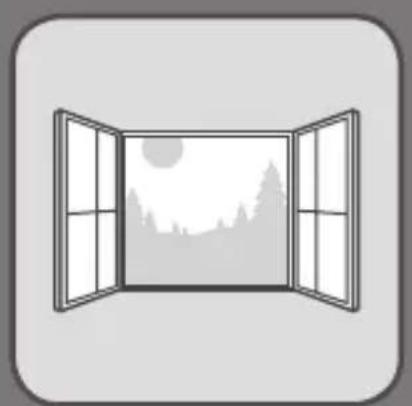

Do this operation in a vented room.

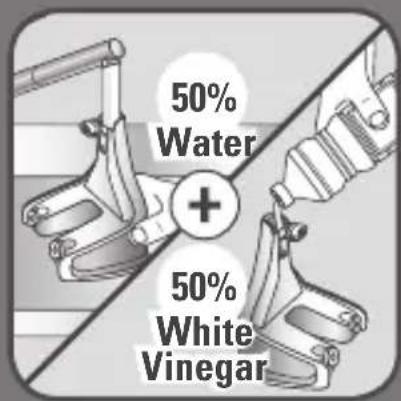

Fill the water tank with 50% water and 50% white vinegar. Do not use other descaling products. EN23 DELICATETURBO DELICATETURBO

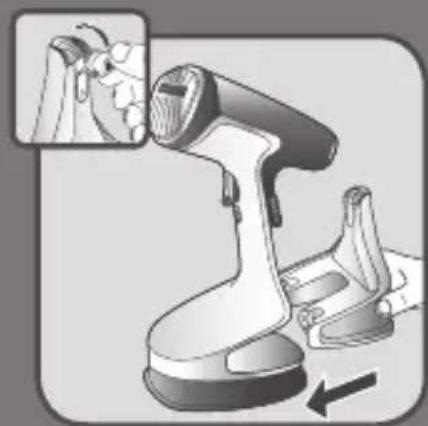

Return the water tank to its place on the appliance. Make sure the water tank is fully set in place and locked.

Plug-in the appliance.

Switch on the appliance.

Wait until the light stops ashing (approximately 40 seconds). When the light is steady the appliance is ready to use. EN24

Unplug the appliance and pull the water tank out.

Press and hold the On/O button for 3seconds to switch the appliance o.

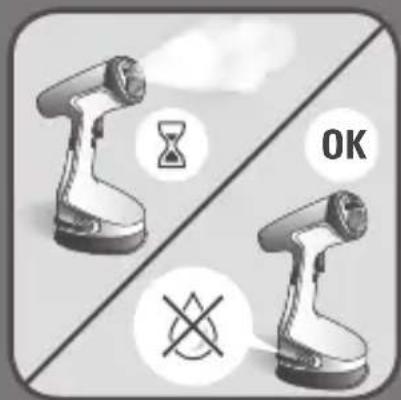

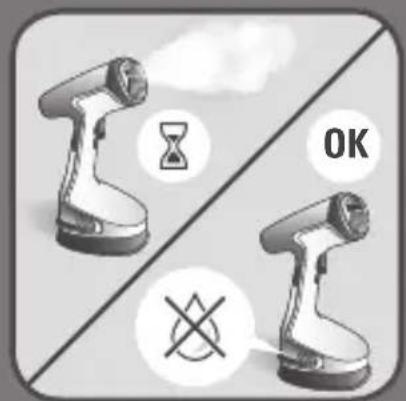

Allow the appliance to run until the water tank has completely emptied.

Put the steam trigger in the locked position thanks to the locker. Place the product on a at, stable, horizontal and heat resistant surface. EN25 DELICATE TURBO

Remove the water inlet stopper and ll the water tank with untreated tap water.

Return the water tank to its place on the appliance. Make sure the water tank is fully set in place.

Plug in the appliance.

Switch on the appliance. EN26

Allow the appliance to run until the water tank has completely emptied.

Put the steam trigger in the locked position. place the product on a at, stable, horizontal and heat resistant surface.

Wait until the light stops ashing (approximately 40 seconds). When the light is steady the appliance is ready. EN27
