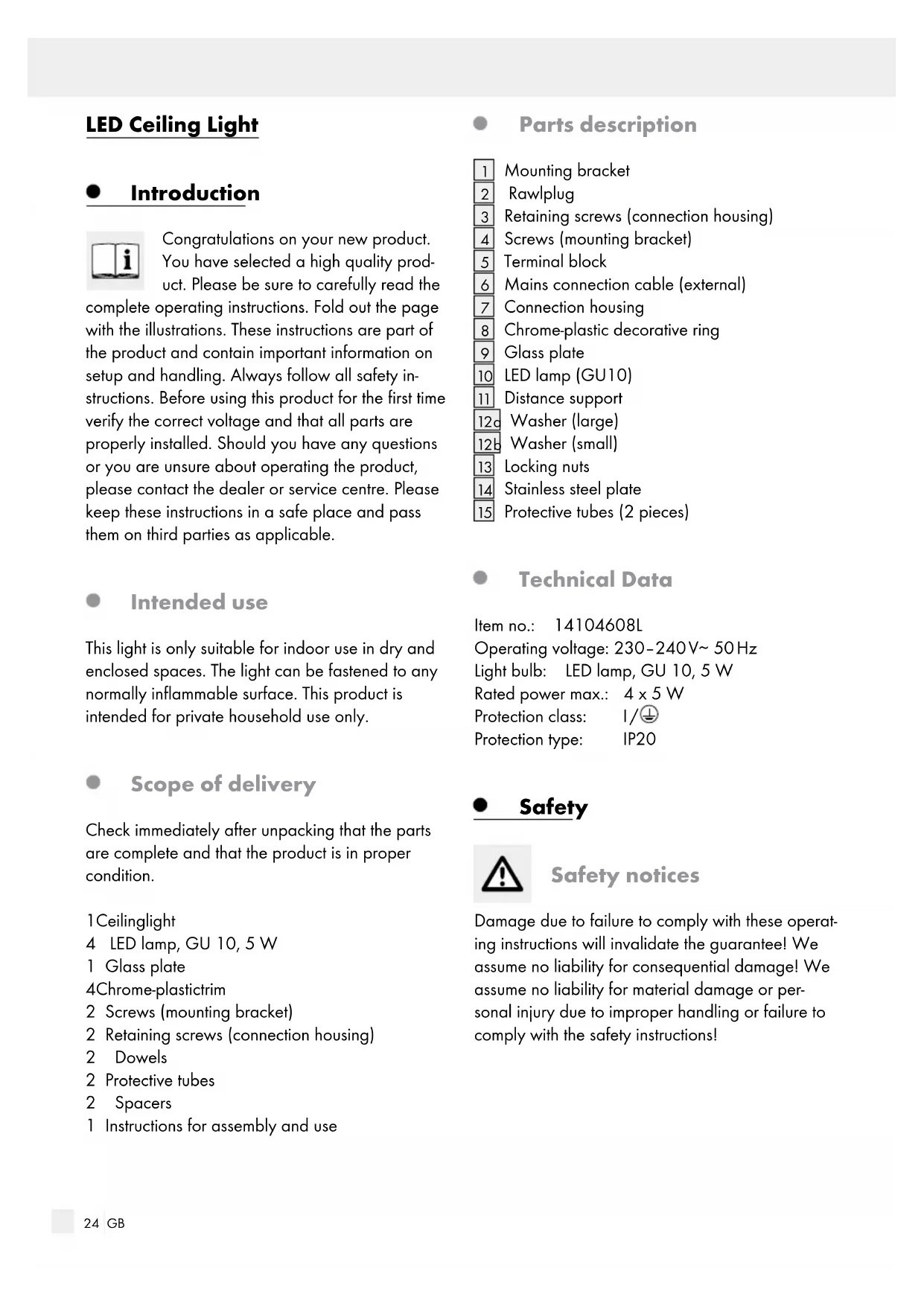

USER MANUAL IAN 113974 Livarno Lux

Retaining screws (connection housing)

Screws (mounting bracket)

Mains connection cable (external)

Distance support 12 a Washer (large) 12 b Washer (small)

Stainless steel plate

Protective tubes (2 pieces) Technical Data Item no.: 14104608L Operating voltage: 230–240 V∼ 50 Hz Light bulb: LED lamp, GU 10, 5 W Rated power max.: 4 x 5 W Protection class: I / Protection type: IP20 Safety Safety notices Damage due to failure to comply with these operat- ing instructions will invalidate the guarantee! We assume no liability for consequential damage! We assume no liability for material damage or per- sonal injury due to improper handling or failure to comply with the safety instructions!25 GB Safety / Preparation Introduction / Safety Avoid the risk of fatal injury from electric shock Ensure that a qualified electrician, or a person trained to carry out electrical installations, performs the electrical installation. Always check the light, power supply, and mains cable for damage before plugging it in. Never use the light if it shows any signs of damage. CAUTION! A damaged mains cable indi- cates a life-threatening danger due to electric shock. In the event of damage, repairs or other problems with the light please contact the service centre or a qualified electrician. Prior to installation, remove the fuse or switch off the circuit breaker (0 setting) in the fuse box. Prior to installation verify the mains voltage on site corresponds with the operating voltage required for the light (230–240 V∼). Ensure that the light does not come into contact with water or other liquids under any circum- stances. Never open any of the components of the elec- trical equipment or insert any objects into the same components. This will pose a risk of fatal injury from electric shock. Do not install the light on a wet or conductive substrate! Prevent fire and injury hazards RISK OF INJURY! Check each lamp and lamp glass for damage immediately after un- packing. Do not mount the light with defective lamps and/or lamp lenses. In this case contact the service centre for a replacement. RISK OF BURNS! Ensure that the luminaire has been switched off and has cooled before touching it, to avoid burn injuries. Lamps develop a lot of heat in the area of the lamp head. Allow the lamp to cool off completely. Replace defective bulbs with new ones immedi- ately. Before changing bulbs, always first re- move the fuse or switch off the circuit breaker.

FIRE HAZARD! Fit the light so that it is at least 0.5 m away from the material to be illuminated. Excessive heat can result in a fire. Do not leave the light or packaging material lying unattended. Plastic film or bags, plastic parts, etc. can be dangerous for children to play with. ATTENTION! Do not look into the LED from a close distance during operation. Do not look at the LED with an optical instrument (e.g. magnifier). Safe working Only use 230–240 V∼ LED lamps GU 10 with a maximum output of 5 Watt. Mount the light so that it is protected from moisture and dirt. Carefully prepare for assembly and allow your- self adequate time. Organise all parts and any necessary additional tools or materials before starting so they are easy to reach. Always be attentive! Always pay attention to what you are doing and use common sense. Never install the light if you are having diffi- culty concentrating or do not feel well. Preparation Required tools and material The tools and materials specified are not included. This information and these values are non-binding and are only provided as a reference. The nature of the material is determined by the individual local conditions. - Pencil / making tool - Voltage tester - Screwdriver - Electric drill - Bit (ø approx. 0.6 cm)26 GB Maintenance and Cleaning / Disposal / Warranty and Service Preparation / Prior to installation / Start-up / Maintenance and Cleaning - Side cutting pliers - Ladder Prior to installation Important: The electrical connection must be established by a qualified electrician or a person trained to perform electrical installations. This per- son must be familiar with the properties of the light and the connection regulations. Familiarise yourself with all the instructions and diagrams in this manual, as well as with the light itself, before you install it. Before installation ensure that the circuit, to which the light will be connected, is not energised. To do so, remove the fuse or switch off the circuit breaker in the fuse box (0 position). Use the voltage tester to verify the de-energised status. Start-up Mounting the light Install the chrome plastic baffles

to the smooth side of the glass plate

by pushing them into the designated openings in the glass plate

(see Fig. C). Ensure the end cap is seated cor- rectly. Place the stainless steel plate

onto the light. Secure the spacer bracket

to the light with the screws provided. Place the washers (large) 12 a onto the spacer

Now place the glass plate

and secure with washers (small) 12 b and locking nuts

visible at the side of the connection housing

at the back. Use the slotted holes in the mounting bracket

intended for the screws to mark the bores. Now drill the fixing holes (approx. 6 mm, depth approx. 40 mm). Ensure that you do not dam- age the supply line. Feed the mains cable (external)

through the protective tubes

into the bores. Fasten the mounting bracket

with the provided screws

Now connect the connection cable of the light to the mains connection cable (external)

using the included terminal block

Note: Be sure to correctly connect each of the individual wires of the mains connection cable (external)

: live wire, black or brown = sym- bol L, neutral wire, blue = symbol N, earth wire, green-yellow = symbol

to connect the light to the mounting bracket

Use a clean, lint-free cloth to insert the lamps. Carefully insert the GU10 LED light into the socket and secure with a ¼ turn clockwis e (see Fig. B). Verify it is correctly seated. Replace the fuse or switch on the circuit breaker (Position I) inside the fuse box. Your light is now ready to use. Changing the bulb CAUTION! RISK OF ELECTRIC SHOCK! First disconnect the light from the mains when replac- ing the lamp. To do so, remove the fuse or switch off the circuit breaker in the fuse box (position 0). Allow the lamp to cool off completely. Unscrew the GU10 LED lamp from the socket counter-clockwise. Use a clean, lint-free cloth to replace a bulb. Only use 230–240 V∼ LED lamps with GU10 base and a maximum output of 5 Watt. Turn the new GU10 LED lamp clockwise into the socket. Verify it is correctly seated. Replace the fuse or switch on the circuit breaker (Position I) inside the fuse box. Maintenance and Cleaning CAUTION! RISK OF ELECTRIC SHOCK! Disconnect the light from the mains circuit before27 GB Maintenance and Cleaning / Disposal / Warranty and Service Preparation / Prior to installation / Start-up / Maintenance and Cleaning cleaning. To do so, remove the fuse or switch off the circuit breaker in the fuse box (0 position). CAUTION! RISK OF ELECTRIC SHOCK! For electrical safety, never clean the light with water or other liquids, or immerse it in water.

CAUTION! DANGER OF BURN INJU-

RIES! Allow the light to cool completely. Do not use solvents, benzene or similar substances. They could damage the light. Only use a dry, lint-free cloth for cleaning. Replace the fuse or switch on the circuit breaker (Position I) inside the fuse box. Disposal The package and packaging materials consist entirely of environmentally friendly materials. They can be disposed of at your local recycling facility. The symbol of the wheelie bin with the line through it indicates within the Euro- pean Union, this product must be disposed of through separate refuse collection. This applies to the product and to all components bearing this symbol. Do not dispose of products bearing this symbol in your normal household waste, but instead they must be taken for recycling to a collection site for electrical and electronic appliances. Recycling helps to reduce the consumption of raw materials and protects the environment. Warranty and Service Warranty Declaration This product has a 3 year guarantee from the date of purchase extended only to the original buyer, not transferable. Please keep your receipt as proof of purchase. The guarantee applies to material or manufacturing defects only. It does not cover wear items or damage caused by improper use. Any modifications will void the guarantee. This war- ranty does not limit your legal rights. Please phone the service centre for guarantee claims. This is the only way to return your product free of charge. Service address Briloner Leuchten GmbH Im Kissen 2, 59929 Brilon, Germany Tel.: +49 (0) 29 61 / 97 12–800 Fax: +49 (0) 29 61 / 97 12–199 E-mail: kundenservice@briloner.com www.briloner.com IAN 113974 Please have your receipt and the article number (e.g. IAN 12345) ready as your proof of purchase when enquiring about your product. Declaration of conformity This product fulfils the requirements of the applicable European and national directives (Electromagnetic Compatibility 2004/108/EC, Low Voltage Direc- tive 2006 / 95 / EC, Ecodesign Directive 2009 / 125 / EC, RoHS Directive 2011 / 65 / EU). Conformity has been demonstrated. The relevant declarations and documents are held by the manu- facturer. Manufacturer Briloner Leuchten GmbH Im Kissen 2 59929 Brilon Germany28BRILONER LEUCHTEN GMBH Im Kissen 2 59929 Brilon (Germany)
