USER MANUAL Samplepad Pro ALESIS

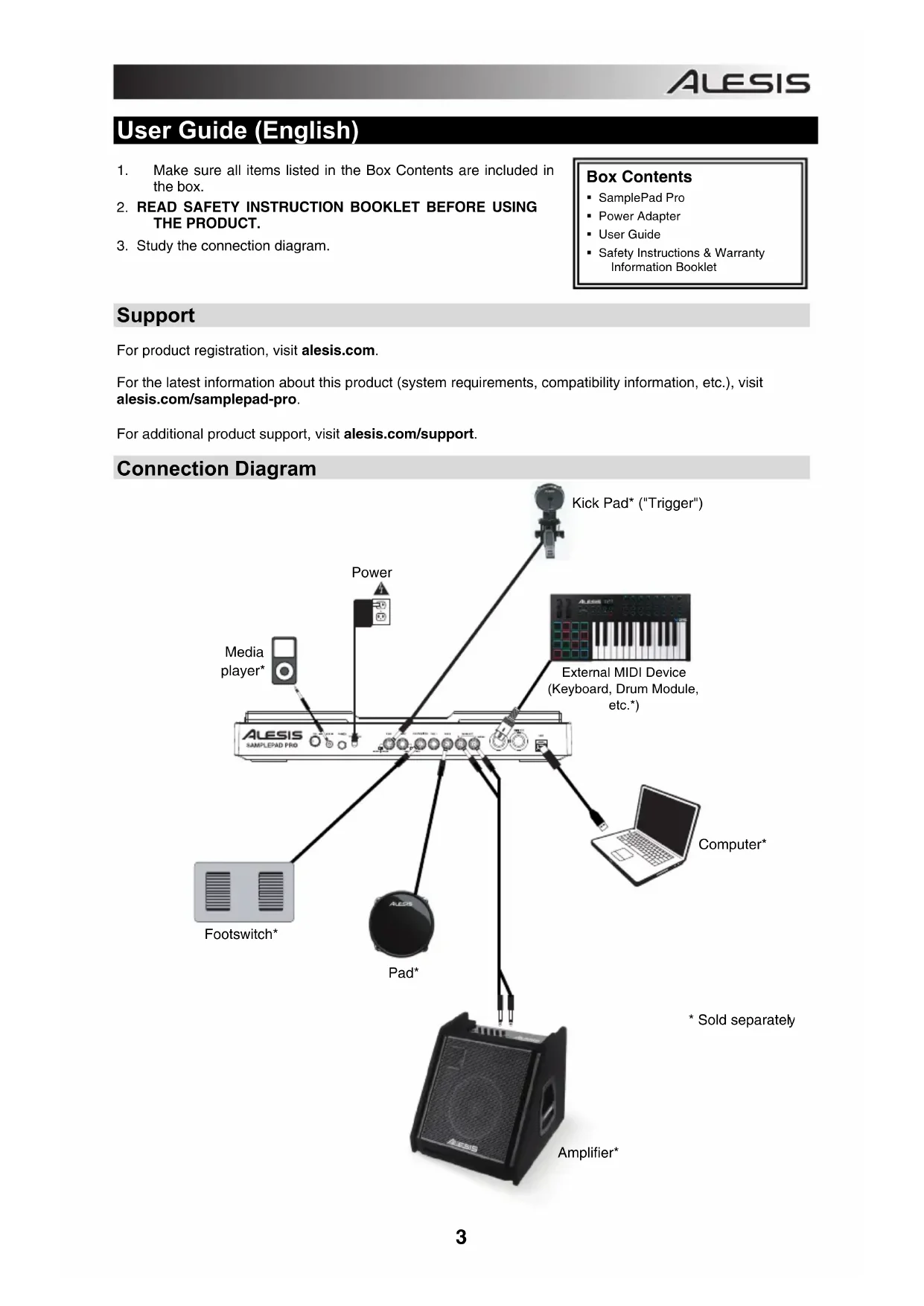

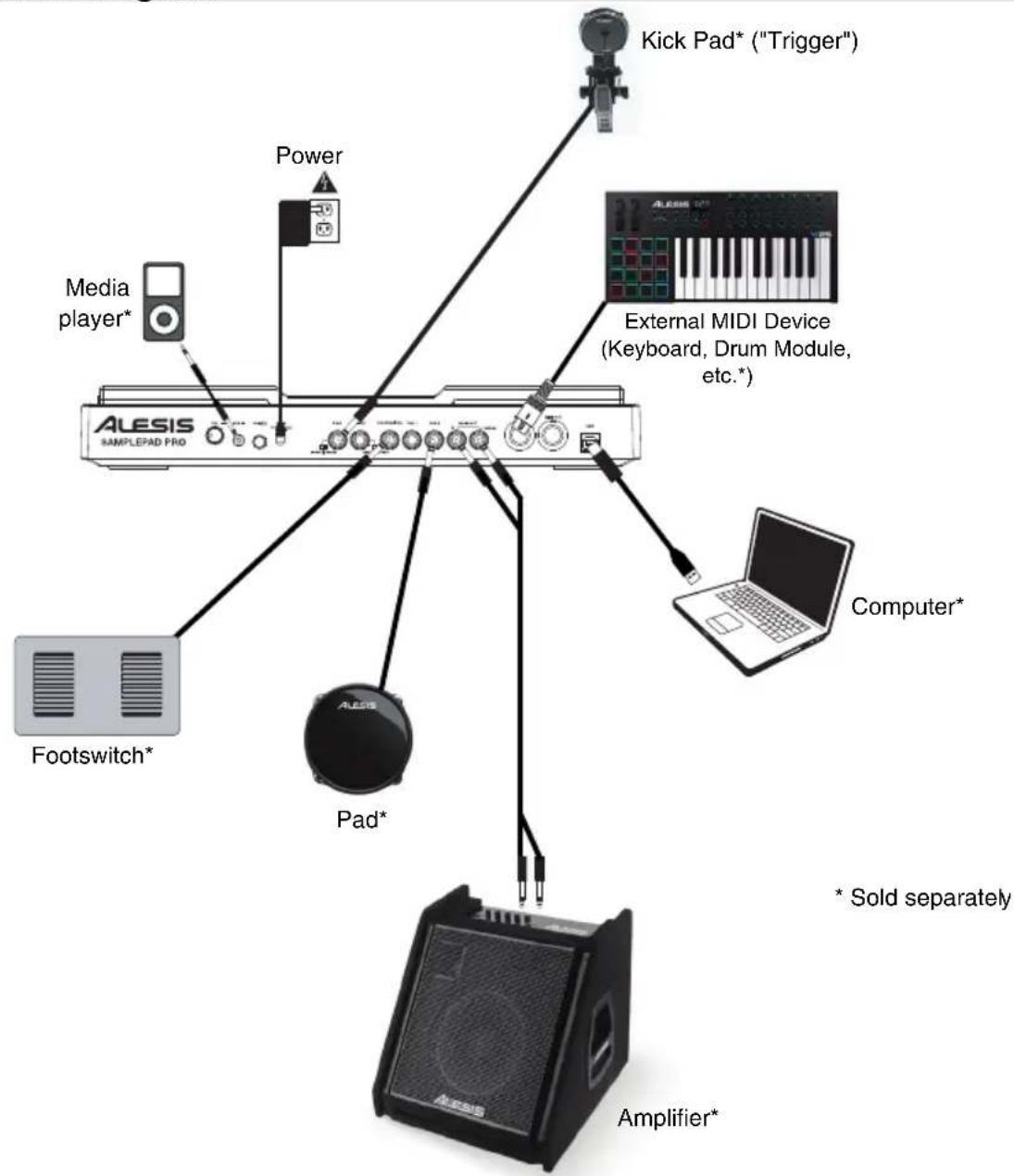

1. Make sure all items listed in the Box Contents are included in

Support For product registration, visit alesis.com. For the latest information about this product (system requirements, compatibility information, etc.), visit alesis.com/samplepad-pro. For additional product support, visit alesis.com/support.

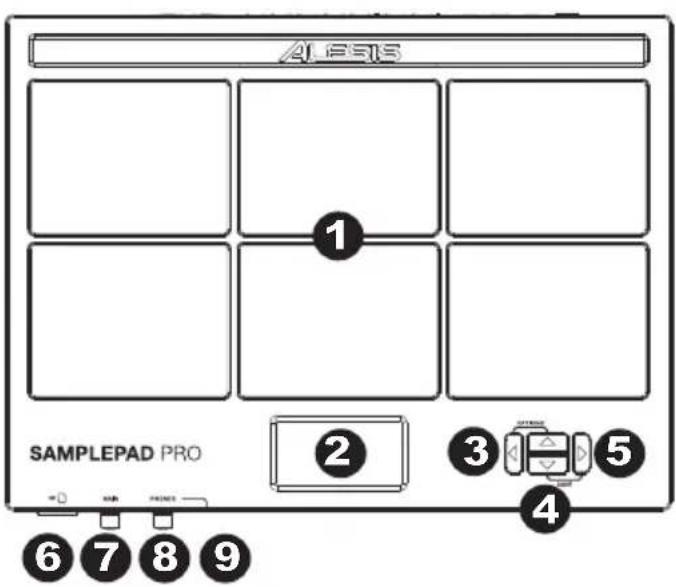

1. Pad - Strike these single-zone pads with a

drumstick. A LED around the pad will illuminate when that pad is struck.

2. LCD - Displays the current parameters and

6. SD Card Slot - Insert a standard SD card

(not included) containing .WAV samples into this slot.

7. Main Volume - Adjusts the overall volume

level for the Main Out.

8. Phones Volume - Adjusts the overall

volume level for the Phones Out.

9. Phones Out - Connect a pair of 1/4"

headphones to this output.

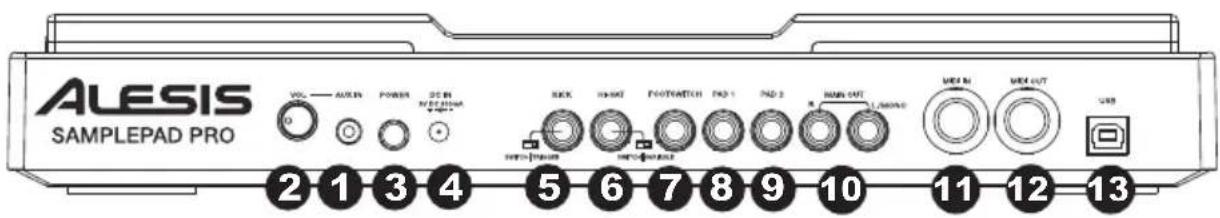

1. Aux In - Connect a phone, CD player, or media player to this input using a stereo 1/8" cable.

2. Aux In Volume - Adjusts the level of the device connected to the Aux Input.

3. Power Switch - Press this button to turn SamplePad Pro on. Hold this button for two seconds and release to

turn SamplePad Pro off.

4. DC Input - Connect the included power adapter here, then connect the adapter to wall power.

5. Kick Pedal Input - Connect a kick trigger or footswitch here using a 1/4" TS cable to use this input as a kick

trigger while playing. Select "SWITCH" if you are using a footswitch or switch trigger. Select "TRIGGER" if you are using a velocity-sensitive pedal or velocity-sensitive kick trigger.

6. Hi-Hat Input - Connect a Hi-Hat pedal here using a 1/4" TS cable to use this input to control the position of a

Hi-Hat while playing. Select "SWITCH" if you are using a standard footswitch. Select "VARIABLE" if you are using a variable hi-hat pedal. We recommend using the Alesis DMHat Pedal with SamplePad Pro.

cable for dual-zone or a 1/4" TS cable for single-zone. You can use this input to trigger samples assigned to the EXT 1A and EXT 1B trigger location of each kit on SamplePad Pro.

9. Pad 2 - Connect a single-zone drum pad, cymbal pad, or trigger to this input using a 1/4" TS cable. You can

use this input to trigger samples assigned to the EXT 2 trigger location of each kit on SamplePad Pro.

10. Main Out - Use standard 1/4" cables to connect this output to a speaker or amplifier system. (For mono sound,

connect a cable only to the Left output.)

11. MIDI In - Use a standard five-pin MIDI cable to connect this input to the MIDI OUT of an external MIDI device.

12. MIDI Out - Use a standard five-pin MIDI cable to connect this output to the MIDI IN of an external MIDI device.

13. USB/MIDI Port - Connect SamplePad Pro to a computer to send and receive MIDI data or load samples to the

WARNING: Put on your headphones or turn on

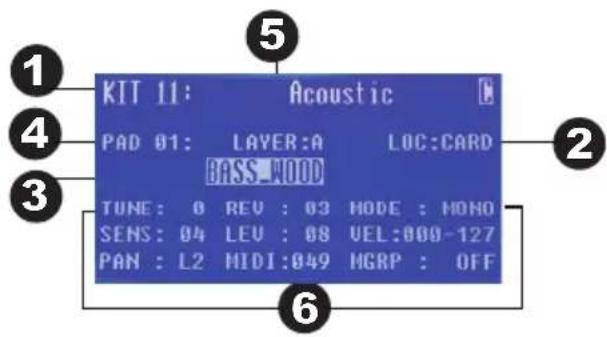

1. Kit - Displays the name of the kit that is currently

2. Sample Location - Displays the location of the

sample assigned to the velocity layer being edited.

3. Sample Name - Displays the sample that is

currently assigned to the velocity layer of the trigger location being edited.

4. Trigger Location - Displays the trigger location

that is currently being edited.

5. Velocity Layer - Displays the velocity layer of the

trigger location that is currently being edited.

6. Other Parameters - Displays the tuning,

sensitivity, panning, reverb, level, MIDI Note, mode, and mute group parameters of the velocity layer that is currently being edited. Basic Operations Selecting the Kit:

1. Press the Cursor Up or Cursor Down buttons to highlight the kit number.

2. Press the Cursor Left or Cursor Right buttons to scroll through the available kits.

3. Hold down the Cursor Left or Cursor Right buttons to rapidly scroll through the kits.

2. Use the Cursor Left or Cursor Right buttons to select the pad or ext. trigger that you would like to assign the

4. Use the Cursor Left or Cursor Right buttons to select the location of the sample that you would like to assign.

6. Use the Cursor Left or Cursor Right buttons to browse the internal memory or SD card and select the sample

that you would like to assign to this trigger location. Velocity Layers: You can load up to 2 samples (referred to as Layers) per 1 pad or trigger input. The 2 Layers are referred to as A and B and they can only be accessed if you are using samples from a SD card (Loc: Card). You can select a velocity range setting (shown as Vel: 000-127) for each of these layers, so that each sample will only trigger when a pad or external trigger is struck with that velocity amount. If multiple layers are set to the same velocity range on a pad or external trigger input, they will both trigger at the same time when the pad or external trigger is struck. To assign a sound to one of the layers of a pad or ext. trigger:

4. Use the Cursor Left or Cursor Right buttons to select the layer that you would like to configure.

assigned to this layer should play.

7. Move the cursor to the Sample Name parameter by pressing the Cursor Up or Cursor Down buttons.

8. Use the Cursor Left or Cursor Right buttons to browse the SD card and select the sample that you would like

to assign to this layer.

Sample File Requirements Please note the following file requirements:

• The samples files must be 16-bit, mono or stereo .WAV files.

• You can use a SD card or SDHC card with a capacity up to 32 GB.

• The .WAV file must be located in the root (main) directory of the card and not in any folders. We recommend formatting your SD card to a FAT32 file system (if it is not already) and naming your sample files according to this format. Basically, this means: • Do not use these characters: " * / \ : < > ? | • Do not use spaces.
• Limit your file name to 8 characters (excluding the file extension, ".WAV").

• You can assign up to 48 MB worth of samples per kit (the sample library on your SD card can be larger, of course). Also, please note that a sample's size will be rounded up when loaded (e.g., a 2.1 MB sample on the SD card will be treated as a 3 MB sample when it is assigned to a pad).
• The max number of files that can be located in the root directory is 512.

• When a .WAV file is selected, it will take a few seconds to load into the memory.

• SamplePad Pro supports mono or stereo .WAV files, with a sample rate of 48K, 44.1K, 32K, 22.05K, and 11.025K.
• When there is no SD card inserted, it is not possible to select the card location. Editing Layer Parameters To adjust the pitch of a sample:

1. Strike a pad or ext. trigger.

2. Move the cursor to the TUNE area by pressing the Cursor Up or Cursor Down buttons.

3. Then press the Cursor Left or Cursor Right button to adjust the tuning. [-4, -3, -2, -1, 0, 1, 2, 3, 4]

To adjust the reverb level of a sample:

1. Strike a pad or ext. trigger.

2. Move the cursor to the REV (Reverb) area by pressing the Cursor Up or Cursor Down buttons.

2. Move the cursor to the SENS (Sensitivity) area by pressing the Cursor Up or Cursor Down buttons.

3. Then press the Cursor Left or Cursor Right buttons to adjust the sensitivity level. [1-8]

To adjust the volume level of a sample:

1. Strike a pad or ext. trigger.

2. Move the cursor to the LEV (Level) area by pressing the Cursor Up or Cursor Down buttons.

3. Then press the Cursor Left or Cursor Right button to adjust the level. [0-10]

To adjust the panning of a sample:

R3, R4] To adjust the MIDI note sent by the Trigger Location:

Note: The MIDI note does not have an effect on the internal sound.7 To adjust the Mode of the pad or ext. trigger:

1. Strike a pad or ext. trigger.

2. Move the cursor to the MODE area by pressing the Cursor Up or Cursor Down buttons.

3. Then press the Cursor Left or Cursor Right buttons to select the mode.

Select from the following mode options:

• POLY (Polyphonic) Each new pad or ext. trigger strike will trigger the assigned sample and overlap the sound from the previous strike of the same trigger location.

• MONO (Monophonic) Each new pad or ext. trigger strike will trigger the assigned sample and stop the sound from the previous strike of the same trigger location.

• LOOP After a pad or ext. trigger is struck, the sample will continue to playback from the beginning after it reaches the end of the sample. To stop the loop, strike the pad or ext. trigger again.

• STOP After the pad or ext. trigger is struck, all samples currently being played by SamplePad Pro will be muted.

• TMP Strike the pad or ext. trigger several times in the TMP mode to set the tempo of the metronome.

• CLK Strike the pad or ext. trigger to start or stop the metronome (click) playback.

• HAT When a pad or ext. trigger is in HAT mode, striking this pad or ext. trigger will trigger one of the sample assigned to the 5 hi-hat locations of each kit (HAT OPE, HAT MID, HAT CLO, HAT CHK, HAT SPL). The position of the hi-hat pedal (sold separately) will determine which of the 5 currently assigned hi-hat samples of the kit will trigger. Mute Groups Normally, when you strike a pad or ext. trigger when another pad is playing back, the samples of these two pads will be played back overlapped. With the mute group function, you can stop the playback of the sample of a pad when you strike another pad or ext. trigger. For example, you can simulate a hi-hat by setting an open hi-hat sound to one pad, and then setting a closed hi-hat sound to another pad. Then after setting both pads to the same mute group, these sounds will mute each other out, similar to a real hi-hat.

To assign a pad or ext. trigger to a mute group:

1. Strike one of the pads or ext. triggers that you want to assign to a Mute Group.

2. Move the cursor to the MGRP (Mute Group) area by pressing the Cursor Up or Cursor Down buttons and use

the Cursor Left or Cursor Right buttons to select a Mute group. [1-16]

3. Strike another pad or ext. trigger, navigate to the MGRP, and use the Cursor Left or Cursor Right buttons to

set this pad to the same number you set for the first pad. Options Menu SamplePad Pro’s Options menu contains global settings that affect the overall operation as well as system-related information and functions. To enter the Options menu and change these global settings:

submenu that you would like to enter, then press Cursor Right to enter the submenu.

3. Press Cursor Up and Cursor Down to highlight the parameter that you would like to enter, then press Cursor

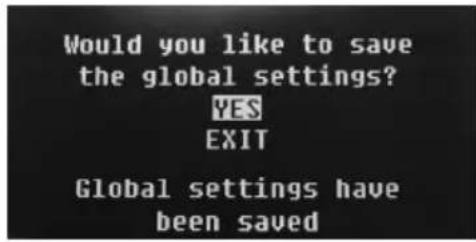

4. Press the Cursor Up and Cursor Down buttons to highlight

YES and press Cursor Right to save the global settings.

5. To exit the SAVE GLOBAL SETTINGS submenu, press the Cursor Down until Exit is highlighted, and then

press the Cursor Right button. Alternatively, press and hold the Cursor Down and Cursor Right buttons to exit this menu. Metronome

• Switch: Turns the metronome on or off.

• Sound: Selects the sound of the metronome from Voice, Metronome, Claves, Sticks, Cowbell, and Beep.

• Tempo: Adjusts the tempo of the metronome from 30-280 BPM (Beats per Minute).

• Level: Adjusts the volume of the metronome from 0-10.

• Time: Adjusts the time signature for the metronome. The available time signatures to select from are 1/2, 1/4, 1/8, 1/16, 2/2, 2/4, 2/8, 2/16, 3/2, 3/4, 3/8, 3/16, 4/2, 4/4, 4/8, 4/16, 5/2, 5/4, 5/8, 5/16, 6/2, 6/4, 6/8, 6/16, 7/2, 7/4, 7/8, 7/16, 8/2, 8/4, 8/8, 8/16, 9/2, 9/4, 9/8, and 9/16. Footswitch The footswitch input of SamplePad Pro supports both standard 1/4" TS single-button and 1/4" TRS dual-button footswitches. For 1/4" TS single-button footswitches, you can only assign one function to the single button by changing the setting for FOOTSWITCH1. For 1/4" TRS dual-button footswitches, you can assign functions to both buttons by changing the settings for FOOTSWITCH1 and FOOTSWITCH2. You can also assign a function to happen when you press both buttons of the footswitch at the same time by changing the setting for SIMULTANEOUS. The available footswitch functions are:

• Click: Starts/stops the metronome
• Stop All: Mutes all currently playing samples

• Next Kit: Selects the next kit

• Prev Kit: Selects the previous kit

• Tempo: Press the footswitch several times to set the tempo of the metronome Hi-Hat

• Position Settings: This submenu allows you to adjust the hi-hat pedal ranges for the "HAT OPE", "HAT MID", and "HAT CLO" trigger locations of SamplePad Pro.9 MIDI

• Receive Channel: Sets the MIDI channel that SamplePad Pro will receive MIDI data. The available parameters are All, or individual MIDI channels 1-16.
• Send Channel: Sets the MIDI channel that SamplePad Pro will send MIDI data. The available parameters are individual channels 1-16.
• Receive Program Changes: Sets whether SamplePad Pro will react to program change messages received on the MIDI Receive Channel. The available parameters are Yes and No.
• Send Program Changes: Sets whether SamplePad Pro will send program changes over the MIDI Send Channel when a kit is changed. The available parameters are Yes and No.

• Ext. Clock: Sets whether the SamplePad Pro will send or receive MIDI Clock. This feature can also be set to OFF.

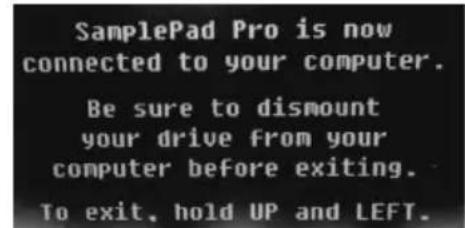

• After this feature is selected, SamplePad Pro will connect to your Mac or PC via the USB connection for easy SD card management. To exit this mode, hold Cursor Left and Cursor Up on SamplePad Pro for two seconds.

• Pad Curve: Selects the velocity curve sensitivity setting (1-8) to be used across all of the internal pads. You can audition the Pad Curve by striking a pad while changing this setting.

• Auto-Shutdown Time: Selects how long SamplePad Pro will remain powered on if there is no activity. Select from 30 minutes, 60 minutes, or Off (SamplePad Pro will remain powered on until you manually power it off).

1. Select the kit on the main screen that you have edited and would

2. Press and hold the Cursor Down and Cursor Right buttons for 2

3. Move the cursor to the SAVE KIT option by pressing the Cursor

2. Move the cursor to the COPY KIT option by pressing the Cursor

4. Press Cursor Left or Cursor Right to select the kit that you

5. Press Cursor Down and then press Cursor Left or Cursor

Right to select the location that you would like to copy the kit to.

CTR, R1, R2, R3, R4]
