USER MANUAL Serie 6 BGC41XSIL BOSCH

Register your new device on MyBosch now and get free benefits: bosch-home.com/ welcome

Bagless vacuum cleaner

BGS41... BGC41...

[de] Gebrauchsanleitung 10
[en] Information for Use 14
[fr] Manuel d'utilisation 18
[It] Manuale utente 23
[nI] Gebruikershandleiding 28
[es] Manual de usuario 33
[pt] Manual do utiliser 38
[el] Evyειρίδιο χρήστη 43
[tr] Kullanim kilavuzu 48
[pl] Instrukcja obstugi 53
[hu] Hasznalati utmutató 58
[kk] NaɪdənaHúMbɪ HyckaynbɪKTap 62
[ru] RykoBoDCTBO noIb3OBaTeTn 67
[bg] PbKOBoIDCTBO 3a ynOtpe6a72
[uk] KepiBnHTBO 3 ekcnnyataa77
[az] Istifadci rhabr kitabi 82
[ka] 86
[zh] 使用说明书 91
[th] 95
[ar] 101

[de] Weitere Informationen und Erklärungen finden Sie online. Scannen Sie den QR-Code auf der Titelseite.
[en] You can find additional information and explanations online. Scan the QR code on the title page.
[fr] Voupez couver d'autres informations et expications en ligne. Scanze le code QR sur la page de titre.
[itt] Puoitrovareulterioriinfoespiegazioni online.Scansiona il codice QR sul frontespizio.
[n] U kunt online aanvullende informatie en uitleg vinden. Scan de QR-code op de titelpagina.
[es] Se pueda encontrar informacion y explicaciones adiconiales online. Escanear el numero QR en la pagina de titulo.
[pt] Pode encontrar informacoes e explicacoes adcionais online. Leia o��o QR que figura na pagina de tuito.
[el] MnpoeTe vα βeTe επιλεον πλροφορίες και εξηγίαεις ὄτο διαδικτύo (online). Σαρωτε τον κωδικό QR σηη αελία τὴου.
[tr] Ek bilgi ve aqiklamalar cevrimici olarak bulabilirsiniz. Barangk sayfasindaki QR kodunu tarayin.
[pl] Dodatkowe informacie i objasnienia sa dostepne online. Zeskanuj kod QR na stronie tytuwojej.
[hu] További informáciosá Tajékoztatás az interneten található. Olvassa be a borito belso oldán levó QR kódot.
[Kk] KocbIMwa aKnapaTneHTyciHikTeMepeDi HtePHeTTeHTa6a anacbi. TityuNb6BETeri QR KoDbH cKaHepnEi3.
[ru] DOnonHHTeBHyIO IHΦopMaUHO NObaCHeHMOXHO HAITN B CETN IVHTepHET. CkaHnpyTe QR-KoI Ha TtYbHO CTpaHnce.
[bg] Moxete da hamepuTe doTbHHTeHa HOpMaunu N oBacHeHHa OHnH. CKaHpaTe QR KOna Ha 3arIaNbHata CTpaHua.
[uk] DOnaTkoBy iHΦopMaIiio i NORcHeHH MoXHa 3HaNtOHnH. 3IckaHyTe QR-KoHa TmTyNbHi CTOpHlU.
[az] Θlavemelumatveizahatlari onlayntapa bilersiniz.Baslig sehifesindeQR kodunu skan edin.
[ka] 0080000063m6800u00g0568o000ouamdo08808odmoosoo566000.00u356000QR 3moouuyol83c6
[zh] 您可以在网上找到更多信息和解释。扫描标题页上的二维码。
[th]
[ar]

2

3

4

5

6

7

8

9

10

11

12

12/12

14

13/14

16

17

18

19

20

21

22

12/12

24

25

26

27

28

13/14

30

12/12

32

33

34

35

36

13/14

38

13/14

40

42

13/14

44

13/14

46

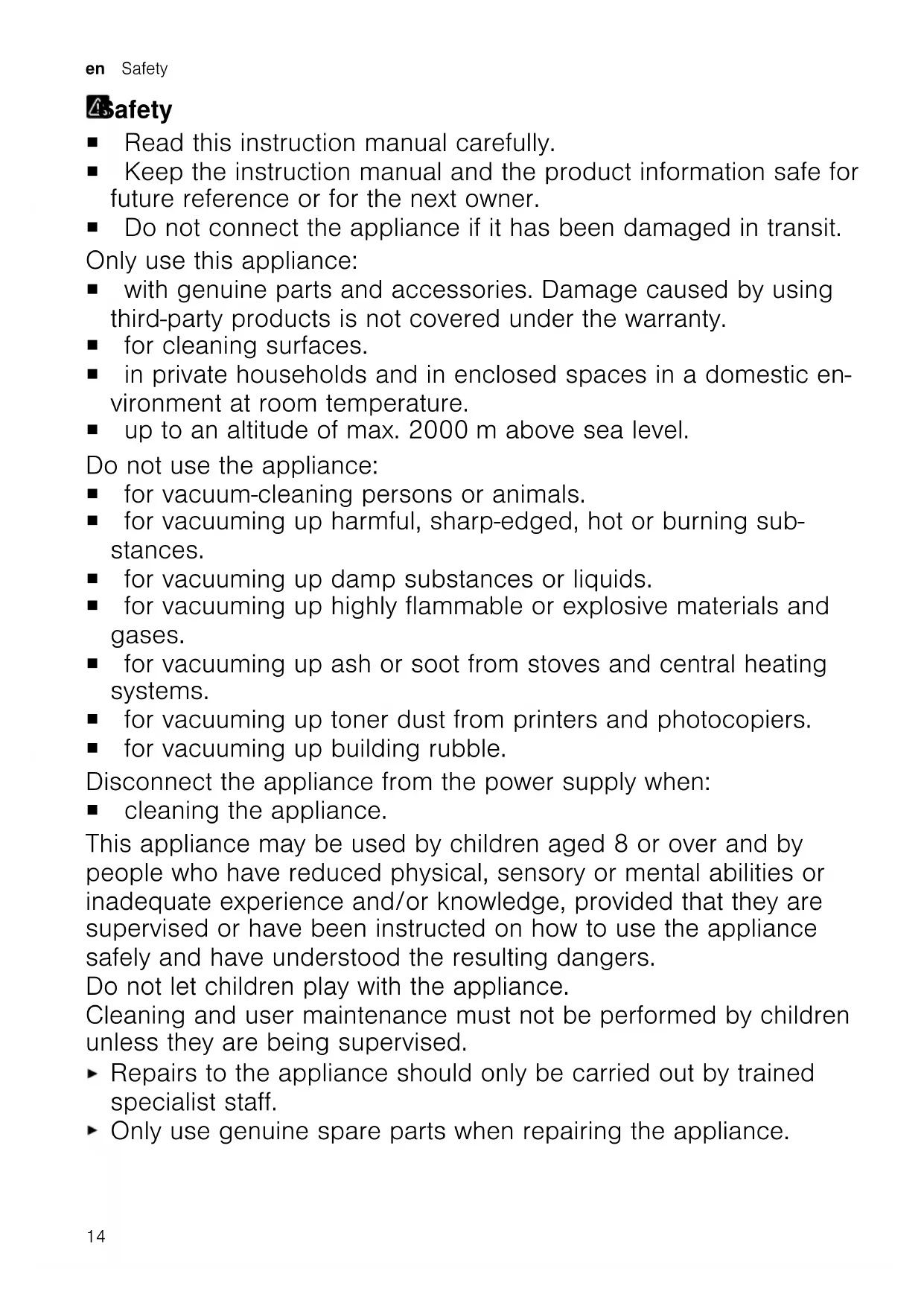

4sicherheit

• Read this instruction manual carefully.
• Keep the instruction manual and the product information safe for future reference or for the next owner.
• Do not connect the appliance if it has been damaged in transit.

Only use this appliance:

• with genuine parts and accessories. Damage caused by using third-party products is not covered under the warranty.
  for cleaning surfaces.
• in private households and in enclosed spaces in a domestic environment at room temperature.
  up to an altitude of max. 2000m above sea level.

Do not use the appliance:

for vacuum-cleaning persons or animals.
for vacuuming up harmful, sharp-edged, hot or burning substances.
for vacuuming up damp substances or liquids.
for vacuuming up highly flammable or explosive materials and gases.
- for vacuuming up ash or soot from stoves and central heating systems.
for vacuuming up toner dust from printers and photocopiers.
for vacuuming up building rubble.

Disconnect the appliance from the power supply when:

cleaning the appliance.

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.

Do not let children play with the appliance.

Cleaning and user maintenance must not be performed by children unless they are being supervised.

• Repairs to the appliance should only be carried out by trained specialist staff.

• Only use genuine spare parts when repairing the appliance.

• If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

• Never operate a damaged appliance.
• Never operate an appliance with a cracked or fractured surface.
• Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains.
• Never pull or carry the appliance by the power cord.
• If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the fuse in the fuse box.
• Call customer services. Page 17
• Only use the appliance in enclosed spaces.
• Never expose the appliance to intense heat or humidity.
• Do not use steam- or high-pressure cleaners to clean the appliance.
• Never let the power cord come into contact with hot appliance parts or heat sources.
• Never let the power cord come into contact with sharp points on edges.
• Never kink, crush or modify the power cord.
• Connect and operate the appliance only in accordance with the specifications on the rating plate.
• Connect the appliance to a power supply with alternating current only via a properly installed socket with earthing.
  The protective conductor system of the domestic electrical installation must be properly installed.
• Do not apply flammable substances or substances containing alcohol to the filter.
• When cleaning the appliance, do not use flammable substances or substances that contain alcohol.

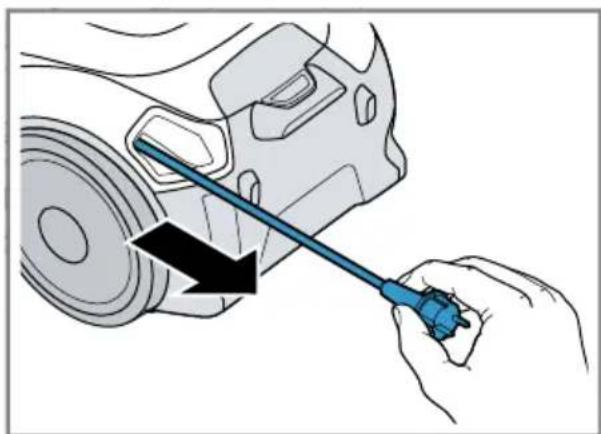

  Pull out the power cord completely.
• Keep clothing, hair, fingers and other body parts away from the openings on the appliance and the moving parts.
• Never point the pipe or the nozzles towards eyes, hair, ears or mouths.
• When vacuuming stairs, ensure that there are no persons underneath the appliance.
• When taking a break from vacuuming, switch off the appliance and pull out the mains plug.

• Retract the power cord.

• When the cord is being rewound automatically, ensure that the mains plug is not thrown in the direction of persons, body parts, animals or objects.

• Keep packaging material away from children.
• Do not let children play with packaging material.

Preventing material damage

• Never place the appliance on the hose.
  Regularly check the running surfaces of the nozzles for wear.
  Replace worn nozzles.
• Never operate the appliance without the motor protection filter.
• Never operate the appliance without the exhaust filter.

Overview

You can find an overview of the parts of your appliance here.

Note: Individual details and colours may differ, depending on the appliance model.

Fig. 1

1 Adjustable floor tool with click connection
2 Hose
3 Telescopic tube with sliding switch and click connection
4 Handle
5 Power cord

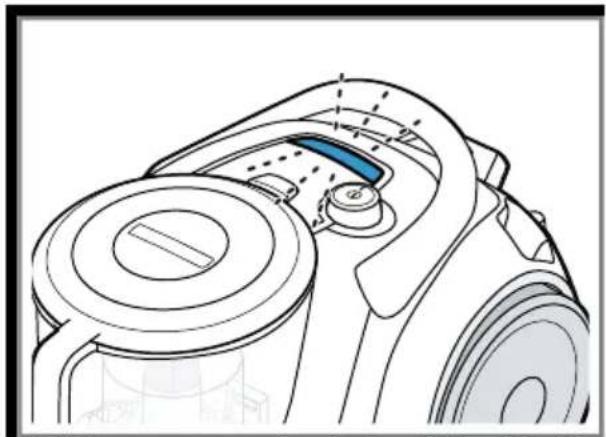

6 Sensor Control indicator
7 Parking aid
8 Rear flap release button
9 Rear flap
10 Handle
11 Power control and on/off switch
12 Dust container release button
13 Fluff filter

14 Dust container
15 Dust container handle
16 Storage aid

Operation

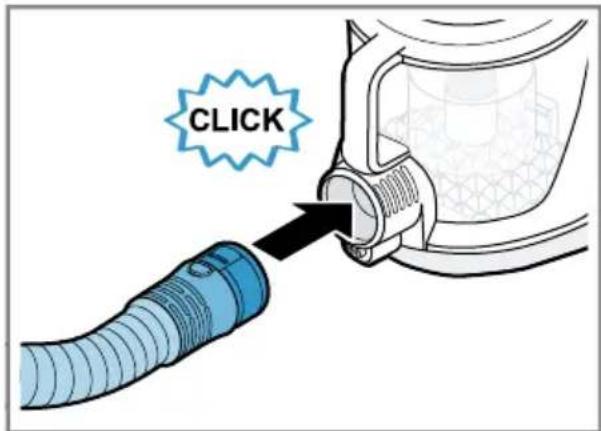

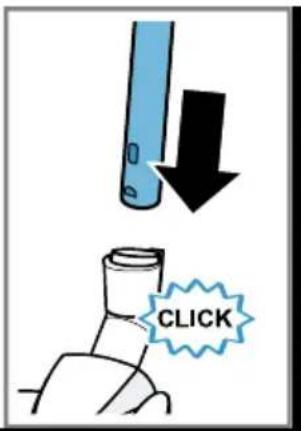

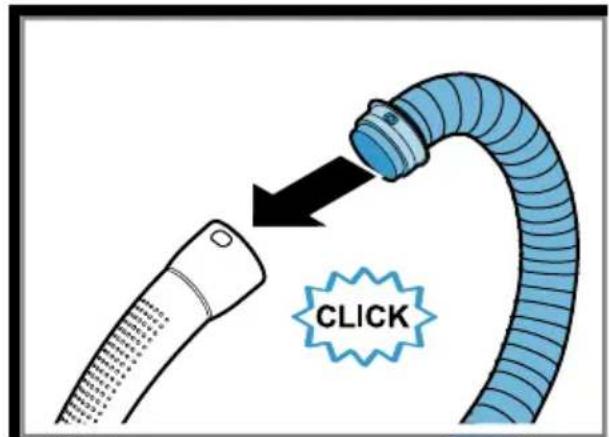

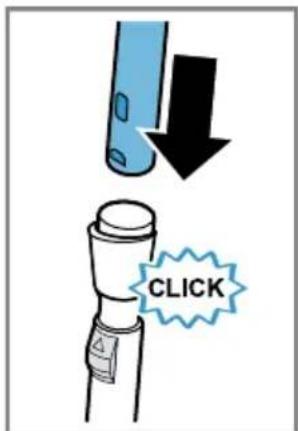

Installing the appliance

→Fig. 2 - 5

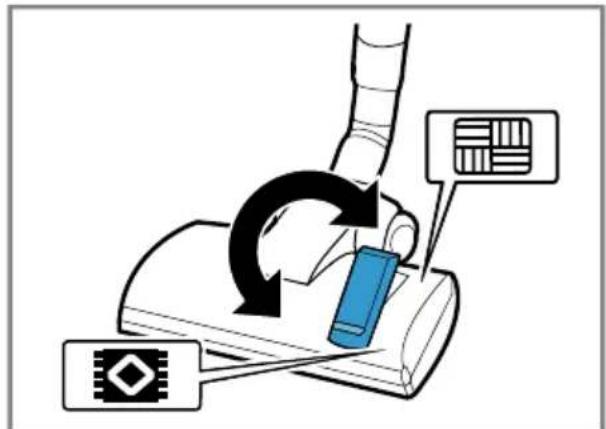

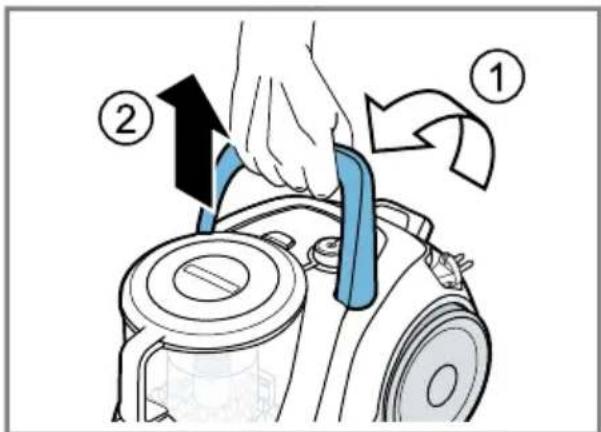

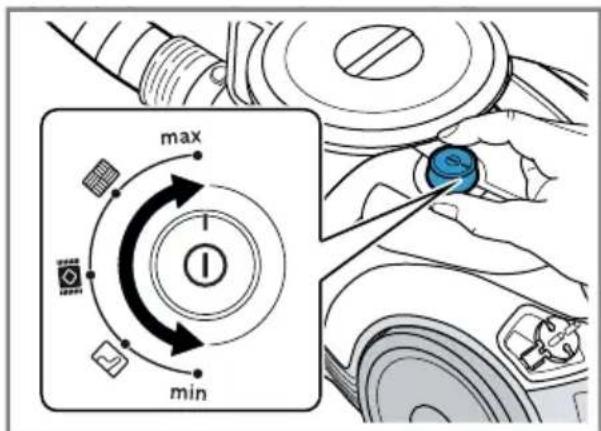

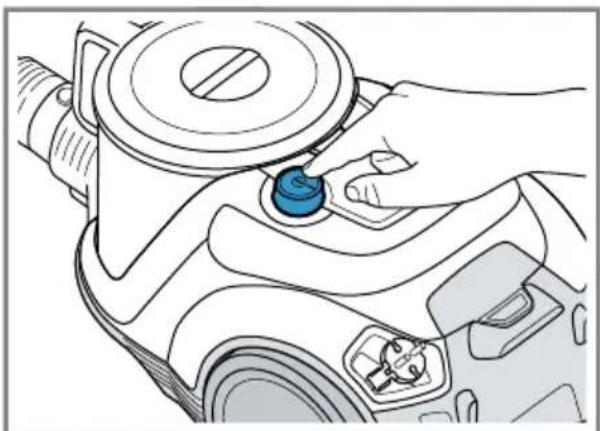

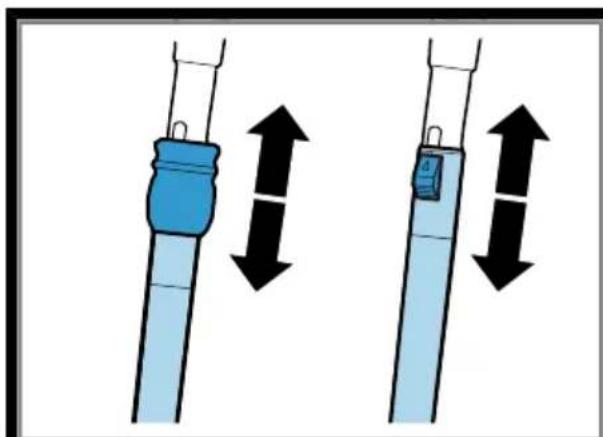

Operating the appliance

→Fig. 6 - 14

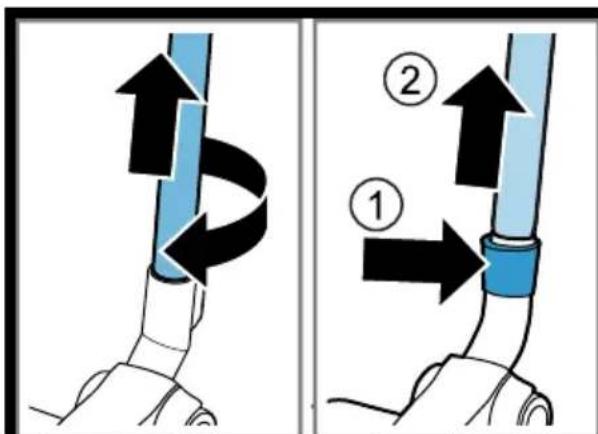

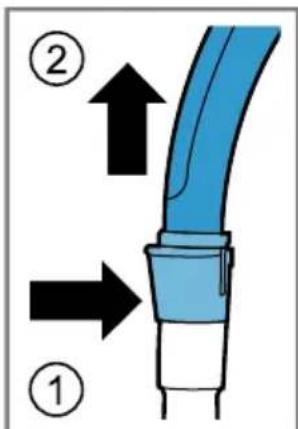

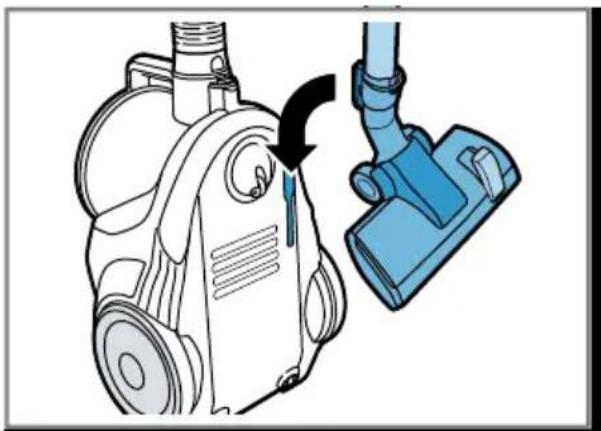

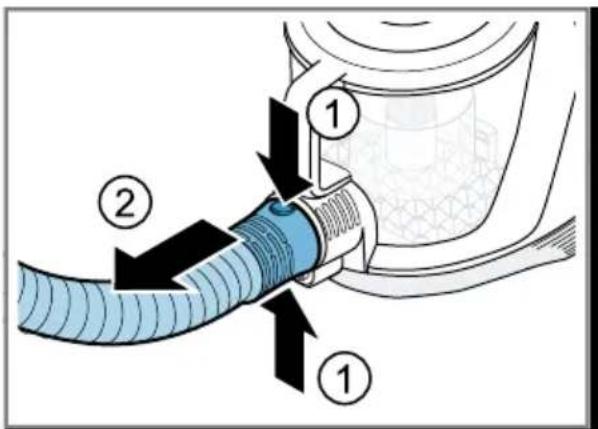

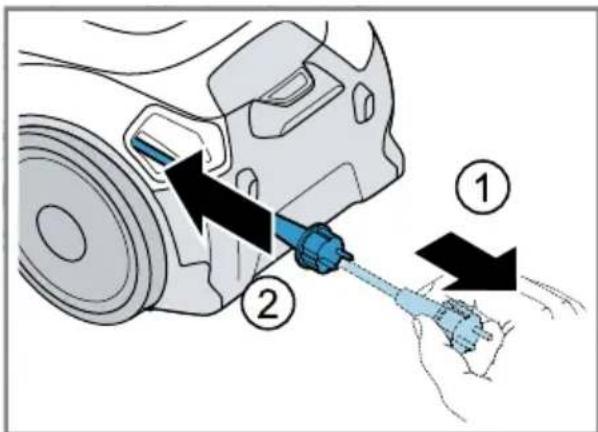

Removing the appliance

→Fig. 15 - 17

Cleaning and servicing

To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.

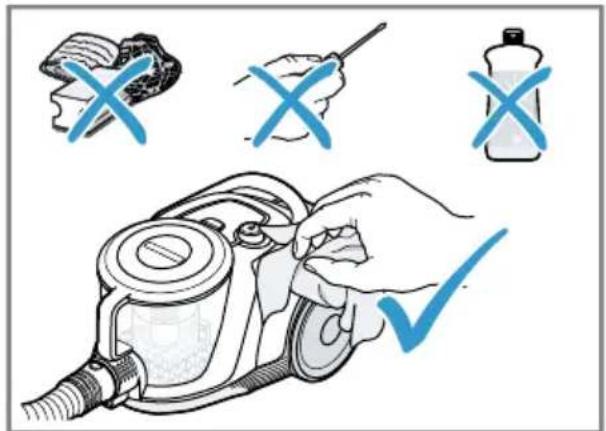

Cleaning the appliance

Requirement: The appliance is switched off.

Clean the appliance and the accessory using a soft cloth and a commercially available plastic cleaner.

$$ \rightarrow \text {F i g .} \quad 1 8 $$

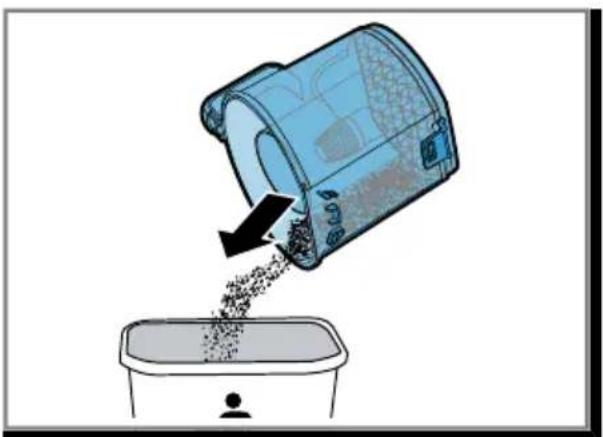

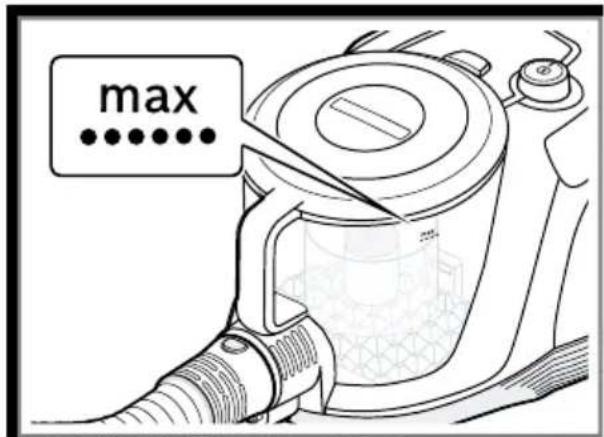

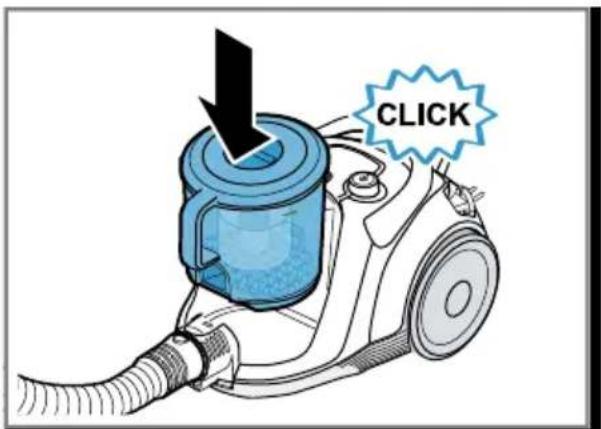

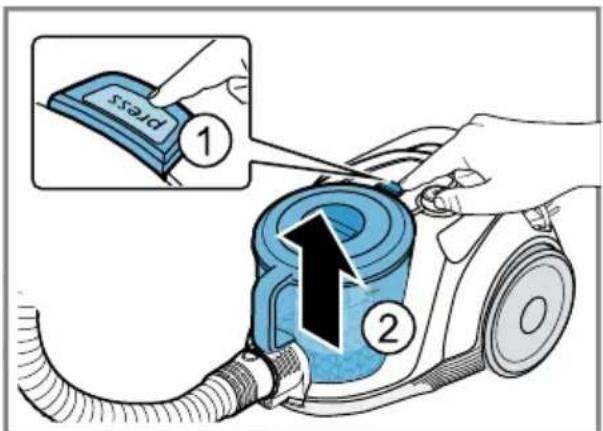

Emptying the dust container

→Fig. 19 - 22

Cleaning the fluff filter

Fig. 23 - 25

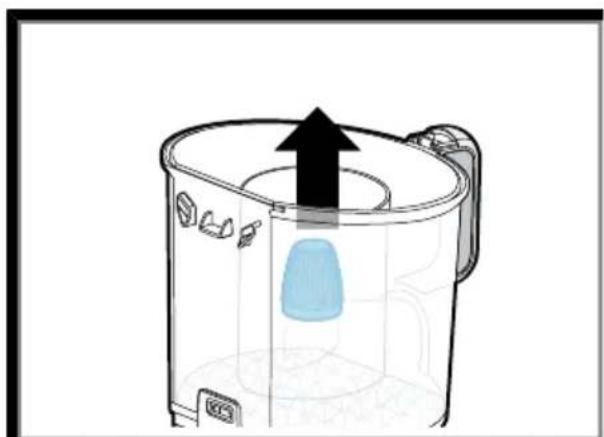

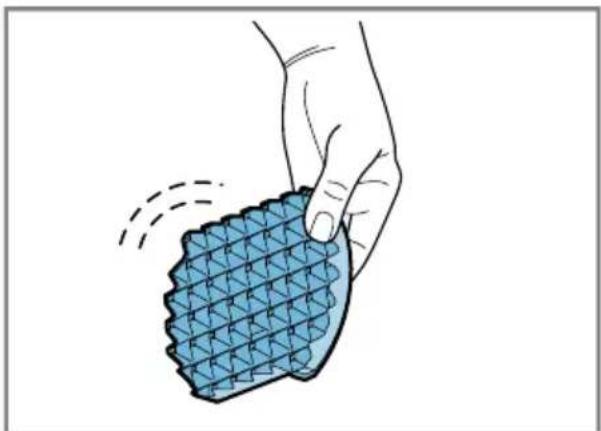

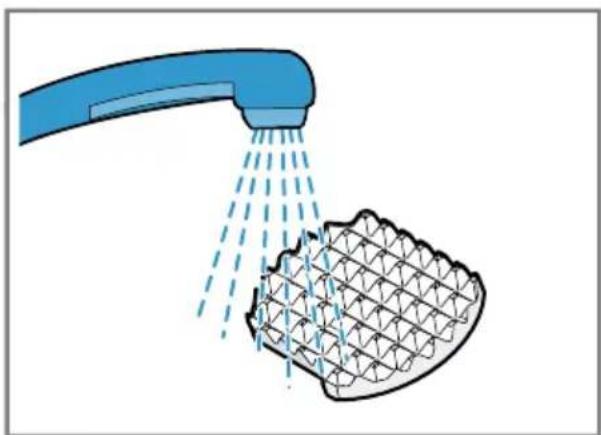

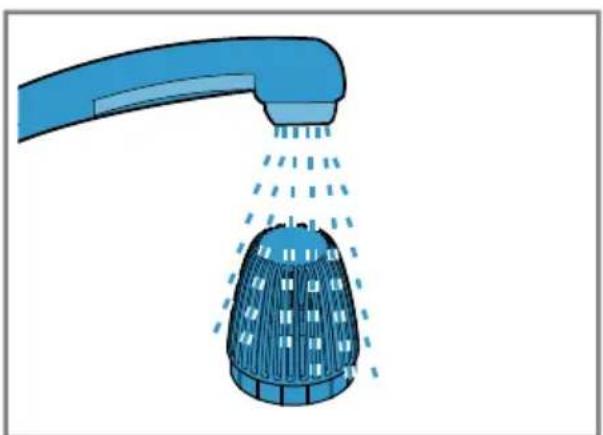

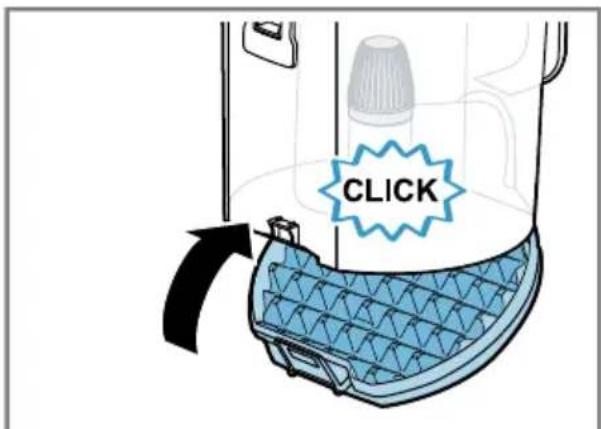

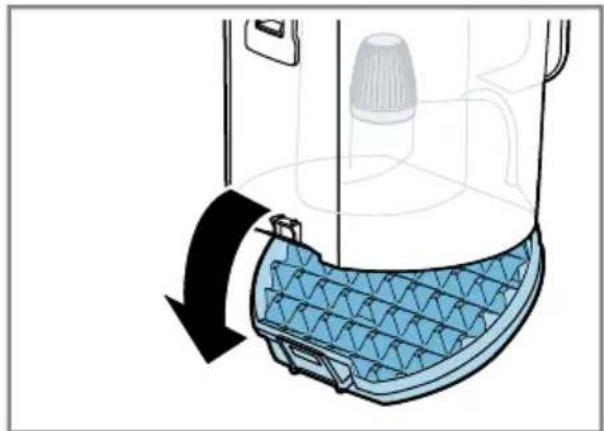

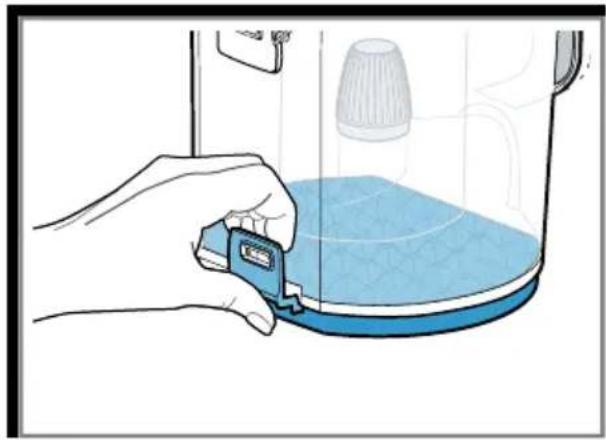

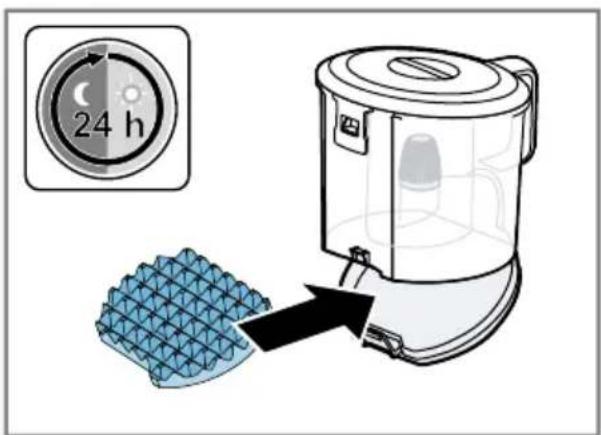

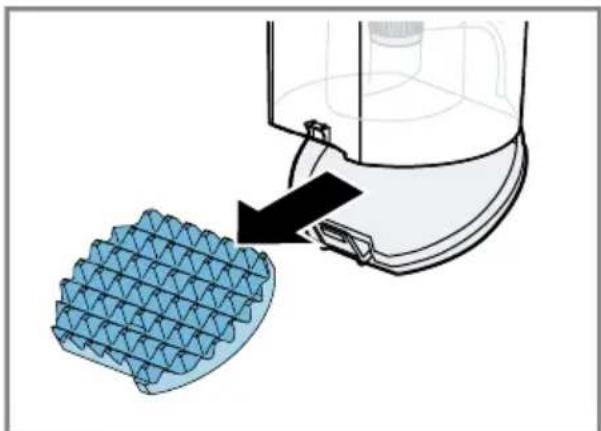

Cleaning the filter in the dust container

→Fig. 26 - 33

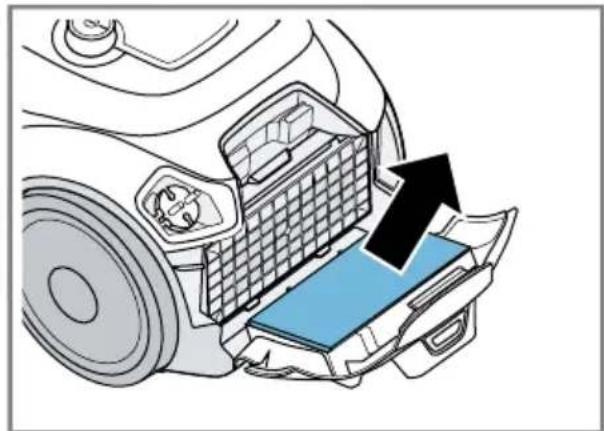

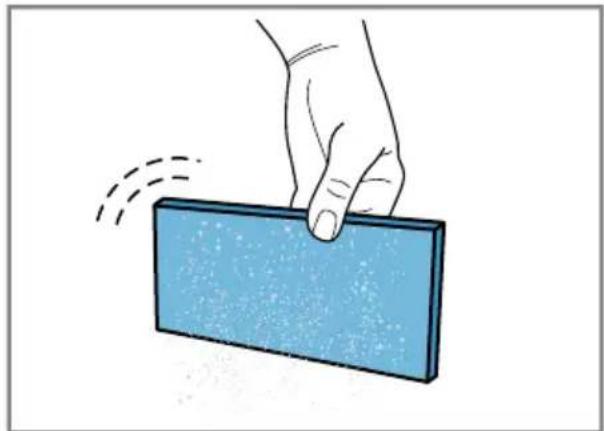

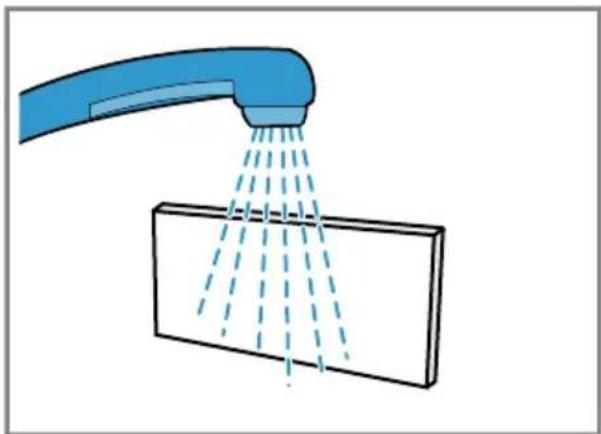

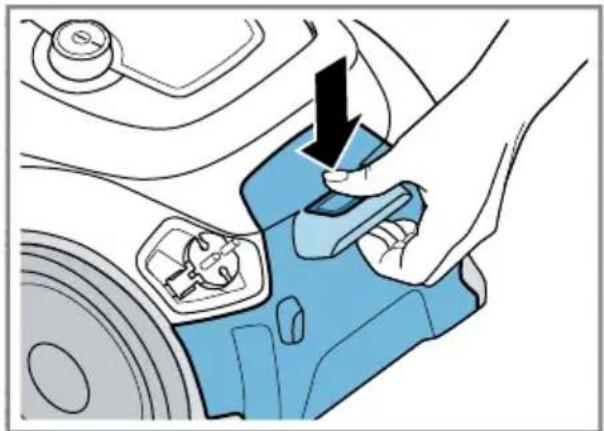

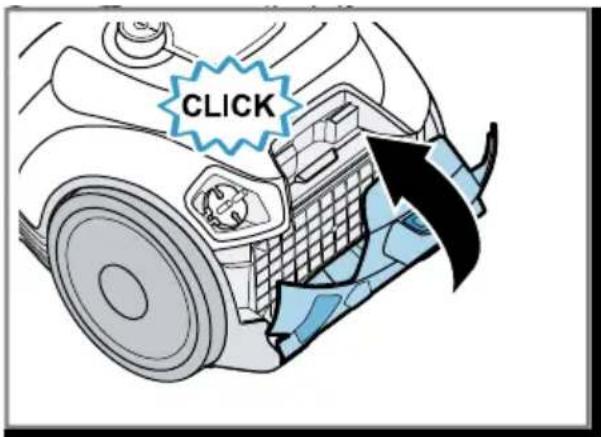

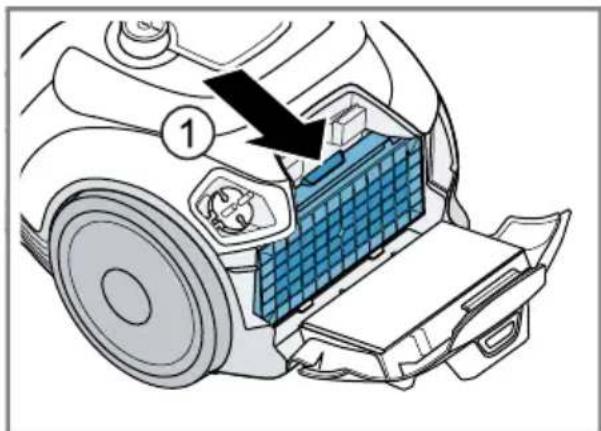

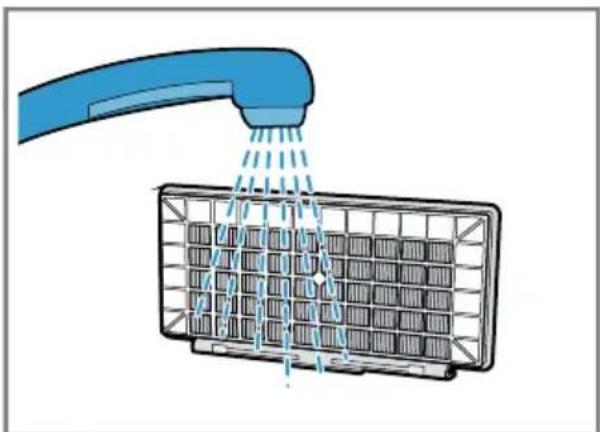

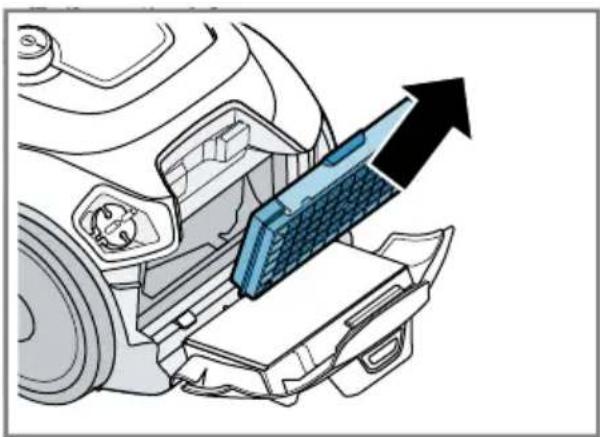

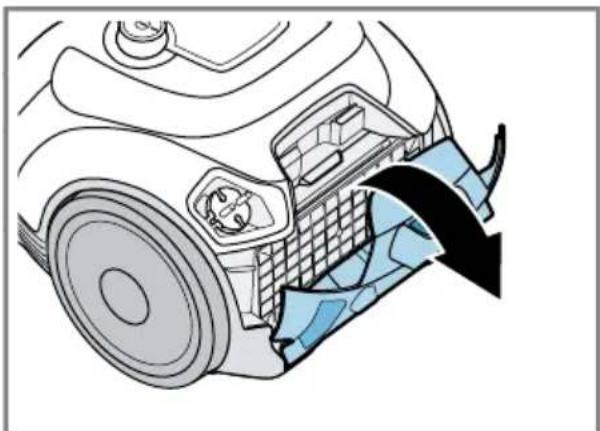

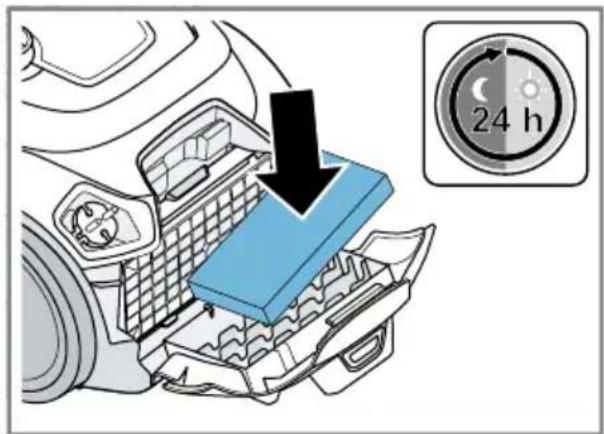

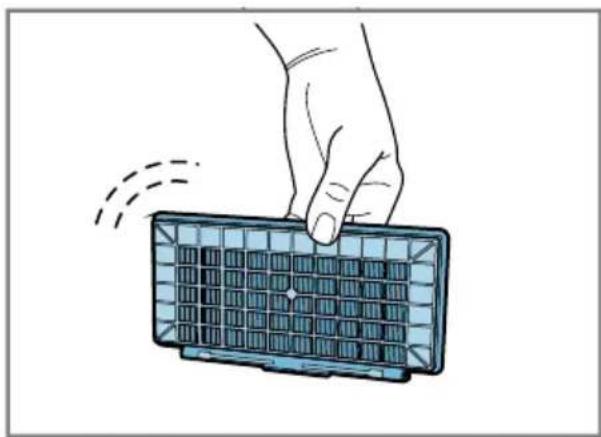

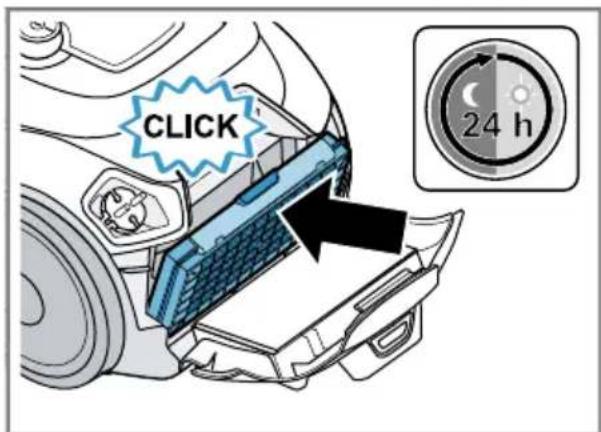

Cleaning the exhaust filter

→Fig. 34 - 46

Troubleshooting

Repairs to the appliance should only be carried out by trained specialist staff.
- Only use genuine spare parts when repairing the appliance.

• If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

Fault Cause and troubleshooting

The appliance is adjust- ted to the lowest power level.	Filter in the dust container is soiled.
	1. Switch off the appliance.
	2. Clean the filter in the dust container.
The Sensor Control indic- ator flashes red.	Exhaust filter is dirty.
	• Clean the exhaust filter.
The appliance is adjust- ted to the lowest power level.	Dust container is full
	1. Check the fill level of the dust container.
	2. Empty the dust container as needed.
The Sensor Control indic- ator lights up red.	Fluff filter is soiled.
	• Clean the fluff filter.
	Nozzle, telescopic tube or hose are blocked.
	1. Switch off the appliance.
	2. Dismantle the appliance.
	3. Remove the blockage.
Brush on the turbo nozzle does not turn.	Brush roller is soiled.
	• Clean the brush roller.
	Suction power is too low.
	• Turn the power controller to maximum suction power.

Disposing of old appliance

• Dispose of the appliance in an environmentally friendly manner. Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Customer Service

Detailed information about the warranty period and the warranty conditions in your country is available via the QR code on the enclosed document on service contacts and warranty conditions, from our customer service or on our website.

You can find the contact details for our customer service via the QR code on the enclosed document on service contacts and warranty conditions or on our website. You can find the information required as per Regulation (EU) 2023/826 online at www.bosch-home.com on the product and service pages for your appliance, in the area of user manuals and additional documents.

4scurité

81739 Munchen, Germany

www.bosch-home.com
