USER MANUAL BM750LCD Bxterra

PRODUCT OVERVIEW...... 5

BATTERY REPLACEMENT.... 5

LCD DISPLAY.... 6 - 7

TROUBLESHOOTING...... 8

TECHNICAL SPECIFICATIONS.... 8 - 9

WARRANTY INFORMATION...... 10 -11

CONSIGNES DE SÉCURITÉ.... 11

INFORMATIONS DE GARANTIE...... 11

WARRANTY & REGISTRATION

This bXterra product is constructed to provide unmatched power protection, quality and performance for the duration of its lifetime. Please take a few minutes to register your new product at www.bXterra.com/registration. Registration certifies your product's warranty, confirms your ownership in the event of a product loss or theft and entitles you to free technical support. Please register your product now to receive the benefits of bXterra ownership.

SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS: This manual contains important instructions that should be followed during installation and maintenance of the UPS and its batteries.

1. This unit is intended for installation in a controlled environment (a temperature-controlled and indoor area free of conductive contaminants). Please avoid installing the UPS in locations where there is standing or running water, dust, direct sunlight or excessive humidity.
2. This UPS utilizes voltage that may be hazardous. Do not attempt to disassemble the unit. Only factory service personnel may perform repairs.
3. Connect your UPS directly to a properly-grounded AC power outlet with fuse or circuit breaker protection. Do not plug the unit into an outlet that is not grounded. Turn off and unplug the unit if you need to de-energize it.
4. Not for use in a computer room as defined in the Standard for the Protection of Electronic Computer/Data Processing Equipment, ANSI/NFPA 75.
5. To reduce the risk of fire, connect only to a circuit provided with 20 amperes maximum branch circuit over current protection in accordance with the National Electric Code, ANSI/NFPA 70.
6. For best performance, keep the indoor temperature around the unit between 32^ F and 104^ F ( 0^ C and 40^ C).
7. Do not attach medical equipment or non-computer related items, such as life-support equipment, microwave ovens, or vacuum cleaners to the UPS. bXterra does not sell equipment meant for life-support or medical applications. Visit our website for more information about devices appropriate to plug into this UPS.
8. Only stand or set up the UPS in the direction specified in the Installation and Operation section of this manual. Do not block fans and leave adequate space around all sides of the UPS for proper ventilation. Do not expose the unit to direct sunlight and do not install the unit near heat-emitting appliances such as a space heater or furnace. This could negatively impact the unit's internal cooling system and cause product

damage not covered under warranty.
9. Do not plug the UPS input into its own output. Do not attach a power strip or surge protector to the UPS.
10. Do not modify the UPS's plug and do not use an adapter that would eliminate the UPS's ground connection.
11. Do not use extension cords to connect the UPS to an AC outlet.
12. If the UPS receives power from a motor-powered AC generator, the generator must provide clean, filtered, computer-grade output. Consult your generator's manual to see if it meets these specifications.
13. The main power outlet that supplies the UPS should be easily accessible and near the UPS.
14. To reduce the risk of fire or electric shock, do not use the unit on any transportation such as airplanes or ships. The effect of shock or vibration caused during transit and the damp environment can cause the unit to short out.

BATTERY WARNINGS:

Servicing of batteries should be performed or supervised by personnel knowledgeable about batteries and the required precautions. When replacing batteries, replace with the same type and number of batteries or battery packs. CAUTION: Do not dispose of batteries in a fire. The batteries may explode.

CAUTION: Do not open or mutilate batteries. Released electrolytes are harmful to the skin and eyes. It may be toxic.

CAUTION: A battery can present a risk of electrical shock and high short-circuit current. Contact with any part of a grounded battery can result in electrical shock.

The following precautions should be observed when working on batteries:

a) Remove watches, rings or other metal objects
b) Use tools with insulated handles
c) Wear rubber gloves and boots
d) Do not lay tools or metal parts on top of batteries

SAFETY INSTRUCTIONS CONTINUED

e) Disconnect charging source and load prior to installing or maintaining the battery
f) Remove battery grounds during installation and maintenance to reduce likelihood of shock. Remove the connection from ground if any part of the battery is determined to be grounded.

CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.

Please recycle your batteries. Refer to local regulations for disposal requirements or if you are in the USA please call 1-877-723-1297 or visit www.call2recycle.org for more information about recycling your batteries.

Thank you for choosing a bXterra Uninterruptible Power Supply. This UPS system is ENERGY STAR® certified and uses our GreenTech™ High-Efficiency Design to consume less power, reduce heat and improve UPS operation.

INSPECTION

Inspect your UPS upon purchase. The following items should be inside:

- UPS System - User Manual - USB A+B Type Cable

Remove the UPS from its package and inspect it for damage that may have occurred during shipping. If any damage is discovered, re-pack the unit and return it to the place of purchase.

Determine the Power Requirements of Your Equipment

1. To determine the power requirements of your equipment, ensure that the equipment plugged into the outlet does not exceed the UPS's rated capacity. If the rated capacity of the unit is exceeded, the UPS may overload and shut down or the circuit breaker may trip.
2. There are many factors that can affect the amount of power that your equipment will require. We suggest that the load placed on the battery outlets not exceed 80% of the UPS's capacity.

CONNECT TO UTILITY POWER

Connect the AC power cord to utility power. The UPS will start to charge its internal battery. For best results, charge the battery for six hours prior to initial use. When the UPS is plugged into an AC outlet, the battery will automatically charge whether the UPS is turned on or not.

PLUG IN EQUIPMENT

Battery Backup Outlets

With the UPS turned off and unplugged, connect equipment requiring battery backup to the "Battery Backup" outlets. These outlets

provide battery backup, EMI filtering, line conditioning, and surge protection. Battery power is automatically provided in case of power failure.

Surge Protected Outlets

Connect other devices requiring surge protection to the "Surge Protected" outlets. These outlets do not provide power during power failure.

DO NOT plug a laser printer, paper shredder, copier, space heater, vacuum cleaner, sump pump or other large electrical device into the UPS. The power requirements of these devices will overload and possibly damage the UPS.

Connect Modem/Phone Line

This UPS protects a single line (1 in/1 out) phone, modem, or fax machine from surges. To protect a fax machine, phone or modem, connect a telephone or network cable from the wall jack outlet to the IN jack of the UPS. Connect a telephone cable or network cable from the OUT jack of the UPS to a fax machine, telephone, modem or network device.

TURN THE UPS ON

To turn on the UPS unit, press the power switch for at least two seconds. The LED indicators will light up. If an overload is detected, the UPS will turn off and the unit will beep continuously. To fix this, turn the UPS off and unplug at least one piece of equipment from the battery power-supplied outlets. Make sure the Circuit Breaker button is depressed and turn the UPS on again. To turn off the UPS unit, press the power switch again. The LED light will turn off.

MUTE ON/OFF

Press the mute button to turn an alarm on or off. For more information about the mute button, please refer to the LED indicators.

INSTALL SOFTWARE

Connect one end of the USB cable to a PC and the other end to the USB port at the rear of the UPS.

Download the latest version of PowerFrame™ software from www.bxterra.com to your hard drive. Follow on-screen instructions to complete the software installation.

For optimal battery charge, always leave the UPS plugged into the AC outlet.

To store the UPS for an extended period of time, cover the unit and fully charge the battery before disconnecting from AC power. While in storage, recharge the battery every three months to prolong optimal battery life.

CERTIFICATIONS

FCC COMPLIANCE

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in an installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

-Reorient or relocate the receiving antenna
-Increase the separation between the equipment and receiver
-Connect the equipment to an outlet on a different circuit than the one to which the receiver is connected
-Consult an experienced radio/TV technician for help

WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

GREENTECH™ UPS HIGH-EFFICIENCY DESIGN

A highly-efficient bXterra GreenTech UPS can reduce your negative environmental impact and save you money. By implementing high-quality components and leading-edge design, GreenTech UPS systems strive to deliver improved UPS performance resulting in less energy waste and heat buildup.

ROHS DIRECTIVE

Aside from being ENERGY STAR® compliant, we are committed to and supporters of the Restriction of Hazardous Substances (RoHS) directive, which strictly limits the use of six hazardous substances (lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBBs) and polybrominated diphenyl ether (PBDE)) in electrical equipment.

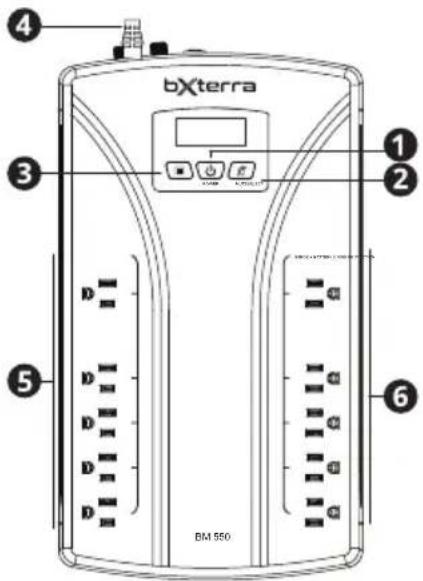

PRODUCT OVERVIEW

bXterra 1 2 3 4 5 BM 550 6

Diagram of a device rear panel with labeled ports and indicators, numbered 7 to 10

1. Power switch

Used as the master on/off switch for the UPS as well as for equipment connected to the battery power-supplied outlets.

2. Mute button

Hold this button for more than one second to place the unit in Silent Mode or silence the alarm.

3. Select button

Use this to cycle through messages and options on the LCD display.

4. AC input

Connect the main power cord of the UPS here.

5. Surge protected outlets

These outlets protect connected equipment in case of a power surge.

6. Battery backup/Surge outlets

These outlets provide battery backup power and surge protection to connected devices.

7. USB port

This port can connect the UPS to any computer to download the UPS-monitoring software, PowerFrame™. Instructions for this procedure can be found in the Installation and Operation section of this manual.

8. Phone/network surge protection

These ports protect equipment from surges over a single phone line or network connection.

9. Circuit breaker

This breaker provides overload and fault protection. If it trips, remove some of the load then reset it by pressing it in.

10. Coax surge protection

These ports protect equipment from surges over a coaxial line.

BATTERY REPLACEMENT

Line drawing of a rectangular electronic device with ports and connectors (no text or symbols)

STEP 1:

Remove battery cover by removing the screw on the back of the unit.

Technical line drawing of a mechanical device with a handle and mounting bracket (no text or symbols)

STEP 2:

Push the battery cover down as shown above.

Technical line drawing of a rectangular electronic device with mounting holes and a central door (no text or symbols)

STEP 3:

Disconnect the two battery cables and pull out the battery from the case. Replace the battery with the same specifications and number as your previous battery.

MODE POWER	BUTTON LED	LCD DISPLAY DESCRIPTION AUDIO
Turning On the UPS ON			When the UPS starts up, these icons will illuminate for three seconds	Continuous beeping for two seconds
Standby Mode Off			The display will show the input voltage	Off
Site Wiring Fault in Standby Mode	Off		1. Indicator will flash2. and indicators will take turns flashing every five seconds	Off
A/C Mode On			1. Output voltage2. Output frequency3. Input voltage4. Input frequency5. Estimated timePress (select) button to cycle through the displayed information.	Off
Site Wiring Fault in AC Mode	On		1. Indicator is flashing every second2. and normal A/C Mode will take turns flashing every five seconds	Off
A/C Mode in Mute On			indicator will display	Off (The mute function can be set, but can only be used in Battery Mode)
A/C Mode Overload Alarm	On		indicator is flashing every second	Beeping every 0.5 seconds
Battery Mode On			1.Estimated time2.Output voltage3.Output frequency4.Input voltage5.Input frequencyPress button to cycle through the displayed information.	Beeping every 10 seconds
Low Battery Alarm On			indicator is flashing every second	Beeping every second
Battery Mode with Overload Alarm	On		indicator is flashing every second	Beeping every 0.5 seconds
Battery Mode in Mute	On		indicator will display	The UPS will not sound an alarm until after an event occurs, such as low battery, overload, etc.
Output Short Circuited	On		Disconnect short-circuited loads and restart the UPS	Continuously beeping
Overload Fault On			Turn off the UPS.Disconnect all loads and restart the UPS.Plug in equipment one at a time and make sure not to exceed the UPS rating for load capacity.	Continuously beeping
Battery Mode Out-put High Fault	On		Call for service immediately	Continuously beeping
Overcharge Fault On Call for service			immediately	Continuously beeping
Low Battery Fault On Charge the UPS			at least 12 hours or replace the battery	Continuously beeping
Backlight During faults and alarms, the backlight will always stay			on.In other modes, the backlight will light up when the device's buttons are pressed. If no buttons are pressed within 20 seconds, the backlight will turn off.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION
Nothing is displayed on the LCD screen	The UPS is not on	Press the power button to turn the UPS on
	The battery voltage is too low Charge	the battery for at least 6 hours
	The battery is faulty Replace the battery
The UPS is always on Battery Mode	The power cord is loose	Check that the power cord is plugged in properly
The UPS beeps continuously Please check the LCD Display table on Page 6 for details
Battery backup time is too short	The battery voltage is too low Charge	the battery for at least 6 hours
	There is an overload	Unplug some noncritical devices.Please verify that the load matches the UPS capabilities.
	The battery is defective	Contact [e-mail] for assistance
The surge protection outlets are not providing power	The circuit breaker has tripped from an overload	Turn the UPS off and unplug one piece of equipment. Wait 10 seconds, reset the circuit breaker then turn the UPS on again.
The UPS will not turn on	The on/off switch is designed so the user must press the button for at least 2 seconds to turn it on	Turn the UPS off. Wait 10 seconds then turn it on again.
	The unit is not plugged into an outlet	The unit must be connected to a properly grounded outlet providing 110/120V and 50/60 Hz
	The battery is worn out	Contact bXterra [e-mail] about replacement batteries

TECHNICAL SPECIFICATIONS

MODEL BM550LCD BM750LCD BM850LCD
Topology Standby
INPUT
Voltage 120V
Frequency Range 50/60 Hz ± 5 Hz (auto sensing)
Input Voltage Range 88 - 139V
Circuit Breaker 12A
Plug Type NEMA 5-15P
Plug Style Right Angle, 45° Offset
Power Cord 6 ft
OUTPUT
VA/W 550VA/330W	750VA/420W	850VA/450W
On Battery Voltage	120 VAC ± 5%
On Battery Frequency	50/60 Hz ± 1%
On Battery Waveform	Simulated Sine Wave
Outlet Type NEMA 5-15R
Outlets - Total 10
Battery & Surge 5
Surge-Only 5
Overload Protection Internal Circuitry Limiting/Circuit Breaker
Transfer Time 4ms Typical
BATTERY
Runtime at Half Load(min) 9 10 8
Runtime at Full Load(min) 2 3 2
Battery Type Leakproof and maintenance free sealed lead acid battery.
Battery Size 12V/5.0Ah 12V/7.0Ah	12V9.0Ah
Battery Quantity 1
User Replaceable	Yes
Recharge Time	8 Hours
SURGE PROTECTION & FILTERING
Surge Suppression	1,030 J	890 J	1,030 J
Phone RJ11/ Ethernet RJ45	RJ45 10/100 Base-T Ethernet protection
EMI/RFI Filtration	Yes
MANAGEMENT & COMMUNICATIONS
Multi-status LCD Panel	Voltage, Frequency, Runtime, % Load, % Battery, Online, Muted
HID Compliant USB Port	Yes
LED Indicators	Power On, Wiring Fault
Management Cable	USB Cable
Audible Alarms	On Battery, Low Battery, Overload, Fault
Software	PowerFrameTM Personal UPS-monitoring software
PHYSICAL
Form Factor	Compact Desktop
Dimensions (in)	13 x 7.48 x 3.46
Weight (lbs)	7.06	7.72	8.12
CERTIFICATIONS
Safety	cTUVus (Conforms to UL1778 5th Edition & CSA 22.2 no. 107.3-14 / R: 2014)/FCC DOC Class B/ENERGY STAR® certified
Environmental	RoHS Compliant
WARRANTY
Product Warranty	3 Year Limited Warranty
Connected Equipment Guarantee	125,000	150,000	$200,000

Product specifications are subject to change without prior notice

WARRANTY INFORMATION

Your bXterra product comes with a Limited 3-Year Warranty. bXterra warrants this product, if used appropriately and in full accordance with all applicable instructions, to be free from original defects in material and workmanship for 3 years from the date of initial purchase. If the product can be proven defective in material or workmanship during that 3-year period, bXterra will, subject to the full terms and limitations of the product's Limited Warranty available on our website, repair or replace that product. bXterra will act on its own discretion as the sole remedy for bXterra's breach of its Limited Warranty. Full details of this Limited Warranty and bXterra's Connected Equipment Guarantee can be found on our website at www.bxterra.com/warranty or at the individual product's page on our website. Please register your product at www.bxterra.com/registration to certify your product's warranty.

CONSIGNES DE SÉCURITÉ

INFORMATIONS DE GARANTIE

© 2018 Bxterra Power Technology, a subsidiary and trademark of APX Power Technology LLC, USA. All Rights Reserved. bXterra and the bXterra logo are trademarks of APX Power Technology LLC, USA. All other trademarks are property of their respective owners. Imagery and specifications may differ from actual products and are subject to change without notice.
