USER MANUAL SP3000LCDRTXL2U Bxterra

SP2200LCDRT2U | SP2200LCDRTXL2U

SP1500LCDRT2U | SP1500LCDRTXL2U

SP1000LCDRT2U | SP1000LCDRTXL2U

www.bxterra.com

TABLE OF CONTENTS

WARRANTY & REGISTRATION.... 3

SAFETY INSTRUCTIONS.... 3-4

INSTALLATION & OPERATION...... 5-7

PRODUCT OVERVIEW.... 7-8

BATTERY REPLACEMENT...... 8-9

BATTERY KIT ASSEMBLY.... 9-10

BUTTON FUNCTIONS.... 10

LCD DISPLAY.... 11

AUDIBLE ALARMS.... 11

LCD DISPLAY WORD INDEX...... 11

UPS SETTINGS.... 12-14

FAULT CODES.... 15

WARNING INDICATORS.... 15

TROUBLESHOOTING.... 16

STORAGE AND MAINTENANCE.... 16

TECHNICAL SPECIFICATIONS.... 17-18

BATTERY PACK SPECIFICATIONS.... 18

WARRANTY INFORMATION...... 18

PRODUCT REGISTRATION

This bXterra product is constructed to provide unmatched power protection, quality and performance for the duration of its lifetime. Please take a few minutes to register your new product at www.bxterra.com/registration. Registration certifies your product's warranty, confirms your ownership in the event of a product loss or theft and entitles you to free technical support. Please register your product now to receive the benefits of bXterra ownership.

SAFETY

SAVE THESE INSTRUCTIONS: This manual contains important instructions that should be followed during installation and maintenance of the UPS and its batteries.

1. This unit is intended for installation in a controlled environment (a temperature-controlled and indoor area free of conductive contaminants). Please avoid installing the UPS in locations where there is standing or running water, dust, direct sunlight or excessive humidity.

2. Use caution when lifting the UPS. Because of the considerable weight of all rack-mount UPS systems, at least two people should assist in lifting and installing them.

3. Connect your UPS directly to a properly grounded AC power outlet with fuse or circuit breaker protection. Do not plug the unit into an outlet that is not grounded. Turn off and unplug the unit if you need to de-energize it.

4. For best performance, keep the indoor temperature around the unit between 32^ F and 104^ F ( 0^ C and 40^ C).

5. Do not attach medical equipment or non-computer related items, such as life-support equipment, microwave ovens or vacuum cleaners to the UPS. bXterra does not sell equipment meant for life-support or medical applications. Visit our website for more information about devices appropriate to plug into this UPS.

6. Only stand or set up the UPS in the direction specified in the Installation and Operation section of this manual. Do not block fans and leave adequate space around all sides of the UPS for proper ventilation. Do not expose the unit to direct sunlight and do not install the unit near heat-emitting appliances such as a space heater or furnace. This could negatively impact the unit's internal cooling system and cause product damage not covered under warranty.

7. As defined in the Protection of Information Technology Equipment ANSI/NFPA 75, this UPS is not for use in a computer room (US installations only). Contact bXterra to order a special battery kit if needed to meet the ANSI/NFPA 75 requirement.

8. When mounting the UPS system in a tower orientation, make sure the LCD screen panel is at the top of the UPS, not the bottom.

9. Do not plug the UPS input into its own output. Do not attach a power strip or surge protector to the UPS.

10. Do not modify the UPS's plug and do not use an adapter that would eliminate the UPS's ground connection.

11. Do not use extension cords to connect the UPS to an AC outlet.

12. The EPO and USB circuits are an IEC 60950-1 safety extra low voltage (SELV) circuit. This circuit must be separated from any hazardous voltage circuits by reinforced insulation.

13. If the UPS receives power from a motor-powered AC generator, the generator must provide clean, filtered, computer-grade output. Consult your generator's manual to see if it meets these specifications.

14. The main power outlet that supplies the UPS should be easily accessible and near the UPS.

15. To reduce the risk of fire or electric shock, do not use the unit on any transportation such as airplanes or ships. The effect of shock or vibration caused during transit and the damp environment can cause the unit to short out.

16. When installing the equipment, please ensure that the sum of the leakage current of the UPS and the connected devices does not exceed 3.5mA.

17. Do not disconnect the power cable on the UPS system or the building wiring outlet (grounded outlet) during operation since this would cancel the protective grounding of the UPS system and of all connected loads.

Battery Warnings:

- The UPS system operates with hazardous voltages. Repairs should only be performed by qualified maintenance personnel.

- Do not operate the UPS without batteries.

- Caution - risk of electric shock. Even after the unit is disconnected from the main power source, (building wiring outlet), components inside the UPS system are still connected to the battery and electrically live and dangerous.

- Before carrying out any kind of service and/or maintenance, disconnect the batteries and verify that no current is present and no hazardous voltage exists in the terminals of high-capability capacitors, such as BUS-capacitors.

- To avoid electrical shock, turn off the unit and unplug it from the AC power source before servicing the battery.

- Only persons who are adequately familiar with batteries and with the required precautionary measures may replace batteries and supervise operations. Unauthorized persons must be kept well away from the batteries.

- Do not dismantle the UPS during battery replacement.

- Caution - risk of electric shock. The battery circuit is not isolated from the input voltage. Hazardous voltages may occur between the battery terminals and the ground. Before touching, please verify that no voltage is present.

- When changing batteries, install the same number and same type of batteries.

- Do not attempt to dispose of batteries by burning them. This could cause an explosion.

- Do not open or destroy batteries. Escaping electrolytes can cause injury to the skin and eyes. It may be toxic.

A battery can may cause a risk of electrical shock and high short-circuit current. The following precautions should be observed when working on batteries:

a) Remove watches, rings, or other metal objects

b) Use tools with insulated handles

c) Wear rubber gloves and boots

d) Do not lay tools or metal parts on top of batteries

e) Disconnect charging source prior to connecting or disconnecting battery terminals

f) Determine if battery is inadvertently grounded. If inadvertently grounded, remove source from ground. Contact with any part of a grounded battery can result in electrical shock. The likelihood of such shock can be reduced if such grounds are removed during installation and maintenance.

- During hot-swap battery replacement, the UPS will not provide backup power in the event of a blackout or other power interruptions.

External Battery Connection Warnings:

When adding external battery packs to select models with external battery pack connectors, connect only bXterra battery packs of the correct voltage and type. Do not connect or disconnect battery packs when the UPS is operating on battery power. Visit www.bxterra.com to locate the supported battery type(s) for your UPS.

MANUFACTURER TYPE RATING CASE FLAMMABILITY
HITACHI Battery (MH14533) GP 1272 12 V, 7.2	Ah HB
	GP 1272 F2 12 V, 7.2	Ah HB
	UPS 12360 6 12 V, 6.5	Ah HB
	UPS 12360 7 12 V, 6.5	Ah HB
	UPS 12460 12 V, 9	Ah V-0
	UPS 12460 FR 12 V, 8.5	Ah HB
	HR 1234W 12 V, 8.5	Ah HB
	HR 1234W FR 12 V, 8.5	Ah V-0
	UPS 12580 12 V, 9.4	Ah HB
	UPS 12580 FR 12 V, 10	Ah V-0
TAIWAN YUASA (MH28947)	NPW36-12	12 V, 7.0 Ah	HB
	NPW36-12FR	12 V, 7.0 Ah	V-0
	UXW360-12	12 V, 7.0 Ah HB
	UXW360-12FR	12 V, 7.0 Ah	V-0
	UXW460-12	12 V, 8.0 Ah HB
	UXW460-12FR	12 V, 8.0 Ah	V-0
	NPW45-12	12 V, 7.5 Ah HB
	NPW45-12FR	12 V, 7.5 Ah	V-0
SHIMASTU (MH28269)	NP7-12	12 V, 7.0 Ah	V-0
	NP9.0-12	12 V, 9.0 Ah HB
FUJIAN MINHUA (MH47104) MS7-12	12 V, 7.0 Ah	V-0
	MS9-12	12 V, 9.0 Ah HB
SHENZHEN CENTER POWER (MH25860)	CP1270	12 V, 7.0 Ah	HB
	CP1290	12 V, 9.0 Ah HB
SHENZHEN LEOCH BATTERIES (MH26866)	DJW12-7.0	12 V, 7.0 Ah	HB
	DJW12-7.0 FR	12 V, 7.0 Ah V-0
	DJW12-9.0	12 V, 9.0 Ah HB
	DJW12-9.0 FR	12 V, 9.0 Ah V-0
	DJW12-10 12 V, 10 Ah	HB
	DJW12-10 FR	12 V, 10 Ah	V-0
SHENZHEN RITAR POWER (MH28539)	RT1270	12 V, 7.0 Ah	HB
	RT1290	12 V, 9.0 Ah HB

INSTALLATION AND OPERATION

NOTE: Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. Please keep the original package in a safe place for future use.

What's included in the box:

1. UPS System

2. Screws x 8

3. User Manual

4. Tower Stands x 4

5. USB A+B Type Cable

6. Phone Line Cable x 1

7. Ear Racks x 2

8. Serial Port Cable x 1

The UPS is shipped without the battery connected. Before installing the UPS, please follow the steps below to reconnect the battery wires.

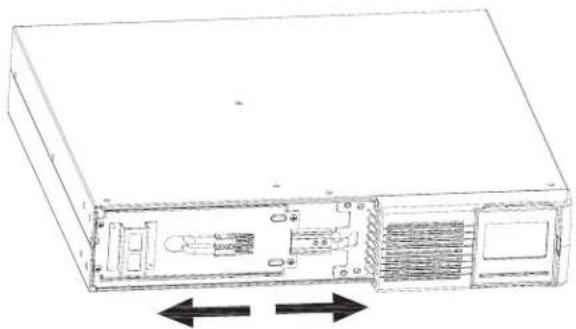

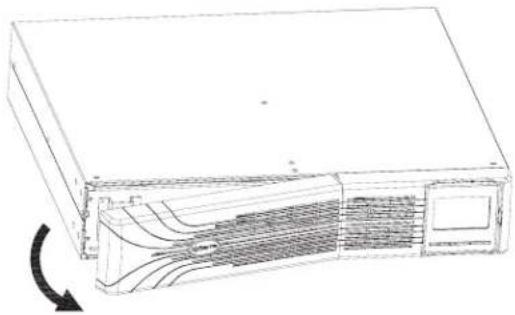

STEP 1: Remove the front panel.

Line drawing of a server rack unit with ventilation slots and a scroll arrow indicating rotation (no text or symbols)

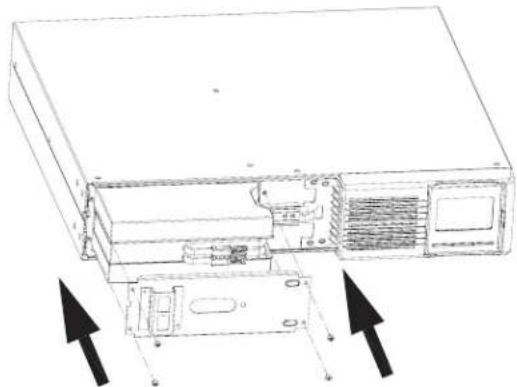

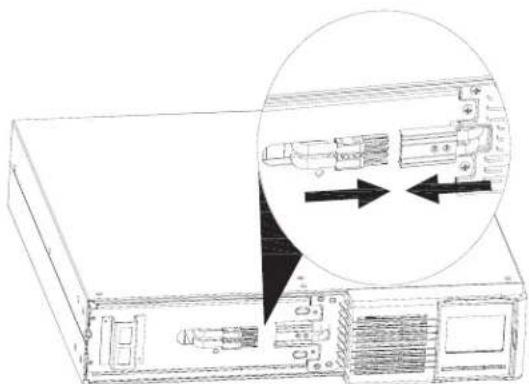

STEP 2: Connect the AC input and reconnect the battery wires.

Diagram of a server rack with internal components and two arrows indicating directional movement (no text or symbols)

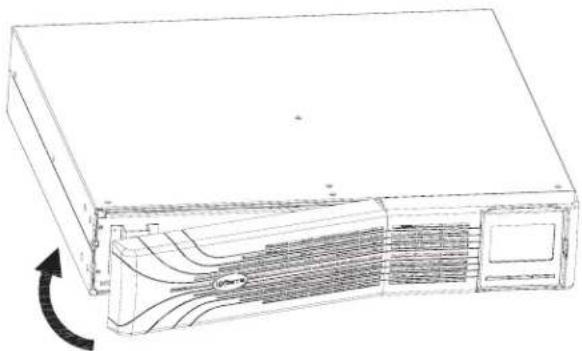

STEP 3: Put the front panel back on the unit.

Technical line drawing of a server rack with ventilation ducts and heat exchangers (no text or symbols)

Rack-mount Installation

CAUTION - Do NOT use the mounting brackets to lift the unit. The mounting brackets are only for securing the unit to the rack.

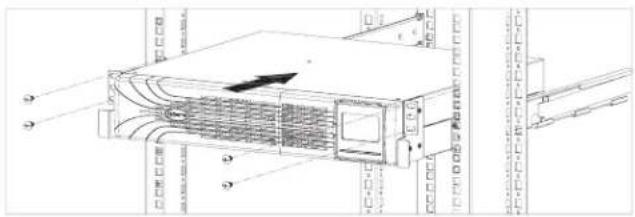

Install UPS alone

Technical line drawing of a server rack unit with heat exchangers and ventilation ducts (no text or symbols)

Technical line drawing of a server rack unit with ventilation duct and ventilation ducts (no text or symbols)

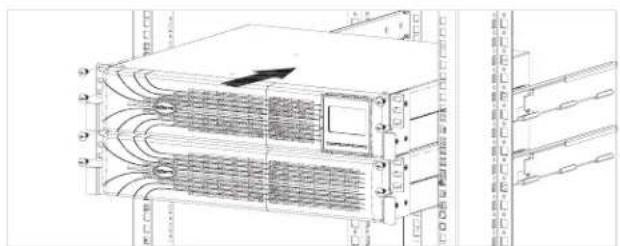

Install UPS and external battery

Technical line drawing of a server rack with heat exchangers and ventilation ducts (no text or symbols)

Technical line drawing of a server rack unit with heat exchangers and ventilation ducts (no text or symbols)

Tower Installation
STEP 1 STEP 2 STEP 3

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or assembly.

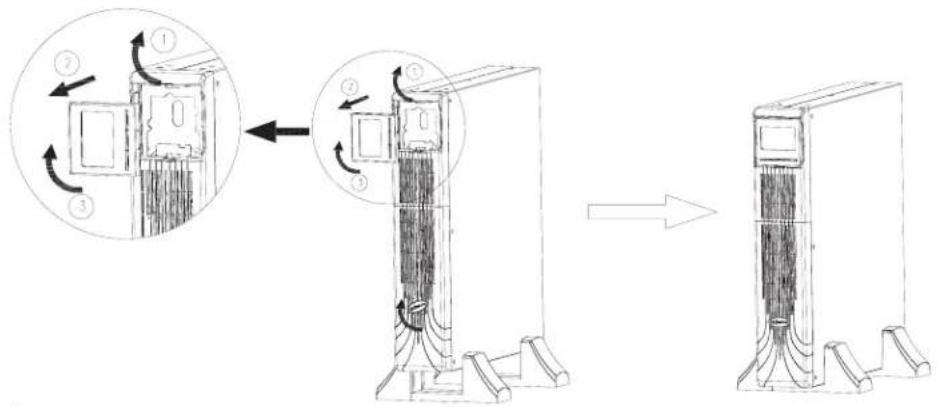

Install UPS and external battery in tower mode

Technical line drawing of a server rack unit with cooling fins and mounting feet (no text or symbols)

Technical line drawing of a rectangular frame with two cylindrical cutouts, each dimensioned at 70mm (no text or symbols present)

NOTE: When setting up the UPS and/or EBM with tower stands, please ensure the tower stands are installed a distance of 70mm away from the edge of the unit.

INSTALLATION AND OPERATION CONTINUED

Set Up The UPS

Step 1: UPS input connection

Plug the UPS into a 2-pole, 3-wire, grounded receptacle (wall outlet) only.

Step 2: UPS output connection

There two types of outputs: Critical outlets and Noncritical outlets. Please connect noncritical loads to the Noncritical outlets and critical loads to the Critical outlets.

Step 3: Communication connection

Communication ports:

To allow for unattended UPS shutdown/start-up and status monitoring, connect one end of the communication cable to the USB/RS-232 port and the other end to the communication port of your PC. With the monitoring software installed,

USB RS-232 PORT NETWORK SLOT

Blank white rectangle with two small circular symbols in the top-left corner (no text or labels)

you can schedule UPS shutdown/start-up and monitor UPS status through the PC.

The UPS is equipped with a network slot for either the SNMP or AS400 card. After installing either the SNMP or AS400 card in the UPS, it will provide advanced communication and monitoring options.

Note: The USB port and RS-232 port can't work at the same time.

Step 4: Network connection
NETWORK/FAX/PHONE SURGE PORT

Connect a single modem/phone/fax line into the surge-protected "IN" outlet on the back panel of the UPS unit. Connect from "OUT" outlet to the equipment with another modem/fax/phone line cable.

Step 5: Disable and enable EPO function

This UPS is equipped with EPO (Emergency Power off) function. By default, the UPS is delivered from the factory with Pin 1 and Pin 2 closed (a metal plate is connected to Pin 1 and Pin 2) for UPS normal operation. To activate EPO function, remove two screws on the EPO port and the green connector will be removed. As a default, the EPO function is closed during normal UPS operation.

Note: The EPO function logic can be set up via an LCD setting. Please refer to Program 7 in the UPS setting for details.

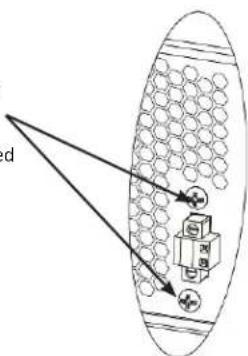

To activate the EPO function, remove these two screws.

As a default, the EPO function is closed during normal UPS operation.

d S D

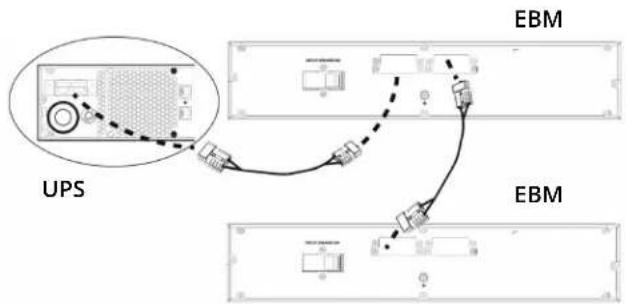

Step 6: Externed battery module connection

Connect one end of the external battery cable to the UPS unit and the other end to the battery module. See the chart below for detailed instructions.

CAUTION: Connection to an external battery should be installed by service personnel only.

NOTE: If connecting more than one Extended Battery Module, make sure to connect the load at 80% of the UPS's capacity.

To connect an Extended Battery Module:

1. Turn off the UPS utility input.
2. Open the front-left cover on the UPS and the Extended Battery Module (EBM) and disconnect the internal batteries.
3. Remove the EBM-terminal covers from the UPS and the EBM and connect one end of the external-battery cable to the UPS and one end to the battery cabinet as shown in the figure above.
4. If connecting more than one external battery, connect one end of the external battery cable to the second connector on the battery module, then connect the other end to the next battery module as shown in the figure above.
5. Once the UPS and EBM(s) are connected, secure the connection with the screws, reconnect the internal batteries, and replace the front-left covers on the units.

NOTE: After install and initial start-up, set the number of installed battery modules in the UPS Settings.

NOTE: When 2 or more external battery modules are used with bXterra SP1000/2200/3000 series models, the UPS load rating is decreased by 20%.

Step 7: Turn on the UPS

Press the ON/Mute button on the front panel for two seconds to power on the UPS.

Note: The battery charges fully during the first five hours of normal operation. Do not expect full battery capability during this initial charge period.

Step 8: Install software

For optimal computer system protection, install UPS monitoring software to fully configure UPS shutdown and operation. Please follow steps below to download and install the monitoring software:

1. Go to the website http://www.bxterra.com/downloads
2. Click PowerFrame™ software icon and then choose your required OS to download the software
3. Follow the on-screen instructions to install the software
4. When your computer restarts, the monitoring software will appear as a Green "X" icon located in the system tray

AUTOMATIC VOLTAGE REGULATOR

The SP Smart Sine Wave UPS series adjusts inconsistent utility power to normal levels that are safe for your equipment. The AVR feature of this UPS can take erratic incoming utility power and correct it to safe levels. AVR automatically increases utility power that is too low or decreases utility power that is too high to a consistent 110 or 120 volts.

PRODUCT OVERVIEW

Introduction

Thank for choosing a bXterra Uninterruptible Power Supply. This UPS system is ENERGY STAR®-certified and uses our GreenTech™ Bypass Design to consume less power, reduce heat and improve UPS operation.

The SP Smart Sine Wave UPS series provides protection from utility power that may not always be safe for your devices. Each unit provides 1,372 Joules of surge suppression and supplies battery backup during power disruptions using maintenance-free batteries. Each SP Series model ensures consistent power to your connected equipment and critical devices. Each model also comes with access to PowerFrame™ Business Edition management software to remotely set up and manage your bXterra UPS.

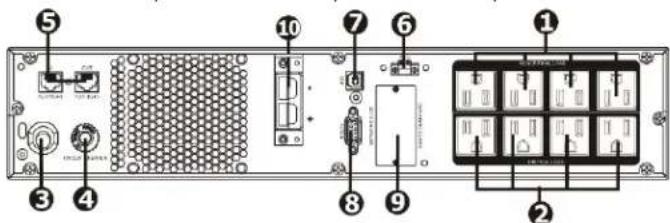

SP1000LCDRT2U | SP1000LCDRTXL2U | SP1500LCDRT2U | SP1500LCDRTXL2U

Diagram of an electronic device rear panel with numbered components and labeled ports

SP2200LCDRT2U | SP2200LCDRTXL2U

Diagram of an electronic device rear panel with numbered components for identification and assembly reference.

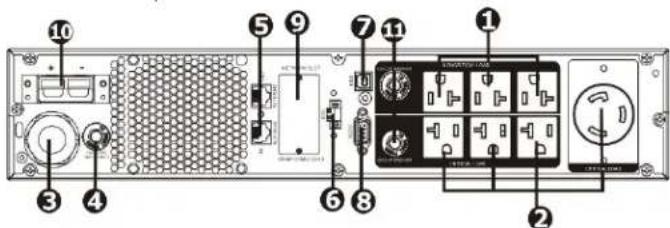

SP3000LCDRT2U | SP3000LCDRTXL2U

Labeled diagram of a network equipment rack with numbered components for identification

1. Noncritical outlets Connect noncritical loads to these outlets. These outlets are programmable.
2. Critical outlets
   Connect critical loads to these outlets. These outlets are not programmable.

3. AC input
   Plug in the main power cord for the UPS here.

4. Input circuit breaker

This breaker provides overload and fault protection. If it trips, remove some of the load then reset it by pressing it in.

1. Network/Fax/Modem surge protection

These ports protect equipment from surges over a single phone line or network connection.

1. Emergency Power Off function connector (EPO)

This connector allows for the installation of an EPO function, a feature which allows for a rapid turn-off of the UPS in case of an emergency.

1. USB communication port

This port connects the UPS to any computer to download the UPS-monitoring software, PowerFrame™. Instructions for this can be found in the Installation section of this manual.

1. RS-232 communication port

This port allows for the connection of devices via the RS-232 protocol.

1. SNMP network slot

This port allows for installation of either the SNMP or AS400 card. These cards will provide advanced communication and monitoring options for the UPS.

1. External battery connector (only available for the XL model)

Allows for the connection of bXterra External Battery Modules to provide additional power and battery backup.

1. Output Circuit Breaker (only available on the SP3000 & SP3000XL models) These resettable circuit breakers provide output outlets with protection from overload.

OPERATING PRINCIPLE

The operating principle of the UPS is shown below.

The UPS is composed of Power Input, EMI/RFI Filters, Inverter, Battery Charger, DC-to-DC Converter, Battery, AVR TX and UPS Output.

CERTIFICATIONS

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
• Consult an experienced radio/TV technician for help

WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Our GreenTech™ UPS Bypass Design strives to deliver better operating performance while using less power required by other uninterruptible power supplies. The technology inside a bXterra UPS allows current to bypass the transformer and automatic voltage regulation (AVR) when utility power is running normally, reducing energy consumption. This can lead to substantial energy savings when utility power is running normally on a consistent basis.

At bXterra, we want you to know that you're not only protecting your devices and equipment when purchasing our products, but you're protecting the environment as well. Aside from being ENERGY STAR®-compliant, we are committed to and supporters of the Restriction of Hazardous Substances (RoHS) directive, which strictly limits the use of six hazardous substances (lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBBs) and polybrominated diphenyl ether (PBDE)) in electrical equipment.

RoHS

BATTERY REPLACEMENT ADVISORY

When the icon and are flashing on the LCD display and the alarm is sounding every two seconds, the batteries may need replacing. Contact your service representative to order new batteries.

NOTE: DO NOT DISCONNECT the batteries while the UPS is in Battery mode.

Batteries can be replaced easily without turning the UPS off or disconnecting the load. If you prefer to remove input power to change the batteries, press the OFF button on the front panel for two seconds to power off the UPS and switch the utility power off where the UPS is connected.

BATTERY REPLACEMENT

NOTE: A small amount of arcing may occur when connecting the internal batteries. This is normal and will not harm personnel. Connect the cables quickly and firmly.

STEP 1: Remove the front panel.

Line drawing of a computer drive chassis with ventilation slots and a scroll arrow indicating rotation (no text or symbols)

STEP 2: Disconnect battery wires.

Technical line drawing of a server rack with internal components and bidirectional arrows indicating movement (no text or symbols)

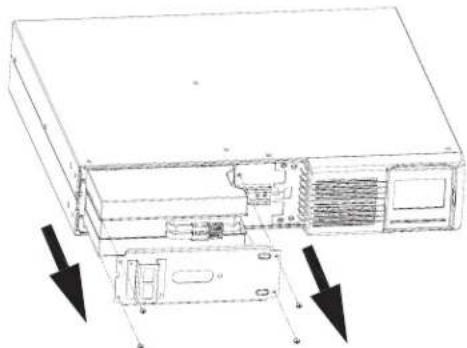

STEP 3: Pull out the battery box by removing two screws on the front panel.

Technical line drawing of a computer chassis with two arrows indicating downward motion (no text or symbols present)

STEP 4: Remove the top cover of the battery box and replace the internal batteries.

Technical line drawing of a mechanical component with an upward arrow indicating motion (no text or symbols present)

BATTERY REPLACEMENT CONTINUED

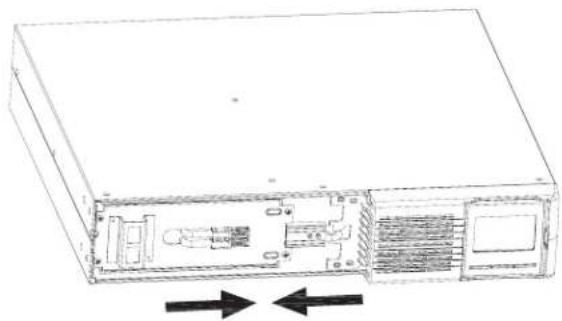

STEP 5: After replacing the batteries, put the battery box back to its original location and screw it in tightly.

Technical line drawing of a computer chassis with arrows indicating assembly or component (no text or symbols)

STEP 6: Reconnect the battery wires.

Technical line drawing of a server rack with internal components and directional arrows indicating movement (no text or symbols)

STEP 7: Put the front panel back on the unit.

Line drawing of a server rack unit with ventilation grilles and a scroll wheel (no text or symbols)

BATTERY KIT ASSEMBLY (OPTIONAL)

NOTE: Please assemble the battery kit first before installing it inside of the UPS. Please select the correct battery kit procedure below to assemble it.

2 BATTERY KIT

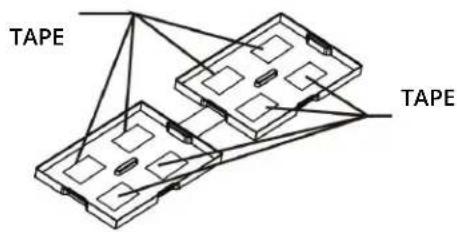

STEP 1: Remove the adhesive tape.

TAPE

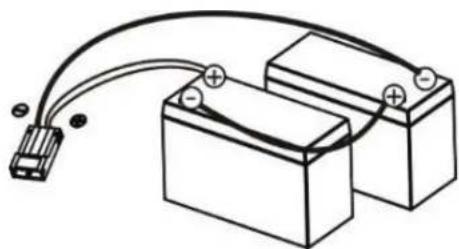

STEP 2: Connect all battery terminals by following the picture below.

Simple line drawing of a battery connected to two terminals with a cable (no text or symbols)

STEP 3: Put assembled battery packs on one side of the plastic shells as shown below.

Technical line drawing of an electronic device with a housing and connected components (no text or symbols)

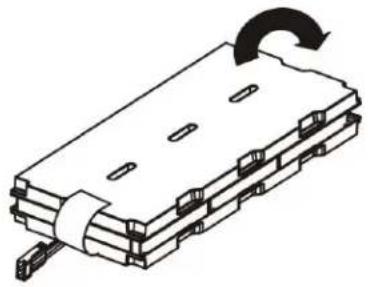

STEP 4: Cover the other side of the plastic shell as shown in the picture below. The battery kit assembly is now completed.

Isometric line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

4 BATTERY KIT

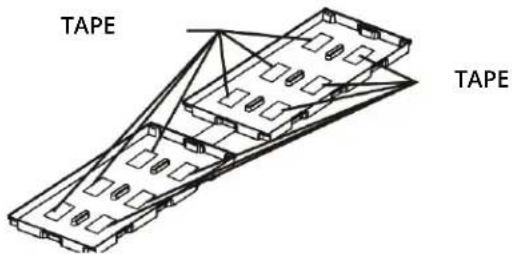

STEP 1: Remove the adhesive tape.

TAPE TAPE

STEP 2: Connect all battery terminals by following the picture below.

Isometric line drawing of a battery pack with a terminal connector (no text or symbols)

BATTERY KIT ASSEMBLY CONTINUED

STEP 3: Put assembled battery packs on one side of the plastic shells as shown below.

Technical line drawing of a mechanical assembly with two components and directional arrows indicating motion (no text or symbols)

STEP 4: Cover the other side of the plastic shell as shown in the picture below. The battery kit assembly is now completed.

Diagram of a mechanical device with a rotating arrow and attached components (no text or symbols)

6 BATTERY KIT

STEP 1: Remove the adhesive tape.

TAPE TAPE

STEP 2: Put assembled battery packs on one side of the plastic shells as shown below.

Isometric technical diagram of a mechanical assembly with no visible text or symbols

STEP 3: Connect all battery terminals by following the picture below.

Isometric line drawing of a battery pack with terminal connections and a terminal connector (no text or symbols)

STEP 4: Cover the other side of the plastic shell as shown in the picture below. The battery kit assembly is now completed.

Diagram of a mechanical assembly with a curved arrow indicating rotation or force (no text or symbols present)

BUTTON FUNCTIONS

ON / MUTE SELECT OFF / ENTER

BUTTON FUNCTION

ON/MUTE • Turn on the UPS: Press and hold ON/Mute buttonfor at least two seconds to turn on the UPS.Mute the alarm: After the UPS is turned on inBattery Mode, press and hold this button for atleast three seconds to disable or enable the alarmsystem. Note: This will not work when warnings oerrors occur.Up key: Press this button to display the previousselection in UPS Setting Mode.Switch to UPS Self-Test Mode: Press and hold ON/Mute button for three seconds to enter UPS self-testing while in AC Mode.

SELECT • Switch LCD message: Press this button tochange the LCD message for input voltage, Inputfrequency, battery voltage, output voltage andoutput frequency.Setting Mode: Press and hold this button for threeseconds to enter UPS Setting Mode when the UPSis off .Down key: Press this button to display the nextselection in UPS Setting Mode.

OFF/ENTER • Turn off the UPS: Press and hold this button atleast three seconds to turn off the UPS.Confi rm selection key: Press this button toconfi rm the selection in UPS Setting Mode.

ON/Mute + Select • Exit Setting Mode or return to the upper menu:When working in Setting Mode, press the ON/Mute and Select buttons simultaneously to returnto the main menu. If you are already at the mainmenu, press these two buttons at the same timeto exit the Setting Mode.

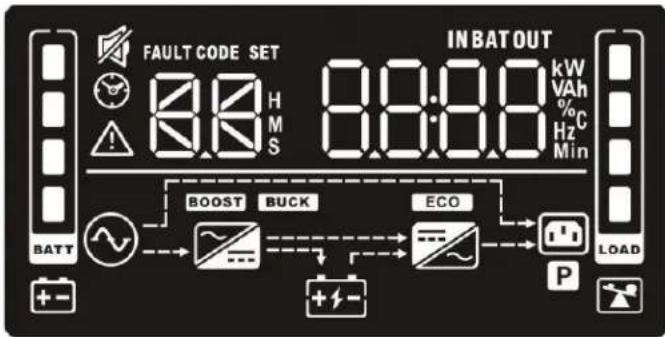

LCD DISPLAY

FAULT CODE SET 8:0 H H M S 8:0:8 IN BAT OUT kW VAh % Hz Min BATT BOOST BUCK ECO P LOAD

DISPLAY FUNCTION

Backup time information
	Indicates the estimated backup time.H: hours, M: minute, S: second.
Configuration and fault information
	Indicates the configuration items. The configuration items are listed in detail in theUPS Settingssection of the manual.
	Indicates the warning and fault codes. The codes are listed in detail in theFault Codessection of the manual.
Mute operation
	Indicates that the UPS alarm is disabled.
Input, Battery, Output & Load information
	Indicates the input voltage, input frequency, battery voltage, battery capacity, output voltage, output frequency, load current and load percentage.k: kilo, W: watt, V: voltage, A: ampere, %: percent, Hz: frequency
Load information
	Indicates the load level by 0-24%, 25-49%, 50-74% and 75-100%.
	Indicates overload.
Programmable/Noncritical outlets information
	Indicates that programmable management outlets are working.
	Indicates the UPS is connected to main power.
	Indicates the battery is working.
	Indicates charging status.
	Indicates the ECO Mode is enabled.
	Indicates the UPS is working in Boost Mode.
	Indicates the UPS is working in Buck Mode.
	Indicates the AC to DC circuit is working.
	Indicates the inverter circuit is working.
	Indicates the output is working.

DISPLAY FUNCTION

Battery information
[0-23]	Indicates the battery level by 0-24%, 25-49%, 50-74%, and 75-100%.
0-24	Indicates low battery.

AUDIBLE ALARMS

Battery Mode Beeping every 10 seconds
Low Battery Beeping every two seconds
Overload Beeping every second
Fault Continuously beeping

LCD DISPLAY WORD INDEX

Abbreviation Display Content Meaning
ENA			Enable
DIS			Disable
ESC			Escape
AO/AC			Active Open/Active Close
ST/1/2/3		St 1/St2/St3	Input Waveform Sensitivity 1/2/3
AUT/AON Automatic/Always On
OK			OK
ON			ON
BL			Battery Low
OL			Overload
NC			Battery Not Connected
OC			Overcharge
SF			Site Fault
EP			EPO
TP			Temperature
CH			Charger
BF			Battery Fault
BR			Battery Replacement
EE		EE	EEPROM error

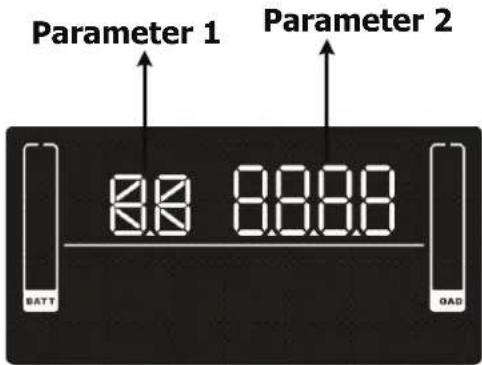

Parameter 1 88 8888 BATT GAD Parameter 2

There are two parameters to set up the UPS.

Parameter 1 is used for program alternatives.

Refer to the following LCD illustrations.

Parameter 2 is for setting options or values for each program.

01: OUTPUT VOLTAGE SETTING

SET 0 1 120 v BATT OUT LOAD

SETTING

Parameter 2: Output voltage

For 120VAC models, you may choose the following output voltage:

100: presents output voltage is 100VAC

110: presents output voltage is 110VAC

115: presents output voltage is 115VAC

120: presents output voltage is 120VAC (Default)

125: presents output voltage is 125VAC

02: PROGRAMMABLE/NONCRITICAL OUTLETS ENABLE/DISABLE

SET 02 d 15 BATT LOAD P

SETTING

Parameter 2: Enable or disable programmable outlets.

ENA: Programmable outlets enabled

DIS: Programmable outlets disabled (Default)

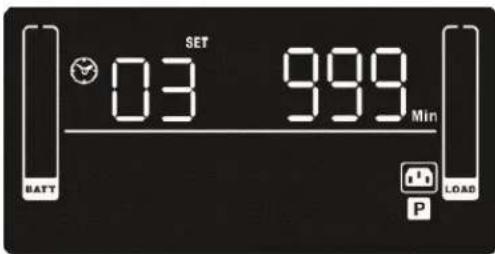

03: PROGRAMMABLE OUTLETS SETTING

SET 03 999 Min BATT LOAD P

SETTING

Parameter 2: Set up backup time limits for programmable outlets.

0-999: setting the backup time limits in minutes from 0-999 for programmable outlets which connect to noncritical devices on Battery Mode. (Default: 999)

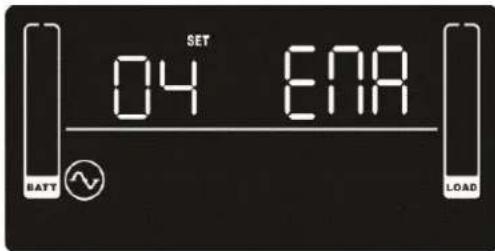

04: SITE FAULT DETECTION ENABLE/DISABLE

SET 04 ENR BATT LOAD

SETTING

Parameter 2: Enable or disable site fault detection. You may choose the following two options:

ENA: Site fault detection enable (Default)

DIS: Site fault detection disable

05: AUTONOMY LIMITATION SETTING

SET 05 d 15 BATT LOAD

SETTING

Parameter 2: Set up backup time on Battery Mode for all outlets.

0-999: setting the backup time in minutes from 0-999 for all outlets on Battery Mode.

DIS: By default, the autonomy limitation is disabled. Battery backup time will depend on battery capacity.

Note: When the setting is "0", the backup time will be only 10 seconds.

06: BATTERY TOTAL AH SETTING

SET 06 7 Ah BATT OAD

SETTING

Parameter 2: Set up the battery total AH of the UPS.

7-999: Setting the battery total capacity from 7-999 in AH. Please set the correct battery total capacity if Extended Battery Module is connected.

07: EPO LOGIC SETTING

SET 07 80 BATT LOAD

SETTING
Parameter 2: Set up the EPO function control logic.
AO: Active Open (Default). When AO is selected as EPO logic, it will activate EPO function with Pin 1 and Pin 2 in open status.
AC: Active Close. When AC is selected as EPO logic, it will activate EPO function with Pin 1 and Pin 2 in closed status.

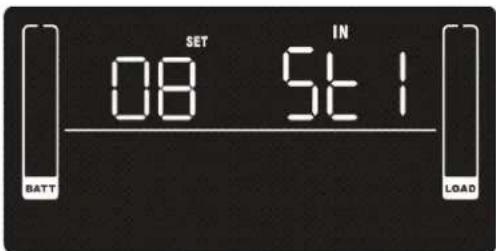

08: INPUT WAVEFORM SENSITIVITY SETTING

SET 08 56:1 BATT IN LOAD

SETTING
Parameter 2: Set Input Waveform Sensitivity.
St1: Input voltage waveform detection sensitivity is high. (Default)
St2: Input voltage waveform detection sensitivity is average.
St3: Input voltage waveform detection sensitivity is low. (Use with generators or step wave input)

09: LCD DISPLAY BACKLIGHT SETTING

SET 09 AUT BATT AD

SETTING
Parameter 2: Set up the working conditions for the LCD display backlight.
Aon: LCD display backlight is on all the time.
Aut: LCD display backlight will turn off after 60 seconds of receiving no input. (Default)

00: EXIT SETTING

SET 00 ESC BATT LOAD

SETTING
Exit the Setting Mode.

STEPS FOR SETTING PROGRAMMABLE/NONCRITICAL OUTLETS

Step 1:

Before entering Setting Mode, the UPS should be in Standby Mode (off-charging) and make sure the battery is connected. The LCD display is shown below.

OK BATT OUT v LOAD

Step 2:
Press and hold the "Selection" button for three seconds to enter Setting Mode.

SET 0 1 120 v BATT OUT LOAD

Step 3:
Press the "Up" button (ON/MUTE) to switch to "02" of program list. Then press "Enter" button to enter value setting of Parameter 2. Press the "Up" button to change the value to "ENA" to enable the programmable outlet function. Then press "Enter" button again to confirm the setting.

SET 02 d 15 BATT LOAD P

Step 4:
Press the "Up" button (ON/MUTE) again to switch to "03" of program list. Then press "Enter" button for setting programmable outlet time. Push "Up" button to change the value of backup time according to your demand. Then press "Enter" to confirm the setting.

SET 03 999 Min BATT LOAD P

Step 5:
Press "Up" button (ON/MUTE) to switch to "00" of program list. Then press "Enter" button to exit the setting menu.

SET 00 ESC BATT LOAD

Step 6:
Disconnect AC input and wait until the LCD display is off. The new setting will be activated when turning on the UPS again.

OPERATING MODE DESCRIPTION

OPERATING MODE DESCRIPTION LCD DISPLAY
ECO mode When the input voltage is within voltage regulated range, the UPS will power the output directly from the main power source. ECO is an abbreviation of Efficiency Corrective Optimizer. In this mode, when the battery is fully charged, the fan will stop working to save energy.
Buck Mode when AC power is normal When the input voltage is higher than the voltage regulation range but lower than the high-loss point, the buck AVR will be activated.
Boost Mode when AC power is normal When the input voltage is lower than the voltage regulation range but higher than the low-loss point, the boost AVR will be activated.
Battery Mode The UPS will supply backup power from the battery and display estimated remaining runtime, in minutes, when the input voltage is beyond the acceptable range or a power failure occurs.
Standby Mode The UPS is powered off and is not supplying output power, but is still charging its batteries.
Fault Mode When a fault occurs, the ERROR icon and the fault code will be displayed.

FAULT CODES

FAULT EVENT FAULT CODE ICON

Bus start fail 01 X
Bus over 02 X
Bus under 03 X
Inverter soft start fail 11 X
Inverter voltage high 12 X
Inverter voltage low 13 X

FAULT EVENT FAULT CODE ICON

Inverter output short 14 X
Battery voltage too high 27 X
Battery voltage too low 28 X
Over temperature	41 X
Overload	43
Charger failure	45 X

WARNING INDICATORS

WARNING ICON (FLASHING) CODE ALARM

Low battery Beeping every two
Overload			Beeping every second
Battery is not connected			Beeping every two seconds
Overcharge			Beeping every two seconds
Site wiring fault			Beeping every two seconds
EPO enable		[CZY7]	Beeping every two seconds
Over temperature			Beeping every two seconds
Charger failure	[CYST]		Beeping every two seconds
Battery fault			Beeping every two seconds
Battery replacement			Beeping every two seconds(At this time, the UPS is off to remind users something is wrong with the battery)
EEPROM error Beeping every two

NOTE: "Site Wiring Fault" function can be enabled/disabled via our software. Please check the software manual for details.

TROUBLESHOOTING

If the UPS system does not operate correctly, please refer to the table below.

SYMPTOM POSSIBLE CAUSE REMEDY
The UPS is not functioning and shows no error indications even though the main power source is functioning normally	The AC input power connection is not connected properly	Check if the input power cord is firmly connected to the main power source
	The AC input is connected to the UPS output Plug the AC input power cord to the AC input correctly
The icon and the warning code are flashing on the LCD display and the alarm is beeping every two seconds	The EPO function is activated	Set the circuit in the closed position to disable the EPO function
The icon, and the warning code are flashing on the LCD display and the alarm is beeping every two seconds	The line and neutral conductors of the UPS input are reversed	Rotate the main power socket by 180° and then connect it to the UPS system
The icon, and the warning code are flashing on the LCD display and the alarm is beeping every two seconds	The external or internal battery is incorrectly connected	Check if the batteries are connected properly
The fault code is shown as 27 on the LCD display and the alarm is continuously beeping	The battery voltage is too high or the charger is faulty	Contact bXterra Technical Support
The fault code is shown as 28 on the LCD display and alarm is continuously beeping	The battery voltage is too low or the charger is faulty	Contact bXterra Technical Support
The icon, and the warning code are flashing on LCD display and the alarm is beeping every second	The UPS is overloaded Remove excess loads from the UPS output	UPS output
The fault code is shown as 43 and the icon is lit on the LCD display. The alarm is continuously beeping.	The UPS shut down automatically because of an overload at the UPS output	Remove excess loads from the UPS output and restart it
The fault code is shown as 14 and the alarm is continuously beeping	The UPS shut down automatically because a short circuit occurred on the UPS output	Check output wiring and if the connected devices are in short circuit status
The fault code is shown as 01, 02, 03, 11, 12, 13 and 41 on the LCD display and the alarm is continuously beeping	A UPS internal fault has occurred Contact bXterra Technical Support
Battery backup time is shorter than expected	The batteries are not fully charged	Charge the batteries for at least five hours and then check capacity. If the problem persists, contact bXterra Technical Support.
	The batteries are defective Contact bXterra Technical Support for replacement batteries
The fault code is shown as 45 on the LCD display. At the same time, the alarm is continuously beeping.	The charger does not have output and the battery voltage is less than 10V/PC	Contact bXterra Technical Support

STORAGE AND MAINTENANCE

The UPS system contains no user-serviceable parts. If the battery service life (3\~5 years at 77°F ambient temperature) has been exceeded, the batteries must be replaced. In this case, please contact your dealer.

Before storing, charge the UPS at least five hours. Store the UPS covered and upright in a cool, dry location. During storage, recharge the battery in accordance with the following table:

STORAGE TEMPERATURE RECHARGE FREQUENCY CHARGING DURATION
-13°F - 104°F	Every three months	1-2 hours
104°F - 113°F	Every two months	1-2 hours

TECHNICAL SPECIFICATIONS

MODEL	SP1000LCDRT2U	SP1000LCDRTXL2U	SP1500LCDRT2U	SP1500LCDRTXL2U	SP2200LCDRT2U	SP2200LCDRTXL2U	SP3000LCDRT2U	SP3000LCDRTXL2U
Topology Line Interactive
INPUT
Voltage 120 VAC
Frequency Range 50/60Hz (auto-sensing)
Input Voltage Range 81-152VAC
Plug Type NEMA 5-15P, 16 AWG NEMA 5-15P, 14 AWG NEMA 5-20P, 12 AWG NEMA L5-30P, 10 AWG
Plug Style Straight Type
Cord Length 10ft
OUTPUT
VA 1000VA 1500VA 1920VA 3000VA
Watts 990W 1350W 1920W 2700W
Automatic Voltage Regulation	Boost +15% / Buck -13%
On Battery Voltage	120 VAC ± 1.5%
On Battery Frequency	50/60 Hz ± 0.1 Hz
On Battery Wave Form	Pure Sine Wave
Outlet Type	NEMA 5-15R		NEMA 5-15R		NEMA 5-20R		NEMA 5-20/30R
Outlet Total	8		8		8		7
Battery and Surge Protected	8		8		8		7
Outlets - Critical Load	4		4		4		4
Load Management Receptacles	4		4		4		3
Overload Protection	Firmware / Circuit Breaker
Transfer Time	4ms Typical
BATTERY
Runtime at Half Load	10.2 minutes		12.5 minutes		12 minutes		12 minutes
Runtime at Full Load	2.9 minutes		4.4 minutes		4 minutes		3.7 minutes
Battery Type	Leakproof Sealed Lead-Acid
Battery Size	12V/9AH		12V/7AH		12V/7AH		12V/9AH
Battery Quantity	2		4		6		6
User Replaceable	Yes
DC System Voltage (VDC)	24VDC		48VDC		72VDC		72VDC
Typical Recharge Time	4 hours
Extended Runtimes Available	N/A	Yes	N/A	Yes	N/A	Yes	N/A	Yes
SURGE PROTECTION & FILTERING
Surge Suppression	1372 Joules on UL report (Maximum)
Phone Protection RJ11/Ethernet RJ45	1-In, 1-Out
EMI/RFI Filtration	Full time multi-pole noise filtering: 5% IEEE surge let-through: zero clamping response time: meets UL 1449
MANAGEMENT & COMMUNICATIONS
Multifunction LCD Panel	Displays: Load/Level, Runtime, Battery Level, Battery In Use, Input Voltage, Output Voltage, Output Frequency, Overload, Wiring Fault, Battery Voltage, Silent Mode, Normal Mode
HID Compliant USB Port	Yes
Serial Port	Yes
EPO Port	Yes
Management Cable	USB Cable, Serial Cable, EPO Cable(optional)
Audible Alarms	Battery Mode, Low Battery, Overload, Fault
Software	PowerFrameTM UPS Management Software
SNMP / HTTP Remote Monitoring	Power management from SNMP Manager and web browser (optional)
PHYSICAL
Form Factor Rack/Tower
Rack Size 2U
Dimensions (in)	17.24 × 3.46 × 16.14		17.24 × 3.46 × 20.08		17.24 × 3.46 × 24.80		17.24 × 3.46 × 24.80
Weight (lbs) 29.5 41.4 61.1 64.6
ENVIRONMENTAL
Operating Temperature 32^ to 104^ / 0^ to 40^
Storage Temperature -13°F to 113°F / -25°C to 50°C
Operating Humidity 0% - 95%RH@32-104°F (0-40°C) non-condensing
Storage Relative Humidity	0 to 95%
Maximum Operating Elevation	10,000 ft / 3,000 m
Maximum Storage Elevation	50,000 ft / 15,000 m
Audible Noise <45dB
AC Mode Thermal Dissipation	141 BTU/Hr 192 BTU/Hr	224 BTU/Hr 315 BTU/Hr
CERTIFICATIONS
Safety cULus, FCC Part 15 Class B, ENERGY STAR® Qualified
Environmental RoHS Compliant
WARRANTY
Product Warranty	3 Year Limited
Connected Equipment Guarantee	Yes

Product specifications are subject to change without prior notice

EXTENDED BATTERY MODULE SPECIFICATIONS

MODEL	BP24V-SP2U	BP48V-SP2U	BP72V-SP2U
Used with UPS Models	SP1000LCDRTXL2U	SP1500LCDRTXL2U	SP2200LCDRTXL2U/SP3000LCDRTXL2U
Battery Type	12V/9Ah	12V/9Ah	12V/9Ah
DC System Voltage(VDC)	24VDC	48VDC	72VDC
Rack Size	2U	2U	2U
Battery Numbers	4	8	12
Dimensions (in)	17.24 x 3.46 x 16.14	17.24 x 3.46 x 20.08	17.24 x 3.46 x 24.8
Weight (lbs)	37.7	63.93	90.83

NOTE: To avoid potential problems with the UPS and/or EBM, please use the appropriate Extended Battery Module when connecting to the UPS.

WARRANTY INFORMATION

Your bXterra product comes with a Limited 3-Year Warranty. bXterra warrants this product, if used appropriately and in full accordance with all applicable instructions, to be free from original defects in material and workmanship for 3 years from the date of initial purchase. If the product can be proven defective in material or workmanship during that 3-year period, bXterra will, subject to the full terms and limitations of the product's Limited Warranty available on our website, repair or replace that product. bXterra will act on its own discretion as the sole remedy for bXterra's breach of its Limited Warranty. Full details of this Limited Warranty and bXterra's Connected Equipment Guarantee can be found on our website at www.bxterra.com/warranty or at the individual product's page on our website. Please register your product at www.bxterra.com/registration to certify your product's warranty.

This manual is believed to be accurate, but bXterra reserves the right to change or correct the contents of this manual at a later date and does not assume any responsibility for omissions or errors.

All content is owned by Bxterra Power Technology. All Rights Reserved. Reproduction is prohibited without permission. www.bxterra.com.
