USER MANUAL PlasmaSync 50XC10 NEC

• Plasma Monitor
• Remote control and AA Batteries
• Power cord
• Users Manual (CD-ROM)
• Start Up Guide (Paper / CD-ROM)
• Main Power Switch cover and screw
• Cable clamps

Table of Contents

Important Safety Instructions....English-1

Important Information ....English-2

Safety Precautions and Maintenance....English-3

Recommended Use....English-4

Installation

Optional Stands/Mounts......English-6

Mounting Location....English-6

Mounting on Ceiling ....English-7

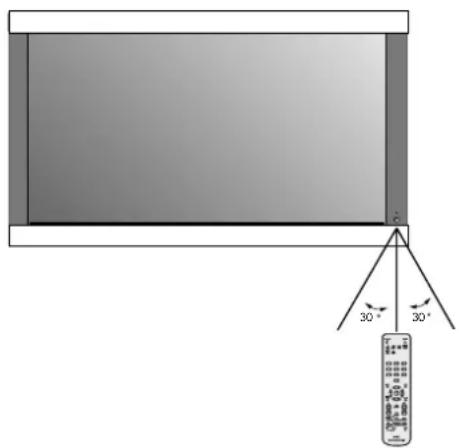

Maintenance, Orientation, Cable Management ....English-7 Using the Remote ....English-8

Part Names and Functions

Control Panel ....English-9

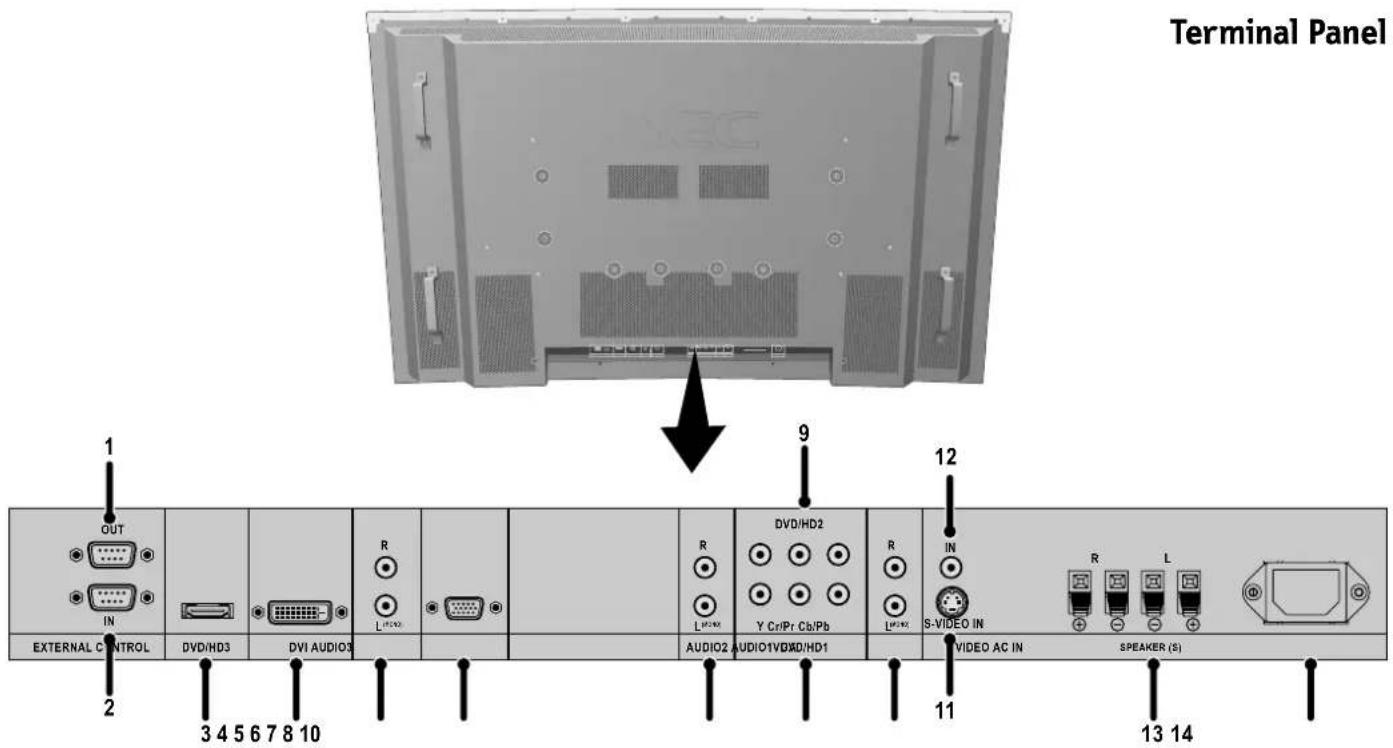

Terminal Panel....English-10

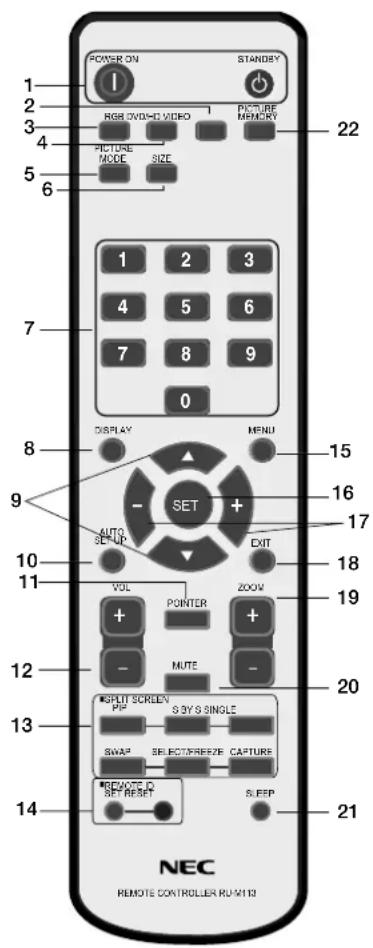

Remote Control....English-11

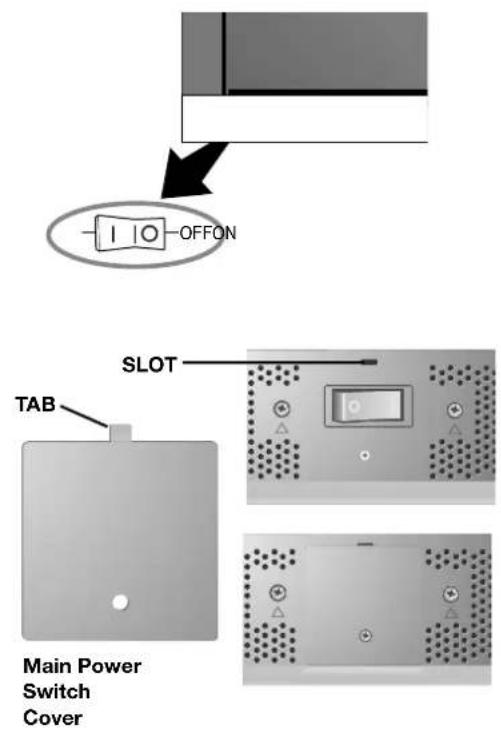

Power, Display, Digital Zoom, Pointer, Main Power Switch Cover ....English-12 Remote Control ID....English-13

On-Screen Display (OSD)

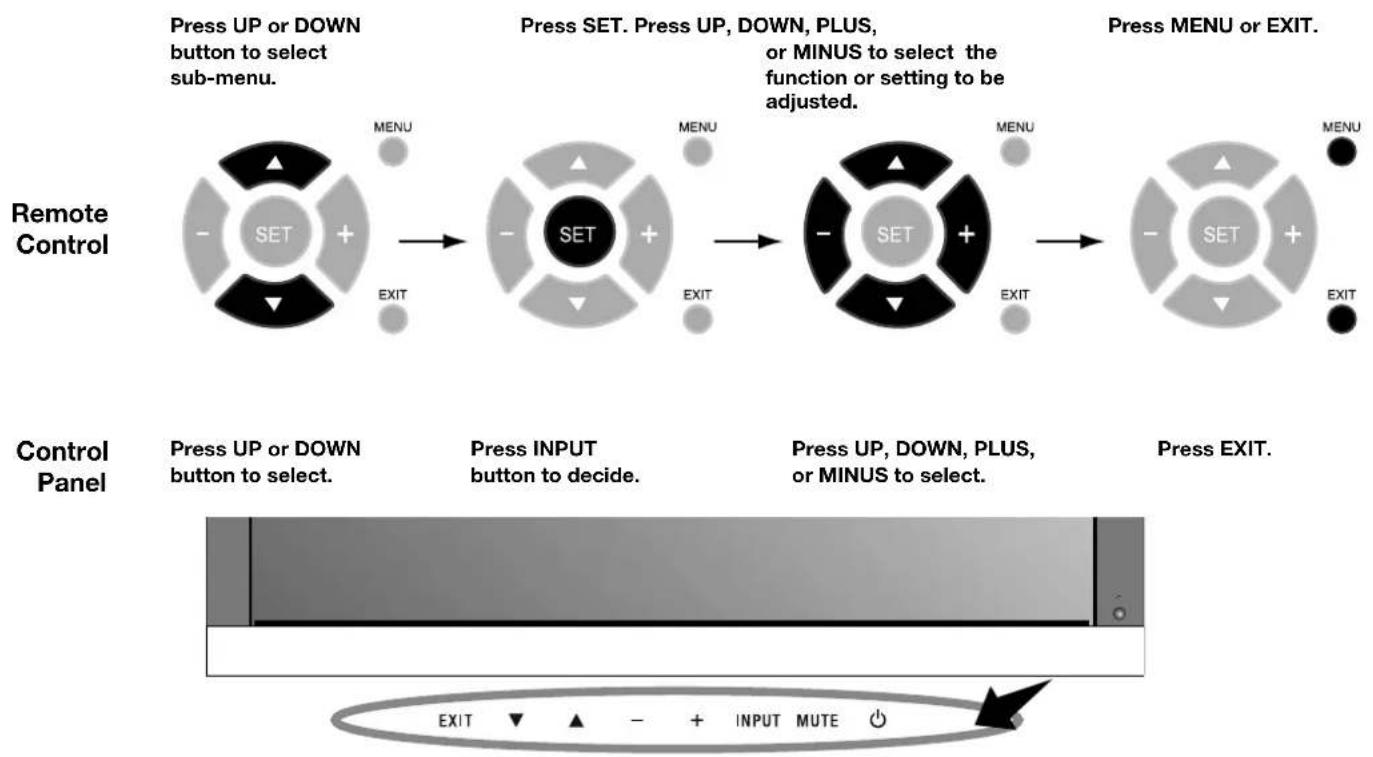

Using the OSD ....English-14

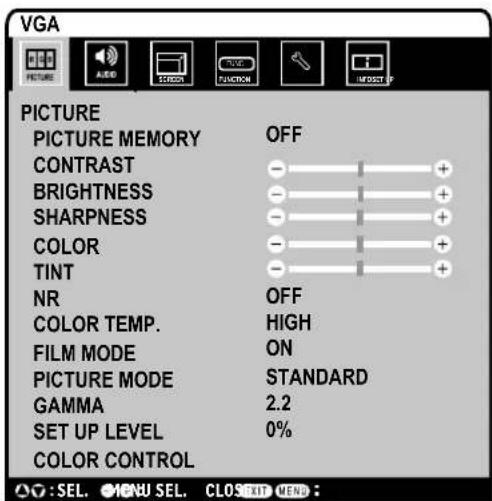

OSD....English-15

Troubleshooting....English-18

Specifications

42XC10....English-19

50XC10 ....English-20

60XC10 ....English-21

Supported Resolutions

42XC10....English-22

50XC10 ....English-24

60XC10 ....English-26

Pin Assignment....English-28

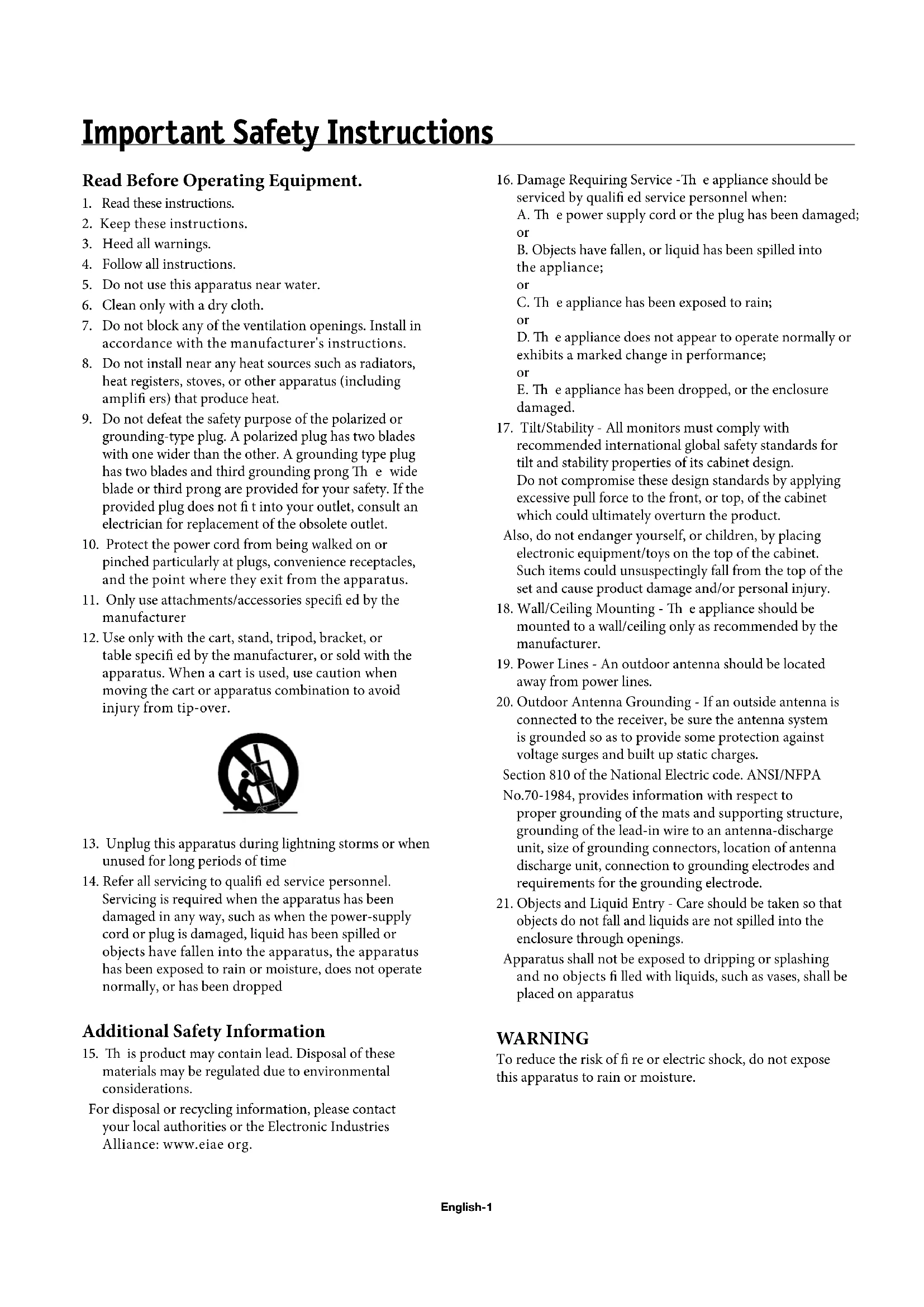

Important Safety Instructions

Read Before Operating Equipment.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any of the ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and third grounding prong The wide blade or third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart or apparatus combination to avoid injury from tip-over.

1. Unplug this apparatus during lightning storms or when unused for long periods of time

2. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as when the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped

Additional Safety Information

1. Th is product may contain lead. Disposal of these materials may be regulated due to environmental considerations.

For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eiae.org.

1. Damage Requiring Service - The appliance should be serviced by qualified service personnel when:

A. The power supply cord or the plug has been damaged; or

B. Objects have fallen, or liquid has been spilled into the appliance;

or

C. The appliance has been exposed to rain; or

D. The appliance does not appear to operate normally or exhibits a marked change in performance; or

E. The appliance has been dropped, or the enclosure damaged.

1. Tilt/Stability - All monitors must comply with recommended international global safety standards for tilt and stability properties of its cabinet design.

Do not compromise these design standards by applying excessive pull force to the front, or top, of the cabinet which could ultimately overturn the product.

Also, do not endanger yourself, or children, by placing electronic equipment/toys on the top of the cabinet. Such items could unsuspectingly fall from the top of the set and cause product damage and/or personal injury.

1. Wall/Ceiling Mounting - The appliance should be mounted to a wall/ceiling only as recommended by the manufacturer.

2. Power Lines - An outdoor antenna should be located away from power lines.

3. Outdoor Antenna Grounding - If an outside antenna is connected to the receiver, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges.

Section 810 of the National Electric code. ANSI/NFPA

No.70-1984, provides information with respect to proper grounding of the mats and supporting structure, grounding of the lead-in wire to an antenna-discharge unit, size of grounding connectors, location of antenna discharge unit, connection to grounding electrodes and requirements for the grounding electrode.

1. Objects and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.

Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on apparatus

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

WARNING

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. DO NOT USE THIS UNIT'S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS CAN BE FULLY INSERTED.

REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

CAUTION:	TO REDUCE THE RISK OF ELECTRIC SHOCK, MAKE SURE POWER CORD IS UNPLUGGED FROM WALL SOCKET. TO FULLY DISENGAGE THE POWER TO THE UNIT, PLEASE DISCONNECT THE POWER CORD FROM THE AC OUTLET. DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
	This symbol warns user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. 'Th erefore, it is dangerous to make any kind of contact with any part inside this unit.
	This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Th erefore, it should be read carefully in order to avoid any problems.

CAUTION: Please use the power cord provided with this display in accordance with the table below. If a power cord is not supplied with this equipment, please contact your supplier. For all other cases, please use a power cord that matches the AC voltage of the power outlet and has been approved by and complies with the safety standard of your particular country.

Plug Type	North America	European Continental	U.K.	Chinese	Japanese
Plug Shape
Country	U.S.A./Canada	EU (except U.K.)	U.K.	China	Japan
Voltage	120*	230	230	220	100

*When operating the PlasmaSync monitor with its AC 125-240V power supply, use a power supply cord that matches the power supply voltage of the AC power outlet being used.

Canadian Department of

Communications Compliance Statement

DOC: This is Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

FCC Information

1. Use the attached specified cables with the P426Y3(P42XC10), P506Y4(P50XC10) or P606Y5(P60XC10) color monitor so as not to interfere with radio and television reception.

(1) Please use the supplied power cord or equivalent to ensure FCC compliance.
(2) Please use shielded video signal cable, 15-pin mini D-SUB to 15-pin mini D-SUB with ferrite cores on both ends (not included).

1. Th is equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.
- Increase the distance between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult your dealer or an experienced radio/TV technician for help.

If necessary, the user should contact the dealer or an experienced radio/television technician for additional suggestions. The user may find the following booklet, prepared by the Federal Communications Commission, helpful: "How to Identify and Resolve Radio-TV Interference Problems." This booklet is available from the U.S. Government Printing Office, Washington, D.C., 20402, Stock No. 004-000-00345-4.

WARNING

This product equipped with a three-wire grounding (earthed) plug - a plug that has a third (grounding) pin. This plug only fits a grounding-type power outlet. If you are unable to insert the plug into an outlet, contact a licensed electrician to replace the outlet with a properly grounded one. Do not defeat the safety purpose of the grounding plug.

Safety Precautions and Maintenance

Safety Precautions and Maintenance

FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE FOLLOWING WHEN SETTING UP AND USING THE MONITOR:

The plasma display's panel is made up of fine picture elements (cells), of which more than 99.99 percent are active cells. Some cells may not produce light or remain constantly lit. For safe operation and to avoid damaging the unit, read carefully and observe the following instructions.

• DO NOT OPEN THE MONITOR. There are no user-serviceable parts inside and opening or removing covers may expose you to dangerous shock hazards or other risks. The manufacturer is not liable for any bodily harm or damage caused if unqualified persons attempt service or open the back cover. Refer all servicing to qualified service personnel.
• Do not spill any liquids into the cabinet or use your monitor near water.
• Do not insert objects of any kind into the cabinet slots, as they may touch dangerous voltage points, which can be harmful or fatal or may cause electric shock, fire or equipment failure.
• Do not bend, crimp or otherwise damage the power cord. Do not place any heavy objects on the power cord. Damage to the cord may cause shock or fire.
• Do not place this product on a sloping or unstable cart, stand or table, as the monitor may fall, causing serious damage to the monitor.
• Do not use in a moving vehicle, as the unit could drop or topple over and cause injuries.
• The power cable connector is the primary means of detaching the system from the power supply. The monitor should be installed close to a power outlet that is easily accessible.
• This equipment shall be connected to a MAIN outlet with a protective earth-ground connection. Do not place any objects onto the monitor and do not use the monitor outdoors.
• Do not use this unit's polarized plug with an extension cord or with outlets unless the prongs can be inserted fully.
• The power supply cord you use must have been approved by and comply with the safety standards of your country. (Type H05VV-F 3G 1mm ^2 should be used in Europe)
• In UK, use a BS-approved power cord with molded plug having a black (13A) fuse installed for use with this monitor.

• Use only with 100 V to 240 V 50 Hz/60 Hz AC power supply. Continued operation at line voltages greater than 100 V to 240 V AC will shorten the life of the unit, and might even cause a fi re hazard.

• Unplug the power cord during electrical storms or when the unit will not be in use for a long period.

• Do not use monitor in high temperature, humid, dusty, or oily areas.
• Do not cover vent on monitor.
• Clean plasma ventilation areas using a vacuum cleaner with a soft brush nozzle attachment.
• To ensure proper ventilation, cleaning the ventilation areas must be carried out monthly. More frequent cleaning may be necessary depending on the environment in which the plasma monitor is installed.
• Allow adequate ventilation around the monitor so that heat can properly dissipate. Do not block ventilated openings or place the monitor near a radiator or other heat sources. Do not put anything on top of monitor.
• Handle with care when transporting. Save packaging for transporting.
• As is the case with any phosphor-based display (like a CRT monitor, for example) light output will gradually decrease over the life of a Plasma Display Panel.
• To avoid sulfurization it is strongly recommended not to place the unit in a dressing room in a public bath or hot spring bath.

Immediately unplug your monitor from the wall outlet and refer servicing to qualified service personnel under the following conditions:

• When the power supply cord or plug is damaged.
• If liquid has been spilled on, or objects have fallen into the monitor.
• If the monitor has been exposed to rain or water.
• If the monitor has been dropped or the cabinet damaged.
• If the monitor does not operate normally by following operating instructions.

CAUTION

CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR CAN REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THE FOLLOWING WHEN POSITIONING THE MONITOR:

• For optimum performance, allow 20 minutes for warm-up.
• Rest your eyes periodically by focusing on an object at least 5 feet away. Blink oft en.
• Position the monitor at a 90 degree angle to windows and other light sources to minimize glare and reflections.
• Clean the monitor surface with a lint-free, nonabrasive cloth. Avoid using any cleaning solution or glass cleaner.
• Adjust the monitor's brightness and contrast controls to enhance readability.
• Get regular eye checkups.

Ergonomics

To realize the maximum ergonomic benefits, we recommend the following:

• Use the preset Size and Position controls with standard signals.
• Use the preset Color Setting.
• Do not use primary color blue on a dark background, as it is difficult to see and may produce eye fatigue due to insufficient contrast.
• Th is equipment is not for use at video display work station according to Bildscharb V.

For more detailed information on setting up a healthy work environment, refer to the following document:

American National Standard for Human Factors Engineering of Visual Display Terminal Workstations ANSI-HFS Standard No. 100-1988

Published by:

The Human Factors and Ergonomics Society P.O. Box 1369, Santa Monica, California 90406.

Cleaning the Panel

• When the panel becomes dusty or dirty, wipe gently with soft cloth.
• Do not rub the panel with coarse material.
• Do not apply pressure to the surface.
• Do not use OA cleaner. OA cleaner will cause deterioration or discolor the surface.

Cleaning the Cabinet

• Unplug the power supply.
  • Gently wipe the cabinet with a soft cloth.
• To clean the cabinet, dampen the cloth with a neutral detergent and water, wipe the cabinet and follow with a dry cloth.

NOTE: The surface of the cabinet is composed of many types of plastic.

DO NOT clean with benzene thinner, alkaline detergent, alcoholic system detergent, glass cleaner, wax, polish cleaner, soap powder, or insecticide. Rubber or vinyl should not be in contact with the cabinet for an extended period of time. These types of fluids and materials can cause the paint to deteriorate, crack or peel.

CLEANING THE VENT HOLES

• Clean plasma ventilation areas using a vacuum cleaner with a soft brush nozzle attachment.
• To ensure proper ventilation, cleaning the ventilation areas must be carried out monthly. More frequent cleaning may be necessary depending on the environment in which the plasma monitor is installed.

To avoid or minimize image retention:

Like all phosphor-based display devices and all other gas plasma displays, plasma monitors can be susceptible to image retention under certain circumstances. Certain operating conditions, such as the continuous display of a static image over a prolonged period of time, can result in image retention if proper precautions are not taken. To protect your investment in this plasma monitor, please adhere to the following guidelines and recommendations for minimizing the occurrence of image retention:

• Always enable and use your computer's screen saver function during use with a computer input source.
• Display a moving image whenever possible.
• Change the position of the menu display from time to time.
• Always power down the monitor when you are finished using it.

To reduce the likelihood of image retention from long-term use:

• Lower the Brightness and Contrast levels as much as possible without impairing image readability.
• Display an image with many colors and color gradations (i.e. photographic or photo-realistic images).
• Create image content with minimal contrast between light and dark areas. Use complementary or pastel colors whenever possible.
• Avoid displaying images with few colors and distinct, sharply defined borders between colors.

Plasma monitor driving sound

- The panel of the Plasma monitor is composed of extremely fine pixels and these pixels emit light according to received video signals. This principle may cause you to hear a buzz or electrical hum coming from the Plasma monitor. Also note that the rotation speed of the cooling fan motor increases when the ambient temperature of the Plasma monitor becomes high. You may hear the sound of the motor at that time.

NOTE: The following items are not covered by the warranty.

• Image retention
• Panel generated sound. Examples: Fan motor and electrical noises circuit humming /glass panel buzzing.

OPERATING ENVIRONMENT

Operating environment temperature and humidity: 0 °C to +40 °C (+32 °F to +104 °F); less than 80%RH (cooling vents not blocked) Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light)

WARNING

Not for use in a computer room as defined in the Standard for the Protection of Electronic Computer/Data Processing Equipment ANSI/NFPA 75.

NOTE: Please use shielded video signal cable, 15-pin mini D-SUB to 15-pin mini D-SUB with ferrite cores on both ends (not included).

Using Optional Stand/Mounts

An optional stand or mounting apparatus can be installed either while the unit is in the upright position or while the unit is face-down.

To install the stand while in the upright position, lower the monitor onto to the feet as shown (Figure 1). Use the handles to support the display while lowering the support holes underneath the display onto the feet.

If stand or mounting apparatus is to be installed while the unit is face-down (Figure 2), be sure to lay the protective sheet (the foam sheet that the unit was wrapped in) underneath the unit on order to prevent damage to the screen.

Th is unit must be used with a stand or some type of mounting apparatus. Th is unit is not designed for use without additional support.

• For correct Installation and Mounting it is recommended to use a trained, authorized dealer.
• Failure to follow correct mounting procedures could result in dame to the unit or to the installer.
• Product warranty does not cover damage caused by improper installation.

CAUTION:

• To install, follow those instructions included with the stand or mounting apparatus. Use only those devices recommended by the manufacturer.
• Make sure to install stand or mounting apparatus to the unit while on a surface that is strong and stable enough to support the weight of the unit, such as a floor or sturdy table.
• Use the specified clasps for installation.
  • Take necessary steps to prevent the unit from tipping or falling.

Mounting Location

The ceiling and wall must be strong enough to support the monitor and mounting accessories.

• DO NOT install in locations where a door or gate can hit the unit.
• DO NOT install in areas where the unit will be subjected to strong vibrations and dust.
• DO NOT install near where the main power supply enters the building.
• DO NOT install in where people can easily grab and hang onto the unit or the mounting apparatus.
• When mounting in an enclosure or in a recessed area, as in a wall, leave at least 2 inches (50mm) of space between the monitor and the wall for proper ventilation (Figure 3).

- Allow adequate ventilation or provide air conditioning around the monitor, so that heat can properly dissipate away from the unit and mounting apparatus.

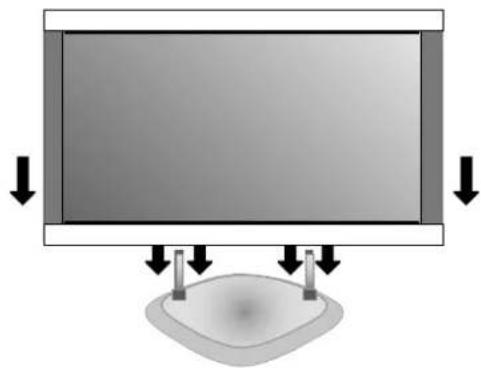

Figure 1

Diagram showing a monitor with directional arrows pointing to a base platform (no text or symbols)

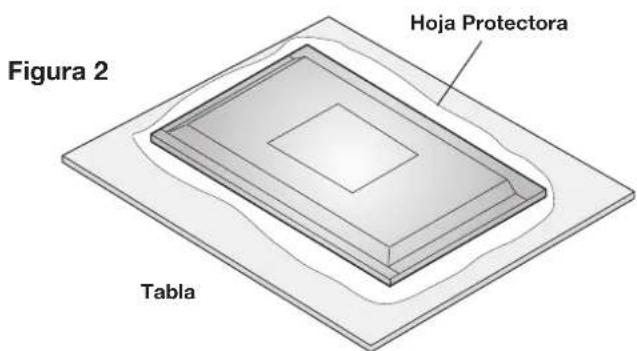

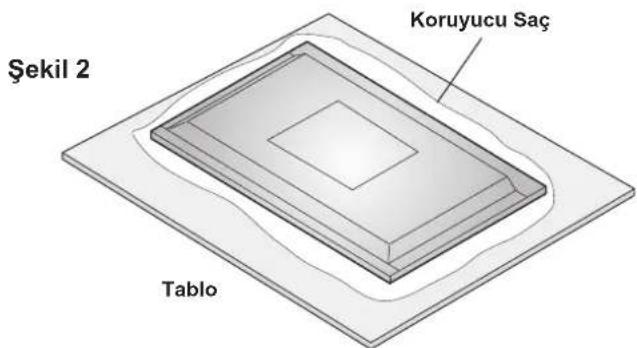

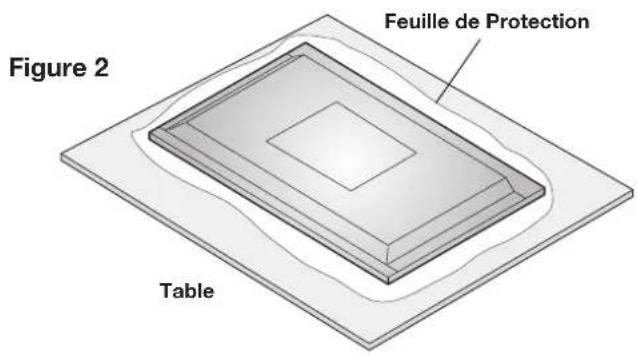

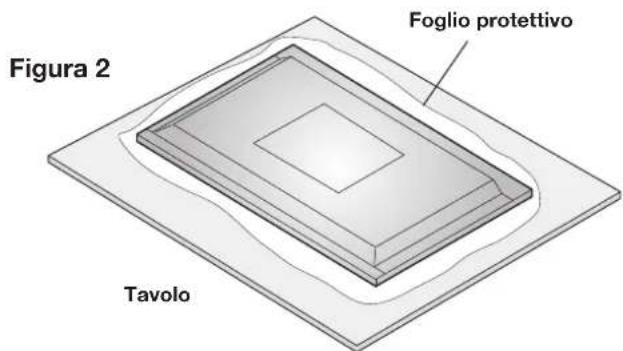

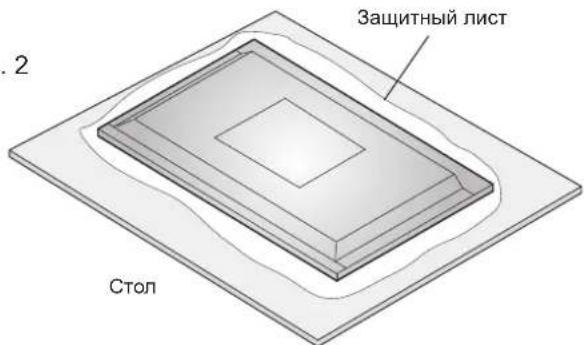

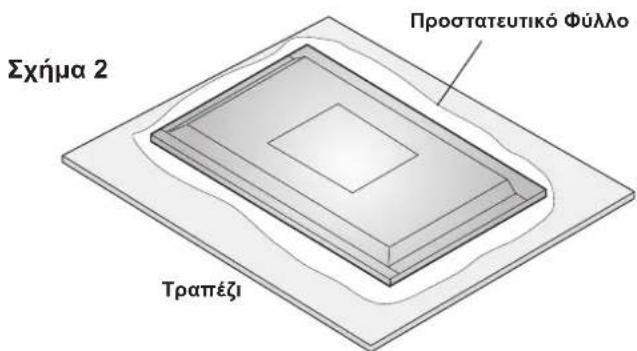

Figure 2 Protective Sheet Table

Figure 3

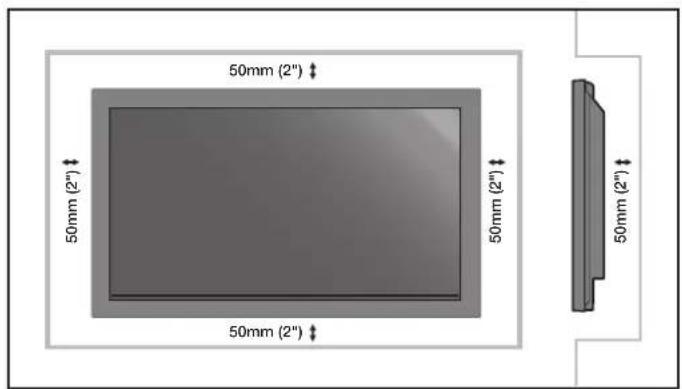

50mm (2") 50mm (2") 50mm (2") 50mm (2") 50mm (2)

Mounting on Ceiling

• Ensure that the ceiling is sturdy enough to support the weight of the unit and the mounting apparatus over time, against earthquakes, unexpected vibrations, and other external forces.
• Be sure the unit is mounted to a solid structure within the ceiling, such as a support beam. Secure the monitor using bolts, spring lock washers, washer and nut.
• DO NOT mount to areas that have no supporting internal structure. DO NOT use wood screws or anchor screws for mounting. DO NOT mount the unit to trim or to hanging fixtures.

Maintenance

• Periodically check for loose screws, gaps, distortions, or other problems that may occur with the mounting apparatus. If a problem is detected, please refer to qualified personnel for service.
• Regularly check the mounting location for signs of damage or weakness that may occur over time.

Please note the following when mounting on wall or ceiling.

• When using mounting accessories other than those that are NEC approved, they must comply with the VESA-compatible (FDMlv1) mounting method.
• NEC strongly recommends using size M8 screws (16mm + thickness of bracket in length). If using screws longer than 16mm, check the depth of the hole.(Recommended Fasten Force: 1125 - 1375N·cm) NEC recommends mounting interfaces that comply with UL1678 standard in North America.

Unit Mounting Bracket Screw 16mm Thickness of Bracket

Screw length should equal depth of hole (16mm) + the thickness of mounting bracket.

Cable Management

To conveniently manage cables, use the cable clamps provided to bundle the power cord together with the signal and audio cables at the back of the display.

To attach cable clamps:

1. Attach the cable clamps to the display. Insert the anchor of the clamp into the hole on the back of the display. There are 4 cable clamps and 4 clamp holes on the unit.
2. After the cable clamp is positioned on the display, wrap the end around the cables. Place the end of the clamp into the slot near the anchor. Pull until cables are snug.

Clamps are designed to stay in place. Once in position, they will be difficult to remove.

1. Cables can be routed to the right or left of the clamp. Use the beaded bands to secure the cables together along their length. Make sure the cables are fully supported.

To detach clamps:

Using pliers, twist the clamp 90 degrees and pull outward. It is possible that the clamp can weaken over time and removing it may cause damage to the clamp.

Holes for Clamp anchors

Close-up of a black plastic clamp with coiled cable, labeled 'Closed Clamp' (no other text or symbols)

Orientation

DO NOT use this monitor in the portrait position. Doing so may cause failure and void the warranty.

Abstract geometric shape resembling a stylized letter X within a rectangular frame (no text or symbols)

Using the Remote:

Install the remote control batteries.

The remote control is powered by AA batteries. To install or replace batteries:

Technical diagram showing three views of a car's front and side components (no text or symbols)

A. Press and slide to open the cover.
B. Align the batteries according to the (+) and (−) indications inside the case.
C. Replace the cover.

CAUTION: Incorrect usage of batteries can result in leaks or bursting. NEC recommends the following battery use:

• Place “AA” size batteries matching the (+) and (-) signs on each battery to the (+) and (-) signs of the battery compartment.
• Do not mix battery brands.
• Do not combine new and old batteries, or mix brands. Th is can shorten battery life or cause liquid leakage of batteries.
• Remove dead batteries immediately to prevent battery acid from leaking into the battery compartment.
• Do not touch exposed battery acid, it may injure skin.
• Do not drop or mishandle the remote.
• Do not get the remote control wet. If the remote does get wet, wipe dry immediately.
• Avoid excessive heat and humidity.
• Do not dispose of batteries in fire.
• Please follow government regulations or public environmental rules that apply in your country/area when disposing of used batteries.
• When replacing, use only conventional non-rechargeable alkaline or manganese batteries.
• There is a risk of explosion if batteries are replaced incorrectly.

Operating Range for the Remote Control

Point the top of the remote control toward the monitor's remote sensor while pressing buttons. The remote control can be used from the front of the monitor at a maximum distance of 7 m/23 ft. from the front of the Plasma monitor's remote control sensor. The maximum horizontal and vertical angle for use of the remote is 30 degree within a distance of 3.5 m/11.5 ft.

CAUTION

The remote control may not function when direct sunlight or strong illumination strikes the remote control sensor of the Plasma monitor, or when there is an object in the path of the sensor.

Handling the Remote Control

Do not open the remote control other than to install batteries. Do not allow water or other liquid to splash onto the remote control. If the remote control gets wet, wipe it dry immediately.

Avoid exposure to heat and steam.

NOTE: If you do not intend to use the Remote Control for a long period of time, remove the batteries.

30° 30°

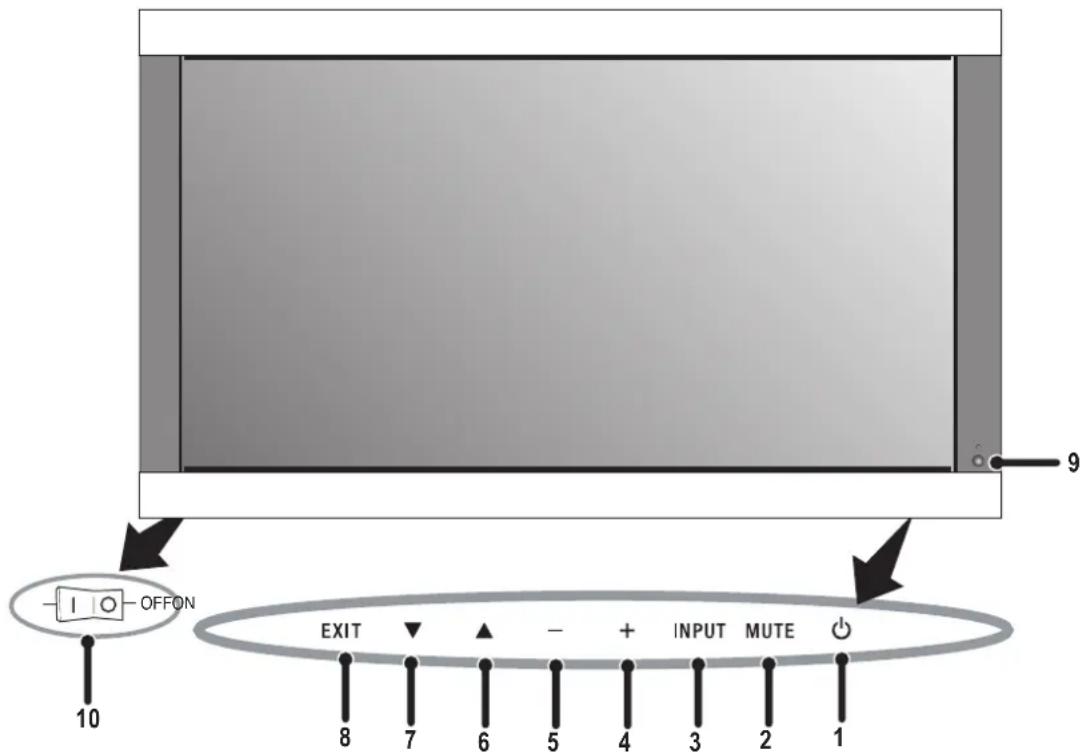

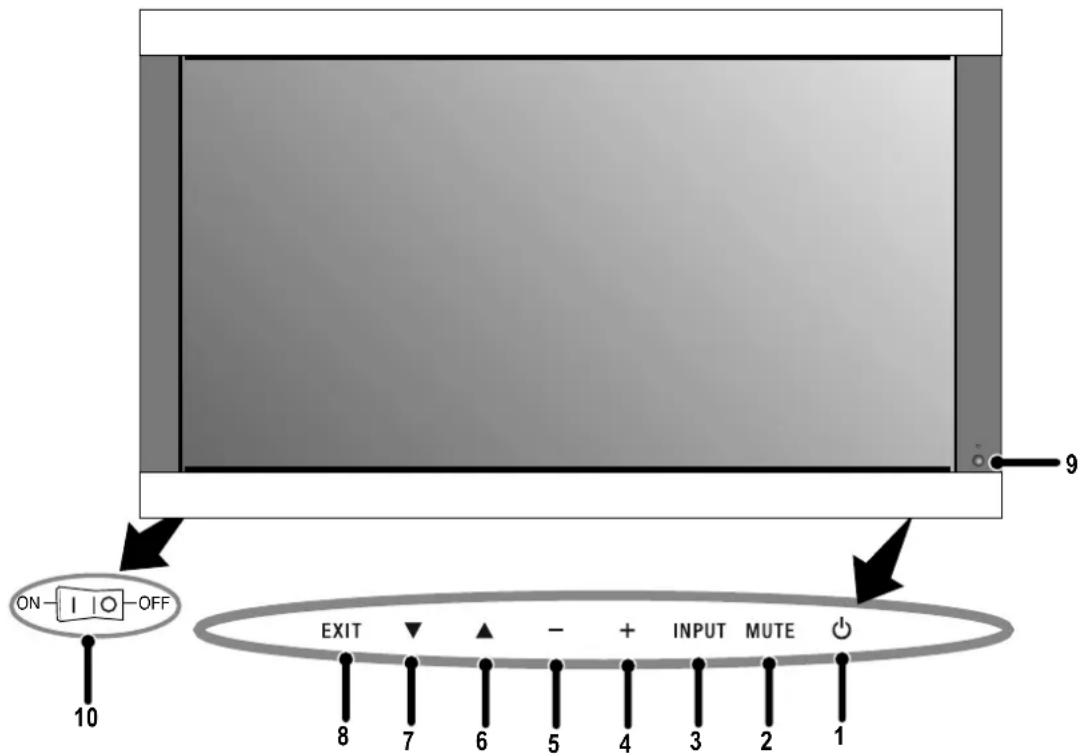

Control Panel

ON-110-OFF 10 EXIT 8 7 6 5 4 3 2 1 + INPUT MUTE 9

1) POWER

Switches the power on/standby.

2) MUTE

Switches the audio mute ON/OFF.

3) INPUT

Switches between input sources.

Acts as SET button within the OSD menu.

4) PLUS (+)

Increases the setting adjustment within OSD menu.

5) MINUS (-)

Decreases the setting adjustment within OSD menu.

6) UP ▲)

Increases the volume level when the OSD is off.

Moves area up to select which setting to is to be adjusted within OSD menu.

7) DOWN ▼

Decreases the volume level when the OSD is off.

Moves down to select which setting is to be adjusted within OSD menu.

8) EXIT

Activates the OSD menu when the OSD menu is off. Exits from the current menu being displayed to the previous menu within the OSD.

9) Remote control sensor and Power indicator

Receives the signal when using the wireless remote control. Glows green when the monitor is active. Glows red when the monitor is in Standby mode. Glows Amber when the monitor is in POWER SAVE mode.

A red blinking Power indicator means that the monitor has detected a failure. Contact qualified personnel in case of failure.

10) Main Power Switch

Seesaw switch to turn the main power on/off.

Mode Status	indicator light
Power On Green
Standby Red
Power save Amber
Diagnosis(Detecting failure)	Red blinking

NOTE:

The POWER button does not completely turn off the display. Use the Main Power Switch to completely turn off the display.

Part Names and Functions

Terminal Panel

Terminal Panel 1 OUT IN EXTERNAL CONTROL 2 DVD/HD3 3 4 5 6 7 8 10 DVI AUDIO3 R L (P-X) R L (P-X) R L (P-X) DVD/HD2 Y Cr/Pr Cb/Pb AUDIO2 AUDIO1VDXD/HD1 R L (P-X) S-VIDEO IN 11 VIDEO AC IN R L 12 13 14

1) EXTERNAL CONTROL OUT (D-Sub 9 pin) Connect RS-232C output to a second monitor.
2) EXTERNAL CONTROL (D-Sub 9 pin) Connect RS-232C input to external equipment such as a PC in order to control RS-232C functions.
3) DVD/HD3 (HDMI) Input digital HDMI signals.
4) DVI Input digital RGB signals from a computer or HDTV device having a digital RGB output.
5) AUDIO3 Input the audio signal from external equipment such as a computer, VCR or DVD player.
6) VGA (Mini D-Sub 15 pin) Analog computer input.
7) AUDIO2 Input the audio signal from external equipment such as a computer, VCR or DVD player.

8) DVD/HD1 Connect equipment such as a DVD player, HDTV device, or set-top box.
9) DVD/HD2 Connect equipment such as a DVD player, HDTV device or set-top.
10) AUDIO1 Input the audio signal from external equipment such as a computer, VCR or DVD player.
11) S-VIDEO in Input S-video.
12) VIDEO1 Composite video input.
13) EXTERNAL SPEAKER (L and R) connector Connects to optional speakers. Output the audio signal from AUDIO 1, 2, and 3 to external speakers. NOTE: Speaker Terminal is for 8W + 8W (8 ohm).
14) AC IN Connects with the supplied power cord.

Information: For SCART connections there are 2 ways to connect:

SCART1: Connect R/G/B to the DVD/HD1 terminals and composite sync. to the VIDEO1 terminal.

SCART2: Connect R/G/B + composite sync. to the VGA terminal.

Remote Control Functions

POWER ON STANDBY RGB DVD+O VIDEO PICTURE MEMORY 22 1 2 3 4 5 6 7 8 9 0 DISPLAY MENU 15 16 17 AUTO SET UP EXIT 18 VOL POINTER ZOOM 19 MUTE 20 3 SPLIT SCREEN PIP S BY S SINGLE SWAP SELECT/FREEZE CAPTURE 21 BEVATE O SET RESET S SLEEP NEC REMOTE CONTROLLER RU-M132

1) POWER ON/STANDBY

Switches the power on/standby. *If the Power Indicator on the display is not glowing, then no controls will work.

2) VIDEO

Switches the input signal to the VIDEO source.

3) RGB

Switches the input signal to the RGB source.

4) DVD/HD

Switches the input signal to the DVD/HD source.

5) PICTURE MODE

Selects Picture Mode: [STANDARD], [BRIGHT], [CINEMA1], [CINEMA2], [DEFAULT].
STANDARD: for viewing in a bright room
BRIGHT: brighter picture than STANDARD
CINEMA1, 2: for viewing in a dark room, good for movies
DEFAULT: factory default settings

6) SIZE Set the aspect ratio of the image.

8) DISPLAY Turn on/off the Information OSD.

9) ▲ ▼ Move selection up or down

10) AUTO SETUP Adjusts the CLOCK PHASE, CLOCK, and POSITION settings automatically. (Analog RGB signal input only)

11) POINTER Turn on/off the pointer.

12)VOLUME Increases/Decreases sound level.

13)SPLITSCREEN PIP: Picture-in-Picture mode. S BY S: Side-by-side mode. SINGLE: Returns to normal mode. SWAP: Swaps the Split Screen images. SELECT/FREEZE: Selects which input is active when in split screen mode. When the PICTURE FREEZE function (see OSD FUNCTION) is operating, SELECT/FREEZE can be used to display still pictures on the sub screen. CAPTURE : Captures still picture.

14) REMOTEID Activates REMOTE ID function.

16) SET Makes selection.

17)-,+ Increases or decreases amount of adjustment.

18) EXIT Goes to the previous menu.

19)ZOOM Enlarges or reduces the picture.

20)MUTE Mutes audio output.

21)SLEEP Sleep timer.

22)PICTUREMEMORY Switches memory settings from 1 to 6.

POWER

To turn the unit ON and OFF:

1. Plug the power cord into an AC outlet.
2. Press the Power button (on the unit).
   The monitor's ON/STANDBY indicator turns red and the unit will be in STANDBY mode.
3. Press the POWER ON button on the remote control. The ON/STANDBY indicator will turn green when the unit is active.
4. Press the STANDBY button (on the remote) or the Power button (on the unit) to turn off the monitor.

DISPLAY

To check display settings press the DISPLAY button on the remote. The screen changes each time the DISPLAY button is pressed. Display information will disappear after 3 seconds.

DIGITAL ZOOM

Digital zoom can change the picture position or enlarge the image on the screen.

1. Be sure ZOOM NAV function is off. Press the ZOOM button (+ or -) to display the magnifying glass.

Press the ZOOM + button to enlarge the image.

Press the ZOOM - button to reduce the image.

Press the UP and DOWN or PLUS and MINUS buttons to reposition the picture.

1. Press the POINTER button to hide the pointer.

POINTER

Use the Pointer to point to a specific area on the screen.

Press the UP and DOWN or PLUS and MINUS buttons to reposition the Pointer.

Main Power Switch Cover

Included with the display is a cover for the Main Power Switch. Use this cover to prevent the unit from being inadvertently powered off.

Place the tab on the cable cover into the rectangular slot on the display.

Then using the screw provided, secure the cover to the display.

OFFON SLOT TAB Main Power Switch Cover

Remote Control ID Function

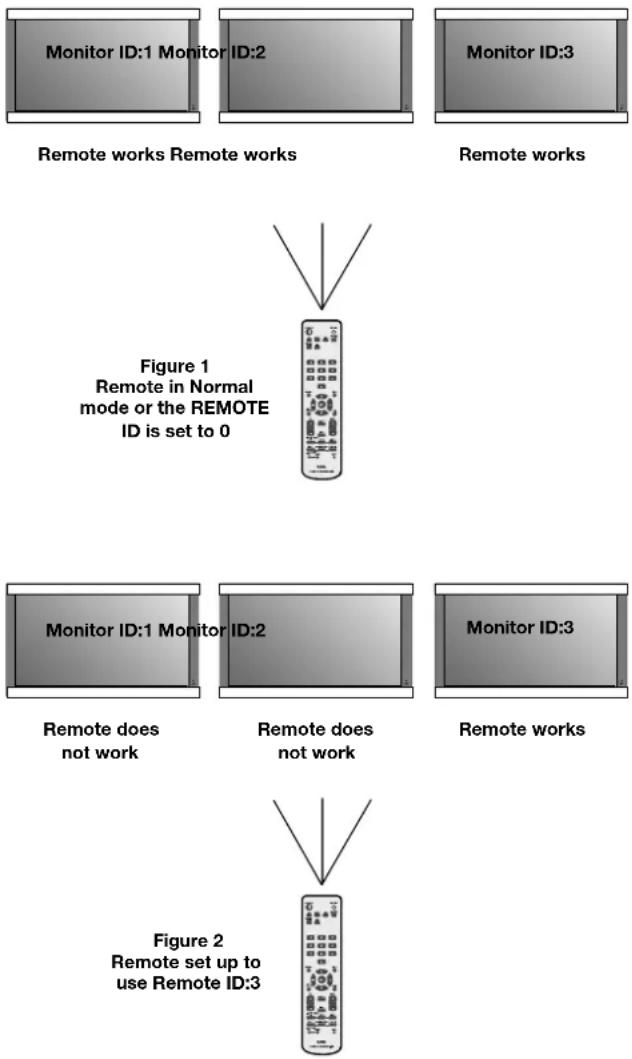

REMOTE CONTROL ID

The remote control included with the display can be used to control up to 26 individual monitors using what is called the REMOTE CONTROL ID mode. The REMOTE CONTROL ID mode works in conjunction with the Monitor ID, allowing control of up to 26 individual monitors. For example: if there are many monitors being used in the same area, a remote control in normal mode would send signals to every monitor at the same time Figure 1. Using the remote in REMOTE CONTROL ID mode will only operate one specific monitor within the group Figure 2.

TO SET REMOTE CONTROL ID:

While holding down the REMOTE ID SET button on the remote control, use the KEYPAD to input the Monitor ID (1-26) of the display to be controlled via remote. The remote can then be used to operate the monitor having that specific Monitor ID number.

When 0 is selected or when the remote control is in normal mode, all monitors will be operated.

TO USE REMOTE CONTROL ID MODE

ID Mode - To enter ID Mode press the REMOTE ID SET button and hold down for 2 seconds.

Normal Mode - To return to Normal Mode press the REMOTE ID RESET button and hold down for 2 seconds.

In order for this feature to work properly, the display must be assigned a Monitor ID number. The Monitor ID number can be assigned under the SETUP menu in the OSD (See page 17).

If Monitor ID is set to "ALL", monitor is controlled by remote control not depend on remote ID.

On-Screen Display (OSD)

Using the OSD

Use the Remote Control or the control panel on the front of the unit to enter the on-screen display menu to adjust settings.

1. Press the MENU button on the remote or the EXIT button on the Control Panel.
2. Use the up and down buttons to select the desired menu.

3. Press the SET button to select a sub-menu or item for adjustment.

4. Change the setting or adjustment by pressing the + and - buttons on the Control Panel or the Remote Control.

5. Press the EXIT button on the Remote Control, on the Control Panel to return to the previous menu.

NOTE: Not all menu functions may be available. To access all functions the Advanced OSD option must be turned on in the ADVANCED OSD menu.


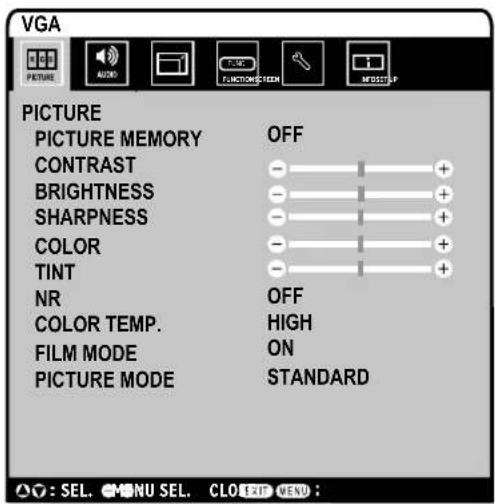

OSD Screen

VGA PICTURE PICTURE MEMORY OFF CONTRAST BRIGHTNESS SHARPNESS COLOR TINT NR OFF COLOR TEMP. HIGH FILM MODE ON PICTURE MODE STANDARD

ADVANCED OSD is OFF. Not all OSD functions will be available when the ADVANCED OSD is off.

VGA PICTURE PICTURE MEMORY OFF CONTRAST BRIGHTNESS SHARPNESS COLOR TINT NR OFF COLOR TEMP. HIGH FILM MODE ON PICTURE MODE STANDARD GAMMA 2.2 SET UP LEVEL 0% COLOR CONTROL SEL MENU SEL CLOSE EXIT MEND:

Advanced OSD is ON. All OSD functions are shown, but some OSD functions may not be available.

On-Screen Display (OSD)

Main Menu Sub	Menu Sub Menu2 Expl	anation Default Reset
PICTURE PICTURE	RE MEMORY Store picture menu settings		and input terminal information. The memory number is 1-6.The "PICTURE MEMORY" screen appears when the SET button is pressed on the "PICTURE MEMORY" MENU.	OFF YES
	CONTRAST Adjusts the image brightness in relationship to the white level.Press + or - to adjust.			50 YES
	BRIGHTNESS Adjusts the image brightness in relationship to the background.Press + or - to adjust.			50 YES
	SHARPNESS Adjusts the crispness of the image. Press + or - to adjust. 50 YES
	COLOR		Adjusts the color depth of the screen. Press + or - to adjust.	50	YES
	TINT		Adjusts the tint of the screen. Press + or - to adjust.	50	YES
	NR		Adjusts the amount of noise reduction. Press + or - to adjust.	OFF	YES
	COLOR TEMP.		Adjusts the color temperature of the entire screen. A low color temperature will make the screen reddish. A high color temperature will make the screen bluish.	MIDDLE	YES
	WHITE BALANCE.	GAIN RED	The "WHITE BALANCE" appears when the SET button is pressed on the "COLOR TEMP." OSD menu.	50 YES
		GAIN GREEN	GAIN RED/GREEN/BLUE: Adjusts the white level of the white balance.	50 YES
		GAIN BLUE		50 YES
		RESET	Resets the factory default settings. Select "ON", then press the SET button to reset.	OFF YES
	FILM MODE		Selects Film mode.	ON	YES
	PICTURE MODE		Selects picture mode, [BRIGHT], [STANDARD], [CINEMA1], [CINEMA2], [DEFAULT].STANDARD: For watching in a bright room.CINEMA1, 2: For watching in a dark room, especially good for movies.BRIGHT: Brighter picture than STANDARD.DEFAULT: Restores factory default settings.	STANDARD	YES
	GAMMA Available only when the Advanced OSD function in the FUNCTION menu is enabled.		Select a display gamma for best picture quality.2.1, 2.2, 2.3, 2.4: The picture becomes darker as the number increases.S: Special gamma for certain types of movies. Raises the dark parts and lowers the light parts of the image. (S-Curve) These values are approximate.	2.2	YES
	SET UP LEVEL Available only when the Advanced OSD function in the FUNCTION menu is enabled.		Adjusts the video black level.VIDEO signal Input only.	0%	YES
	COLOR CONTROL Available only when the Advanced OSD function in the FUNCTION menu is enabled.	RED	Adjusts the levels of the Red, Green, Blue, Yellow, Magenta and Cyan.VIDEO and DVD/HD 1/2 input only.	50 YES
		GREEN		50 YES
		BLUE		50 YES
		YELLOW		50 YES
		MAGENTA		50 YES
		CYAN		50 YES
		RESET	Resets the factory default settings. Select "ON", then press the SET button to reset.	OFF YES
Main Menu Sub	Menu Sub Menu2 Explanation Default Reset
AUDIO BASS Adjusts the low frequency sound. Press + or - to adjust. 0 YES

On-Screen Display (OSD)

Main Menu Sub	Menu Sub Menu2 Expl	anation Default	Reset
SET UP (continued)	BACK GROUND Choos	ses the brightness	of background when there is no input signal present.	GRAY YES
	SIDE MASK Adjusts the color of the side		mask when a 4:3 image is displayed.Press + button, the bar will become lighter.Press - button, the bar will become darker.	3	YES
	OSD DISPLAY OSD ON	N: Information about inputs, screen size, etc. is shown.OFF: No information is shown.		ON	YES
		OSD POSITION	Change the position of the menu between TOP LEFT and BTM RIGHT. Press + or - to adjust.	TOP LEFT	YES
		OSD ORBITER	ON: The menu position intermittently shifts eight dots while the OSD is being displayed.OFF: The menu position does not shift.	ON	YES
		OSD TRANSP.	Adjusts the transparency level of the OSD.Press + or - to adjust.	70% YES
	MONITOR ID		Sets the monitor ID number from 1-26 or to "ALL".	ALL	YES
	ALL RESET		Resets settings back to factory default values.	OFF	-
FUNCTION Some functions available only when the Advanced OSD function in the FUNCTION menu is enabled.The ADVANCED OSD function is always available.	ADVANCED OSD		ON: All menu items are shown for advanced users.OFF: Some of the advanced menu items are not shown.	OFF YES
	POWER SAVE		Sets how long the monitor waits to go into power save mode after a signal is lost.VGA and DVI input and Separate HV sync. only.	OFF YES
	INPUT SKIP		Skips to next input if present input is no signal.This function is valid only for INPUT key on the display.	OFF YES
	SUB PICTURE	SUB P.Detect	This function automatically detects no input signal of sub screen.This feature is available only picture-in-picture mode.SUB P. DETECT: Sets availability of automatic detecting of sub screen.	AUTO	YES
		DISPLAY	DISPLAY: Sets the appearance method of the sub screen.SUB P. RATE: Sets the transparency of the sub screen.	NORMAL	YES
		SUB P.RATE		100%	YES
	ZOOM NAV		Sets the position of the zoom navigation image.	BTM LFT	YES
	PICTURE FREEZE		Sets the position of the captured still picture.	S BY S1	YES
	SCREEN SAVER		Use the SCREEN SAVER function to reduce the risk of Image Persistence.	MANUAL	YES
		PEAK BRIGHT	PEAK BRIGHT: The brightness is decreased depending on setting.	100%	YES
		ORBITER	ORBITER: The screen image moves slightly with squeezing or expanding.	AUTO1	YES
		INVERSE/WHITE	INVERSE: The screen image is displayed alternately between positive image and negative image, or the screen image is displayed full white.	OFF YES
	CLOSED CAPTION (U.S. models only)		Chooses the closed caption setting.	OFF	YES
	CAPTION CONT (U.S. models only)		Chooses the brightness of the closed caption.	NORMAL	YES
	INPUT DETECT	INPUT	Sets the input mode and the sound volume when the power turn on.LAST: last mode (the input that was last selected when the power turn off.)MULTI to DVI: fixed input mode.AUTO: Searches the input with the signal automaticallyPRIORITY: Sets the priority input for AUTO setting.	LAST	YES
		VOLUME		LAST	YES
	PROTOCOL SET		Sets protocol setting of RS-232C.OFF: When NEC protocol is used (normal).ON: When special protocol is used.* Consult your dealer for details of protocol.	OFF	YES
	RS232C CONTROL		Selects the mode of the monitor when using the RS-232C daisy chain.	NORMAL	YES
SIGNAL INFORMATION			Display signal information such as frequencies, polarities, etc.	-	-

No picture

• The signal cable should be properly connected to the display card/computer.
• The display card should be properly seated in its slot.
• Front Power Switch and computer power switch should be in the ON position.
• Check to make sure that a supported mode has been selected on the display card or system being used. (Please consult display card or system manual to change graphics mode.)
• Check the monitor and your display card with respect to compatibility and recommended settings.
• Check the signal cable connector for bent or pushed-in pins.

Power Button does not respond

- Unplug the power cord of the monitor from the AC outlet to turn off and reset the monitor.

Image persistence

- Please be aware that Plasma Technology may experience a phenomena known as Image Persistence. Image Persistence occurs when a residual or “ghost” image of a previous image remains visible on the screen. Unlike CRT monitors, Plasma monitors’ image persistence is not permanent, but constant images being displayed for a long period of time should be avoided. To alleviate image persistence, turn off the monitor for as long as the previous image was displayed. For example, if an image was on the monitor for one hour and a residual image remains, the monitor should be turned off for one hour to erase the image.

NOTE: As with all personal display devices, NEC DISPLAY SOLUTIONS recommends displaying moving images and using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use.

Image is unstable, unfocused or

swimming is apparent

• Signal cable should be properly attached to the Plasma monitor, computer, or other input device.
• Use the OSD screen controls to focus and adjust display by increasing or decreasing the clock phase total. When the display mode is changed, the OSD Image Adjust settings may need to be readjusted.
• Check the monitor and your display card with respect to compatibility and recommended signal timings.

Image of component signal is greenish

- Check to see if the DVD/HD input connector is selected.

LED on monitor is not lit

(no green or red color can be seen)

- Main Power Switch should be in the ON position and power cord should be connected.

Red LED on monitor is blinking

- A certain failure might have occurred, please contact your nearest authorized NEC DISPLAY SOLUTIONS service facility.

Display image is not sized properly

• Use the OSD screen controls to increase or decrease the clock total.
• Check to make sure that a supported mode has been selected on the display card or system being used. (Please consult display card or system manual to change graphics mode.)

Selected resolution is not displayed properly

- Use OSD information to enter Information menu and confirm that the appropriate resolution has been selected. If not, select appropriate resolution.

No Sound

• Check to see if speaker cable is properly connected.
• Check to see if mute is activated.
• Check to see if volume is set at minimum.
  NOTE: It is possible to play audio from a source that is different from the video source.

RS-232C does not work

- Check the PROTOCOL SET in the FUNCTION menu.

Remote Control does not work

• Make sure the batteries are inserted properly.
- Test the batteries for strength/life.
- Make sure to point the remote directly at the sensor on the monitor.
- Check if the remote is in Remote ID mode.
- The remote control may not function when in direct sunlight or when there is strong illumination on the remote sensor of the monitor.

Specifications 42XC10

PDP Module Diagonal: 42"/1058 mm
	Pixel Pitch 0.900 mm (W)/0.676 mm (II)
	Resolution 1024 x 768
Frequency Horizontal ANALOG: 15.625/15.734kHz, 31.0kHz - 108.5kHz
						DIGITAL: 15.625/15.734kHz, 31.0kHz - 91.1kHz
					Vertical 24Hz to 120.4Hz
Panel Display Size 922 mm (W) x 519 mm (II)36.3 in (W) x 20.4 in (II)
Input Signals DVI DVI-D 24pin Digital RGB DVI (HDCP)
				VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60*, 1920X1080*
				VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60*
			Sync Separate: TTL level (Pos./Neg.)
					Composite sync on Green Video: 0.3Vp-p Neg
					Y: 1.0Vp-p/75ohm, Cb/Cr (Pb/Pr): 0.7Vp-p/75 ohm
					HDTV/DVD:1080p*, 1080i*, 720p@50Hz/60Hz,576p@50Hz, 480p@60Hz, 576i@50Hz, 480i@60Hz
					HDMI
					1080p*,1080i*,720p@ 50Hz/60Hz, 576p@ 50Hz, 480p@ 60Hz, 576i@50Hz,480i@60Hz
					1.0V p-p Input Impedance 75 ohm
					NTSC/PAL(B, G, M, N)/SECAM/4.43NTSC/PAL60
					Y: 1.0Vp-p/75ohm C: 0.286Vp-p/75 ohm(NTSC),0.3Vp-p/75ohm(PAL/SECAM)
					NTSC/PAL(B, G, M, N)/SECAM/4.43NTSC/PAL60
Audio	AUDIO Input	RCA (L/R) X3	Analog Audio	Stereo L/R 0.5Vrms
		HDMI Type-A DIGITAL Audio PCM 32, 44.1, 48Khz (16bit)
Speaker Output	External Speaker Jack 8W + 8W (8 ohm)
External Control	RS-232C: IN	9 Pin D-sub
	RS-232C: OUT	9 Pin D-sub (daisy chain)
Power Supply	4.4-1.8A@100-240V AC, 50/60Hz
Operational Environment	Temperature	0° to 40°C / 32°F to 104°F
	Humidity	20% to 80% (without condensation)
Storage Environment	Temperature	-10°C to 50°C / 14°F to 122°F
	Humidity	10 - 90% (without condensation) / 90% - 2% x (Temp - 40°C) regarding over 40°C
Dimensions (WxIxD)	Net	1036mm(W) x 649mm(II) x 130mm(D) / 40.8"(W) x 25.6"(II) x 5.1"(D)
	Gross	1220mm(W) x 900mm(H) x 360mm(D) / 48.0"(W) x 35.4"(H) x 14.2"(D)
Weight(without speaker and stand)	Net	34.5 kg / 76.1 lbs
	Gross	42.5 kg / 93.7 lbs
VESA compatible armmounting interface	700mm x 300mm4 Holes (screw M8 Depth 16mm)
Complied Regulatoryand Guidelines	UL 60065/CSA C22.2 No.60065/EN60065/IEC60065FCC-B/DOC-B/EN55022-B/EN55024/EN61000-3-2/EN61000-3-3/CE/C-Tick
Power Management	VESA DPM (Separate IIV Sync. only)
Plug & Play	VESA DDC2B
Accessories	Remote control, AA Batteries, Power cord, Uscrs Manual (CD-ROM),Start Up Guide (Paper / CD-ROM), Main Power Switch cover and screw, Cable clamps
*Compressed Image

Specifications 50XC10

PDP Module Diagonal: 50"/1	269 mm
	Pixel Pitch 0.81 mm (W)/0.81 mm (II)
	Resolution 1365 x 768
Frequency Horizontal ANALOG: 15.625/15.734kHz, 31.0kHz - 108.5kHz
					DIGITAL: 15.625/15.734kHz, 31.0kHz - 91.1kHz
					Vertical 24Hz to 120.4Hz
Panel Display Size 1106 mm (W) x 622 mm (II)43.5 in (W) x 24.5 in (II)
Input Signals DVI DVI-D 24pin Digital RGB DVI (HDCP)
				VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60*, 1920X1080*
				VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60*
			Sync Separate: TTL level (Pos./Neg.)

Specifications 60XC10

PDP Module Diagonal: 60"/1514 mm
	Pixel Pitch 0.966 mm (W)/0.966 mm (II)
	Resolution 1366 x 768
Frequency Horizontal ANALOG: 15.625/15.734kHz, 31.0kHz - 108.5kHz
					DIGITAL: 15.625/15.734kHz, 31.0kHz - 91.1kHz
					Vertical 24Hz to 120.4Hz
Panel Display Size 1320 mm (W) x 742 mm (II)51.9 in (W) x 29.2 in (II)
Input Signals DVI DVI-D 24pin Digital RGB DVI (HDCP)
				VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60*, 1920X1080*
				VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60*
			Sync Separate: TTL level (Pos./Neg.)
					Composite sync on Green Video: 0.3Vp-p Neg
					Y: 1.0Vp-p/75ohm, Cb/Cr (Pb/Pr): 0.7Vp-p/75 ohm
					HDTV/DVD:1080p*, 1080i*, 720p@50Hz/60Hz, 576p@50Hz, 480p@60Hz, 576i@50Hz, 480i@60Hz
					HDMI
					1080p*,1080i*,720p@ 50Hz/60Hz, 576p@ 50Hz, 480p@ 60Hz, 576i@50Hz, 480i@60Hz
					1.0V p-p Input Impedance 75 ohm
					NTSC/PAL(B, G, M, N)/SECAM/4.43NTSC/PAL60
					Y: 1.0Vp-p/75ohm C: 0.286Vp-p/75 ohm(NTSC), 0.3Vp-p/75ohm(PAL/SFCAM)
					NTSC/PAL(B, G, M, N)/SECAM/4.43NTSC/PAL60
Audio	AUDIO Input	RCA (L/R) X3	Analog Audio	Stereo L/R 0.5Vrms
		HDMI Type-A DIGITAL Audio PCM 32, 44.1, 48Khz (16bit)
Speaker Output	External Speaker Jack 8W + 8W (8 ohm)
External Control	RS-232C: IN	9 Pin D-sub
	RS-232C: OUT	9 Pin D-sub (daisy chain)
Power Supply	7.8-3.2A@100-240V AC, 50/60Hz
Operational Environment	Temperature	0° to 40°C / 32°F to 104°F
	Humidity	20% to 80% (without condensation)
Storage Environment	Temperature	-10°C to 50°C / 14°F to 122°F
	Humidity	10 - 90% (without condensation)/ 90% - 2% x (Temp - 40°C) regarding over 40°C
Dimensions (WxHxD)	Net	1447mm(W) x 876mm(11) x 130mm(D) / 57.0"(W) x 34.5"(11) x 5.1"(D)
	Gross	1620mm(W) x 1100mm(H) x 360mm(D) / 63.8"(W) x 43.3"(H) x 14.2"(D)
Weight(without speaker and stand)	Net	70.0 kg / 154.3 lbs
	Gross	83.0 kg / 183.0 lbs
VESA compatible arm mounting interface	700mm x 300mm4 Holes (screw M8 Depth 16mm)
Complied Regulatory and Guidelines	UL 60065/CSA C22.2 No.60065/EN60065/IEC60065FCC-B/DOC-B/EN55022-B/EN55024/EN61000-3-2/EN61000-3-3/CE/C-Tick
Power Management	VESA DPM (Separate IIV Sync. only)
Plug & Play	VESA DDC2B
Accessories	Remote control, AA Batteries, Power cord, Users Manual (CD-ROM),Start Up Guide (Paper / CD-ROM), Main Power Switch cover and screw, Cable clamps
*Compressed Image

						Analog				Digital
	Sig. no.	H X V	Signal Type	Specification of the signal		INPUT terminal	SIZE			INPUT terminal	SIZE			Sync polari		t Sync presence	B0Effect
				Amplitude (Hz)	H freq. (kHz)		NORMAL (4:3)	FULL (16:9)	ZOOM		NORMAL (4:3)	FULL (16:9)	ZOOM	H	V		Gr. No.	Item
IBM PC/AT	1	640 X 400	400line	70.1	31.5	VGA	--	Yes	--	DVI(DVI-PC)	--	--	--	Neg.	Neg.	Yes	1	640X400
Compatible	2	720 X 400	400line	70.1	31.5		--	Yes	--		--	Yes	--	Neg.	Neg.	Yes	1	720X400
Computers	3			85	37.9		--	Yes	--		--	Yes	--	Neg.	Pos.	Yes	--	--
	4	720 X 350	350line	70.1	31.5		--	Yes	--		--	Yes	--	eN	Neg.	Yes	1	20X350
	5	640 X 480	VGA	58.9	31.5		Yes	Yes	Yes		Yes	Yes	Yes	Neg.	Neg.	Yes	2	640X480
	6			72.8	37.9		Yes s	eY	Yes		Yes	Yes	Yes	Neg.	Neg.	Yes	--	--
	7			75	37.5		Yes	Yes	Yes		eY	Yes	Y eY	eN g.	eN	Yes	--	--
	8			85	43.3		Yes s	eY	Yes		Yes	Yes	Yes	Neg.	Neg.	Yes	--	--
	9			100.4	51.1		Yes	Yes	Yes		Yes	Yes	Yes	Neg.	Neg.	Yes s	--	--
	10			120.4	61.3		Yes	Yes	Yes		eY	Yes	Yes	Neg.	Neg.	Yes	--	--
	11	848 X 480	Wide-VGA	60	31		--	Yes	--		--	Yes	--	oP	Pos.	Yes	2	848X480
	12	852 X 480	Wide-VGA	60	31.7		--	Yes	--		--	Yes	--	Neg.	Neg.	Yes	2	852X480
	13	800 X 600	SVGA	56.3	35.2		Yes	Yes	Yes		eY	Yes	Yes	Pos.	Pos.	Yes	--	--
	14			60.3	37.9		Yes	Yes	Yes		eY	Yes	Yes	Pos.	Pos.	Yes	--	--
	15			72.2	48.1		Yes s	eY	Yes		Yes	Yes	Yes	Pos.	Pos.	Yes	--	--
	16			75	48.9		Yes	Yes	Yes		Yes	Yes	Yes	Pos.	Pos. s.	oY	--	--
	71			85.1	53.7		Yes	Yes	Yes		Yes	Yes	Yes	Pos.	Pos.	Yes	--	--
	18			99.8	63		Yes	Yes	Yes		eY	Yes	Yes	Pos.	Pos.	Yes	--	--
	19			120	75.7		Yes	Yes	Yes		eY	Yes	Yes	Pos.	Pos.	Yes	--	--
	20	1024 X 768	XGA	60	48.4		Yes	eY	Yes		eY	Yes	Yes	Neg.	Neg.	Yes	3	1024X768
	21			70.1	56.5		Yes	eY	Yes		eY	Yes	Yes	Neg.	Neg.	Yes	5	1024X768
	22			71.9	57.9		Yes	Yes	Yes		Yes	Yes	Yes	Neg.	Neg.	Yes	6	1024X768
	23			75	60		Yes	Yes	Yes		Yes	eY	Yes	P cs.	oP	Yes	--	--
	24			85	68.7		Yes	Yes	Yes		eY	Yes	Yes	Pos.	Pos.	Yes	--	--
	25			100.6	80.5		eY	Yes	Yes		eY	Yes	Y eY	eN g.	eN g.	eY	--	--
	26			119.4	95.5		Yes	Yes	Yes		Y es	eY	eY	eN g.	eN g.	eY	--	--
	27	1152 X 864	XGA	60	53.7		Yes	Ye s	Yes		eY	eY	Yes	Pos.	No g.	eY	--	--
	28			72	64.9		Yes	Yes	Yes		Yes	Yes	Yes	Pos.	Neg.	Ye s	--	--
	29			75	67.5		Yes	Yes	Yes		Yes	Yes	Yes	Pos.	Pos.	Ye s	--	--
	30	1280 X 768	Wide-XGA	56.2	45.1		--	eY	--		--	--	--	Pos.	oP.	Ye s	--	--
	31			59.8	48		--	Yes	--		--	Ye s	--	oP.	Neg.	Yes	3	1280 768
	32			59.9	47.8		--	Yes	--		--	Yes	--	Neg .	oP.	Yes	3	1280X768-2
	33			69.8	65		--	Yes	--		--	Yes	--	eN g.	Pos.	Yes	5	1280X768
	34			72	57.8		--	Yes	--		--	Y es	--	Neg.	Pos.	Yes	6	1280X768
	35	1280 X 800	Wide-XGA	59.8	49.7		--	Yes	--		--	eY	--	Neg .	oP.	Yes	4	12 800
	36	1280 X 854	Wide-XGA	60	53.1		--	Yes	--		--	Y es	--	Neg.	Neg.	eY	--	--
	37	1280 X 960	Wide-XGA	60	60		Yes	Yes	Yes		Y es	eY	Yes	Po s.	oP.	Yes	--	--
	38			85	85.9		Yes '2	Ye	eY'2s		Yes	Yes	Yes	Pos.	Po s.	eY	--	--
	39	1360 X 768	Wide-XGA	60	47.7		--	Yes	--		--	eY	--	Pos.	Pos.	eY	3	1360X768
	40	1375 X 768	Wide-XGA	59.9	48.3		--	Yes	--		--	Yes	--	eN g.	oP.	Yes	3	1375X768
	41	1280 X 1024	SXGA	60	64		Yes '1	Yes	Yes		Yes '1	Yes	Yes	Pos.	Pos.	Yes	9	1280X1024
	42			75	80		Yes '1	eY	Yes		eY	Yes	Yes	oP.	Pos.	Yes	--	--
	43			85	91.1		Yes '1 '2	Yes '2	Yes '2		Yes '1	Yes	Yes	oP.	oP.	Yes	--	--
	44			100.1	108.5		Yes '1 '2	Yes '2	Yes '2		--	--	--	Pos.	Pos.	Yes	--	--
	45	1400 X 1050	SXGA+	60	64		Yes	Yes	Yes		Yes	Yes	Yes	Neg.	Pos.	Yes	9	1400X1050
	46			60	653		Yes	Yes	Yes		Yes	Yes	Yes	Neg.	Pos.	Yes	7	1400X1050
	47			74.9	82.3		Yes '2	Yes '2	Yes '2		Yes	Yes	Y oY	eN g.	Pos.	Yes	--	--
	48			85	93.9		Yes '2	Yes '2	Yes '2		--	--	--	Neg.	Pos.	Yes	--	--
	49	1680 X 1050	Wide-SXGA	60	65.3		--	Yes	--		--	Yes	--	Neg.	Pos.	Yes	7	1680X1050
	50	1600 X 1200	UXGA	60	75		Yes '2	Yes '2	Yes '2		Yes	Yes	Yes	Pos.	Pos.	Yes	8	1600X1200
	51			65	81.3		Yes '2		Yes '2		--	--	--	Pos.	Pos.	Yes	--	--
	52			70	87.5		eY	2" 2th	Yes '2		--	--	--	oP.	Pos.	Yes	--	--
	53			75	93.8		Y 25 es eY				--	--	--	Pos.	Pos.	Yes	--	--
	54			85	106.3		Yes '2	Yes			--	--	--	Pos.	Pos.	Yes	--	--
	55	1920 X 1080		50	56.2		--	--			--	eY	--	Pos.	Pos.	Yes	--	--
	56			60	67.5		--	--			--	Yes	--	Pos.	Pos.	Yes	--	--
	57	1920 X 1200	Wide-UXGA	59.9	74.6		--	Yes '2	--		--	--	--	Neg.	Pos.	Yes	8	1920X1200
	58	1920 X 1200RB	Wide-UXGA	60	74		--	Yes '2	--		--	Yes	--	Neg.	Pos.	Yes	--	--

--	NORMAL (4:3)	FULL(16:9)	('1)	('2)
Not Supported	769 pixels x 769 lines	1024 pixels x 768 lines	Aspect ratio is 5:4 (720x768)	Rough Sampling

42XC10 Supported Resolutions (Video)

Analog Digital

		Sig.no.	cResolutionH X V Signal Type		Specification of the signal		INPUTinal (4:3)	SIZE							INPUTterminal	SIZE
					V freq.(Hz)	H freq.(kHz) term		NORMAL(16:3)	FULL	DYNAMIC(non-linear)	ZOOM	14:9	235:1	UNDERSCAN		NORMAL(4:3)	FULL(16:9)	DYNAMIC(non-linear)	ZOOM	14:9	2.35:1	UNDERSCAN	RGB select		HD select
																							Gr. No.	Item	Item
VideoComposite / S		101	3.58NTSC		59.9	15.8	Video1S-Video	Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		102	4.43NTSC		59.9	15.8		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		103	PAL		50	15.6		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		104	PAL60		59.9	15.8		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		105	PAL-N		50	15.6		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		106	PAL-M		59.9	15.8		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		107	SECAM		50	15.6		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
Y,Pb(Cb),Pr(Cr)	SD	111	480I		59.9	15.8	DVD/HD1DVD/HD2	Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		112	576I		50	15.6		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		113	480P		939	31.5		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		114	576P		05	138		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
	HD	115	720P		05	735		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		116	720P		60	4.5		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		117	1080I		50	28.1		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		118	1080I		06	33.8		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		119	1080P		50	56.3		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		120	1080P		06	76.5		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		121	1080P		30	33.8		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		122	1080P		42	72		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		123	1080P		25	28		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
RGB(Video signal)	SD	131	480I *4		59.9	15.8	VGA(SCART1-2)	Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		132	576I *4		50	15.6		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		133	480P		59.9	31.5		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	2	480P	--
		134	576P		50	31.3		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
	HD	135	720P		50	37.5		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		136	720P		60	4.5		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		137	1080I		50	28.1		--	Yes	Yes	--	--	Yes	Yes *3		--	--		--	--	--	--	--	--	--
		138	1080I		60	33.8		--	Yes	Y so	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	1080I
		139	1080P		50	56.3		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		140	1080P		6 0	765		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		141	1080P			03 338		--	Yes	Yes						--	--
		142	1080P			42 72		--	Yes	Yes						--
		143	1080P		25			--	Yes	Yes						--
		144	1080A/540P	RCA STB	06	338		--	Yes	Yes						--
Digital(EIA/CEA-861)	SD	161	640 X 480P		59.9 / 60.0	31.5 / 31.5		--	--	--	--	--	--		DVI(DVI-HD)DVD/HD3(HDMI)	Yes *3	Yes *3	Yes *3	Yes *3	Yes *3	Yes *3	--	--
		162	720 (1440) X 480I		59.9 / 60.0	15.7 / 15.8		--	--	--	--	--				Yes	Yes	Yes	Yes	Yes	Yes *3	--
		163	720 X 480P		59.9 / 60.0	31.5 / 31.5		--	--	--	--					Yes	Yes	Yes	Yes	Yes	Yes *3	--
		164	720 (1440) X 576I		05	56		--	--	--						Yes	Yes	Yes	Yes	Yes	Yes *3	--
		165	720 X 576P		05	13 3		--								Yes	Yes	Yes	Yes	Yes	Yes *3	--
	HD	166	1280 X 720P		59.9 / 60.0	45.0 / 45.0
		167	1920 X 1080I		59.9 / 60.0	33.7 / 33.8
		168	1920 X 1080P		59.9 / 60.0	67.4 / 67.5
		169	1280 X 720P		50	37.5
		170	1920 X 1080I		50	28 .1
		171	1920 X 1080P		50	56.3
		172	1920 X 1080P		30	33.8
		173	1920 X 1080P		24	27
		174	1920 X 1080P		25	28
	Native Resolution	191	1366 X 768		06	76
		192	1024 X 768		06	76
		193	853 X 480		60

--	NORMAL(4:3)	FULL(16:9)	('3)	('4)
Not Supported	768 pixels x 768 lines	1024 pixels x 768 lines	Displayed by Underscan mode (100%)	SCART input available

Ana go Digital

	Sig. no. H	Resolution		Specification of the signal		INPUT terminal	SIZE			INPUT terminal	SIZE
		X V Signal Type		V freq.(Hz)	H freq.(kHz)		NORM(4:3)	LUF(16:9)	ZOOM		NORMAL(4:3)	FULL(16:9)	ZOOM	Sync polarity		Sync presence	RGB select
														H	V		Gr. No.	Item
IBM PC/AT	1	640 X 400	400line	70.1	31.5	VGA	--	Yes	--	DVI(DVI-PC)	--	--	--	Neg.	Neg.	Yes	1	640X400
Compatible	2	720 X 400	400line	70.1	31.5		--	Yes	--		--	Yes	--	Neg.	Neg.	Yes	1	720X400
Computers	3			85	37.9		--	Yes	--		--	Yes	--	Neg.	Pos.	Yes	--	--
	4	720 X 350	350line	70.1	31.5		--	Yes	--		--	Yes	--	Neg.	Neg.	Yes 1	720X350
	5	540 X 480	VGA	59.9	31.5		Yes	Yes	Yes		Yes	Yes	Yes	Neg.	Neg.	Yes	2	640X480
	6			72.8	37.9		Yes	Yes	Yes		Yes	Yes	Yes	Neg.	Neg.	Yes	--	--
	7			75	37.5		Yes	Yes	Yes		Yes	Yes	Yes	Neg.	Neg.	Yes	--	--
	8			85	43.3		Yes	Yes	Yes		Yes	Yes	Yes	eN.g	eN.g	Yes	--	--
	9			100.4	51.1		Yes	Yes	Yes		Yes	Yes	Yes	Neg.	Neg.	Yes	--	--
	10			120.4	61.3		Yes	Yes	Yes		Yes	Yes	Yes	Neg.	Neg.	Yes	--	--
	11	848 X 480	Wide-VGA	60	31		--	Yes	--		--	Yes	--	Pos.	Pos.	Yes	2	848X480
	12	852 X 480	Wide-VGA	60	31.7		--	Yes	--		--	Yes	--	Neg.	Neg.	Yes	2	852X480
	13	800 X 600	SVGA	56.3	35.2		Yes	Yes	Yes		Yes	Yes	Yes	Pos.	Pos.	Yes	--	--
	14			60.3	37.9		Yes	Yes	Yes		Yes	Yes	Yes	Pos.	Pos.	Yes	--	--
	15			72.2	48.1		Yes	Yes	Yes		Yes	Yes	Yes	Pos.	Pos.	Yes	--	--
	16			75	46.9		Yes	Yes	Yes		Yes	Yes	Yes	Pos.	Pos.	Yes	--	--
	17			85.1	53.7		Yes	Yes	Yes		Yes	Yes	Yes	Pos.	Pos.	Yes	--	--
	18			99.8	63		Yes	Yes	Yes		Yes	Yes	Yes	Po.s.	o.p.	Yes	--	--
	19			120	75.7		Yes	Yes	Yes		Yes	Yes	Yes	Pos.	Pos.	Yes	--	--
	20	1024 X 768	XGA	60	48.4		Yes	Yes	Yes		Yes	Yes	Yes	Neg.	Neg.	Yes	3	1024X768
	21			70.1	56.5		Yes	Yes	Yes		Yes	Yes	Yes	Neg.	eN.g	Yes	5	1024X768
	22			71.9	57.9		Yes	Yes	Yes		Yes	Yes	Yes	Neg.	Neg.	Yes 6	1024X768
	23			75	60		Yes	Yes	Yes		Yes	Yes	Yes	Pos.	Pos.	Yes	--	--
	24			85	68.7		Yes	Yes	Yes		Yes	Yes	Yes	Pos.	Pos.	Yes	--	--
	25			100.8	80.5		Yes	Yes	Yes		Yes	Yes	Yes	Neg.	Neg.	Yes	--	--
	26			119.4	95.5		Yes	Yes	Yes		Yes	Yes	Yes	Neg.	Neg.	Yes	--	--
	27	1152 X 864	XGA	60	53.7		Yes	Yes	Yes		Yes	Yes	Yes	Pos.	Neg.	Yes	--	--
	28			72	64.9		Yes	Yes	Yes		Yes	Yes	Yes	Pos.	Neg.	Yes	--	--
	29			75	67.5		Yes	Yes	Yes		Yes	Yes	Yes	Pos.	Pos.	Yes	--	--
	30	1280 X 768	Wide-XGA	56.2	45.1		--	Yes	--		--	--	--	Pos.	Pos.	Yes	--	--
	31			58	48		--	Yes	--		--	Yes	--	Pos.	Neg.	Yes 3	1280X768-1
	32			59.9	47.8		--	Yes	--		--	Yes	--	Neg.	Pos.	Yes	3	1280X768-2
	33			69.8	56		--	Yes	--		--	Yes	--	Neg.	Pos.	Yes	5	1280X768
	34			72	57.8		--	Yes	--		--	Yes	--	Neg.	Pos.	Yes	6	1280X768
	35	1280 X 800	Wide-XGA	59.8	49.7		--	Yes	--		--	Yes	--	Neg.	Pos.	Yes	4	1280X800
	36	1280 X 854	Wide-XGA	60	53.1		--	Yes	--		--	Yes	--	Neg.	Neg.	Yes	--	--
	37	1280 X 960	Wide-XGA	60	60		Yes	Yes	Yes		Yes	Yes	Yes	Pos.	Pos.	Yes	--	--
	38			85	85.9		Yes '2	Yes '2	Yes '2		Yes	Yes	Yes	Pos.	Pos.	Yes	--	--
	39	1360 X 768	Wide-XGA	60	47.7		--	Yes	--		--	Yes	--	Pos.	Pos.	Yes	3	1360X768
	40	1376 X 768	Wide-XGA	59.9	48.3		--	Yes	--		--	Yes	--	Neg.	Pos.	Yes	3	1376X768
	41	1280 X 1024	SXGA	60	64		Yes '1	Yes	Yes		Yes '1	Yes	Yes	Pos.	Pos.	Yes	9	1280X1024
	42			75	80		Yes '1	Yes	Yes		Yes '1	Yes	Yes	Pos.	Pos.	Yes	--	--
	43			85	91.1		Yes '1 '2	Yes '2	Yes '2		Yes '1	Yes	Yes	Pos.	Pos.	Yes	--	--
	44			100.1	108.5		Yes '1 '2	Yes '2	Yes '2		--	--	--	Pos.	Pos.	Yes	--	--
	45	1400 X 1050 SXGA+		60	64		Yes	Yes	Yes		Yes	Yes	Yes	Neg.	Pos.	Yes	9	1400X1050
	46			60	65.3		Yes	Yes	Yes		Yes	Yes	Yes	Neg.	Pos.	Yes 7 1400X1050
	47			74.9	82.3		Yes '2	Yes '2	Yes '2		Yes	Yes	Yes	Neg.	Pos.	Yes	--	--
	48			85	93.9		Yes '2	Yes '2	Yes '2		--	--	--	Neg.	Pos.	Yes	--	--
	49	1680 X 1050	Wide-SXGA	60	65.3		--	Yes	--		--	Yes	--	Neg.	Pos.	Yes	7	1680X1050
	50	1600 X 1200 UXGA		60	75		Yes '2	Yes '2	Yes '2		Yes	Yes	Yes	Pos.	Pos.	Yes	8	1600X1200
	51			65	81.3		Yes '2	Yes '2	Yes '2		--	--	--	Pos.	Pos.	Yes	--	--
	52			70	87.5		Yes '2	Yes '2	Yes '2		--	--	--	Pos.	Pos.	Yes	--	--
	53			75	93.8		Yes '2	Yes '2	Yes '2		--	--	--	Pos.	Pos.	Yes	--	--
	54			85	106.3		Yes '2	Yes '2	Yes '2		--	--	--	Pos.	Pos.	Yes	--	--
	55	1920 X 1080		50	56.2		--	--	--		--	Yes	--	Pos.	Pos.	Yes	--	--
	56			60	67.5		--	--	--		--	Yes	--	Pos.	Pos.	Yes	--	--
	57	1920 X 1200	Wide-UXGA	59.9	74.6		--	Yes '2	--		--	--	--	Neg.	Pos.	Yes	8	1920X1200
	58	1920 X 1200RB	Wide-UXGA	60	74		--	Yes '2	--		--	Yes	--	Neg.	Pos.	Yes	--	--
Apple Macintosh®	81	640 X 480	Mac13"	66.7	35		Yes	Yes	Yes		--	--	--	Sync on G	Sync on G
	82	832 X 624	Mac16"	74.6	49.7		Yes	Yes	Yes		--	--	--	Sync on G	Sync on G
	83	1024 X 768	Mac19"	74.9	60.2		Yes	Yes	Yes		--	--	--	Sync on G	Sync on G
	84	1152 X 870	Mac21"	75.1	68.7		Yes	Yes	Yes		--	--	--	Sync on G	Sync on G
	85	1440 X 900	Apple17	59.9	55.9		--	Yes	--		--	Yes	--	Neg.	Pos.	Yes
EWS Series	91	Work Station EWS4800		60	64.6		Yes '1'	Yes	Yes		Yes '1'	Yes	Yes	Neg.	Neg.	Yes
	92	1280 X 1024		71.2	75.1	Yes '1'	Yes	Yes	Yes '1'	Yes	Yes	Neg.	Neg.	Yes
	93	1280 X 1024 HP		72	78.1	Yes '1'	Yes	Yes	Yes '1'	Yes	Yes
	94	1152 X 900 SUN		66	61.8	Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes

--	NORMAL (4:3)	FULL (16:8)	(*1)	(*2)
Not Supported	1024 pixels x 768 lines	1365 pixels x 768 lines	Aspect ratio is 5:4 (980x768)	Rough Sampling

50XC10 Supported Resolutions (Video)

		Sig. to no.	Resolution		Specification of the signal		Analog								Digital
					V freq.(Hz)	H freq.(kHz)	INPUT terminal	SIZE							INPUT terminal	SIZE
								NORMAL(4:3)	FULL(16:9)	DYNAMIC(non-linear)	ZOOM	14:9	2.35:1	UNDERSCAN		NORMAL(4:3)	FULL(16:9)	DYNAMIC(non-linear)	ZOOM	14:9	2.35:1	UNDERSCAN
VideoComposite / S		101	3.58NTSC		59.9	15.8	Video1S-Video	Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--
		102	4.43NTSC		59.9	15.8		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--
		103	PAL		50	15.6		Yes	Yes	yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--
		104	PAL60		59.9	15.8		Yes	Yes	Yes	Yes	yes	Yes	Yes *3		--	--	--		--	--	--
		105	PAL-N		50	15.6		Yes	yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--
		106	PAL-M		59	15.8		Yes	Yes	Yes	Yes	yes	Yes	Yes *3		--	--	--	--	--	--	--
		107	SECAM		50	15.6		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--
Y,Pb(Cb),Pr(Cr)	SD	111	480I		59.9	15.8	DVD/HD1DVD/HD2	Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--
		112	576I		50	15.6		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--
		113	480P		95	31.5		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--
		114	576P		50	31.3		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--
	HD	115	720P		50	73		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--
		116	720P		60	43		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--
		117	1080I		5 0	82		--	Yes	Y se	--	--	Yes	Yes *3		--	--	--	--	--	--	--
		118	1080I		06	33.8		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--
		119	1080P		05	64		--	Yes	Ye s	--	--	Yes	Yes *3		--	--	--	--	--	--	--
		120	1080P		60	67.5		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--
		121	1080P		03	33		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--
		122	1080P		24	27		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--
		123	1080P		25	28		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--
RGB(Video signal)	SD	131	480I *4		59.9	15.8	VGA(SCART1-2)	Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--
		132	576I *4		50	15.6		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--
		133	480P		59.9	31.5		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--
		134	576P		50	31.3		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--
	HD	135	720P		05	73		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--
		136	720P		60	45		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--
		137	1080I			82		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--
		138	1080I		60	33.8		--	Yes	Yes	--	--	Yes	Yes *3
		139	1080P		50	56 .3		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--
		140	1080P		06	75		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--
		141	1080P		30	33.8		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--
		142	1080P		24	27		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--
		143	1080P		25	28		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--
		144	1080A/540P	RCA STB	60	33.8		--	Yes	Yes	--	--	Yes	Yes *3		--	--
Digital(EIA/CEA-861)	SD	161	640 X 480P		59.9 / 60.0	31.5 / 31.5		--	--	--	--	--	--	--	DVI(DVI-HD)DVD/HD3(HDMI)	Yes *3	Yes *3	Yes *3	Yes *3	Yes *3	Yes *3	Yes *3
		162	720 (1440) X 480I		59.9 / 60.0	15.7 / 15.8		--	--	--	--	--	--	--		Yes	Yes	Yes	Yes	Yes	Yes *3
		163	720 X 480P		59.9 / 60.0	31.5 / 31.5		--	--	--	--	--	--	--		Yes	Yes	Yes	Yes	Yes	Yes *3
		164	720 (1440) X 576I		50	15.6		--	--	--	--	--	--	--		Yes	Yes	Yes	Yes	Yes	Yes *3
		165	720 X 576P		50	31.3		--	--	--	--	--	--	--		Yes	Yes	Yes	Yes	Yes	Yes *3
	HD	166	1280 X 720P		59.9 / 60.0	45.0 / 45.0		--	--	--	--	--	--	--
		167	1920 X 1080I		59.9 / 60.0	33.7 / 33.8		--	--	--	--	--	--	--
		168	1920 X 1080P		59.9 / 60.0	67.4 / 67.5
		169	1280 X 720P		50	37.5
		170	1920 X 1080I		50	82
		171	1920 X 1080P		50	56.3
		172	1920 X 1080P		30	33
		173	1920 X 1080P		24	27
		174	1920 X 1080P		25	28
	Native Resolution	191	1366 X 768		06	74
		192	1024 X 768		6 0	74 3
		193	853 X 480		60	30

...	NORMAL (4:3)	FULL (16:5)	('3')	('4')
Not Supported	1024 pixels x 768 lines	1365 pixels x 768 lines	Displayed by Underscan mode (100%)	SCART input available

Supported Resolutions (PC) 60XC10

						An a g u			Digital
	Sig. no. 3	Resolution X V Signal Type		Specification of the signal		INPUT terminal	SIZE		INPUT terminal	SIZE
				V freq.(Hz)	H freq.(kHz)		NORM(4:3)	I UF(16:9)		NORMAI(4:3)	F.I.I.(15:9)	ZOOM
IBM PC/AT Compatible Computers	1	640 X 400	400line	70.1	31.5	VGA	--	Yes	--	DVI	--	--
	2	720 X 400	400line	70.1	31.5		--	Yes	--	(DVI-PC)	--	Yes
	3			85	37.9		--	Yes	--		--	Yes
	4	720 X 350	330line	70.1	31.5		--	Yes	--		--	Yes
	5	640 X 480	VGA	59.9	31.5		Yes	Yes	Yes		Yes	Yes
	6			72.8	37.9		Yes	Yes	Yes		Yes	Yes
	7			75	37.5		Yes	Yes	Yes		Yes	Yes
	8			85	43.3		Yes	Yes	Yes		Yes	Yes
	9			100.4	51.1		Yes	Yes	Yes		Yes	Yes
	10			120.4	61.3		Yes	Yes	Yes		Yes	Yes
	11	640 X 480	Wide-VGA	60	31		--	Yes	--		--	Yes
	12	652 X 480	Wide-VGA	60	31.7		--	Yes	--		--	Yes
	13	600 X 600	SVGA	56.3	35.2		Yes	Yes	Yes		Yes	Yes
	14			60.3	37.9		Yes	Yes	Yes		Yes	Yes
	15			72.2	48.1		Yes	Yes	Yes		Yes	Yes
	16			75	46.9		Yes	Yes	Yes		Yes	Yes
	17			85.1	53.7		Yes	Yes	Yes		Yes	Yes
	18			99.8	63		Yes	Yes	Yes		Yes	Yes
	19			120	75.7		Yes	Yes	Yes		Yes	Yes
	20	1024 X 768	XCA	60	48.4		Yes	Yes	Yes		Yes	Yes
	21			70.1	56.5		Yes	Yes	Yes		Yes	Yes
	22			71.9	57.9		Yes	Yes	Yes		Yes	Yes
	23			75	60		Yes	Yes	Yes		Yes	Yes
	24			85	68.7		Yes	Yes	Yes		Yes	Yes
	25			100.6	80.5		Yes	Yes	Yes		Yes	Yes
	26			119.4	95.5		Yes	Yes	Yes		Yes	Yes
	27	1152 X 864	XGA	60	53.7		Yes	Yes	Yes		Yes	Yes
	28			72	64.9		Yes	Yes	Yes		Yes	Yes
	29			75	67.5		Yes	Yes	Yes		Yes	Yes
	30	1280 X 768	Wide-XGA	56.2	45.1		--	Yes	--		--	--
	31			59.8	48		--	Yes	--		--	Yes
	32			59.9	47.8		--	Yes	--		--	Yes
	33			69.8	56		--	Yes	--		--	Yes
	34			72	57.8		--	Yes	--		--	Yes
	35	1280 X 800	Wide-XGA	59.6	49.7		--	Yes	--		--	Yes
	36	1280 X 854	Wide-XGA	60	53.1		--	Yes	--		--	Yes
	37	1280 X 950	Wide-XGA	60	60		Yes	Yes	Yes		Yes	Yes
	38			85	85.9		Yes '2	Yes '2	Yes '2		Yes	Yes
	39	1360 X 768	Wide-XGA	60	47.7		--	Yes	--		--	Yes
	40	1376 X 768	Wide-XGA	59.9	48.3		--	Yes	--		--	Yes
	41	1280 X 1024 SXGA		60	64		Yes '1	Yes	Yes		Yes '1	Yes
	42			75	80		Yes '1	Yes	Yes		Yes '1	Yes
	43			85	91.1		Yes '1 '2	Yes '2	Yes '2		Yes '1	Yes
	44			100.1	108.5		Yes '1 '2	Yes '2	Yes'		--	--
	45	1400 X 1050	SXGA+	60	64		Yes	Yes	Yes		Yes	Yes
	46			60	65.3		Yes	Yes	Yes		Yes	Yes
	47			74.9	82.3		Yes '2	Yes '2	Yes '2		Yes	Yes
	48			85	93.9		Y ed*	Yes '2	Yed*		--	--
	49	1680 X 1050	Wide-SXGA	60	63.3		--	Yes	--		--	Yes
	50	1600 X 1200	UXGA	60	75		Yes '2	Yes '2	Yes '2		Yes	Yes
	51			65	81.3		Yes '2	Yes '2	Yes '2		--	--
	52			70	87.5		Yes '2	Yes '2	Yes '2		--	--
	53			75	93.8		Yes '2	Yes '2	Yes '2		--	--
	54			85	106.3		Yes '2	Yes '2	Yes '2		--	--
	55	1920 X 1080		50	58.2		--	--	--		--	Yes
	56			60	67.5		--	--	--		--	Yes
	57	1920 X 1200	Wide-UXGA	59.9	74.6		--	Yes '2	--		--	--
	58	1920 X 1200RR	Wide-UXGA	60	74		--	Yes '2	--		--	Yes
Apple Macintosh®	91	640 X 480	Mac13"	66.7	35		Yes	Yes	Yes		--	--
	82	832 X 624	Mac16"	74.6	49.7		Yes	Yes	Yes		--	--
	83	1024 X 768	Mac19"	74.9	60.2		Yes	Yes	Yes		--	--
	84	1152 X 870	Mac21"	75.1	68.7		Yes	Yes	Yes		--	--
	85	1440 X 900	Apple17	59.9	55.9		--	Yes	--		--	Yes
EWS Series	91	Work Station BWS4800		60	64.6		Yes '1	Yes Yes			Yes '1	Yes Yes
	92	1280 X 1024		71.2	75.1	Yes '1	Yes Yes		Yes '1		Yes Yes
	93	1280 X 1024	HP	72	78.1	Yes '1	Yes Yes		Yes '1	Yes Yes
	94	1152 X 900	SUN	66	61.8	Yes	Yes Yes		Yes	Yes Yes
	95	1152 X 900		76	71.7	Yes	Yes Yes		Yes	Yes Yes
	96	1200 X 1024		76.1	81.1	Yes '1	Yes Yes		Yes '1	Yes Yes
	97	1024 X 768	SGI	60	49.7	Yes	Yes Yes		Yes	Yes Yes
	98	1280 X 1024		60	63.9	Yes '1	Yes Yes		Yes '1	Yes Yes

--	NORMAL (4:3)	FULL (16:3)	('1)	('2)
Not Supported	1024 pixels x 768 lines	1366 pixels x 768 lines	Aspect ratio is 3:4 (960x769)	Rough Sampling

60XC10 Supported Resolutions (Video)

A gen Digital

		Sig.no.	ResolutionH X V	Signal Type	Specification of the signal		INPUTterminal	SIZE							INPUTterminal	SIZE						RGB select		HD select
					V freq.(Hz)	H freq.(kHz)		NORMAL(4:3)	FULL(16:9)	DYNAMIC(non-linear)	ZOOM	14:9	235:1	UNDERSCAN		NORMAL(4:3)	FULL(16:9)	DYNAMIC(non-linear)	ZOOM	14:9	235:1	UNDERSCAN	Gr. No.	Item	Item
VideoComposite / S		101	3.58NTSC		59.9	15.8	Video1S-Video	Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		102	4.43NTSC		59.9	15.8		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		103	PAL		50	15.6		Yes	Yes	Yes	Yes	c#f	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		104	PAL60		58.9	15.8		Yes	Yes	Yes	Yes	c#f	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		105	PAL-N		5 0	5.6		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		106	PAL-M		59.9	15.8		Yes	Yes	Yes	Yes	e#f	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		107	SECAM		50	1 6.5		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
Y,Pb(Cb),Pr(Cr)	SD	111	480I		59.9	15.8	DVD/HD1DVD/HD2	Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		112	576I		50	15.6		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		113	480P		59.9	31.5		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		114	576P		50	31.3		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
	HD	115	720P		50	37.5		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		116	720P		60	45		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		117	1060I		05	0.2		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		118	1060I		06	8.33		--	c#f	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		119	1080P		05	3.65		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		120	1080P		6 0	5.76		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		121	1080P		03	8.33		--	c#f	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		122	1080P		24	27		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		123	1080P		52	28		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
RGB(Video signal)	SD	131	480I *4		59.9	15.8	VGA(SCART1-2)	Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		132	576I *4		50	15.6		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		133	480P		59.9	31.5		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	2	84P	--
		134	576P		05	3.13		Yes	Yes	Yes	Yes	Yes	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
	HD	135	720P		50	37.5		--	c#f	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		136	720P		60	4.5		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		137	1080I		50	28.1		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	1080I
		138	1080I		60	33.8		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		139	1080P		05	85		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		140	1080P		60	67.5		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		141	1080P		03	8.33		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		142	1080P		24	2.7		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		143	1080P		52	28		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	--
		144	1080A/540P	RCA STB	60	3 8.3		--	Yes	Yes	--	--	Yes	Yes *3		--	--	--	--	--	--	--	--	--	540P
Digital(EIA/CEA-861)	SD	161	640 X 480P		59.9 / 60.0	31.5 / 31.5		--	--	--	--	--	--	--	DVI(DVI-HD)DVD/HD3(HDMI)	Yes *3	Yes *3	Yes *3	Yes *3	Yes *3	Yes *3	Yes *3	--	--	--
		162	720 (1440) X 480I		59.9 / 60.0	15.7 / 15.6		--	--	--	--	--	--	--		Yes	Yes	Yes	Yes	Yes	Yes *3	--	--	--
		163	720 X 480P		59.9 / 60.0	31.5 / 31.5		--	--	--	--	--	--	--		Yes	Yes	Yes	Yes	Yes	Yes *3	--	--	--
		164	720 (1440) X 576I		05	61		--	--	--	--	--	--	--		Yes	Yes	Yes	Yes	Yes	Yes *3	--	--	--
		165	720 X 576P		05	3.13		--	--	--	--	--	--	--		Yes	Yes	Yes	Yes	Yes	Yes *3	--	--	--
	HD	166	1280 X 720P		59.9 / 60.0	45.0 / 45.0		--	--	--	--	--	--	--		--	Yes	Yes	--	--	Yes *3	--	--	--
		167	1920 X 1080I		59.9 / 60.0	33.7 / 33.8		--	--	--	--	--	--	--		--	Yes	Yes	--	--	Yes *3	--	--	--
		168	1920 X 1080P		59.9 / 60.0	67.4 / 67.5		--	--	--	--	--	--	--		--	Yes	Yes	--	--	Yes *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 * 3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3*3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 *3 .***(1)

--	NORMAL (4:3)	FULL (16:9)	('3)	('4)
Not Supported	1024 pixels x 768 lines	1366 pixels x 768 lines	Displayed by Underscan mode (100%)	SCART Input available

Pin Assignment

1) Analog RGB Input (Mini D-SUB 15P) VGA

Pin No.	Name
1	Video Signal Red
2	Video Signal Green
3	Video Signal Blue
4	GND
5	DDC-GND
6	Red-GND
7	Green-GND
8	Blue-GND
9	+5V (DDC)
10	SYNC-GND
11	GND
12	DDC-SDA
13	H-SYNC
14	V-SYNC
15	DDC-SCL

5 10 15 1 6 11

Mini D-SUB 15P

3) RS-232C Input (D-SUB 9P)

Pin No.	Name
1	Connected to 7 & 8
2	RXD
3	TXD
4	Connected to 6
5	GND
6	Connected to 4
7	Connected to 1 & 8
8	Connected to 1 & 7
9	NC

1 6 5 9

D-SUB 9P

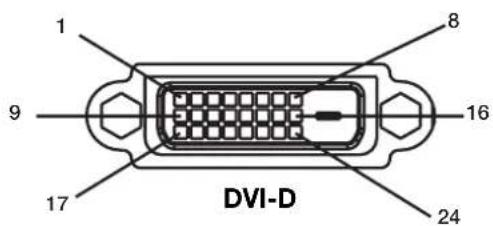

2) Digital RGB Input (DVI-D) DVI

1	TX2- 9 TX1- 17 TX0-
2	TX2+ 10 TX1+ 18 TX0+
3	Shield (TX2/TX4) 11	Shield (TX1/TX3) 19	Shield (TXP/TX5)
4	N C 1 2 N C		2 0 N C
5	N C 1 3 N C		2 1 N C
6	DDC-Serial Clock 14	+5 power	22	Shield (TXC)
7	DDC-Serial Data	15 Ground (+5V)	23	TXC+
8	NC	16 Hot Plug Detect	24	TXC-

1 9 17 8 16 24 DVI-D

American National Standard for Human Factors Engineering of Visual Display Terminal Workstations ANSI-HFS Standard No. 100-1988

Veröffentlicht vom:

The Human Factors and Ergonomics Society P.O. Box 1369, Santa Monica, California 90406.

Diagram of a monitor with directional arrows pointing to a base platform (no text or symbols)

50mm (2") 50mm (2") 50mm (2") 50mm (2") 50mm (2)

Abstract geometric shape resembling a stylized letter X within a rectangular frame (no text or symbols)

Kabelverwaltung

Three technical diagrams showing a vehicle's rear and side views with arrows indicating motion or force (no text or symbols present)

Diagram showing a monitor projection with 30-degree angle labels and a remote control device, likely illustrating TV or remote control concepts.

Bedienfeld

9 OFFON 10 EXIT 8 7 6 5 4 3 2 1 INPUT MUTE

1) STROMSCHALTER

Canadian Department of Communications Compliance Statement

American National Standard for Human Factors Engineering of Visual Display Terminal Workstations ANSI-HFS Standard No. 100-1988

Δημοσιεύθηκε από: The Human Factors and Ergonomics SocietyP.O. Box 1369, Santa Monica, California 90406.

Diagram showing a monitor with directional arrows pointing to a base platform (no text or symbols)

50mm (2") 50mm (2") 50mm (2") 50mm (2") 50mm (2)

Ανάρτηση στο ταβάνι

Abstract geometric shape resembling a stylized 'X' within a rectangular frame (no text or symbols)

Διαχείριση καλωδίων

K-10000000000000000000000000000000000000000000000000000000000000000000000000000000000000

Three views of a car showing front, side, and side views with no visible text or symbols

American National Standard for Human Factors Engineering of Visual Display Terminal Workstations ANSI-HFS Standard No. 100-1988

Publicado por:

The Human Factors and Ergonomics Society C.P. 1369, Santa Monica, California 90406.

Limpiar el Panel

Diagram showing a monitor with directional arrows pointing to a base platform (no text or symbols)

Figura 2 Tabla Hoja Protectora

Figura 3

50mm (2") 50mm (2") 50mm (2") 50mm (2") 50mm (2)

Montaje en Techo

Abstract geometric shape resembling a stylized 'X' within a rectangular frame (no text or symbols)

Three technical diagrams showing front and side views of a vehicle's rear dashboard and engine compartment (no text or labels)

Supports/Montures Optionnels.... Français-6

American National Standard for Human Factors Engineering of Visual Display Terminal Workstations ANSI-HFS Standard No. 100-1988

Publié par:

The Human Factors and Ergonomics Society P.O. Box 1369, Santa Monica, California 90406.

Diagram showing a monitor with directional arrows pointing to a base platform (no text or symbols)

Feuille de Protection Figure 2 Table

Figure 3

50mm (2") 50mm (2") 50mm (2") 50mm (2") 50mm (2)

Montage au Plafond

Abstract geometric shape resembling a stylized 'X' within a rectangular frame (no text or symbols)

Three technical diagrams showing a vehicle's rear and side views with arrows indicating motion or force vectors (no text or symbols present)

Diagram showing a monitor projection to a remote control with 30-degree angle labels

Input digital HDMI signals.

4) DVI

Connect equipment such as a DVD player, HDTV device or set-top.

10) AUDIO1

8) DISPLAY Active/désactive l'OSD.

American National Standard for Human Factors Engineering of Visual Display Terminal Workstations ANSI-HFS Standard No. 100-1988

Pubblicato da:

The Human Factors and Ergonomics Society P.O. Box 1369, Santa Monica, California 90406.

Diagram showing a monitor with directional arrows pointing to a base platform (no text or symbols)

50mm (2") 50mm (2") 50mm (2") 50mm (2") 50mm (2)

Abstract geometric shape resembling a stylized 'X' within a rectangular frame (no text or symbols)

Gestione dei cavi

Three technical diagrams showing front and side views of a vehicle's internal components (no text or symbols)

The Human Factors and Ergonomics Society P.O. Box 1369, Santa Monica, California 90406.

Очистка панели

Diagram showing a monitor with directional arrows pointing to a base platform (no text or symbols)

Рис. 2

50mm (2") 50mm (2") 50mm (2") 50mm (2") 50mm (2)

Abstract geometric shape resembling a stylized 'X' within a rectangular frame (no text or symbols)

Укладка кабелей

Three technical diagrams showing front and side views of a vehicle's internal components (no text or symbols visible)

American National Standard for Human Factors Engineering of Visual Display Terminal Workstations ANSI-HFS Standard No. 100-1988

Yayınlayan:

The Human Factors and Ergonomics Society P.O. Box 1369, Santa Monica, California 90406.

Temizlik ve Panel

Diagram showing a monitor with directional arrows pointing to a base platform (no text or symbols)

50mm (2") 50mm (2") 50mm (2") 50mm (2") 50mm (2)

Tavana Montaj

Abstract geometric shape resembling a stylized 'X' within a rectangular frame (no text or symbols)

Kablo Yönetimi

Three technical diagrams showing front, side, and top views of a vehicle or car component with no visible text or symbols.

WEEE Mark (European Directive 2002/96/EC)

Within the European Union

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal.

EU-wide legislation, as implemented in each Member State, requires that waste electrical and electronic products carrying the mark (left) must be disposed of separately from normal household waste. This includes monitors and electrical accessories, such as signal cables or power cords. When you need to dispose of your NEC display products, please follow the guidance of your local authority, or ask the shop where you purchased the product, or if applicable, follow any agreements made between yourself and NEC. The mark on electrical and electronic products only applies to the current European Union Member States.

The mark on electrical and electronic products only applies to the current European Union Member States.

Outside the European Union

If you wish to dispose of used electrical and electronic products outside the European Union, please contact your local authority so as to comply with the correct disposal method.

Declaration of the Manufacturer

We hereby certify that the color monitor P426Y3, P506Y4 or P606Y5 is in compliance with Council Directive 73/23/EEC:

- EN 60065

and marked with

Council Directive 89/336/EEC:

— EN 55022
— EN 61000-3-2
— EN 61000-3-3
— EN 55024

NEC Display Solutions Ltd.

4-13-23, Shibaura,

Minato-Ku

Tokyo 108-0023, Japan

DECLARATION OF CONFORMITY

This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

U.S. Responsible Party: NEC Display Solutions of America, Inc.

Address: 500 Park Blvd. Suite 1100

Itasca, IL 60143

Tel. No.: [phone]

Type

Equipment

Model: PlasmaSync 42XC10 (P426Y3)

PlasmaSync 50XC10 (P506Y4)

PlasmaSync 60XC10 (P606Y5)

of

Classification: Class B Peripheral

Product:

We hereby declare that the equipment specified above conforms to the technical standards as specified in the FCC Rules.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

Windows is a registered trademark of Microsoft Corporation. NEC is a registered trademark of NEC Corporation.

All other brands and product names are trademarks or registered trademarks of their respective owners.
