1. Important Safety Instructions

SAVE THESE INSTRUCTIONS

All sections of this manual contain instructions and warnings that should be followed during the installation and use of the SmartRack Enclosures described in this manual. Read all instructions and warnings thoroughly before attempting to move, install or use the SmartRack Enclosures described in this manual. Failure to comply will create a risk of personal injury and property damage and may invalidate the warranty.

• Keep the enclosure in a controlled indoor environment, away from moisture, temperature extremes, flammable liquids and gasses, conductive contaminants, dust and direct sunlight.
  Leave adequate space at the front and rear of the enclosure for proper ventilation. Do not block, cover or insert objects into the external ventilation openings of the enclosure.
  The enclosure is extremely heavy. Use caution when handling the enclosure. Do not attempt to unpack, move or install it unassisted. Use a mechanical device such as a forklift or pallet jack to move the enclosure in the shipping container.
• Do not place any object on the enclosure, especially containers of liquid, and do not attempt to stack the enclosures.
• Inspect the shipping container and the enclosure for shipping damage. Do not use the enclosure if it is damaged.
• Leave the enclosure in the shipping container until it has been moved as close to the final installation location as possible. The casters are designed for minor position adjustments within the final installation area only. The casters are not designed for moving the enclosure over longer distances.
  The casters are not designed to provide long-term support for the enclosure after final installation. Use the levelers to provide long-term support.
• Install the enclosure in a structurally sound area with a level floor that is able to bear the weight of the enclosure, all equipment that will be installed in the enclosure and any other enclosures and/or equipment that will be installed nearby.
• Do not push the enclosure from the side panels to move it. Pushing from the side panels will cause a tipping hazard.
• When rolling the enclosure on its casters, always push it from behind, never pull it toward you.
  A rolling enclosure can cause personal injury and property damage if not properly supervised. If rolling the enclosure down a ramp is required, use extreme caution. Do not attempt to use ramps that have a slope steeper than 1:12.
  Use caution when cutting packing materials. The enclosure could be scratched, causing damage not covered by the warranty.
• Save all packing materials for later use. Repacking and shipping the enclosure without the original packing materials may cause product damage that will void the warranty.
  Do not re-ship the enclosure with additional equipment unless the enclosure was shipped with a special shock pallet ("SP1" models only). The combined weight of the enclosure and installed equipment must not exceed the load capacity of the pallet. Tripp Lite is not responsible for any damage that occurs during re-shipment.
• Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended. Do not use this equipment in the presence of a flammable anesthetic mixture with air, oxygen or nitrous oxide.

2. Overview

SmartRack Enclosures accommodate all standard 19-inch rackmount equipment, regardless of vendor, and ship fully assembled for quick and easy deployment. They feature adaptable, heavy-duty cabinets in 25U, 42U and 48U heights, with or without side panels. Several models are available with an integrated shock pallet that allows resellers, integrators and enterprise customers to pre-configure equipment and re-ship the enclosures to the final installation site. SmartRack Enclosures have variable mounting depths, ideal for servers. Integrated baying hardware enables cost-effective, orderly and efficient expansion. The cabinets include quick-release doors and side panels for convenient maintenance and split front and front and rear doors (select models) for improved access and reduced clearance requirements. Front access doors are reversible for installation flexibility. Front and rear doors and side panels are lockable.

Available SmartRack Enclosures

Model # Rack Height Side Panels Shock Pallet
SR25UB 25U Yes No
SR25UBEXP 25U No No
SR25UBSP1 25U Yes Yes
SR25UBEXPSP1 25U No Yes
SR42UB 42U Yes No
SR42UBCL	42U Yes No
SR42UBEXP 42U No No
SR42UBSP1 42U Yes Yes
SR42UBEXPSP1 42U No Yes
SR48UB 48U Yes No
SR48UBCL	48U Yes No
SR48UBEXP 48U No No
SR48UBSP1 48U Yes Yes
SR48UBEXPSP1 48U No Yes

See the Specifications section for more information.

3. Feature Identification

Model SR42UB is shown. The other models have similar features, with the differences noted.

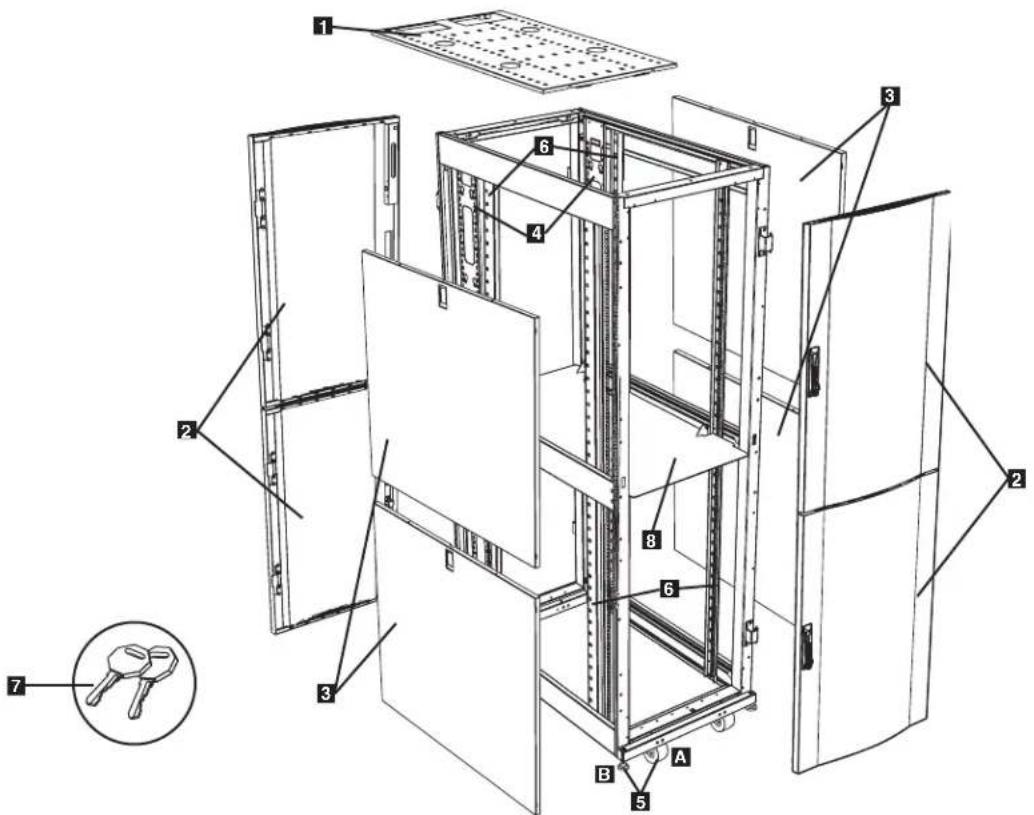

1 Roof Panel
2 Locking, Reversible Split Front and Rear Doors
Locking Side Panels (25U enclosures use 2 side panels instead of 4. Side panels are not included with "EXP" models.)
4 Cable Management Rails
5 Casters A and Levelers B
6 Mounting Rails (Provide horizontal and vertical mounting points for equipment.)
7 Keys (One key provided for combination locks and one for side doors. Emka logo key opens combination locks, while plain key opens side panels.)
8 Divider

Not Shown: Mounting hardware, documentation, shipping brackets and other shipping materials.

4. Enclosure Installation

Caution! Read All Instructions andWarnings Before Installation!

WARNING: The rack enclosure is extremely heavy. Do not attempt to unpack, move or install the enclosure without assistance. Until it has been properly installed and stabilized, the enclosure is prone to tipping and could cause property damage and/or personal injury. Use extreme caution when handling the enclosure and be sure to follow all handling and installation instructions. Do not attempt to install equipment without first stabilizing the enclosure.

4.1 Preparation

The enclosure must be installed in a structurally sound area with a level floor that is able to bear the weight of the enclosure, all the equipment that will be installed in the enclosure and any other enclosures and/or equipment that will be installed nearby. Before unpacking the enclosure, you should transport the shipping container closer to the final installation location to minimize the distance you will need to move the unit after the protective packaging has been removed. If you plan to store the enclosure for an extended period before installation, follow the instructions in the Storage and Service section.

You need several tools (user-supplied):

13 mm Open-end Wrench
18 mm Open-end Wrench
Utility Blade
Carpenter's Level
- Phillips-head Screwdriver
5/32"Allen Wrench

You also need the following hardware (included):

(50) Phillips-head Mounting Screws (M6 x 5/8")
(50) Cage Nuts (M6)
(50) Nylon Cup Washers

4. Enclosure Installation (continued)

4.2 Unpacking

NOTE: If the enclosure is an "SP1" model with a shock pallet, follow the special unpacking instructions attached to the shipping container instead of the unpacking instructions in this section. All warnings still apply.

1 Confirm that the shipping container is upright and stable, then use a utility blade to cut the shrink-wrap securing the corner protectors. Apply the utility blade directly over the corner protectors to prevent the utility blade from scratching the enclosure or cutting the heavy protective plastic bag beneath the shrink-wrap. WARNING: Do not scratch the enclosure or cut the heavy plastic bag beneath the shrink-wrap. Do not push or pull the enclosure while unpacking.

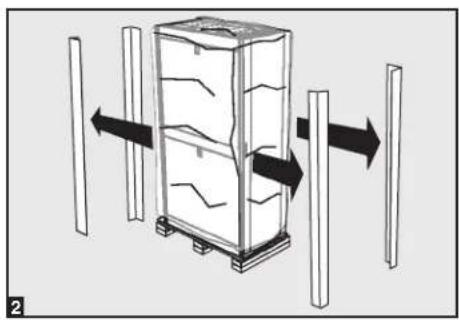

2 Remove the corner protectors. Save all packing materials (including the pallet) for later use unless you are certain they will not be required. The packing materials are recyclable.

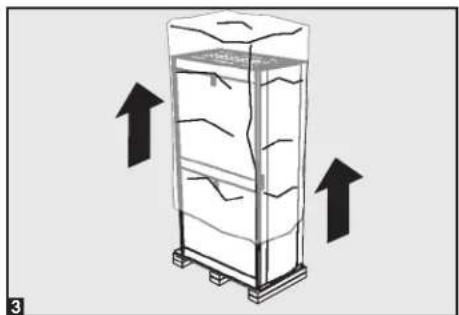

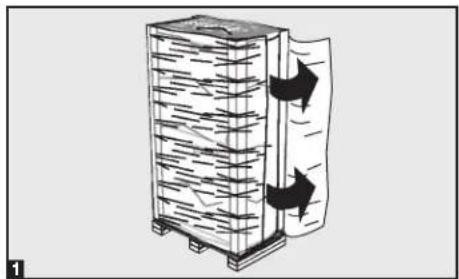

3 Remove the heavy plastic bag surrounding the enclosure. Examine the enclosure for any damage or loose parts. Confirm that all parts are present. If anything is missing or damaged, contact Tripp Lite for assistance. Do not attempt to use the enclosure if it has been damaged.
Use the key to open the enclosure's doors and locate the 2 shipping brackets A that attach the enclosure to the shipping pallet. The brackets are located inside the enclosure. Note: The keys are attached to the front of the enclosure.

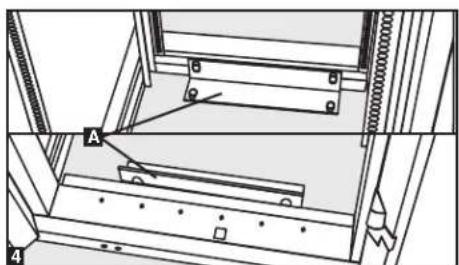

Use a 13mm open-end wrench to remove the shipping brackets. Be extremely careful, as the enclosure could shift unexpectedly after bracket removal. Save the brackets and bracket hardware for later use.

4. Enclosure Installation (continued)

4.2 Unpacking (continued)

6 Position at least one person at the front of the enclosure and one person at the rear of the enclosure. Slowly push the enclosure toward the back of the shipping pallet until all four casters go over the edge of the pallet and touch the floor. WARNING: Use at least one assistant when removing the enclosure from the pallet. Be extremely careful when moving the enclosure.

4.3 Placement

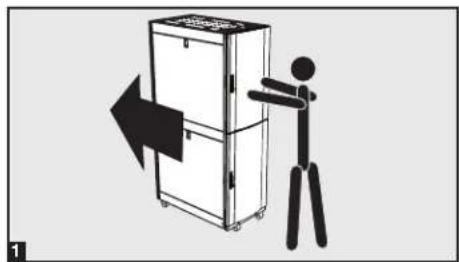

1 Use the casters to move the enclosure for a short distance over a level, smooth, stable surface by pushing it from the front or rear (not the side panels). Do not attempt to roll the enclosure over long distances. The enclosure should be moved close to its installation location inside its shipping container before it is unpacked. (Use a forklift or pallet jack to move the shipping container.) WARNING: Do not push or pull the enclosure at the side panels or pull the enclosure toward you.

If required, the enclosure can be lifted by attaching 4 user-supplied M8 diameter eye bolts to the threaded holes near the upper corners of the enclosure frame. Use steel bolts with an ISO strength rating of 8.8 or higher. The 4 bolts can support the weight of the enclosure and up to 1000lb (450kg) of installed equipment.

WARNING: Only experienced equipment operators should attempt to lift the enclosure. Use appropriate equipment and follow all applicable safety procedures and regulations.

4.4 Leveling

WARNING: Level the enclosure before attempting to install equipment. The casters are not designed to provide long-term support for the enclosure. Use the levelers to provide long-term support. Install the enclosure in a structurally sound area with a level floor that is able to bear the weight of the enclosure, all equipment that will be installed in the enclosure and any other enclosures and/or equipment that will be installed nearby.

1 After the enclosure has been moved to the installation location, use a carpenter's level to check the slope of the floor. If the floor slopes more than 1% , choose an alternate installation site.

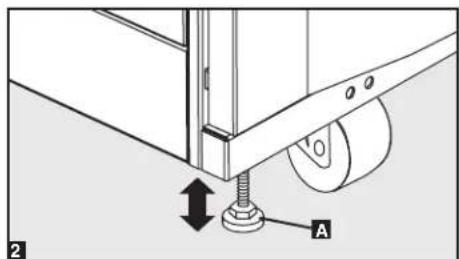

2 Use an 18 mm open-end wrench to lower each leveler A until it reaches the floor. (There are 4 levelers, 2 at the front and 2 at the rear.) Make sure each leveler contacts the floor solidly. Note: Lower a leveler by turning it clockwise; raise a leveler by turning it counter-clockwise.

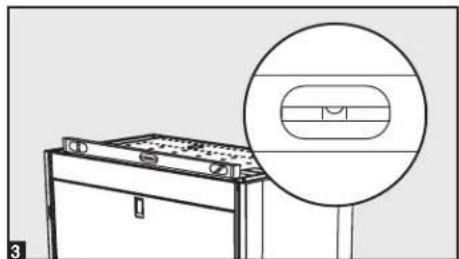

After lowering each leveler, use the carpenter's level to confirm that the enclosure is level in all directions. Adjust the levelers as required until the enclosure is level.

4. Enclosure Installation (continued)

4.4 Leveling (continued)

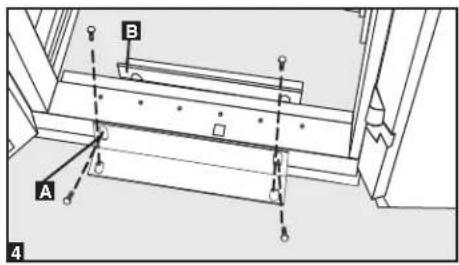

(Optional) If you wish to provide an additional measure of stability, you can attach the 2 shipping brackets, using the hardware that attached the enclosure to the shipping pallet. Use a 13mm open-end wrench to connect the brackets to the outer A or inner B bracket mounting points of the enclosure. Attach the brackets to secure mounting points in the floor using user-supplied hardware or Tripp Lite's SmartRack Bolt-Down Kit (Part # SR331).

4.5 Ground Connection

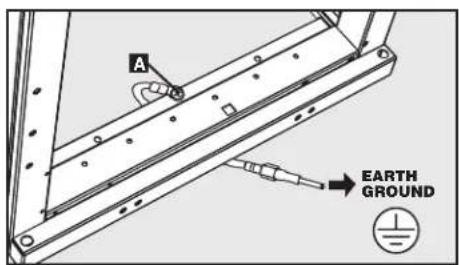

All the parts of the enclosure should be grounded to the frame of the enclosure. Use the enclosure's front or rear threaded grounding point A and an M6 screw (not included) to connect the frame of the enclosure directly to your facility's earth ground connection with an 8 AWG (3.264mm) wire (not included). Route the ground wire under the enclosure's frame to ensure unhindered door operation. WARNING: Attach each enclosure to earth ground separately. Do not use the enclosure without an earth ground connection.

5. Enclosure Configuration

5.1 Adding or Removing Front and Rear Doors

5.1.1 Removing Doors

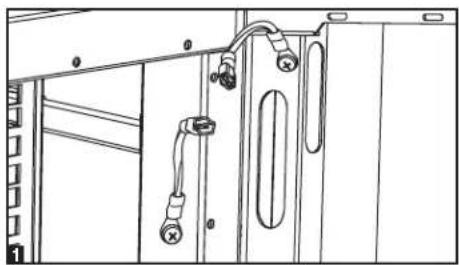

1 Disconnect the door's ground wire.

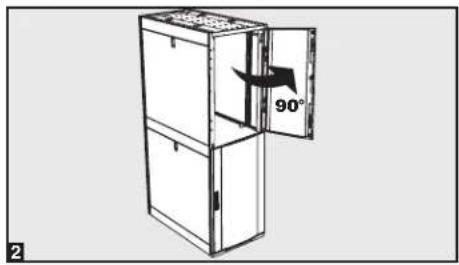

2 Open the door until it is perpendicular (90 degrees) to the front of the enclosure.

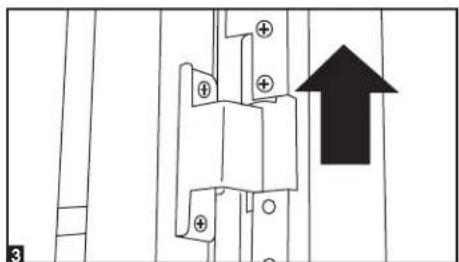

3 Lift the door from the hinges and remove it from the enclosure.

5.1.2 Reinstalling Doors

To Reinstall Doors, Reverse Steps 1-3

(Optionai) If the enclosure is joined to another enclosure, turn the door back toward the enclosure as you lift it from the hinges.

5. Enclosure Configuration (continued)

5.2 Reversing Doors

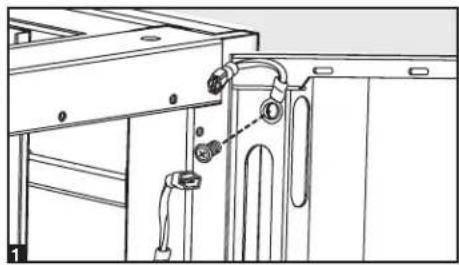

1 Remove the screw connecting the ground wire to the inside of the door.

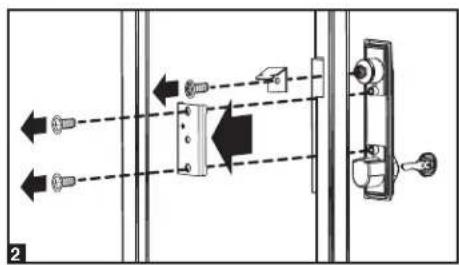

2 Remove the combination lock, cam and screw plate from the door of the enclosure as shown.
Remove the doors by following the steps in the previous section.

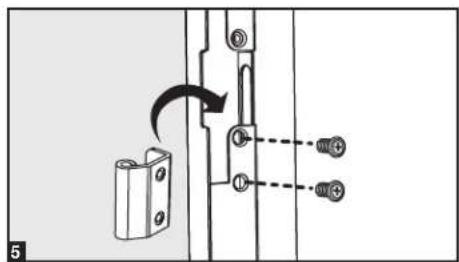

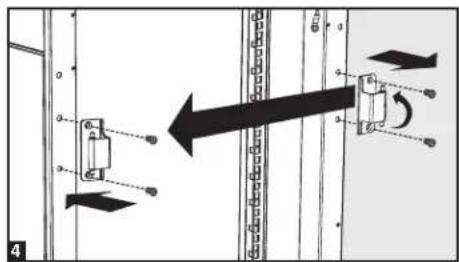

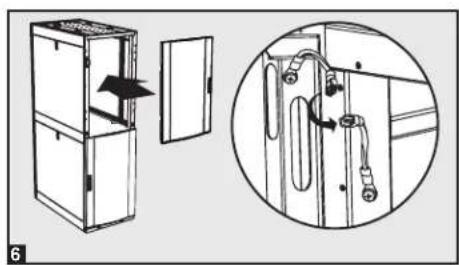

4 Remove the door hinges from the enclosure, rotate them 180 degrees and attach them on the opposite side of the enclosure. Note: The alternate door hinge attachment points have plastic plugs in the screw holes. Remove the plugs and insert them in the original door hinge attachment points.
5 Unscrew the 2 hinge mechanisms from the hinge openings inside the door, then reattach each of them using the set of screw holes immediately opposite their original position.

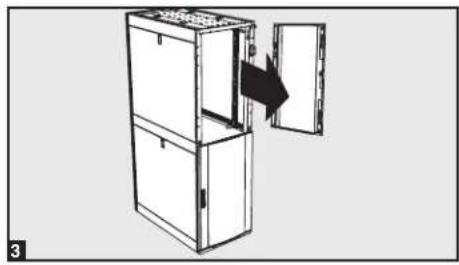

6 Rotate the door 180 degrees and reinstall it on the enclosure. Remember to connect the ground wire to the inside of the door, using the attachment point nearest the hinge at the top of the door. The attachment point is marked with the ground connection symbol:

5. Enclosure Configuration (continued)

5.2 Reversing Front Doors (continued)

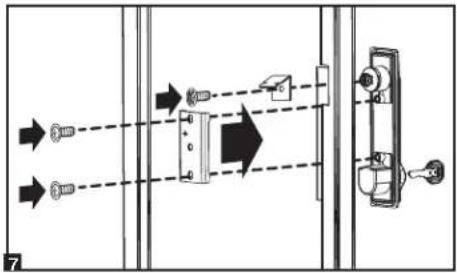

7 Reinstall the combination lock, so the unit is right-side up. Slide the lock handle through the opening, install the cam, and then secure the lock using the screws and screw plate as shown.

5.3 Adding or Removing Roof Panel

WARNING: Do not attempt to use the roof panel for weight-bearing purposes other than those explicitly described and approved by Tripp Lite. Do not attempt to add or remove the roof panel without assistance.

5.3.1 Removing Roof Panel

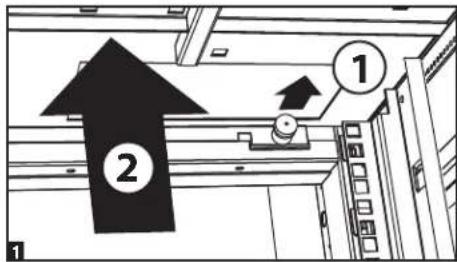

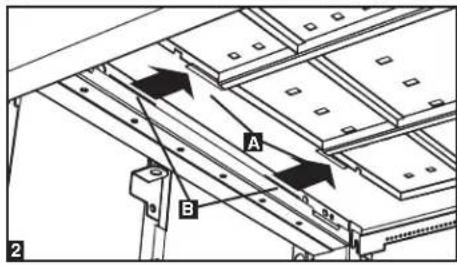

Pull the 2 pins near the rear of the roof panel. While holding the pins, push the roof panel upward.

2 Remove the roof panel tabs A from the roof panel attachment slots B in the enclosure frame.

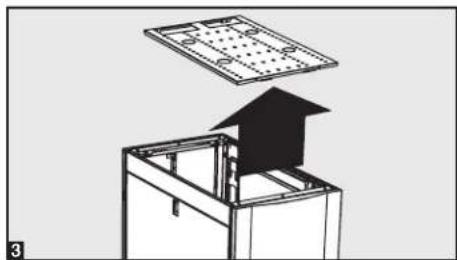

3 Lift the roof panel from the enclosure.

5.3.2 Reinstalling Roof Panel

To Reinstall Roof Panel, Reverse Steps 1-3

5.4 Adding or Removing Side Panels

5.4.1 Removing Side Panel

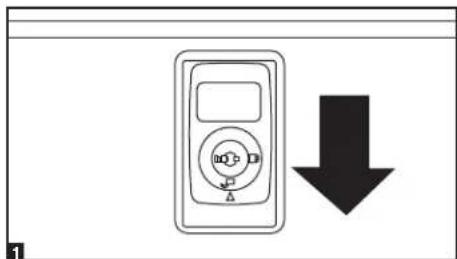

1 Open the latch by sliding it downward.

5. Enclosure Configuration (continued)

5.4 Adding or Removing Side Panels (continued)

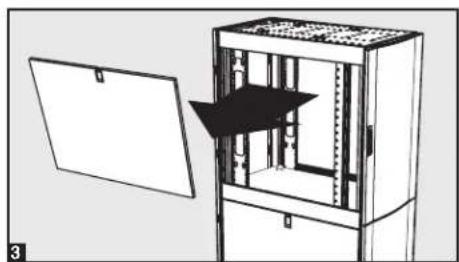

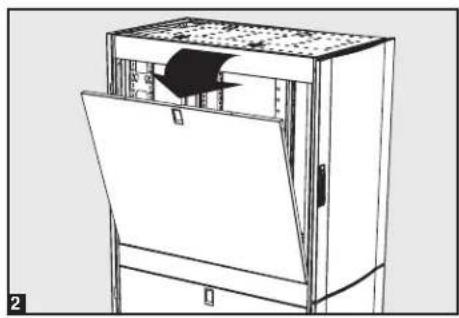

2 Tilt the top of the panel away from the enclosure.

3 Lift the panel away from the brace that supports it.

5.4.2 Reinstalling Side Panels

To Reinstall Side Panels, Reverse Steps 1-3

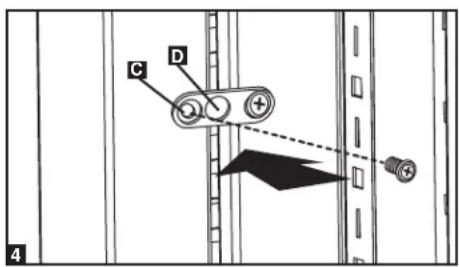

5.5 Combining (Baying) Enclosures

WARNING: Combining enclosures is not a substitute for stabilizing the enclosures. Each enclosure in a bay of combined enclosures requires the same stabilizing measures as a standalone enclosure.

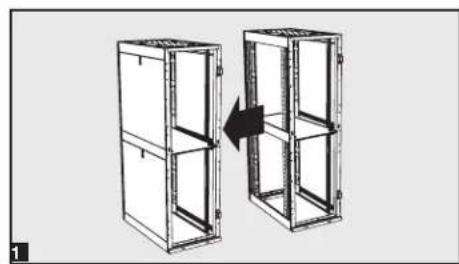

1 Arrange the enclosures in the correct position for baying.

Each enclosure includes 4 baying brackets that correspond to baying connection points on the adjoining enclosure. The baying connection points already contain screws. Remove the screw from each baying connection point in the adjoining enclosure.

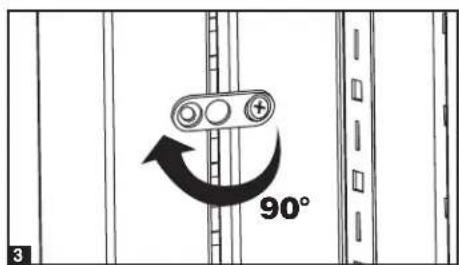

3 Loosen the screw in each baying bracket and turn each bracket 90 degrees toward the adjoining enclosure, aligning each bracket with the corresponding baying connection point on the adjoining enclosure.

5. Enclosure Configuration (continued)

5.5 Combining (Baying) Enclosures (continued)

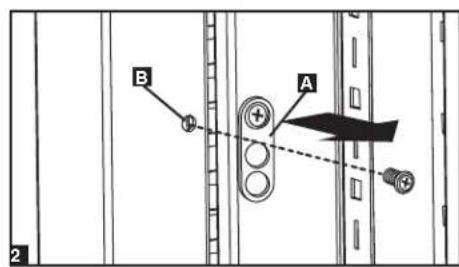

4 Connect each bracket to the adjoining enclosure using the screws you removed in step 2, but do not tighten the screws completely. Adjust the position of the enclosures as needed. If you want the centers of the enclosures to be 24 inches (61 cm) apart, use the outside hole of the bracket C. If you want the centers to be 60 cm (23.6 inches) apart, use the middle hole of the bracket D. After connecting all brackets and confirming that the enclosures do not need further adjustment, tighten all screws.

Note: You may wish to remove the doors from the enclosures before combining them. Reinstalling the doors afterward is optional. Remove the interior side panels before baying enclosures if you wish to enable access between enclosures.

6. Combination Locks

Insert key into lock. Turn key 180 degrees counterclockwise so that indicator arrow points UP as shown. Lift handle and turn. To re-lock, turn key 180 degrees clockwise so that lock indicator arrow points DOWN as shown and remove key. (Note: Using the key overrides the combination lock feature.)

Note: One key is provided for side panels, and another is used for combination locks. Using the key overrides the combination lock feature. Typically, the rack's owner will have access to this key, while subsequent users will have access to their own sections of the rack via the Combination Lock Feature.

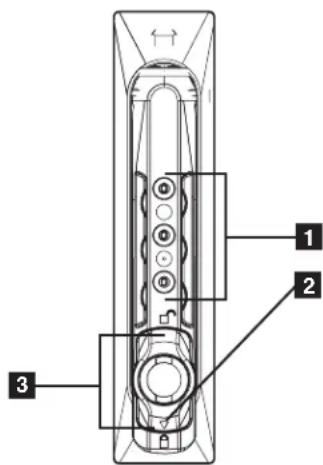

Combination Lock Dials
2 Lock Indicator Arrow
3 Wing Knob

6.1 Setting and Resetting the Combination Lock

(Note: To set or reset the combination lock feature, the lock must be engaged and the existing combination must be known. The lock comes with the combination factory preset to 0-0-0.)
a. Dial in the existing combination.
b. Turn wing knob 180 degrees counterclockwise so that lock indicator arrow points UP.
c. Turn wing knob an additional 15 degrees counterclockwise.
d. Enter the new combination.
e. Turn wing knob 15 degrees clockwise. The new combination is now set.
f. To re-lock, turn wing knob 180 degrees clockwise so that lock indicator arrow points DOWN as shown; then scramble the combination.

6.2 Using the Combination Lock

Dial in the combination. Turn wing knob 180 degrees counterclockwise so that lock indicator arrow points UP as shown. Lift handle and turn. To re-lock, turn wing knob 180 degrees clockwise so that the indicator arrow points DOWN as shown; then scramble the combination.

7. Equipment Installation

WARNING: Do not install equipment until you have stabilized the enclosure. Install heavier equipment first and install it toward the bottom of the enclosure. Install equipment starting from the bottom of the enclosure and proceeding toward the top of the enclosure - never the reverse. If using sliding equipment rails, be careful when extending the rails. Do not extend more than one set of sliding equipment rails at one time. Avoid extending sliding equipment rails near the top of the enclosure.

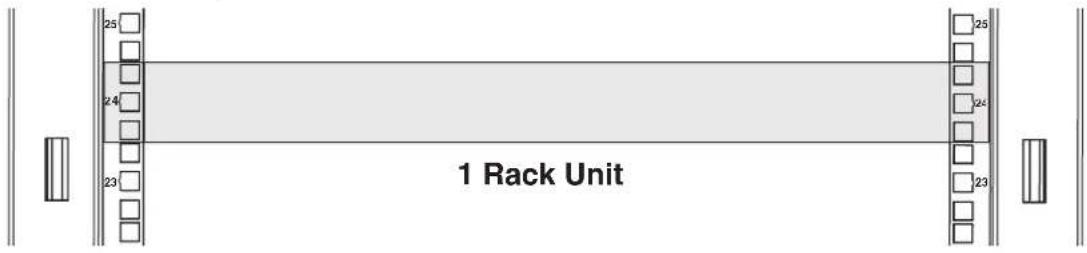

Note: The square holes at the middle of each rack unit are numbered and also include a small notch to aid identification. A single rack unit includes the space occupied by the numbered hole and the holes directly above and below.

7.1 Cage Nuts

7.1.1 Installing Cage Nuts

WARNING: The flanges of the cage nuts should engage the sides of the square opening in the rail, not the top and bottom. Follow the instructions in your equipment documentation to ensure proper installation of your equipment.

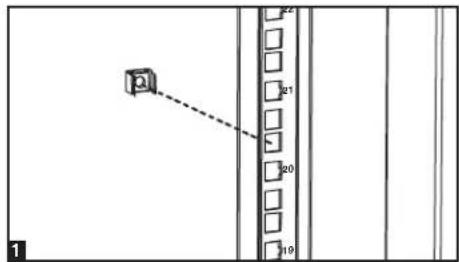

1 Locate the numbered square openings in the mounting rails where you plan to install your equipment. You will install cage nuts (included) into the square openings in order to provide an attachment point for the mounting screws (included). Note: Consult your equipment documentation to determine how many cage nuts will be required and where they will need to be installed.

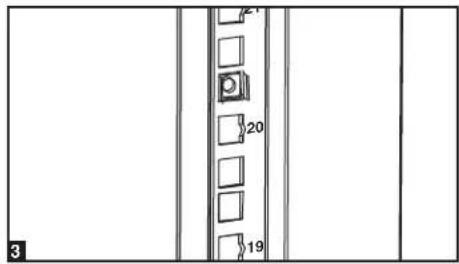

2 From the inside of the mounting rail, insert one of the flanges of the cage nut through the square opening. Press it against the side of the square opening. Each flange should engage one side of the square opening, not the top or bottom.

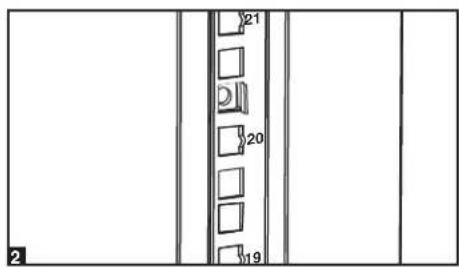

8 Compress the cage nut at the sides slightly to allow the remaining flange to fit through the square opening. When the cage nut is properly installed, both flanges will protrude through the square opening and will be visible on the outer surface of the mounting rail. Repeat steps 1-3 until all required cage nuts are installed.

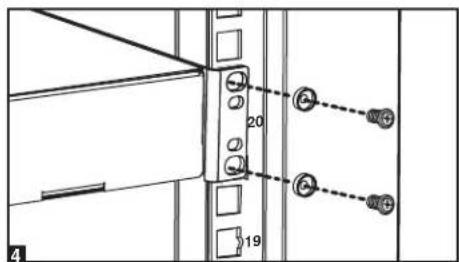

4 After installing the required cage nuts, use the included mounting screws and cup washers to secure your equipment to the rack rail. Place the cup washers between the screws and the equipment mounting brackets.

Note: Your equipment may also include mounting hardware. Read the mounting instructions that came with your equipment before installing your equipment.

7.1.2 Removing Cage Nuts

To Remove Cage Nuts, Reverse Steps 1-3

Note: You may wish to use a cage nut tool (user-supplied) to aid cage nut installation and removal.

8. Specifications

Model	Load Capacity* Unit Dimensions Shipping Dimensions
	Static Rolling Height Width Depth Weight Height Width Depth Weight
SR25UB	3000 lb(1363 kg)	2250 lb(1022 kg)	49 in(1245 mm)	23.63 in(600 mm)	43 in(1092 mm)	195 lb(88.6 kg)	55 in(1397 mm)	27.75 in(705 mm)	47 in(1194 mm)	218 lb(99.1 kg)
SR25UBEXP	3000 lb(1363 kg)	2250 lb(1022 kg)	49 in(1245 mm)	23.63 in(600 mm)	43 in(1092 mm)	149 lb(67.7 kg)	55 in(1397 mm)	27.75 in(705 mm)	47 in(1194 mm)	172 lb(78.2 kg)
SR25UBSP1	3000 lb(1363 kg)	2250 lb(1022 kg)	49 in(1245 mm)	23.63 in(600 mm)	43 in(1092 mm)	195 lb(88.6 kg)	55 in(1397 mm)	27.75 in(705 mm)	48 in(1194 mm)	245 lb(111.4 kg)
SR25UBEXPSP1	3000 lb(1363 kg)	2250 lb(1022 kg)	49 in(1245 mm)	23.63 in(600 mm)	43 in(1092 mm)	149 lb(67.7 kg)	55 in(1397 mm)	27.75 in(705 mm)	48 in(1194 mm)	199 lb(90.5 kg)
SR42UB	3000 lb(1363 kg)	2250 lb(1022 kg)	78.5 in(1994 mm)	23.63 in(600 mm)	43 in(1092 mm)	281 lb(127.7 kg)	84.5 in(2146 mm)	27.75 in(705 mm)	47 in(1194 mm)	304 lb(138.2 kg)
SR42UBCL	3000 lb(1363 kg)	2250 lb(1022 kg)	78.5 in(1994 mm)	23.63 in(600 mm)	43 in(1092 mm)	281 lb(127.7 kg)	84.5 in(2146 mm)	27.75 in(70.5 mm)	47 in(1194 mm)	304 lb(138.2 kg)
SR42UBEXP	3000 lb(1363 kg)	2250 lb(1022 kg)	78.5 in(1994 mm)	23.63 in(600 mm)	43 in(1092 mm)	203 lb(92.3 kg)	84.5 in(2146 mm)	27.75 in(705 mm)	47 in(1194 mm)	226 lb(102.7 kg)
SR42UBSP1	3000 lb(1363 kg)	2250 lb(1022 kg)	78.5 in(1994 mm)	23.63 in(600 mm)	43 in(1092 mm)	281 lb(127.7 kg)	84.5 in(2146 mm)	27.75 in(70mm)	47 in(1194 mm)	331 lb(150.5 kg)
SR42UBEXPSP1	3000 lb(1363 kg)	2250 lb(1022 kg)	78.5 in(1994 mm)	23.63 in(600 mm)	43 in(1092 mm)	203 lb(92.3 kg)	84.5 in(2146 mm)	27.75 in(705mm)	47 in(1194 mm)	253 lb(115 kg)
SR48UB	3000 lb(1363 kg)	2250 lb(1022 kg)	89 in(2261 mm)	23.63 in(600 mm)	43 in(1092 mm)	309 lb(140.5 kg)	95 in(2413 mm)	27.75 in(705 mm)	47 in(1194 mm)	332 lb(150.9 kg)
SR48UBCL	3000 lb(1363 kg)	2250 lb(1022 kg)	89 in(2261 mm)	23.63 in(600 mm)	43 in(1092 mm)	309 lb(140.5 kg)	95 in(2413 mm)	27.75 in(705 mm)	27.75 in(70.5 mm)	332 lb(150.9 kg)
SR48UBEXP	3000 lb(1363 kg)	2250 lb(1022 kg)	89 in(2261 mm)	23.63 in(600 mm)	43 in(1092 mm)	211 lb(95.9 kg)	95 in(2413 mm)	27.75 in(705 mm)	47 in(1194 mm)	234 lb(106.4 kg)
SR48UBSP1	3000 lb(1363 kg)	2250 lb(1022 kg)	89 in(2261 mm)	23.63 in(600 mm)	43 in(1092 mm)	309 lb(140.5 kg)	95 in(2413 mm)	27.75 in(705 mm)	57 in(1194 mm)	359 lb(163.2 kg)
SR48UBEXPSP1	3000 lb(1363 kg)	2250 lb(1022 kg)	89 in(2261 mm)	23.63 in(600 mm)	43 in(1092 mm)	211 lb(95.9 kg)	95 in(2413 mm)	27.75 in(705 mm)	48 in(1194 mm)	261 lb(118.6 kg)

* "SP1" models include a shock pallet that allows the enclosure to be shipped with pre-installed equipment. The maximum shipping capacity is 1250 lb (568 kg), including the weight of the enclosure and the pre-installed equipment.

9. Storage and Service

Storage

The enclosure should be stored in a controlled indoor environment, away from moisture, temperature extremes, flammable liquids and gasses, conductive contaminants, dust and direct sunlight. Store the enclosure in its original shipping container if possible.

Service

The enclosure is covered by the limited warranty described in this manual. For more information, call Tripp Lite Customer Service at [phone].

10. Warranty and Warranty Registration

5-Year Limited Warranty

Sellw r t i f t h t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTY OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN, EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTYES, INCLUDING ALL WARRANTY OF MERCHANTIBILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCUSES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

Warranty Registration

Visit www.trpillite.com/warranty today to register the warranty for your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!

• No purchase necessary. Void where prohibited. Some restrictions apply. See Web site for details.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.

Note on Labeling

This symbol is used on the product: Ground Connection

1111 W. 35th Street, Chicago, IL 60609 USA

[phone]·www.triplite.com

Copyright © 2009 Tripp Lite. All trademarks are the sole property of their respective owners.

1111 W. 35th Street, Chicago, IL 60609 USA

[phone]·www.triplite.com

1111 W. 35th Street, Chicago, IL 60609 USA

[phone]·www.triplite.com

1111 W. 35th Street, Chicago, IL 60609 USA

[phone]·www.triplite.com

4.2 Deballage (suite)

1111 W. 35th Street, Chicago, IL 60609 USA

[phone]·www. Uriplite.com
