True Air 04383 - Air purifier HAMILTON BEACH - Free user manual and instructions

USER MANUAL True Air 04383 HAMILTON BEACH

register your product online!

Please call us – our friendly associates are ready to help

USA: 1.800.851.8900

CAN: 1.800.267.2826

MEX: 01 800 71 16 100

White portable air purifier device with a closed lid and ventilation slots (no visible text or symbols)

Hamilton

Beach.

Allergen Reducer

White cylindrical electronic device with rounded body and side slots (no visible text or symbols)

English 2

Francais 8

Español 14

WARNING

Shock Hazard

• Do not immerse this appliance in water or other liquid.
• This appliance has a polarized plug (one wide blade) that reduces the risk of electrical shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or using an adaptor. If the plug does not fit, reverse the plug. If it still does not fit, have an electrician replace the outlet.

IMPORTANT SAFEGUARDS

In order to prevent the risk of fire, electric shock, personal injury or damage to property, follow these instructions carefully. When using electric appliances, basic safety precautions should be followed, including the following:

1. Read all instructions before using this allergen reducer. Save these instructions for reference.
2. Do not immerse this product in water or splash water on it. An electrical short may result in shock or fire.
3. Do not handle the plug with wet hands; electrical shock may occur, resulting in injury or death.
4. Never attempt to disassemble or alter the product in any way not instructed by this manual. Shock, fire, or bodily injury may occur. Contact Hamilton Beach at 1-800-851-8900 (U.S.) or 1-800-267-2826 (Canada) for assistance.
5. Do not operate this product in any greasy environment such as in the kitchen. This product is not intended to filter oil or grease from the air.

6. Do not operate this product near an open fire. It may ignite and cause fire, resulting in bodily injury or property damage.

7. Do not operate this product in a garage or other area with oil or chemicals such as solvents or insecticides.

8. Always unplug the power cord from the receptacle when the allergen reducer is not in use, before cleaning, replacing parts, or before moving to another location.
9. Do not insert foreign objects into the product for any reason. Bodily injury or property damage may occur.
10. Do not use this product outdoors. It is intended for indoor use only.
11. Do not use allergen reducer in unheated areas such as a garage or porch.
12. Do not operate this appliance without the outlet grille in place or if the outlet grille is broken or damaged.
13. WARNING: To reduce the risk of fire or electric shock, do not use this purifier with any solid-state speed control device.

SAVE THESE INSTRUCTIONS!

840156700 ny03.qxd 1/30/07 1:42 PM Page 3

OTHER CONSUMER SAFETY INFORMATION

This appliance is intended for household use only.

If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the allergen reducer. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over. Route the electrical or extension cord clear of furniture to prevent damage from pinching.

HOW THE ALLERGEN REDUCER WORKS

The allergen reducer functions as an air cleaner by helping to remove particulates (such as pet dander, dust, pollen, mold and mildew spores, and smoke) from the air.

The air is cleaned in three stages:

1. A fan draws air through the sides of the front panel.
2. The permanent filter then removes particles as small as 3 microns from the air at 99% effectiveness.
3. The ionizer (on select models) then releases negative ions into the air which attract positively charged particles.
4. The purified air is then released through the back of the unit.

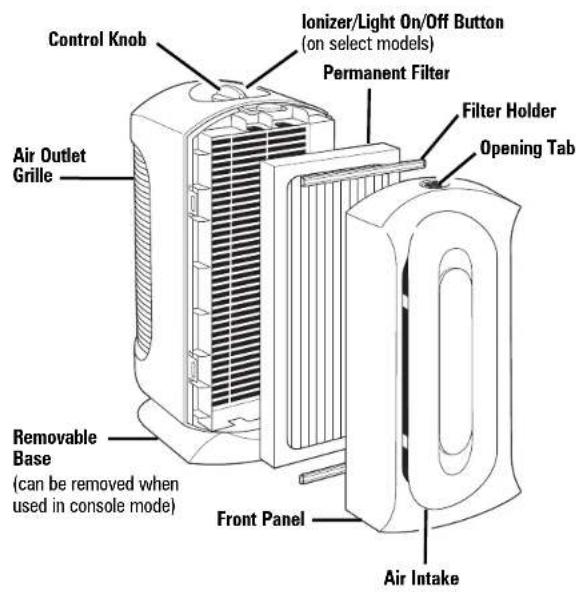

Parts and Features

Control Knob Ionizer/Light On/Off Button (on select models) Permanent Filter Filter Holder Opening Tab Air Outlet Grille Removable Base (can be removed when used in console mode) Front Panel Air Intake

Control Knob – Turn the control knob to the desired setting. There are five settings:

• Off
- WhisperClean™ – Use for quiet, nighttime operation or for constant low-speed filtration.
- Medium – Provides a higher fan speed; use to quickly filter dust, pollen, smoke, etc., from a room.
- QuickClean™ – Provides cleaning during acute needs.
- Ionizer – On select models, the ionizer will activate for fresher, cleaner air. Also illuminated with a soft blue ambient light.

Adhesive Feet

Four adhesive feet are provided to use the allergen reducer in console mode as shown on front cover.

Adhere the feet to indentations as shown in illustration.

Line drawing of a mechanical component with mounting holes and internal channels (no text or symbols)

Selecting a Location

The allergen reducer is designed for easy use and maintenance. Make sure to remove all packing materials and properly install the permanent filter before use. Remember to remove the plastic bag around filter before using.

Simple line drawing of a room with a potted plant, a water heater, and a door (no text or symbols)

• Place the allergen reducer on a flat, stable surface.
• Place the allergen reducer near an electrical outlet where it is out of the way. Make sure that the allergen reducer and the cord do not present tripping hazards.
• Select a central location with adequate air circulation.
• Turn off and unplug the allergen reducer before moving or servicing it, or if it will not be used for several days.
• Route the electrical cord clear of furniture to prevent damage from pinching.

DO NOT

• Do not stand, sit, or place any objects on the allergen reducer. It is not designed to support additional weight.
• Do not block the air intake and outlet grilles with drapes, curtains, or blinds. This may cause reduced performance.
• Do not use in a kitchen, garage, or area with grease, oil or chemicals such as solvents or insecticides.
• Do not place on or near heat sources such as stoves, radiators, or heaters, or in direct sunlight.
  • To reduce electrical noise and interference, do not place on or near, or plug into the same outlet as TVs, baby monitors, or cordless phones.

Cleaning

It is important to clean the permanent filter regularly.

Clean the filter once every 3-6 months (depending on usage).

Line drawing of a portable electric heater with a power outlet connected to its side (no text or symbols)

Technical line drawing of a mechanical device with internal components (no text or symbols)

Line drawing of a hand inserting a component into a device (no text or symbols)

Cross-sectional diagram of a mechanical device with internal components (no text or symbols)

Troubleshooting

POTENTIAL PROBLEM

Unit will not turn on.

Reduced air flow or poor filtering.

PROBABLE CAUSE

• Is the unit plugged in?
  • Is the Control Knob turned on?
• The air intake or air outlet grille may be blocked. Make sure nothing is in front of or directly behind the unit.
• The filter may be clogged. Clean the filter with a vacuum if needed.

Limited Warranty

This warranty applies to products purchased in the U.S. or Canada.

This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase, except as noted below. During this period, we will repair or replace this product, at our option, at no cost. THE FOREGOING WARRANTY IS IN LIEU OF ANY OTHER WARRANTY OR CONDITION, WHETHER EXPRESS OR IMPLIED, WRITTEN OR ORAL INCLUDING, WITHOUT LIMITATION, ANY STATUTORY WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. ANY LIABILITY IS EXPRESSLY LIMITED TO AN AMOUNT EQUAL TO THE PURCHASE PRICE PAID, AND ALL CLAIMS FOR SPECIAL, INCIDENTAL AND CONSEQUENTIAL DAMAGES ARE HEREBY EXCLUDED. There is no warranty with respect to the following, which may be supplied with this product, including without limitation: the filter. This warranty extends only to the original consumer purchaser and does not cover a defect resulting from abuse, misuse, neglect including failure to clean product regularly in accordance with manufacturer's instructions, use for commercial purposes, or any use not in conformity with the printed directions. This warranty gives you specific legal rights, and you may also have other legal rights which vary from state to state, or province to province. Some states or provinces do not allow limitations on implied warranties or special, incidental or consequential damages, so the foregoing limitations may not apply to you.

If you have a claim under this warranty, DO NOT RETURN THE APPLIANCE TO THE STORE! Please call our CUSTOMER SERVICE NUMBER. (For faster service please have model, series, and type numbers ready for operator to assist you.)

CUSTOMER SERVICE NUMBERS

In the U.S. 1.800.851.8900

In Canada 1.800.267.2826

In Mexico 01.800.71.16.100

hamiltonbeach.com

KEEP THESE NUMBERS FOR FUTURE REFERENCE!

⚠AVERTISSEMENT

CONSERVEZ CES INSTRUCTIONS!

AUTRES RENSEIGNEMENTS RELATIFS À LA SÉCURITÉ DU CONSOMMATEUR

Simple line drawing of a potted plant next to a wall-mounted device labeled 'À FAIRE' (no text or symbols on the diagram itself)

Line drawing of a portable electric heater with a power outlet, no text or symbols present

Cross-sectional diagram of a mechanical device showing internal components and structural lines (no text or symbols)

Line drawing of a hand inserting a component into a device (no text or symbols)

Technical line drawing of a mechanical component with internal channels and housing (no text or symbols)

En cas de panne

PROBLÈME POSSIBLE

Au Canada 1.800.267.2826

Technical line drawing of a mechanical component with mounting holes and internal channels (no text or symbols)

Simple line drawing of a room with a potted plant and a wall-mounted device (no text or symbols)

Line drawing of a portable electric heater with a power outlet connected to its side (no text or symbols)

Technical line drawing of a mechanical device with internal components (no text or symbols)

Line drawing of a hand inserting a component into a device (no text or symbols)

Cross-sectional diagram of a mechanical device with internal components (no text or symbols)

Mixcoac MEXICO 03910 D.F.

Tel: [phone] • Fax: [phone]

Nuevo Leon

263 Yadkin Road, Southern Pines, North Carolina 28387

Picton, Ontario K0K 2T0

840156700

hamiltonbeach.com

1/07

24
