RIG 700HS - Headphones Nacon - Free user manual and instructions

Product type	Wireless gaming headset
Brand	NACON
Model	RIG 700HS
Dimensions (approx.)	200 x 180 x 90 mm
Weight (approx.)	300 g
Power	Rechargeable lithium-ion battery, charges via USB
Charging time	About 2 hours
Battery life	Up to 12 hours
Connectivity	Wireless via USB adapter
Compatibility	PS4, Xbox One, PC
Microphone	Detachable, with microphone monitoring (sidetone)
Main features	Game/chat volume control, discretion mode, headband adjustment (3 sizes)
Care and cleaning	Wipe with a soft, dry cloth. Do not use chemical products.
Safety	Do not expose to water or humidity. Avoid extreme temperatures.
Spare parts and repairability	Ear cushions and adapter available as options. Repair by authorized center.
General information	Manufacturer: NACON, 396 466 Rue de la Voyette, CRT2 59273 Fretin, France

Frequently Asked Questions - RIG 700HS Nacon

How to pair the RIG 700HS headset with a PS4?

Plug the USB adapter into the console, turn on the PS4, then turn on the headset by pressing and holding the power button for 2 seconds. The headset is pre-paired from the factory.

How to charge the RIG 700HS headset?

Connect the USB cable to the headset and to a USB port. A full charge takes about 2 hours. The LED turns off when charging is complete.

How to adjust the volume on the headset?

Use the top button to balance game and chat volume, and the bottom button for master volume. On PS4 Slim, set the top button to the middle.

What is discretion mode?

Discretion mode mutes the headphones with a single press of the dedicated button, ideal for speaking without removing the headset.

How to adjust microphone monitoring (sidetone)?

Press and hold the discretion button to cycle through levels: off (1 beep), low (2 beeps), high (3 beeps). This allows you to hear your own voice.

Is the headset compatible with Xbox One?

Yes, plug the adapter into the Xbox One and ensure the switch on the back is set to 'console'. Then turn on the headset.

How to adjust the headband?

The headband adjusts to three sizes (small, medium, large) by moving the ear cups. To remove an ear cup, press on it to detach it.

Does the headset work without the adapter?

No, the included adapter is required for wireless connection. It is already paired with the headset.

What to do if the sound is unbalanced?

Check the top volume button: it controls the game/chat balance. On PS4, set it to the middle for a neutral balance.

How to clean the headset?

Use a soft, dry cloth. Do not use solvents or abrasive products. Avoid moisture in the ports.

USER MANUAL RIG 700HS Nacon

Adjust mic monitoring

Support 8

Fit

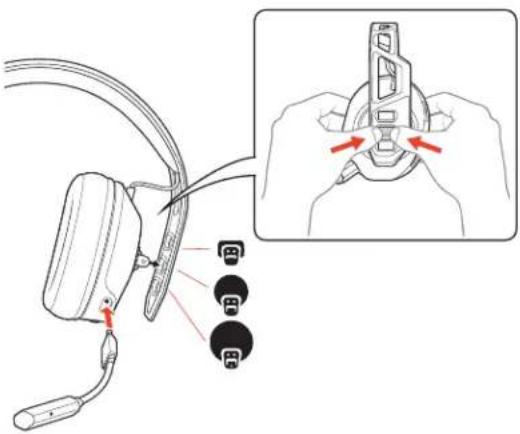

Your headset components easily snap into the headset frame to configure the best fit and sound.

The headband adjusts to three sizes (small, medium, large) by moving the earcups. To remove an earcup, press the earcup to detach it from the headband.

NOTE Headband style may vary.

Setup and basics

Your adapter comes pre-paired to your headset. After you adjust and charge your headset and configure your adapter, power on your headset and it's ready to go.

Setup PS4

PS4

1 Connect your adapter to your system.

2 Power on your PS4 and Check for updates
3 To adjust system audio settings, check your console user guide.

PS4 (slim version)

1 Connect your adapter to your system.

2 Power on your PS4 and Check for updates
3 To adjust system audio settings, check your console user guide.

Setup Xbox One

1 Connect your adapter to your system.

NOTE Ensure the switch on the back of the adapter is set to your preference: console or PC.

2 Power on your Xbox One and Check for updates
3 To adjust system audio settings, check your console user guide.

Setup PC 1 Connect your adapter to your system.

IMPORTANT Optical cable connection is only for RIG 700HD and RIG 700HS.

2 RIG 700HX only: Ensure the switch on the back of the adapter is set to «PC.»

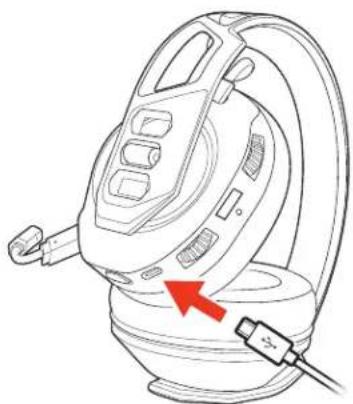

Charge It takes 2 hours to fully charge the headset. The headset LED turns off once charging is complete.

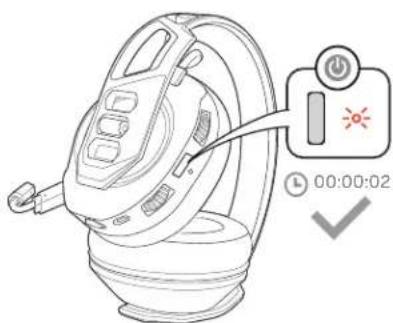

Power on or off Press the Power button for 2 seconds until you hear "power on" or «power off.

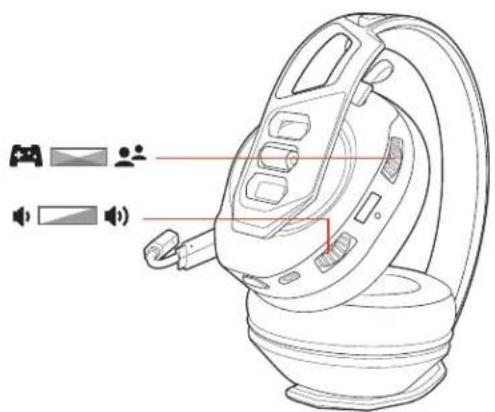

Adjust volume 1 To increase or decrease the game and chat volume, adjust the top headset dial.

2 To increase or decrease the master volume, adjust the bottom headset dial.

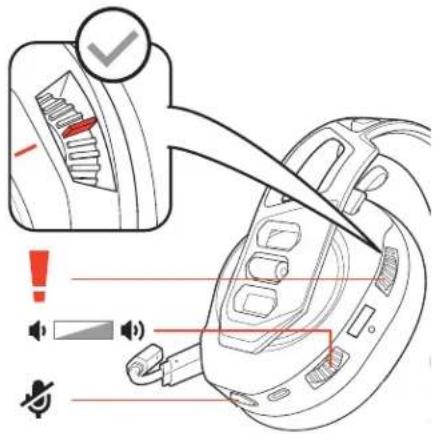

IMPORTANT For the PS4 (slim version), set the top headset dial in the middle; game and chat remain balanced. Use the bottom headset dial to increase or decrease the master volume.

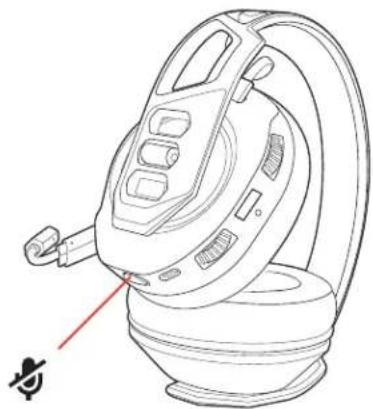

Mute

Tap the Mute button to mute or unmute your headset.

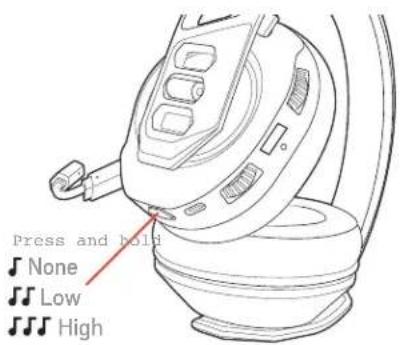

Adjust mic monitoring

Press and hold the Mute button to cycle through mic monitoring levels. Mic monitoring lets you hear your own voice in the headset.

Press and hold the Mute button and hear Mic monitoring level

one	tone		None
two	tones	Low
three	tones	High

Support

NEED MORE HELP?

www.naongaming.com

nacon

NACONG GAMING, Inc

10400 NE 4^th Street, Suite 500,

Bellevue, WA 98004 USA

([phone]

Headquarter

NACON

©2020 NACON. NACON and RIG are trademarks of NACON, registered in the US and other countries. «PlayStation» and «DUALSHOCK» are registered trademarks of Sony Interactive Entertainment Inc. All rights reserved. All other trademarks are the property of their respective owners.

Patents pending.

214554-06 (06.20)
