USER MANUAL Saeco Syntia Focus RI9833 PHILIPS

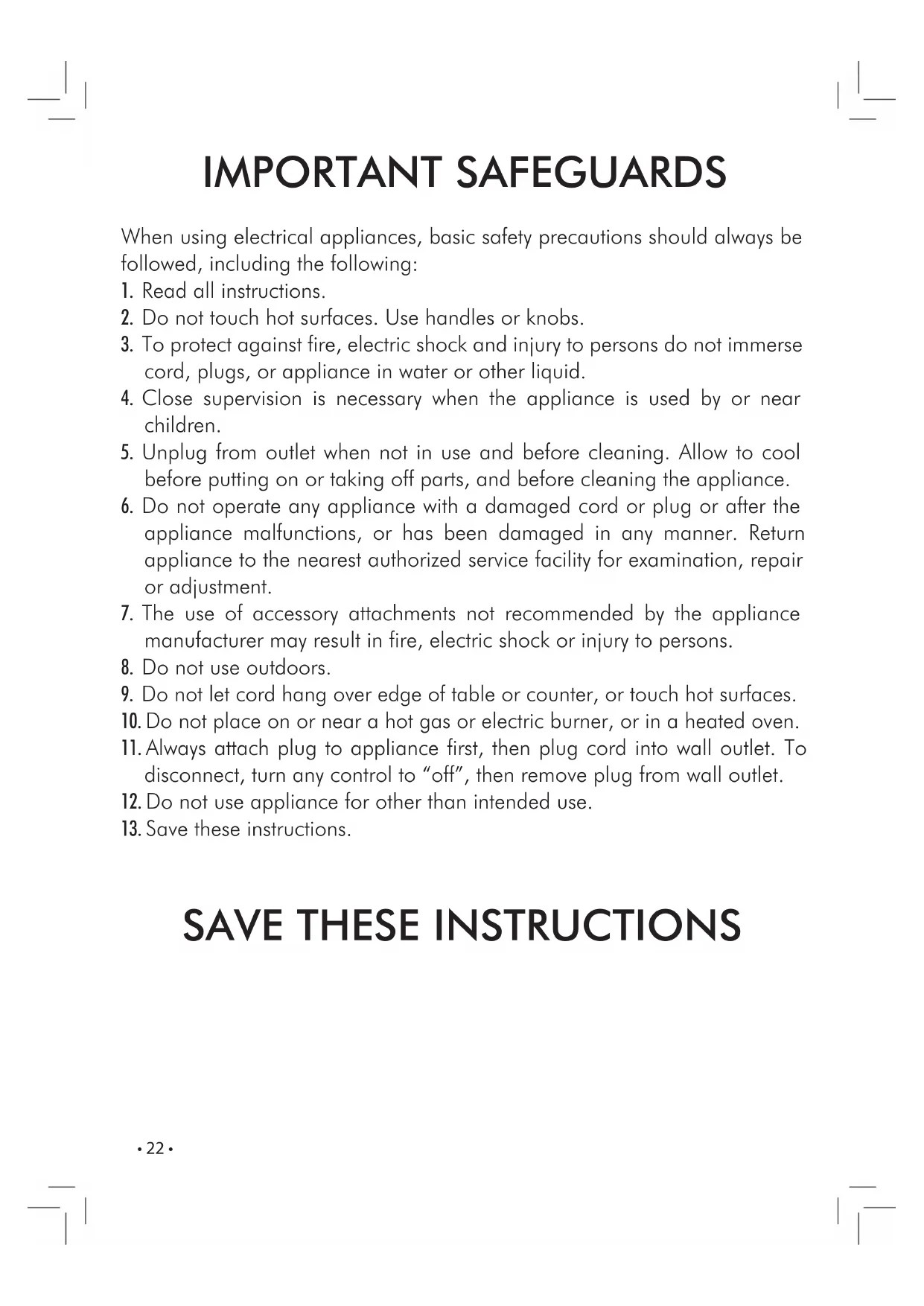

1. Read all instructions.

2. Do not touch hot surfaces. Use handles or knobs.

3. To protect against fire, electric shock and injury to persons do not immerse

cord, plugs, or appliance in water or other liquid.

4. Close supervision is necessary when the appliance is used by or near

5. Unplug from outlet when not in use and before cleaning. Allow to cool

before putting on or taking off parts, and before cleaning the appliance.

6. Do not operate any appliance with a damaged cord or plug or after the

appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment.

7. The use of accessory attachments not recommended by the appliance

manufacturer may result in fire, electric shock or injury to persons.

8. Do not use outdoors.

9. Do not let cord hang over edge of table or counter, or touch hot surfaces.

10. Do not place on or near a hot gas or electric burner, or in a heated oven.

11. Always attach plug to appliance first, then plug cord into wall outlet. To

disconnect, turn any control to “off”, then remove plug from wall outlet.

12. Do not use appliance for other than intended use.

13. Save these instructions.

SAVE THESE INSTRUCTIONS• 23 •

English CAUTION This appliance is for household use only. Any servicing, other than cleaning and user maintenance, should be performed by an authorized service center. Do not immerse machine in water. To reduce the risk of fire or electric shock, do not disassemble the machine. There are no parts inside the machine serviceable by the user. Repair should be done by authorized service personnel only.

1. Check voltage to be sure that the voltage indicated on the nameplate

corresponds with your voltage.

2. Never use warm or hot water to fill the water tank. Use cold water only.

3. Keep your hands and the cord away from hot parts of the appliance during

4. Never clean with scrubbing powders or harsh cleaners. Simply use a soft

cloth dampened with water.

5. For optimal taste of your coffee, use purified or bottled water. Periodic

descaling is still recommended every 2-3 months.

6. Do not use caramelized or flavored coffee beans.

INSTRUCTIONS FOR THE POWER

SUPPLY CORD A. A short power-supply cord (or detachable power-supply cord) is to be provided to reduce risks resulting from becoming entangled in or tripping over a longer cord. B. Longer detachable power-supply cords or extension cords are available and may used if care is exercised in their use. C. If a long detachable power-supply cord or extension cord is used,

1. The marked electrical rating of the detachable power-supply cord or

extension cord should be at least as great as the electrical rating of the appliance

2. If the appliance is of the grounded type, the extension cord should be a

grounding-type 3-wire cord, and

3. The longer cord should be arranged so that it will not drape over the

counter top or table top where it can be pulled on by children or tripped over.• 24 • GENERAL INFORMATION The co ee machine is suitable for preparing espresso co ee using either co ee beans or ground co ee and is equipped with a device to dispense steam and hot water. The structure of the ma- chine has been designed for domestic use only and is not suitable for continuous professional- type operation. Keep these operating instructions in a safe place and make them available to anyone who may use the co ee machine. For further information or in case of problems that are not included or not completely explained in these instructions, please contact an authorized service center. Warning. No liability is held for damage caused by:

• Incorrect use not in accordance with the intended purposes;

• Repairs not carried out by authorized service centers;

• Tampering with the power cord;

• Tampering with any parts of the machine;

• Storage or use of the machine at a temperature outside the operating temperature range (+15°C / +45°C);

• The use of non-original spare parts and accessories. In these cases, the warranty shall be deemed null and void. SAFETY REGULATIONS Never allow water to come into contact with any of the electrical parts of the machine: Danger of short circuit! Steam and hot water may cause scalding! Do not direct the steam/hot water wand towards body parts. Carefully handle the steam/hot water wand by its grip: Danger of scalding! Intended Use The co ee machine is intended for domestic use only. Do not make any technical changes or use the machine for unauthorized purposes since this would create serious hazards! The appliance is not to be used by persons (including children) with reduced physical, mental or sensory abilities or with limited experience and/or expertise, unless they are supervised by a person responsible for their safety, or they are instructed by this person on how to properly use the machine. Power Supply - Power Cord Only connect the co ee machine to a suitable socket. The voltage must correspond to that indicated on the machine label located on the inside of service door. Never use the co ee machine if the power cord is defective or damaged. If damaged, the power cord must be replaced by the manufacturer or an authorized service center. Do not pass the power cord around corners, over sharp edges or over hot objects and keep it away from oil. Do not use the power cord to carry or pull the co ee machine. Do not pull out the plug by the power cord or touch it with wet hands. Do not let the power cord hang freely from tables or shelves. For the Safety of Others Keep children under control to prevent them from playing with the product. Children are not aware of the risks related to electric household appliances. Do not leave the machine packaging materials within the reach of children.• 25 • English Danger of Burns Never direct the steam/hot water wand towards yourself or others: Danger of scalding! Always use the handles or knobs provided. Machine Location - Suitable Location for Operation and Maintenance For best use, it is recommended to:

• Choose a safe, level surface, where there will be no danger of overturning it or being inju- red.

• Choose a location that is su ciently well-lit, clean and near an easily reachable socket.

• Provide for a minimum distance from the sides of the machine as shown in the illustration.

• During machine turning on/o , it is recommended to place an empty glass under the dispen- sing head. Do not keep the machine at a temperature below 0°C (32°F). Frost may damage the machine. Do not use the co ee machine outdoors. In order to prevent its housing from melting or being damaged, do not place the machine on very hot surfaces and close to open ames. Storing the Machine - Cleaning Before cleaning the machine, turn it o by pressing the “STANDBY”, button, and then switch the power button to “0”. Remove the plug from the socket. Wait for the machine to cool down. Never immerse the machine in water! It is strictly forbidden to tamper with the internal parts of the machine. Water left in the tank for several days should not be consumed. Wash the tank and ll it with fresh drinking water. If the machine will not be used for a long time, dispense water from the steam wand, and care- fully clean the Pannarello (if supplied), then turn it o and unplug it. Store it in a dry place, out of the reach of children. Keep it protected from dust and dirt. Servicing / Maintenance In case of failure, problems or a suspected fault resulting from the falling of the machine, imme- diately remove the plug from the socket. Never attempt to operate a faulty machine. Servicing and repairs may only be carried out by authorized service centers. All liability for damages resulting from work not carried out by professionals is declined. Fire Safety Precautions In case of re, use carbon dioxide (CO

) extinguishers. Do not use water or dry powder extin- guishers.• 26 • Co ee bean hopper cover Power cord Pre-ground co ee doser Intenza water lter Grease for the brew group LED display “Aroma” - Pre-ground co ee selector switch Espresso co ee brew button Long co ee brew button Hot water/steam selector switch STAND-BY Button Brew group Co ee grounds drawer Service door Grinder adjustment knob Pre-ground co ee compartment Co ee bean hopper Cup stacking surface Dispensing spout Cup holder grill ON-OFF power button Full drip tray indicator Drip tray Water tank Hot water/steam wand Wand protective gripper Control panel• 27 • English INSTALLATION For your safety and the safety of others, carefully follow the instruc- tions provided in the “Safety Regu- lations” section. Machine Packaging The original packaging has been designed and constructed to protect the machine during transport. We recommend keeping the packaging material for possible future transport. Preliminary Operations

• Remove the co ee bean hopper cover and the drip tray with grill from the packaging.

• Remove the co ee machine from the packaging and position it in a place that meets the requirements described in the safety regulations.

• Place the drip tray with grill into its appropriate seat on the machine. Make sure it is fully inserted to its limit stop.

• Insert the co ee bean hopper cover. Note: Insert the plug in the machine and in the wall so- cket only when indicated and check that the power button is switched to “0”. Important note: Carefully read the explanatory descrip- tions of all the warnings the machine displays to the user via the lights on the control panel display (see section “Display Warnings”). NEVER remove the drip tray when the machine is turned on. Wait a couple of minutes after turning on/o , as the machine will be carrying out a rinse/self-cleaning cycle (see section “Rinse/Self-clea- ning Cycle”).

• Remove the water tank from its seat.

• Rinse and ll it with fresh water ma- king sure that it is not lled exceeding the MAX level indicated in the water tank. Put the water tank back in its seat. Fill the tank only with fresh, non-sparkling water. Hot wa- ter or any other liquid may damage the tank and/or the machine. Do not turn on the machine when the tank is empty: Make sure there is enough water in the tank.

• Remove the co ee bean hopper cover. Note: The hopper may be provided with different sa- fety features according to the regu- lations of the country of use of the machine.

• Slowly pour the co ee beans into the hopper. Only co ee beans must be put into the co ee bean hopper. Ground coffee, instant coffee or any other object may damage the machine.

• Replace the co ee bean hopper cover.

• Insert the plug into the socket on the back of the machine.

• Insert the plug of the other end of the cable into a wall socket with suitable power voltage.• 28 •• 28 • Blinking

• Switch the power button to “I” to turn the machine on. Circuit Priming

• To prime the water circuit, place a container under the steam wand (Pannarello, if supplied).

• Make sure the selector switch is in the

” position; if this is not the case, set it to that position.

• To turn the machine on simply press the “STAND-BY” button.

• The blinking icons shown in the picture warn that the circuit must be primed. Note: Before starting the machine for the first time, and after long periods of inactivity, prime the water circuit.

• The “STAND-BY” button blinks. Blinking Slow blinking Cyclic blinking Steady on

• Turn the selector switch clockwise to set it to the “ ” position. The machine starts the automatic priming of the circuit by letting out a preset quantity of water through the Pannarello. Once the circuit has been primed, the icons shown in the gure will start to blink. Turn the selection knob back to its central position “

• The icons displayed blink slowly to show that the machine is warming up. When warm-up is complete, the machine performs a rinse cycle of the internal circuits. During this phase, the icons displayed will blink in sequence.

• When the operations described above are completed, the icons on the display will illuminate. The display will appear as shown to the side. The di- splayed aroma is the factory setting when the machine is switch on for the rst time, or it is the same as the aroma that was selected for the last brewed co ee. The machine is then ready to brew beverages.

• To brew coffee, dispense hot water or steam, and properly use the machine, ca- refully follow the instructions provided.• 29 • English Steady on Steady on Steady on Steady on Cyclic blinking Using the machine for the first time or after a long period of inactivity. These simple operations will make it pos- sible to always brew excellent co ee. 1 Place a large container under the dispensing spout. 2 Before starting the procedure, check that the following icons are displayed. 3 Select the pre-ground co ee function by pressing the “ “ button one or more times. Do not add the pre-ground co ee to the compartment. The icon will appear on the display. 4 Press the button to brew a long cof- fee. 5 Wait until brewing is completed and empty the water tank. 6 Repeat the operations from step 1 to step 5 for 3 times; then continue with step 7. 7 Place a container under the steam wand (Pannarello, if supplied). 8 Turn the selector switch clockwise to set it to the “ ” position. The following icon will be displayed. 9 Dispense water until the no water si- gnal is displayed, then turn the selec- tor switch counter-clockwise to set it to the “ ” position. 10 At the end, fill the water tank again. Then the products can be brewed as described in the following sections. Rinse/Self-cleaning Cycle This cycle allow rinsing the co ee circuits with fresh water. The cycle is carried out:

• At machine start (with cold boiler)

• After priming the water circuit (with cold boiler)

• During the Stand-by preparation phase (if a co ee product has been brewed)

• During the phase of activating the stand-by mode after pressing the “STAND-BY” button (if a co ee product has been brewed). A small amount of water will be dispen- sed to rinse and heat all the machine components; during this phase the icons blink in sequence. Wait for the cycle to nish automatically. You can stop dispensing by pressing either coffee button and/or the “Stand-by” button.• 30 •• 30 • ADJUSTMENTS The machine that you have bought allows for certain adjustments that will permit you to use it to its full potential. Gaggia Adapting System Coffee is a natural product and its cha- racteristics may change according to its origin, blend and roast. The Gaggia co ee machine is equipped with a self-adjusting system that allows the use of all types of co ee beans available on the market (non caramelized).

• The machine automatically adjusts itself in order to optimise the extrac- tion of the coffee, ensuring perfect compression of the tablet to obtain a creamy espresso co ee that will release all the aromas, regardless of the type of co ee used.

• The optimisation process is a learning process that requires the brewing of a certain number of co ees to allow the machine to adjust the compactness of the ground co ee.

• Attention should be given to spe- cial blends, which require grinder adjustments in order to optimise the extraction of the co ee (see the “Co ee Grinder Adjustment” section). Coff ee Grinder Adjustment Warning! The grinder adjustment knob, inside the co ee bean hopper, must be turned only when the grinder is working. Do not pour ground and/or instant co ee into the co ee bean hopper. Do not insert any material other than co ee beans into the hopper. The grinder contains moving parts that may be dangerous. Therefore, do not insert ngers and/ or other objects. The grind setting may only be adjusted using the knob. Turn o the machine and unplug it from the socket before carrying out any type of operation inside the coffee bean hopper. Do not pour co ee beans when the co ee grinder is working. “INTENZA” water fi lter. To improve the quality of the used water, it is advisable to install the water lter. Remove the water filter from its packa- ging, immerse it vertically (with the ope- ning positioned upwards) in cold water and delicately press the sides so as to let the air bubbles out. Remove the small white filter from the tank and store it in a dry place sheltered from dust. Set the Intenza Aroma System as speci ed on the box. A = Soft water B = Medium water (standard) C = Hard water Put the water lter into the empty tank. Press it until its limit stop. Fill the tank with fresh drinking water and reinsert it into the machine. Dispense the water in the tank by using the hot water function (see the “Hot wa- ter dispensing” section). Fill the water tank again. The machine is now ready to be used. Note: If there is no Intenza water lter, insert the small white lter previously removed into the water tank.• 31 • English At this point the button “ “ is program- med; each time it is pressed and released, the machine will brew the same amount of co ee that was just programmed. The same operation can be repeated for the “ “ button. If the “ “ or “ “ button is pressed twice to brew coffee, the machine will brew double the stored quantity. Standby The machine is designed for energy sa- ving. The machine automatically turns o after 60 minutes of inactivity. The “ “ button blinks when the machine is in stand-by mode. Note: During the turning o phase, the machine performs a rinse cycle, if a co ee product has been brewed.

Warning: When turning the machine

on after it has been turned com- pletely off, the machine will be in stand-by mode To turn the machine on again simply press the STAND-BY button (if the power but- ton is set to “I”). In this case the machine will go through the rinse cycle only if the boiler is cold. Dispensing Spout Adjustment Most cups on the market can be used with this co ee machine. The height of the dispensing spout may be adjusted to better t the dimensions of the cups that you wish to use. Manually move the dispensing spout up or down to adjust its height by placing your ngers as shown in the gure. The recommended positions are: For use with small cups; The machine allows slight adjustments to the co ee grinder to adapt it to the kind of co ee used. To make any adjustment, press and turn the knob inside the co ee bean hopper. Press and turn the knob by one notch at a time and brew 2-3 cups of coffee; this is the only way to notice differences in grind. The reference marks inside the coffee bean hopper indicate the grind setting. There are 5 di erent grind settings to cho- ose from with the following references: Large Mark - Coarse Grind Small Mark - Fine Grind. Adjusting the Coff ee Length The machine allows you to adjust the amount of brewed coffee according to your taste and/or the size of your cups. Each time the “ “ or “ “ buttons are pressed and released, the machine brews a pre-set amount of co ee, as per factory settings. This amount may be reprogram- med to your taste. Each button may be individually programmed for a specific brew setting. As an example, the following procedure describes the programming of the button

“, which is normally associated with espresso co ee.

• Place a cup under the dispensing spout.

Hold the “ “ button pressed for 5 seconds to enter the programming mode; the “ “ icon will blink quickly and the co ee will start to be brewed; the icon will flash during the whole co ee brewing cycle.

• Press the “ “ button again when the amount of coffee in the cup reaches the desired level. Blinking• 32 •• 32 • For use with large cups.

• Two cups can be placed under the dispensing spout for brewing two co ees at the same time. “Aroma” Adjustment The machine is set-up for an amount of co ee to grind to be adjusted from 7 g to

Four choices are possible by pressing and releasing the “ “ button (mild, medium or strong aroma, and ground co ee). Selection can be made when the beans appear on the display. Each time the “ “ button is pressed and released, the aroma changes by one degree: = Mild aroma = Medium aroma = Strong aroma Selection must be made prior to selecting the co ee. The system sets the aroma ac- cording to the personal taste of the user. After selecting “Strong aroma”, the fun- ction for brewing co ee with pre-ground co ee is displayed. This selection is displayed by the icon on the side. Refer to the relevant section to use this function. COFFEE BREWING Note: Should the machine not brew co ee, make sure that the water tank contains water. Before brewing co ee, check the messages on the display. Check that the water tank and co ee been hopper are full. Leave the selector on the coffee position “ ” during the dispensing phase. Before brewing the coffee, adjust the height of the di- spensing spout according to your needs, and select the aroma or the pre-ground co ee. Using Coff ee Beans

• To brew co ee, press and release: the “ “ button to select the desired aroma. the“ “ button for an espresso cof- fee; the “ “ button for a long co ee.

• The brewing cycle then starts: To brew 1 cup of co ee, press the “

or “ “ button once. The display will show the icon. To brew 2 cups of co ee, press the “

or “ “ button twice. The display will show the icon. To brew 2 co ees, the machi- ne automatically grinds and doses the correct amount of co ee. Brewing two coffees requires two grinding cycles and two brewing cycles, which the machine carries out automatically.

• After the prebrewing cycle, coffee begins to come out of the dispensing spout.

• Coffee brewing stops automatically when the pre-programmed level is reached; however, it is possible to in- terrupt co ee brewing by pressing the Steady on Steady on Steady on Steady on Steady on• 33 • English button initially pressed. The machine is adjusted to brew a true Italian espresso coffee. This feature may slightly lengthen the brewing time, allowing the intense avour of the co ee to develop fully. Using Pre-ground Coff ee This function allows using pre-ground and deca eina- ted co ee. Pre-ground coffee must be poured into the appropriate compartment positioned next to the co ee bean hopper. Only use ground co ee for espresso machines and never co ee beans or instant co ee. Note:

• If no pre-ground co ee is poured into the compartment, only water will be dispensed;

• If the dose is excessive and 2 or more measuring scoops of co ee are used, the machine will not brew the product. Also in this case, the machine will run an empty cycle and discharge any ground coffee into the coffee grounds drawer. To brew co ee:

• Press and release the “ “ button until the pre-ground co ee function icon is displayed.

• Lift the pre-ground coffee compart- ment cover.

• Add 1 only 1 scoop of pre-ground coffee to the compartment. Use the measuring scoop supplied with the machine to perform this operation. Then, close the cover.

Warning: Only add pre-ground

coffee to the compartment. Other substances and objects may cause severe damage to the machine. This damage will not be covered by warranty. Press and release: the“ “ button for an espresso cof- fee; the“ “ button for a long co ee.

• The brewing cycle then starts. After the prebrewing cycle, co ee begins to come out of the dispensing spout.

• Coffee brewing stops automatically when the pre-programmed level is reached; however, it is possible to in- terrupt co ee brewing by pressing the button initially pressed. After dispensing the product, the cof- fee beans con guration of the machi- ne is restored. Repeat the operations de- scribed above to brew other co ees. Steady on Steady on DISPENSING HOT WATER

Warning: At the beginning,

short spurts of hot water may come out. Danger of scalding. The hot water wand may reach high temperatures. Never touch it with bare hands.

• Before dispensing hot water, check that the following icon is displayed. When the machine is ready, proceed as follows:

• Place a container under the steam wand (Pannarello, if supplied).• 34 •• 34 •

• Turn the selector switch clockwise to set it to the “ ” position. ned and free of any milk residue. To prepare your cappuccino, we recommend discharging the water in the steam wand.

• To discharge the water in the steam wand, place a container under the steam wand (Pannarello, if supplied).

• Only the following icon will be displa- yed steady on.

• Fill the cup with hot water to the desi- red level; to stop hot water dispensing, turn selector switch counter-clockwise back to the “ ” position. The machi- ne returns to the normal operating mode. Occasionally, after turning the selector switch, hot wa- ter may not be dispensed and the following displayed icon will start blinking. Simply wait until the end of the warm-up phase, at which point hot water will be dispensed from the Pannarello. STEAM DISPENSING /

CINO Steam may be used to froth milk for a cappuccino, as well as to reheat other beverages. Danger of scalding! Brewing may be preceded by small jets of hot water. The steam wand may reach high temperatures. Never touch it with bare hands. Important note: immediately after using the steam to froth the milk, clean the steam wand (or Pannarello when provided). When the machine is ready, brew a small amount of hot water in a glass and clean the steam wand (or Pannarello when provided) externally. In this way, all parts will be perfectly clea-

• When the machine is ready to brew co ee, turn selector switch counter- clockwise to set it onto the “ ” po- sition. Residual water may come out of the steam wand (Pannarello, if supplied).

• Steam dispensing will begin when the icon is displayed steady on; soon after, only steam will begin to come out. Steady on Blinking Steady on Blinking

• Turn the selector switch clockwise and set it back to the “ ” position to stop dispensing steam.

• The icon blinks during the preheating time required by the machine.

• Fill 1/3 of the container you wish to use to prepare the cappuccino with cold milk. To ensure better results when preparing a cappuc- cino, use cold milk straight from the fridge.• 35 • English

• To heat the milk directly in the cup, immerse the steam wand (Pannarello, if supplied) in the milk to be heated.

• Turn the selector switch counter- clockwise to set it to the “ ” position. Rotate the container and move it gently up and down to obtain uniform foam.

• After dispensing steam for the desired time, turn the selector switch clockwise and set it back to the “ ” position to stop dispensing steam.

• The same procedure can be used to heat other beverages. After using the steam wand (Pannarello, if supplied), wash it as described in the “Cleaning and Maintenance” section. After using steam to prepare a beverage, it is possible to brew coffee or to dispense steam straight after. If the selector switch is left on the central position “ ”, the machine, in order to save energy, au- tomatically reaches the temperature needed to dispense co ee.

• Empty and clean the coffee grounds drawer daily, with the machine turned on. Note: We recommend em- ptying the container if the machine is not going to be used for some days.

• Maintenance and cleaning operations can only be carried out when the ma- chine is cold and disconnected from the electric network.

• Do not immerse the machine in water.

• Do not wash any of its parts in the dishwasher.

• Do not use sharp objects or harsh che- mical products (solvents) for cleaning.

• Use a soft, dampened cloth to clean the machine.

• Do not dry the machine and/or its components using a microwave and/ or standard oven. After preparing milk beve- rages, dispense hot water from the steam wand (Pannarello, if supplied) to obtain a thorough cleaning.

• Every day, after heating the milk, remo- ve the external part of the Pannarello (if supplied) and wash it with fresh drinking water.

• Clean the steam wand weekly. In order to do this, perform the following ope- rations: - Remove the external part of the Pannarello (for standard cleaning); - Remove the upper part of the Pannarello from the steam wand; - Wash the upper part of the Pannarello with fresh drinking water; - Wash the steam wand with a wet cloth and remove any milk residue; - Replace the upper part in the steam wand (make sure it is completely inserted).• 36 •• 36 • Reassemble the external part of the Pannarello.

• We recommend cleaning the water tank daily. For an easier removal of the water tank, move the steam wand / Pannarello upwards: - Remove the small white lter in the water tank and wash it under running drinking water. - Reposition the small white lter in its housing by gently pressing and turning it at the same time. - Fill the water tank with fresh drinking water.

• Empty and clean the drip tray daily. Perform this operation also when the oat is raised.

• Wash the brew group with lukewarm water and carefully clean the upper lter.

• Thoroughly wash and dry all the parts of the brew group.

• Thoroughly clean the inside of the machine.

• Make sure that the two reference signs match up.

• Make sure that the lever is in contact with the brew group. Press the “PUSH” button to make sure that the brew group is in the correct position. Lubricate the brew group after approximately 500 brewing cycles. The grease to lubrica- te the brew group may be purchased at authorised service centres.

• Lubricate the brew group guides using the supplied grease only.

• Apply the grease evenly on both side guides.

• Insert the brew group in its seat until it locks into place WITHOUT pressing the “PUSH” button.

• Insert the co ee grounds drawer. Close the service door. Brew Group

• The brew group should be cleaned every time the co ee bean hopper is lled or at least once a week.

• Turn o the machine by pressing the ON/OFF button and remove the plug from the socket.

• Remove the coffee grounds drawer. Open the service door.

• To remove the brew group, pull it by the handle and press the «PUSH» button. The brew group must be washed only with lukewarm water with no deter- gent/soap.

• Also clean the seat of the tray every week through the openings on the bottom of the machine.• 37 • English DESCALING Limescale normally builds up with the use of the appliance. The machine must be descaled when the icon appears on the display. Important note: It is recom- mended to refer to the next section, “Remarks on Descaling”, for some tips about keeping the machine in perfect working order. 1 Place a container below the steam wand. Use a container of at least 1 litre capacity. If you do not have a container of this capacity, once it is lled close the knob, empty the container and then place it again under the wand and repeat the procedure. 2 Only after adding the descaling solution in the tank, turn the selector switch clockwise to position “ ”, and then dispense 2-3 cups of water (approx. 150 ml). Only use the GAGGIA descaling solution. Its formula has been designed to ensure better machine performance and operation for its whole operating life. If correctly used, it also avoids alterations in the brewed product. Warning! Never drink the descaling solution or any pro- ducts dispensed until the cycle has been carried out to the end. Never use vinegar as a descaling solution. Before descaling, remove the Pannarello (if supplied) from the steam wand as de- scribed in the “Cleaning and Maintenance” section.

• Turn the machine on by pressing the “STAND-BY” button. Wait for the machine to finish its rinse cycle and warm up. Warning! Remove the “Inten- za” filter before adding the descaling solution.

• Pour the entire content of the GAGGIA concentrated descaling solution into the water tank, and then ll the tank with fresh drinking water up to the MAX level. Place the tank back in the machine. 6 When the icon is displayed, rinse the water tank thoroughly and re ll it with fresh drinking water. 7 Empty the container used to collect the liquid dispensed by the machine and place it under the steam wand. Steady on Steady on 3 Stop dispensing by turning the selector switch back to its central position “

4 Allow the descaling solution to work for 15-20 minutes. 5 Repeat steps 2 and 3 at intervals of 3 minutes, until there is no descaling solution left in the water tank. 8 Turn the selector switch clockwise to set it to the “ ” position . The machine rinse cycle starts.• 38 •• 38 • 9 When the water in the tank is nished, the icon on the side is displayed to indicate that the selector switch must be brought back to the “ ” position. Steady on 10 Rinse the water tank thoroughly and re ll it with fresh drinking water. 11 Empty the container used to collect the liquid dispensed by the machine. 13 Before starting the procedure, check that the following icons are displayed. Steady on Steady on 12 Place a large container under the dispensing spout. 14 Select the pre-ground co ee function by pressing the “ “ button one or more times. Do not add the pre-ground co ee to the compartment. The icon will appear on the display. 15 Press the button to brew a long cof- fee. 16 Wait until brewing is completed and empty the container with water. 17 Repeat the operations from step 12 to step 16 for 3 times; then continue with step 18. 18 Place a container under the steam wand (Pannarello, if supplied). 19 Turn the selector switch clockwise to set it to the “ ” position. Steady on Steady on The following icon will be displayed. 20 Dispense water until the no water si- gnal is displayed, then turn the selec- tor switch counter-clockwise to set it to the “ ” position. 21 At the end, ll the water tank again. The descaling cycle is complete. Then, the products can be brewed.• 39 • English Remarks on Descaling The previous section explains the correct operations to perform to descale the machine. The machine you have purchased is equip- ped with advanced software to check the quantity of used water in order to provide reliable information about the right time to carry out descaling operations. This software has been programmed for standard water hardness. In case of especially hard water (high calcium content), descaling cycles might have to be carried out more frequently, even if the machine does not display war- ning signals. Even if the machine is not used often (e.g. 1 coffee per day), it is recommended to perform descaling cycles more frequen- tly. In these specific cases, it is recommended to perform descaling cycles every 1-2 months, even if the machine does not signal it. 22 Hold the “ “ button pressed for 6 seconds to reset the machine and cancel the descaling alarm signal. Steady on If the machine is switched o during the descaling cycle, next time the machine is switched on the cycle must be repeated from the beginning. The descaling solution must be disposed of according to the manufacturer’s instructions and/or regulations in force in the country of use. After completing the desca- ling cycle, wash the brew group as described in the “Brew Group” section in the “Cleaning and maintenance” section. Reassemble the external part of the Pannarello.• 40 •• 40 •

• The machine is performing the rinse cycle. Wait until the machine stops the opera- tion.

• The machine needs a descaling cycle.

• The machine needs water circuit priming. Warning Signals

• The machine is warming up to brew co ee and dispense hot water or steam. CONTROL PANEL DISPLAY Ready Signals

• The machine is ready for brewing co ee from bean and hot water dispensing.

• The machine is ready for pre-ground co ee brewing.

• The machine is in the steam dispensing phase.

• The machine is in the hot water dispensing phase.

• The machine is brewing 1 espresso co ee or a long co ee.

• The machine is brewing 2 espresso co ees or 2 long co ees.

• The machine is programming the amount of co ee to be brewed each time the “

“ “ button is pressed. Steady on Steady on Steady on Blinking Steady on Blinking Cyclic blinking Steady on Steady on Steady on Blinking• 41 • English

• No co ee beans in the co ee bean hopper. After re lling the hopper, the cycle can be restarted.

• Empty the co ee grounds drawer.

• Insert the co ee grounds drawer.

• Fill the water tank. Alarm Signals

• Return the hot water / steam knob to its correct position.

• Insert the brew group in the machine.

SUP 037RG to which this declaration relates is in conformity with the following standards or other normative documents :

• Safety of household and electrical appliances - General requirements EN 60335-1(2002) + A1(2004) + A2(2006) + A11(2004) + A12(2006)+ A13(2008)

• Safety of household and electrical appliances - Part 2-15 Particular requirements for appliances for heating liquids EN 60335-2-15(2002) + A1(2005)

• Household and similar electrical appliances - Electromagnetic elds - methods for evaluation and measurement EN 50366 (2003) + A1 (2006).

• Household and similar electrical appliances - safety - Part 2-14 Particular requirements for kitchen machines EN 60335-2-14 (2006).

• Electromagnetic compatibility (EMC) - Requirements for household appliances , electric tools and similar apparatus - Part 1 - Emission EN 55014-1 (2006).

• Electromagnetic compatibility (EMC) - Part. 3^ Limits - Section 2 : Limits for harmonic current emissions (equipment input current ≤ 16A for phase) EN 61000-3-2 (2006)

• Electromagnetic compatibility (EMC) - Part 3^ : Limits - Section 3 : Limitation of voltage changes , voltage uctuations and icker in public low - voltage sup- ply systems , for equipment with rated current ≤ 16 A for phase and not subject to conditional connection EN 61000-3-3 (1995)+ corr.(1997) +A1 (2001) + A2 (2005).

• Electromagnetic compatibility - Requirements for household appliances , elec- tric tools and similar apparatus - Part 2. Immunity - Product family standard EN 55014-2 (1997) + A1 (2001) following the provisions of the Directives: EC 2006/95 , EC 2004/108.

EC DECLARATION OF CONFORMITY
