Name: OP651RKe
Brand: OPTOMA
Rating: 8 (90 reviews)

Find the device manual for free OP651RKe OPTOMA in PDF.

📄 1 pages

EN ⬇ Download 💬 AI Question ❓ 10 questions ⚙️ Specs

View the manual :

Pick your language and provide your email: we'll send you a specifically translated version.

This manual is not available in your language

Desired language Your email address

Product Type	Interactive Touch Screen
Brand	Optoma
Model	OP651RKe (65 inches)
Screen Size	65 inches (diagonal)
Native Resolution	3840 x 2160 (4K UHD)
Backlight	LED
Brightness	350 cd/m²
Contrast Ratio	1,200:1
Viewing Angle	178° horizontal and vertical
Response Time	6 ms
Number of Colors	1.07 billion
Built-in Speakers	2 x 12 W
Touch Technology	Infrared (IR), up to 20 touch points
Operating System	Android 7.0
Processor	ARM Cortex A73 dual-core
RAM	2 GB
Internal Storage	16 GB
Connectivity	3 HDMI 2.0 inputs, 1 HDMI 1.4 output, 1 VGA, 1 AV input, 1 audio output, 1 coaxial output, 4 USB 2.0 ports, 2 USB 3.0 ports, 1 RS232, 1 RJ45, 2 touch USB ports, 1 OPS slot
Network	Ethernet RJ45, Wi-Fi 802.11 b/g/n via USB adapter
Power Supply	100-240 V AC, 50/60 Hz
Power Consumption	300 W (max), <0.5 W in standby
Dimensions (W x H x D)	1521 x 914 x 98 mm (59.88 x 35.98 x 3.86 inches)
Net Weight	45.6 kg (100.5 lb)
Main Features	Annotation, wireless screen sharing (ShareSender), whiteboard, cloud drive, browser, file manager, screen lock, timer, projector
Maintenance and Cleaning	Unplug before cleaning; use a soft, dry cloth; do not use liquid or abrasive cleaners
Security	Screen lock with PIN code, low blue light function, standby LED indicator
Spare Parts and Repairability	Wall mount kit included, optional stand, optional OPS module; repair by qualified personnel only
General Information	Warranty varies by region, download the manual from notice-facile.com

Frequently Asked Questions - OP651RKe OPTOMA

How to turn the interactive screen on and off?

Press the Power button on the front or the remote control to turn on. Hold for 3 seconds to turn off. The LED indicator turns red in standby.

How to connect a computer to the screen?

Use an HDMI or VGA cable. Connect the cable between your computer and the corresponding input on the back. For touch, also connect a USB cable from the screen's touch port to your computer.

How to use the wireless screen sharing function?

Install the ShareSender app on your mobile device or computer. Connect to the same Wi-Fi network as the screen. Launch the app, enter the password displayed on the screen, and start sharing.

How to safely clean the touch screen?

First unplug the device. Use a soft, dry, lint-free cloth. Never use water, liquid cleaners, or abrasive products to avoid damaging the surface.

How to install the screen on a wall?

Use the included wall mount kit. Attach the brackets to the back, then the wall mount to a concrete wall with the included screws and anchors. The maximum load capacity is 160 kg. Call a qualified technician.

What to do if the touch screen is not responding?

Check that the screen is not exposed to intense light. For an external device, make sure the USB cable is properly connected to the touch port. Try restarting the device.

How to update the screen's firmware?

From the home screen, open the System Update app. The device automatically checks for updates if connected to the Internet. Follow the on-screen instructions to download and install the new version.

How to lock the screen to prevent unauthorized use?

Launch the Screen Lock app. Set a 4-digit PIN code. Once activated, the screen displays a lock screen requiring the code to unlock.

What media formats are supported for playback?

Video: MP4, AVI, MKV, MOV, etc. (up to 4K). Audio: MP3, WMA, WAV, M4A, OGG. Image: JPEG, PNG, BMP, GIF. See the full list in the manual.

How to adjust volume and brightness?

From the home screen, open the General Settings menu by swiping up from the bottom. Use the sliders to adjust volume and backlight. You can also enable the Low Blue Light function to reduce eye strain.

User questions about OP651RKe OPTOMA

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

No questions yet. Be the first to ask one.

Download the instructions for your Interactive screen in PDF format for free! Find your manual OP651RKe - OPTOMA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. OP651RKe by OPTOMA.

USER MANUAL OP651RKe OPTOMA

TABLE DES MATIÈRES

SÉCURITÉ 4

This Class B digital apparatus complies with Canadian ICES-003.

No.	Élément	No.
1.	Poignées (x2)
2.	Emplacement OPS
3.	Ports HDMI 2.0 (x3)
4.	Port USB tactile (x2)
5.	Port de sortie HDMI
6.	Ports USB 3.0 (x2)
7.	Prise d'entrée audio
8.	Port VGA
9.	Ports USB 2.0 (x2)


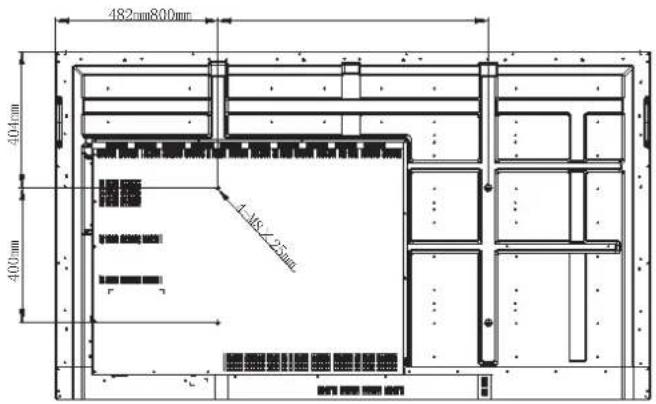

65 pouces 75 pouces

482mm800mm 404mm 400mm 4.150~25mm 800mm 800mm

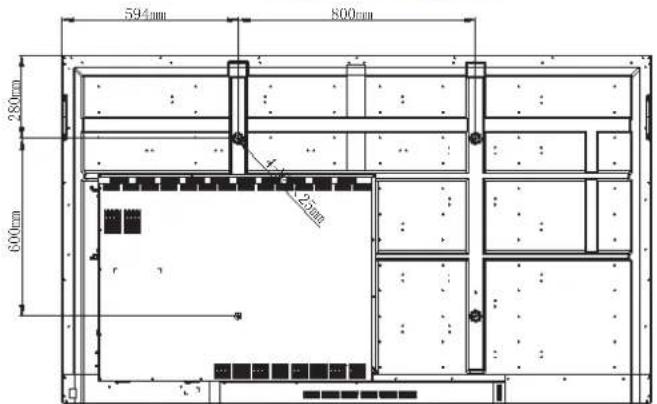

594mm 800mm 280mm 600mm 250mm

86 pouces

CONFIGURATION ET INSTALLATION

Remarque :

CONFIGURATION ET INSTALLATION

MISE EN GARDE

CONFIGURATION ET INSTALLATION

Raccordement USB


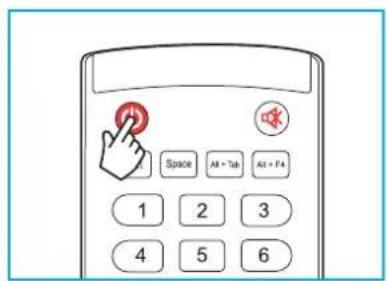

Space All - Tab All - F4 1 2 3 4 5 6

Mise hors tension

Remarque :

UTILISATION DES APPLICATIONS

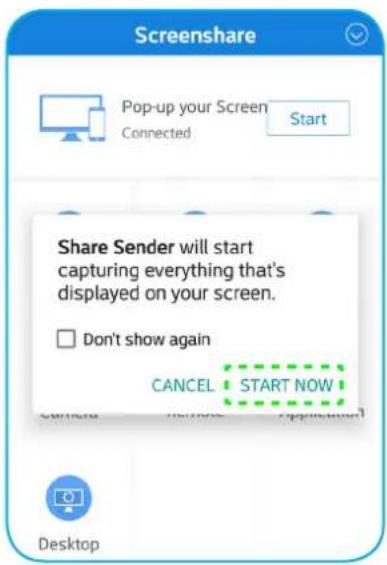

Screenshare Pop-up your Screen Connected Start Share Sender will start capturing everything that's displayed on your screen. Don't show again CANCEL START NOW Desktop

UTILISATION DES APPLICATIONS

Ordinateur

UTILISATION DES APPLICATIONS

Finder

Wildlife.wmv No Subtitles 475558 25.0MB English WMAV2 2.0 00:00:13 00:00:30

UTILISATION DES APPLICATIONS

Navigateur

345441 1/2 Allow System Update to access photos, media, and files on your device? Allow Deny You can change this later in Settings > Apps

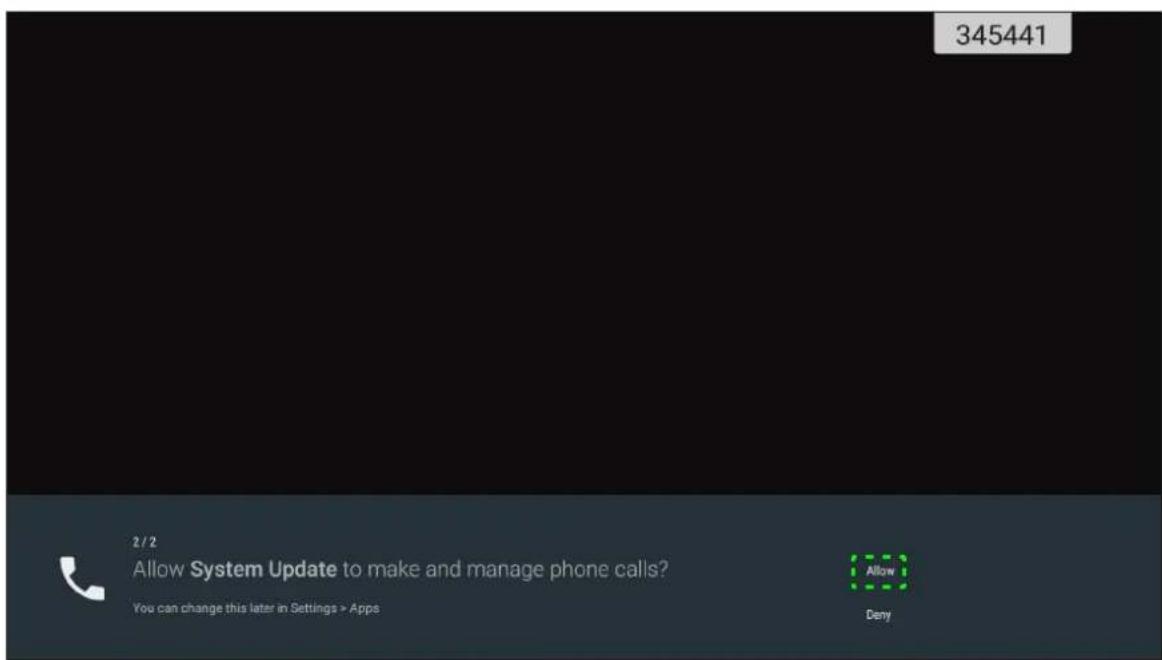

345441 2/2 Allow System Update to make and manage phone calls? You can change this later in Settings > Apps Allow Deny

UTILISATION DES APPLICATIONS

Commande SET (DÉFINIR)

Type	Catégorie Paramètre		CMD Code		hexa CMD	Réponse
Type	Catégorie Paramètre		CMD Code		hexa CMD	Succès	Échec	Succès (Hex) Échec (Hex)
DÉFINIR	Puissance	Rétroéclairage désactivé	:01S0n	n=000	3A 30 31 53 30 30 30 0d 40	1+ 401-3	4 30 31	2B 0D 34 30 31 2D 0D
		Rétroéclairage activé		n=001	3A 30 31 53 30 30 30 31 0d 40	1+ 401-3	4 30 31	2B 0D
		Mise hors tension		n=002	3A 30 31 53 30 30 30 32 0d 40	1+ 401-3	4 30 31	2B 0D 34 30 31 2D 0D
		Marche		n=003	3A 30 31 53 30 30 30 33 0d 40	1+ 401-3	4 30 31	2B 0D 34 30 31 2D 0D
DÉFINIR	Aigu	000 ~ 100	:01S1n	n=000-100	3A 30 31 53 31 30 30 30 0d à3A 30 31 53 31 31 30 30 0d	401+ 401-		34 30 31 2B 0D	34 30 31 2D 0D
DÉFINIR	Basse	000 ~ 100	:01S2n	n=000-100	3A 30 31 53 32 30 30 30 0d à3A 30 31 53 32 31 30 30 0d	401+ 401- 34 30		31 2B 0D 34 30	31 2D 0D
DÉFINIR	Balance	000 ~ 100	:01S3n	n=000-100	3A 30 31 53 33 30 30 30 0d à3A 30 31 53 33 31 30 30 0d	401+ 401- 34 30		31 2B 0D 34 30	31 2D 0D
DÉFINIR	Contraste	000 ~ 100	:01S4n	n=000-100	3A 30 31 53 34 30 30 30 0d à3A 30 31 53 34 31 30 30 0d	401+ 401- 34 30		31 2B 0D 34 30	31 2D 0D
DÉFINIR	Luminosité	000 ~ 100	:01S5n	n=000-100	3A 30 31 53 35 30 30 30 0d à3A 30 31 53 35 31 30 30 0d	401+ 401- 34 30		31 2B 0D 34 30	31 2D 0D
DÉFINIR	Netteté	000 ~ 100	:01S6n	n=000-100	3A 30 31 53 36 30 30 30 0d à3A 30 31 53 36 31 30 30 0d	401+ 401- 34 30		31 2B 0D 34 30	31 2D 0D
DÉFINIR	Mode sonore	Standard	:01S7n	n=001	3A 30 31 53 37 30 30 31 0d 40	1+ 401-3	4 30 31	2B 0D 34 30 31 2D 0D
		Personnaliser		n=002	3A 30 31 53 37 30 30 32 0d 40	1+ 401-3	4 30 31	2B 0D 34 30 31 2D 0D
		Salle de classe		n=003	3A 30 31 53 37 30 30 33 0d 40	1+ 401-3	4 30 31	2B 0D 34 30 31 2D 0D
		Réunion		n=004	3A 30 31 53 37 30 30 34 0d 40	1+ 401-3	4 30 31	2B 0D 34 30 31 2D 0D
DÉFINIR	Volume	000 ~ 100	:01S8n	n=000-100	3A 30 31 53 38 30 30 30 0d à3A 30 31 53 38 31 30 30 0d	401+ 401- 34 30		31 2B 0D 34 30	31 2D 0D
DÉFINIR	Muet	Arrêt	:01S9n	n=000	3A 30 31 53 39 30 30 30 0d 40	1+ 401-3	4 30 31	2B 0D 34 30 31 2D 0D
DÉFINIR	Muet	Marche	:01S9n	n=001	3A 30 31 53 39 30 30 31 0d 40	1+ 401-3	4 30 31	2B 0D 34 30 31 2D 0D
DÉFINIR	Source vidéo	VGA	:01S:n	n=000	3A 30 31 53 3A 30 30 30 0d 40	1+ 401-3	4 30 31	2B 0D 34 30 31 2D 0D
		HDMI1		n=001	3A 30 31 53 3A 30 30 31 0d 40	1+ 401-3	4 30 31	2B 0D 34 30 31 2D 0D
		HDMI2		n=002	3A 30 31 53 3A 30 30 32 0d 40	1+ 401-3	4 30 31	2B 0D 34 30 31 2D 0D
		AV		n=003	3A 30 31 53 3A 30 30 33 0d 40	1+ 401-3	4 30 31	2B 0D 34 30 31 2D 0D
		Android		n=101	3A 30 31 53 3A 31 30 31 0d 40	1+ 401-3	4 30 31	2B 0D 34 30 31 2D 0D
		PC dans emplacement		n=103	3A 30 31 53 3A 31 30 33 0d 40	1+ 401-3	4 30 31	2B 0D 34 30 31 2D 0D
DÉFINIR	Ratio	16:9	:01S;n	n=000	3A 30 31 53 3B 30 30 30 0d	401+	401-	34 30 31 2B 0D	34 30 31 2D 0D
		4:3		n=001	3A 30 31 53 3B 30 30 31 0d	401+	401-	34 30 31 2B 0D	34 30 31 2D 0D
		PTP		n=002	3A 30 31 53 3B 30 30 32 0d	401+	401-	34 30 31 2B 0D	34 30 31 2D 0D

INFORMATIONS SUPPLÉMENTAIRES

Type	Catégorie Paramètre		CMD Code		hexa CMD	Réponse
Type	Catégorie Paramètre		CMD Code		hexa CMD	Succès	Échec	Succès (Hex) Échec (Hex)
DÉFINIR	Langue	English	:01S	n=000	3A 30 31 53 3C 30 30 30 0d 40	1+ 401-	34 30 31	2B 0D 34 30 31	2D 0D
		Français		n=001	3A 30 31 53 3C 30 30 31 0d 40	1+ 401-	34 30 31	2B 0D 34 30 31	2D 0D
		Español		n=002	3A 30 31 53 3C 30 30 32 0d 40	1+ 401-	34 30 31	2B 0D 34 30 31	2D 0D
		Traditional Chinese		n=003	3A 30 31 53 3C 30 30 33 0d 40	1+ 401-	34 30 31	2B 0D 34 30 31	2D 0D
		Simplified Chinese		n=004	3A 30 31 53 3C 30 30 34 0d 40	1+ 401-	34 30 31	2B 0D 34 30 31	2D 0D
		Português		n=005	3A 30 31 53 3C 30 30 35 0d 40	1+ 401-	34 30 31	2B 0D 34 30 31	2D 0D
		German		n=006	3A 30 31 53 3C 30 30 36 0d 40	1+ 401-	34 30 31	2B 0D 34 30 31	2D 0D
		Dutch		n=007	3A 30 31 53 3C 30 30 37 0d 40	1+ 401-	34 30 31	2B 0D 34 30 31	2D 0D
		Polish		n=008	3A 30 31 53 3C 30 30 38 0d 40	1+ 401-	34 30 31	2B 0D 34 30 31	2D 0D
		Russia		n=009	3A 30 31 53 3C 30 30 39 0d 40	1+ 401-	34 30 31	2B 0D 34 30 31	2D 0D
		Czech		n=010	3A 30 31 53 3C 30 31 30 0d 40	1+ 401-	34 30 31	2B 0D 34 30 31	2D 0D
		Danish		n=011	3A 30 31 53 3C 30 31 31 0d 40	1+ 401-	34 30 31	2B 0D 34 30 31	2D 0D
		Swedish		n=012	3A 30 31 53 3C 30 31 32 0d 40	1+ 401-	34 30 31	2B 0D 34 30 31	2D 0D
		Italian		n=013	3A 30 31 53 3C 30 31 33 0d 40	1+ 401-	34 30 31	2B 0D 34 30 31	2D 0D
		Turkish		n=018	3A 30 31 53 3C 30 31 38 0d 40	1+ 401-	34 30 31	2B 0D 34 30 31	2D 0D
		Arabic		n=019	3A 30 31 53 3C 30 31 39 0d 40	1+ 401-	34 30 31	2B 0D 34 30 31	2D 0D
		Ukrayina		n=021	3A 30 31 53 3C 30 32 31 0d 40	1+ 401-	34 30 31	2B 0D 34 30 31	2D 0D
DÉFINIR	Mode image	Standard	:01S=n	n=000	3A 30 31 53 3D 30 30 30 0d 40	1+ 401-	34 30 31	2B 0D 34 30 31	2D 0D
		Lumineux		n=001	3A 30 31 53 3D 30 30 31 0d 40	1+ 401-	34 30 31	2B 0D 34 30 31	2D 0D
		Doux		n=002	3A 30 31 53 3D 30 30 32 0d 40	1+ 401-	34 30 31	2B 0D 34 30 31	2D 0D
		Personnalisé		n=003	3A 30 31 53 3D 30 30 33 0d 40	1+ 401-	34 30 31	2B 0D 34 30 31	2D 0D
DÉFINIR	Teinte (Couleur)	000 ~ 100	:01S>n	n=000-100	3A 30 31 53 3E 30 30 30 0dsur	401+	401-	31 2B 0D 34 30	31 2D 0D
DÉFINIR	Teinte (Couleur)	000 ~ 100	:01S>n	n=000-100	3A 30 31 53 3E 31 30 30 0d	401+	401-	31 2B 0D 34 30	31 2D 0D
DÉFINIR	Rétroéclairage	000 ~ 100	:01S?n	n=000-100	3A 30 31 53 3F 30 30 30 0dsur	401+	401-	31 2B 0D 34 30	31 2D 0D
DÉFINIR	Rétroéclairage	000 ~ 100	:01S?n	n=000-100	3A 30 31 53 3F 31 30 30 0d	401+	401-	31 2B 0D 34 30	31 2D 0D
DÉFINIR	Temp. Couleur	Froid	:01S@n	n=000	3A 30 31 53 40 30 30 30 0d	401+	401-	31 2B 0D 34 30	31 2D 0D
		Standard		n=001	3A 30 31 53 40 30 30 31 0d	401+	401-	31 2B 0D 34 30	31 2D 0D
		Chaud		n=002	3A 30 31 53 40 30 30 32 0d	401+	401-	31 2B 0D 34 30	31 2D 0D
DÉFINIR	Commande de la télécommande	Vol +	:01SAn	n=000	3A 30 31 53 41 30 30 30 0d	401+	401-	31 2B 0D 34 30	31 2D 0D
		Vol -		n=001	3A 30 31 53 41 30 30 31 0d	401+	401-	31 2B 0D 34 30	31 2D 0D
		HAUT télécommande		n=010	3A 30 31 53 41 30 31 30 0d	401+	401-	31 2B 0D 34 30	31 2D 0D
		BAS télécommande		n=011	3A 30 31 53 41 30 31 31 0d	401+	401-	34 30 31	2B 0D
		GAUCHE télécommande		n=012	3A 30 31 53 41 30 31 32 0d	401+	401-	31 2B 0D 34 30	31 2D 0D
		DROITE télécommande		n=013	3A 30 31 53 41 30 31 33 0d	401+	401-	31 2B 0D 34 30	31 2D 0D
		OK télécommande		n=014	3A 30 31 53 41 30 31 34 0d	401+	401-	31 2B 0D 34 30	31 2D 0D
		Touche menu télécommande		n=020	3A 30 31 53 41 30 32 30 0d	401+	401-	31 2B 0D 34 30	31 2D 0D
