USER MANUAL OP751RKe OPTOMA

Blank gray canvas with a thin border and no visible text, symbols, or graphics.

TABLE DES MATIÈRES

SÉCURITÉ 4

This Class B digital apparatus complies with Canadian ICES-003.

Diagram of a server rack with labeled ports and connectors, showing internal layout and terminal connections.

No.	Élément	No.
1.	Poignées (x2)
2.	Emplacement OPS
3.	Ports HDMI 2.0 (x3)
4.	Port USB tactile (x2)
5.	Port de sortie HDMI
6.	Ports USB 3.0 (x2)
7.	Prise d'entrée audio
8.	Port VGA
9.	Ports USB 2.0 (x2)

Technical line drawing of a rack-mounted server or shelf unit (no text or symbols)

460mm 600mm 231mm 400mm 4-M8×25mm

65 pouces 75 pouces

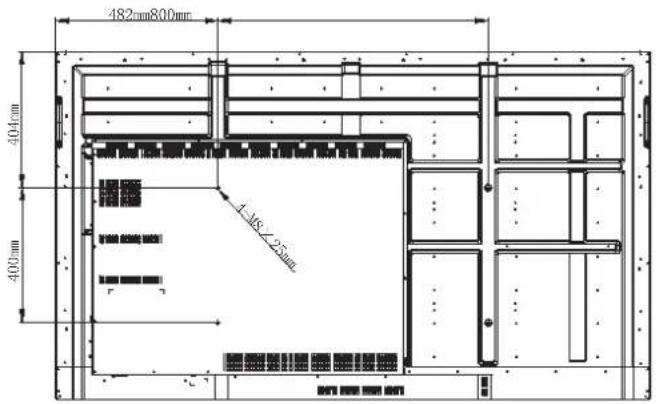

482mm800mm 404mm 400mm 4.150~25mm 800mm 800mm

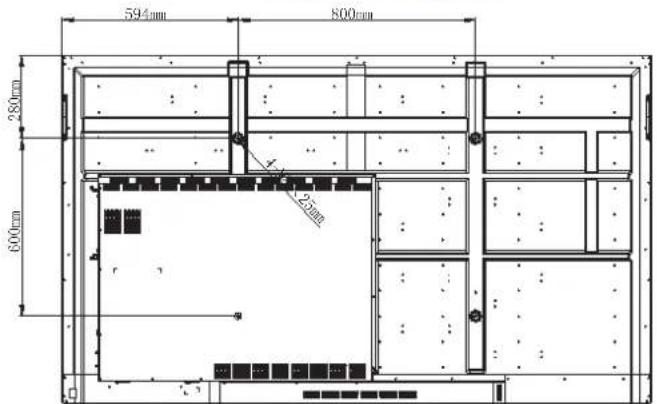

594mm 800mm 280mm 600mm 250mm

86 pouces

CONFIGURATION ET INSTALLATION

Technical diagram of a mechanical assembly with a magnified inset showing a screwdriver inserted into a component (no text or symbols present)

Diagram showing a cylindrical device with a ring attached to a wall, and a dashed rectangular box with a red arrow pointing to it (no text or symbols present)

Diagram of a device mounted on a wall, showing a bracket and a vertical wall-mounted component with a blue arrow indicating direction (no text or symbols present)

Technical diagram showing a mechanical assembly with a close-up inset labeled 'C' highlighting a component.

Remarque :

Technical diagram of a mechanical assembly with a magnified inset showing a screw inserted into a housing (no text or symbols present)

Diagram showing a wheeled cart with wheels and a close-up of its mounting bracket (no text or symbols)

Technical line drawing of a vertical mechanical device with wheels and a blue arrow indicating direction (no text or symbols)

CONFIGURATION ET INSTALLATION

Diagram of a smartphone with a scroll wheel and a blue arrow indicating rotation (no text or symbols)

Diagram of a battery internal structure with labeled current direction arrows and polarity indicators

Diagram of a smartphone with a blue arrow indicating rotation or change, showing the blade and handle (no text or symbols)

MISE EN GARDE

30° 30° 8M

CONFIGURATION ET INSTALLATION

Diagram showing connection between a power outlet and a plug, with a hand pointing to the outlet.

PC AUDIO IN TOUCHVGA IN

Raccordement USB

Diagram showing connection between a power outlet and a plug, with a hand pointing to the outlet.

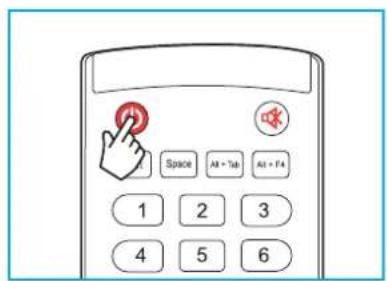

Line drawing of a hand pressing a button on a computer monitor (no text or symbols)

Space All - Tab All - F4 1 2 3 4 5 6

Mise hors tension

Amy: Happy 2×3= A.7 B.6 C.9 D.11

Remarque :

Screenshot of a desktop application interface with tool icons and status bar at bottom

671185 Please enter the password in your device User guide Download App Please install and travel the app on your device list Connect Network Please install your device and the Response for your password Opioma-LA82 Enter Password Please install the password on your device www.optoma.com/Zip T1001434

UTILISATION DES APPLICATIONS

Screenshare XXXX Enter the password on receiver 1 2 3 4 5 6 7 8 9 0

Screenshare Pop-up your Screen Connected Start Storage Photo File Camera Remote Application Desktop

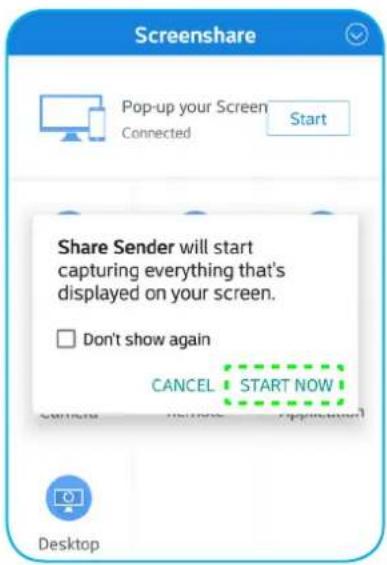

Screenshare Pop-up your Screen Connected Start Share Sender will start capturing everything that's displayed on your screen. Don't show again CANCEL START NOW Desktop

Pop-up your Screen Screensharing Stop Storage Photo File

UTILISATION DES APPLICATIONS

Disconnected Please disconnect screensharing first to use other function CANCEL DISCONNECTED Camera Remote Application

Ordinateur

https://www.optoma.com/lfp/ Optoma ShareSender for Windows Windows 76/10 ShareSender for Mac QQ to Web Make ShareSender for iPhone I can be done ShareSender for Android Android Store order Chrome Book Chrome OS 76 prices

UTILISATION DES APPLICATIONS

Screenshare Optoma-Staff Please enter the password

Screensharing Connected Disconnect Share Screen

Connected Disconnect Stop

UTILISATION DES APPLICATIONS

Finder

Wildlife.wmv No Subtitles 475558 25.0MB English WMAV2 2.0 00:00:13 00:00:30

Close-up of a vibrant purple peony flower with green leaves, captured in a video editing interface (no text or symbols on the flower itself)

Settings Set to wallpaper Sliding settings Interval 3s 5s 10s Animation None Scale Slide Save

Sunset over a calm lake with distant cargo ships and distant islands, framed within a dark border (no text or symbols)

UTILISATION DES APPLICATIONS

Please input the password 1 2 3 4 5 6 7 8 9 0 OK

UTILISATION DES APPLICATIONS

Navigateur

345441 1/2 Allow System Update to access photos, media, and files on your device? Allow Deny You can change this later in Settings > Apps

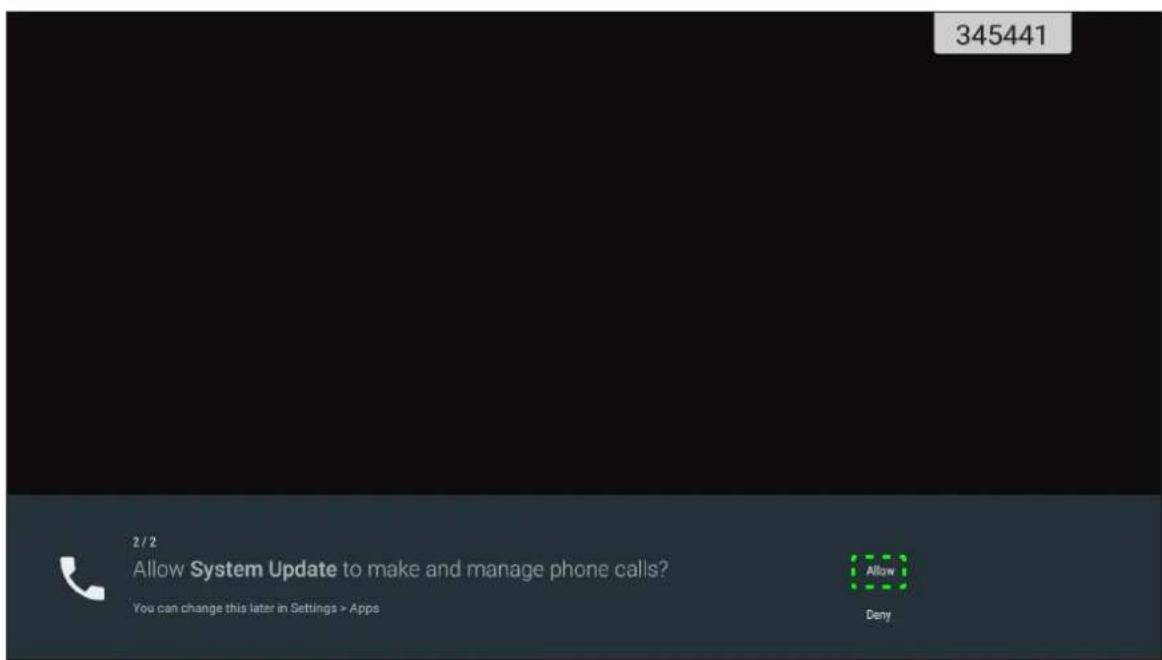

345441 2/2 Allow System Update to make and manage phone calls? You can change this later in Settings > Apps Allow Deny

System update available Would you like to update now? LATER UPDATE

System Update Last updating date: 2018/05/20 18:48 Version 3.8.7 8.3MB This update contains bug fixes including: • Fixes an issue where some users could not complete setup assistant after updating. • Fixes an issue where sometimes alarms and timers could fall to play. • Fixes an issue where some users with a custom APN setup via a profile would lose cellular data. • Fixes an issue where some users could not complete setup assistant after updating. • Fixes an issue where sometimes alarms and timers could fall to play. • Fixes an issue where some users with a custom APN setup via a profile would lose cellular data. • Fixes an issue where some users could not complete setup assistant after updating. • Fixes an issue where sometimes alarms and timers could fall to play. • Fixes an issue where some users with a custom APN setup via a profile would lose cellular data.

UTILISATION DES APPLICATIONS

System Update Last updating date: 2018/05/20 18:48 Downloading... 12% complete Cancel

SystemUpdate Last updating date:2018/08/09 10:30 System will reboot and start FW installation after 30 secs. Please Wait

Commande SET (DÉFINIR)

Type	Catégorie Paramètre		CMD Code		hexa CMD	Réponse
						Succès	Échec	Succès (Hex) Échec (Hex)
DÉFINIR	Puissance	Rétroéclairage désactivé	:01S0n	n=000	3A 30 31 53 30 30 30 0d 40	1+ 401-3	4 30 31	2B 0D 34 30 31 2D	0D
		Rétroéclairage activé		n=001	3A 30 31 53 30 30 30 31 0d 40	1+ 401-3	4 30 31	2B 0D	34 30 31 2D 0D
		Mise hors tension		n=002	3A 30 31 53 30 30 30 32 0d 40	1+ 401-3	4 30 31	2B 0D 34 30 31 2D	0D
		Marche		n=003	3A 30 31 53 30 30 30 33 0d 40	1+ 401-3	4 30 31	2B 0D 34 30 31 2D	0D
DÉFINIR	Aigu	000 ~ 100	:01S1n	n=000-100	3A 30 31 53 31 30 30 30 0d à3A 30 31 53 31 31 30 30 0d	401+ 401-	34 30 31 2B 0D	34 30 31 2D 0D
DÉFINIR	Basse	000 ~ 100	:01S2n	n=000-100	3A 30 31 53 32 30 30 30 0d à3A 30 31 53 32 31 30 30 0d	401+ 401- 34 30	31 2B 0D 34 30	31 2D 0D
DÉFINIR	Balance	000 ~ 100	:01S3n	n=000-100	3A 30 31 53 33 30 30 30 0d à3A 30 31 53 33 31 30 30 0d	401+ 401- 34 30	31 2B 0D 34 30	31 2D 0D
DÉFINIR	Contraste	000 ~ 100	:01S4n	n=000-100	3A 30 31 53 34 30 30 30 0d à3A 30 31 53 34 31 30 30 0d	401+ 401- 34 30	31 2B 0D 34 30	31 2D 0D
DÉFINIR	Luminosité	000 ~ 100	:01S5n	n=000-100	3A 30 31 53 35 30 30 30 0d à3A 30 31 53 35 31 30 30 0d	401+ 401- 34 30	31 2B 0D 34 30	31 2D 0D
DÉFINIR	Netteté	000 ~ 100	:01S6n	n=000-100	3A 30 31 53 36 30 30 30 0d à3A 30 31 53 36 31 30 30 0d	401+ 401- 34 30	31 2B 0D 34 30	31 2D 0D
DÉFINIR	Mode sonore	Standard	:01S7n	n=001	3A 30 31 53 37 30 30 31 0d 40	1+ 401-3	4 30 31	2B 0D 34 30 31 2D	0D
		Personnaliser		n=002	3A 30 31 53 37 30 30 32 0d 40	1+ 401-3	4 30 31	2B 0D 34 30 31 2D	0D
		Salle de classe		n=003	3A 30 31 53 37 30 30 33 0d 40	1+ 401-3	4 30 31	2B 0D 34 30 31 2D	0D
		Réunion		n=004	3A 30 31 53 37 30 30 34 0d 40	1+ 401-3	4 30 31	2B 0D 34 30 31 2D	0D
DÉFINIR	Volume	000 ~ 100	:01S8n	n=000-100	3A 30 31 53 38 30 30 30 0d à3A 30 31 53 38 31 30 30 0d	401+ 401- 34 30	31 2B 0D 34 30	31 2D 0D
DÉFINIR	Muet	Arrêt	:01S9n	n=000	3A 30 31 53 39 30 30 30 0d 40	1+ 401-3	4 30 31	2B 0D 34 30 31 2D	0D
		Marche		n=001	3A 30 31 53 39 30 30 31 0d 40	1+ 401-3	4 30 31	2B 0D 34 30 31 2D	0D
DÉFINIR	Source vidéo	VGA	:01S:n	n=000	3A 30 31 53 3A 30 30 30 0d 40	1+ 401-3	4 30 31	2B 0D 34 30 31 2D	0D
		HDMI1		n=001	3A 30 31 53 3A 30 30 31 0d 40	1+ 401-3	4 30 31	2B 0D 34 30 31 2D	0D
		HDMI2		n=002	3A 30 31 53 3A 30 30 32 0d 40	1+ 401-3	4 30 31	2B 0D 34 30 31 2D	0D
		AV		n=003	3A 30 31 53 3A 30 30 33 0d 40	1+ 401-3	4 30 31	2B 0D 34 30 31 2D	0D
		Android		n=101	3A 30 31 53 3A 31 30 31 0d 40	1+ 401-3	4 30 31	2B 0D 34 30 31 2D	0D
		PC dans emplacement		n=103	3A 30 31 53 3A 31 30 33 0d 40	1+ 401-3	4 30 31	2B 0D 34 30 31 2D	0D
DÉFINIR	Ratio	16:9	:01S;n	n=000	3A 30 31 53 3B 30 30 30 0d	401+	401-	34 30 31 2B 0D	34 30 31 2D 0D
		4:3		n=001	3A 30 31 53 3B 30 30 31 0d	401+	401-	34 30 31 2B 0D	34 30 31 2D 0D
		PTP		n=002	3A 30 31 53 3B 30 30 32 0d	401+	401-	34 30 31 2B 0D	34 30 31 2D 0D

INFORMATIONS SUPPLÉMENTAIRES

Type	Catégorie Paramètre		CMD Code		hexa CMD	Réponse
						Succès	Échec	Succès (Hex) Échec (Hex)
DÉFINIR	Langue	English	:01S	n=000	3A 30 31 53 3C 30 30 30 0d 40	1+ 401-	34 30 31	2B 0D 34 30 31	2D 0D
		Français		n=001	3A 30 31 53 3C 30 30 31 0d 40	1+ 401-	34 30 31	2B 0D 34 30 31	2D 0D
		Español		n=002	3A 30 31 53 3C 30 30 32 0d 40	1+ 401-	34 30 31	2B 0D 34 30 31	2D 0D
		Traditional Chinese		n=003	3A 30 31 53 3C 30 30 33 0d 40	1+ 401-	34 30 31	2B 0D 34 30 31	2D 0D
		Simplified Chinese		n=004	3A 30 31 53 3C 30 30 34 0d 40	1+ 401-	34 30 31	2B 0D 34 30 31	2D 0D
		Português		n=005	3A 30 31 53 3C 30 30 35 0d 40	1+ 401-	34 30 31	2B 0D 34 30 31	2D 0D
		German		n=006	3A 30 31 53 3C 30 30 36 0d 40	1+ 401-	34 30 31	2B 0D 34 30 31	2D 0D
		Dutch		n=007	3A 30 31 53 3C 30 30 37 0d 40	1+ 401-	34 30 31	2B 0D 34 30 31	2D 0D
		Polish		n=008	3A 30 31 53 3C 30 30 38 0d 40	1+ 401-	34 30 31	2B 0D 34 30 31	2D 0D
		Russia		n=009	3A 30 31 53 3C 30 30 39 0d 40	1+ 401-	34 30 31	2B 0D 34 30 31	2D 0D
		Czech		n=010	3A 30 31 53 3C 30 31 30 0d 40	1+ 401-	34 30 31	2B 0D 34 30 31	2D 0D
		Danish		n=011	3A 30 31 53 3C 30 31 31 0d 40	1+ 401-	34 30 31	2B 0D 34 30 31	2D 0D
		Swedish		n=012	3A 30 31 53 3C 30 31 32 0d 40	1+ 401-	34 30 31	2B 0D 34 30 31	2D 0D
		Italian		n=013	3A 30 31 53 3C 30 31 33 0d 40	1+ 401-	34 30 31	2B 0D 34 30 31	2D 0D
		Turkish		n=018	3A 30 31 53 3C 30 31 38 0d 40	1+ 401-	34 30 31	2B 0D 34 30 31	2D 0D
		Arabic		n=019	3A 30 31 53 3C 30 31 39 0d 40	1+ 401-	34 30 31	2B 0D 34 30 31	2D 0D
		Ukrayina		n=021	3A 30 31 53 3C 30 32 31 0d 40	1+ 401-	34 30 31	2B 0D 34 30 31	2D 0D
DÉFINIR	Mode image	Standard	:01S=n	n=000	3A 30 31 53 3D 30 30 30 0d 40	1+ 401-	34 30 31	2B 0D 34 30 31	2D 0D
		Lumineux		n=001	3A 30 31 53 3D 30 30 31 0d 40	1+ 401-	34 30 31	2B 0D 34 30 31	2D 0D
		Doux		n=002	3A 30 31 53 3D 30 30 32 0d 40	1+ 401-	34 30 31	2B 0D 34 30 31	2D 0D
		Personnalisé		n=003	3A 30 31 53 3D 30 30 33 0d 40	1+ 401-	34 30 31	2B 0D 34 30 31	2D 0D
DÉFINIR	Teinte (Couleur)	000 ~ 100	:01S>n	n=000-100	3A 30 31 53 3E 30 30 30 0dsur	401+	401-	31 2B 0D 34 30	31 2D 0D
					3A 30 31 53 3E 31 30 30 0d
DÉFINIR	Rétroéclairage	000 ~ 100	:01S?n	n=000-100	3A 30 31 53 3F 30 30 30 0dsur	401+	401-	31 2B 0D 34 30	31 2D 0D
					3A 30 31 53 3F 31 30 30 0d
DÉFINIR	Temp. Couleur	Froid	:01S@n	n=000	3A 30 31 53 40 30 30 30 0d	401+	401-	31 2B 0D 34 30	31 2D 0D
		Standard		n=001	3A 30 31 53 40 30 30 31 0d	401+	401-	31 2B 0D 34 30	31 2D 0D
		Chaud		n=002	3A 30 31 53 40 30 30 32 0d	401+	401-	31 2B 0D 34 30	31 2D 0D
DÉFINIR	Commande de la télécommande	Vol +	:01SAn	n=000	3A 30 31 53 41 30 30 30 0d	401+	401-	31 2B 0D 34 30	31 2D 0D
		Vol -		n=001	3A 30 31 53 41 30 30 31 0d	401+	401-	31 2B 0D 34 30	31 2D 0D
		HAUT télécommande		n=010	3A 30 31 53 41 30 31 30 0d	401+	401-	31 2B 0D 34 30	31 2D 0D
		BAS télécommande		n=011	3A 30 31 53 41 30 31 31 0d	401+	401-	34 30 31	2B 0D
		GAUCHE télécommande		n=012	3A 30 31 53 41 30 31 32 0d	401+	401-	31 2B 0D 34 30	31 2D 0D
		DROITE télécommande		n=013	3A 30 31 53 41 30 31 33 0d	401+	401-	31 2B 0D 34 30	31 2D 0D
		OK télécommande		n=014	3A 30 31 53 41 30 31 34 0d	401+	401-	31 2B 0D 34 30	31 2D 0D
		Touche menu télécommande		n=020	3A 30 31 53 41 30 32 30 0d	401+	401-	31 2B 0D 34 30	31 2D 0D

INFORMATIONS SUPPLÉMENTAIRES
