USER MANUAL RHT2660R, RHT2660DA RYOBI

TAGLIASIEPI A SCOPPIO MANUALE DʼUSO

P RHT2660DA_25lgs manual.indd AI

12/20/03 11:59:53 AM Attention !

It is essential that you read the instructions in this manual before mounting and operating this machine.

L I S E Z TO U T E S L E S I N S T R U C T I O N S AVA N T DʼUTILISER VOTRE OUTIL.

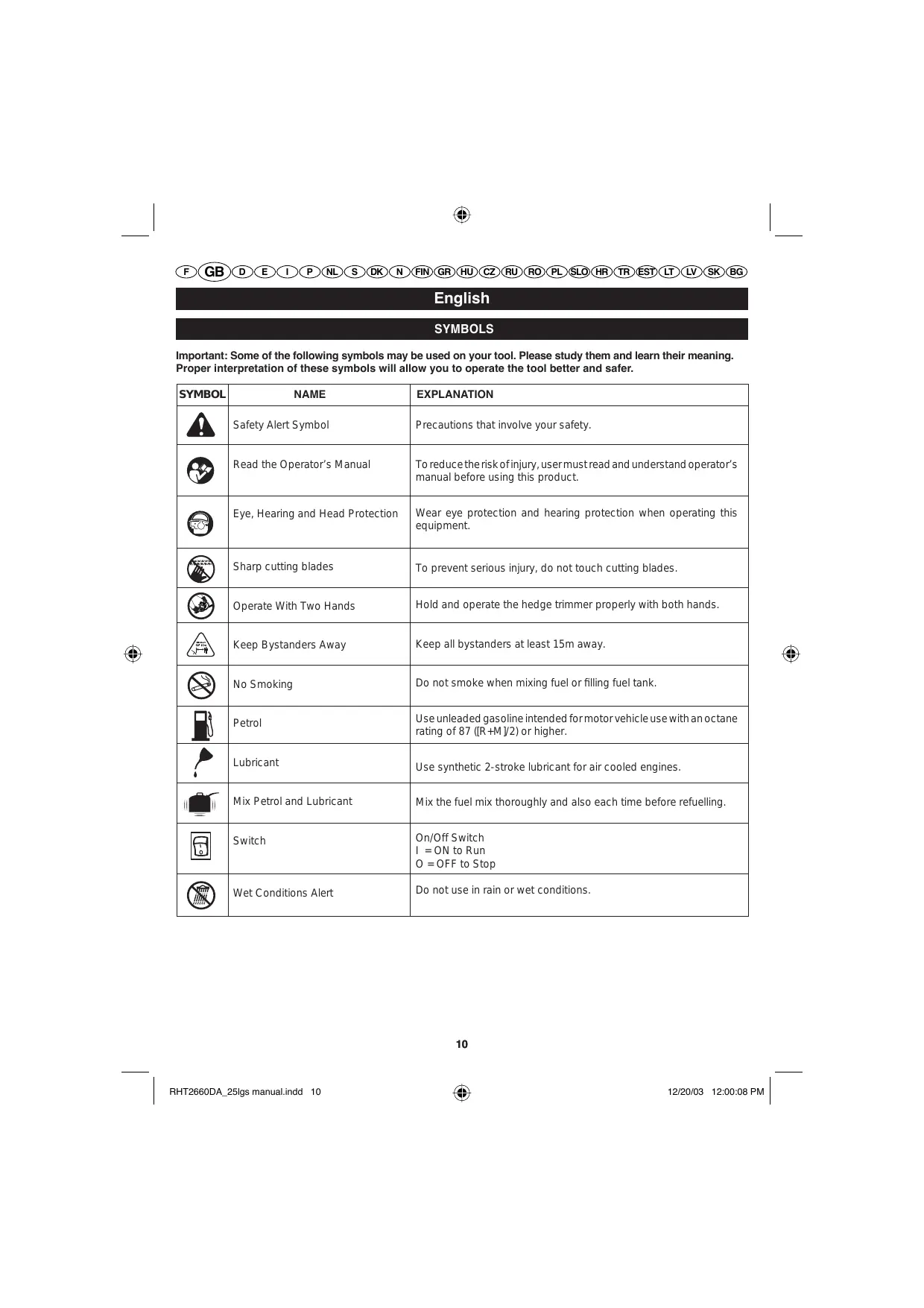

SYMBOLS Important: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer.

NAME SYMBOL EXPLANATION Safety Alert Symbol

Precautions that involve your safety.

To reduce the risk of injury, user must read and understand operator’s manual before using this product.

Eye, Hearing and Head Protection

Wear eye protection and hearing protection when operating this equipment.

Sharp cutting blades

To prevent serious injury, do not touch cutting blades.

Operate With Two Hands

Hold and operate the hedge trimmer properly with both hands.

Keep all bystanders at least 15m away.

Do not smoke when mixing fuel or filling fuel tank.

Use unleaded gasoline intended for motor vehicle use with an octane rating of 87 ([R+M]/2) or higher.

Use synthetic 2-stroke lubricant for air cooled engines.

Mix Petrol and Lubricant

Mix the fuel mix thoroughly and also each time before refuelling.

I = ON to Run O = OFF to Stop

Wet Conditions Alert

Do not use in rain or wet conditions.

SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product.

SYMBOL SIGNAL MEANING DANGER Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury.

WARNING Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.

CAUTION Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury.

(Without Safety Alert Symbol) Indicates a situation that may result in property damage.

SERVICE Servicing requires extreme care and knowledge and should be performed only by a qualified service technician. For service we suggest you return the product to your nearest

AUTHORIZED SERVICE CENTER for repair. When servicing, use only identical replacement parts.

WARNING To avoid serious personal injury, do not attempt to use this product until you read thoroughly and understand completely the op er a tor’s manual. Save this operator’s manual and review frequently for continuing safe operation and instructing others who may use this product.

SAVE THESE INSTRUCTIONS WARNING Read and understand all instructions. Failure to follow all instructions listed below, may result in electric shock, fire and/or carbon monoxide poisoning which will cause death or serious personal injury.

GENERAL SAFETY RULES READ ALL INSTRUCTIONS BEFORE USING THIS PRODUCT

■ DO NOT ALLOW CHILDREN OR UNTRAINED INDIVIDUALS TO USE THIS UNIT. ■ KNOW YOUR MACHINE. Read the operator’s manual carefully. Learn the machine’s applications and limitations as well as the specific potential hazards related to this machine. ■ KEEP GUARDS IN PLACE and in working order. Never operate the machine with any guard or cover removed. Make sure all guards are operating properly before each use.

REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to see that keys and adjusting wrenches are removed from machine before turning it on.

TO REDUCE THE RISK OF INJURY, keep children and visitors away. All visitors should wear safety glasses and be kept a safe distance from work area. KEEP THE AREA OF OPERATION CLEAR OF ALL PERSONS, particularly small children, and pets. DO NOT OPERATE THE ENGINE IN A CONFINED SPACE where dangerous carbon monoxide fumes can collect. Carbon monoxide is a colourless, odorless and an extremely dangerous gas and can cause unconsciousness or death. USE RIGHT MACHINE. Don’t force machine or attach-ment to do a job it was not designed for. Don’t use it for a purpose not intended. DRESS PROPERLY. Do not wear loose clothing, gloves, neckties, or jewelry. They can get caught and draw you into moving parts. Rubber gloves and nonskid footwear are recommended when working outdoors. Also wear protective hair covering to contain long hair. DO NOT OPERATE THE EQUIPMENT WHILE BAREFOOT OR WHEN WEARING SANDALS OR SIMILAR LIGHTWEIGHT FOOTWEAR. Wear protective footwear that will protect your feet and improve your footing on slippery surfaces. EXERCISE CAUTION TO AVOID SLIPPING OR FALLING. ALWAYS WEAR SAFETY GLASSES WITH SIDE SHIELDS. Everyday eyeglasses have only impact-resistant lenses; they are NOT safety glasses. DON’T OVERREACH OR STAND ON UNSTABLE SUPPORT. Keep proper footing and balance at all times. USE ONLY RECOMMENDED ACCESSORIES. The use of improper accessories may cause risk of injury. CHECK DAMAGED PARTS. Before further use of the

machine, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting and any other conditions that may affect its operation. A guard or other part that is damaged must be properly repaired or replaced by an authorized service center to avoid risk of personal injury.

NEVER LEAVE MACHINE RUNNING UNATTENDED. TURN POWER OFF. Don’t leave machine until it comes to a complete stop. KEEP THE ENGINE FREE OF GRASS, LEAVES, OR GREASE to reduce the chance of a fire hazard. KEEP THE ExHAUST PIPE FREE OF FOREIGN OBJECTS. FOLLOW MANUFACTURER’S RECOMMENDATIONS FOR SAFE LOADING, UNLOADING, TRANSPORT, AND STORAGE OF MACHINE. KEEP MACHINE DRY, CLEAN, AND FREE FROM LUBRICANT AND GREASE. Always use a clean cloth when cleaning. Never use brake fluids, petrol, petroleumbased products, or any solvents to clean machine. STAY ALERT AND EXERCISE CONTROL. Watch what you are doing and use common sense. Do not operate tool when you are tired. Do not rush. DO NOT OPERATE THE PRODUCT WHILE UNDER THE INFLUENCE OF DRUGS, ALCOHOL, OR ANY MEDICATION. CHECK THE WORK AREA BEFORE EACH USE. Remove all objects such as rocks, broken glass, nails, wire, or string which can be thrown or become entangled in the machine. DO NOT USE MACHINE IF SWITCH DOES NOT TURN IT ON AND OFF. Have defective switches replaced by an authorized service center. BEFORE CLEANING, REPAIRING, OR INSPECTING, shut off the engine and make certain all moving parts have stopped. Disconnect the spark plug wire, and keep the wire away from the plug to prevent accidental starting. AVOID DANGEROUS ENVIRONMENT. Don’t use in damp or wet locations or expose to rain. Keep work area well lit. NEVER USE IN AN EXPLOSIVE ATMOSPHERE. Normal sparking of the motor could ignite fumes. DO NOT OPERATE WHILE SMOKING OR NEAR AN OPEN FLAME. DO NOT OPERATE at night, at times of heavy fog, or at any other times when your field of vision might be limited and it would be difficult to gain a clear view of area. Be familiar with all controls and the proper use of the machine. Beware of overhead power lines. The cutting mechanism strikes any foreign object or the

machine should start making any unusual noise or vibration, shut off the power source and allow the machine to stop. Disconnect the spark plug wire from the spark plug and take the following steps:

1. inspect for damage; 2. check for and tighten any loose parts; 3. have any damaged parts replaced or repaired with parts having equivalent specifications. Stop the engine and disconnect the spark plug wire from the spark plug before 1. when adjusting the working position of the cutting device; 2. cleaning or clearing a blockage; 3. checking, maintenance or working on the machine. Do not inhale fuel fumes as they are toxic.

OPERATE THE UNIT BY BOTH HANDS.

DO NOT OPERATE AROUND dry brush, twigs, cloth rags, or other flammable materials.

NEVER START THE MACHINE if ice has formed in any part of the equipment.

DO NOT USE ACIDS, ALKALINES, SOLVENTS,

FLAMMABLE MATERIAL, OR INDUSTRIAL GRADE SOLUTIONS in this product. These products can cause physical injuries to the operator and irreversible damage to the machine.

NEVER ATTEMPT TO MAKE ANY ADJUSTMENTS WHILE THE ENGINE (MOTOR) IS RUNNING (except where specifically recommended by the manufacturer).

PROTECTIVE COVERS MUST ALWAYS COVER ROTATING PARTS WHEN THE ENGINE IS RUNNING.

KEEP COOLING AIR INTAKE (recoil starter area) and muffler side of the engine at least 1m away from buildings, obstructions, and other burnable objects.

KEEP THE ENGINE AWAY FROM FLAMMABLES AND OTHER HAZARDOUS MATERIALS.

KEEP AWAY FROM HOT PARTS. The muffler and other engine parts become very hot, use caution.

DO NOT TOUCH THE SPARK PLUG AND IGNITION CABLE when starting and operating the engine.

CHECK FUEL HOSES AND JOINTS for looseness and fuel leakage before each use.

CHECK BOLTS AND NUTS for looseness before each use. A loose bolt or nut may cause serious engine problems.

ALWAYS REFUEL OUTDOORS. Never refuel indoors or in a poorly ventilated area.

Do not cut against hard objects, this could cause injury or damage the trimmer.

NEVER STORE THE MACHINE WITH FUEL IN THE FUEL TANK INSIDE A BUILDING where ignition sources are present, such as hot water and space heaters, clothes dryers, and the like.

Do not cross roads or gravel paths with the trimmer still running.

As equipment user, you are responsible for third parties in the working area.

While operating the tool, always hold it firmly with both hands by the two handles and ensure a firm footing, especially if steps or ladders are used. Don’t touch the blades!

cable, glass, stones and debris.

TO REDUCE THE RISK OF FIRE AND BURN INJURY, handle fuel with care. It is highly flammable.

ADD FUEL BEFORE STARTING THE ENGINE. Never remove the cap of the fuel tank or add fuel while the engine is running or when the engine is hot.

Make sure you hold the tool firmly with both handles and that you are well balanced with your weight evenly distributed on both feet.

Keep the cutting system below level of your waist.

LOOSEN FUEL CAP SLOWLY to release pressure and to keep fuel from escaping around the cap.

Keep your fingers and other body parts away from the cutting blade.

WIPE SPILLED FUEL FROM THE UNIT. Move 9m away from refueling site before starting engine.

IF FUEL IS SPILLED, do not attempt to start the engine but move the machine away from the area of spillage and avoid creating any source of ignition until fuel vapors have dissipated.

STORE FUEL IN A COOL, WELL-VENTILATED AREA, safely away from spark and/or flame-producing equipment.

STORE FUEL IN CONTAINERS specifically designed for this purpose.

EMPTY FUEL TANK AND RESTRAIN THE UNIT FROM MOVING before transporting in a vehicle.

WHEN SERVICING USE ONLY IDENTICAL REPLACEMENT PARTS. Use of any other parts may create a hazard or cause product damage.

Certain parts of the machine may become hot in use.

MAKE SURE MINIMUM CLEARANCE of 1m is maintained from combustible materials.

SAVE THESE INSTRUCTIONS. Refer to them frequently and use them to instruct other users. If you loan someone this tool, loan them these instructions also.

Never operate the product without the safety guard in place and in good condition.

Keep the working area free from wires, nails, metallic

Familiarise yourself with your surroundings and be on the alert for possible hazards which you may not notice because of the noise from the machine.

Never grasp the tool by the blade.

Large variation in temperature can lead to condensation inside the tool. Before use, give the machine time to adjust to the temperature of work area.

Let the tool work at its own pace. Do not overload.

Never attempt to use an incomplete machine or one fitted with an unauthorised modification.

When transporting, disconnect the spark plug wire.

During transport or storage always cover the with the scabbard.

Do not attempt to repair the machine unless you are qualified to do so.

Do not operate the machine with a damaged or excessively worn cutting device.

To reduce fire hazard keep engine and silencer free of debris, leaves, or excessive lubricant.

Always ensure all handles are fitted when using the machine.

Know how to stop the machine quickly in an emergency.

WARNING Do not attempt to modify this tool or create accessories not recommended for use with this tool. Any such alteration or modification is misuse and could result in a hazardous condition leading to possible serious personal injury.

PRODUCT DUAL RECIPROCATING Engine Displacement 26 cc

Max Engine Performance (in Accordance with ISO 8893) 0.67 kW Fuel Consumption (in Accordance with ISO 8893) at Max Engine Performance 0.51 L/h Specific Fuel Consumption (in Accordance with ISO 8893) at Max Engine Performance 0.76 L/kW.h Fuel Tank Capacity 0.3 L Blade Type Dual Reciprocating Blade Length 60 cm Max Cutting Capacity 28 mm Dry Weight5.34 kg Vibration Level (in accordance with Annex C of EN 774:1996+A1+A2+A3/prEN 10517:2003) - Front Handle 13.5 m/s2 - Rear Handle 21.0 m/s2 Sound Pressure Level at Operator’s Position (in accordance with Annex D ofEN 774:1996 +A1+A2+A3/prEN 10517:2003)96.5 dB (A) Measured Sound Power Level (in accordance with EN ISO 3744:1995 and ISO 11094:1991) 107.4 dB (A) Guaranteed Sound Power Level 113 dB (A)

WARNING To prevent accidental starting that could cause serious personal injury, always disconnect the engine spark plug wire from the spark plug when assembling parts.

CAUTION Any attempt to start the engine without adding lubricant will result in engine failure. WARNING Petrol and its vapors are highly flammable and explosive. To prevent serious personal injury and prop-erty damage, handle petrol with care. Keep away from ignition sources, handle outdoors only, do not smoke while adding fuel, and wipe up spills immediately.

OPERATION WARNING Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury.

Guard Front handle Knob Fuel cap Primer bulb Rear handle Trigger lock On/Off switch Trigger Starter grip Blade Choke lever Latch

WARNING Always wear safety goggles or safety glasses with side shields when operating power tools. Failure to do so could result in objects being thrown into your eyes, resulting in possible serious injury.

WARNING Do not use any attachments or accessories not recommended by the manufacturer of this product. The use of attachments or accessories not recommended can result in serious personal injury.

ASSEMBLY WARNING If any parts are missing do not operate this tool until the missing parts are replaced.

Failure to do so could result in possible serious personal injury.

This product is powered by a 2-stroke engine and requires pre-mixing petrol and 2-stroke lubricant.

Pre-mix unleaded petrol and 2-stroke engine lubricant in a clean container approved for petrol.

This engine is certified to operate on unleaded petrol intended for automotive use with an octane rating of 87 ([R + M] / 2) or higher.

Do not use any type of pre-mixed petrol / lubricant from fuel service stations, this includes the pre-mixed petrol / lubricant intended for use in mopeds, motorcycles, etc. Use synthetic 2-stroke lubricant only. Do not use automotive lubricant or 2-stroke outboard lubricant. Mix 2% synthetic 2-stroke lubricant into the petrol. This is a 50:1 ratio. Mix the fuel thoroughly and also each time before fueling. Mix in small quantities. Do not mix quantities larger than usable in a 30 day period. Synthetic 2-stroke lubricant containing a fuel stabilizer is recommended.

STARTING AND STOPPING (Fig. 3)

WARNING When the engine starts with the trigger locked, the blades will move. Keep body, objects, and obstructions away from blades. Failure to keep away from the blades can result in serious injury.

ROTATING HANDLE (Fig. 4)

The handle can be rotated 45o or 90o to the left or to the right. To rotate handle: ■ Shut off the hedge trimmer. ■ Disengage the throttle trigger. ■ Pull back on the rotating handle knob. ■ Turn handle to the right or to the left. ■ Release rotating handle knob. ■ Keep turning handle until it locks into place in one of the 45o or 90o positions.

■ Position the hedge trimmer on its side with the fuel cap pointing upward. ■ Clean surface around fuel cap to prevent contamination. ■ Loosen fuel cap slowly to release pressure and to keep fuel from escaping around the cap. ■ Clean and inspect the gasket. ■ Carefully pour fuel mixture into the tank. Avoid spillage. ■ Immediately replace fuel cap and hand tighten. Wipe up any fuel spillage. Move 9 m away from refueling site before starting engine. Note: It is normal for smoke to be emitted from a new engine during and after first use.

NOTE: The trimmer will only operate at one of these locked positions. The handle is locked when the rotating handle knob is securely into place, is not extended, and the handle will no longer move to either side.

OPERATING THE HEDGE TRIMMER (Fig. 5)

WARNING Read the safety information for safe operation using the blade. Extreme care must be taken when using blades to ensure safe operation. Refer to Specific Safety Rules.

WARNING Always shut off engine before fueling. Never add fuel to a machine with a running or hot engine. Move at least 9 m from refueling site before starting engine. Do not smoke!

WARNING Always keep both hands on the hedge trimmer handles. Never hold shrubs with one hand and operate hedge trimmer with the other. Failure to heed this warning can result in serious injury.

WARNING Clear the area to be cut before each use. Remove all objects such as cords, lights, wire, or loose string which can become entangled in the cutting blade and create a risk of serious personal injury.

WARNING When servicing, use only identical replacement parts. Use of any other parts may create a hazard or cause product damage.

FUEL CAP WARNING A leaking fuel cap is a fire hazard and must be replaced immediately. Failure to do so could result in a fire that could cause serious personal injury.

WARNING Always wear safety goggles or safety glasses with side shields during product operation. If operation is dusty, also wear a dust mask.

WARNING Before inspecting, cleaning, or servicing the machine, shut off engine, wait for all moving parts to stop, and disconnect spark plug wire and move it away from spark plug. Failure to follow these instructions can result in serious personal injury or property damage.

This engine uses a Champion RCJ-6Y or equivalent with 0.63 mm (0.025 in.) electrode gap. Use an exact replacement and replace annually. WARNING Be careful not to cross-thread the spark plug. Crossthreading will seriously damage the product.

GENERAL MAINTENANCE Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, dust, Lubricant, grease, etc.

CLEANING THE EXHAUST PORT AND MUFFLER Depending on the type of fuel used, the type and amount of lubricant used, and/or your operating conditions, the exhaust port and muffler may become blocked with carbon deposits. If you notice a power loss with your gas powered tool, you may need to remove these deposits to restore performance. We highly recommended that only qualified service technicians perform this service.

WARNING Do not at any time let brake fluids, gasoline, petroleum-based products, penetrating lubricant, etc., come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which may result in serious personal injury.

SPARK ARRESTOR The muffler is equipped with a spark arrestor screen inside muffler body. After extended use the screen can become dirty and may need to have the muffler replaced by an authorized servicing dealer.

WARNING Blades are sharp. When handling the blade assembly, wear non-slip, heavy-duty protective gloves. Do not place your hand or fingers between blades or in any position where they could get pinched or cut. NEVER touch blades or service unit with the spark plug wire connected.

STORAGE (1 MONTH OR LONGER) (FIG. 10)

Drain all fuel from tank into a container approved for gasoline. Run engine until it stops.

Clean all foreign material from the hedge trimmer.

Store it in a well-ventilated place that is inaccessible to children. Keep away from corrosive agents such as garden chemicals and de-icing salts.

Abide by all Federal and local regulations for the safe storage and handling of gasoline.

Always place the scabbard on the cutting blades before transporting or storing the unit.

REPLACING BLADES (FIG. 6)

LUBRICATING THE BLADE (FIG. 7) NOTE: Do not lubricant while the hedge trimmer is running. CLEANING THE AIR FILTER SCREEN (Fig. 8) ■

Remove the air filter cover by pushing down on the latch with your thumb while gently pulling on the cover.

Brush the air filter screen lightly to clean.

Replace the air filter cover by inserting the tabs on the bottom of the cover into the slots on the air filter base; push the cover up until it latches securely in place.

TROUBLESHOOTING IF THESE SOLUTIONS DO NOT SOLVE THE PROBLEM, CONTACT YOUR AUTHORISED SERVICE DEALER.

PROBLEM POSSIBLE CAUSE SOLUTION Engine will not start.

Check spark. Remove spark plug. Reattach the spark plug cap and lay spark plug on metal cylinder. Pull the starter rope and watch for spark at spark plug tip. If there is no spark, repeat test with a new spark plug.

Push primer bulb until bulb is full of fuel. If bulb does not fill, primary fuel delivery system is blocked. Contact a servicing dealer. If primer bulb fills, engine may be flooded, proceed to next item.

Pull starter three times with choke lever at “ ”. If engine does not start, move choke lever to “ ” and repeat normal starting procedure. If engine still fails to start, repeat procedure with a new spark plug.

Starter rope pulls harder now than when new.

Engine requires approximately three minutes to warm up.

Contact a servicing dealer.

Engine starts but will only run at high speed at half choke.

Carburetor requires adjustment.

Contact a servicing dealer.

Engine does not reach full speed and emits excessive smoke.

1. Check lubricant fuel mixture.

1. Use fresh fuel and the correct 2-stroke lubricant mix.

2. Air filter is dirty.

2. Clean air filter. Refer to Cleaning the Air Filter

Screen earlier in this manual.

3. Spark arrestor screen is dirty.

3. Contact a servicing dealer.

Idle speed screw on carburetor requires adjustment

Turn idle speed screw clockwise to increase idle speed.

Engine starts but will not accelerate.

Engine starts, runs, and accelerates but will not idle.

Allow engine to completely warm up. If engine does not accelerate after three minutes, contact a servicing dealer.

NOTE: If your unit exhibits specific performance problem(s) where the Troubleshooting section recommends a clockwise screw adjustment on the carburetor and no adjustments have been made since original purchase, the unit should be taken to an authorized service center for repair. In most cases, the needed adjustment is a simple task for the trained service representative.

I = Ein (ON) O = Aus (OFF)

DECKEL DES KRAFTSTOFFTANKS

Interruptor Marcha / Parada

I = ENCENDIDO (ON) O = PARADA (OFF)

Interruptor Ligar/Desligar

I = LIGAR(ON) O = DESLIGAR (OFF)

CONSERVE ESTAS INSTRUÇÕES.

C O L O C A Ç Ã O E M F U N C I O N A M E N TO E PARAGEM DO CORTA-SEBES (Fig. 3)

BEWAAR DEZE HANDLEIDING.

BRANDSTOF MENGEN (afb. 2)

2 liter 3 liter 4 liter 5 liter

40 ml 60 ml 80 ml 100 ml

SNOEIBLAD ONDERHOUDEN (afb. 6)

SPARA DESSA FÖRESKRIFTER.

2 liter 3 liter 4 liter 5 liter

I = START (ON) I = stop (OFF)

GEM DENNE VEJLEDNING TIL SENERE OPSLAG.

2 liter 3 liter 4 liter 5 liter

40 ml 60 ml 80 ml 100 ml

PÅFYLDNING AF BEHOLDER

starter motoren. Ikke røyk!

1 liter + 20 ml = 2 liter + 40 ml = 3 liter + 60 ml = 4 liter + 80 ml = 5 liter + 100 ml =

Interruptor Marcha / Parada

I = ENCENDIDO (ON) O = PARADA (OFF)

2 liter 3 liter 4 liter 5 liter

40 ml 60 ml 80 ml 100 ml

3. A motor lefullad.

2 litry 3 litry 4 litry 5 litry

40 ml 60 ml 80 ml 100 ml

2 litry 3 litry 4 litry 5 litry

40 ml 60 ml 80 ml 100 ml

SPLOŠNA VARNOSTNA NAVODILA

POSEBNA VARNOSTNA NAVODILA

MEŠANJE GORIVA (Sl. 2) ■

2 litra 3 litri 4 litri 5 litrov

40 ml 60 ml 80 ml 100 ml

POKROV POSODE ZA GORIVO OP∆A SIGURNOSNA PRAVILA

POSEBNE SIGURNOSNE UPUTE

YAKIT DEPOSUNUN KAPAĞI

2 litrai 3 litrai 4 litrai 5 litrai

40 ml 60 ml 80 ml 100 ml

USCHOVAJTE SI TIETO POKYNY.

PALIVOVÁ ZMES (Obr. 2)

All Ryobi products are guaranteed against manufacturing defects and defective parts for a period of twenty four (24) months from the date stated on the original invoice drawn up by the retailer and given to the end user.

Deterioration caused by normal wear and tear, unauthorised or improper use or maintenance, or overload are excluded from this guarantee as are accessories such as battery packs, light bulbs, blades, fittings, bags, etc.

In the event of malfunction during the warranty period, please take the

NON-DISMANTLED product, along with the proof of purchase, to your retailer or nearest Authorised Ryobi Service Centre.

This warranty in no way affects your legal rights concerning defective products.

The above warranty is valid in the UK, the European Union, and Australia only. Outside these regions, a different warranty may apply. Please see your local dealer for warranty details.

La documentation technique est conservée chez Homelite Far

East Co., Ltd. 24/F, 388 Castle Peak Road, Tsuen Wan, N. T., Hong Kong.

CE DECLARATION OF CONFORMITY We declare in sole responsibility that the product, to which this certificate applies, conforms to the basic health and safety requirements of the Machinery Directive 98/37/EC and other relevant directives, like EMC Directive 2004/108/EEC and

Directive 2004/14/EC with amendment 2005/88/EC. To effect correct application of the health and safety requirements stated in the EEC directives, the following European and/or national standards and/or technical specifications were consulted: EN 774: 1996+A1+A2+A3/prEN 10517:2003, EN ISO 3744:1995, ISO 11094:1991, EN ISO 12100-1:2003, EN ISO 12100-2:2003, EN 563:1994, EN 294:1992, ISO 3864-1:2002, ISO 3864-2:2004. We declare this product complies to the requirements of the Directive 2004/14/EC with amendment 2005/88/EC.

This product has been assessed to conform to the Directive

2004/14/EC with amendment 2005/88/EC by means of unit verification by TÜV Rheinland Product Safety GmbH.

Measured sound power level [dB (A)]:

Guaranteed sound power level [dB (A)]:

Technical documents are kept by Homelite Far East Co., Ltd.

24/F, 388 Castle Peak Road, Tsuen Wan, N. T., Hong Kong. Declared in 12/2007 by Homelite Far East Co., Ltd.

Den tekniske dokumentation opbevares af Homelite Far East

Co., Ltd. 24/F, 388 Castle Peak Road, Tsuen Wan, N. T., Hong Kong.

Machine: 26cc Hedge Trimmer

Type: RLT2660DA Name of company: Homelite Far East Co., Ltd.

Address: 24/F, CDW Building, 26cc MightyLite Hedge Trimmer 388 Castle Peak Road, Tsuen Wan, Hong Kong.

Vice President, Engineering
