AP51030KB - Air purifier WHIRLPOOL - Free user manual and instructions

Product Type	Air Purifier
Brand	Whirlpool
Model	AP51030KB
Power Supply	115 V, 60 Hz, 15 or 20 A, 3-prong grounded outlet
Fan Speeds	Turbo, High, Medium, Low, Sleep Mode
Control Lock Function	Yes (press SLEEP MODE for 5 seconds)
Filter Indicators	New/Replace indicators for pre-filter and HEPA filter
Filter Type	HEPA filter (annual replacement) + Pre-filter (replace every 3 months)
Replacement Parts - HEPA Filter	Ref. 1183054K
Replacement Parts - Pre-filter	Ref. 8171434K
Warranty - Parts and Labor	1 year
Warranty - Motor	5 years (2nd to 5th year)
30-Day Silence Guarantee	Refund if quieter than previous purifier
Certification	ENERGY STAR
Use	Indoor only, flat surface, min. clearance 6" (15.2 cm)
Cleaning	Front grille washable with soapy water (not dishwasher), cabinet with soft damp cloth
Customer Service	1-866-990-7365 (United States and Canada)

Frequently Asked Questions - AP51030KB WHIRLPOOL

How to replace the HEPA filter or pre-filter?

Turn off and unplug the purifier. Remove the front grille by pushing the release tabs inward. Replace the relevant filter (pre-filter every 3 months, HEPA annually). Replace the grille, plug in the appliance, and press PRE-FILTER RESET or HEPA RESET for 5 seconds to reset the indicator.

What to do if the air purifier does not turn on?

Check that the appliance is plugged into a 3-prong grounded outlet. Ensure the fuse is not blown or circuit breaker is not tripped. Use a time-delay fuse if necessary. If the problem persists, contact customer service at 1-866-990-7365.

How to activate the Control Lock?

Press and hold the SLEEP MODE button for 5 seconds. The lock indicator lights up. To unlock, press and hold again for 5 seconds. This function prevents accidental changes to settings.

How does Sleep Mode work?

Press SLEEP MODE to activate sleep mode: the fan runs at low speed for 8 hours, then returns to the previous speed. To exit before 8 hours, press SLEEP MODE, FAN SPEED, or POWER.

What is the difference between fan speeds?

The available speeds are: Low (ideal noise level), Medium (lower cleansing power), High (moderate power), and Turbo (maximum power). Select via the FAN SPEED button.

How to clean the air purifier?

Turn off and unplug the appliance. Remove the front grille and filters. Clean the cabinet with a soft damp cloth. Wash the grille with soapy water (not dishwasher). Dry, reassemble, and plug in.

What are the part numbers for replacement filters?

For the model AP51030K, the HEPA filter part number is 1183054K and the pre-filter part number is 8171434K. You can order by calling 1-866-990-7365 or visit www.whirlpoolairpurifiers.com.

What is the warranty for this air purifier?

The warranty is 1 year for parts and labor, and 5 years for the motor (2nd to 5th year). A 30-day silence guarantee is also offered: if the appliance is not quieter than your previous purifier, you can get a refund.

What are important safety precautions?

Do not use with a transistorized speed control. Do not install in a window. Always unplug before servicing. Use only a 3-prong grounded outlet, no adapter or extension cord.

How to reset filter indicators after replacement?

After replacing the pre-filter or HEPA filter, press the PRE-FILTER RESET or HEPA RESET button for 5 seconds. The indicators will turn off and the timer will be reset.

USER MANUAL AP51030KB WHIRLPOOL

Abstract decorative pattern with stylized symbols and star motifs, no text or symbols present

WHISPURE™ AIR PURIFIER

Use & Care Guide

For questions about features, operation/performance, parts, accessories or service call: 1-866-990-7365

or visit our website at... www.whirlpoolairpurifiers.com

Electrical Requirements 4

Location Requirements....4

AIR PURIFIER USE....4

Using the Controls ....5

AIR PURIFIER CARE....5

Cleaning....5

Filter Replacement ....5

TROUBLESHOOTING 6

ASSISTANCE OR SERVICE....6

In the U.S.A. and Canada....6

Replacement Filters....6

Quiet 30-Day Money-Back Guarantee ....7

WARRANTY 7

ÍNDICE

ASSISTANCE OU SERVICE....18

This product earned the ENERGY STAR by meeting strict energy efficiency guidelines set by the U.S. EPA. U.S. EPA does not endorse any manufacturer claims of healthier indoor air from the use of this product.

The energy efficiency of this ENERGY STAR qualified model is measured based on a ratio between the model's CADR for dust and the electrical energy it consumes, or CADR/Watt.

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To Reduce The Risk Of Fire or Electrical Shock, Do Not Use The Air Purifier With Any Solid-State Speed Control Device.

WARNING: To Reduce The Risk Of Fire Or Electrical Shock And Injury To Persons, Do Not Use In A Window. Unplug air purifier before servicing.

READ AND SAVE THESE INSTRUCTIONS

INSTALLATION REQUIREMENTS

Electrical Requirements

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

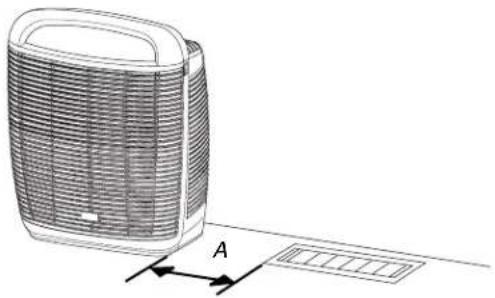

Location Requirements

Line drawing of a portable electric heater with a side panel and labeled point A (no text or symbols on the device itself)

A. 6" (15.2 cm) minimum clearance

■ You will need a level surface at least 6" (15.2 cm) from heat sources such as ranges or heaters.
■ Do not block air openings or place air cleaner on a soft surface such as a bed or sofa.
■ Operate indoors only.

Electrical Connection

To properly install your air purifier, you must determine the type of electrical connection you will be using and follow the instructions provided for it here.

■ The air purifier should be connected to a 115 V, 60 Hz, 15- or 20-amp fused 3 prong grounded outlet.
■ The use of a time-delay fuse or time-delay circuit breaker is recommended.

AIR PURIFIER USE

NOTE: Before operating the air purifier, record the date of installation on the HEPA filter. Under normal conditions, the HEPA filter should be replaced annually, and the pre-filter should be replaced every 3 months. To remove and replace either filter, see "Filter Replacement" in the "Air Purifier Care" section.

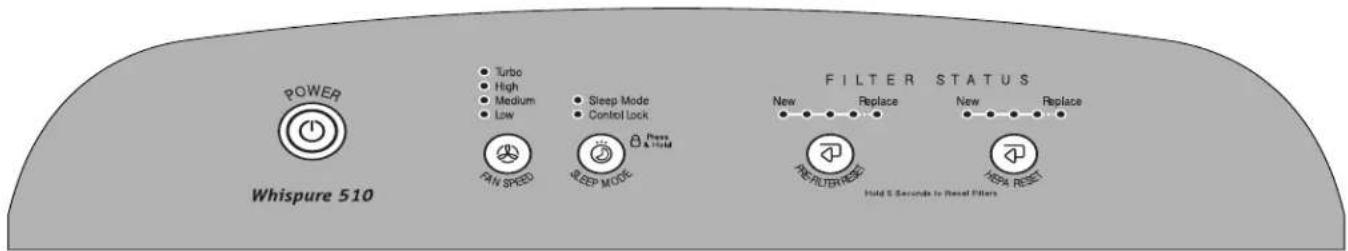

Using the Controls

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

1. Plug into a grounded 3 prong outlet.
2. Press POWER to start the air purifier. An indicator light will turn on.
3. Press POWER to stop the air purifier. The indicator light will turn off.

Fan Speed

Press FAN SPEED until the indicator light comes on for the desired speed.

Fan Speed Result

Low	Best product sound
Medium	Slower cleaning power
High	Moderate cleaning power
Turbo	Maximum cleaning power

Sleep Mode

Press SLEEP MODE to set. Sleep mode runs on Low fan speed for 8 hours and then returns to previously selected setting. To exit before 8 hours, press SLEEP MODE, FAN SPEED, or POWER.

Control Lock

The Control Lock locks the controls to avoid unintended changing of the settings when the air purifier is on or off.

1. Press and hold SLEEP MODE for 5 seconds to lock. The Control Lock indicator light will turn on. (No selection can be made.)
2. Press SLEEP MODE for 5 seconds to unlock. The Control Lock indicator light will turn off. Now selections can be made and the unit can be turned on or off.

Filter Status Lights

The pre-filter and HEPA filter status lights will help you know when to change your filters. The green status lights will move from New to Replace at preset intervals. When the red Replace status light is flashing, replace the filter as indicated. See "Filter Replacement" in the "Air Purifier Care" section.

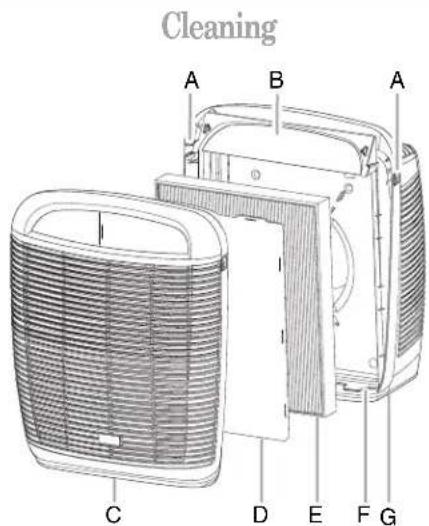

AIR PURIFIER CARE

A. Release tabs

B. Controls

C. Front grille

D. Pre-filter

E. HEPA filter

F. Bottom slot

G. Mainframe assembly

1. Press POWER to turn off the air purifier.
2. Unplug air purifier or disconnect power.
3. Place fingers on the front release tabs. Gently push the tabs in and pull the front grille forward to remove it.
4. Remove both filters and set aside. Do not try to wash and reuse either the HEPA filter or the pre-filter.
5. Clean the air purifier with a soft, damp cloth.
6. Gently wash the front grille in soapy water. NOTE: The grille is not dishwasher safe.
7. Reassemble the filters as shown in previous illustration.
8. Place the bottom tabs on the front grille into the bottom slots in base of the air purifier. Push the top of the grille forward until the grille locks into place.
9. Plug in air purifier or reconnect power.
10. Press POWER to start the air purifier.

Filter Replacement

NOTE: The filter indicator lights on top of the air purifier will glow when it is time to replace either the pre-filter or the HEPA filter. For the most efficient operation of the air purifier, under normal conditions it is recommended that you replace the pre-filter every 3 months and the HEPA filter every year.

See "Replacement Filters" in the "Assistance or Service" section. Use of a non-Whirlpool filter or failure to replace the filter regularly will invalidate this warranty.

1. Press POWER to turn off the air purifier.
2. Unplug air purifier or disconnect power.
3. Place fingers on the front release tabs. Gently push the tabs in and pull the front grille forward to remove it.

4. Remove and replace the indicated filter. Install the new HEPA filter in the same direction shown by the arrow located on the filter frame. Install the new pre-filter by placing it on the tabs. NOTE: Do not try to wash and reuse either the HEPA filter or the pre-filter.

5. Place the bottom tabs on the front grille into slots in the base of the air purifier. Push the top of the grille forward until the grille locks into place.

6. Plug in air purifier or reconnect power.
7. Press POWER to start the air purifier.
8. Press either the PRE-FILTER RESET or the HEPA RESET button for 5 seconds to turn off the filter indicator light(s) and reset timer.

TROUBLESHOOTING

First try the solutions suggested here and possibly avoid the cost of a service call...

Air purifier will not run

■ Check the following:

Is the air purifier turned on?

Is the power cord plugged into a grounded 3 prong outlet?

Has a household fuse blown, or has a circuit breaker tripped? Replace the fuse or reset the circuit breaker. If the problem continues, call an electrician.

Was a regular fuse used? Use a time-delay fuse or time-delay circuit breaker.

ASSISTANCE OR SERVICE

Before calling for assistance or service, please check

“Troubleshooting.” It may save you the cost of a service call. If you still need help, follow the instructions below.

When calling, please know the purchase date and the complete model and serial number of your appliance. This information will help us to better respond to your request.

In the U.S.A. and Canada

Call the Customer Service Center toll free: 1-866-990-7365.

Our consultants provide assistance with:

■ Features and specifications on our full line of appliances.
■ Installation information.
■ Use and maintenance procedures.
■ Accessory and repair parts sales.
■ Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.).
■ Referrals to local dealers, repair parts distributors and service companies. Designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in the United States and Canada.

To locate the designated service company in your area, you can also look in your telephone directory Yellow Pages.

For further assistance

If you need further assistance, you can write to Master Brands HK Limited with any questions or concerns at:

Master Brands HK Limited

c/o CCRG Teleservices

4240 Ridge Lea Road, Ste. 29

Amherst, NY 14226

Please include a daytime phone number in your correspondence.

Replacement Filters

Replacement filters may be ordered by calling our Customer Service Center at 1-866-990-7365.

You may also visit our website www.whirlpoolairpurifiers.com.

NOTE: This information is also located on the HEPA filter for your convenience.

Air Purifier Model No.	HEPA Filter Replacement Part No.	Pre-Filter Replacement Part No.
AP51030K 1183054K 8171434K

Quiet 30-Day Money-Back Guarantee

For 30 days from the date of purchase, if you are not completely satisfied that your new Whirlpool® Whispure™ air purifier is quieter than your previous high-efficiency air purifier, Master Brands HK Limited will take it back and refund the full purchase price to you. (Finance and shipping charges are not included.) Contact the Customer Service Center toll-free at 1-866-990-7365 for money-back guarantee procedures.

MANUFACTURER'S FIVE-YEAR LIMITED WARRANTY

ONE YEAR LIMITED WARRANTY

For one year from the date of purchase, if the air purifier fails when operated and maintained according to instructions attached to or furnished with the product, Master Brands HK Limited will repair or, at our option, replace your air purifier. Your replacement unit is covered by our one year limited warranty. This warranty does not cover the replacement HEPA (High Efficiency Particulate Air) filter or pre-filter. Use of a non-Whirlpool filter or failure to replace the filter regularly will invalidate this warranty. Keep this book and your sales receipt together for future reference. You must provide proof of purchase or installation date for in-warranty service.

SECOND THROUGH FIFTH YEAR LIMITED WARRANTY ON AIR PURIFIER MOTOR

For five years from the date of purchase, if the air purifier motor fails when operated and maintained according to instructions attached to or furnished with the product, Master Brands HK Limited will repair or, at our option, replace your air purifier.

Master Brands HK Limited will not pay for:

1. Service calls to instruct you on how to use your air purifier, to replace house fuses or correct house wiring or reset circuit breakers, or to replace owner accessible air filters.
2. Replacement when your air purifier is used in other than normal, single-family household use.
3. Damage resulting from accident, alteration, misuse, abuse, fire, floods, acts of God, improper installation, installation not in accordance with local electrical codes, or use of products not approved by Master Brands HK Limited.
4. Replacement parts, repair labor costs and/or replacement of a "failed" air purifier for units operated outside the United States and Canada.
5. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
6. Shipping or freight charges to return products for warranty service to Master Brands HK Limited.
7. Damage resulting from improper packing of products returned for warranty service.

If you reside in the United States or Canada and your Whirlpool® air purifier should fail within the first year of ownership or the motor fails in the second through fifth year:

1. Call our Customer Service Center 1-866-990-7365 (toll-free).
2. Give the consultant your complete model and serial numbers.
3. The consultant will identify the designated service center nearest your location.
4. You will be responsible for insurance and freight or other transportation to our service center. Please include your name and address on a piece of paper along with a copy of the proof of purchase (register receipt, credit card charge slip, etc.). The air purifier should be properly packaged to avoid damage in transit since we will not be responsible for any such damage.
5. Master Brands HK Limited will return the repaired unit, or at our option, an identical or comparable air purifier to your door free of charge.

MASTER BRANDS HK LIMITED SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.

Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so this exclusion or limitation may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state and province to province.

Outside the 50 United States and Canada, this warranty does not apply. Contact your authorized dealer to determine if another warranty applies.

If you need service, first see “Troubleshooting.” Additional help can be found by checking “Assistance or Service,” or by calling our Customer Service Center at 1-866-990-7365, from anywhere in the U.S.A. and Canada, or write: Master Brands HK Limited, c/o CCRG Teleservices, 4240 Ridge Lea Road, Ste. 29, Amherst, NY 14226.

Keep this book and your sales slip together for future reference. You must provide proof of purchase or installation date for in-warranty service.

Write down the following information about your air purifier to better help you obtain assistance or service if you ever need it. You will need to know your complete model number and serial number. The model and serial number label is located on the bottom of your air purifier.

Dealer name

Address

Phone number

Model number

Serial number

Purchase date

Line drawing of a portable electric heater with ventilation grille and a small panel, labeled A (no text or symbols on the device itself)

Master Brands HK Limited

c/o CCRG Teleservices

4240 Ridge Lea Road, Ste. 29

Amherst, NY 14226

Line drawing of a portable electric heater with ventilation grille and a small panel, labeled A (no text or symbols on the device itself)
