RE370K - Wifi repeater TP-LINK - Free user manual and instructions

Product Type	WiFi Repeater
Brand	TP-Link
Model	RE370K
Dimensions (approx.)	80 x 50 x 40 mm
Weight (approx.)	100 g
Power Supply	Mains plug 100-240 V AC, 50/60 Hz
WiFi Standards	IEEE 802.11a/b/g/n/ac, 2.4 GHz and 5 GHz bands
Max Wireless Data Rate	750 Mbps (300 Mbps 2.4 GHz + 433 Mbps 5 GHz)
Ethernet Port	1 RJ-45 10/100 Mbps port
Buttons	Reset, WPS
LED Indicators	Power, WiFi, Ethernet, Signal
Main Features	WiFi extension, Ethernet client mode, compatibility with any router
Configuration	Via Tether app or web browser (http://tplinkrepeater.net)
Safety	Do not expose to water, fire or humidity. Do not disassemble.
Maintenance and Cleaning	Unplug before cleaning. Use a soft, dry cloth.
Spare parts and repairability	Not available. Product not user-serviceable.
Operating Temperature	0 °C to 40 °C
Operating Humidity	10% to 90% RH (non-condensing)
Certifications	CE, RoHS

Frequently Asked Questions - RE370K TP-LINK

Why can't I access the authentication page after entering http://www.tplinkrepeater.net in my browser?

Make sure the computer is properly connected to the repeater (via Ethernet or WiFi). Check that the computer obtains its IP address automatically. Use the default IP address 192.168.0.254. If the repeater is connected to the router, check the router's DHCP client list. Reset the repeater and try again.

How to reset the repeater?

With the repeater powered on, press and hold the RESET button until all LEDs briefly turn off, then release the button.

How to configure the repeater for the first time?

Plug the repeater halfway between your router and the area to cover. Connect your computer to the repeater's WiFi network (e.g., TP-Link_Extender). Open a browser and go to http://tplinkrepeater.net. Create a password and follow the setup wizard.

Does the repeater work with any router?

Yes, the repeater is compatible with any standard WiFi router complying with 802.11a/b/g/n/ac standards.

What to do if the signal LED is red or off?

A red LED indicates a weak signal. Move the repeater closer to the router. If the LED is off, check the power supply and that the repeater is powered on.

Can I use the repeater as an Ethernet adapter?

Yes, in Ethernet client mode. Connect the repeater to the router via WiFi, then plug a wired device (TV, console, etc.) into the repeater's Ethernet port.

How to change the WiFi password of the repeater?

Access the web interface at http://tplinkrepeater.net, log in, go to wireless settings and change the SSID and password.

Does the repeater get hot?

It is normal for the repeater to become warm during operation. Do not cover it and place it in a well-ventilated area. Avoid hot surfaces.

What is the warranty of the repeater?

The warranty period is indicated on the packaging (typically 2 years for TP-Link products). Check https://www.tp-link.com/fr/support for details.

Does the repeater support WPS?

Yes, it has a WPS button for simplified connection to the router. Press the WPS button on the router then on the repeater.

USER MANUAL RE370K TP-LINK

Quick Installation Guide

Wi-Fi Range Extender

For technical support, replacement services, user guides, and other information, please visit https://www.tp-link.com/support, or simply scan the QR code.

© 2024 TP-Link 7106511130 REV3.2.1

*Images may differ from actual products.

Contents

Deutsch- 1

English 4

Espanol -7

Eλληνικα- 10

Francais- 13

Italiano 16

Portugues 19

Suomi 22

Nederlands 25

Svenska- 28

Norsk- 31

Dansk 34

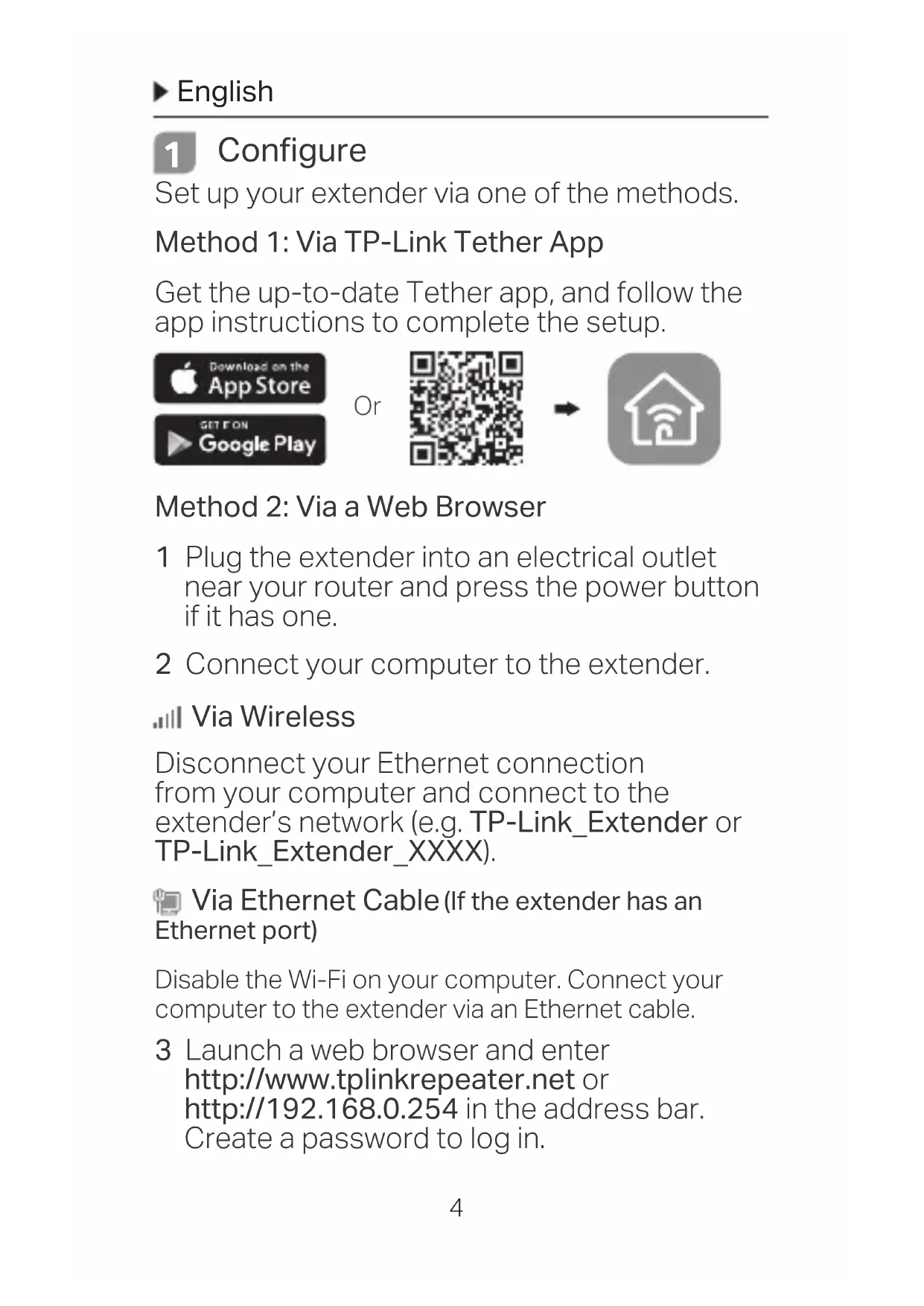

1 Konfigurieren

Set up your extender via one of the methods.

Method 1: Via TP-Link Tether App

Get the up-to-date Tether app, and follow the app instructions to complete the setup.

Method 2: Via a Web Browser

1 Plug the extender into an electrical outlet near your router and press the power button if it has one.
2 Connect your computer to the extender.

Via Wireless

Disconnect your Ethernet connection from your computer and connect to the extender's network (e.g. TP-Link_Extender or TP-Link_Extender_XXXX).

Via Ethernet Cable (If the extender has an Ethernet port)

Disable the Wi-Fi on your computer. Connect your computer to the extender via an Ethernet cable.

3 Launch a web browser and enter http://www.tplinkrepeater.net or http://192.168.0.254 in the address bar. Create a password to log in.

4 Follow the instructions on the web page to complete the initial configuration.

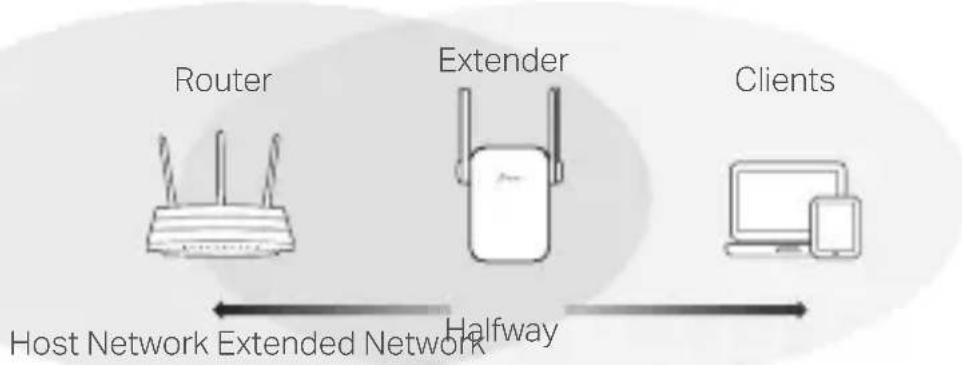

2 Relocate

To achieve better signal quality, plug in the extender halfway between your router and the Wi-Fi dead zone.

Enjoy!

Connect your device to the extender using the extended SSID and Wi-Fi password that you've set during the configuration. The default Wi-Fi password is the same as your host network.

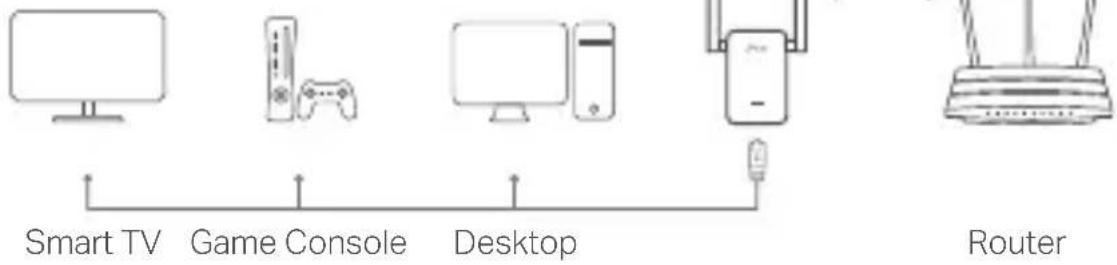

Entertainment Adapter

If your extender has an Ethernet port, it can be used as a wireless adapter to connect any Ethernet-only device such as a Blu-ray player, game console, DVR, or smart TV to your Wi-Fi network.

First, connect the extender to your router, then connect your Ethernet-only device to the extender via an Ethernet cable.

Ethernet Connection

FAQ (Frequently Asked Questions)

Q1 Why can't I see the login page after entering http://www.tplinkrepeater.net in the browser?

A1: Make sure your computer is connected to the extender either via the extended SSID or via an Ethernet cable (if the extender has an Ethernet port).
A2: Make sure your computer is set to obtain an IP address automatically.
A3: Use the IP address to access the extender. The default IP is 192.168.0.254. If the extender is connected to the router, you should go to your router's DHCP client list to obtain the extender's current IP address.
A4: Reset the extender and connect to its wireless network, enter http://www.tplinkrepeater.net or http://192.168.0.254 in a web browser and press Enter.

Q2 How do I reset the extender?

A: With the extender powered on, press the RESET button until the LEDs turn on momentarily, then release the button.

1 Configuración

Configure tu extensor a工程技术 de uno de los métodos.

Método 1: Via App Tether TP-Link

• Keep the device away from water, fire, humidity or hot environments.

• Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.

• Do not use the device where wireless devices are not allowed.

• For passthrough devices, plug the power strips into the integrated electrical sockets of the devices, but devices of the same or another type not be stacked in normal use.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

For TP-Link Branded Products Only. For the information about warranty period, policy and procedures, please visit https://www.tp-link.com/en/support THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTY, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for some period which depends on the local service from the date of original retail purchase by the end-user purchaser.
