USER MANUAL VAPPEBY IKEA

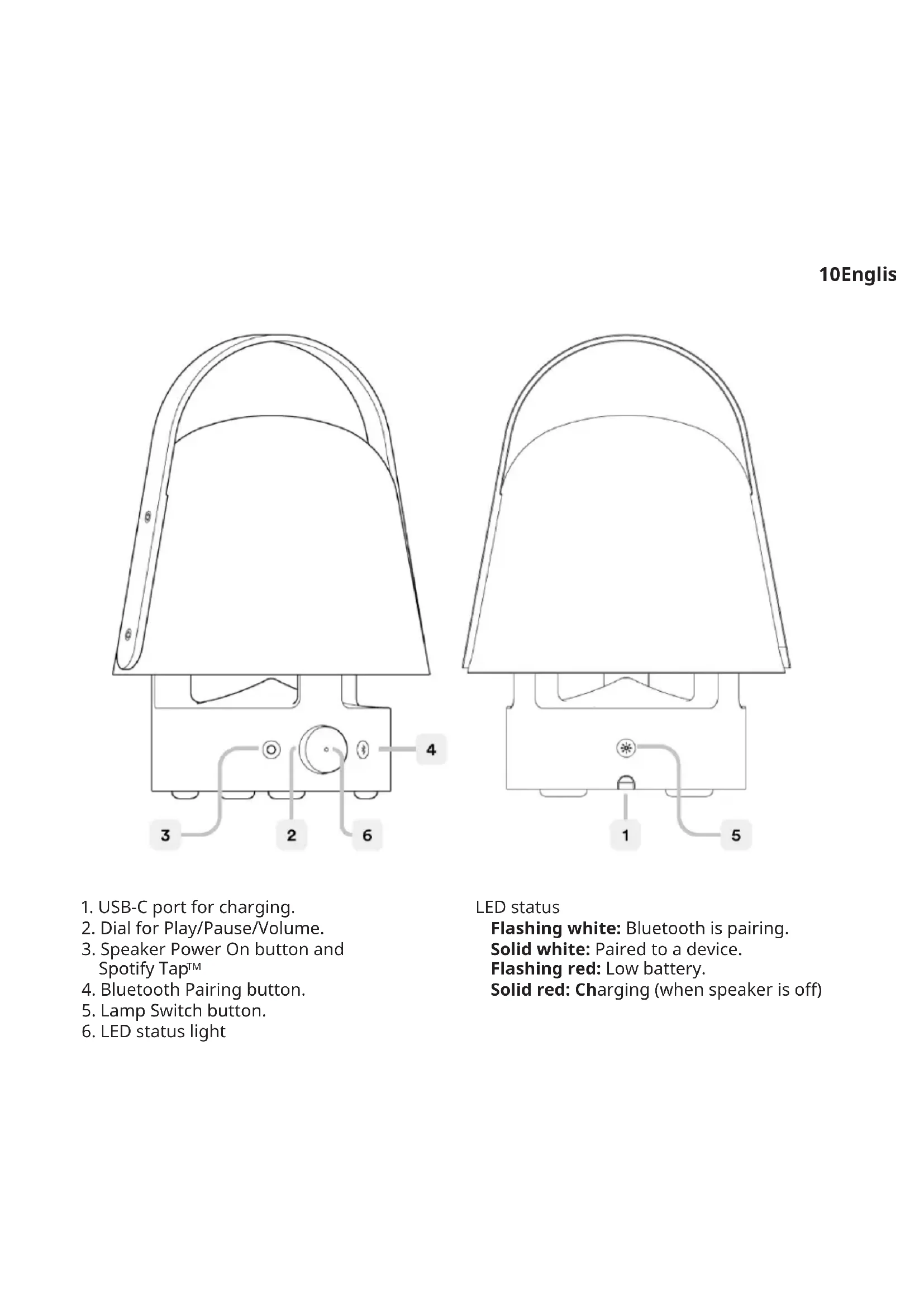

1. USB-C port for charging.

2. Dial for Play/Pause/Volume.

3. Speaker Power On button and

LED status Flashing white: Bluetooth is pairing. Solid white: Paired to a device. Flashing red: Low battery. Solid red: Charging (when speaker is o)11 Getting started Use the USB-C port (1) for charging your product before the rst use and whenever the LED is blinking red to indicate low battery. When charging, the LED is solid red when the speaker is o. Recommended power supply: 5.0V DC, 2.0A, USB-C (Not included) Lamp functions Turning ON/OFF. Press the Lamp switch (5) once to turn it on at 100% brightness. Press again to dimm light to 50% and a third time to TURN OFF. Speaker functions Turning ON/OFF. A short press on the Power button (3) will TURN ON your speaker. A long press on the Power button if you wish to TURN OFF the speaker. Play/Pause. Press the dial (2) to play or pause music. Volume. Rotate the dial (2) clockwise to increase volume and anti-clockwise to reduce volume. Bluetooth pairing. Press and hold (long press)to start pairing mode. The LED will start blinking. Open Bluetooth settings on your device, the speaker should be listed as VAPPEBY. Auto-o. If the speaker is not paired to any device, it will turn o automatically after 5 minutes. In case the speaker is paired but no music is playing, it will turn o automaticall y after 20 minutes. Using Spotify Tap

let's you resume and change music directly from your Bluetooth speaker with the press of one button. If you have an iOS device: Go to the App Store and download the Spotify app. You will be able to create an account or login if you already have one. If you have an Android device: Go to the Google Play Store and download the Spotify app. You will be able to create an account or login if you already have one.12 First use Make sure your device is paired via Bluetooth to your VAPPEBY speakers. Make sure the Spotify mobile app is open. This will only be needed on the rst use. Press the Power button (3) to start music. The LED indicator should blink twice. From now on, whenever you quick press the Power button (3), the music resume anytime your device is paired and in range. Changing music Press again the Power button (3) to change what's playing to a recommended track. Good to know

• Suitable for outdoor use, since it is protected against moisture and water according to IP65

• Devices may get warm during charging; this is completely normal and they will gradually cool down again after they are fully charged.

• Charging time may vary based on the device’s battery capacity, charge level, the age of the battery and the temperature in the surrounding area.

• Storage temperature: -20°C to 25°C (-4°F to 77°F).

• Unplug the product from the power supply before cleaning and when it is not in use. It is normal for the battery to become hot during charging and it will gradually cool down after charging.

• Battery should not be left discharged for a longer period.

• Battery should not be charged while in contact with ammable material like textiles.

• Never install the product in a conned space.

• Always leave a space of at least 5 mm around the product for ventilation.

• Children should be supervised to ensure they do not play with the product.

• Do not modify, disassemble, open, drop, crush, puncture, or shred battery.

• Do not expose the battery to rain or water.

• Risk of res and burns. Do not open, crush, heat above 140°F (60°C), or incinerate.

• Keep battery away from open ame or sunlight to prevent heat build-up.

• Keep battery away from high voltage devices.

• This product is not a toy, keep away from children. Ensure that all persons who use this product read and follow these warnings and instructions.

• Do not short-circuit the battery or its cells.13

• In the event of a cell leaking, do not allow the liquid to come in contact with the skin or eyes. Save these instructions for future use. Care instructions To clean the product, wipe with a soft moistened cloth. Use another soft, dry cloth to wipe dry. Note! Never use abrasive cleaners or chemical solvents as this can damage the product. Product servicing Do not attempt to repair this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks.

RF EXPOSURE INFORMATION

This device complies with RF exposure regulations. The minimum user separation distance shall be at least 20 cm. Technical data Model Name: VAPPEBY Type Number: E2004 Battery capacity: 7.2V DC, 3300 mAh, 23.76 Wh, Li-ion Input: 5.0V DC, 2.0A, 10W USB Type-C Estimated battery play time at 50% Volume and Bluetooth mode: -50% display brightness: 11 - 13 h Operating temperatures: 0°C to 45°C (32°F to 113°F) Operating humidity: 0 to 95%RH Operating Frequency: 2400-2483.5 MHz Radio output power: 1 dBm (EIRP) Bandwidth: 1 MHz Decorative light: 20lm, 2700K IP Class: IP65 Manufacturer: IKEA of Sweden AB Address: Box 702, SE-343 81 Älmhult, SWEDEN14 The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by IKEA is under license. Other trademarks and trade names are those of their respective owners. Spotify Tap

is a trademark owned by Spotify and any use of such marks by IKEA is under license. All other Spotify trademarks, service marks, trade names, logos, domain names, and any other features of the Spotify brand are the sole property of Spotify or its licensors. This device complies with Part 15 of the FCC Rules. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation Science and Economic Development Canada's licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device.

Any changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the15 instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the quipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/ TV technician for help. The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-ll and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.16Français
