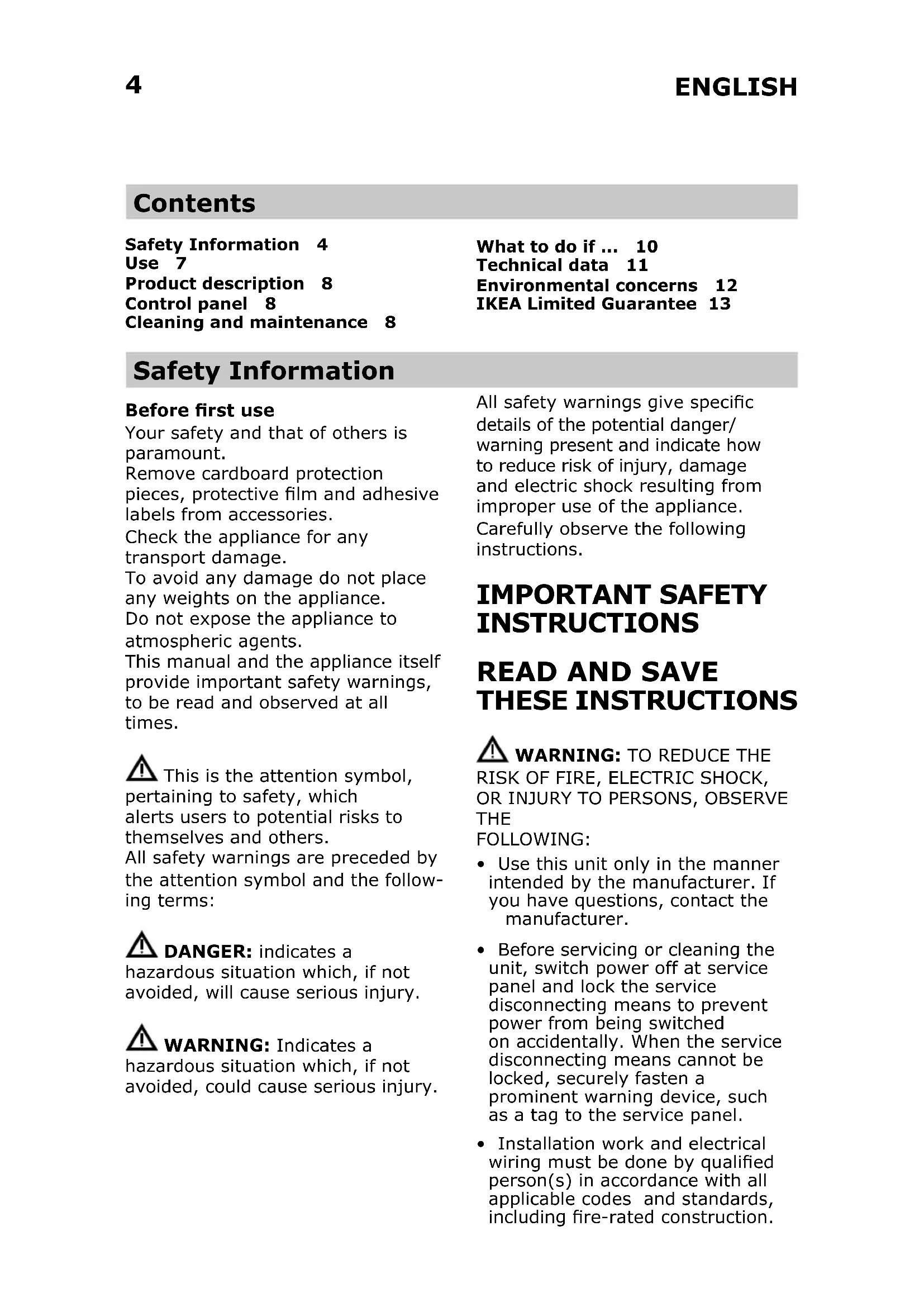

Contents Safety Information 4 Use 7 Product description 8 Control panel 8 Cleaning and maintenance 8 What to do if ... 10 Technical data 11 Environmental concerns 12 IKEA Limited Guarantee 13 Safety Information Before rst use Your safety and that of others is paramount. Remove cardboard protection pieces, protective lm and adhesive labels from accessories. Check the appliance for any transport damage. To avoid any damage do not place any weights on the appliance. Do not expose the appliance to atmospheric agents. This manual and the appliance itself provide important safety warnings, to be read and observed at all times. This is the attention symbol, pertaining to safety, which alerts users to potential risks to themselves and others. All safety warnings are preceded by the attention symbol and the follow- ing terms:

hazardous situation which, if not avoided, will cause serious injury.

WARNING: Indicates a

hazardous situation which, if not avoided, could cause serious injury. All safety warnings give specic details of the potential danger/ warning present and indicate how to reduce risk of injury, damage and electric shock resulting from improper use of the appliance. Carefully observe the following instructions. IMPORTANT SAFETY INSTRUCTIONS

• Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.

• Before servicing or cleaning the unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag to the service panel.

• Installation work and electrical wiring must be done by qualied person(s) in accordance with all applicable codes and standards, including re-rated construction.ENGLISH

• Sufcient air is needed for proper combustion and exhausting of gases through the ue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer’s guideline and safety standards such as those published by the National Fire Protection Association (NFPA), the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.

• When cutting or drilling into wall or ceiling; do not damage electrical wiring and other utilities.

• Ducted fans must always be vented outdoors. CAUTION: For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors. Suitable for use in household cooking area. CAUTION: To reduce risk of re and to properly exhaust air, be sure to duct air outside - do not vent exhaust air into spaces within walls or ceilings, attics or into crawl spaces, or garages.

• Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.

• Always turn hood ON when cooking at high heat or when ambeing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).

• Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or lter.

• SMOTHER FLAMES with a close tting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the ames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.

• NEVER PICK UP A FLAMING PAN - you may be burned.

• DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result. Use an extinguisher ONLY if: - You know you have a class ABC extinguisher, and you already know how to operate it. - The re is small and contained in the area where it started. - The re department is being called. - You can ght the re with your back to an exit.

Based on “Kitchen Fire Safety Tips” published by NFPA.

WARNING: To Reduce The Risk

Installation and connection

• In the event of problems, contact the Authorized Service Centre. To prevent any damage, only remove the appliance from its packaging at the time of installation. Preparing for installation

WARNING: This is a heavy

product; the hood should only be lifted and installed by two or more people. Electrical Requirements Observe all governing codes and ordinances. Ensure that the electrical installa- tion is adequate and in conformance with National Electrical Code, ANSI/ NFPA 70 (latest edition), or CSA Standards C22.1-94, Canadian Elec- trical Code, Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes and ordinances. If codes permit and a separate ground wire is used, it is recom- mended that a qualied electrician determine that the ground path is adequate. A copy of the above code standards can be obtained from: National Fire Protection Association 1 Batterymarch Park Quincy, MA 02169-7471 CSA International 8501 East Pleasant Valley Road Cleveland, OH 44131-5575

• A 120 volt, 60 Hz., AC only, 15-amp, fused electrical circuit is required.

• If the house has aluminum wiring, follow the procedure below:

1. Connect a section of solid

copper wire to the pigtail leads.

2. Connect the aluminum wiring

to the added section of copper wire using special connectors and/or tools designed and UL listed for joining copper to alu- minum. Follow the electrical connector man- ufacturer’s recommended proce- dure. Aluminum/copper connection must conform with local codes and industry accepted wiring practices.

• Wire sizes and connections must conform with the rating of the appliance as specied on the model serial rating plate. The model/serial plate is located behind the lter on the rear wall of the range hood.

• Wire sizes must conform to the requirements of the National Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22. 1-94, Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes and ordinances.ENGLISH

Use The hood has been designed to be installed and used either as a “Ex- traction installation” or “Recircula- tion installation” Extraction installation (see sym- bol in installation booklet) Cooking steam is sucked and chan- nelled outside the house through a discharge duct (not supplied), tted to the hood steam outlet. Ensure that the discharge duct is correctly tted to the air outlet, unit using an appropriate connection system. Recirculation installation (see symbol in installation booklet) The air is ltered through one or more the charcoal lters, and then resent into room. Important: Ensure appropriate air circulation around the hood. Important: If the hood is supplied without charcoal lters, these must be tted before the hood can be used. Charcoal Filters are available in IKEA stores. The hood should be installed away from particularly dirty areas, win- dows, doors and heat sources. Keep this booklet for future consul- tation. I WARNING! To reduce the risk of re or shock when the hood is used in recirculation mode, use only the conversion kit models listed below: Recirculating kit: NYTTIG FIL 20

1 Chimney. 2 Control Panel. 3 Lights. 4 Grease lter.ENGLISH

- Never use steam cleaning equip- ment. - Disconnect the appliance from the power supply. IMPORTANT: do not use corrosive or abrasive detergents. If any of these products accidentally comes into contact with the appliance, clean immediately with a damp cloth. Clean the surfaces with a damp cloth. If it is very dirty, add a few drops of washing up detergent to the water. Finish off with a dry cloth. IMPORTANT: do not use abrasive sponges or metallic scrapers or scourers. Over time, these can ruin the surface.

• Use detergents specically designed for cleaning the appliance and follow the manufacturer instructions. IMPORTANT: clean the lters at least monthly to remove any oil or grease residuals. To clean the grease lter The metal grease lter has an unlimited life and must be washed once a month by hand or dish- washer at low temperature and with a short cycle. With cleaning in a dishwasher the grease lter may become dull; this does not effect its ltering capacity. Grease lter maintenance:

3. Disconnect the hood from the

electric power supply.

4. Remove the grease lters: pull

the spring release handle downwards, then remove the lter.

5. After cleaning the grease lter,

remount in reverse order ensuring the entire extraction surface is covered.

Charcoal lter: The charcoal lter is not washable. It should last up to 6 months with normal use. Lamp maintenance The hood is equipped with a lighting system based on LED technology. The LEDs guarantee an optimum lighting, a duration up to 10 times as long as the traditional lamps and allow to save 90% electrical energy. For replacement, contact the Au- thorized Service Centre.ENGLISH

Before contacting the Authorized Service Centre Switch the appliance on again to see if the problem has disappeared. If not, switch it off again and repeat the operation after an hour.

• If your appliance still does not work properly after carrying out the checks listed in the troubleshooting guide and switching the appliance on again, contact the Authorized Service Centre, clearly explaining the problem and specifying: What to do if ... Problem Possible cause Solution The appliance does not work There is no mains electrical power Check for the presence of mains electrical power. Turn off the appliance and restart it to see if the faults persists. The appliance is not connected to the electrical supply Check if the appliance is con- nected to the electrical supply. Turn off the appliance and restart it to see if the faults persists. The hood’s suction level is not enough The suction speed is too low Check the suction speed and adjust as necessary. The grease lters are dirty Check that the lters are clean If not, clean the lters in the dishwasher. The air vents are obstructed Check the air vents for any obstructions and remove as necessary. The light does not work The LED is broken For replacement, contact the Authorized Service Centre.

• the type and serial number of the appliance (given on the rating plate)ENGLISH

Technical data Type of product Wall hood Model

⁄16” (821 mm) Height max in (mm)

Energy Consumption On Hold Wh 0 Wh In Operation Wh 280 Wh Lamps info Type LED Number & Max Lamp Power W 2 x 6.5 W Installation minimum height - gas cooktop in (mm) 32” (813 mm) Installation minimum height - elec cooktop in (mm) 24” (610 mm) Product Weight Kg

Made in MexicoENGLISH

Environmental concerns Disposal of packing The various parts of the packing must be disposed of responsibly and in full compliance with local author- ity regulations governing waste disposal. Scrapping the product -- By ensuring this product is disposed of correctly, you will help prevent potential negative conse- quences for the environment and human health, which could other- wise be caused by inappropriate waste handling of this product. This product should not be treated as domestic waste but must be taken to an appropriate collection centre for the recycling of electrical and electronic equipment. Scrapping of household appliances

• This appliance is manufactured with recyclable or reusable materials. Dispose of it in accordance with local waste disposal regulations. Before scrapping, cut off the power supply cable.

• For further information on the treatment, recovery and recycling of household electrical appliances, contact your competent local authority, the collection service for household waste or the store where you purchased the appliance. Energy saving tips

• Increase the speed only in case of large amount of smoke and vapour and use boost speed(s) only in extreme situations.

• Replace the charcoal lter(s) when necessary to maintain a good odour reduction efciency.

• Clean the grease lter(s) when necessary to maintain a good grease lter efciency.

• Use the maximum diameter of the ducting system indicated in this manual to optimize efciency and minimize noise.ENGLISH

How long is the IKEA guarantee valid? This guarantee is valid for ve (5) years from the original date of purchase of Your appliance at IKEA, unless the appliance is named LA- GAN or TILLREDA in which case two (2) years of guarantee apply. The original sales receipt is required as proof of purchase. If service work is carried out under guarantee, this will not extend the guarantee period for the appliance Who will execute the service? IKEA “Service Provider” will provide the service through its own service operations or authorized service partner network. What does this guarantee cover? The guarantee covers faults of the appliance, which have been caused by faulty construction or material faults from the date of purchase from IKEA. This guarantee applies to domestic use only. Some exceptions not guaranteed are specied under the headline “What is not covered under this guarantee?” Within the guarantee period, the costs to rem- edy the fault (e.g., repairs, parts, labour and travel) will be covered, provided that the appliance is ac- cessible for repair without special expenditure. On these conditions the local regulations are applicable. Replaced parts become the property of IKEA. What will IKEA do to correct the problem? IKEA appointed Service Provider will examine the product and decide, at its sole discretion, if it is covered under this guarantee. If considered covered, IKEA Service Provider or its authorized service partner through its own service operations, will then, at its sole discretion, either repair the defective product or replace it with the same or a comparable product in the consumer’s home subject to the security and accesibil- ity conditions of the area. What is not covered under this guarantee?

• Normal wear and tear.

• Deliberate or negligent damage, damage caused by failure to observe operating instructions, incorrect installation or by connection to the wrong voltage, damage caused by chemical or electrochemical reaction, rust, corrosion or water damage including but not limited to damage caused by excessive lime in the water supply, damage caused by abnormal environ- mental conditions and damage caused by pests, rodents, insects or other animals.

• Consumable parts including batteries and lamps.

• Non-functional and decorative parts which do not affect normal use of the appliance, including any scratches and possible colour differences.

• Accidental damage caused by foreign objects or substances and cleaning or unblocking of lters, drainage systems or soap drawers.ENGLISH

• Damage to the following parts: ceramic glass, accessories, crockery and cutlery baskets, feed and drainage pipes, seals, lamps and lamp covers, screens, knobs, casings and parts of casings. Unless such damages can be proved to have been caused by production faults.

• Cases where no fault could be found during a technician’s visit.

• Repairs not carried out by our appointed service providers and or an authorized service contractual partner or where non-original parts have been used.

• Repairs caused by installation which is faulty or not according to specication.

• The use of the appliance in a non-domestic environment i.e. professional use.

• Transportation damages. If a customer transports the product to his home or another address, IKEA is not liable for any damage that may occur during transport However, if IKEA delivers the product to the customer’s delivery address, then damage to the product that occurs during this delivery will be covered by IKEA.

• Cost for carrying out the initial installation of the IKEA appliance. However, if an IKEA appointed Service Provider or its authorized service partner repairs or replaces the appliance under the terms of this guarantee, the appointed Service Provider or its authorized service partner will reinstall the repaired appliance or install the replacement, if necessary. How country law applies The IKEA guarantee gives you spe- cic legal rights, and you may also have other rights which vary from state to state or jurisdiction to juris- diction. However these conditions do not limit in any way consumer rights described in the local legislation. Area of validity For appliances which are purchased in United States or Canada, or moved to one of the mentioned countries, the services will be provided in the framework of the guarantee conditions normal in the specied country. For appliances wich are purchased in Mexico, will be serviced in Mexico, the service will be provided in framework of the guarantee condi- tions normal in the specied coun- try. An obligation to carry out services in the framework of the guarantee exists only if the appliance complies and is installed in accordance with: -- the technical specications of the country in which the guarantee claim is made; -- the Assembly Instructions and User Manual Safety Information. The dedicated AFTER SALES for IKEA appliances Please don’t hesitate to contact IKEA appointed After Sales Service Provider to:

• make a service request under this guarantee;

• ask for clarications on installation of the IKEA appliance in the dedicated IKEA kitchen furniture;

• ask for clarication on functions of IKEA appliances.ENGLISH
