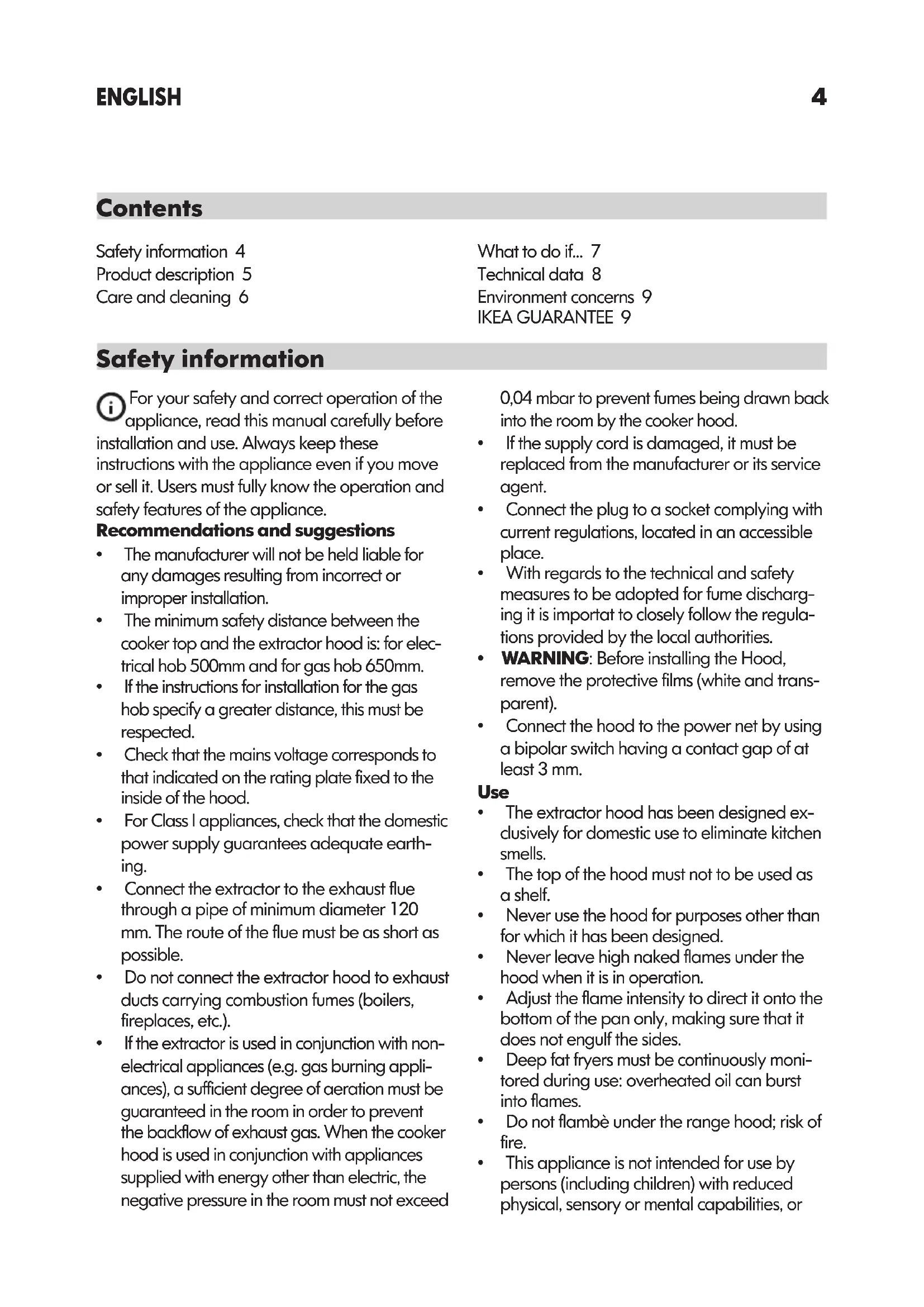

FÖRTROLLAengLish 4 deuTsch 12 FRAnÇAis 20 iTALiAnO 344 english For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance. Recommendations and suggestions

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.

• The minimum safety distance between the cooker top and the extractor hood is: for elec- trical hob 500mm and for gas hob 650mm.

• If the instructions for installation for the gas hob specify a greater distance, this must be respected.

• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.

• For Class I appliances, check that the domestic power supply guarantees adequate earth- ing.

• Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.

• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).

• If the extractor is used in conjunction with non- electrical appliances (e.g. gas burning appli- ances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.

• If the supply cord is damaged, it must be replaced from the manufacturer or its service agent.

• Connect the plug to a socket complying with current regulations, located in an accessible place.

• With regards to the technical and safety measures to be adopted for fume discharg- ing it is importat to closely follow the regula- tions provided by the local authorities.

• WARNING: Before installing the Hood, remove the protective films (white and trans- parent).

• Connect the hood to the power net by using a bipolar switch having a contact gap of at least 3 mm. Use

• The extractor hood has been designed ex- clusively for domestic use to eliminate kitchen smells.

• The top of the hood must not to be used as a shelf.

• Never use the hood for purposes other than for which it has been designed.

• Never leave high naked flames under the hood when it is in operation.

• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.

• Deep fat fryers must be continuously moni- tored during use: overheated oil can burst into flames.

• Do not flambè under the range hood; risk of fire.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or Contents Safety information 4 Product description 5 Care and cleaning 6 What to do if... 7 Technical data 8 Environment concerns 9 IKEA GUARANTEE 9 Safety information5 english Product description Upper chimney Lower chimney Hood body Lighting Grease filter Control panel BUTTON FUNCTION A = Speed Turns the Motor ON at Speed one. Turns the Motor OFF. B = Speed Set the Motor at Speed two. C = Speed Set the Motor at speed three. D = Light Turns the Lighting System ON and OFF. DCBA Control Panel lack of experience and knowledge, unless they have been given supervision or instruc- tion concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance. Accessible parts may become hot when used with cooking appliances.6 english Care and cleaning Switch off or unplug the appliance from the mains supply before carrying out any main- tenance work. IMPORTANT Clean the hood using a damp cloth and a neutral liquid detergent. Charcoal Filter These filters are not washable and cannot be regenerated, and must be replaced approxi- mately every 4 months of operation, or more frequently with heavy usage. Grease Filters Clean or replace the filters continuously accord- ing to below time intervals, to maintain good performance of the hood and to prevent a po- tential fire hazard, caused by excessive grease build-up. The grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher. Replacing the lamps Remove the snap-on lamp cover by levering it from under the metal ring, supporting it with one hand. Remove the halogen lamp from the lamp holder by pulling gently. Replace the lamp with a new one of the same type, making sure that you insert the two pins properly into the housings on the lamp holder. Replace the snap-on lamp cover. 20 W - 12V halogen light. Connection type: G4, Length 30mm.

english What to do if...

PROBLEM POSSIBLE CAUSE SOLUTION

Appliance not stable The appliance is not correctly installed Follow the Installation instruction enclosed to the appliance. Appliance is not in horizontal position The appliance is not correctly installed Follow the Installation instruction enclosed to the appliance. Performance in terms of oil capture arent satisfying Oilandgreaseonmetal lters Followthecleaningfrequencyofltersas described in the user manual Appliance doesn't work The appliance is not correctly connected Verify that the main cable is connected to the motor group or the plug is connected to the socket The lamp is not working Thelampisnotcorrectlyxed Verify that the lamp is screwed properly to the lampholder The lamp is not working The lamp is faulty Replace the lamp bulb If there is a fault, first try to find a solution to the problem yourself. If you cannot find a solution to the problem yourself, contact the After Sales Service. If you operated the appliance wrongly, or the installation was not carried out accord- ing to the Assembly instructions, the visit from the After Sales Service technician or dealer may not take place free of charge, even during the warranty period.8 english Technical data Dimensions Width Height Depth 650 mm Min.950 mm - Max.1180 mm 510 mm Lamp 2 x 20W Total Connection Rating 180 W Type of lamp and socket Halogen 12V 20W G4 / Length 30mm AirowMax- Exhaust 560 m

Noice Max - Recirculation 72 dB(A) Installation Min. Height - Gas Hob 650 mm Installation Min. Height - Electric Hob 500 mm Weight 12 Kg This appliance has been designed, manufactured and marketed in compliance with the E.E.C. Directives. The technical information is situated in the rating plate on the internal side of the appliance.9 english Environment concerns IKEA GUARANTEE Maintenance

• The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recy- cling of this product, please contact your local How long is the IKEA guarantee valid? This guarantee is valid for five (5) years from the original date of purchase of Your appliance at IKEA, unless the appliance is named LAGAN in which case two (2) years of guarantee apply. The original sales receipt is required as proof of purchase. If service work is carried out under guarantee, this will not extend the guarantee period for the appliance. Which appliances are not covered by the IKEA five (5) years guarantee? The range of appliances named LAGAN and all appliances purchased in IKEA before 1 st of August 2007 Who will execute the service? IKEA service provider will provide the service through its own service operations or authorized service partner network. What does this guarantee cover? The guarantee covers faults of the appliance, which have been caused by faulty construction or material faults from the date of purchase from IKEA. This guarantee applies to domestic city office, your household waste disposal service or the shop where you purchased the product. Packaging materials The materials with the symbol are recycla- ble. Dispose the packaging in suitable collection containers to recycle it. use only. The exceptions are specified under the headline “What is not covered under this guarantee?” Within the guarantee period, the costs to remedy the fault e.g. repairs, parts, labour and travel will be covered, provided that the appliance is accessible for repair without special expenditure. On these conditions the EU guidelines (Nr. 99/44/EG) and the respective local regulations are applicable. Replaced parts become the property of IKEA. What will lKEA do to correct the problem? IKEA appointed service provider will examine the product and decide, at its sole discretion, if it is covered under this guarantee. If considered covered, IKEA service provider or its authorized service partner through its own service opera- tions, will then, at its sole discretion, either repair the defective product or replace it with the same or a comparable product. What is not covered under this guaran- tee?

• Normal wear and tear.

• Deliberate or negligent damage, damage10 english caused by failure to observe operating in- structions, incorrect installation or by connec- tion to the wrong voltage, damage caused by chemical or electro-chemical reaction, rust, corrosion or water damage including but not limited to damage caused by excessive lime in the water supply, damage caused by abnormal environmental conditions.

• Consumable parts including batteries and lamps.

• Non-functional and decorative parts which do not affect normal use of the appliance, including any scratches and possible color differences.

• Accidental damage caused by foreign objects or substances and cleaning or un- blocking of filters, drainage systems or soap drawers.

• Damage to the following parts: ceramic glass, accessories, crockery and cutlery bas- kets, feed and drainage pipes, seals, lamps and lamp covers, screens, knobs, casings and parts of casings. Unless such damages can be proved to have been caused by produc- tion faults.

• Cases where no fault could be found during a technician’s visit.

• Repairs not carried out by our appointed ser- vice providers and/or an authorized service contractual partner or where non-original parts have been used.

• Repairs caused by installation which is faulty or not according to specification.

• The use of the appliance in a non-domestic environment i.e. professional use.

• Transportation damages. If a customer trans- ports the product to their home or other ad- dress, IKEA is not liable for any damage that may occur during transport. However, if IKEA delivers the product to the customer’s delivery address, then damage to the product that occurs during this delivery will be covered by this guarantee.

• Cost for carrying out the initial installation of the IKEA appliance. However, if an IKEA service provider or its authorized service partner repairs or replaces the appliance under the terms of this guarantee, the service provider or its authorized service partner will re-install the repaired appliance or install the replacement, if necessary. This restriction do not apply to fault-free work carried out by a qualified specialist using our original parts in order to adapt the appliance to the technical safety specifications of another EU country. How country law applies The IKEA guarantee gives You specific legal rights, which covers or exceed local demands. However these conditions do not limit in any way consumer rights described in the local legislation Area of validity For appliances which are purchased in one EU country and taken to another EU country, the services will be provided in the framework of the guarantee conditions normal in the new country. An obligation to carry out services in the framework of the guarantee exists only if the appliance complies and is installed in accord- ance with:

• the technical specifications of the country in which the guarantee claim is made;

• the Assembly Instructions and User Manual Safety Information; The dedicated After Sales Service for IKEA appliances: Please do not hesitate to contact IKEA After Sales Service to:

1. make a service request under this guarantee;

2. ask for clarification on installation of the IKEA

appliance in the dedicated IKEA kitchen furniture. The service won’t provide clarifica- tions related to: - the overall IKEA kitchen installation; - connections to electricity (if machine comes without plug and cable), to water and to gas since they have to be executed by an author- ized service engineer.11 english

3. ask for clarification on user manual contents
