TRÅDFRI 205.187.42 - Lighting IKEA - Free user manual and instructions

Brand	IKEA
Model	TRÅDFRI 205.187.42
Product type	Smart LED bulb (lamp)
Dimensions	Standard E27 (classic bulb size)
Weight	Approx. 100 g (estimate)
Power supply	Mains (via E27 socket)
Color temperature	2200 K (reddish) to 4000 K (cool white)
Main functions	Dimming, color change, pairing up to 10 light sources with one control device
Operating frequency	2405 - 2480 MHz
Output power	10 dBm
Reset	Toggle the main switch 6 times
Compatibility	Only with IKEA Smart Lighting products (standard dimmer not compatible)
Care and cleaning	Dust with a dry cloth; do not use liquid products
Safety	Do not use with standard dimmers; keep at least 20 cm distance during use
Spare parts and repairability	LED bulb not replaceable by user; contact IKEA for any defects
General information	FCC and ISED compliant; recycle according to local regulations

Frequently Asked Questions - TRÅDFRI 205.187.42 IKEA

How to pair the TRÅDFRI bulb with an IKEA control device?

Make sure the bulb is installed and turned on. Hold the control device within 5 cm of the bulb, then press the pairing button for at least 10 seconds. The red LED lights up and the bulb flashes once to confirm pairing.

How many light sources can be paired with one control device?

You can pair up to 10 light sources with one IKEA control device. Pair them one by one and disconnect already paired ones if they are nearby.

How to reset the TRÅDFRI bulb?

To reset the bulb, toggle the main switch 6 times quickly. This clears all previous pairings.

Can I use this bulb with a standard dimmer?

No, never use a standard dimmer. Only use the supplied or compatible IKEA control device.

What color temperatures are available?

The bulb can vary between 2200 K (reddish light), 2700 K (warm white) and 4000 K (cool white).

Is the TRÅDFRI bulb compatible with other smart home brands?

No, this bulb works only with IKEA smart lighting products (gateway, remote, etc.).

What is the maximum range between the bulb and the control device?

The effective range is about 10 meters indoors, but may vary depending on obstacles. Keep the device within 5 cm during pairing.

How to clean the TRÅDFRI bulb?

Dust with a dry, soft cloth. Do not use liquid or abrasive products to avoid damaging the bulb.

What to do if the bulb stops responding?

Try to reset the bulb by toggling the switch 6 times. If that doesn't work, check the power supply and bring the control device closer.

Is the TRÅDFRI bulb dimmable?

Yes, the bulb is dimmable only with the IKEA control device. You can adjust the brightness from 10% to 100%.

USER MANUAL TRÅDFRI 205.187.42 IKEA

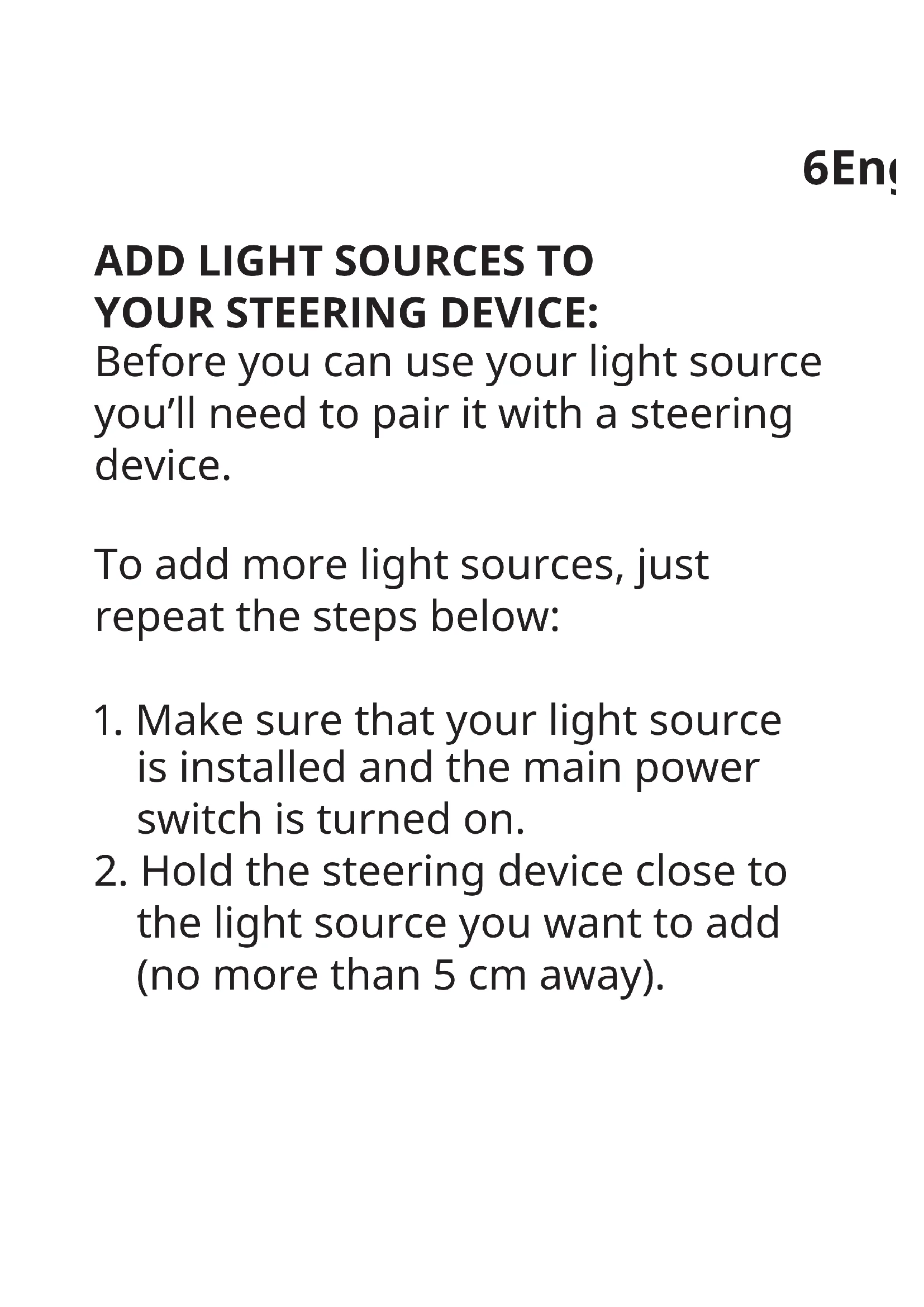

ADD LIGHT SOURCES TO YOUR STEERING DEVICE:

Before you can use your light source you'll need to pair it with a steering device.

To add more light sources, just repeat the steps below:

1. Make sure that your light source is installed and the main power switch is turned on.

2. Hold the steering device close to the light source you want to add (no more than 5 cm away).

3. Press and hold the pairing button

for at least 10 seconds. A red light will shine steadily on the steering device. Your light source will begin to dim and finally flash one time to indicate that it has been successfully paired.

Up to 10 light sources can be paired with 1 steering device.

Make sure to pair them one at a time. If the light sources are close to each other, disconnect those that have already been paired from the main power switch.

CAUTION:

DO NOT USE WITH STANDARD DIMMERS. Only use the control provided with or specified by these instructions to control this bulb. This bulb will not operate properly when connected to a standard (incandescent) dimmer or dimming control. Only controllable by IKEA Smart lighting products.

The colour temperature can be switched between 2200K (warm glow), 2700K (warm white) and 4000K (cool white).

RESET YOUR DEVICE

Toggle the main switch 6 times.

TECHNICAL DATA:

Operating

frequency: 2405 - 2480 MHz

Output power: 10 dBm

Manufacturer:

IKEA of Sweden AB

Address:

Box 702, SE-343 81

Almhult, SWEDEN

This device complies with Part 15 of the FCC Rules.

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation Science and Economic Development Canada's licence-exempt RSS standard(s).

Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation of the device.

WARNING:

Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

RF EXPOSURE INFORMATION

According to RF exposure regulations, under normal operations the end user shall refrain from being closer than 20~cm from the device.

License rights and limitations

NO RIGHTS OR LICENSES, EXPRESS OR IMPLIED, ARE GRANTED TO USE THIRD-PARTY DEVICES IN COMBINATION WITH THESE PRODUCTS IN A WIRELESS MESH NETWORK, OR TO USE THIRD-PARTY SERVICES TO ACCESS, MONITOR OR CONTROL THESE PRODUCTS IN A

WIRELESS MESH NETWORK VIA THE INTERNET OR ANOTHER EXTERNAL WIDE AREA NETWORK.

For use pursuant to U.S. Patent Nos.:

US 6,914,893

US 7,697,492

US 8,964,708

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.

AJOUT SOURCES LUMINEUSES AU DISPOSITIONIF DE COMMANDE

Fabricant : IKEA of Sweden AB

Adresse :

Box 702, SE-343 81 Almhult, SUÉDE
