Product Type	Smart LED Light Bulb
Model	TRÅDFRI 105.456.75
Brand	IKEA
Socket	E27
Wattage	10 W (equivalent to 60 W incandescent)
Luminous Flux	1000 lumens
Color Temperature	2700 K - 4000 K (warm white to cool white)
Dimmable	Yes, via TRÅDFRI remote or app
Smart Connectivity	Zigbee (requires TRÅDFRI gateway)
Dimensions	Diameter: 60 mm, Height: 110 mm
Weight	100 g
Material	Polycarbonate (plastic)
Input Voltage	220-240 V AC, 50/60 Hz
Standby Power	0.5 W
Main Functions	On/off, dimming, color temperature adjustment, scheduling, remote control via app
Cleaning and Maintenance	Wipe with a dry cloth; do not use abrasive cleaners or immerse in water
Safety Warnings	Disconnect power before cleaning; do not cover the bulb; use in dry locations only
Spare Parts and Repairability	Non-repairable; replace the entire unit if defective
General Information	Part of IKEA Home Smart system; compatible with IKEA TRÅDFRI remote, motion sensor, and app; works with Amazon Alexa, Google Assistant, Apple HomeKit (via gateway)

Frequently Asked Questions - TRÅDFRI 105.456.75 IKEA

How do I connect the TRÅDFRI bulb to the gateway?

First, screw the bulb into a socket and turn on the power. Open the IKEA Home Smart app, go to 'Add device', and follow the instructions. You may need to reset the bulb by turning it off and on 6 times quickly.

Can I use this bulb without the IKEA gateway?

Yes, you can use it with a compatible Zigbee remote control (like the TRÅDFRI remote) without a gateway. However, the gateway is required for app control and voice assistants.

Is the bulb dimmable?

Yes, it is dimmable via a TRÅDFRI remote, the IKEA Home Smart app, or voice commands when connected to a gateway. It does not work with standard wall dimmers.

What is the color temperature range?

The bulb offers a warm white to cool white range from 2700 K to 4000 K. You can adjust it in the app or with a remote control that has a color temperature button.

How many devices can be connected to one TRÅDFRI gateway?

The gateway supports up to 10 devices in a single steering device group, but you can have multiple groups. In total, the gateway can manage up to 30 devices.

What should I do if the bulb does not respond?

Try resetting the bulb: turn it off and on 6 times quickly (wait about 2 seconds between cycles). If it still doesn't work, check your gateway connection and ensure the bulb is within range.

Can I use this bulb outdoors?

No, this bulb is designed for indoor use only. It is not weatherproof and should not be exposed to moisture or extreme temperatures.

Does the bulb work with Apple HomeKit?

Yes, if you have the IKEA TRÅDFRI gateway (sold separately), you can add the bulb to Apple HomeKit. The gateway acts as a bridge to HomeKit.

How do I clean the bulb?

Always turn off the power before cleaning. Wipe the bulb with a dry, soft cloth. Do not use water, cleaning agents, or immerse the bulb in liquid.

What is the lifespan of this bulb?

The LED bulb has an estimated lifespan of 25,000 hours, which is about 22 years if used for 3 hours per day.

USER MANUAL TRÅDFRI 105.456.75 IKEA

Diagram illustrating the process of lighting and electrical installation, showing a light bulb being replaced by a switch to an LED.

max (m

max 5 cm (max 2")

cm 2") >10 s

> 10 s

English 6

Español 9

Portugues 12

中文 15

繁中 18

한국어 21

日本語 24

Bahasa Indonesia 27

Bahasa Malaysia 30

عربي 33

Iny 36

Tiếng Việt 39

ADD LIGHT SOURCES TO YOUR STEERING DEVICE:

Before you can use your light source you'll need to pair it with a steering device.

To add more light sources, just repeat the steps below:

1. Make sure that your light source is installed and the main power switch is turned on.

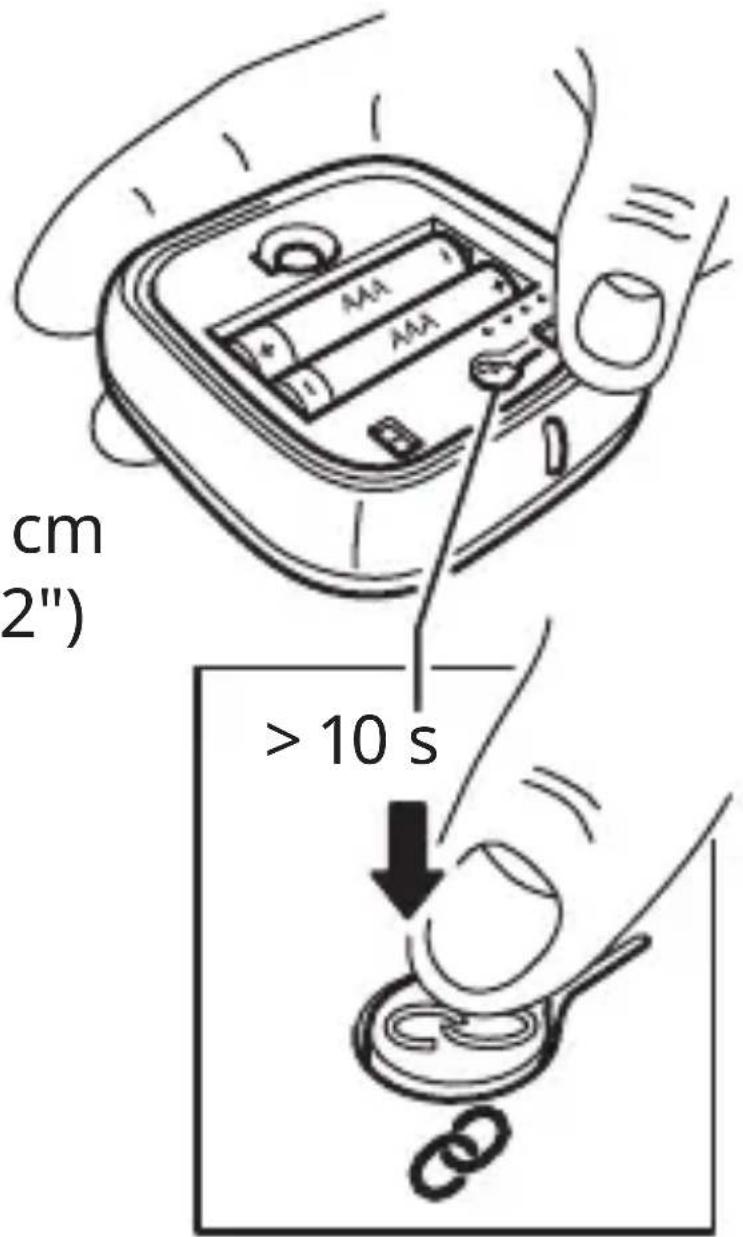

2. Hold the steering device close to the light source you want to add (no more than 5 cm away).

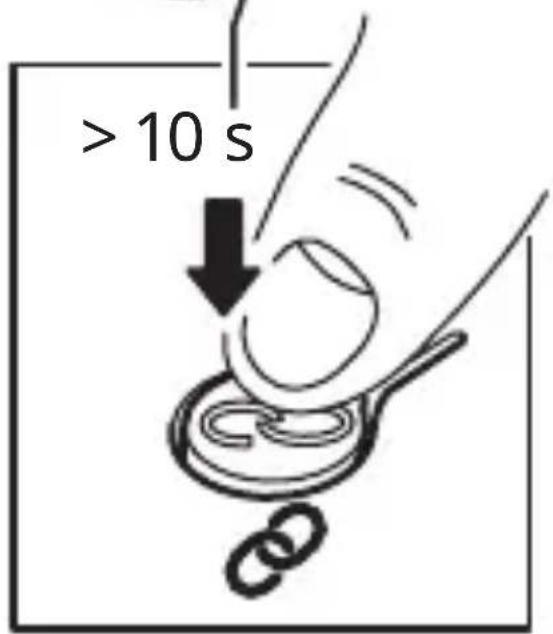

3. Press and hold the pairing button for at least 10 seconds. A red light will shine steadily on the steering device. Your light source will begin to dim and finally flash one time to indicate that it has been successfully paired.

Up to 10 light sources can be paired with 1 steering device.

7

Make sure to pair them one at a time. If the light sources are close to each other, disconnect those that have already been paired from the main power switch.

CAUTION:

DO NOT USE WITH STANDARD DIMMERS. Only use the control provided with or specified by these instructions to control this bulb. This bulb will not operate properly when connected to a standard (incandescent) dimmer or dimming control. Only controllable by IKEA Smart lighting products.

The colour temperature can be switched between 2200K (warm glow), 2700K (warm white) and 4000K (cool white).

RESET YOUR DEVICE

Toggle the main switch 6 times.

TECHNICAL DATA:

Operating frequency: 2405 - 2480 MHz

Output power: 10 dBm

Manufacturer: IKEA of Sweden AB

Address: Box 702 SE-343 81 Älmhult SWEDEN

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.

AÑADIR LUCES AL DISPOSITIVO DE CONTROL:

委製商：IKEA of Sweden AB

地址：Box 702 SE-343 81 Älmhult SWEDEN

제조업체: IKEA of Sweden AB

주소: Box 702 SE-343 81 Älmhult SWEDEN

Pabrikan: IKEA of Sweden AB

Alamat: Box 702 SE-343 81 Älmhult SWEDIA

SET SEMULA PERANTI ANDA

QR code image containing encoded data, no visible human-readable text

nánb. | ไศวุฒนาคุม

Complies with IMDA Standards DA106634
