Architec 700408000000090 - Bathtub Duravit - Free user manual and instructions

Product Type	Bathtub with integrated tile flange
Brand	Duravit
Model	Architec 700408000000090
Category	Bathtub
Material	Acrylic and plywood
Mounting Type	Recessed with tile flange
Tile Flange	Integrated
Adjustable Feet	Yes
Fixing System	6 fixing brackets on the partition frame
Drain	Not supplied (to be connected)
Overflow	Not supplied (to be connected)
Electrical Supply	None (watch out for electrical wires during installation)
Standards	UPC, CSA B45.5-17/IAPMO Z124-2017
Installation	Professional recommended (licensed plumber)
Cleaning and Maintenance	Apply recommended silicone for acrylic bathtub, let set for 24 hours
Safety Precautions	Check for absence of electrical wires behind the partition; use only the provided screws
Package Contents	Bathtub, adjustable feet, fixing brackets, screws and washers (for D-Code models)
Documentation	Installation and use manual available in PDF
Warranty	Consult the dealer or manufacturer
Repairability	Spare parts available from the manufacturer

Frequently Asked Questions - Architec 700408000000090 Duravit

How to install the Duravit Architec 700408000000090 bathtub?

Installation must be carried out by a licensed plumber. Start by inspecting the bathtub for any damage. Place cardboard on the floor, turn the bathtub over and level the feet. Connect the drain and overflow (not supplied), then position the bathtub in the intended frame. Ensure it is level and secure the fixing brackets. Fill with water to check for leaks, then finish the partition and tiling.

What accessories are needed for installation?

Installation requires a drain and overflow kit (not supplied), silicone suitable for acrylic bathtubs, and possibly a water-resistant wall panel. The fixing brackets, screws and washers are supplied with the product.

Is the bathtub supplied with adjustable feet?

Yes, the Duravit Architec bathtub is supplied with adjustable feet to allow precise leveling before installation.

How to level the Architec bathtub?

Before placing the bathtub, level the feet by adjusting them individually. After placing the bathtub in its location, check the level and adjust if necessary. Once the bathtub is level, tighten the lock nuts to secure the feet.

What type of silicone to use for the bathtub joint?

Use only a silicone recommended for acrylic bathtubs. Apply it after filling the bathtub with water and let it dry for 24 hours before draining.

How to check for leaks after installation?

Fill the bathtub with water and visually check all connections (drain, overflow, fittings). Ensure there are no leaks. If everything is tight, you can proceed with finishing.

What electrical precautions should be taken during installation?

Before drilling or fixing the brackets, make sure there are no electrical wires or heating behind the partition or under the floor. Failure to do so can result in fatal electrical shock.

Can I install the bathtub myself?

Installation should be performed by a qualified professional (licensed plumber). Knowledge of plumbing and construction is required to ensure a compliant and safe installation.

Where to download the specification sheet for the Architec model?

Specification sheets are available for download on the website www.pro.duravit.us. Consult them before installation for exact dimensions and technical details.

Is the bathtub compliant with current standards?

Yes, this model complies with the Uniform Plumbing Code (UPC) and the National Plumbing Code of Canada, as well as standards CSA B45.5-17 and IAPMO Z124-2017.

USER MANUAL Architec 700408000000090 Duravit

Installation instructions

Bathtub with integrated tile flange

Notice de montage

About these instructions

The installation instructions come as part of the Duravit product and must be read carefully prior to installation.

Target readership and qualifications

This is a professional grade product. A working knowledge of construction techniques and code compliant plumbing installation are required for proper installation and user satisfaction. We recommend the product be installed by a licensed plumber.

Explanation of the key words and symbols

WARNING

Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

NOTICE

Is used to address practices not related to physical injury.

Inspection (e.g. for scratches)

Inspect for leaks and that all connections have a watertight seal

Indication of the length of time (e.g. 10 minutes)

Action required

Safety instructions

Product and / or property damage

The breach of local and country-specific regulations and standards can cause damage to the product and/or property damage.

Observe the local installation regulations and any country-specific standards at all times.

Prior to the installation

Please read the specification sheets prior to the installation. Specification sheets are available for download at www.pro.duravit.us.

Products are in compliance with the following codes:

Uniform Plumbing Code (UPC) National Plumbing Code of Canada

Products are in compliance with the following standards:

CSAB45.5-17/IAPMOZ124-2017

Optional accessories (not included)

791224

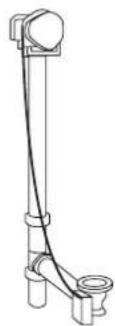

790252

791255

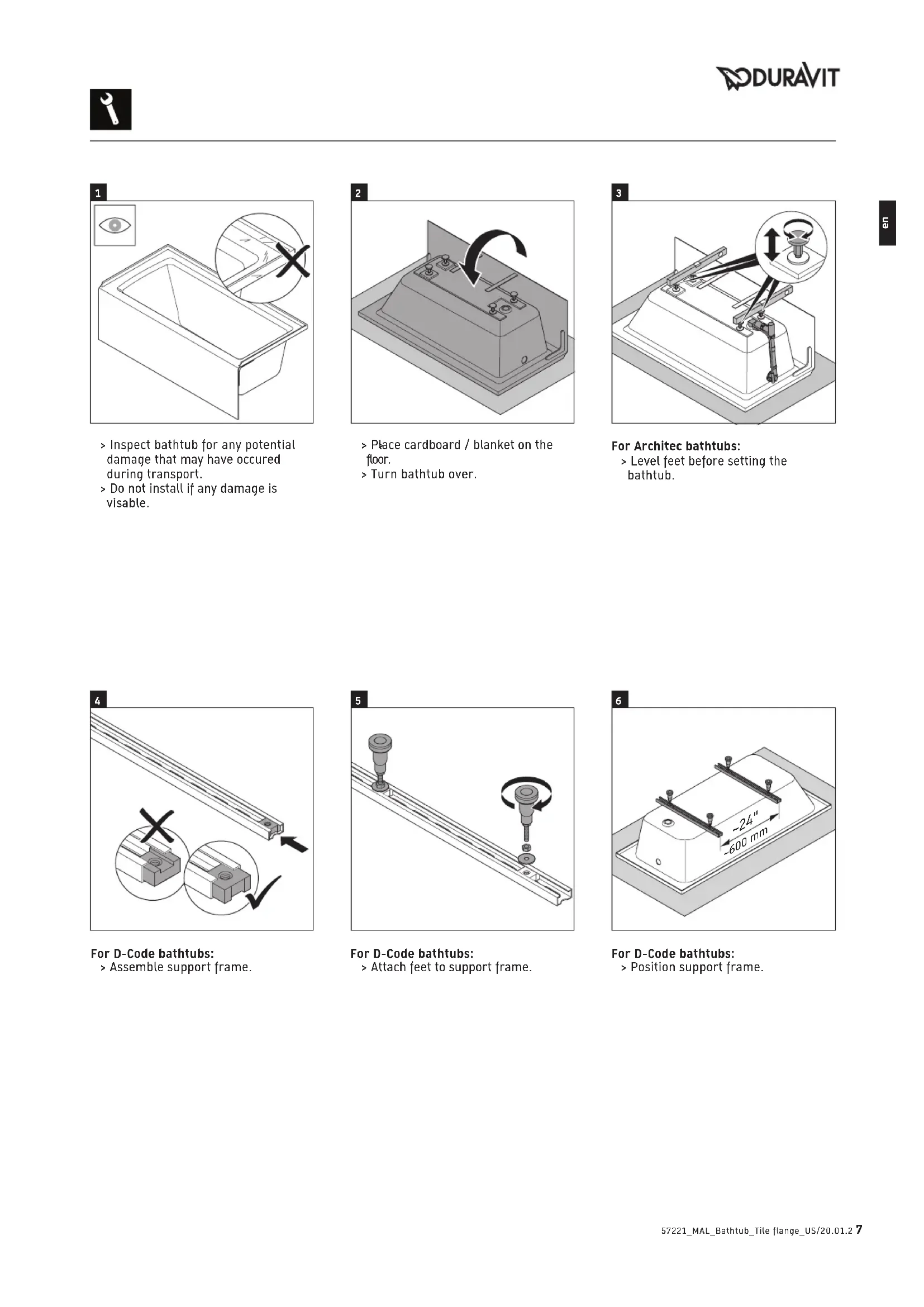

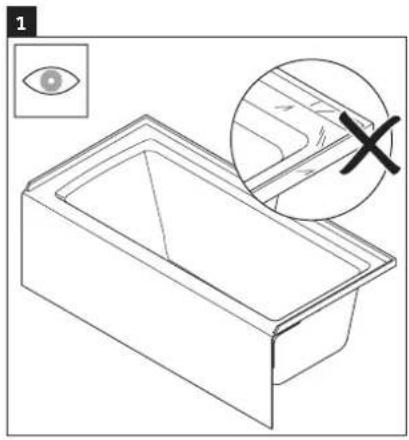

Inspect bathtub for any potential damage that may have occurred during transport.
Do not install if any damage is visible.

Place cardboard / blanket on the floor.

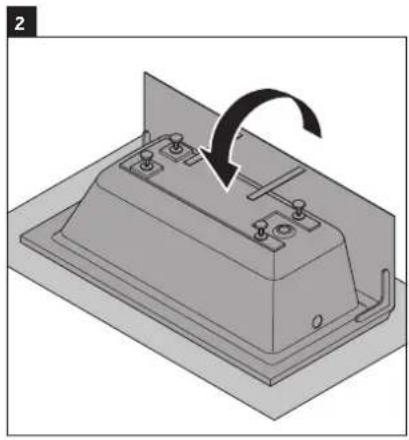

Turnbathtubover.

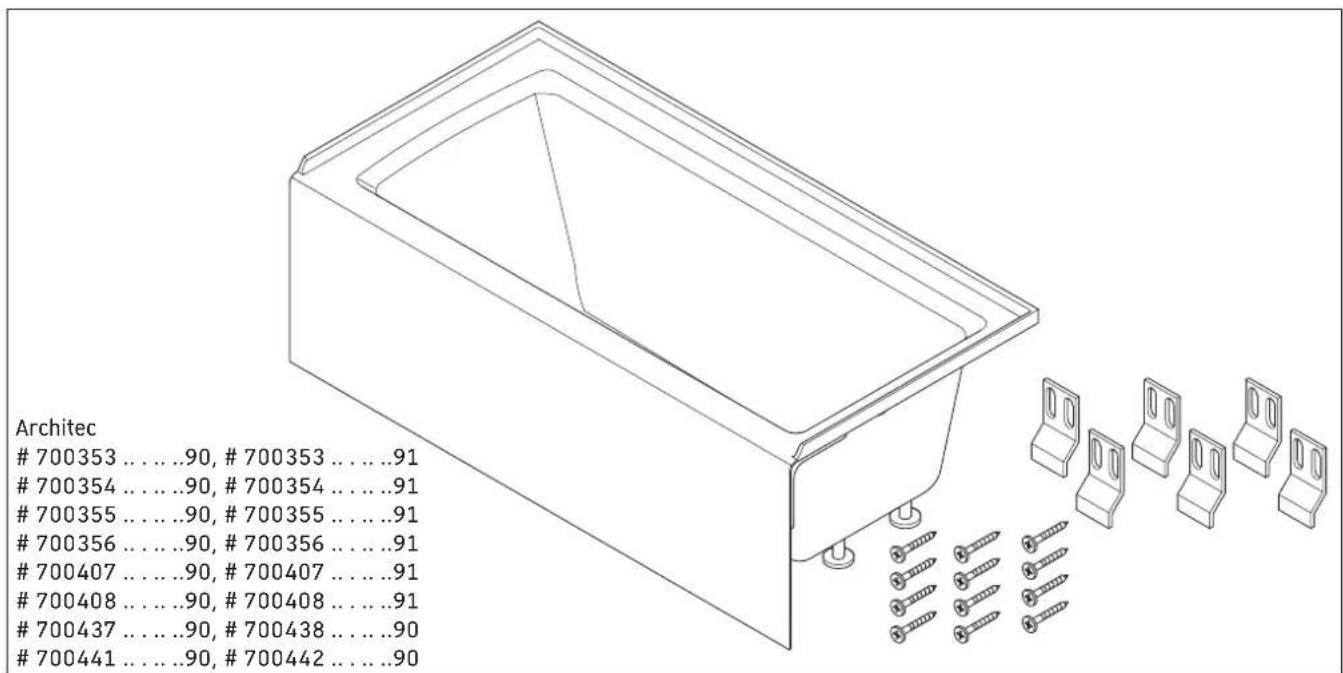

For Architec bathtubs:

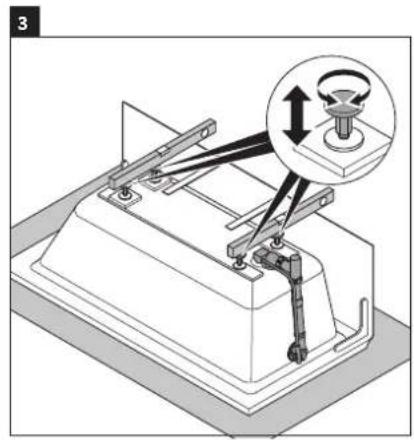

Level feet before setting the bathtub.

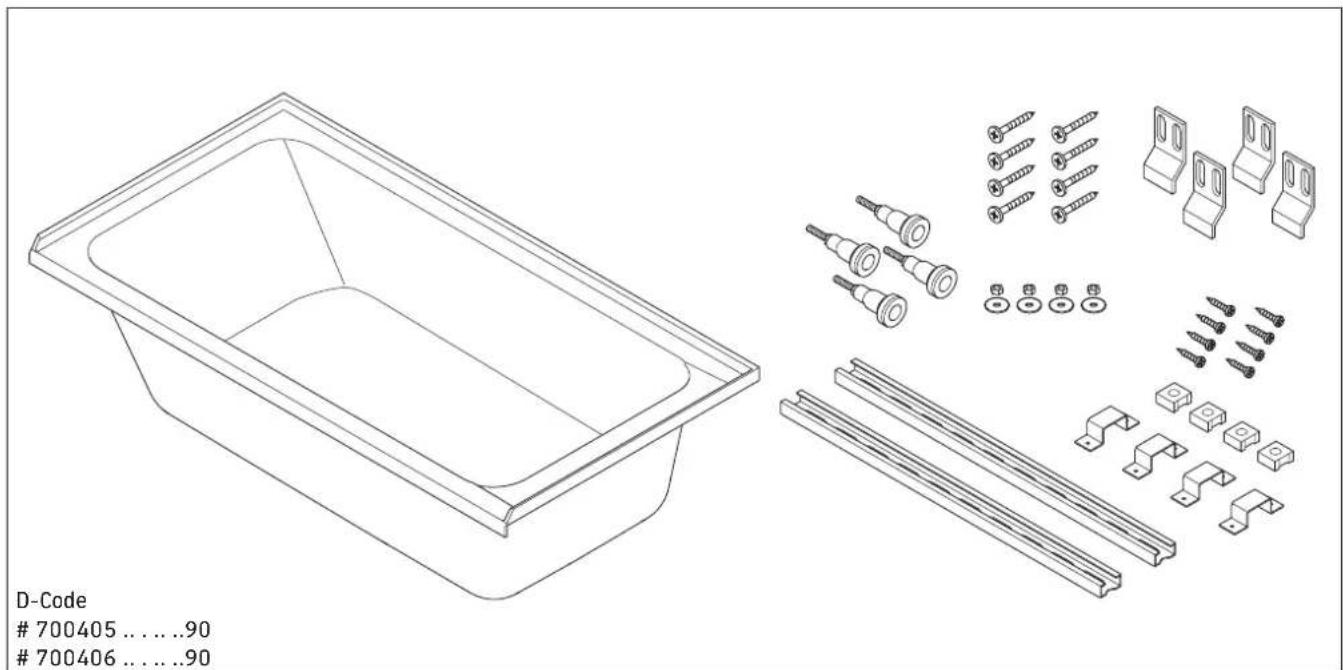

For D-Code bathtubs:

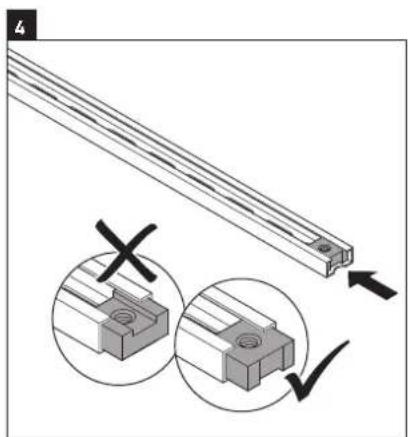

Assemble support frame.

For D-Code bathtubs:

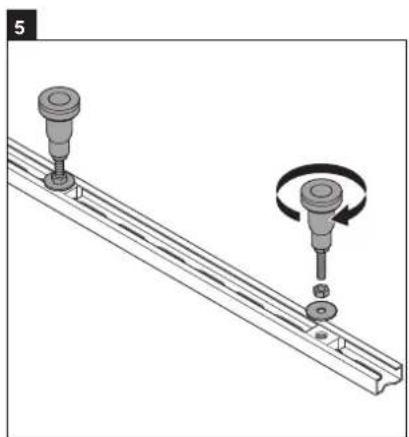

Attach feet to support frame.

For D-Code bathtubs:

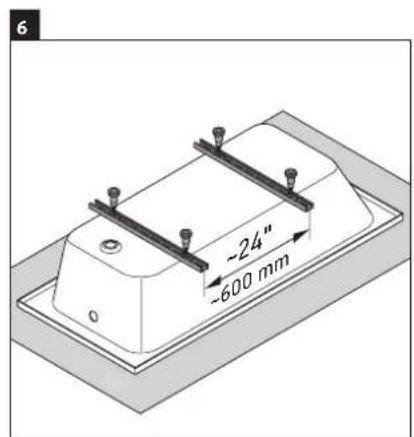

Position support frame.

For D-Code bathtubs:

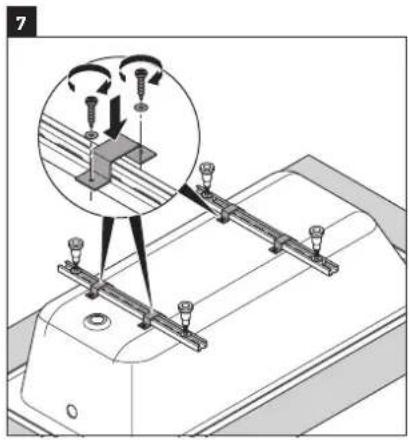

Use provided screws and washers secure support frame into the acrylic and plywood base.

NOTICE

Do not use screws other than what is provided.

For D-Code bathtubs:

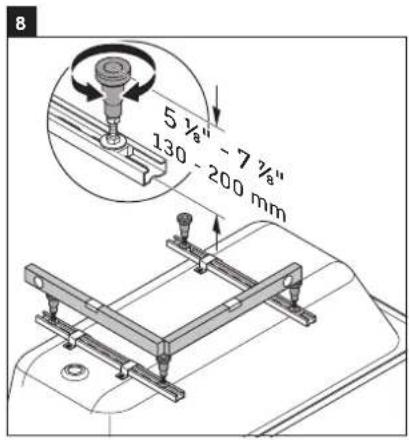

Level feet before setting the bathtub.

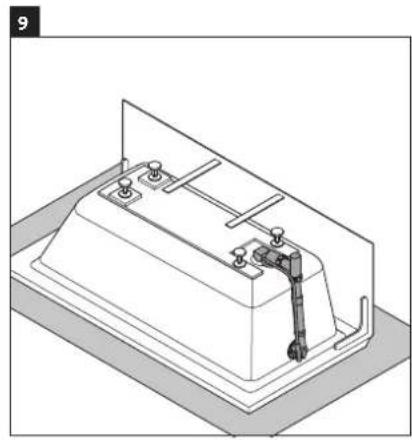

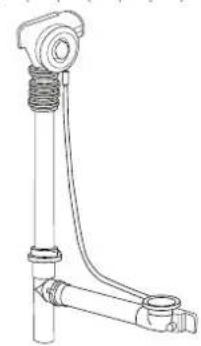

Connect waste and overflow (not included).

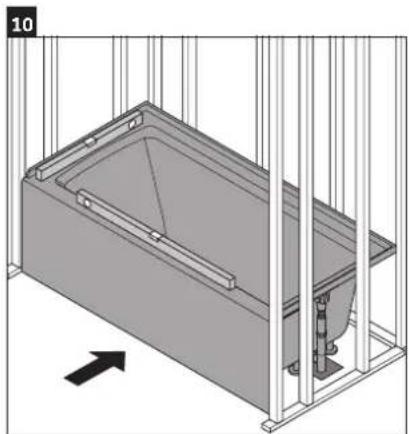

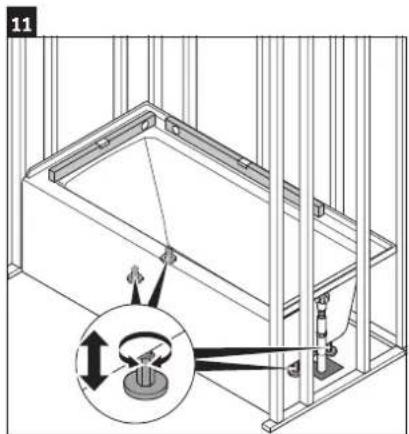

Set bathtub into designated frame area.

Make sure the bathtub is level.

Adjust feet if necessary.

For D-Code bathtubs:

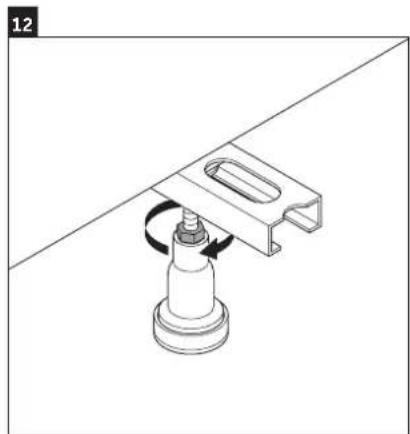

Tighten the lock-nut to secure feet.

WARNING

Fatal injury by electric shock! Contact with electrical wiring can lead to electrical shock.

Make sure that there are no electrical wires or heating running under wall or floor which could be affected by the installation.

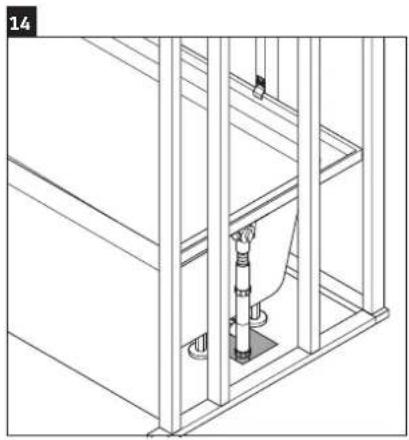

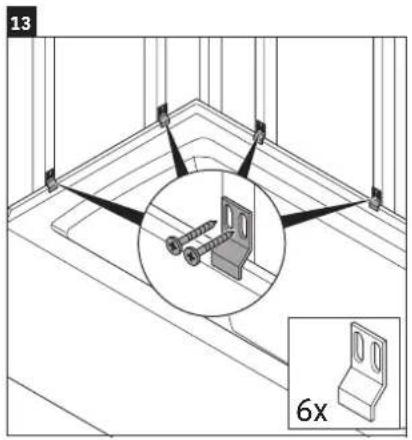

Affix 6 flange clips to the wall frame for side support of the bathtub.

Connect waste and overflow to the drain system.

Clean the bathtub.

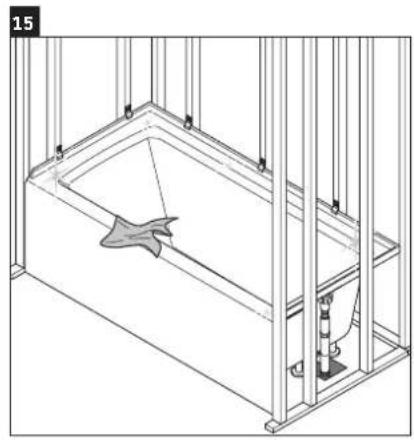

Fill the bathtub with water.
Inspect for potential leaks.

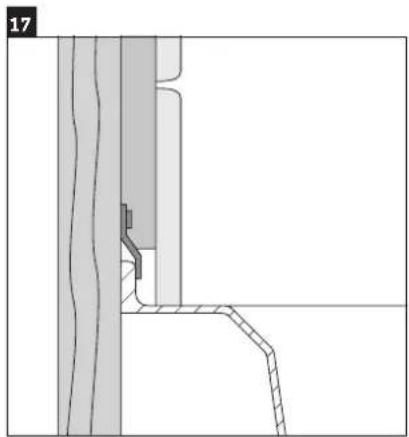

Finish wall and tiles.
Make sure to install water-resistant wallboard.

NOTICE

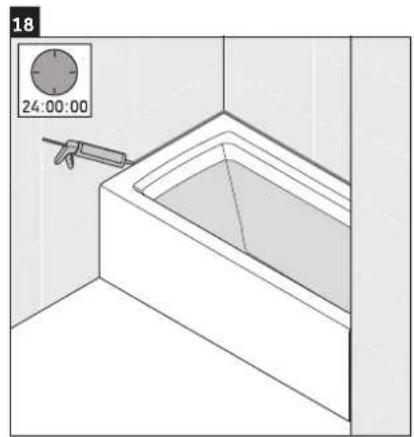

Apply silicone recommended for acrylic bathtubs only.

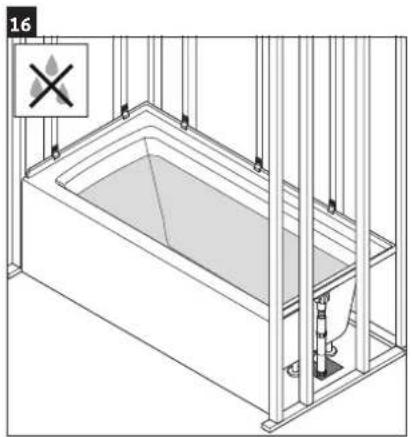

Fill the bathtub with water.
Apply silicone as needed.
Let it sit for 24h before draining.

Para baneras D-Code:

Para baneras D-Code:

Para baneras D-Code:
