Upton TL630SDH12 - Faucet TOTO - Free user manual and instructions

Product Type	Lavatory Faucet
Brand	TOTO
Model	Upton TL630SDH12
Minimum Operating Pressure	20 psi (0.14 MPa) dynamic
Maximum Operating Pressure	80 psi (0.55 MPa) static
Mounting Hole Diameter	33 mm to 37 mm (1-5/16" to 1-7/16")
Maximum Countertop Thickness	38 mm (1-1/2")
Overall Height (A)	211 mm (8-5/16")
Spout Height (B)	45 mm (1-13/16")
Spout Reach	120 mm (4-1/2")
Material	Brass (estimated)
Valve Type	Ceramic Cartridge
Supply	Hot and cold water, 3/8" flexible supply lines
Minimum Ambient Temperature	0°C
Warranty	Limited lifetime warranty for residential use
Recommended Care	Clean with mild detergent, rinse with warm water, dry with a soft cloth
Cleaning Products to Avoid	Abrasive cleaners, steel wool, harsh detergents
Replacement Parts	Available, specify finish when ordering
Tools Required for Installation	Teflon tape, adjustable wrench, pliers, screwdriver
Warranty Coverage Area	North, Central, and South America

Frequently Asked Questions - Upton TL630SDH12 TOTO

What is the minimum water pressure required for this faucet?

The minimum water pressure required is 20 psi (0.14 MPa) dynamic. Too low pressure may reduce flow rate.

How to install the Upton TL630SDH12 faucet?

Turn off water supply. Insert the flexible hoses into the mounting hole (diameter 33-37 mm). Secure the body with the gasket and nut. Connect the hoses to the water lines: left = hot water, right = cold water. Install the drain line according to the diagrams in the manual.

What to do if water flow is too low?

Check the following: 1. Is the set screw tightened properly? 2. Is the O-ring of the flow restrictor damaged or dirty? 3. Is the flexible hose blocked? Clean or replace parts if necessary.

What to do if water flow is too high?

Check the flow restrictor. If it is damaged or dirty, clean or replace it. Excessively high flow may indicate a missing or defective restrictor.

How to clean and maintain the faucet?

Clean regularly with a mild detergent, rinse with warm water, and dry with a soft cloth. Never use abrasive cleaners, steel wool, or harsh products; this will tarnish the finish and void the warranty.

What is the warranty on this TOTO faucet?

TOTO offers a limited lifetime warranty for residential faucets, covering defects in materials and workmanship. It applies to the original purchaser and is not transferable. Proof of purchase is required.

The handle is too loose, what to do?

Check the set screw under the handle. Tighten it with a screwdriver if necessary. If the problem persists, contact a qualified repair person.

The faucet is leaking at the spout, what to do?

Check the O-ring of the spout (rubber ring). If it is damaged or dirty, replace it. Also ensure the collar is firmly tightened.

Can I install this faucet myself?

Yes, installation is possible if you follow the instructions. You will need Teflon tape, an adjustable wrench, pliers, and a screwdriver. Follow the detailed installation procedure in the manual.

How to get replacement parts?

Replacement parts are available from TOTO or its distributors. When ordering, specify the finish (chrome, brushed nickel, etc.) and the part number indicated in the manual.

USER MANUAL Upton TL630SDH12 TOTO

Single Handle Lavatory Faucet

Grifo de Lavabo Individual

Robinet de Lavabo á Poignée Unique

Aquia®

Line drawing of a single faucet with handle and base (no text or symbols)

TL416SDH

Upton™

Line drawing of a faucet handle (no text or symbols)

TL630SDH
TL630SDH12

Line drawing of a faucet with handle and base (no text or symbols)

TL416SD

Line drawing of a faucet with handle and side panel (no text or symbols)

TL630SD
TL630SD12

TABLE OF CONTENTS

Thanks for Choosing TOTO ^® !......3

Care and Cleaning....3

Warnings....3

Tools You Will Need 4

Before Installation....4

Installation Procedure....5

Warranty....6

Rough-In Dimensions 15

Troubleshooting.... 16

Spare Parts.... 17-18

THANKS FOR CHOOSING TOTO!

The mission of TOTO is to provide the world with healthy, hygienic and more comfortable lifestyles. We design every product with the balance of form and function as a guiding principle. Congratulations on your choice.

CARE & CLEANING

Your new faucet is designed for years of trouble-free performance. Keep it looking new by cleaning it periodically with mild soap, rinsing thoroughly with warm water and drying with a clean, soft cloth. Do not use abrasive cleaners, steel wool or harsh chemicals, as these will dull the finish. Failure to follow these instructions may void your warranty.

WARNINGS

For safe operation of the faucet, please observe the following:

■ Operating Pressure:

■ Minimum Pressure .....20 psi (0.14 MPA), dynamic

■ Maximum Pressure ....80 psi (0.55 MPA), static

■ Do not reverse the hot and cold water inlets.

■ Do not use steam for hot water supply.

■ Do not use the product at an ambient temperature below 32 °F ( 0 °C ).

■ Do not disassemble the ceramic valve.

TOOLS YOU WILL NEED

Pipe Tape

Line drawing of an adjustable wrench (no text or symbols)

Adjustable Wrench

Line drawing of a pair of pliers (no text or symbols)

Adjustable Pliers

Illustration of two screwdrivers with threaded shafts (no text or symbols)

Screwdrivers

BEFORE INSTALLATION

■ Observe all local plumbing codes.
■ Make sure the water supply is shut off.
- Read these instructions carefully to ensure proper installation.

■ For new lavatory installation, install the faucet before installing the lavatory.

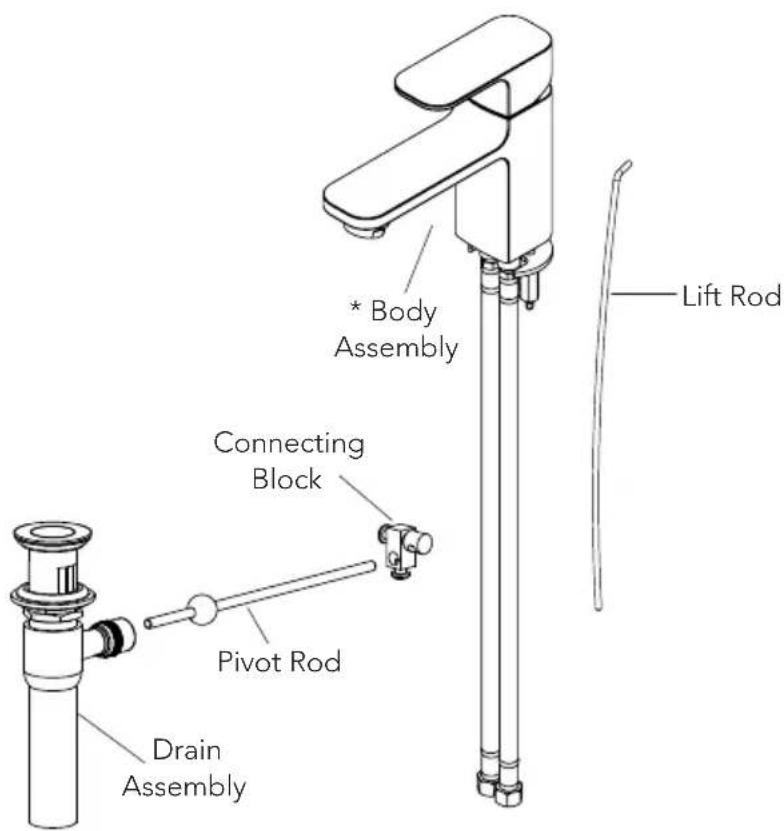

- Check to make sure you have the following parts* indicated below:

Lift Rod * Body Assembly Connecting Block Pivot Rod Drain Assembly

* Actual product may vary in appearance depending on the model (TL630SD model is shown throughout this manual).

INSTALLATION PROCEDURE

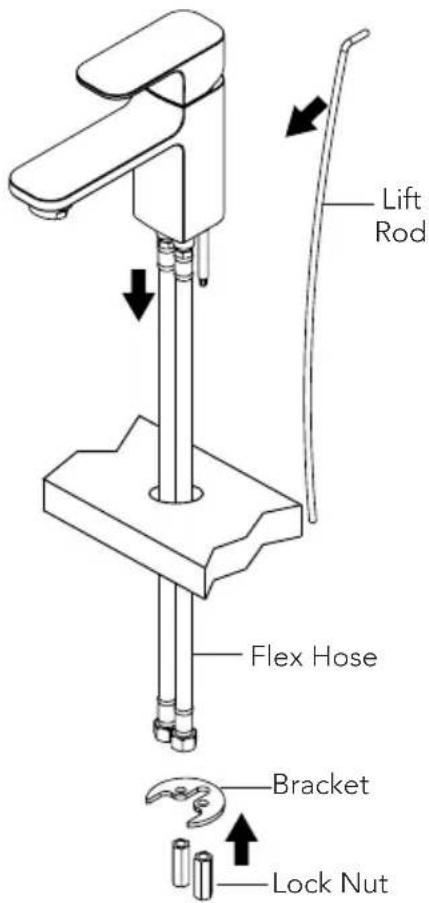

Faucet Body Installation

Important:

The pressure resistant flex hoses are packed fully assembled with proper adhesive applied to the parts during assembly. Do not loosen the hex nut when installing the faucet.

1) Insert the flex hoses through the hole in the deck one at a time.
2) Insert the lift rod from the backside of the faucet.
3) Slide the bracket into place and secure the spout with the locknuts.
4) Adjust the spout to face forward. Hold the spout in place and tighten the locknuts to secure it.
5) Connect the flex hoses to the supply lines. Make sure the left hose connects to the hot water supply line and right to the cold water supply line.

Lift Rod Flex Hose Bracket Lock Nut

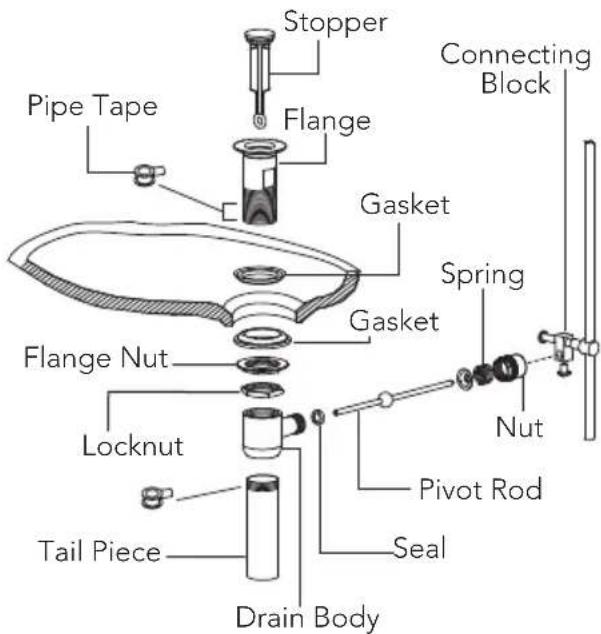

Drain Installation

1) Apply pipe tape to the flange threads.
2) Insert the flange into the drain hole.
3) Assemble the gasket, flange nut and lock nut.
4) Place the drain body onto the flange.
5) Secure the drain assembly by tightening the flange nut and locknut.
6) Apply pipe tape to the threads of the tail piece and install the tail piece to the drain body.
7) Insert the drain stopper into the flange.
8) Assemble the pivot rod as shown in the diagram at the right.
9) Insert the pivot rod into the drain stopper hole. Tighten the lock nut.
10) Insert the lift rod and pivot rod into the connecting block. Tighten both rods with a screwdriver.

Stopper Pipe Tape Flange Gasket Connecting Block Spring Nut Flange Nut Locknut Tail Piece Drain Body Pivot Rod Seal

WARRANTY

1. TOTO ^® warrants its residential faucets and bathroom accessories ("Product") to be free from defects in materials and workmanship during normal use when properly installed and serviced, for the lifetime of the Product from date of purchase. This limited warranty is extended only to the ORIGINAL PURCHASER of the Product and is not transferable to any third party, including but not limited to any subsequent purchaser or owner of the Product. This warranty applies only to TOTO Product purchased and installed in North, Central and South America.
2. TOTO's obligations under this warranty are limited to repair, replacement or other appropriate adjustment, at TOTO's option, of the Product or parts found to be defective in normal use, provided that such Product was properly installed, used and serviced in accordance with instructions. TOTO reserves the right to make such inspections as may be necessary in order to determine the cause of the defect. TOTO will not charge for labor or parts in connection with warranty repairs or replacements. TOTO is not responsible for the cost of removal, return and/or reinstallation of the Product.
3. This warranty does not apply to the following items:
   a. Damage or loss sustained in a natural calamity such as fire, earthquake, flood, thunder, electrical storm, etc.
   b. Damage or loss resulting from any accident, unreasonable use, misuse, abuse, negligence, or improper care, cleaning, or maintenance of the Product.
   c. Damage or loss resulting from sediments or foreign matter contained in a water system.
   d. Damage or loss resulting from improper installation or from installation of the Product in a harsh and/or hazardous environment, or improper removal, repair or modification of the Product.
   e. Damage or loss resulting from electrical surges or lightning strikes or other acts which are not the fault of TOTO or which the Product is not specified to tolerate.
   f. Damage or loss resulting from normal and customary wear and tear, such as gloss reduction, scratching or fading over time due to use, cleaning practices or water or atmospheric conditions, including but not limited to, the use of bleach, alkali, acid cleaners, dry (powder) cleaners or any other abrasive cleaners or the use of metal or nylon scrubbers.
4. In order for this limited warranty to be valid, proof of purchase is required. TOTO encourages warranty registration upon purchase to create a record of Product ownership at http://www.totousa.com. Product registration is completely voluntary and failure to register will not diminish your limited warranty rights.
5. If the Product is used commercially or is installed outside of North, Central or South America, TOTO warrants the Product to be free from defects in materials and workmanship during normal use for one (1) year from the date of installation of the Product, and all other terms of this warranty shall be applicable except the duration of the warranty.
6. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE, PROVINCE TO PROVINCE OR COUNTRY TO COUNTRY.
7. To obtain warranty repair service under this warranty, you must take the Product or deliver it prepaid to a TOTO service facility together with proof of purchase (original sales receipt) and a letter stating the problem, or contact a TOTO distributor or products service contractor, or write directly to TOTO U.S.A., INC., 1155 Southern Road, Morrow, GA 30260 [phone] or [phone], if outside the U.S.A. If, because of the size of the Product or nature of the defect, the Product cannot be returned to TOTO, receipt by TOTO of written notice of the defect together with proof of purchase (original sales receipt) shall constitute delivery. In such case, TOTO may choose to repair the Product at the purchaser's location or pay to transport the Product to a service facility.

THIS WRITTEN WARRANTY IS THE ONLY WARRANTY MADE BY TOTO. REPAIR, REPLACEMENT OR OTHER APPROPRIATE ADJUSTMENT AS PROVIDED UNDER THIS WARRANTY SHALL BE THE EXCLUSIVE REMEDY AVAILABLE TO THE ORIGINAL PURCHASER. TOTO SHALL NOT BE RESPONSIBLE FOR LOSS OF THE PRODUCT OR FOR OTHER INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OR EXPENSES INCURRED BY THE ORIGINAL PURCHASER, OR FOR LABOR OR OTHER COSTS DUE TO INSTALLATION OR REMOVAL, OR COSTS OF REPAIRS BY OTHERS, OR FOR ANY OTHER EXPENSE NOT SPECIFICALLY STATED ABOVE. IN NO EVENT WILL TOTO'S RESPONSIBILITY EXCEED THE PURCHASE PRICE OF THE PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTIES, INCLUDING THAT OF MERCHANTABILITY OR FITNESS FOR USE OR FOR A PARTICULAR PURPOSE, ARE EXPRESSLY DISCLAIMED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION AND EXCLUSION MAY NOT APPLY TO YOU.

Line drawing of an adjustable wrench (no text or symbols)

Llave de Tuercas Ajustable

Line drawing of a pair of pliers (no text or symbols)

Alicates Ajustable

Illustration of two screwdrivers with threaded shafts (no text or symbols)

Destornilladores

Line drawing of an adjustable wrench (no text or symbols)

Line drawing of a pair of pliers (no text or symbols)

Illustration of two screwdrivers with threaded shafts (no text or symbols)

Tournevis

AVANT L'INSTALLATION

If, after following the installation instructions carefully the showerhead does not function properly, please use the following steps to try to fix the problem:

TOTO® U.S.A., Inc. 1155 Southern Road,

Morrow, Georgia 30260

Tel: [phone] Fax: [phone]

www.totousa.com

0GU4118

Rev B
