USER MANUAL T0689 Vaxcel

ASSEMBLY AND INSTALLATION INSTRUCTIONS

T0689/T0690/T0691

WARNING: TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements. 2. READ AND SAVE THESE INSTRUCTIONS.

Hardware Package (included):

Mounting Screw X2 #8/32X1/2 in

Mounting Screw X2 #6/32 X1/2 in

Mounting Screw X2 #10/24 X1/4 in

Mounting Strap

Fixture Mounting Screw

Rubber Cover

Wire Connector
Gasket

Tools Needed:

(1) Phillips-head Screwdriver

1. Phillips-head screwdriver for attaching mounting screws to mounting strap, mounting bracket and fixture to mounting bracket.

Important to Know:

1. If you are not familiar with state and local electrical codes, it is recommended that you consult with a qualified electrician.
2. This fixture requires a 120 VAC, 60Hz power source.

Maximum Wattage: 2-150 W (bulb not included) Working Temperature Range: - 13^ 113^

Features:

1. Switch Control: turns light ON and off by flicking the wall switch.
2. Adjust between full brightness and low-level brightness by toggling the wall switch.

Note: Fixture can be wall mounted or eave mounted.

Wall Mounted

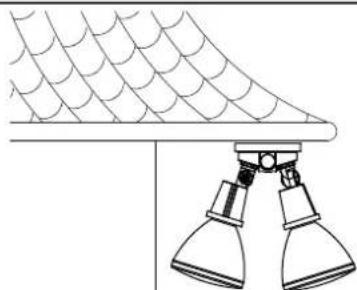

Eave Mounted

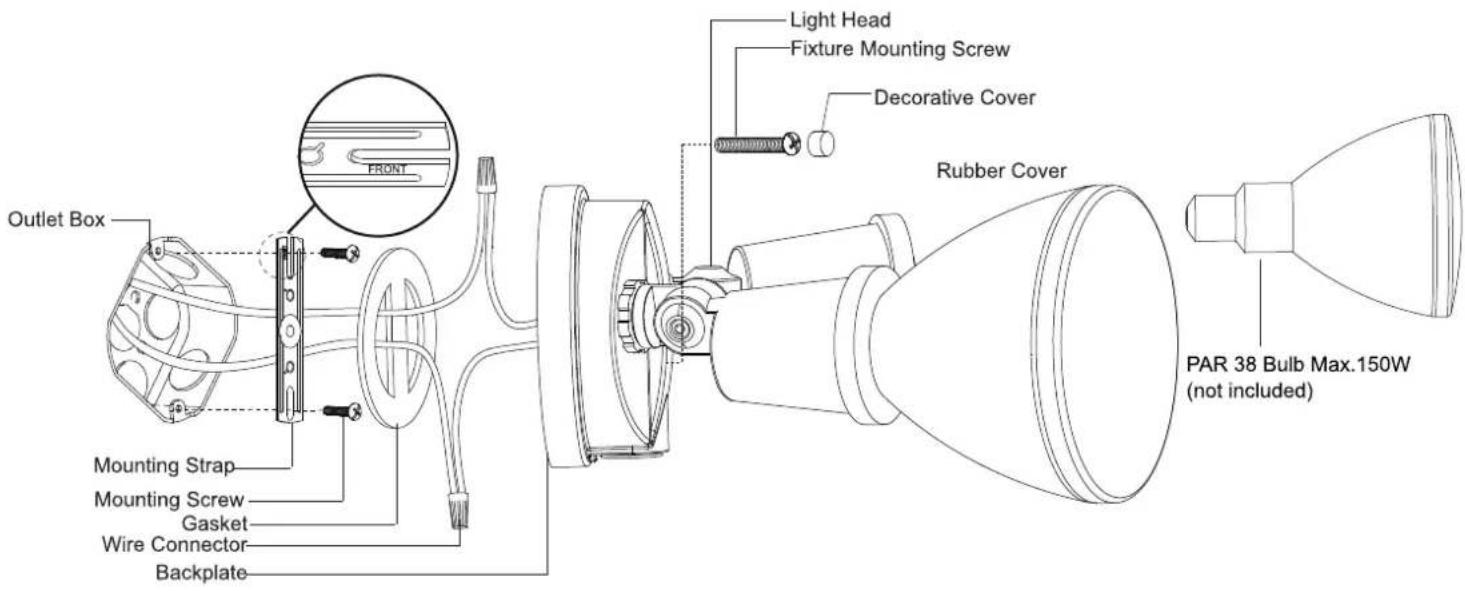

Installation Steps

Turn off the power at fuse or circuit box.

1. Install the mounting strap to the outlet box with the stamped word "FRONT" facing away from the outlet box, using two mounting screws that best fit the outlet box. Back plate should sit flush against wall surface when secured. (Choose one matching pair of suitable mounting screws from the 3 pairs provided)
2. Fixture wires thread through gasket, then attach the gasket into back plate.
3. Pull out the source wires from the outlet box. Make wire connections using wire connector as follows: --Connect the black wire from the fixture to the "hot" wire from the power source. (black) --Connect the white wire from the fixture to the neutral wire from the power source. (white) Carefully tuck the wires back into the outlet box.
4. Attach the back plate of the light fixture to the mounting strap, secure it with the fixture mounting screw.
5. Push the decorative cover firmly into the fixture mounting screw hole on the light.
6. Install bulbs (not included). See relamping label at socket area or packaging for maximum allowed wattage.
7. With silicone caulking compound, caulk completely around where the back plate meets the wall surface. CAUTION: Be sure to caulk completely where the back plate meets the wall surface to prevent water from seeping into the outlet box.

Turn on the power at fuse or circuit box.

Adjusting the Light Head:

1. Gently grasp the light heads and tilt them left or right to adjust the light coverage area. (See Fig. 1)
2. Keep the light heads (B) 30^ below horizontal to avoid water damage and electrical shock.

Functions and Operations

1. Wall switch control

Turn on the wall switch on the light.

1. Low-level Mode

Turn the wall switch "OFF", and turn it "ON" twice within 3 seconds.

The light enters low-level at 30% of full brightness.

To revert back to Default 100% full brightness, turn the wall switch "OFF" and then turn it "ON" after 60 seconds.

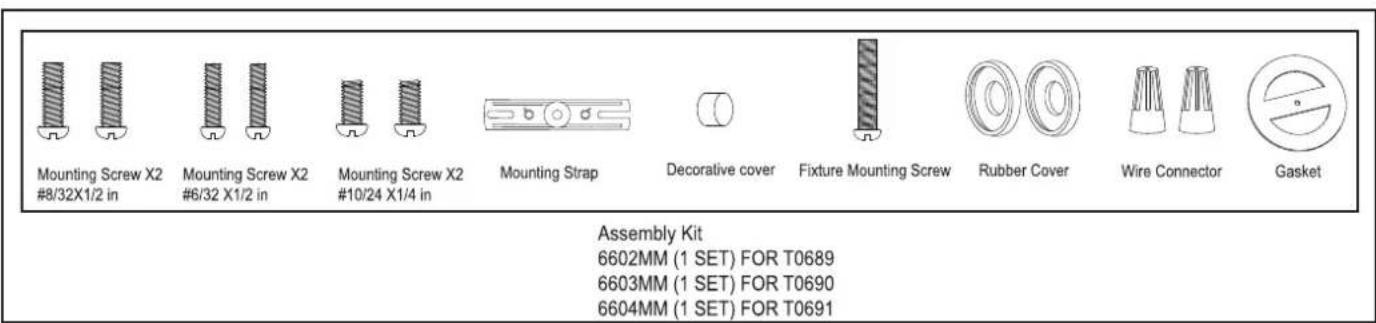

The following parts are available for re-order if damaged or missing.

Troubleshooting

---The light does not work.
1. Make sure the wall switch and circuit breaker are on.
2. Make sure the wiring is correct.

A:4-1/4"
B:6-3/4"
C:5-1/4"

1 Year Warranty

Vaxcel warrants all of our products against defects in workmanship and finishes for one year following the date of shipment.

Exclusions: This warranty does not include the failure of products from extreme acts of nature; environmental conditions not suited for the products intended use; operation in temperatures outside of the range specified in the instruction manual; usage with improper power supply, power surges or dips. For coastal locations, some corrosion is considered normal for the environment.

Vaxcel reserves the right to repair, replace or issue a credit for any properly installed product, provided it is returned per RMA instruction. This warranty is limited to the cost of the product only and does not extend to transportation, installation or replacement costs.
