USER MANUAL appMT15W5 Aqprox
800x600, 1024x768 and 1280x1024
- Screens serve as POS, PC monitor, portable TV for replay video in RC, car, boat, etc.
- Perfect for use in retal, point-of-sale (POS), VOD system, Juke Box and many other hospitality applications.
- Sensitive touch screen recognoize touch input from stylus, nger, glovehand, penortool.
- Exceptional and durable touch screen monitor at an excellence value. PRODUCT SPECIFICATION SAFETY NOTES Problem: Screen has no picture If LED indicator is o: Check whether the cable is connected rmly. If LED indicator is in red: Check whether the connection of the video. Sable is rm at the same time and check whether the computer is turned on. If LED indicator is in green: Check whether horizontal synchronization exceeds the range. Problem: Picture unstable (miscellaneous wave, shake, etc.) Check whether updated video of computer matches with this machined. IMPORTANT NOTICE Cleaning
1. Please use the soft cloth with hair to clean LCD screen, in order to remove dust and stolen goods on screen.
2. Should not exert pressure to oer while polishing the screen surface of LCD.
3. Please don’t use water and other chemical cleance to polish the screen surface of LCD, chemical drug may da-
mage the screen surface of LCD. Precautions Before use the product, please read the following precautions in detail and keep it in order to inquire about in LCD panel type Display format Max resolution HxWxD Contrast Brightness Response time Horizontal viewing angle Vertical viewing angle Power consumption Touch screen type Input signal video signal Display mode Front panel control button OSD adjusting project Power supply transformer Operating environment Store environment Security authentication TFT liquid cristal display 4:3 standard LCD 1024 x 768 375(H) x 285(W) x 55(D) mm. 500:1 300 cd/m2 5 ms 160º 140º <30W 5-wire RGB analogy 0.7Vp-p
Power control switch, LED indicator lamp, OSD option, +/adjustment button, screen automatic setting, OSD selecting Contrast, brightness, automatic adjusting, picture location, phase, horizontal position, vertical position, input signal, computer VGA Alternating current input: 100-240V/1.8A 50-60Hz Direct current: 12V / 3.3A Temperature -10/60ºC, humidity 20-80% Temperature -20/70ºC, humidity 10-90% FCC, CE, ROHSthe future properly.
1. Do not connect or block heat dessipation hole under machine, so as not to hinder the collective dispelling heat.
2. Do not use the sharp things, metal or liquid to stretch into or touch the signal terminal or in the heat dissipation
hole, to avoid a short circuit and product damaged.
3. Pull out power cable from plug if you don’t use the product for a very long time.
4. Do not try to resolve it by yourself or dismantle any parts of this product, may lead damage product and injury
to human body, and make the products guarantee that you should enjoy lose eciency.
5. Do not touch screen surface with sharp objects, they may damage the screen surface in this way, and very di-
cult to drive out if oil of skin stay at screen.
6. Do not exert pressure to LCD screen, because LCD screen is very exquisite and fragile.
7. Please pull out power supply cable of this product in the following situations:

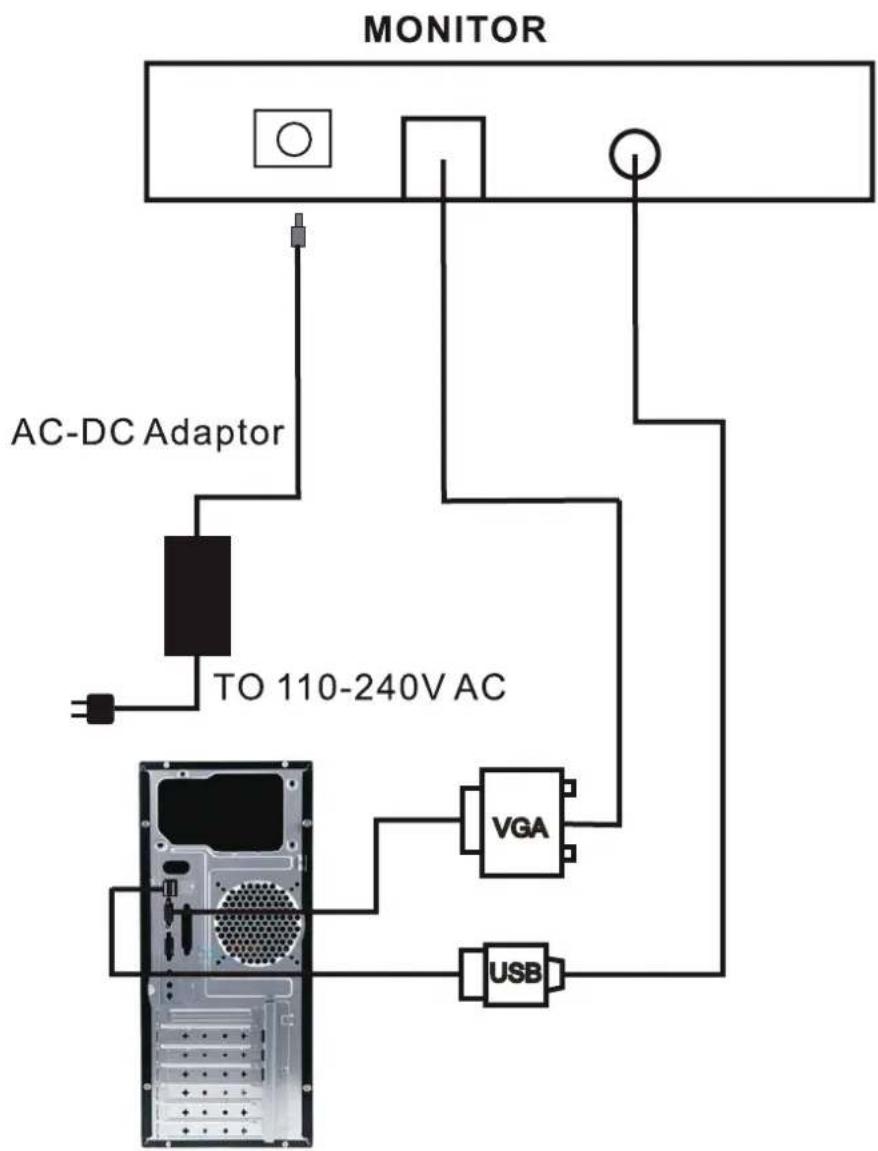

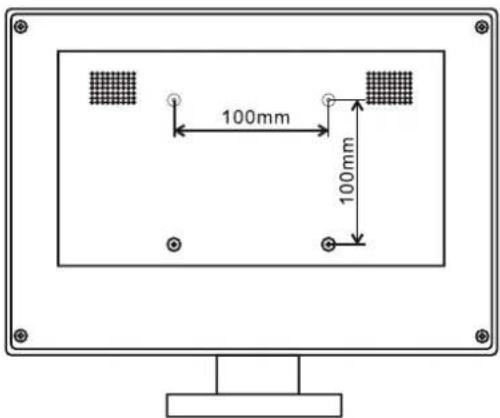

- Have if you not use the product for some time. - If the cable or outlet/plug is damaged. CONNECT OF THE DEVICEFRONT PANEL OF THE DEVICE

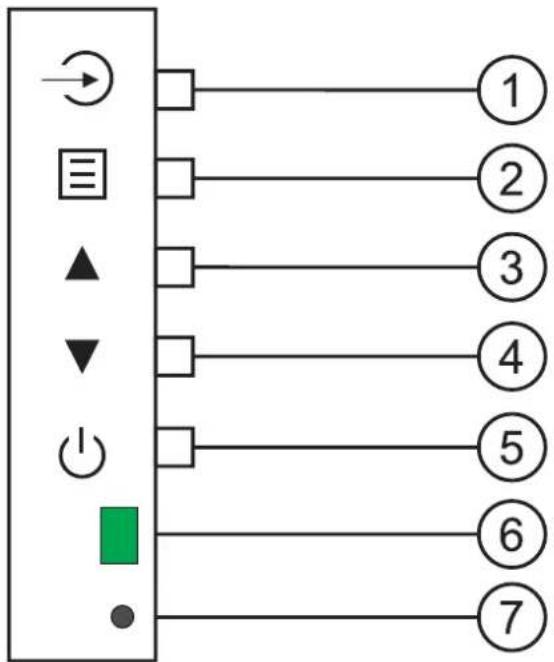

6. Power supply LED indicator: green light repressents work, red light repressents wait condition
7. Remote control window

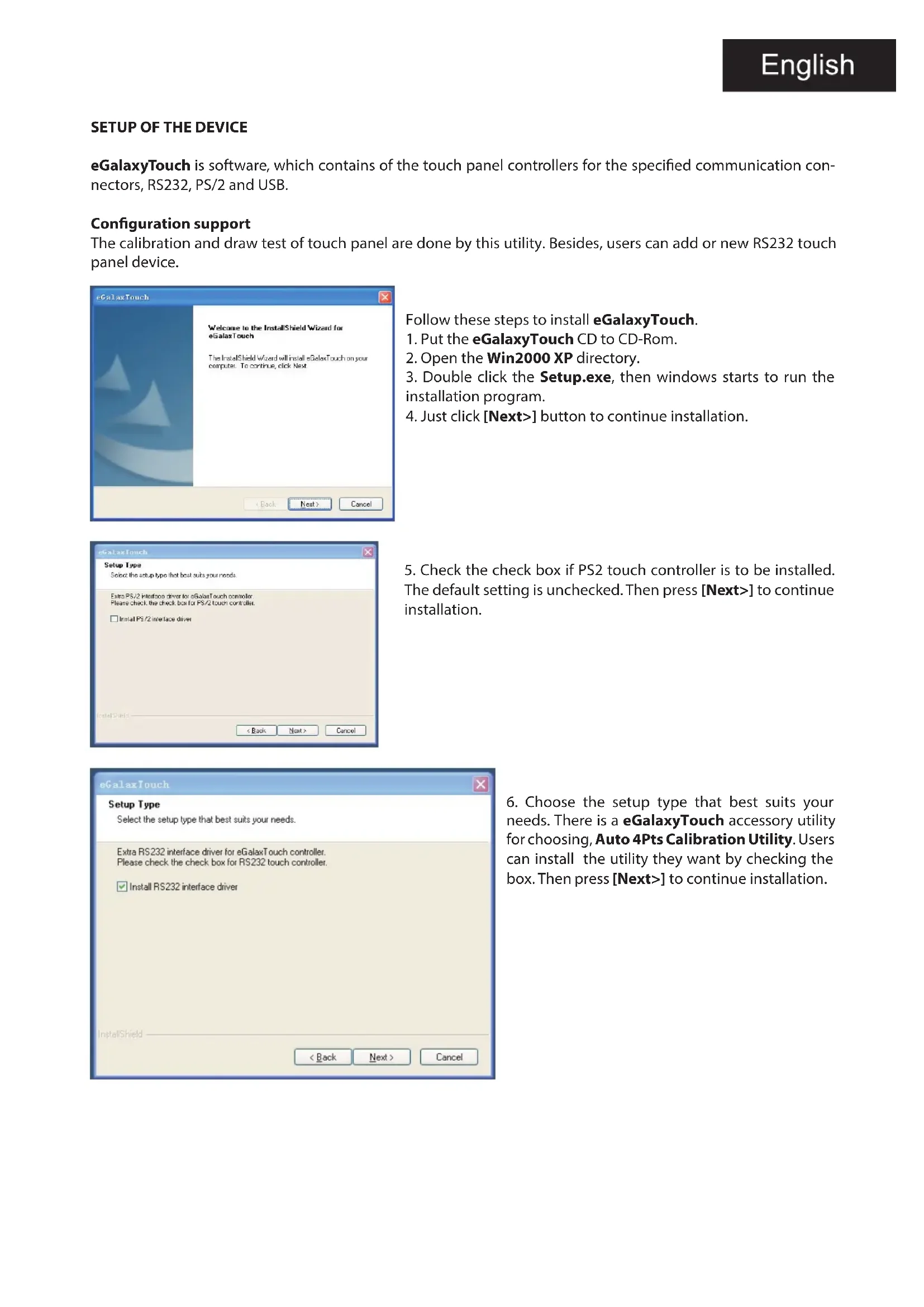

installation program.

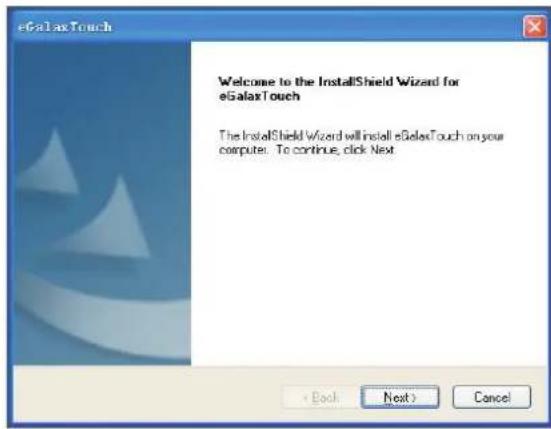

4. Just click [Next>] button to continue installation.

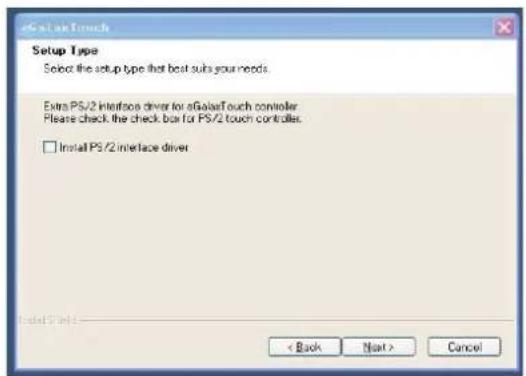

5. Check the check box if PS2 touch controller is to be installed.
The default setting is unchecked. Then press [Next>] to continue installation.
6. Choose the setup type that best suits your

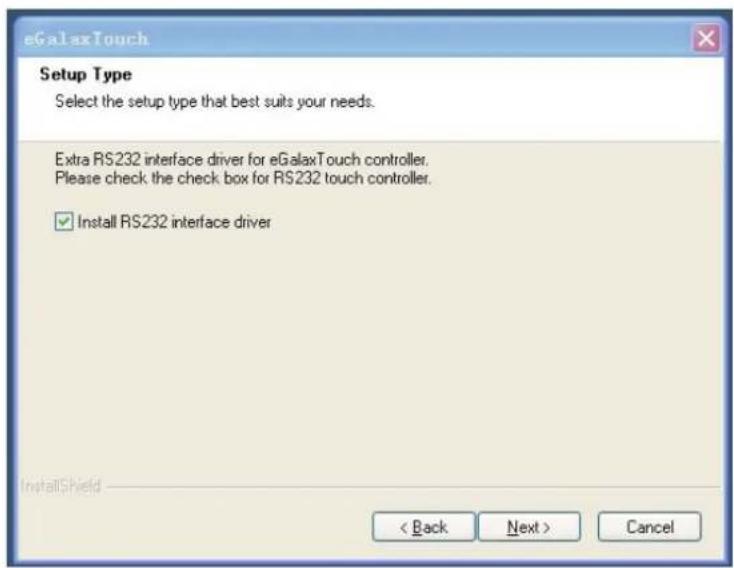

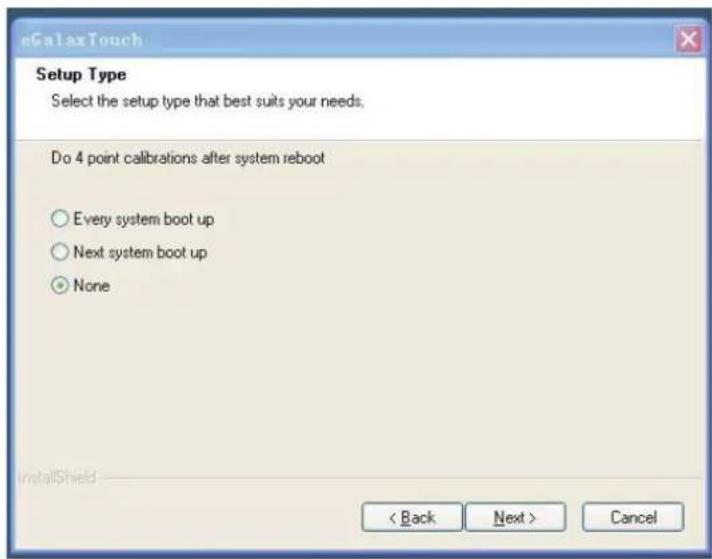

needs. There is a eGalaxyTouch accessory utility for choosing, Auto 4Pts Calibration Utility. Users can install the utility they want by checking the box. Then press [Next>] to continue installation.7. Please select 4 points calibration mode when system starts. Then press [Next>] to continue ins- tallation.

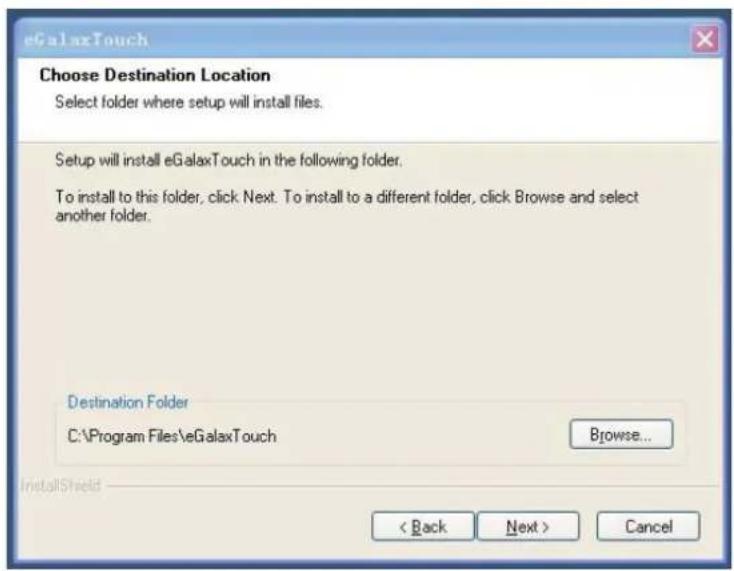

8. To choose your special software install path,

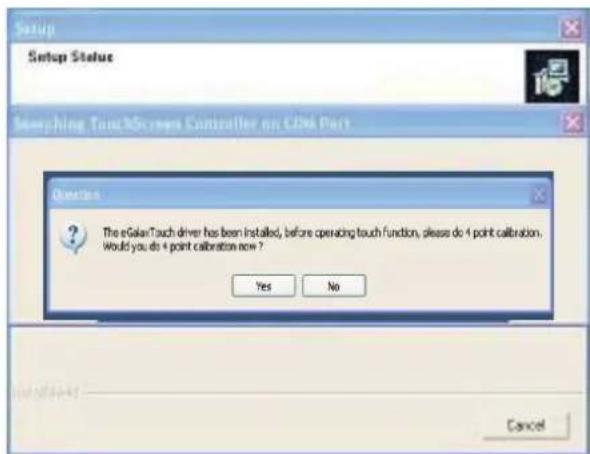

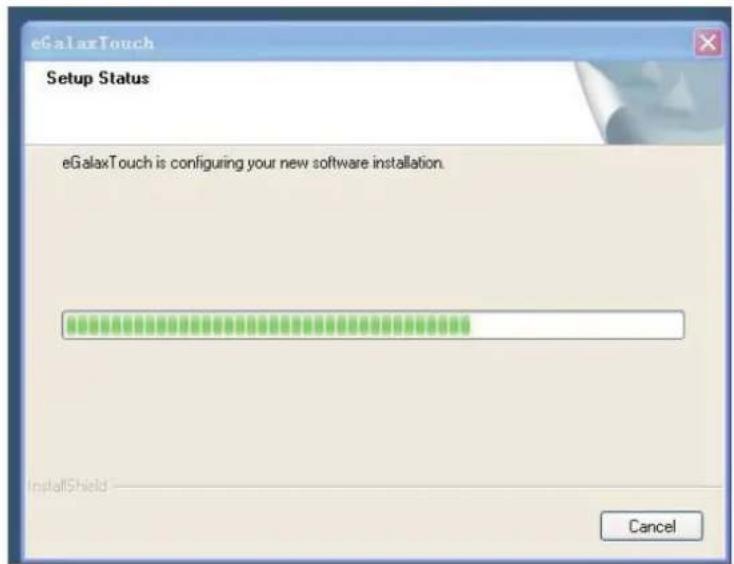

will be installed. Then press [Next>] to continue installation.10. During installation, the setup program will scan Com port for RS232 eGalaxyTouch controller. Once the controller is scanned, the setup program will display a dialog. Click Yes to add the controller on the specied COM port au- tomatically.
11. Setup is complete. After eGalaxyTouch installation, the
USB device will be found automatically as soon as it was Plugged into the computer. Then users can see the applica- tion program window.
12. Users can check the situation of

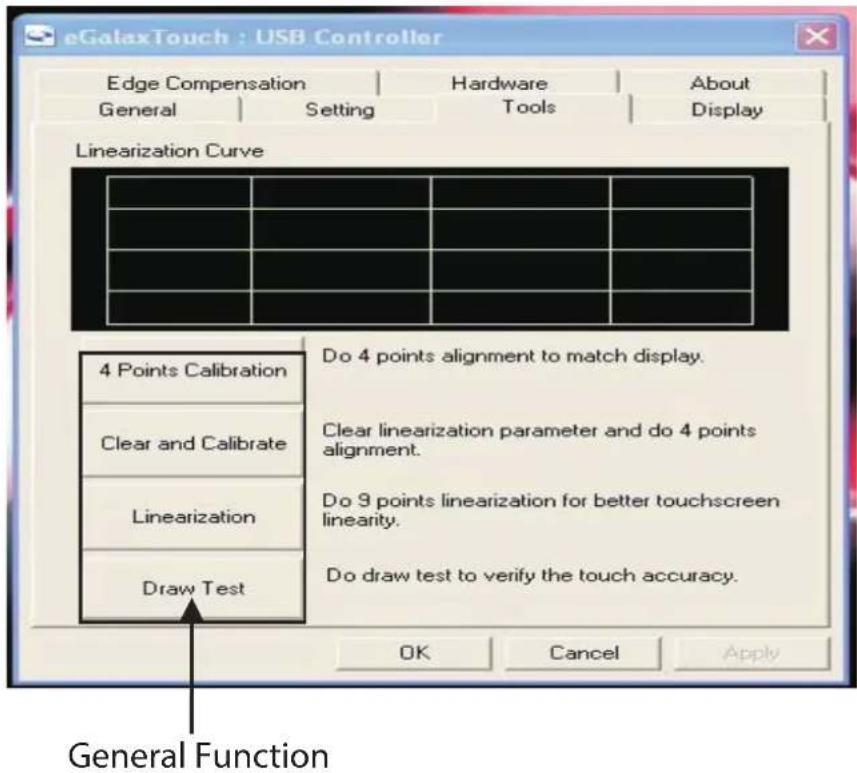

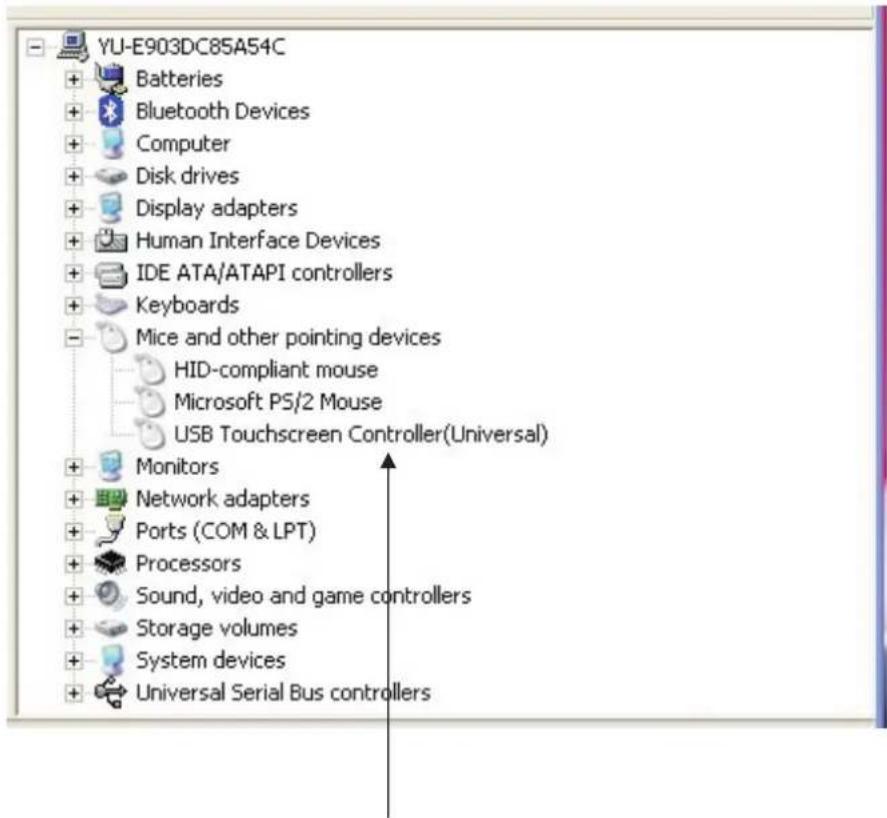

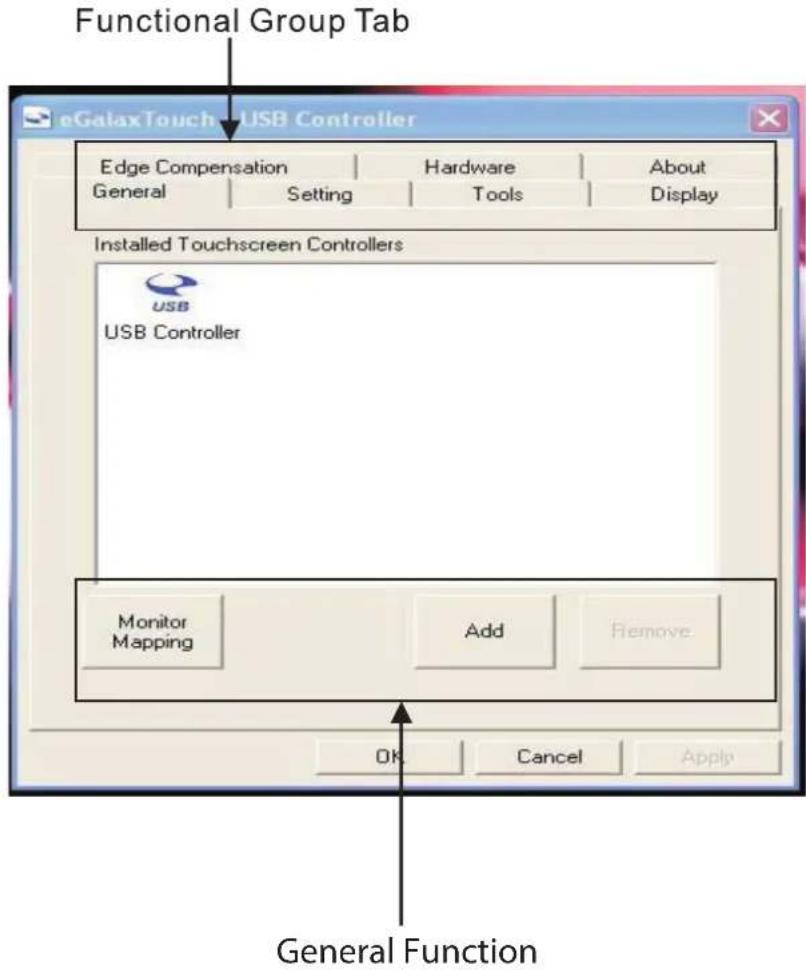

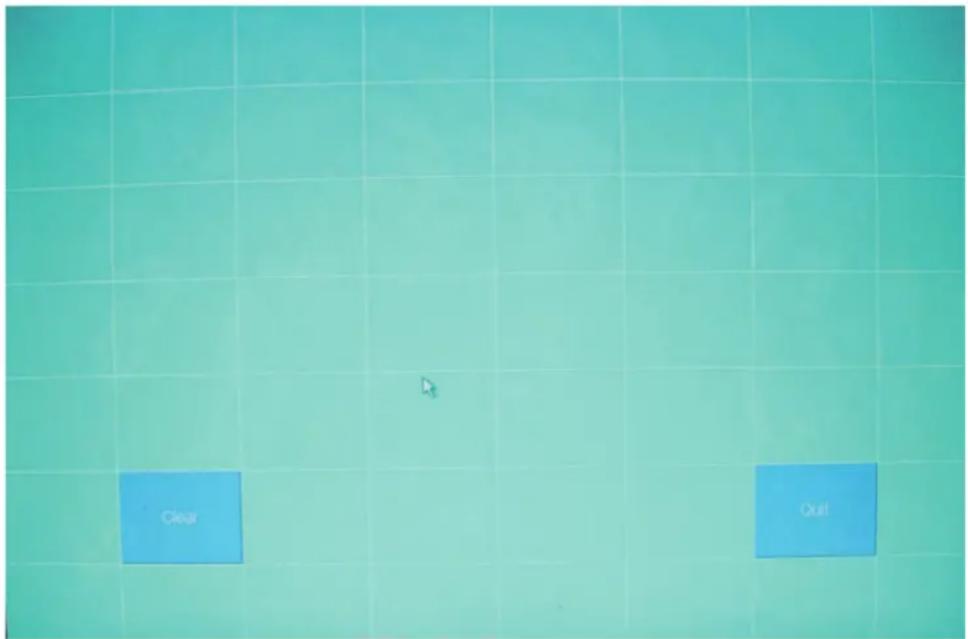

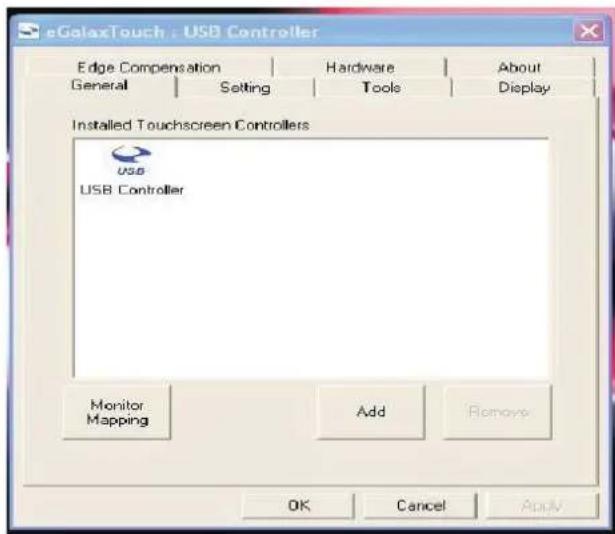

controllers in Device Manager. If the controller is set up well, there will be messages as the picture.CONFIGURATION UTILITY There are several property pages in eGalaxyTouch utility. Each property page contains dierent functions to do the adjustments. Therefore, users can easily manage all the eGalaxyTouch controllers through eGalaxyTouch Utility. General property page contains the functions of devices Add/Remove Draw Test and Tools property page contains 4 Points Calibration/Clear Calibration/Linearization. General Function General Function4 Points Calibration Correct 4 points locations on screen with the panel. Press [4 points calibration], screen display as follows: Touch the blinking symbol on panel until beep or stop blinking. Draw Test Test the drawing position related to the display screen on panel. Click on the [Draw Test] button. There will be a squared blue display. In drawing test window, users can click [Clear] button to clear the window. Also, users can click [Quit] or press mouse right button to quit from the drawing test. In drawing test window, users can verify the panel linearity, calibration capability, and drawing line quality.TOUCH CONTROLLER SPECIFICATION Power requirements Operating temperature Storage temperature Relative humidity Protocol Resolution Report rate Response time Pin out denition Panel resistance Regulatory approvals Calibration Compensation Draw test Language Advanced feature Controller setting Mouse emulator Sound notication Double click OS support COM por support VESA DIMENSIONS +5VDC (Maximum 100mA, typical 70mA, 50mV peak to peak maxi- mum ripple) 0º to 50ºC -40º to 80ºC 95% al 60ºC USB 2.0 2048x2048 Max. 160 points/sec Resistive, max. 35ms 5 wire: X+, Y+, X-, Y- 200-900 ohm FCC-B, CE Fast full oriental 4 points position Accuracy 25 points linearity verication Position and linearity verication Suppor 10 languages for Windows
1. Support monitor/display rotation
2. Suppor multiple monitor/display
3. Suppor QVGA and half-VGA function
4. Support edge compensation
5. Suppor constant touch
1. Support multiple controllers
1. Sound option (No sound/touch down/lift up)
2. Frecuency adjustment
3. Duration adjustment
1. Support COM 1-COM 256 for Windows and Linux
2. Support COM 1-COM 8 for DOSTROUBLESHOOTING
The rst step in troubleshooting a touchscreen system is to determine whether the problem is related to softwa- re, computer hardware or this touchscreen monitor. Do not confuse computer hardware or software problems with touchscreen problems. The easiest way to verify a computer hardware/software failure is to try the monitor on other computer. Hardware problems may be caused by the touchscreen, controller, cabling, power supply, or by the integration of the touchscreen components in the display. Software problems are determined by a basic hardware functio- nally test. If the hardware transmits coordinates correctly, then the problem is with the driver or the calibration software. Problem: No image appears on screen. Check that all the I/O and power connectors are correctly installed and well connected as described. Make sure the pins of the connectors are not crooked or broken. Recongure the resolution of your computer to make it less than or equal to 1024x768. Problem: Partial image or incorrectly displayed the image. Check to see if the resolution of your computer is higher than that of the LCD display. Recongure the resolution of your computer to make it less than or equal to 1024x768. Problem: Image has vertical ickering line bars. Image is unstable and ickering. Check and recongure the display mode of the vertical refresh rate of your graphic card to make it compatible with the LCD display. Problem: Image is scrolling. Check and make sure the VGA signal cable (or adapter) is well connected.
SAFETY, MAINTENANCE AND RECYCLING INSTRUCTIONS
1. Caution: Never open the device, the internal parts are danger, electrical shock.
2. Do not install this unit near water, for example, in a wet basement, in an unprotected
outdoor installation or in any area classied as a wet.
3. Do not insert objects of any kind into this unit through openings as they may touch
voltage points and short out parts that could result in re or electric shock.
4. Do not spill any liquid on the unit. Danger of explosion!
5. Do not crush power cables, danger of short circuit!
6. Always connect to the manufacturer’s recommended tension.
7. Clean the product with a soft and dry cloth.
8. Follow local regulations for disposing of the product.
800x600, 1024x768 and 1280x1024
