appTPV04CAPVFD - Monitor Aqprox - Free user manual and instructions

Product Type	Touch Monitor with Built-in PC
Screen Size	15 inches LCD with LED backlight
Maximum Resolution	1024 x 768 pixels
Touch Technology	Capacitive
Processor	Intel Celeron N5105 Quad Core 2.9 GHz
Memory	4/8/16 GB DDR4 2666 MHz (O-DIMM)
Storage	64/128 GB SSD M.2
Connectivity	Audio (line out x1, line in x1), USB x2, VGA x1, RS232 x2, RJ45 x1 (10/100/1000), DC Power x1
Speakers	2 W
Power Supply	Adapter 12 V, 5 A
Operating Temperature	0 °C to 50 °C
Relative Humidity	20 % to 85 %
Supported Operating Systems	Windows 10, Windows 11, Linux
Certifications	CE / RoHS
Maintenance and Cleaning	Soft dry cloth; no acrylic or polycarbonate solvents; ammonia-based glass cleaner allowed for screen
Safety	Do not open the device; avoid any liquid; do not crush the power cable; use the recommended voltage
Recycling	Device subject to WEEE directive; do not dispose with household waste; use recycling bins
Spare Parts and Repairability	LCD backlight consumable replaceable by an authorized service

Frequently Asked Questions - appTPV04CAPVFD Aqprox

How to tilt the screen?

Hold the terminal body and gently pull the screen towards you to tilt it. Do not exceed the maximum tilt angle and do not apply excessive pressure.

Can the screen backlight be replaced?

Yes, the backlight is a consumable. If the screen becomes dim, contact your authorized dealer for replacement.

What to do if liquid enters the device?

Do not spill any liquid on the device. In case of contact, unplug immediately and consult a repair service. Risk of explosion!

How to install an operating system?

This product is designed for professional use and requires an OS installation. Use a bootable USB drive with Windows 10/11 or Linux and follow the on-screen instructions.

Can I clean the screen with a household cleaner?

Use a soft dry cloth for routine cleaning. For stains, a damp cloth with ammonia-based glass cleaner is allowed. Avoid acrylic or polycarbonate solvents.

Is the tilt angle adjustable?

Yes, the screen can be tilted for the best viewing angle. Do not force beyond the stop and do not push directly on the screen.

Which power adapter to use?

Use only the supplied 12 V, 5 A adapter. Using an incorrect adapter poses a risk of explosion.

Can I use this device outdoors?

No, it must be installed in a dry place away from moisture. The operating temperature is 0 °C to 50 °C and relative humidity 20 % to 85 %.

What to do in case of data loss?

Regularly back up your data before any manipulation. The manufacturer is not responsible for data loss.

The touch screen no longer responds, what to do?

Check that the screen is clean and dry. Restart the terminal. If the problem persists, contact technical support.

USER MANUAL appTPV04CAPVFD Aqprox

15" Touch All in One

POS Terminal

e e

Thank you for choosing appTPV04 Approx POS terminal. Please always read thoroughly all the instructions and documents delivered with the product before you do anything about it. The company reminds you that the proper use will improve the use affect and authentication speed. Operation of this equipment in a residential area is likely to cause interference in which case the user at his own expense will be required to take whatever measures to correct the interference.

Approx will assume no liability for any technical inaccuracies or editorial or other errors or omissions contained herein, nor for direct, indirect, incidental, consequential or otherwise damages, including without limitation loss of data or profits, resulting from the furnishing, performance, or use of this material. This information is provided "as is" and Approx expressly disclaims any warranties, expressed, implied or statutory, including without limitation implied warranties of merchantability or fitness for particular purpose, good title and against infringement.

The information in this manual contains only essential hardware concerns for general user and is subject to change without notice. Approx reserves the right to alter product designs, layouts or drivers without notification. The system integrator shall provide applicative notices and arrangement for special options utilizing this product.

All data should be backed-up prior to the installation of any drive unit or storage peripheral, Approx will not be responsible for any loss of data resulting from the use, disuse or misuse of this or any other Approx's post terminal product.

Daily maintenance guide

For regular cleaning of POS touch screen, please use only soft-haired brush or dry soft cloth. You may use moist soft cloth to remove stains when necessary. Apply only proper amount of mild neutral detergent for obstinate stains. Please note that never use Acryl dissolving solvent or Polycarbonate dissolving solvent. You may apply ammonia-based glass cleaner only on the screen surface. The LCD built in this POS terminal is manufactured with highly precise technology, however bright pixels or blank pixels may appear. Also an irregular color and brightness may occur depending on the view angle. Please note that this type of phenomena is common for LCD and is not a malfunction.

Caution

• Risk of explosion if battery is replaced by an incorrect type.
• Dispose of used batteries according to local regulations.
• Do not remove the cover, and ensure no user serviceable components are inside. Take the unit to the service center for service and repair.
• Lay this equipment on a reliable surface when install. A drop or fall could cause injury.

Specifications

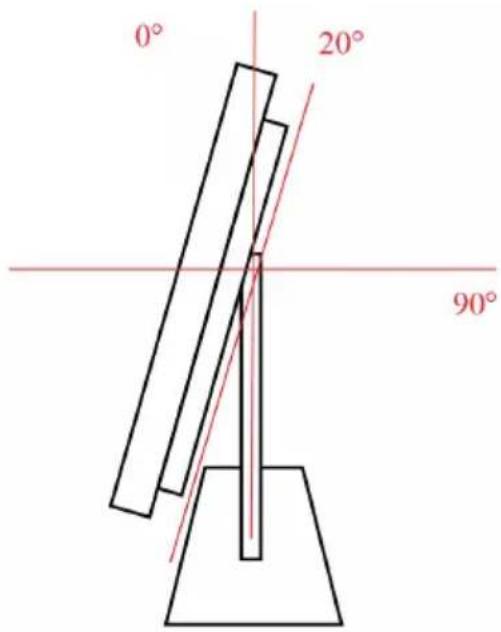

The display may be tilted for the best viewing angle. The angle can be adjusted as illustrated in the picture.

Important:

• Do not pull the display beyond the maximum tilt angle nor apply excessive pressure to the display nor push the screen of the display directly when you adjust the angle for the display.
• Make sure to hold the body when pulling the display so that the terminal may not move.
• The backlight in the display is a consumable part.
• When the LCD can no longer be adjusted and becomes darker, you should replace the LCD. Consult your authorized dealer for further details.
• Make sure not to catch your finger when you adjust the

angle for the display.

• Do not knock or scratch the display surface by using pointed object, such as ball point pens or similar devices on the display. This may cause damages or scratches of the display.

Display size 15 LCD Touch Display Max. resolution (LED back lit)
Touch type		Capacitive /
Main Board Processor System memory SO	Intel Celeron N5105 Quad Core 2.9GHz
	-DIMM 4/8/16 GB DDR4 2666MHz
Storage HDD 64/	128 GB SSD M.2
I/O Audio Port x	USB	x 2 (USB
		x 4 (USB 3.0)
	VGA	x 1
	RS232	x 2
	RJ45	x 1 (10/100/1000)
	1 line out x 1 line in
	DC Power	x 1
Speakers	2W
Environmental Operation	temperature 0° to 50°C
	Relative humidity		20% to
Power Supply 12V 5A power adapter
OS Support Windows 10, 11, Linux
Certifications	CE/RoHS

Operating system installation

This product is highly professionalized equipment. The installation of an OS into a machine without any preloaded OS could be a major difficulty for average user or obstacle by possibly unintentional negligence even for PC veterans to accomplish such a task. Therefore, OS installation into a system without preloaded OS is highly discouraged.

Safety, maintenance and recycling instructions

1. Caution: Never open the device, the internal parts are danger, electrical shock.
2. Do not install this unit near water, for example, in a wet basement, in an unprotected outdoor installation or in any area classified as a wet.
3. Do not connect cables other than those specified in this manual. Doing so may result in fire or improper operation.
4. Be sure to set this product on a firm, stable, horizontal surface. The product may be damaged or cause injury if it falls.
5. Do not place heavy objects on top of this product. The product may be damaged and cause injury if it falls.
6. Do not insert objects of any kind into this unit through openings as they may touch voltage points and short out parts that could result in fire or electric shock.
7. Do not spill any liquid on the unit. Danger of explosion!

English

1. Do not crush power cables, danger of short circuit!
2. Always connect to the manufacturer's recommended tension.
3. Clean the product with a soft and dry cloth.
4. Follow local regulations for disposing of the product.

Recycled

AEE REI-RAEE 5548 In this manual, the container (bin) symbol indicates that the product is subject to the European directive 2002/96 / EC, electrical and electronic products, batteries, and batteries and other accessories must necessarily be subject to a selective collection.

At the end of the life of the device, make use of the recycling bins. This gesture will help reduce the health risks and preserve the environment.

Municipalities and distributors, Will provide essential details on recycling your old device. If this device carries an internal battery, it must be removed and deposited separately for proper management.
