USER MANUAL GTOG48SU8 GARLAND

© 2010 Garland Commercial Ranges Limited FOR YOUR SAFETY:

IMPROPER INSTALLATION, ADJUSTMENT,

THIS PRODUCT HAS BEEN CERTIFIED AS

THIS PRODUCT MUST BE INSTALLED BY A

For Your Safety: Post in a prominent location, instructions to be followed in the event the user smells gas. This information shall be obtained by consulting your local gas supplier. Français . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 17 Españo. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Página 33 Users are cautioned that maintenance and repairs must be performed by a Garland/US Range authorized service agent using genuine Garland/US Range replacement parts. Garland/US Range will have no obligation with respect to any product that has been improperly installed, adjusted, operated or not maintained in accordance with national and local codes or installation instructions provided with the product, or any product that has its serial number defaced, obliterated or removed, or which has been modified or repaired using unauthorized parts or by unauthorized service agents. For a list of authorized service agents, please refer to the Garland/US Range web site at http://www.Garland-Group.com. The information contained herein, (including design and parts specifications), may be superseded and is subject to change without notice. Part # 4531237 Rev 2 (09/09/13) INSTALLATION AND OPERATION MANUAL

This product contains chemicals known to the state of California to cause cancer and/or birth defects or other reproductive harm. Installation and servicing of this product could expose you to airborne particles of glass wool/ceramic fibers. Inhalation of airborne particles of glass wool/ceramic fibers is known to the state of California to cause cancer. Operation of this product could expose you to carbon monoxide if not adjusted properly. Inhalation of carbon monoxide is known to the state of California to cause birth defects or other reproductive harm. Keep appliance area free and clear of combustibles. Part # 4531237 Rev 2 (09/09/13)Page 3

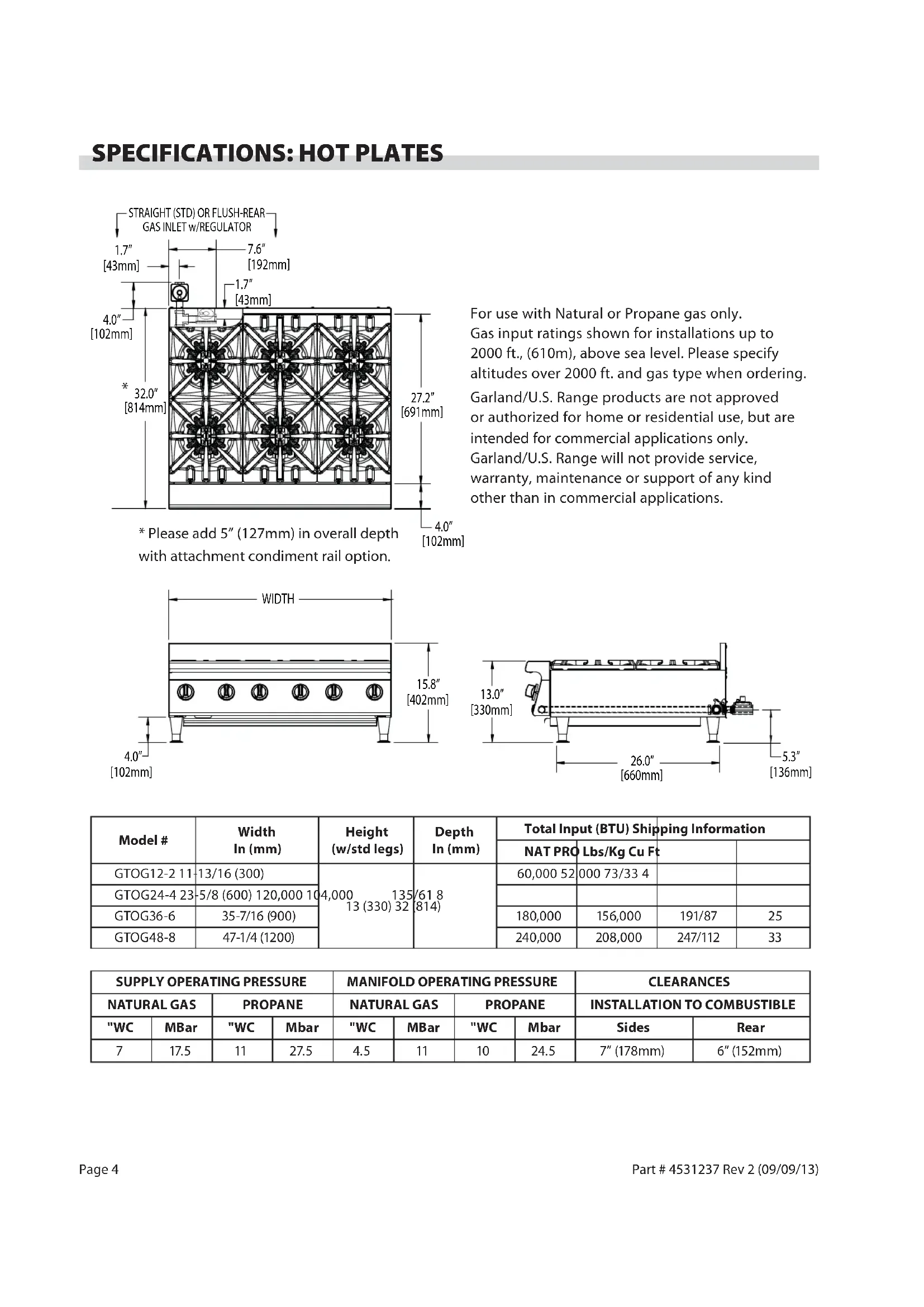

Part # 4531237 Rev 2 (09/09/13) 32.0” [814mm] 27.2” [691mm] 4.0” [102mm] 4.0” [102mm] 15.8” [402mm] 13.0” [330mm] 26.0” [660mm] 5.3” [136mm] WIDTH 4.0” [102mm] 1.7” [43mm] 1.7” [43mm] 7.6” [192mm] STRAIGHT (STD) OR FLUSH-REARGAS INLET w/REGULATOR For use with Natural or Propane gas only. Gas input ratings shown for installations up to 2000 ft., (610m), above sea level. Please specify altitudes over 2000 ft. and gas type when ordering. Garland/U.S. Range products are not approved or authorized for home or residential use, but are intended for commercial applications only. Garland/U.S. Range will not provide service, warranty, maintenance or support of any kind other than in commercial applications.

• Please add 5” (127mm) in overall depth with attachment condiment rail option

Part # 4531237 Rev 2 (09/09/13) 32.0” [814mm] 27.2” [691mm] 4.0” [102mm] 14.5” [368mm] 4.0” [102mm] 4.0” [102mm] 19.8” [503mm] 13.0” [330mm] 26.0” [660mm] 5.3” [136mm] WIDTH 4.0” [102mm] 1.7” [43mm] 1.7” [43mm] 7.6” [192mm] STRAIGHT (STD) OR FLUSH-REARGAS INLET w/REGULATOR For use with Natural or Propane gas only. Gas input ratings shown for installations up to 2000 ft., (610m), above sea level. Please specify altitudes over 2000 ft. and gas type when ordering. Garland/U.S. Range products are not approved or authorized for home or residential use, but are intended for commercial applications only. Garland/U.S. Range will not provide service, warranty, maintenance or support of any kind other than in commercial applications. Model # WidthIn (mm)Height(w/std legs)DepthIn (mm)Total Input (BTU) Shipping InformationNAT PRO Lbs/Kg Cu FtGTOG24-SU4 23-5/8 (600)19-13/16 (503) 32 (814)120,000 108,000 135/61 8GTOG36-SU6 35-7/16 (900) 180,000 162,000 191/87 25

SUPPLY OPERATING PRESSURE MANIFOLD OPERATING PRESSURE CLEARANCES NATURAL GAS PROPANE NATURAL GAS PROPANE INSTALLATION TO COMBUSTIBLE "WCMBar"WCMbar"WCMBar"WCMbar Sides Rear 7 17. 5 11 27. 5 4.5 11 10 24.5 7 " (178mm) 6” (152mm)

• Please add 5” (127mm) in overall depth with attachment condiment rail option

Part # 4531237 Rev 2 (09/09/13)32.1”[814mm] 4.0” [102mm] 4.0” [102mm] 2.4” [62mm]TROUGHDEPTH1.4” [35mm] HANDLE DEPTH MAX15.9”[404mm]13.0”[330mm]21.2”[538mm]GRATE DEPTH 5.5° HIGH GRATEPOSITION 1.4° LOW GRATE POSITION26.0”[660mm] 5.3” [136mm]WIDTH 4.0” [102mm] 1.7” [43mm] 1.7” [43mm] 7.6” [192mm]STRAIGHT (STD) OR FLUSH-REARGAS INLET w/REGULATOR For use with Natural or Propane gas only. Gas input ratings shown for installations up to 2000 ft., (610m), above sea level. Please specify altitudes over 2000 ft. and gas type when ordering. Garland/U.S. Range products are not approved or authorized for home or residential use, but are intended for commercial applications only. Garland/U.S. Range will not provide service, warranty, maintenance or support of any kind other than in commercial applications.

• Please add 5” (127mm) in overall depth with attachment condiment rail option

5.3” [136mm]WIDTH 4.0” [102mm] 1.7” [43mm] 1.7” [43mm] 7.6” [192mm]STRAIGHT (STD) OR 3/4" N.P.T. FLUSH REAR GAS INLET w/REGULATOR Garland/U.S. Range products are not approved or authorized for home or residential use, but are intended for commercial applications only. Garland/ U.S. Range will not provide service, warranty, main- tenance or support of any kind other than in com- mercial applications. ADJUSTABLE GRATE21.2”[538mm]GRATE DEPTH 5.5°

• Please add 5” (127mm) in overall depth with attachment condiment rail option

3/4” (83mm) DIVIDER ON GTBG48-AR48 and GTBG60-AR60 adjustable broilers. For use with Natural or Propane gas only. Gas input ratings shown for installations up to 2000 ft. (610m), above sea level. Please specify altitudes over 2000 ft. and gas type when ordering. Model # Width In (mm) Height (w/std legs) Depth In (mm) Total Input (BTU) Shipping Information Lbs/Kg Cu Ft With Adjustable Grates GTBG24-AR24 23-5/8 (600) 13 (330) 32 (814) 72,000 283/129 19

NON-COMBUSTIBLE SURROUNDINGS ONLY "WCMBar"WCMbar"WCMBar"WCMbar

TROUGH DEPTH (43mm) (192mm) (43mm) (814mm) (102mm) (102mm) (102mm) (415mm) (402mm) (330mm) (521mm) (657mm) (136mm) GAS INLET 1.7" For use with Natural or Propane gas only. Gas input ratings shown for installations up to 2000 ft., (610m), above sea level. Please specify altitudes over 2000 ft. and gas type required when ordering. Garland/U.S. Range products are not approved or authorized for home or residential use, but are intended for commercial applications only. Garland / U.S. Range will not provide service, warranty, maintenance or support of any kind other than in commercial applications.

• Please add 7” (178mm) in overall depth with attachment condiment rail option. Model # Width In (mm) Height (w/std legs) Depth In (mm) Total Input (BTU) Shipping Information Lbs/Kg Cu Ft Thermostat Controlled Standard Griddle (1" steel plate) GTGG24-GT24M 23-5/8 (600) 13 (330) 32 (814) 56,000 290/132 21

1. Carefully remove appliance from carton or crate. Burner

tie wires and other packing material should be removed at this time. The protective material covering the stainless steel should be removed immediately after the appliance is installed, before it is red.

2. Remove top grates and place out of the way, to prevent

3. These appliances must be installed under an adequate

ventilation system. Refer to section titled Ventilation for further instructions.

4. All burner adjustments and setting shall be made by a

quali ed gas technician. Gas Connections The local gas authority should be consulted at the installation planning stage in order to establish the availability of an adequate supply of gas and to ensure that the meter is adequate for the required ow rate. The pipe work from the meter to the appliance must be an appropriate size. All xed (non-mobile) appliances MUST be tted with an accessible upstream gas shut o valve as a means of isolating the appliance for emergency shut o and for servicing. A union or similar means of disconnection must be provided between the gas-cock and the appliance. A manually operable valve must be tted to the gas supply to the kitchen to enable it to be isolated in an emergency. Wherever practical, this shall be located either outside the kitchen or near to an exit in a readily accessible position. Where it is not practical to do this, an automatic isolation valve system shall be tted which can be operated from a readily accessible position near to the exit. In locations where the manual isolation valve is tted or the automatic system can be reset this notice MUST be posted: “ALL DOWNSTREAM BURNER AND PILOT VALVES MUST BE TURNED OFF PRIOR TO ATTEMPTING TO RESTORE THE SUPPLY. AFTER EXTENDED SHUT OFF, PURGE BEFORE RESTORING GAS.” Damage Check Damage check: Check carton or crate for possible damage incurred in shipping. After carefully un-crating, check for “concealed” damage. Report any damage immediately to your carrier. Rating Plate The rating plate is a xed to a bracket mounted at the rear of the unit but visible from the front. The grease drawer may need to be removed to view rating plate. The correct type of gas for which the unit was manufactured is noted on the rating plate, and this type of gas must be used. When corresponding with the factory or your local authorized factory service center regarding service problems or replacement parts, be sure to refer to the particular model by the correct model number (including the pre x and su x letters and numbers) and the warranty serial number. The rating plate a xed to the appliance contains this information. We suggest installation, maintenance and repairs be performed by your local authorized service agency listed in your information manual pamphlet. In the event you have any questions concerning the installation, use, care or service of the product, write or call our Product Service Department. This product must be installed by professional personnel as speci ed. Garland/U.S. Range products are not approved or authorized for home or residential use, but are intended for commercial applications only. Garland / U.S. Range will not provide service, warranty, maintenance or support of any kind other than in commercial applications. Part # 4531237 Rev 2 (09/09/13)Page 10 INSTALLATION

1. The installation and connection must be performed by a

licensed gas technician in compliance with local codes, or in the absence of local codes, with CAN/CGA-B149 Installation Code or with the national Fuel Gas Code, ANSI Z223.1/NFPA No. 54 – Latest Edition.

2. The correct type of gas for which the unit was

manufactured is noted on the rating plate, and this type of gas must be used.

3. If it is a new installation have the gas authorities check

meter size and piping to assure that the appliance is supplied with necessary amount of gas pressure required to operate properly.

4. The gas pressure must be checked when the appliance

is installed, to ensure that the gas pressure is the same as speci ed on the rating plate. If necessary, pressure adjustments can be made at the pressure regulator, supplied on each unit. NOTE: When installing as a ush mount pressure regulator connection, (to allow for equipment installations against a non-combustible wall), a certi ed exible gas hose and quick disconnect assembly is required to allow the unit to be moved in the event an adjustment of the gas pressure regulator is required.

5. Have a quali ed gas technician check the gas pressure

to make certain that existing gas facilities (meter, piping, etc.) will deliver the BTU’s of gas required at the appliance with no more than ½” water column pressure drop. When checking pressure, be certain that all the equipment on same gas line is turned to the “ON” position.

6. The appliance and its individual shut o valve must be

disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2 PSIG. (3.45 KPA).

7. The appliance must be isolated from the gas supply

piping system by closing its individual manual shut o valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 PSIG. (3.45 KPA).

8. Make certain that the new piping, joints and connections

have been made in a clean manner and have been purged, so that the piping compound, chips, etc., will not clog pilots, valves and/or controls. Use pipe joint sealant that is certi ed for use with lique ed petroleum gas.

9. WARNING: Check gas connections for leaks, using soap

solution or similar means. Do Not Check with an Open Flame. Leg Installation Your new appliance has been supplied with 4”(102mm) adjustable legs. These legs are threaded into holes on the bottom. Once the legs are installed turn the leveling foot at the bottom of the leg.

4" [102mm] ADJUSTABLE LEG LEG INSTALLATION LEVELING FOOT Level the appliance by adjustment of leveling bolts or legs. Use a spirit level and check for level four ways; across front and back, then down left and right edges. Level any adjacent units to the rst. A griddle may not rest evenly on the appliance body if it is not properly leveled. Part # 4531237 Rev 2 (09/09/13)Page 11 INSTALLATION Ventilation Ventilation requirements may be subject to local building and re codes. Consult local authorities having jurisdiction. Counter equipment must be installed in a location in which the facilities for ventilation permit satisfactory combustion of gas and proper venting. Proper ventilation is imperative for good operation of the appliance. The ideal method of ventilating counter equipment is the use of a properly designed ventilating canopy, which should extend at least 6”/152mm beyond all sides of the appliance (except against the wall if the canopy is a wall installation). This is usually part of a mechanical exhaust system. Air Supply

1. It is necessary that su cient room air ingress be allowed

to compensate for the amount of air removed by any ventilating system. Otherwise, a subnormal atmospheric pressure will occur, a ecting the appliance operation adversely and causing undesirable working conditions.

2. Appliances shall be located so as not to interfere with

proper circulation of air within the con ned space. All gas burners and pilots require su cient air to operate.

3. Large objects should not be placed in front of the

appliance which might obstruct the air ow through the front. Do not obstruct the ow of combustion and ventilation air.

4. Do not permit fans to blow directly at the appliance, and

wherever possible, avoid open windows adjacent to the appliance sides and back; also wall type fans which create air cross-currents within the room. ADJUSTMENTS Burner Adjustments – All Models

1. Before making any adjustment, turn all gas valves

to “OFF”. Remove the burner tie wires, if not already removed. Be sure all piping is gas tight and that air is purged from lines.

2. All units are shipped from factory at burner ratings set

for the gas speci ed on the rating plate at normal gas pressure. The only adjustment necessary is for that governing air. Air Adjustment: If necessary, the air is adjusted by rotating the air shutter on burner. The burner must have enough air that the tips of the ames are not yellow, but not so much air that the ames will lift o the burner ports. Securely tighten air shutter screw so air shutter cannot be moved. NOTE: All adjustments must be performed by a quali ed gas technician. Part # 4531237 Rev 2 (09/09/13)Page 12 Lighting Standing Pilots - All Models After the appliance has been installed by a licensed gas trades-person all connections, pilot lights and controls have been inspected for proper operation. All gas appliances that use standing pilot systems are generally assumed to be operating with the pilot on continuously. The appliances should not be restarted except in the event of a gas service interruption to the facility. If a pilot ame does go out, here are the basic steps to check before you re-light the pilot:

1. Check to see that all gas lines are in place and secured

and that there is no accumulation of gas inside the unit.

2. Check to make sure that the main shut o valve is in the

3. Make sure the individual burner valves are in the o

4. Turn on or open the main shut o valve to the appliance.

5. Follow pilot lighting procedures applicable to your

model. The pilot should ignite within a few attempts. You will be able to see the pilot ame on a hotplate under the protective pilot shield cast into the burner top grate. Pilot ames on griddles and broilers can be viewed through observation holes in the stainless steel front panel. Broilers: a. Light the pilots with a long match or taper through the opening(s) in the valve panel. b. Turn the burner valve on to the full position. A sharp ame should be about 1/4” high. c. To shut down turn all valves to the o position. If the appliance is to be shut down for an extended period of time, close the in-line gas valve. Hotplates: a. Pilots are easily accessible. Make sure the individual burner valve is in the o position, then use an open ame device,match,or BBQ lighter to ignite.

OPERATION: ALL MODELS

Valve-control griddles: a. Make sure the individual valve control is in the o position. b. Use the piezo spark (or electric spark if your model has this option) button(s) to ignite the pilot. c. Once the pilot is lit you may now turn your valve control to the high or low ame setting. d. To shut down the main burner turn the valve to the o position. Thermostat-control griddle a. Make sure the individual valve is in the o position. b. Use the piezo (or electric spark if your model has this option) button(s) to ignite the pilot. c. Once the pilot is lit you may then set the thermostat to the desired cooking tempertaure. d. To shut down turn individual on-o valve to o position.

6. If you do not have a pilot ame established fairly quickly

and begin to smell gas, shut o the main valve and wait ve minutes to let the gas build-up escape.

7. Only once the pilot ame has been established should

you turn on the burner control. When the burner control is on it allows gas ow to the burner. If there is no pilot ame it will allow gas to build up and cause possible delayed ignition, which could result in an explosion. Shutdown Procedure To shutdown, turn all main burner valves to OFF position. If the appliance is to be shut down for an extended period of time, close the pilot valves, (gum valves), by turning their set screws clockwise. Finally, turn the manual valve on the main gas supply to the OFF position. Part # 4531237 Rev 2 (09/09/13)Page 13 MAINTENANCE & CLEANING NOTE: Any maintenance or service involving disassembly of components should be made by a quali ed service technician. Also, ensure gas supply to the appliance is shut o . You have purchased the nest commercial cooking equipment available anywhere. Like any other ne precision built piece of equipment, it should be given regular care and maintenance. Periodic inspections by your dealer or quali ed service agency are recommended to check temperatures, adjustments and ensure moving parts are operative. Whenever possible, avoid overheating idle equipment as this is the primary cause for increased service costs. When corresponding with the factory or your equipment dealer regarding service problems or replacement parts, be sure to refer to the particular model by the correct model number (including pre x and su x letters and numbers) and the serial or code number. The rating plate a xed to the appliance contains this information. Seasoning Griddle (standard steel plate)

1. Remove all factory applied protective material by

washing with hot water, mild detergent or soap solution.

2. Apply a thin coat of cooking oil to the griddle surface,

about one ounce per square foot of griddle surface. Spread over the entire griddle surface with a cloth to create a thin lm. Wipe o any excess oil with a cloth.

3. Light all burners, set at the lowest possible setting. Some

discoloration will occur when heat is applied to steel.

4. Heat the griddle slowly for 15 to 20 minutes. Then wipe

away oil. Repeat the procedure 2 to 3 times until the griddle has a slick, mirror like nish. IMPORTANT: Do not set to a high position (on valve control) or 450° (on thermostat control) during “break-in” period NOTE: Steel griddle surface will tone (blue discoloration) from heat. This toning will not diminish function or operation and it is not a defect. The griddle will not require reseasoning if it is used properly. If the griddle is over heated and product begins to stick to the surface it may be necessary to repeat the seasoning process again. If the griddle is cleaned with soap and water it will be necessary to reseason the griddle surface. Griddle (optional chrome)

1. Remove all factory applied protective material by washing

with hot water, mild detergent or soap solution.

2. A chrome plate griddle does not have a porous surface

such as a steel griddle plate so seasoning is something you do not need to do but regular cleaning will ensure longer life for your griddle and better cooking results.

3. Turn griddle plate temperature setting to between 300

to 350 degrees F (149 to 177 deg. C). Pour water on the griddle ahead of a soft bristle brush. Then scrub the griddle clean sweeping the water and debris into the grease trough. This should remove much of the debris on the griddle.

4. For stubborn burnt on food use a mild nonabrasive

cleaner with the water and a soft metal scraper. Cast Iron Top Grates (Hot Plates & Char-Broilers)

1. Wash the cast iron top grates thoroughly with a mild soap

2. Dry the grates thoroughly with a clean cloth.

3. Immediately after drying, season the top grates lightly

with a non-toxic oil, (liquid vegetable oil or spray oil).

WARNING: DO NOT SEASON THE GRATES WHILE THEY

ARE INSTALLED ON THE APPLIANCE. Seasoning grates over an open ame could cause a ash re.

4. After seasoning, reinstall the grates. Turn all the burners

on at their lowest setting. Allow the oil on the grates to burn o for at least 20 minutes before using. RE-SEASONING OF THE GRATES WILL BE REQUIRED WHENEVER THEY HAVE BEEN CLEANED. FAILURE TO SEASON GRATES WILL RESULT IN RUSTING. Part # 4531237 Rev 2 (09/09/13)Page 14 Cleaning Griddle To produce evenly cooked, browned griddle products, keep griddle free from carbonized grease. Carbonized grease on the surface hinders the transfer of heat from the griddle surface to food product. This results in uneven browning and loss of cooking e ciency, and worst of all, carbonized grease tends to cling to grilled foods, giving them a highly unsatisfactory and unappetizing appearance. To keep the griddle clean and operating at peak performance, follow these simple instructions: a. AFTER EACH USE clean griddle thoroughly with a grill scraper or spatula. Wipe o any excess debris left from cooking process. b. ONCE A DAY clean griddle surface with a grill brick and grill pad. Remove grease container and clean thoroughly, in the same manner as any ordinary cooking utensil. c. ONCE A WEEK clean griddle surface thoroughly. If necessary, use a grill stone or grill pad over the griddle surface. Rub with grain of the metal while still warm. A detergent may be used on the plate surface to help clean it, but care must be taken to be sure it is thoroughly removed. After removal of detergent, the surface of the plate should be covered with a thin lm of oil to prevent rusting. To remove discolorations, use a non-abrasive cleaner. Before re- using, the griddle must be reseasoned. Keep griddle drain tube to grease container clear at all times. CAUTION: This griddle plate is steel, but the surface is relatively soft and can be scored or dented by careless use of spatula. Be careful not to dent, scratch, or gouge the plate surface. This will cause food to stick in those areas. Also, note, since this is a steel griddle if a light coating of oil is not always present rust will develop on exposed and uncoated areas. Open Top Burners Cleaning of the open top burner is a simple procedure, and, if done at regular intervals, will prolong the life of the appliance and ensure good ame characteristics.

1. The most common problem with open burners is

spillage. Once the burner ports are partially plugged with food, the air-to-gas mixture is disturbed and results in an ine cient burner.

2. Wipe any spills as they occur.

3. Top grates and trays should be removed daily, washed,

rinsed and dried thoroughly.

4. Use a wire brush to clean the ports of the burners. Ignite

and check for clogged holes.

5. If any clogged holes are apparent, the burner should

be lifted out and brushed inside and out with a small Venturi brush. Each port on the burner itself should be cleaned with a properly sized wire or thumb drill. Wash with soap and hot water if grease is observed on the burners. Dry thoroughly.

6. When reinstalling the open top burner head be sure

the burner ports are lined up correctly to the pilot. On the cast burner head there is a raised-arrow indicator to ensure the burner is installed correctly.

RAISED ARROW INDICATOR

7. If an abnormal ame appears around the edges, it is

usually a sign of grease or dirt in the throat of the burner. Remove the burner venturi (main body that the burner heads sit on) to access the air shutter opening. Remove grease and dirt from the air shutter area carefully. Do not adjust the shutter setting. The air shutter allows the proper amount of air to mix with the ow of gas coming in from your valve/thermostat ori ce and should not be adjusted unless by a licensed gas tter technician. ABOUT STEP-UP HOT PLATE BURNERS: The step up cast burner housing is assembled at the factory with two locating pins to ensure that the housing can only be installed in the correct positions should they be removed for cleaning. One pin is located on the top of the housing to ensure the burner head is oriented correctly when installed so that the lighter nger is correctly pointing at the pilot ame. The second is located on the housing bottom and must t into the slot on the burner support, otherwise the burner will not be stable. Cast Iron Top Grates Cast iron top grate(s) can be cleaned with mild soap and warm water. For baked on material, a wire brush can be used. Dry thoroughly. Lightly coat with vegetable oil to help prevent rust from forming. MAINTENANCE & CLEANING Part # 4531237 Rev 2 (09/09/13)Page 15 MAINTENANCE & CLEANING Char-Broilers Establish a regular cleaning schedule. It is necessary to avoid obstruction between grates and to allow proper combustion and performance.

1. Broiling grates should be wiped daily while still warm,

using a heavy cloth or other grease absorbing material to remove grease and burnt food before they burn into the grid. Remove burnt materials, such as carbonized grease or food, with a sti wire brush. Do Not use Any Type Of Steel wool. Small particles may be left on the grid surface and get into food products. A common cleaning practice is to turn grates upside down to burn o the encrusted material. Do not do this with the radiant broilers! The ame from the burners is shielded by a cast iron radiant, which prevents ame from reaching the grates. It is likely that cooked-on matter will cook in even deeper rather than burn o .

2. Broiling grates should be washed thoroughly using a wire

brush and a hot, mild detergent or soap solution. Rinse with clear, warm water.

4. Immediately after drying, season the top grates lightly

with a non-toxic oil, (liquid vegetable oil or spray oil) RADIANT BROILERS: Remove the radiants and wire brush them clean; then wash in hot soapy water. A rule of thumb is that if the grates are becoming encrusted,so are the radiants. CERAMIC BRIQUETTE BROILERS: With the cooking grates removed, turn over all the briquettes and debris will burn o .

5. The front grease trough collects grease via downspout

that empties into the drip tray. Additional grease which drips past the radiants or ceramic briquettes is also collected in the same drip tray. The tray must be checked frequently during operation and drained as necessary. Spills should be wiped as they occur and at end of each day the drip tray should be emptied, washed in hot soapy water., and thoroughly dried before reinstalling. NOTE: Do not waste gas or abuse equipment by leaving valves at high temperature settings while not in use. Throughout all idling periods, set valves at low temperature setting to keep grids warm. Re-set valves as required for periods of heavy load. Turn valves to OFF at end of daily operation. When the broiler is running, never use objects such as sheet pans to cover the grates in order to hold in heat in an attempt to burn o grease or other debris. Stainless Steel For routine cleaning, wash with a hot water and detergent solution. Wash just a small area at a time or the water will evaporate leaving the chemicals behind causing streaking. Rinse the washed area with a clean sponge dipped in a sanitizing solution and wipe dry with a soft clean cloth before it can dry. Use a paste (of water and a mild scouring powder) if you have to, but never rub against the grain. All stainless steel has been polished in one direction. Rub with the polish lines to preserve the original nish. Then thoroughly rinse as before. To prevent ngerprints there are several stainless steel polishes on the market that leave an oily or waxy lm. Do not use on surfaces that will be in contact with food. Stainless steel may discolor if overheated. These stains can usually be removed by vigorous rubbing with a scouring powder paste. Use only stainless steel, wood or plastic tools if necessary to scrape o heavy deposits of grease and oil. Do not use ordinary steel scrapers or knives, as particles of the iron may become imbedded and rust. NEVER USE STEEL WOOL. Either a typical bleach solution or hot water can be used to sanitize stainless steel. Part # 4531237 Rev 2 (09/09/13)Heavy Duty Gas Counter Hot Plates, Griddles, & Char-Broilers Installation & Operation Manual Part # 4531237 Rev 2 (09/09/13)© 2010 Garland Commercial Ranges Limited
